OPERATIONAL DESCRIPTION OF THE 21st CENTURY INNOVATIVE PRODUCTS/HANYANG ELECTRONICS, Ltd. FRS-4000 “WALK & TALK” UHF TWO-WAY RADIO The FRS-4000 “WALK & TALK” is an FM modulated, UHF two-way radio that uses all fourteen frequencies allocated in the FCC part 95, Subpart B, the Family Radio Service (FRS). It is of the “F3E” modulation type that is the only one allowed for the Family Radio Service. These fundamental or carrier frequencies in MHz are: 1: 462.5625 * 8: 467.5625 * 2: 462.5875 9: 467.5875 3: 462.612510: 467.6125 4: 462.637511: 467.6375 5: 462.662512: 467.6625 6: 462.687513: 467.6875 7: 462.7125 *14: 467.7125 * The frequencies marked with an * are examined in detail in this report. They represent the highest and lowest frequencies of two bands. The FRS-4000 uses an integral antenna and has no casual user access for increasing its radiated power or modifying it basic functions. There is no enclosure shielding. The FRS-4000 is powered by 4.5 VDC, supplied by 3 “AAA” alkaline batteries. All measurements in this report used fresh batteries. The authorized bandwidth of the FRS-4000 “WALK & TALK” UHF TWO-WAY RADIO is 12 .5 kHz according to Part 95, section 95.6330. The FCC ID of the FRS-4000 is OVCFRS-4000.

OPERATIONAL DESCRIPTION OF THE 21st CENTURY INNOVATIVE PRODUCTS/HANYANG ELECTRONICS, Ltd. FRS-4000 “WALK & TALK” UHF TWO-WAY RADIO The FRS-4000 “WALK & TALK” is an FM modulated, UHF two-way radio that uses all fourteen frequencies allocated in the FCC part 95, Subpart B, the Family Radio Service (FRS). It is of the “F3E” modulation type that is the only one allowed for the Family Radio Service. These fundamental or carrier frequencies in MHz are: 1: 462.5625 * 8: 467.5625 * 2: 462.5875 9: 467.5875 3: 462.612510: 467.6125 4: 462.637511: 467.6375 5: 462.662512: 467.6625 6: 462.687513: 467.6875 7: 462.7125 *14: 467.7125 * The frequencies marked with an * are examined in detail in this report. They represent the highest and lowest frequencies of two bands. The FRS-4000 uses an integral antenna and has no casual user access for increasing its radiated power or modifying it basic functions. There is no enclosure shielding. The FRS-4000 is powered by 4.5 VDC, supplied by 3 “AAA” alkaline batteries. All measurements in this report used fresh batteries. The authorized bandwidth of the FRS-4000 “WALK & TALK” UHF TWO-WAY RADIO is 12 .5 kHz according to Part 95, section 95.6330. The FCC ID of the FRS-4000 is OVCFRS-4000. TUNE UP PROCEDURE FROM HANYANG: RX Adjustment: 1. Adjust Signal Generator to 462.5625 MHz at 1 mV. Adjust the FM modulation from 1 kHz to 1.75 kHz. Put this signal into the antenna jack. 2. Connect oscilloscope to number 2 of A>F> Detector at U108 and adjust 1FT101 to obtain maximum DC voltage. 3. Confirm RX sensitivity is below 119 dBm at 462.5625 MHz/12 dB SINAD (SQ OFF Mode). TX Adjust ment: 1. Begin adjustment at 462.5625 MHz for the TX test. 2. Confirm the RX power is no more than 500 mW. 3. Adjust VC101 for precise TX frequency 4. Input 1 kHz signal to MIC JACK terminal and then adjust the maximum frequency differential to 2.2 kHz GENERAL SPECIFICATION OF THE FRS-4000 -See the Instruction Manual exhibit.

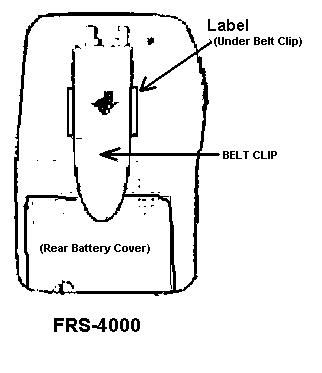

TYPE CERTFICATION ACCORDING TO FCC PART 2, SUBPART J, 1998 FCC PART 95, SUBPART B, 1998 FCC PART 15, SUBPART B, CLASS B, 1997 OF THE 21st CENTURY INNOVATIVE PRODUCTS/HANYANG ELECTRONICS, Ltd. FRS-4000 “WALK & TALK” UHF TWO-WAY RADIO PREPARED FOR 21st CENTURY INNOVATIVE PRODUCTS 905 ARMSTRONG STREET ALGONQUIN, ILLINOIS 60102 PREPARED BY GLOBAL CERTIFICATION LABORATORIES, LTD. 4 MATTHEWS DRIVE EAST HADDAM CT 06423 DATE RELEASED 5/4/00 FILE REF: HAN9901 Global Certification Laboratories, Ltd. 4 Matthews Drive East Haddam CT 06423 ! !! ! 860 873-1451 voice 860 873-1947 fax 21st CENTURY / HANYANG FRS-4000 FCC ID: OVCFRS-4000 5/4/00 FCC PARTS 2, 15 & 95 Page ii of iii SIGNATURE PAGE THIS REPORT WAS PREPARED BY: ________________________________ STEPHEN M. PETIX TESTING WAS PERFORMED BY: ________________________________ STEPHEN M. PETIX THIS REPORT WAS REVIEWED BY: ________________________________ JAMES COSTELLO Global Certification Laboratories, Ltd. 4 Matthews Drive East Haddam CT 06423 ! !! ! 860 873-1451 voice 860 873-1947 fax 21st CENTURY / HANYANG FRS-4000 FCC ID: OVCFRS-4000 5/4/00 FCC PARTS 2, 15 & 95 Page iii of iii TABLE OF CONTENTS Title Page..........................................................................................................................i Signature Page.................................................................................................................ii Table of Contents ...........................................................................................................iii Introduction .....................................................................................................................1 Product Identification ......................................................................................................2 Technical Description......................................................................................................3 Compliance Statement.....................................................................................................4 Test Instrumentation........................................................................................................5 Test Procedures, Unintentional Radiated Electric Field Emissions Test ........................6 Test Procedures, Effective Radiated Power & Intentional Emissions Test.....................7 Block Diagram, Radiated Electric Field Emissions Test Set-up....................................9 Test Data Explanation (Radiated) .................................................................................10 Radiated Electric Field Emissions Test Data Printout ..................................................11 Test Procedures, Modulation Characteristics................................................................20 Test Procedures, Occupied Bandwidth Measurements.................................................22 Test Procedures, Spurious Emissions & RF Power Measurements ..............................23 Test Procedures, Frequency Stability Measurements....................................................24 Test Procedures, Frequency Stability Measurement Results ........................................25 Radiation Exposure Limits for Mobile Devices............................................................28 Test Procedures, Transient Frequency Behavior...........................................................29 Test Summary................................................................................................................30 Due to their file size, the Plot & Photographic sections are in separate exhibits. Global Certification Laboratories, Ltd. 4 Matthews Drive East Haddam CT 06423 ! !! ! 860 873-1451 voice 860 873-1947 fax 21st CENTURY / HANYANG FRS-4000 FCC ID: OVCFRS-4000 5/4/00 FCC PARTS 2, 15 & 95 Page 1 of 30 INTRODUCTION This report describes the results of electromagnetic emissions testing for type certification on the: 21st CENTURY INNOVATIVE PRODUCTS/HANYANG ELECTRONICS, Ltd. FRS-4000 “WALK & TALK” UHF TWO-WAY RADIO, the Equipment U nder Test. The EUT was subjected to the following tests: FCC Part 15, Subpart B, Class B when it is in the receive mode, and FCC Part 95, Subpart B, and FCC Part 2 when it is transmitting. Because the EUT is powered by batteries and does not have a connection to recharge the batteries with AC power, only radiated emission phenomena were examined. Any radiated emissions produced when the FRS-4000 radio is in receive mode are to meet FCC Part 15, Class B requirements. Emissions that appear when the FRS-4000 is transmitting are to meet the requirements of Parts 2 and 95. The Parts 2 and 95 testing also includes measurements of effective radiated power, spurious e missions, occupied bandwidth, and frequency stability under temperature and power voltage variations and audio system characteristics. The FCC ID of the FRS-4000 “WALK & TALK” UHF TWO-WAY RADIO is OVCFRS-4000. The results reported in this document relate only to the unit(s) tested. All testing was performed at the facilities of Global Certification Laboratories, Ltd. East Haddam CT. All test equipment calibration is N.I.S.T. traceable. This report contains detailed descriptions of the test procedures, test data, and a written summary of the results. The report may not be reproduced, except in its entirety, without the permission of Global Certification Laboratories. This report contains 23 numbered pages, plus Title, Signature, and Table of Contents Pages. Global Certification Laboratories, Ltd. 4 Matthews Drive East Haddam CT 06423 ! !! ! 860 873-1451 voice 860 873-1947 fax 21st CENTURY / HANYANG FRS-4000 FCC ID: OVCFRS-4000 5/4/00 FCC PARTS 2, 15 & 95 Page 2 of 30 PRODUCT IDE NTIFICATION EQUIP MEN T UN DER TE ST (E UT) :21st CENTURY INNOVATIVE/PRODUCTS/HANYANG ELECTRONICS, Ltd. MODEL: FRS-4000 “WALK & TALK” UHF TWO-WAY RADIO SERIAL: NONE DEVIATIONS FROM SPECIFICATIONS: NONE EUT SUPPORT EQUIPMENT:NONE Global Certification Laboratories, Ltd. 4 M…

Text truncated - open the document above for the full version.

Global Certification Laboratories, Ltd. 4 Matthews Drive East Haddam CT 06423



860 873-1451 voice 860 873-1947 fax 21st CENTURY / HANYANG FRS-4000 File No: HAN9901 1/26/00 FCC PART 15 & 95 Page 1 of 4 21st CENTURY INNOVATIVE PRODUCTS/HANYANG ELECTRONICS, Ltd. FRS-4000 “WALK & TALK” UHF TWO-WAY RADIO CLOSE-UP OF EUT CLOSE-UP OF INTERIOR Global Certification Laboratories, Ltd. 4 Matthews Drive East Haddam CT 06423



860 873-1451 voice 860 873-1947 fax 21st CENTURY / HANYANG FRS-4000 File No: HAN9901 1/26/00 FCC PART 15 & 95 Page 2 of 4 DISASSEMBLED RADIATED ELECTRIC FIELD EMISSIONS TEST: MEASUREMENT IN THE 30 TO 300 MHz RANGE

Global Certification Laboratories, Ltd. 4 Matthews Drive East Haddam CT 06423



860 873-1451 voice 860 873-1947 fax 21st CENTURY / HANYANG FRS-4000 File No: HAN9901 1/26/00 FCC PART 15 & 95 RADIATED ELECTRIC FIELD EMISSIONS TEST: MEASUREMENT IN THE 300 TO 1000 MHz RANGE RADIATED ELECTRIC FIELD EMISSIONS TEST: MEASUREMENT IN THE 1 TO 8 GHz RANGE Page 3 of 4 Global Certification Laboratories, Ltd. 4 Matthews Drive East Haddam CT 06423



860 873-1451 voice 860 873-1947 fax 21st CENTURY / HANYANG FRS-4000 File No: HAN9901 1/26/00 FCC PART 15 & 95 RADIATED ELECTRIC FIELD EMISSIONSTEST: SUBSTITUTION MEASUREMENTS WITH DIPOLE ANTENNA Page 4 of 4

Global Certification Laboratories, Ltd. 4 Matthews Drive East Haddam CT 06423



860 873-1451 voice 860 873-1947 fax 21st CENTURY / HANYANG FRS-4000 File No: HAN9901 1/26/00 FCC PART 15 & 95 Page 1 of 6 21st CENTURY INNOVATIVE PRODUCTS/HANYANG ELECTRONICS, Ltd. FRS-4000 “WALK & TALK” UHF TWO-WAY RADIO OCCUPIED BANDWIDTH FOR 462.5625 MHz, CHANNEL ONE WORST CASE BANDWIDTH FOR 462.5625 MHz, CHANNEL ONE Global Certification Laboratories, Ltd. 4 Matthews Drive East Haddam CT 06423



860 873-1451 voice 860 873-1947 fax 21st CENTURY / HANYANG FRS-4000 File No: HAN9901 1/26/00 FCC PART 15 & 95 Page 2 of 6 OCCUPIED BANDWIDTH FOR 462.7125 MHz, CHANNEL SEVEN WORST CASE BANDWIDTH FOR 462.7125 MHz, CHANNEL SEVEN Global Certification Laboratories, Ltd. 4 Matthews Drive East Haddam CT 06423



860 873-1451 voice 860 873-1947 fax 21st CENTURY / HANYANG FRS-4000 File No: HAN9901 1/26/00 FCC PART 15 & 95 Page 3 of 6 OCCUPIED BANDWIDTH FOR 467.5625 MHz, CHANNEL EIGHT WORST CASE BANDWIDTH FOR 467.5625 MHz, CHANNEL EIGHT Global Certification Laboratories, Ltd. 4 Matthews Drive East Haddam CT 06423



860 873-1451 voice 860 873-1947 fax 21st CENTURY / HANYANG FRS-4000 File No: HAN9901 1/26/00 FCC PART 15 & 95 Page 4 of 6 OCCUPIED BANDWIDTH FOR 467.7125 MHz, CHANNEL FOURTEEN WORST CASE BANDWIDTH FOR 467.7125 MHz, CHANNEL FOURTEEN Global Certification Laboratories, Ltd. 4 Matthews Drive East Haddam CT 06423



860 873-1451 voice 860 873-1947 fax 21st CENTURY / HANYANG FRS-4000 File No: HAN9901 1/26/00 FCC PART 15 & 95 Page 5 of 6 FREQUENCY STABILITY OVER THE –10° C TO 50°C TEMPERATURE RANGE FOR 467.7125 MHz, CHANNEL FOURTEEN FREQUENCY STABILITY OVER THE 3.60 – 4.50vdc INPUT VOLTAGE RANGE FOR 467.7125 MHz, Global Certification Laboratories, Ltd. 4 Matthews Drive East Haddam CT 06423



860 873-1451 voice 860 873-1947 fax 21st CENTURY / HANYANG FRS-4000 File No: HAN9901 1/26/00 FCC PART 15 & 95 Page 6 of 6 RELATIVE LEVEL OF SPURIOUS EMISSIONS (0.1 – 1.8 GHz) RELATIVE LEVEL OF SPURIOUS EMISSIONS (1.7 – 4.1 GHz)
