OVMCRK-1081-01Card Reader

Intelli-M System Installation Guide Information contained in this document is the exclusive property of AXS Technologies Inc. All rights reserved. Intelli-M System Installation Guide 02-01-2000, Revision 2 CRK CRK Reader - Typical Connection 0000 000 000 Data 0 (Blue) Data 1 (Yellow) -12 VDC (Black) +12 VDC (Red) ELECTRICAL CHARACTERISTICS Input V oltage 12 VDC at reader Cur rent 50 mA READER CHARACTERISTICS Reading Range Up to 4 (in) using card or keytag Fr equency 13.56 MHz DIMENSIONS CRK Reader 2.75 W x 4.50 H x 0.38 D (in) Weight: 3.2 (oz) TEMPERATURE Operation -30 ̊ to 150 ̊ (F), -34 ̊ to 66 ̊ (C) Storage -40 ̊ to 150 ̊ (F), -40 ̊ to 66 ̊ (C) Humidity 0 to 95% relative (non-condensing) Access Key CR-80 Format Access Key Keytag Format IDC • Integrated Door Controller CRK Reader

FCC Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for Class B Digital Device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does not cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures.
Reorient or relocate the receiving antenna
Increase the separation between the equipment and receiver
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected
Consult the dealer or an experienced radio/TV technician for help Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

February 2, 2000 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, Maryland 21046 USA Dear Sir/Madam:Our File Ref. 9R05224 FCC ID: OVMCRK-1081-01 Applicant: AXS Technologies Inc. Equipment: CRK-1081-01 Card Reader FCC Confirmation no.: EA96679 We have successfully electronically filed all the required documentation for an application for certification in accordance with FCC Part 15, Subpart C on the above mentioned equipment, February 2, 2000. Enclosed, please find a cheque in the amount of $985.00 US, a copy of the FCC Grantee Registration Confirmation, a copy of FCC Remittance Form 159, a copy of the FCC Form 731 confirmation number and a copy of the list of exhibits. If you require additional information, please do not hesitate to contact me at 1-800-563-6336 (extension 232). Thank you in advance for your assistance in this matter. Sincerely, Ruby Dulmage Regulatory Submissions Clerk KTL Ottawa Encl.

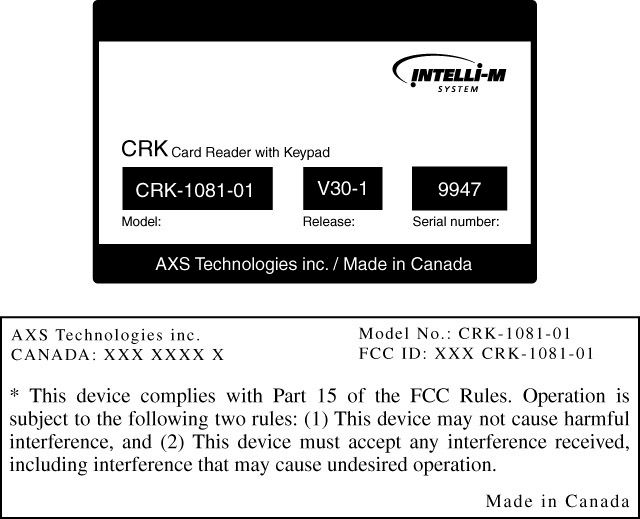

CRK Card Reader with Keypad * This device complies with Part 15 of the FCC Rules. Operation is subject to the following two rules: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. AXS Technologies Inc. Made in Canada CANADA: 35731021836 Model: FCC ID: Serial number: 9947-0.30 CRK-1081-01 LEX-80013-08 OVMCRK-1081-01

CRK Card Reader with Keypad * This device complies with Part 15 of the FCC Rules. Operation is subject to the following two rules: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. AXS Technologies Inc. Made in Canada CANADA: 35731021836 Model: FCC ID: Serial number: 9947-0.30 CRK-1081-01 LEX-80013-08 OVMCRK-1081-01

CRK Card Reader with Keypad * This device complies with Part 15 of the FCC Rules. Operation is subject to the following two rules: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. AXS Technologies Inc. Made in Canada CANADA: 35731021836 Model No.: Serial No.: 9947-0.30 CRK-1081-01 LEX-80013-08 FCC ID: OVMCRK-1081-01

CRK Card Reader with Keypad * This device complies with Part 15 of the FCC Rules. Operation is subject to the following two rules: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. AXS Technologies Inc. Made in Canada CANADA: 35731021836 Model No.: Serial No.: 9947-0.30 CRK-1081-01 LEX-80013-08 FCC ID: OVMCRK-1081-01

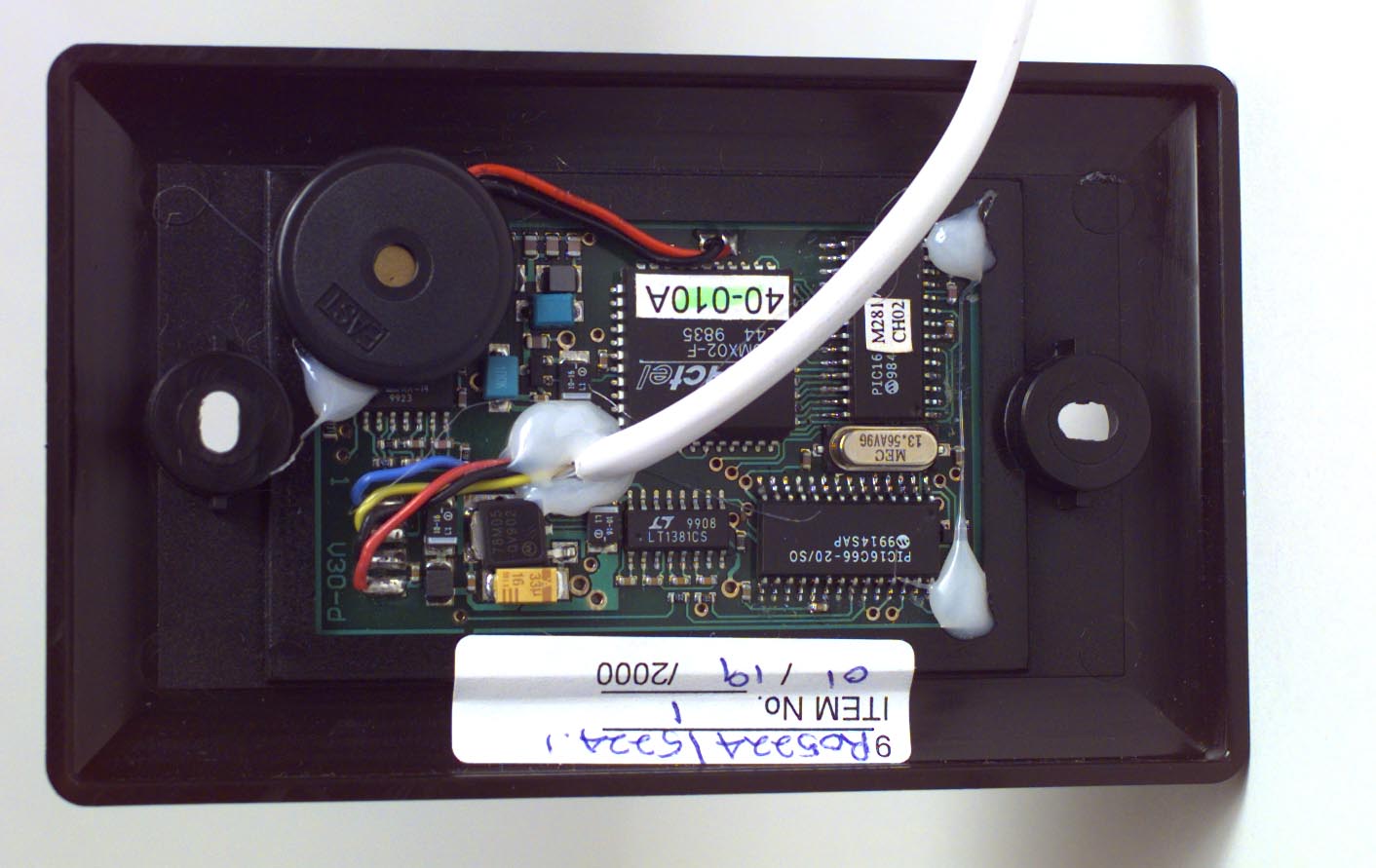

AXS Technologies inc. − −− − Recherche & développementPage 1 de 1 00/01/18c:\ready_to_convert\doc\84757.doc Tech Sheet R & D CRK-1081-01 (V30) Contactless Smart-Card Reader Technical Specifications Dimensions :H: 4.1/2””(11.5cm)W: 2.3/4”” (7cm)D: 3/8” (1cm) Keypad :12 button keypad optional. Feedback :Tri-color LED, Audio buzzer (piezo) alarm with beep on keypad touch. Range :Up to 1” reading and writing. Interface :RS-232C, 19,200 baud. RF frequency :13.56MHz. RF Range :Up to 1”” reading and writing. Power:12V DC, 13.4 V nominal , 250mA max. Connections :BLACKDC1- or DC2-(GND) RED DC1+ or DC2+(12V) BLUECR1- or CR2-(TX data) YELLOWCR1+ or CR2+(RX data) Wiring:25 feet (6m) 4 conductor 24 AWG solid or stranded unshielded cable; Type (QUAD) acceptable. Mounting: Standard 2” x 3” wall outlet electrical box mounting or direct wall attachment with 2 screws. Note: mounting over metal or condictive surfaces may adversely affect read range. Environment:Inside or outside use permitted from –30C to +50C, 5% to 95% rel. humidity. Avoid direct exposure to rain or snow or harsh environments. Not for use in damp locations. January 18, 2000

1 2 34 ABCD 4 3 2 1 D CBA Title Number Revision Size A4 Date: 18-Jan-2000 Sheet of File: A:\V30dpl.sch Drawn By: C1 220pF C2 220pF C3100pF 12Vdc GND RF C17 47pF + C1510uF/16v U0C AD8044AR-14 C8820pF C7 820pF R110k R210k R31k C9220pF C10 10pF C11220pF C12 10pF R4 10k R51k R6 10k U0B AD8044AR-14 2.5Vdc U0A AD8044AR-14 R71k R8 4k7 2.5Vdc R9 22k R1022k 2.5Vdc 5Vdc GND GND Demod 5Vdc C6 C1822pF RA0 2 RA1 3 RA2 4 RA3 5 RA4/TOCKI 6 RA5//SS 7 Vss 8 OSC1/CLKIN 9 OSC2/CLKOUT 10 RC0/T1OSO/T1CKI 11 RC1/T1OSI/CCP2 12 RC2/CCP1 13 RC3/SCK/SCL 14 RC4/SDI/SDA 15 RC5/SDO 16 RC6/TX/CK 17 RC7/RX/DT 18 Vss 19 Vdd 20 RB0/INT 21 RB1 22 RB2 23 RB3 24 RB4 25 RB5 26 RB6 27 RB7 28 /MCLR/Vpp 1 U2PIC16C66-20SO 1213 14 4 11 U0D AD8044AR-14 5Vdc Gnd 2.5Vdc + C19 10uF/16v C21 100nFC22 100nFC20 100nF C23 100nF Gnd Tx Rx Gnd 5Vdc C24100nF RxnTxn + 3 Reset 2 - 1 U5 MAX 809 LEUR Run IO 1 IO 2 VCC 3 IO 4 IO 5 IO 6 IO 7 IO 8 IO 9 GND 10 IO 11 IO 12 IO 13 VCC 14 IO 15 VPP 16 IO 17 IO 18 IO 19 /CS 20 GND 21 2RW/1RW 22 USABLE 23 AD7 24 VCC 25 AD6 26 AD5 27 AD3 28 AD4 29 AD2 30 AD1 31 GND 32 AD0 33 MODE 34 VCC 35 /RD 36 ALE 37 NIRQ 38 /WR 39 IO 40 IO 41 IO 42 GND 43 IO 44 U4A40MX02-F PL44 Reader run 5Vdc Txn Rxn C33 22pF C37 22pF Gnd Gnd Demod RF 5Vdc Reader run RA0 2 RA1 3 RA2 4 RA3 5 RA4/T0CKI 6 RA5//SS 7 OSC2/CLKOUT 10 Vss 8 Vdd 20 RB0/INT 21 RB1 22 RB2 23 RB3 24 RB4 25 RB5 26 RB6 27 RB7 28 /MCLR/Vpp 1 OSC1/CLKIN 9 RC6/TX/CK 17 RC0/T1OSO/T1CKI 11 RC1/T1OSI/CCP2 12 RC2/CCP1 13 RC3/SCK/SCL 14 RC4/SDI/SDA 15 RC5/SCO 16 RC7/RX/DT 18 Vss 19 U6PIC16C66-20SO run Txn Rxn Gnd Gnd 5Vdc Gnd Clk Clk C25100nF C26100nF C27100nF C28100nF C36100nF C35100nF C34100nF 5Vdc Gnd Gnd Gnd C544-20pF C1+ 1 V+ 2 C1- 3 C2+ 4 C2- 5 V- 6 T2OUT 7 R2IN 8 GND 15 R2OUT 9 T2IN 10 T1IN 11 R1OUT 12 VCC 16 R1IN 13 T1OUT 14 U3LT1381CS T0BSS123 R1122k Q0 13.56MHz 2.5Vdc C5210pF S1 S2 S3 S4 S5 S6 S7 S8 S9 S10 S11 S12 R12 1k R13 1k R14 1k Gnd R16 330 R171k2 C410pF 5Vdc Reader sleepReader sleep C547pF R18 330 12Vdc C32 100nF C30100nF C31100nF Power LD1A LSG T770-JL LD1B BZ1 77PR23100-LA GND + C2933uF/16v C14 47pF L2 0.82uH L3 0.82uH L1 2.2uH L510.0uH L40.82uH D0ABAV 70D0BBAV 70 In 1 Gnd 3 Out 2 U1L78M05CDT + C3810uF/16v Reader CRK????

AXS Technologies inc. − −− − Recherche & développementPage 1 de 1 00/01/18c:\ready_to_convert\doc\84757.doc Tech Sheet R & D CRK-1081-01 (V30) Contactless Smart-Card Reader Technical Specifications Dimensions :H: 4.1/2””(11.5cm)W: 2.3/4”” (7cm)D: 3/8” (1cm) Keypad :12 button keypad optional. Feedback :Tri-color LED, Audio buzzer (piezo) alarm with beep on keypad touch. Range :Up to 1” reading and writing. Interface :RS-232C, 19,200 baud. RF frequency :13.56MHz. RF Range :Up to 1”” reading and writing. Power:12V DC, 13.4 V nominal , 250mA max. Connections :BLACKDC1- or DC2-(GND) RED DC1+ or DC2+(12V) BLUECR1- or CR2-(TX data) YELLOWCR1+ or CR2+(RX data) Wiring:25 feet (6m) 4 conductor 24 AWG solid or stranded unshielded cable; Type (QUAD) acceptable. Mounting: Standard 2” x 3” wall outlet electrical box mounting or direct wall attachment with 2 screws. Note: mounting over metal or condictive surfaces may adversely affect read range. Environment:Inside or outside use permitted from –30C to +50C, 5% to 95% rel. humidity. Avoid direct exposure to rain or snow or harsh environments. Not for use in damp locations. January 18, 2000
