OXP-658MURS Band RF Transceiver for Maintance Control

October 23, 2006 Federal Communications Commission, EQUIPMENT APPROVAL SERVICES, P. O. Box 358315 Pittsburgh, PA 15251-5315 ATTN: Authorization & Evaluation Division PER: 47 CFR 0.457 and 0.459 RE: SRS-RV-M5-VB Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission's Rules, the Applicant hereby requests confidential treatment of some of the information accompanying this Application as listed below, i.e. Schematics, Block Diagrams, Alignment/Tune Up Procedures, Theory of Operation, Internal Photos, Parts List, and User Manual. These materials contain trade secrets and proprietary information not customarily released to the public and the public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii) disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this Application. Sincerely, Raveon Technologies Corporation John Sonnenberg CEO 2722 Loker Avenue West Suite D Carlsbad, CA 92010 Ph:1-760-931-8001 Fax:1-760-931-8004

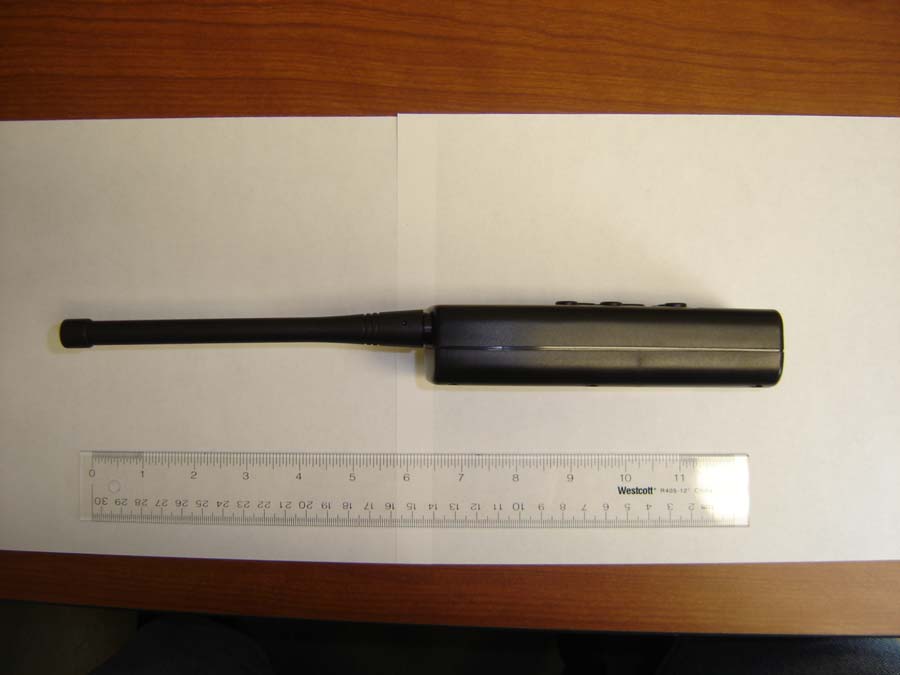

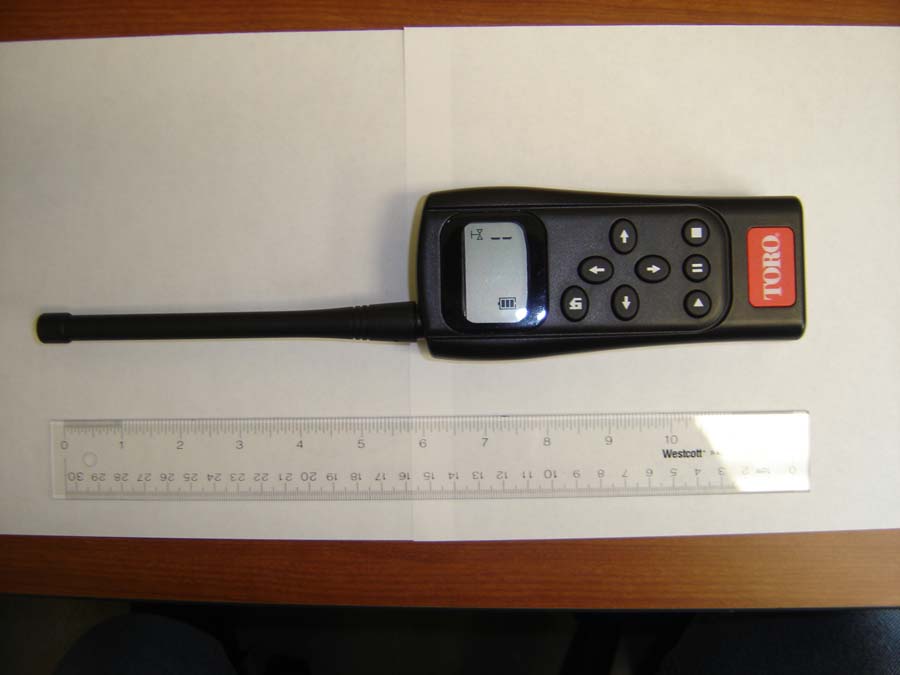

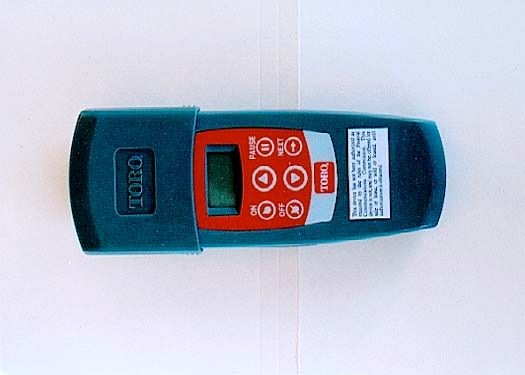

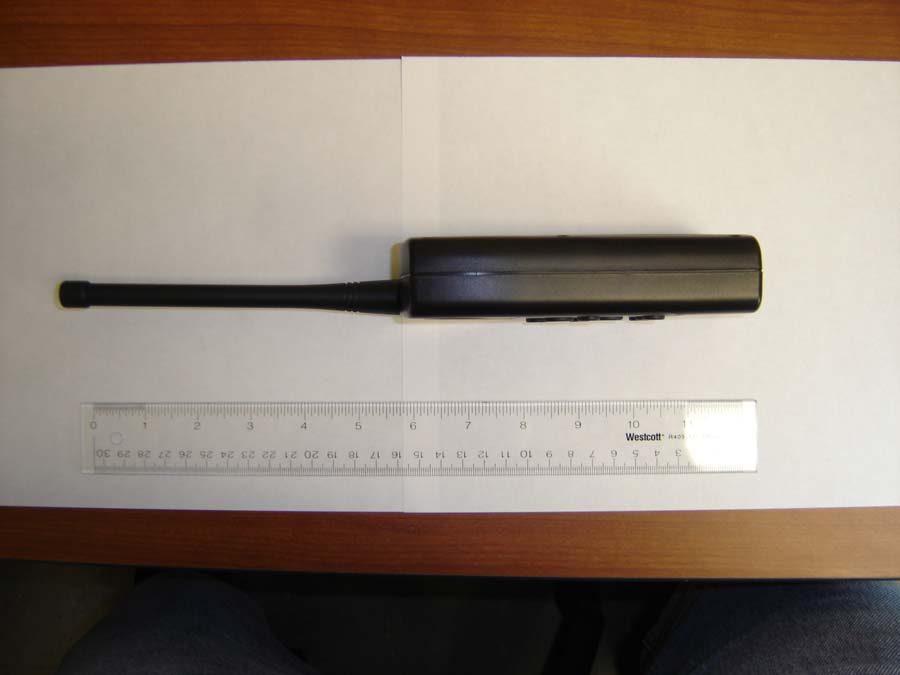

External Photos

Size: 25mm X 38mm Color: White background, black lettering Font: Arial Narrow Hand-Held Remote Labels: TMR-1-TX (9H658-1) CMR-TX (9H658-2) Receiver Labels: TMR-1-RX (9H658-3) CMR-RX (9H658-1) Model: TMR-1-TX Maintenance Remote The Toro Company FCC ID: OXP–658 This device complies with Parts 15 and 95 of the FCC rules. Made In China Model: CMR-TX Maintenance Remote The Toro Company FCC ID: OXP–658 This device complies with Parts 15 and 95 of the FCC rules. Made In China Model: TMR-1-RX Maintenance Receiver The Toro Company This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Made In China Model: CMR-RX Maintenance Receiver The Toro Company This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Made In China Subject: Toro Product Labels Doc Number: 9H658-1, 2, 3, and 4 Date written: 4-24-2006 Last Revised on: NA Revision: A3 Written by: John Sonnenberg Approved by: JS Revision Log: July 20, 2006 Added serial numbers, Rev A2 August 14, 2006 Mode FCC-IDs the same 62000 SN:62000 62000 SN:62000 62000 SN:62000 62000 SN:62000

Flom Test Labs 3356 N. San Marcos Place, Suite 107 Chandler, Arizona 85225-7176 (866) 311-3268 phone, (480) 926-3598 fax MFA p0680021, d0690013 Date: September 29, 2006 Federal Communications Commission Via: Electronic Filing Attention: Authorization & Evaluation Division Applicant: The Toro Company 5825 Jasmine Street Riverside, CA 92504 Equipment: TMR-1-TX, CMR-TX FCC ID: OXP FCC Rules: Radiofrequency Radiation Exposure Limits 47 CFR 1.1310 MPE - Mobiles X Fixed Based Station Gentlemen: On behalf of the Applicant, enclosed please find the Supplemental Test Data Report, the whole for Environmental Assessment (MPE) of the referenced equipment as shown. We trust the same is in order. Should you need any further information, kindly contact the writer who is authorized to act as agent. Sincerely yours, Hoosamuddin S. Bandukwala, Lab Director Flom Test Labs 3356 N. San Marcos Place, Suite 107 Chandler, Arizona 85225-7176 (866) 311-3268 phone, (480) 926-3598 fax MFA p0680021, d0690013 Environmental Assessment for Mobiles/Fixed Base Station for FCC ID: Model:TMR-1-TX, CMR-TX to Federal Communications Commission 47 CFR 1.1310 (MPE) Radiofrequency Radiation Exposure Limits Date Of Report: September 29, 2006 On the Behalf of the Applicant: The Toro Company At the Request of: P.O. The Toro Company 5825 Jasmine Street Riverside, CA 92504 Attention of: Nick Nguyen (909)785-3629 email: [email protected] Supervised By: Hoosamuddin S. Bandukwala, Lab Director Flom Test Labs 3356 North San Marcos Place, Suite 107 Chandler, Arizona 85225-7176 (866) 311-3268 phone, (480) 926-3598 fax MFA p0680021,d0690013 Table of Contents Rule Description Page . Test Report 1 . Identification of the Equipment Under Test 2 . Standard Test Conditions and Engineering Practices 5 Flom Test Labs 3356 North San Marcos Place, Suite 107 Page 1 of 4 Chandler, Arizona 85225-7176 (866) 311-3268 phone, (480) 926-3598 fax MFA p0680021,d0690013 Required information per ISO/IEC Guide 25-1990, paragraph 13.2: a) Test Report (Supplemental) b) Laboratory: (FCC: 31040/SIT) (Canada: IC 2044) M. Flom Associates, Inc. 3356 N. San Marcos Place, Suite 107 Chandler, AZ 85225 c) Report Number: d0690013 d) Client: The Toro Company 5825 Jasmine Street Riverside, CA 92504 e) Identification: TMR-1-TX, CMR-TX Description: Wireless Maintenance Remote Control f) EUT Condition: Not required unless specified in individual tests. g) Report Date: September 29, 2006 EUT Received: h, j, k): As indicated in individual tests. i) Sampling method: No sampling procedure used. l) Uncertainty: In accordance with MFA internal quality manual. m) Supervised by: Hoosamuddin S. Bandukwala, Lab Director n) Results: The results presented in this report relate only to the item tested. o) Reproduction: This report must not be reproduced, except in full, without written permission from this laboratory. Flom Test Labs 3356 North San Marcos Place, Suite 107 Page 2 of 4 Chandler, Arizona 85225-7176 (866) 311-3268 phone, (480) 926-3598 fax MFA p0680021,d0690013 Identification of the Equipment Under Test (EUT) Name and Address of Applicant: The Toro Company 5825 Jasmine Street Riverside, CA 92504 Manufacturer: The Toro Company FCC ID: OXP Model Number: TMR-1-TX, CMR-TX Description: Wireless Maintenance Remote Control Type of Emission: 11K0F1D Frequency Range, MHz: 154.600 151.820 Power Rating, Watts: 0.5 to 0.5 Switchable Variable x N/A Modulation: AMPS TDMA CDMA X OTHER Antenna: Helical Monopole X Whip Other Note: For RF Safety test antenna gain taken at the upper range of expected gain (i.e. 0 dBd) and RF Power set to highest nominal power across all channels. Flom Test Labs 3356 North San Marcos Place, Suite 107 Page 3 of 4 Chandler, Arizona 85225-7176 (866) 311-3268 phone, (480) 926-3598 fax MFA p0680021,d0690013 Standard Test Conditions and Engineering Practices Except as noted herein, the following conditions and procedures were observed during the testing: In accordance with ANSI C63.4-2003 Draft, section 6.1.9, and unless otherwise indicated in the specific measurement results, the ambient temperature of the actual EUT was maintained within the range of 10° to 40°C (50° to 104 °F) unless the particular equipment requirements specify testing over a different temperature range. Also, unless otherwise indicated, the humidity levels were in the range of 10% to 90% relative humidity. Prior to testing, the EUT was tuned up in accordance with the manufacturer's alignment procedures. All external gain controls were maintained at the position of maximum and/or optimum gain throughout the testing. Measurement results, unless otherwise noted, are worst-case measurements. A2LA “A2LA has accredited M. Flom Associates, Inc. Chandler, AZ for technical competence in the field of Electrical Testing. The accreditation covers the specific tests and types of tests listed on the agreed scope of accreditation. This laboratory meets the requirements of ISO/IEC 17025 – 1999 ‘General Requirements for the Competence of Testing and Calibration Laboratories’ and any additional program requirements in the identified field of testing.” Certificate Number: 2152-01 Flom Test Labs 3356 North San Marcos Place, Suite 107 Page 4 of 4 Chandler, Arizona 85225-7176 (866) 311-3268 phone, (480) 926-3598 fax MFA p0680021,d0690013 A2LA “A2LA has accredited M. Flom Associates, Inc. Chandler, AZ for technical competence in the field of Electrical Testing. The accreditation covers the specific tests and types of tests listed on the agreed scope of accreditation. This laboratory meets the requirements of ISO/IEC 17025 – 1999 ‘General Requirements for the Competence of Testing and Calibration Laboratories’ and any additional program requirements in the identified field of testing.” Certificate Number: 2152-01 Flom Test Labs 3356 North San Marcos Place, Suite 107 Page 5 of 4 Chandler, Arizona 85225-7176 (866) 311-3268 phone, (480) 926-3598 fax MFA p0680021,d0690013 Name of Test: R.F. Radiation Exposure / MPE Calculati…

Text truncated - open the document above for the full version.

Flom Test Labs 3356 N. San Marcos Place, Suite 107 Chandler, Arizona 85225-7176 (866) 311-3268 phone, (480) 926-3598 fax MFA p0680021, d069000890008 Date: September 25, 2006 Federal Communications Commission Via: Electronic Filing Attention: Authorization & Evaluation Division Applicant: The Toro Company 5825 Jasmine Street Riverside, CA 92504 Equipment: TMR-1-TX , CMR-TX FCC ID: OXP FCC Rules: 95J (MURS) Gentlemen: On behalf of the Applicant, enclosed please find Application Form 731, Engineering Test Report and all pertinent documentation, the whole for approval of the referenced equipment as shown. Filing fees are attached. We trust the same is in order. Should you need any further information, kindly contact the writer who is authorized to act as agent. enclosure(s) cc: Applicant HSB/mw Sincerely yours, Hoosamuddin S. Bandukwala, Lab Director Flom Test Labs 3356 N. San Marcos Place, Suite 107 Chandler, Arizona 85225-7176 (866) 311-3268 phone, (480) 926-3598 fax MFA p0680021, d069000890008 Date: September 25, 2006 Federal Communications Commission Via: Electronic Filing Attention: Authorization & Evaluation Division Applicant: The Toro Company 5825 Jasmine Street Riverside, CA 92504 Equipment: TMR-1-TX , CMR-TX FCC ID: OXP FCC Rules: 95J (MURS) Gentlemen: On behalf of the Applicant, enclosed please find Application Form 731, Engineering Test Report and all pertinent documentation, the whole for approval of the referenced equipment as shown i.e.: a) Application Form b) Test Report (if applicable) c) Filing Fees d) Copy of Original Grant e) Expository Statement and/or letter by Applicant f) Photos (if applicable) g) Label Drawing (if changes have been made) We trust the same is in order. Should you need any further information, kindly contact the writer who is authorized to act as agent. Sincerely yours, Hoosamuddin S. Bandukwala, Lab Director enclosure(s) cc: Applicant HSB/mw Flom Test Labs 3356 N. San Marcos Place, Suite 107 Chandler, Arizona 85225-7176 (866) 311-3268 phone, (480) 926-3598 fax MFA p0680021, d069000890008 Transmitter Certification of Model: TMR-1-TX , CMR-TX to Federal Communications Commission Rule Part(s) 95 Date of report: September 25, 2006 On the Behalf of the Applicant: The Toro Company At the Request of: P.O. The Toro Company 5825 Jasmine Street Riverside, CA 92504 Attention of: Nick Nguyen (909)785-3629 email: [email protected] Supervised by: Hoosamuddin S. Bandukwala, Lab Director Flom Test Labs 3356 N. San Marcos Place, Suite 107 Chandler, Arizona 85225-7176 (866) 311-3268 phone, (480) 926-3598 fax MFA p0680021, d069000890008 List of Exhibits (FCC Certification (Transmitters) - Revised 9/28/98) Applicant: The Toro Company 5825 Jasmine Street Riverside, CA 92504 FCC ID: OXP By Applicant: 1. Letter of Authorization 2. Confidentiality Request: 0.457 And 0.459 3. Part 90.203(e) & (g) Attestation 4. Identification Drawings, 2.1033(c)(11) Label Location of Label Compliance Statement Location of Compliance Statement 5. Photographs, 2.1033(c)(12) 6. Documentation: 2.1033(c) (3) User Manual (9) Tune Up Info (10) Schematic Diagram (10) Circuit Description Block Diagram Parts List Active Devices 7. MPE/SAR Report By M.F.A. Inc.: Flom Test Labs 3356 N. San Marcos Place, Suite 107 Chandler, Arizona 85225-7176 (866) 311-3268 phone, (480) 926-3598 fax MFA p0680021, d069000890008 A. Testimonial & Statement of Certification The Applicant has been cautioned as to the following: 15.21 Information to the User. The users manual or instruction manual for an intentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 15.27(a) Special Accessories. Equipment marketed to a consumer must be capable of complying with the necessary regulations in the configuration in which the equipment is marketed. Where special accessories, such as shielded cables and/or special connectors are required to enable an unintentional or intentional radiator to comply with the emission limits in this part, the equipment must be marketed with, i.e. shipped and sold with, those special accessories. However, in lieu of shipping or packaging the special accessories with the unintentional or intentional radiator, the responsible party may employ other methods of ensuring that the special accessories are provided to the consumer, without additional charge. Information detailing any alternative method used to supply the special accessories for a grant of equipment authorization or retained in the verification records, as appropriate. The party responsible for the equipment, as detailed in § 2.909 of this chapter, shall ensure that these special accessories are provided with the equipment. The instruction manual for such devices shall include appropriate instructions on the first page of text concerned with the installation of the device that these special accessories must be used with the device. It is the responsibility of the user to use the needed special accessories supplied with the equipment. Flom Test Labs 3356 N. San Marcos Place, Suite 107 Chandler, Arizona 85225-7176 (866) 311-3268 phone, (480) 926-3598 fax MFA p0680021, d069000890008 Table of Contents Rule Description Page 2.1033(c)(14) Rule Summary 2 . Standard Test Conditions and Engineering Practices 3 . Expository Statement for Permissive Changes 4 2.1033(c) General Information Required 4 2.1046(a) Carrier Output Power (Conducted) 6 2.1046(a) ERP Carrier Power (Radiated) 8 2.1046(a) RF Power Output (Radiated) 9 2.1051 Unwanted Emissions (Transmitter Conducted) 10 2.1053(a) Field Strength of Spurious Radiation 12 2.1049(c)(1) Emission Masks (Occupied Bandwidth) 17 2.1055(a)(1) Frequency Stability (Temperature Variation) 20 2.1055(b)(1) Frequency Stability (Voltage Variation) 23 2.202(g) Necessary Bandwidth and Emission Bandwidth 23 Flom Test Labs 3356 North San Marcos Place, Suite 107 Page 1 of 24 Chandler, Arizona …
