OXQ70020-001Golf Master Watch

HERCULES Golf Master Operating Instructions Société Horlogère Reconvilier AG located in Zug Société Horlogère Reconvilier AG located in Zug Ober Altstadt 6 CH-6300 ZUG Switzerland Tel. +41-41-7202125 Fax +41-41-7202126 [email protected] www.reconvilier.com Status: July 2012 – Subject to modifications and amendments 1 Overview of all product elements you have received with the purchase of this watch: – Reconvilier HERCULES Golf Master watch – «Caddie» (small GPS-Receiver from Trilogis Sàrl) – USB-connection cable to the PC – Tools to adjust rubber band and to adjust the watch – Reconvilier warranty card with Username and Password (to be able to download golf course data, the Course Manager user software and the «Caddie»-Sync software as well as the necessary user manuals from the Reconvilier website) Please do not forget to charge your «Caddie» using the enclosed USB-connection cable via your PC (initial charge approx. 6 – 7 hrs) 2 Dear Reconvilier Customer, Congratulations to your new Reconvilier HERCULES Golf Master! The Reconvilier HERCULES Golf Master represents a masterpiece of state-of-the-art Swiss timekeeping combined with most modern GPS-technology. A product, which gets every golf enthusiast excited. Fascination of this watch is more than just precise time keeping. It is the fascination in realizing creative ideas, a concert of fantasy and precision. The enthusiasm for handcrafted masterpieces up to the smallest detail, not easy to recognize, but surprising in its function. Please read this manual very carefully to ensure perfect opera- tion of this watch. In case of any questions please access www.reconvilier.com We welcome you in the small circle of people, who ask more from their watch than mere accuracy! 3 CONTENTS Technical Features Analog Application «Rotar»-Mechanism Digital Application Functionality 1. Status without Synchronization 2. Stand-by-Mode 3. Time-Mode 4. Synchronization-Mode 5. Golf-Mode 6. Setting-Mode Useful Tips Critical Information 4 Technical Features Your HERCULES Golf Master shows you the time in hours, minutes and seconds as well as the date on its analog dial. By using the «Rotar»-Mechanism you will get to the digital dial, a LCD-display on the flip side of the watch. There you can get not only the exact digital time but also the exact distance between the location of the golf player and the front or center of the green in meter or yards (switchable) for each hole of a previously stored golf course. Watch housing and buckle is made of titanium. The strap is made of high quality leather or rubber. The watch is water-resistant up to 50 meters and protected on both sides by a strong and un- scratchable sapphire-glass. The watch is espacially shock-resistant (special «shock-absorber»), to better meet the extreme challenges on the golf course. To ensure long lasting endurance and reliability of performance, you have to read and apply this user manual very carefully! 5 Analog Application The HERCULES Golf Master with its details: 1 Hour hand 2 Minute hand 3 Seconds hand 4 Date indicator 5 Large crown (bayonet crown) to unlock the «Rotar» mechanism (opening and turning of the inner case) 6 Covered Crown: x normal (inside)/winding position a Date fast forward b Time adjustment 1 3 2 5 4 6 x, a, b 6 Winding and adjustment of the watch: Turn left the large crown (bayonet crown) a quarter of a turn, open the case and press the inner case, allowing the watch to slide out. Now you can see the inner crown. To adjust the time, pull the arrow to the second «b» Position. This position will stop the watch and the seconds. Now you can adjust the watch precisely by the second. Afterwards push the crown back in its original position. In case the Golf Master has not been used for some time, it should be wound by hand. To do so you must right turn the inner crown (still inside, no pull, position «x») about 20 times to reach an initial full winding. The watch fully wound has a power reserve of about 44 hours. Adjustment of the date: Pull the inner crown only once to position «a». Now you can adjust the date (fast forward) turning the crown to the right. Important: Never adjust the date between 10.00 and 02.00 hours because the automatic date mechanism is working during these hour settings. After the adjustment push the crown back in the original position «x». 7 Reading the watch in the dark: The dial as well as the hour hand and minute hand of your watch have been manufactured with light elements. These assure even in complete darkness excellent readability of the time. 8 The «Rotar»-mechanism The «Rotar-mechanism» developed by Reconvilier enables the usage of a precise Swiss analog watch movement combined with a modern digital technology to measure distances on golf courses. Day-to-day and for example at evening events, after the golf game, the luxurious, analog dial is on top. 9 Digital Application When the Golf Master is applied for distance measurement on the golf course, the digital dial must be turned to the front; the following steps have to be taken: 1. Step: Turn the large crown (bayonet crown) by a quarter of a turn to the left to unlock and open the case 2. Step: Turn the inner case by 180 degrees and close it again (the case will «click-in». 3.Step: Turn the large crown (bayonet crown) now a quarter of a turn to the right and lock it. Important: The red mark/line must be visible on top before you turn the crown. Now the watch is ready to be used as a distance measuring device on the golf course. 10 1 2 3 4 The Reconvilier Golf Master and its «Caddie» on the golf course: accessible 1 LCD-display 2 Cursor to show the number of the hole 3 Distance display/time display 4 LCD-control-button in the crown «Caddie»: GPS/RF-converter with four controls (GPS, Watch, Course, Battery) and connection for USB/PC. Important: Before you use the watch for the first dime down- load and read your user manual for the «Caddie» from the Re- convilier website! 11 Functionality The f…

Text truncated - open the document above for the full version.

Trilogis S.à.r.l Epancheurs 34b 2012 Auvernier Switzerland www.trilogis.ch [email protected] Phone : +41 32 753 71 75 Mobile : +41 76 570 71 75 fax : +41 32 730 61 51 CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 November 8 th 2012 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name OXQ70020-001 Reconvilier Hercules Golf Master Watch For the product stated above, we request permanent confidentiality for exhibits which contain : –Operational Description –Block Diagram –Schematics –Parts Lists The above exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Gilles Beljakovic Trilogis Sàrl

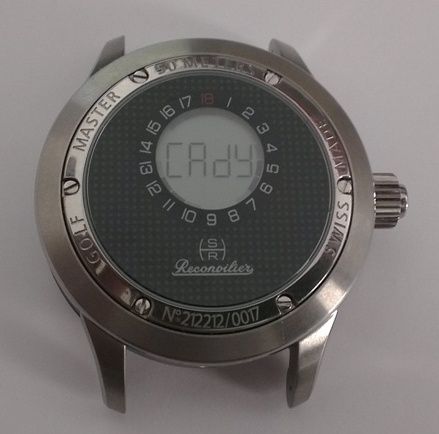

Trilogis S.à.r.l Epancheurs 34b 2012 Auvernier Switzerland www.trilogis.ch [email protected] Phone : +41 32 753 71 75 Mobile : +41 76 570 71 75 fax : +41 32 730 61 51 External Photos Watch

Trilogis S.à.r.l Epancheurs 34b 2012 Auvernier Switzerland www.trilogis.ch [email protected] Phone : +41 32 753 71 75 Mobile : +41 76 570 71 75 fax : +41 32 730 61 51 Label : The FCC ID will be engraved on the watch cylinder. The FCC ID is the following : FCC ID : OXQ70020-001 Position of Labels

Trilogis S.à.r.l Epancheurs 34b 2012 Auvernier Switzerland www.trilogis.ch [email protected] Phone : +41 32 753 71 75 Mobile : +41 76 570 71 75 fax : +41 32 730 61 51 Internal Photos Watch circuit :bottomtop

montena emc sa route de Montena 75 1728 Rossens Switzerland phone +41 26 411 93 33 fax +41 26 411 93 30 www.montena.com [email protected] montena emc sa Technopark Blumenegg Blumeneggstrasse 50 9403 Goldach Switzerland phone +41 71 278 41 92 fax +41 71 278 41 93 montena emc sa Ringstrasse 10 5432 Neuenhof Switzerland phone +41 56 290 30 35 fax +41 56 290 38 33 montena emc sa Postfach 1315 3072 Ostermundigen Switzerland phone +41 79 256 21 55 1 / 22 Test laboratory accredited according to ISO 17025 by the Swiss Accreditation Service SAS Laboratoire d'essai accrédité selon ISO 17025 par le Service d’accréditation suisse SAS Prüflabor akkreditiert nach ISO 17025 durch die Schweizerische Akkreditierungsstelle SAS Registration number Numéro d'accréditation Akkreditierungsnummer STS 024 Schweizerischer Prüfstellendienst Service suisse d'essai Swiss testing service Report: Electromagnetic compatibility and Radio spectrum Matters Report no: 17'011 Product name: Reconvilier HERCULES Golf Master - Watch Mandate no: 20119921 Serial no: 0017 Model number: 212212 Trilogis Sarl Customer: Epancheurs 34b 2012 Auvernier Switzerland Date of test: July 13, 17 and 31, 2012 Standards Result 47 CFR, Part 15 (Subpart C, Intentional radiator: §§ 15.209/249) Pass Test performed by Report prepared by Report controlled and approved by M.M. C.A. Baumgartner and E. de Raemy M.M. C.A. Baumgartner and E. de Raemy Mr C. Perrenoud Rossens, November 8 th , 2012 (Issue Date / Date d'édition / Ausstelldatum) V2012March09 Main language / Langue principale / Hauptsprache : english / français / deutsch The present document results from tests on a specimen and does not prejudge to the conformity of all the manufactured products. - Le présent document résulte d'essais sur un spécimen. Il ne préjuge pas de la conformité de l'ensemble des produits fabriqués à l'objet essayé. - Dieser Bericht beinhaltet die Prüfergebnisse des geprüften Gerätes und macht keine Aussage über die Konformität weiterer gleicher Geräte. q:\mandats\2011\20119921_trilogis\rap_trilogis_17011_fcc_watch.doc Page / Seite 2 / 22 No. / Nr. : 17'011 (20119921) montena emc sa CH-1728 Rossens - Switzerland / phone +41 26 411 93 33 / fax +41 26 411 93 30 / www.montena-emc.com / [email protected] Contents Page 1. SUMMARY OF TEST RESULTS.......................................................................................................... 3 2. APPLIED STANDARDS..................................................................................................................... 3 3. ABBREVIATIONS............................................................................................................................. 3 4. CLIENT.......................................................................................................................................... 4 5. EQUIPMENT UNDER TEST............................................................................................................... 4 5.1 Identification...................................................................................................................... 4 5.2 Pictures of the EUT........................................................................................................... 5 5.3 Classification..................................................................................................................... 5 5.4 Ports.................................................................................................................................. 5 6. TEST CONDITIONS.......................................................................................................................... 5 6.1 Climatic conditions, location and date .............................................................................. 5 6.2 Test facility and methodology / Lieu d’essai et méthodologie / Prüfort und Methodik...... 6 6.3 Attendant persons............................................................................................................. 6 6.4 Test configuration ............................................................................................................. 6 6.5 Operating conditions ......................................................................................................... 6 6.6 Auxiliary equipment........................................................................................................... 6 7. EMISSION TESTS............................................................................................................................ 7 7.1 Radiated emission - Electromagnetic field (radiated – 30 MHz to 1 GHz) ....................... 8 7.2 Radiated emission - Electromagnetic field (radiated – 1 GHz to 10 GHz) ..................... 13 7.3 Carrier - Radiated emission ............................................................................................ 18 7.4 Designation of emission.................................................................................................. 21 No. / Nr. : 17'011 (20119921) Page / Seite 3 / 22 montena emc sa CH-1728 Rossens - Switzerland / phone +41 26 411 93 33 / fax +41 26 411 93 30 / www.montena-emc.com / [email protected] 1. Summary of test results



Pass    Fail ∅ ∅∅ ∅ Not applicable to this product    Not tested No requirements § Test Type Result 7 Emission CFR 47 Part 15, Subpart C - Conducted emission CFR 47 § 15.207 ∅ ∅∅ ∅ 1) 7.1 7.2 Radiated emission – EM-field CFR 47 § 15.209



7.3 Radiated emission – Carrier CFR 47 § 15.249



Emission CFR 47 Part 2 Sub C 7.4 Designation of emission FCC 47 §2.201 FCC 47 §2.202 82k9F1D / 86k8F1D 1. Powered by internal battery / accumulator 2. Applied standards 47 CFR Part 2 Code of Federal Regulations - Title 47 - Telecommunication, Part 2 – Frequency allocations and radio treaty matters; General rules and regulations 47 CFR Part 15 Subpart C Code of Federal Regulations - Title 47 - Telecommunication, Part 15, Subpart…

Text truncated - open the document above for the full version.

No. / Nr. : 17'011 (20119921) Page / Seite 13 / 22 montena emc sa CH-1728 Rossens - Switzerland / phone +41 26 411 93 33 / fax +41 26 411 93 30 / www.montena-emc.com / [email protected] 7.2 Radiated emission - Electromagnetic field (radiated – 1 GHz to 10 GHz) Test site:  anechoic chamber (ferrites)  anechoic chamber (foam)  semi-anechoic chamber (hybrid)  open test site Distance:  1 m  3 m  10 m  30m Position of EUT: 0.8 m (height of the equipment under test above floor) Meas. uncertainty: ± 4.7 dB Measuring method: The electromagnetic disturbance radiated by the equipment is measured using a spectrum analyser and a wide band antenna. The antenna is moved from 1 to 4 m in height successively with horizontal and vertical polarisations. The turning table is operated through 360° during the measurements. The recordings are carried out taking into account the maximum value of all the disturbances appearing while the apparatus is under test. The peak values are recorded continuously on the graph. The values exceeding a limit are remeasured manually using a receiver. Test set-up: Remarks: --- Test equipment: Spectrum analyser  88-14  02-06  03-45  05-39  07-53  10-70 Receiver  94-35  04-29  10-70 Preamplifier  90-01  95-86  05-56  05-59  05-62  05-87  11-29 Antenna, (horn)  90-24  98-12  98-13  07-31 Cables  11-61  10-75 Result:    pass    fail    not applicable    partly tested
