OY6-FTCON280411Wireless Foot Control

Installation and operational manual For Photon (3W) Photon Plus (10W) ZOLAR-MANUAL-01 Version: 02 -1- WIRELESS FOOT CONTROL COMPLIANCE FCC: 15.19 (a) (3): This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 15.21: Caution: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 15.105: NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: − Reorient or relocate the receiving antenna. − Increase the separation between the equipment and receiver. − Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. − Consult the dealer or an experienced radio/TV technician for help. IC: RSS-GEN: 7.1.2 Transmitter Antenna Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen -2- that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication. Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner uniquement avec une antenne d'un certain type et d'un gain maximal (ou inférieur), approuvé pour l'émetteur, par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain, de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une communication satisfaisante. 7.1.3 User Manual This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts d’une licence. L'exploitation est autorisée si les deux conditions suivantes sont respectées : (1) l'appareil ne doit pas produire de brouillage et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. -3- TABLE OF CONTENTS PRODUCT DESCRIPTION .............................................................................................. 5 EVALUATION THE FACILITY AND ENVIRONMENTAL CONSIDERATION ............................ 5 INDICATION FOR USE .................................................................................................. 6 CONTRAINDICATIONS.................................................................................................. 7 SAFETY CONSIDERATION ............................................................................................. 7 WARNING ................................................................................................................... 8 PRECAUTION............................................................................................................... 8 CAUTION .................................................................................................................... 8 ADVERSE EFFECTS ....................................................................................................... 8 SPECIFICATIONS .......................................................................................................... 9 DELIVERY SYSTEM SPECIFICATIONS ............................................................................. 9 WARRANTY PERIOD .................................................................................................... 9 PARTS ....................................................................................................................... 10 PROCEDURE FOR PROPER LASER ASSEMBLY .............................................................. 13 Foot Pedal Installation Procedure ......................................................................................................... 13 Handpiece Assembly Installation Procedure ........................................................................................ 14 Unit Dose disposable tip ..................................................................................................................... 14 Bleaching Handpiece .......................................................................................................................... 15 Connecting Handpiece Assembly to the Laser ...................................................................................... 15 Remote Interlock ................................................................................................................................... 16 Power supply ...................................................................................…

Text truncated - open the document above for the full version.

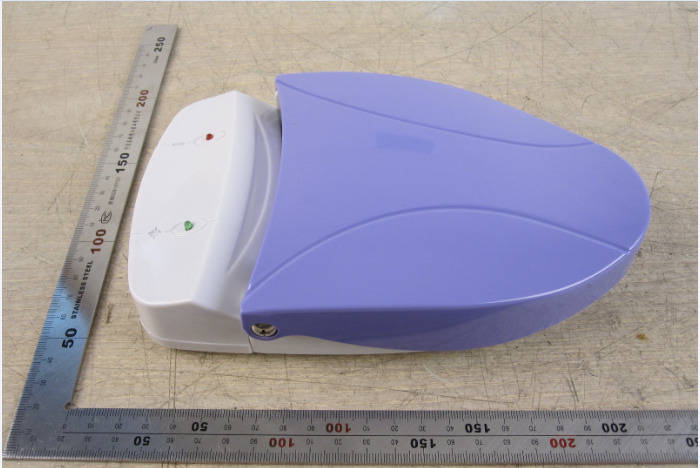

P H O T O D O C U M E N T A T I O N 15054317 001 for Wireless Foot Control Photon Zolar Technology& Mfg. Co. Inc. This documentation consists of 3 pages (excluding this cover page). Photo Documentation Report Number: 15054317 001 Model: Photon - Page 1 of 3 - External photos Photo Documentation Report Number: 15054317 001 Model: Photon - Page 2 of 3 - Photo Documentation Report Number: 15054317 001 Model: Photon - Page 3 of 3 -

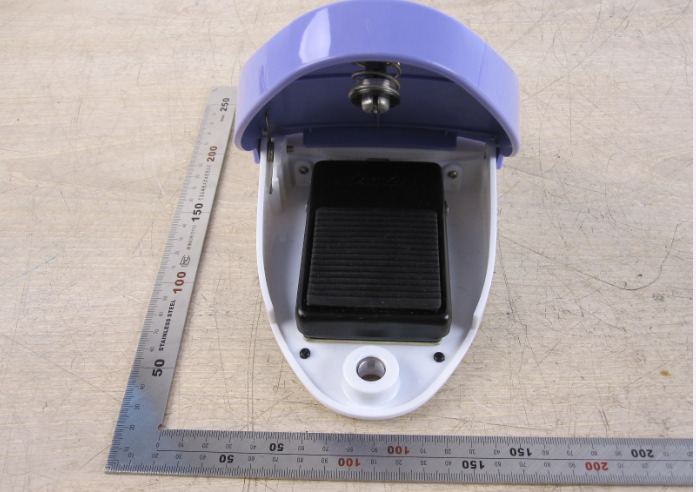

P H O T O D O C U M E N T A T I O N 15054317 001 for Wireless Foot Control photon , photon plus Zolar Technology& Mfg. Co. Inc. This documentation consists of 2 pages (excluding this cover page). Photo Documentation Report Number: 15054317 001 Model: Photon, Photon plus - Page 1 of 2 - internal photos Photo Documentation Report Number: 15054317 001 Model: Photon, Photon plus - Page 2 of 2 -

Produkte Products Prüfbericht - Nr.: Test Report No.: 15054317 001 Seite 1 von 23 Page 1 of 23 Auftraggeber: Client: Zolar Technology& Mfg. Co. Inc. 6033, #19 shawson Drive. Mississauga, ON L5T 1H8 Gegenstand der Prüfung: Test item: Wireless Foot Control Bezeichnung: Identification: Photon Serien-Nr.: Serial No.: N/A Wareneingangs-Nr.: Receipt No.: 153188767 Eingangsdatum: Date of receipt: 28.02.2012 Prüfort: Testing location: Refer to section 1.1 Prüfgrundlage: Test specification: FCC Part 15 RSS-210 (Issue 8):2010 RSS-Gen (Issue 3):2010 Prüfergebnis: Test Result: Der Prüfgegenstand entspricht oben genannter Prüfgrundlage(n). The test item passed the test specification(s). Prüflaboratorium: Testing Laboratory: TÜV Rheinland (Shanghai) Co., Ltd. geprüft/ tested by: 08.08.2012 Shi Li/PE kontrolliert/ reviewed by: 08.08.2012 Rene Charton/TC Datum Date Name/Stellung Name/Position Unterschrift Signature Datum Date Name/Stellung Name/Position Unterschrift Signature Sonstiges/ Other Aspects: FCC ID: OY6-FTCON280411 IC: 10545A-ZFC280411 All the test data using original test data in 13.12.2010 to 16.12.2010. The test results were revalidated and the device is still in compliance with current applicable Industry Canada standards. Abkürzungen: P(ass) = entspricht Prüfgrundlage F(ail) = entspricht nicht Prüfgrundlage N/A = nicht anwendbar N/T = nicht getestet Abbreviations: P(ass) = passed F(ail) = failed N/A = not applicable N/T = not tested Dieser Prüfbericht bezieht sich nur auf das o.g. Prüfmuster und darf ohne Genehmigung der Prüfstelle nicht auszugsweise vervielfältigt werden. Dieser Bericht berechtigt nicht zur Verwendung eines Prüfzeichens. This test report relates to the a. m. test sample. Without permission of the test center this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any safety mark on this or similar products. TÜV Rheinland LGA Products GmbH
Tillystraße 2
D - 90431 Nürnberg
Tel.: +49 911 655 5225
Fax: +49 911 655 5226 Mail: [email protected]
Web: www.tuv.com Rev.:1.2 2009-12-29 / approved: M.Jungnitsch Produkte Products Prüfbericht - Nr.: Test Report No.: 15054317 001 Seite 2 von 23 Page 2 of 23 TEST SUMMARY 2.2.1 ANTENNA REQUIREMENTS FCC 15.203, FCC 15.204 AND RSS-GEN 7.1.2 Result: Passed 4.1.1 CONDUCTED EMISSION Result: N/A 4.2.1 RADIATED EMISSION (FUNDAMENTAL) Result: Passed 4.2.2 RADIATED EMISSION (HARMONICS & SPURIOUS) Result: Passed 4.2.3 RADIATED EMISSION IN RESTRICTED BAND Result: Passed 4.3 EMISSION BANDWIDTH Result: N/A 4.4 DUTY CYCLE Result: N/A Produkte Products Prüfbericht - Nr.: Test Report No.: 15054317 001 Seite 3 von 23 Page 3 of 23 Contents 1 TEST SITES ...................................................................................................................................................... 4 1.1 TEST FACILITIES ......................................................................................................................................... 4 1.2 LIST OF TEST AND MEASUREMENT INSTRUMENTS ...................................................................................... 4 2 GENERAL PRODUCT INFORMATION ...................................................................................................... 5 2.1 PRODUCT FUNCTION AND INTENDED USE ................................................................................................... 5 2.2 RATINGS AND SYSTEM DETAILS ................................................................................................................. 5 2.2.1 Antenna Requirements FCC 15.203, FCC 15.204 and RSS-GEN 7.1.2 ................................................ 5 2.3 INDEPENDENT OPERATION MODES ............................................................................................................. 6 2.4 SUBMITTED DOCUMENTS ............................................................................................................................ 6 2.5 RELATED SUBMITTAL(S) GRANTS .............................................................................................................. 6 3 TEST SET-UP AND OPERATION MODES ................................................................................................. 7 3.1 PRINCIPLE OF CONFIGURATION SELECTION ................................................................................................ 7 3.2 TEST OPERATION AND TEST SOFTWARE ..................................................................................................... 7 3.3 SPECIAL ACCESSORIES AND AUXILIARY EQUIPMENT ................................................................................. 7 3.4 COUNTERMEASURES TO ACHIEVE EMC COMPLIANCE ................................................................................ 7 4 TEST RESULT .................................................................................................................................................. 8 4.1 EMISSION IN THE FREQUENCY RANGE UP TO 30 MHZ ................................................................................ 8 4.1.1 Conducted Emission .............................................................................................................................. 8 4.2 EMISSION IN THE FREQUENCY RANGE ABOVE 30 MHZ ............................................................................... 9 4.2.1 Radiated Emission (Fundamental) ........................................................................................................ 9 4.2.2 Radiated Emission (Harmonics & Spurious) ...................................................................................... 11 4.2.3 Radiated Emission in Restricted Band ................................................................................................ 14 4.3 EMISSION BANDWIDTH ............................................................................................................................. 17 4.4 DUTY CYCLE ..............................…

Text truncated - open the document above for the full version.

Produkte Products Prüfbericht - Nr.: Test Report No.: 15054317 001 Seite 21 von 23 Page 21 of 23 5 Photographs of the Test Set-Up Photograph 1: Set-up for radiated emission below 1G above 1G Produkte Products Prüfbericht - Nr.: Test Report No.: 15054317 001 Seite 22 von 23 Page 22 of 23 Photograph 2: Set-up for emission bandwidth & duty cycle
