OY98905450711A MICROWAVE SENOR

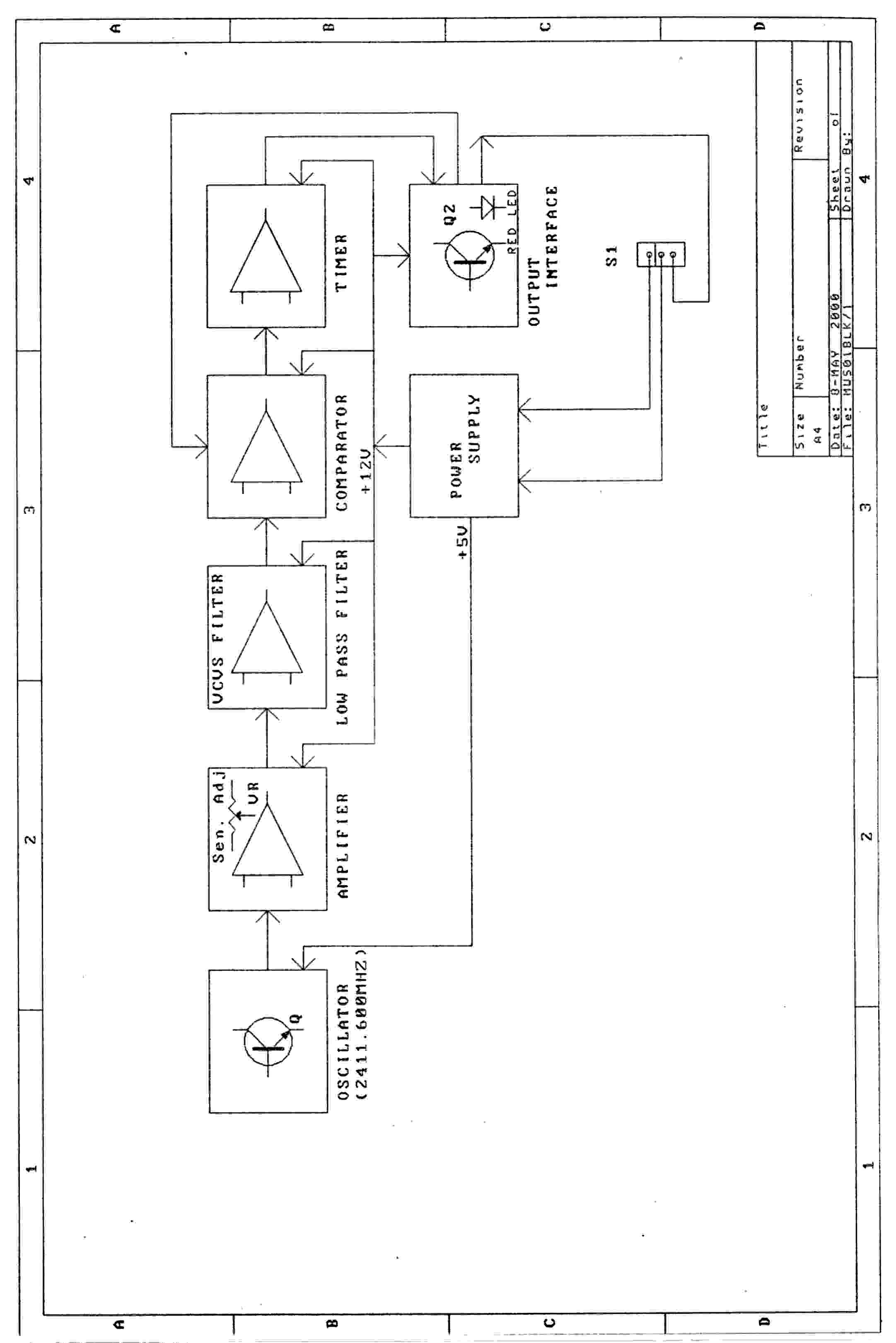

The EUT is a microwave sensor for detecting moving object in specified area. It emits 2.4 GHz RF wave and receives the feedbacking RF wave to check whether there is a moving object.

FCC ID. : OY98905450711 Rev. No 1.0 FCC Part 15 EMI TEST REPORT of E.U.T. : MICROWAVE SENOR MODEL : MWS-01 FCC ID. : OY98905450711 for APPLICANT : SPRING BEE INTERNALTIONAL CO., LTD. ADDRESS: NO. 1, ALLEY 6, LANE 217, SEC. 2, SHIN LONG RD., TAIPEI, TAIWAN, R.O.C. Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 8 LANE 29, WENMIMG ROAD, LOSHAN TSUN, KWEISHAN HSIANG, TAOYUAN, TAIWAN, R.O.C. Tel:(03)3280026-32 Fax:(03)3280034 Report Number : ET89R-04-041-01 ETC Report No. : ET89R-4-041-01FCC ID. : OY98905450711 Rev. No 1.0 TEST REPORT CERTIFICATION Applicant: SPRING BEE INTERNALTIONAL CO., LTD. NO. 1, ALLEY 6, LANE 217, SEC. 2, SHIN LONG RD., TAIPEI, TAIWAN, R.O.C. Manufacturer: SPRING BEE INTERNALTIONAL CO., LTD. NO. 1, ALLEY 6, LANE 217, SEC. 2, SHIN LONG RD., TAIPEI, TAIWAN, R.O.C. Description of EUT: a) Type of EUT: MICROWAVE SENOR b) Trade Name: ---- c) Model No.: MWS-01 d) Power Supply: DC 12V e) Working Frequency : 2400-2483 MHz Regulation Applied: FCC Rules and Regulations Part 15 Subpart C(1998) I HEREBY CERTIFY THAT: The data shown in this report were made in accordance with the procedures given in ANSI C63.4, and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note: 1. The result of the testing report relate only to the item tested. 2. The testing report shall not be reproduced expect in full, without the written approval of ETC. Issued Date :MAY 18, 2000 Test Engineer : ( Tien Lu Liau ) Approve & Authorized Signer : Will Yauo, Supervisor EMI Test Site of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No. : ET89R-4-041-01FCC ID. : OY98905450711 Rev. No 1.0 Table of ContentsPage 1 GENERAL INFORMATION ............................................................................................................ 1 1.1 Product Description ........................................................................................................................... 1 1.2 Characteristics of Device................................................................................................................... 1 1.3 Test Methodology .............................................................................................................................. 1 1.4 Test Facility....................................................................................................................................... 1 2 PROVISIONS APPLICABLE ........................................................................................................... 2 2.1 Definition ........................................................................................................................................... 2 2.2 Requirement for Compliance............................................................................................................. 3 2.3 Restricted Bands of Operation........................................................................................................... 5 2.4 Labeling Requirement........................................................................................................................ 5 2.5 User Information ................................................................................................................................ 6 3 SYSTEM TEST CONFIGURATION................................................................................................ 7 3.1 Justification ........................................................................................................................................ 7 3.2 Devices for Tested System................................................................................................................. 7 4 RADIATED EMISSION MEASUREMENT.................................................................................... 8 4.1 Applicable Standard........................................................................................................................... 8 4.2 Measurement Procedure .................................................................................................................... 8 4.3 Measuring Instrument ...................................................................................................................... 10 4.4 Radiated Emission Data................................................................................................................... 11 4.4.1 Tx Portion .....................................................................................................................................11 4.4.2 Other Emissions.............................................................................................................................12 4.5 Field Strength Calculation................................................................................................................ 12 4.6 Photos of Radiation Measuring Setup.............................................................................................. 13 5 CONDUCTED EMISSION MEASUREMENT............................................................................. 14 5.1 Standard Applicable......................................................................................................................... 14 6 ANTENNA REQUIREMENT.......................................................................................................... 15 6.1 Standard Applicable......................................................................................................................... 15 6.2 Antenna Construction ...................................................................................................................... 15 7 BAND EDGES MEASUREMENT.................................................................................................. 16 7.1 Standard Applicable..............................................................................................................…
