OYFOYFBU-1000-155Electric Power Usage Telemetry System
Burghardt Inc.
Click to zoom
Application Details
- Equipment Class
- LMS - Part 90 Location & Monitoring Transmitter
- Date of Grant
- May 02, 2000
- Application Purpose
- Original Equipment
- Date of Application
- Apr 02, 2000
- Equipment Note
- Electric Power Usage Telemetry System
- Frequency Range
- 150.00000000 - 160.00000000
- Company
- Burghardt Inc.
- Country
- United States
Documents & Files
Document Text
Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
Users Manual

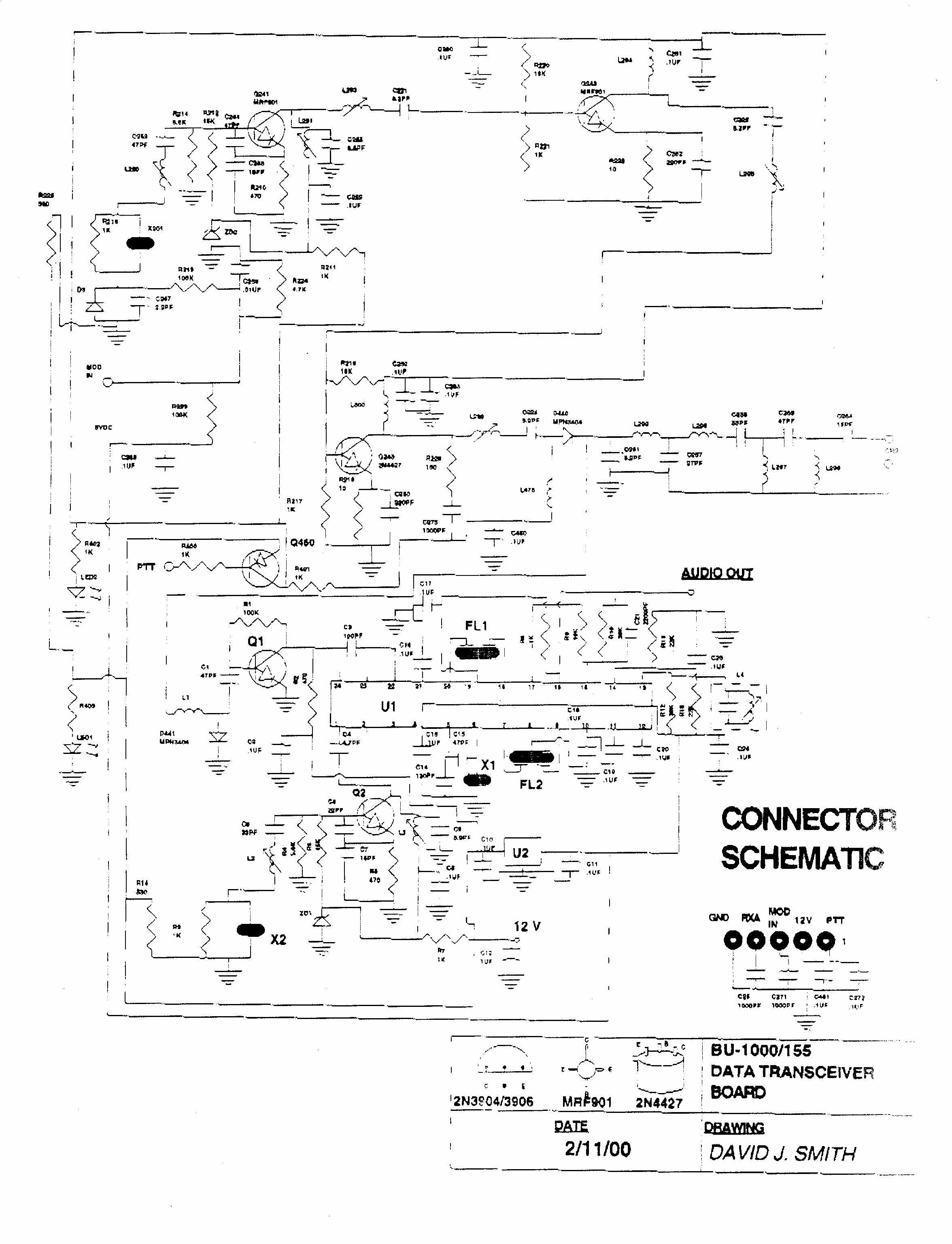

Global Certification Laboratories, Ltd. 4 Matthews Drive East Haddam CT 06423 ! !! ! 860 873-1451 voice 860 873-1947 fax BURGHARDT, INC. BU-1000/155 FCC ID: 4/3/00 FCC PARTS 15(B) & 90 Page 1 of 4 BU-1000/155 OPERATIONAL DESCRIPTION, PARTS LIST & INSTALLATION David Smith of Burghardt Inc produced the following operational description and parts listing. This text is repeated in the technical description of the report. THEORY OF OPERATION The BU-1000/155 is a low power data transceiver. RECEIVER SECTION The receiver is a double conversion superheterodyne design. When in the receive mode, signal is allowed to pass to the Q1 RF AMP, where it is amplified and sent to U1 for the first mix. X2 is a 3rd overtone crystal which is tripled by Q2 to produce the first mix frequency. The first mixer is located in U1 and produces a 10.7MHZ first IF. X1 produces the 2nd mix frequency of 10.245MHZ. It is mixed in U1 to produce a 455KHZ 2nd IF frequency. Receiver audio is then detected in U1 to produce RXA out. TRANSMIT SECTION Modulation is applied to D3 varactor and is used to shift the frequency of X201 to produce FM modulation. X201 is a 3rd overtone crystal. Its frequency is tripled by Q241 to give the appropriate output frequency. It is then amplified by Q242 pre-driver and Q243 final. It is passed through D440/441 switching when in transmit mode and from there applied to the antenna. BU-1000/155 SPECIFICATIONS: GENERAL: FREQUENCY COVERAGE:1 CHANNEL(150 to 160 MHz) TX CURRENT DRAW: 250MA RX CURRENT DRAW: 120MA RECEIVER: SENSITIVITY: 10DB SINAD AT .8UV AUDIO OUTPUT LEVEL: 2VPP AT 3KHZ DEVIATION 1ST IF FREQUENCY: 10.7 MHz 2ND IF FREQUENCY: 455 kHz TRANSMITTER POWER: 250MW Global Certification Laboratories, Ltd. 4 Matthews Drive East Haddam CT 06423 ! !! ! 860 873-1451 voice 860 873-1947 fax BURGHARDT, INC. BU-1000/155 FCC ID: 4/3/00 FCC PARTS 15(B) & 90 Page 2 of 4 BU-1000/155 OPERATIONAL DESCRIPTION, PARTS LIST & INSTALLATION BU-1000/155 DATA TRANSCEIVER BOARD PARTS LIST (155 MHz) RECEIVER SECTION C2,8,10,11,13,16,17,18,19,20,23,24 .1UF NEWARK 07WX6808 C6 33PF DIGIKEY PCC330CCT-ND C7 18PF DIGIKEY PCC180CCT-ND C14 120PF DIGIKEY PCC121CCT-ND C4 4.7PF DIGIKEY PCC4R7CCT-ND C15,1 47PF DIGIKEY PCC470CCT-ND C5 22PF DIGIKEY PCC220CCT-ND C12 1UF TANTILUM NEWARK 93F2694 C9 3.9PF DIGIKEY PCC3R9CCT-ND C3 100PF DIGIKEY PCC101CCT-ND C25 1000PF DIGIKEY PCC102BCT-ND C21 2200PF DIGIKEY PCC222BCT-ND R6,2 470 NEWARK 07WX0214 R10,12 39K NEWARK 08WX8266 R3,7,8 1K NEWARK 07WX0211 R4 5.6K NEWARK 08WX8274 R5 15K NEWARK 08WX7826 R1 100K NEWARK 96F6995R100.0K R9 10K NEWARK 08WX8237 R11,13 22K NEWARK 08WX8252 R14 330 OHM 1/2 WATT DIGIKEY 330H-ND FL1 MURATA SFE10.7MJA10-A FL2 MURATA CFU455B2 L1 43NH DIGIKEY DN4010-ND L2 1.5UH DIGIKEY TK1412-ND L3 .108UH DIGIKEY TK2713-ND L4 .64MH DIGIKEY TK1302-ND U1 MC13135DW NEWARK 07F2896 U2 78L05ACP NEWARK 07F7397 X1 10.245 MHz BOMAR X2 SELECTED BOMAR Q1 MRF901 NEWARK 08F1298 Q2 2N3904 NEWARK 09F5663 ZD1 6.8 V 1/2 WATT ZENER NEWARK 09F4090 Global Certification Laboratories, Ltd. 4 Matthews Drive East Haddam CT 06423 ! !! ! 860 873-1451 voice 860 873-1947 fax BURGHARDT, INC. BU-1000/155 FCC ID: 4/3/00 FCC PARTS 15(B) & 90 Page 3 of 4 BU-1000/155 OPERATIONAL DESCRIPTION, PARTS LIST & INSTALLATION TRANSMITTER SECTION C265,252,259,260,261,263,272 .1UF NEWARK 07WX6808 C253,254,269 47PF DIGIKEY PCC470CCT-ND C255 18PF DIGIKEY PCC180CCT-ND C224 3.9PF DIGIKEY PCC3R9CCT-ND C262,250 220PF DIGIKEY PCC221BCT-ND C258 6.8PF DIGIKEY PCC6R8CCT-ND C251,221,222 8.2PF DIGIKEY PCC8R2CCT-ND C257 27PF DIGIKEY PCC270CT-ND C264 15PF DIGIKEY PCC150CCT-ND C267 2.2PF DIGIKEY PCC2R2CCT-ND C271,273 1000PF DIGIKEY PCC102BCT-ND C256 33PF DIGIKEY PCC330CCT-ND C268 .01UF DIGIKEY PCC103BCT-ND R210 470 OHM NEWARK 07WX0214 R212 15K NEWARK 08WX7826 R221,216,211,217 1K NEWARK 07WX0211 R214 5.6K NEWARK 08WX8274 R215,220 18K DIGIKEY P18KECT-ND R219,223 100K NEWARK 96F6995R100.0K R222,218 10 OHM DIGIKEY P10ECT-ND R224 4.7K DIGIKEY P4.7KECT-ND R225 330 OHM 1/2 WATT DIGIKEY 330H-ND R226 150 OHM DIGIKEY P150ECT-ND L290 1.5UH DIGIKEY TK1412-ND L291 .137UH DIGIKEY TK2714-ND L292,296,297,299 43 NH DIGIKEY DN4010-ND L294,300 1UH DIGIKEY PCD1131CT-ND L295 .241UH DIGIKEY TK2707-ND L293 .375UH DIGIKEY TK2729-ND L298 .211UH DIGIKEY TK2706-ND Q242,241 MRF901 NEWARK 08F1298 Q243 2N4427 NEWARK 10WX2083 X201 SELECTED ZD2 6.8V ZENER NEWARK 09F4090 D3 MV2105 VARACTOR NEWARK 08F2197 Global Certification Laboratories, Ltd. 4 Matthews Drive East Haddam CT 06423 ! 860 873-1451 voice 860 873-1947 fax BURGHARDT, INC. BU-1000/155 FCC ID: 4/3/00 FCC PARTS 15(B) & 90 Page 4 of 4 BU-1000/155 OPERATIONAL DESCRIPTION, PARTS LIST & INSTALLATION COMMON SECTION R401,402,403,400 1K NEWARK 07WX0211 C460,461 .1UF NEWARK 07WX6808 L475 56UH DIGIKEY PCD1106CT-ND D440,441 MPN3404 NEWARK 07F9506 Q450 2N3906 DIGIKEY 2N3906DICT-ND LED1 GREEN LED DIGIKEY 67-1059-ND LED2 RED LED DIGIKEY 67-1065-ND CN1 5 PIN JACK DIGIKEY H2097-ND CN2 BNC JACK DIGIKEY ARF1178-ND 2 PIN JACK(OPTIONAL) DIGIKEY H2094-ND 5 PIN PLUG(ACCESSORY) DIGIKEY H2086-ND 2 PIN PLUG(OPTIONAL) DIGIKEY H2083-ND PINS(ACCESSORY) DIGIKEY H2138-ND BU-1000 INSTALLATION The BU-1000/155 has a 5 pin connector for hookup to the MRU (meter reading unit) modem and a BNC connector for connection to a half wave dipole. The pinout of the 5 pin connector is as follows. 1) PTT (push to talk) 2) 12V (regulated 12 volt input) 3) Mod in (modulation input) 4) RXA (receiver audio output) 5) GND (ground) The BU-1000/155 is to be installed and maintained by authorized personnel only.
Operational Description
Global Certification Laboratories, Ltd. 4 Matthews Drive East Haddam CT 06423 ! !! ! 860 873-1451 voice 860 873-1947 fax BURGHARDT, INC. BU-1000/155 FCC ID: 4/3/00 FCC PARTS 15(B) & 90 Page 1 of 4 BU-1000/155 OPERATIONAL DESCRIPTION, PARTS LIST & INSTALLATION David Smith of Burghardt Inc produced the following operational description and parts listing. This text is repeated in the technical description of the report. THEORY OF OPERATION The BU-1000/155 is a low power data transceiver. RECEIVER SECTION The receiver is a double conversion superheterodyne design. When in the receive mode, signal is allowed to pass to the Q1 RF AMP, where it is amplified and sent to U1 for the first mix. X2 is a 3rd overtone crystal which is tripled by Q2 to produce the first mix frequency. The first mixer is located in U1 and produces a 10.7MHZ first IF. X1 produces the 2nd mix frequency of 10.245MHZ. It is mixed in U1 to produce a 455KHZ 2nd IF frequency. Receiver audio is then detected in U1 to produce RXA out. TRANSMIT SECTION Modulation is applied to D3 varactor and is used to shift the frequency of X201 to produce FM modulation. X201 is a 3rd overtone crystal. Its frequency is tripled by Q241 to give the appropriate output frequency. It is then amplified by Q242 pre-driver and Q243 final. It is passed through D440/441 switching when in transmit mode and from there applied to the antenna. BU-1000/155 SPECIFICATIONS: GENERAL: FREQUENCY COVERAGE:1 CHANNEL(150 to 160 MHz) TX CURRENT DRAW: 250MA RX CURRENT DRAW: 120MA RECEIVER: SENSITIVITY: 10DB SINAD AT .8UV AUDIO OUTPUT LEVEL: 2VPP AT 3KHZ DEVIATION 1ST IF FREQUENCY: 10.7 MHz 2ND IF FREQUENCY: 455 kHz TRANSMITTER POWER: 250MW Global Certification Laboratories, Ltd. 4 Matthews Drive East Haddam CT 06423 ! !! ! 860 873-1451 voice 860 873-1947 fax BURGHARDT, INC. BU-1000/155 FCC ID: 4/3/00 FCC PARTS 15(B) & 90 Page 2 of 4 BU-1000/155 OPERATIONAL DESCRIPTION, PARTS LIST & INSTALLATION BU-1000/155 DATA TRANSCEIVER BOARD PARTS LIST (155 MHz) RECEIVER SECTION C2,8,10,11,13,16,17,18,19,20,23,24 .1UF NEWARK 07WX6808 C6 33PF DIGIKEY PCC330CCT-ND C7 18PF DIGIKEY PCC180CCT-ND C14 120PF DIGIKEY PCC121CCT-ND C4 4.7PF DIGIKEY PCC4R7CCT-ND C15,1 47PF DIGIKEY PCC470CCT-ND C5 22PF DIGIKEY PCC220CCT-ND C12 1UF TANTILUM NEWARK 93F2694 C9 3.9PF DIGIKEY PCC3R9CCT-ND C3 100PF DIGIKEY PCC101CCT-ND C25 1000PF DIGIKEY PCC102BCT-ND C21 2200PF DIGIKEY PCC222BCT-ND R6,2 470 NEWARK 07WX0214 R10,12 39K NEWARK 08WX8266 R3,7,8 1K NEWARK 07WX0211 R4 5.6K NEWARK 08WX8274 R5 15K NEWARK 08WX7826 R1 100K NEWARK 96F6995R100.0K R9 10K NEWARK 08WX8237 R11,13 22K NEWARK 08WX8252 R14 330 OHM 1/2 WATT DIGIKEY 330H-ND FL1 MURATA SFE10.7MJA10-A FL2 MURATA CFU455B2 L1 43NH DIGIKEY DN4010-ND L2 1.5UH DIGIKEY TK1412-ND L3 .108UH DIGIKEY TK2713-ND L4 .64MH DIGIKEY TK1302-ND U1 MC13135DW NEWARK 07F2896 U2 78L05ACP NEWARK 07F7397 X1 10.245 MHz BOMAR X2 SELECTED BOMAR Q1 MRF901 NEWARK 08F1298 Q2 2N3904 NEWARK 09F5663 ZD1 6.8 V 1/2 WATT ZENER NEWARK 09F4090 Global Certification Laboratories, Ltd. 4 Matthews Drive East Haddam CT 06423 ! !! ! 860 873-1451 voice 860 873-1947 fax BURGHARDT, INC. BU-1000/155 FCC ID: 4/3/00 FCC PARTS 15(B) & 90 Page 3 of 4 BU-1000/155 OPERATIONAL DESCRIPTION, PARTS LIST & INSTALLATION TRANSMITTER SECTION C265,252,259,260,261,263,272 .1UF NEWARK 07WX6808 C253,254,269 47PF DIGIKEY PCC470CCT-ND C255 18PF DIGIKEY PCC180CCT-ND C224 3.9PF DIGIKEY PCC3R9CCT-ND C262,250 220PF DIGIKEY PCC221BCT-ND C258 6.8PF DIGIKEY PCC6R8CCT-ND C251,221,222 8.2PF DIGIKEY PCC8R2CCT-ND C257 27PF DIGIKEY PCC270CT-ND C264 15PF DIGIKEY PCC150CCT-ND C267 2.2PF DIGIKEY PCC2R2CCT-ND C271,273 1000PF DIGIKEY PCC102BCT-ND C256 33PF DIGIKEY PCC330CCT-ND C268 .01UF DIGIKEY PCC103BCT-ND R210 470 OHM NEWARK 07WX0214 R212 15K NEWARK 08WX7826 R221,216,211,217 1K NEWARK 07WX0211 R214 5.6K NEWARK 08WX8274 R215,220 18K DIGIKEY P18KECT-ND R219,223 100K NEWARK 96F6995R100.0K R222,218 10 OHM DIGIKEY P10ECT-ND R224 4.7K DIGIKEY P4.7KECT-ND R225 330 OHM 1/2 WATT DIGIKEY 330H-ND R226 150 OHM DIGIKEY P150ECT-ND L290 1.5UH DIGIKEY TK1412-ND L291 .137UH DIGIKEY TK2714-ND L292,296,297,299 43 NH DIGIKEY DN4010-ND L294,300 1UH DIGIKEY PCD1131CT-ND L295 .241UH DIGIKEY TK2707-ND L293 .375UH DIGIKEY TK2729-ND L298 .211UH DIGIKEY TK2706-ND Q242,241 MRF901 NEWARK 08F1298 Q243 2N4427 NEWARK 10WX2083 X201 SELECTED ZD2 6.8V ZENER NEWARK 09F4090 D3 MV2105 VARACTOR NEWARK 08F2197 Global Certification Laboratories, Ltd. 4 Matthews Drive East Haddam CT 06423 ! 860 873-1451 voice 860 873-1947 fax BURGHARDT, INC. BU-1000/155 FCC ID: 4/3/00 FCC PARTS 15(B) & 90 Page 4 of 4 BU-1000/155 OPERATIONAL DESCRIPTION, PARTS LIST & INSTALLATION COMMON SECTION R401,402,403,400 1K NEWARK 07WX0211 C460,461 .1UF NEWARK 07WX6808 L475 56UH DIGIKEY PCD1106CT-ND D440,441 MPN3404 NEWARK 07F9506 Q450 2N3906 DIGIKEY 2N3906DICT-ND LED1 GREEN LED DIGIKEY 67-1059-ND LED2 RED LED DIGIKEY 67-1065-ND CN1 5 PIN JACK DIGIKEY H2097-ND CN2 BNC JACK DIGIKEY ARF1178-ND 2 PIN JACK(OPTIONAL) DIGIKEY H2094-ND 5 PIN PLUG(ACCESSORY) DIGIKEY H2086-ND 2 PIN PLUG(OPTIONAL) DIGIKEY H2083-ND PINS(ACCESSORY) DIGIKEY H2138-ND BU-1000 INSTALLATION The BU-1000/155 has a 5 pin connector for hookup to the MRU (meter reading unit) modem and a BNC connector for connection to a half wave dipole. The pinout of the 5 pin connector is as follows. 1) PTT (push to talk) 2) 12V (regulated 12 volt input) 3) Mod in (modulation input) 4) RXA (receiver audio output) 5) GND (ground) The BU-1000/155 is to be installed and maintained by authorized personnel only.
Test Report
THE TRANSMITTER PERFORMANCE AND ELECTROMAGNETIC EMISSIONS ACCORDING TO FCC PART 90, 1998 AND FCC PART 15, SUBPART B, CLASS B, 1997 OF THE BURGHARDT INC. BU-1000/155 DATA TRANSCEIVER PREPARED FOR BURGHARDT INC. 710 10 th STREET SW P.O. BOX 73 WATERTOWN, SD 57201-0073 PREPARED BY GLOBAL CERTIFICATION LABORATORIES, LTD. 4 MATTHEWS DRIVE EAST HADDAM CT 06423 DATE RELEASED 3/31/00 FILE REF: BUR0001 Global Certification Laboratories, Ltd. 4 Matthews Drive East Haddam CT 06423 ! !! ! 860 873-1451 voice 860 873-1947 fax BURGHARDT, INC. BU-1000/155 FCC ID: 4/3/00 FCC PARTS 15(B) & 90 Page ii of iii SIGNATURE PAGE THIS REPORT WAS PREPARED BY: ________________________________ STEPHEN M. PETIX TESTING WAS PERFORMED BY: ________________________________ STEPHEN M. PETIX THIS REPORT WAS REVIEWED BY: ________________________________ JAMES COSTELLO Global Certification Laboratories, Ltd. 4 Matthews Drive East Haddam CT 06423 ! !! ! 860 873-1451 voice 860 873-1947 fax BURGHARDT, INC. BU-1000/155 FCC ID: 4/3/00 FCC PARTS 15(B) & 90 Page iii of iii TABLE OF CONTENTS Title Page..........................................................................................................................i Signature Page.................................................................................................................ii Table of Contents ...........................................................................................................iii Introduction .....................................................................................................................1 Product Identification ......................................................................................................2 Technical Description......................................................................................................3 Compliance Statement.....................................................................................................9 Test Instrumentation......................................................................................................10 Test Procedures, Terminal Disturbance Voltage Test...................................................11 Block Diagram, Terminal Disturbance Voltage Test ....................................................12 Test Data Explanation (Conducted) ..............................................................................13 Terminal Disturbance Voltage Test Data Printout........................................................14 Test Procedures, Unintentional Radiated E-Field Emissions Test................................18 Test Procedures, Effective Radiated Power & Intentional Emissions Test...................19 Block Diagram, Radiated Electric Field Emissions Test Set-up...................................21 Test Data Explanation (Radiated) .................................................................................22 Radiated Emissions Data (including FCC Part B, ERP, & Radiated Spurious)...........23 Modulation Characteristics............................................................................................38 Occupied Bandwidth Measurements.............................................................................39 Spurious Emissions & RF Power at Antenna Terminals...............................................40 Frequency Stability Measurements ...............................................................................41 Transient Frequency Behavior ......................................................................................45 Test Summary................................................................................................................46 Due to their size, the Plot & Photographic sections are in separate exhibits. Global Certification Laboratories, Ltd. 4 Matthews Drive East Haddam CT 06423 ! !! ! 860 873-1451 voice 860 873-1947 fax BURGHARDT, INC. BU-1000/155 FCC ID: 4/3/00 FCC PARTS 15(B) & 90 Page 1 of 46 INTRODUCTION This report describes the results of electromagnetic emissions testing on the BURGHARDT INC. BU-1000/155 DATA TRANSCEIVER, The Equipment U nder Test. The EUT was subjected to the following tests: FCC PART 90, using emission mask “C” and FCC PART 15, SUBPART B, CLASS B. The tests and measurements included in the standards above are: TERMINAL DISTURBANCE VOLTAGES (CONDUCTED EMISSIONS) ANALYSIS RADIATED ELECTRIC FIELD EMISSIONS ANALYSIS (ABSOLUTE FIELD STRENGTH & EFFECTIVE RADIATED POWER MEASUREMENTS) MODULATION CHARACTERISTICS OCCUPIED BANDWIDTH FREUENCY STABILITY DUE TO TEMPERATURE & POWER VOLTAGE VARIATIONS SP URIOUS EMISSIONS (MEASURED AS FIELD STRENGTHS AND RELATIVE LEVELS AT ANTENNA TERMINALS) TRANSIENT FREQUENCY RESPONSE The FCC ID Code number of the BU-1000/155 is: The results reported in this document relate only to the unit(s) tested. All testing was performed at the facilities of Global Certification Laboratories, Ltd. East Haddam CT. All test equipment calibration is N.I.S.T. traceable. This report contains detailed descriptions of the test procedures, test data, and a written summary of the results. The report may not be reproduced, except in its entirety, without the permission of Global Certification Laboratories. This report contains 1 numbered pages, plus Title, Signature, and Table of Contents Pages. Global Certification Laboratories, Ltd. 4 Matthews Drive East Haddam CT 06423 ! !! ! 860 873-1451 voice 860 873-1947 fax BURGHARDT, INC. BU-1000/155 FCC ID: 4/3/00 FCC PARTS 15(B) & 90 Page 2 of 46 PRODUCT IDE NTIFICATION EQUIPMENT UNDER TEST (EUT):BURGHARDT INC. MODEL: BU-1000/155 DATA TRANSCEIVER, three boards: Three transceiver boards configured at the following frequencies were examined: 1) 150 MHz 2) 154.6 MHz 3) 160 MHz SERIAL: NONE DEVIATIONS FROM SPECIFICATIONS: NONE EUT SUPPORT EQUIPMENT:BURGHARDT Fabricated ENCLOSURE: Consisting of a GENERAL ELECTRIC “Rr13%” power meter with a Meter Reading Unit (MRU) and pulse initiator included inside the meter housing. E…
Text truncated - open the document above for the full version.
Test Report
Global Certification Laboratories, Ltd. 4 Matthews Drive East Haddam CT 06423 ! !! ! 860 873-1451 voice 860 873-1947 fax BURGHARDT INC. BU-1000 TRANSCEIVER FCC ID:OV2BU-1000 2/14/00 FCC PARTS 15, 90 Page 1 of 4 PLOT SECTION PLOT 1 OCCUPIED BANDWIDTH FOR 150 MHz, 15 dBm PEAK CARRIER LEVEL PLOT 2 OCCUPIED BANDWIDTH FOR 154.6MHz, 15 dBm PEAK CARRIER LEVEL Global Certification Laboratories, Ltd. 4 Matthews Drive East Haddam CT 06423 ! !! ! 860 873-1451 voice 860 873-1947 fax BURGHARDT INC. BU-1000 TRANSCEIVER FCC ID:OV2BU-1000 2/14/00 FCC PARTS 15, 90 Page 2 of 4 PLOT SECTION PLOT 3 OCCUPIED BANDWIDTH FOR 160 MHz, 15 dBm PEAK CARRIER LEVEL PLOT 4 SPURIOUS EMISSIONS FROM 150MHz Global Certification Laboratories, Ltd. 4 Matthews Drive East Haddam CT 06423 ! !! ! 860 873-1451 voice 860 873-1947 fax BURGHARDT INC. BU-1000 TRANSCEIVER FCC ID:OV2BU-1000 2/14/00 FCC PARTS 15, 90 Page 3 of 4 PLOT SECTION PLOT 5 SPURIOUS EMISSIONS FROM 150MHz PLOT 6 SPURIOUS EMISSIONS FROM 150MHz
Test Report
Global Certification Laboratories, Ltd. 4 Matthews Drive East Haddam CT 06423 ! !! ! 860 873-1451 voice 860 873-1947 fax BURGHARDT INC. BU-1000 TRANSCEIVER FCC ID:OV2BU-1000 2/14/00 FCC PARTS 15, 90 Page 1 of 4 PLOT SECTION PLOT 7 SPURIOUS EMISSIONS FROM 154.6 MHz PLOT 8 SPURIOUS EMISSIONS FROM 154.6 MHz Global Certification Laboratories, Ltd. 4 Matthews Drive East Haddam CT 06423 ! !! ! 860 873-1451 voice 860 873-1947 fax BURGHARDT INC. BU-1000 TRANSCEIVER FCC ID:OV2BU-1000 2/14/00 FCC PARTS 15, 90 Page 2 of 4 PLOT SECTION PLOT 9 SPURIOUS EMISSIONS FROM 154.6 MHz PLOT 10 SPURIOUS EMISSIONS FROM 160 MHz Global Certification Laboratories, Ltd. 4 Matthews Drive East Haddam CT 06423 ! !! ! 860 873-1451 voice 860 873-1947 fax BURGHARDT INC. BU-1000 TRANSCEIVER FCC ID:OV2BU-1000 2/14/00 FCC PARTS 15, 90 Page 3 of 4 PLOT SECTION PLOT 11 SPURIOUS EMISSIONS FROM 160 MHz PLOT 12 SPURIOUS EMISSIONS FROM 160 MHz Global Certification Laboratories, Ltd. 4 Matthews Drive East Haddam CT 06423 ! !! ! 860 873-1451 voice 860 873-1947 fax BURGHARDT INC. BU-1000 TRANSCEIVER FCC ID:OV2BU-1000 2/14/00 FCC PARTS 15, 90 Page 4 of 4 PLOT SECTION PLOT 13 150 MHz TRANSIENT BEHAVIOUR WITRH APPLIOCATION OF 1 kHz MODULATION SIGNAL. PLOT 14 154.6 MHz TRANSIENT BEHAVIOUR WITH APPLICATION OF 1 kHz MODULATION SIGNAL. Global Certification Laboratories, Ltd. 4 Matthews Drive East Haddam CT 06423 ! !! ! 860 873-1451 voice 860 873-1947 fax BURGHARDT INC. BU-1000 TRANSCEIVER FCC ID:OV2BU-1000 2/14/00 FCC PARTS 15, 90 Page 5 of 4 PLOT SECTION PLOT 15 160 MHz TRANSIENT BEHAVIOUR WITH APPLICATION OF 1 kHz MODULATION SIGNAL.
Test Report
From:Steve Petix [email protected]/11/00 To: Frank Coperich, or other reviewer FCC Application Processing Branch Re:FCC ID: OYFOYFBU-1000-155 731 Confirmation Number: EA97241 Applicant: Burghardt Amateur Center To Mr. Coperich or (other potential reviewer), I understand that it is a good idea to let the FCC know when I have finished uploading the exhibits to the FCC. .. In case you are going to be the reviewer for this new Burghardt project, I thought I’d mention that this device is identical to the BU-1000/173, (FCC ID: OV2BU-1000, 731 Confirmation: EA96731), with the exception that it has more radiated power and operates in the 150 to 160 MHz range, instead of the 173 MHz ra nge. I have re-measured the spurious emissions present at the antenna terminals for this project. My earlier plots for this project had an overloading problem with my spectrum analyzer. I think I have fixed this problem with the new plots I just uploaded. I am also mailing the FCC form 159 for the payment of the application fee today. Thanks for all your support. The web-site is working really well. Best regards, Steve Petix
Test Setup Photos

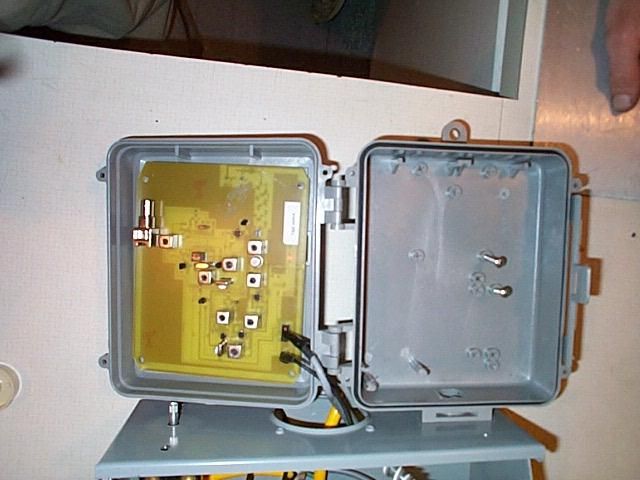

Burghardt BU-1000-155 Top View Bottom View Test Vehicle w/ MRU Conducted Emissions Test Radiated Emissions Test Substitution Set-up Frequency Stability w/ Temperature Change Transient Frequency Stability
Contact Information
Applicant
David J Smith(Designer)
605-886-7314Fax: 605-886-3444
Technical Contact
Global CertificationStephen M Petix
[email protected]860-873-1452
4 Matthews Drive · East Haddam, Connecticut · United States
Non-Technical Contact
Global CertificationStephen M Petix
[email protected]860-873-1452
Test Firm
Global Certification Laboratory LtdSteve Petix
Technical Specifications
| # | Rule Parts | Frequency Range | Power Output | Emission | Tolerance |
|---|---|---|---|---|---|
| 1 | 90 | 150 MHz - 160 MHz | 250.00 mW | 10K0F2D | 5.0000000000 ppm |
