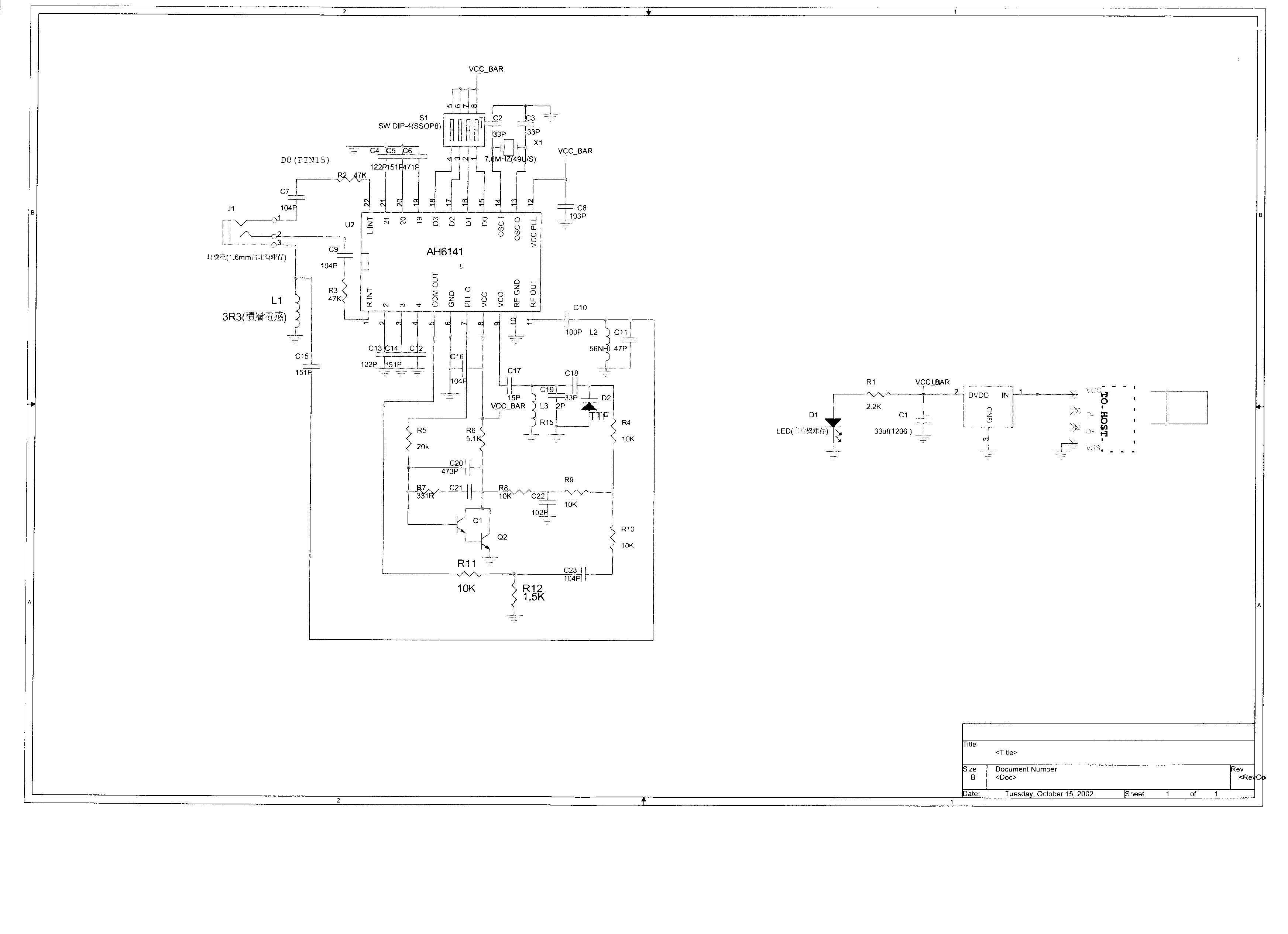

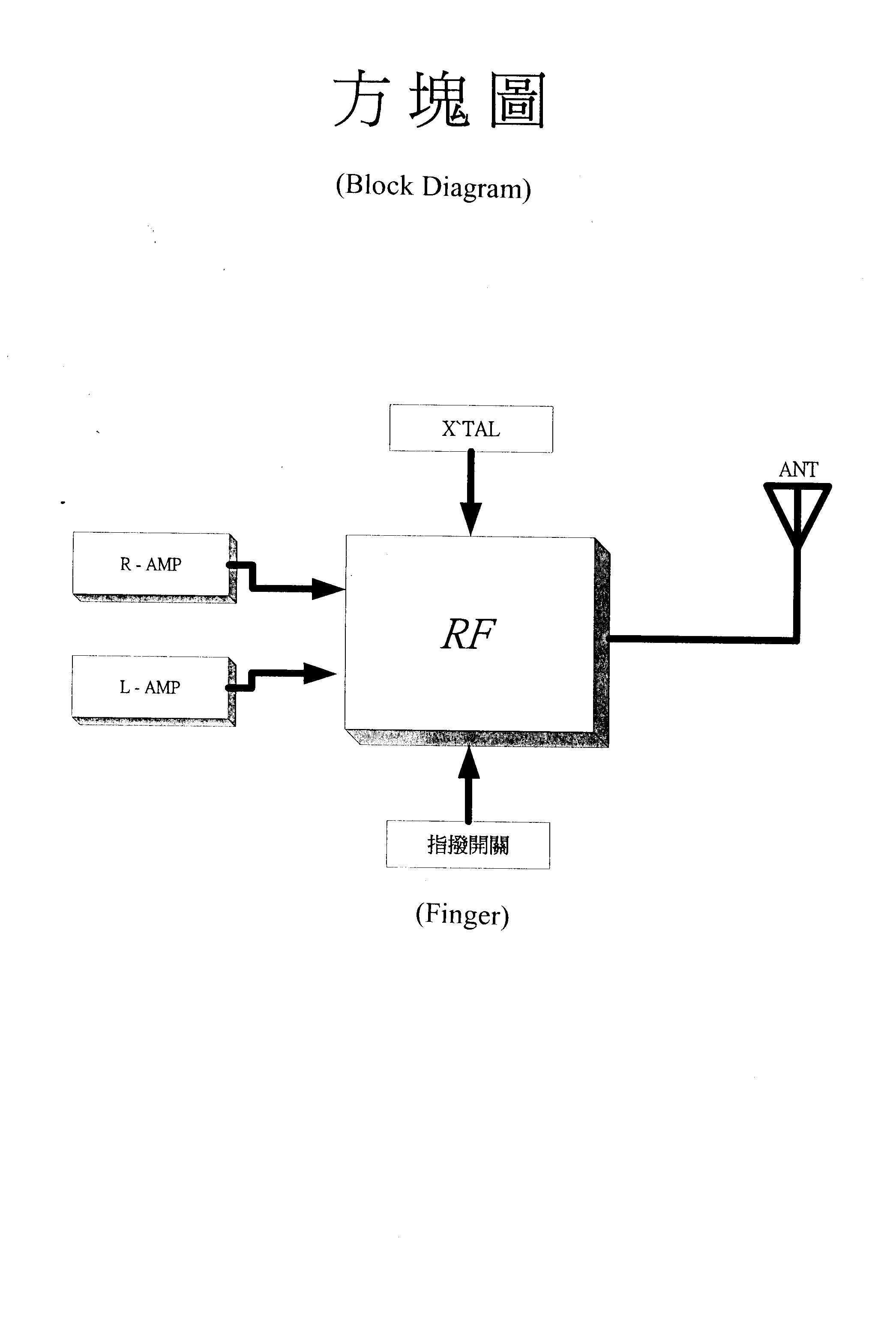

OYQWSWAL100001Wireless Audio Link

WENSHING WENSHING ELECTRONICS CO.,LTD. WIRELESS AUDIO LINK INSTALLATION GUIDE The Wireless Audio Link is Hi-Tech products which plays music from any FM equipped stereo source. Wirelessly tr ansmits the audio using FM frequencies. Features and Benefits Modulation : FM Channel : 5 Channels Fr equency : 88.1Mhz ~~88.9Mhz Distance : 10 Meter s Supplied voltage : 5V Supplied current : 22mA Power requirement : USB Bus power or Exter nal Power Weight : 10.8g Size : L 6 cm * W 1.8 cm * H 1.4 cm Application for : PC , Laptop, Hi-Fi stereo, TV and MP3...... Package Contents available : 1. PC or Laptop : Audio Cable 2. Hi-Fi Stereo, TV : AC/DC adapter 3. MP3 : Car power adapter Installation for PC : 1.Adjust the frequency accor d to the Control Data indicated of 5 fr equency. Tur n on the selection switches for selecte the using frequency. 2.Connect this unit to a USB of PC for power, make sur e the USB por t actually has power. Inser t one end of the audio cable into the unit. Only one end fits this jack, and inser t the other end of the audio cable to your audio soure’s output jack. Now the LED will blinking, it is mean the function is wor king. 3. Adjust the frequency on your FM equipped audio device to match the Wireless Audio Link. You should hear music from PC ( like CD, Game). Tur n on the volume if necessar y. Installation for Car audio, received from MP3 1. Adjust the frequency accor d to the Control Data indicated of 5 fr equency. Tur n on the selection switches for selecte the using frequency. 2.Inser t one end of the audio cable into the car power, connect this unit to a USB por t of car power cable, inser t the end of audio cable to the unit and the other end to audio input of MP3, now the LED will blinking, it is mean the function is wor king. 3.Adjust the same frequency to FM for car audio and this unit, you should hear music of MP3 from your car audio. Installation for Hi-Fi and TV 1. Adjust the frequency accor d to the Control Data indicated of 5 fr equency. Tur n on the selection switches for selecte the using frequency. 2. Connect the USB end of adapter to the unit, inser t the other end for power. Inser t the the audio cable to the unit and the other end to the Hi-Fi audio source’s output jack. Now the LED will blinking, it is mean the function is wor king. 4.Adjust the same frequency for Hi-Fi and Audio Link, you should hear music from Hi-Fi ( like CD, VCD, DVD,MD, MP3). Tur n on the volume if necessar y. If they have problem that unable to tr ansmite, please check the following points: 1.Is the USB por t connecting cor rect ? 2.Are the same frequency of receiver and transmitter? 3.There are audio output from your audio device? 4.Whether your audio have adjucted to FM Channel? 5.Are there same 5 frequency as Control Date indication? 6.Is the receiving r ange too long? 7.Are there too much obstr uction within the receiving r ange? Frequency Selections: D0(pin15)D1(pin16)D2(pin17)D3(pin18) Frequency OFFONOFFOFF88.1MHZ ONONOFFOFF88.3MHZ OFFOFFONOFF88.5MHZ ONOFFONOFF88.7MHZ OFFONONOFF88.9MHZ MODEL:WS-WAL1 FCC ID: OYQWSWAL100001 This device complies with part 15 of the FCC Rules.Operation is subject to the following two conditions:(1) this device may not cause harmful interference,and (2) this device must accept any interference received,including interference that may cause undesired operation. FCC INFORMATION The Federal Communication Commission Radio Frequency Interference Statement includes the following paragraph: The equipment has been tested and found to comply with the limits for Class B Digital Device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with instruction, may cause harmful interference to radio communication. However, there is no grantee that interference will not occur in a particular installation. If this equipment dose cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: nReorient or relocate the receiving antenna. nIncrease the separation between the equipment and receiver. nConnect the equipment into an outlet on a circuit different from that to which the receiver is connected. nConsult the dealer or an experienced radio /TV technician for help. The user should not modify or change this equipment without written approval from WENSHING ELECTRONICS CO.,LTD. Modification could void authority to use this equipment.

C:\windows\TEMP\probonholdemail.doc TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] December 9, 2002 To: FCC SUBJECT: WEN SHING ELECTRONICS CO., LTD. - FCC ID: WSWAL100001 REFERENCE: JOB 1124TC2 Re: For Your Information To Whom It May Concern: This device complies with FCC Part 15, Section 239: Operation in the 88-108 MHz band. This Rule states: The Field Strength of any emission shall not exceed 250 microvolts/meter at 3 meters or 48dBuV/m at 3 meters. However, the Test Report shows the emission level at 43.50 dBuV/m for this rule in error. The device passes the Part 15, Section 239 at 48 dBuV/m. Very truly yours, Frank (for) Sid Sanders

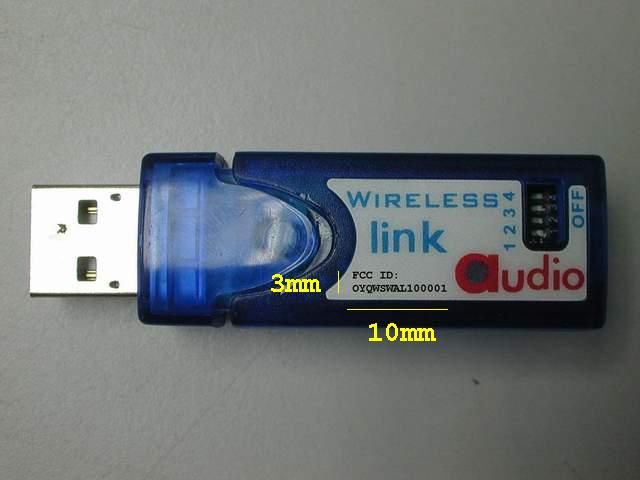

APPENDIX : Photographs of EUT OUT

IN

Wireless Audio Link Introducing the Wireless Audio Link The Wireless Audio Link plays music from any portable Audio device or computer on any FM equipped stereo Source. Wirelessly transmits the audio using FM frequencies. No batteries required. Features and Benefits - Modulation : FM from 88.1 to 88.9 MHZ - Channel: 5 channels. - Distance: 10 meters. - 5V supplied voltage at 22 mA current. - Power requirement: USB Bus Power or External Power. (for Mobile model only ). Requirements - A powered USB port Package Contents Available - (1) Wireless Audio - (2) Audio cable - (3) Car power adapter Installation 1. Connect this unit to a USB port for power. Make sure the USB port actually has power. 2. Insert one end of the audio cable into the unit. Only one end fits this jack. 3. Insert the other end of the audio cable to your audio source’s output jack. 4. Adjust the frequency on your FM equipped audio device to match the Wireless Audio Link’s. The default frequency is set at 88.1 MHZ. 5. You should now hear music from your audio source in your FM equipped audio device. Turn on the volume if necessary.

Report No. : EM/2002/A0009 Page : 1 of 18 FCC TEST REPORT Equipment Under Test : WIRELESS AUDIO LINK Model No. : WS-WAL1 Applicant : Wen Shing Electronics Co.,Ltd. 82,Chorng Der St., Address of Applicant : Taipei, Taiwan, R.O.C. Standards: FCC Part 15 subpart C In the configuration tested, the EUT complied with the standards specified above. Remarks: This report details the results of the testing carried out on one sample, the results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS Taiwan EMC Services or testing done by SGS Taiwan EMC Services in connection with distribution or use of the product described in this report must be approved by SGS Taiwan EMC Services in writing. Tested by : Gallon Lee Date : Nov. 4, 2002 Approved by : Jason Lin Date : Nov. 5, 2002 Report No. : EM/2002/A0009 Page : 2 of 18 Contents 1. General Information 1.1 Testing Laboratory 3 1.2 Details of Applicant 3 1.3 Description of EUT(s) 3 1.4 Operation Procedure 4 2. Summary of Results 4 3. Instruments List 5 4. Measurements 6 4.1 Conducted Limits 6-8 4.2 Radiated emission Limits, general requirement 9-13 4.3 Frequency range of 88MHz-108MHz 14 4.4 Main frequency Field Strength 15 APPENDIX Photographs of Test Setup 16 Photographs of EUT 17-18 Report No. : EM/2002/A0009 Page : 3 of 18 1. General Information 1.1 Testing Laboratory SGS Taiwan Ltd. ( FCC Registration number: 94644 ) 1F, No. 134, Wukung Road, Wuku industrial zone Taipei county , Taiwan , R.O.C. Telephone : +886-2-2299-3279 Fax : +886-2-2298-2698 Internet : http://www.sgs.com.tw 1.2 Details of Applicant Name Wen Shing Electronics Co.,Ltd. Address 82,Chorng Der St., Taipei, Taiwan, R.O.C. Contact Fu-Wen Lin Telephone +886-2-27353055 1.3 Description of EUT(s) 1 Product name Wireless Audio Link 2 Product ID WS-WAL1 3 Supply Voltage USB Power Supply 5V10% 4 Carrier Frequency 88MHz to 108MHz 5 Output Interface USB 1.4 Operation Procedure Turn on PC and all peripheral devices. Set Frequency by DIP switch. Connect EUT to USB connector. Connect audio source to 3.5mm connector of EUT. Testing requirement follows CFR47, Part 15.239 , testing site comply with the requirement of ANSI C63.4 standard. Report No. : EM/2002/A0009 Page : 4 of 18 2.Summary of Results subclause Parameter to be measures Verdict Page 15.207 Conducted Limits PASS 6 15.209 Radiated emission Limits, general requirement PASS 9 15.239(a) Frequency range of 88MHz-108MHzPASS 14 15.239(b) Main frequency field strength not exceed 250 microvolts/meter at 3 meters PASS 15 Report No. : EM/2002/A0009 Page : 5 of 18 3. Instruments List Instrument Model Serial number Calibration date Desktop PC Acer Veriton 7200N/A N/A Spectrum Analyzer Agilent 7405A US40240202 May 22, 2002 Antenna Schwarzbeck VULB9163 159 July 1, 2002 EMC Analyzer HP 8594EM 3624A00203 Dec. 13, 2001 EMI Test Receiver R&S ESCS 30 828985/004 Oct. 11, 2002 Transient Limiter HP 11947A 3107A02062 Jul. 24, 2002 L.I.S.N Rolf-Heine NNB-2/16Z 99012 Oct. 08, 2002 Report No. : EM/2002/A0009 Page : 6 of 18 4. Measurements 4.1 Conducted Limits SUBCLAUSE 15.207 Report No. : EM/2002/A0009 Page : 7 of 18 Report No. : EM/2002/A0009 Page : 8 of 18 Line Neutral Report No. : EM/2002/A0009 Page : 9 of 18 4.2 Radiated emission Limits, general requirement SUBCLAUSE 15.209 Part 1: 30Mhz-300Mhz(H) Report No. : EM/2002/A0009 Page : 10 of 18 Part2: 300Mhz- 1Ghz(H) Report No. : EM/2002/A0009 Page : 11 of 18 Part 3: 30Mhz-300Mhz(V) Report No. : EM/2002/A0009 Page : 12 of 18 Part4: 300Mhz- 1Ghz(V) Report No. : EM/2002/A0009 Page : 13 of 18 4.2.1 Limits Report No. : EM/2002/A0009 Page : 14 of 18 4.3 Frequency range of 88MHz-108MHz SUBCLAUSE 15.239(a) (a) Emissions From the intentional radiator shall be confined within a band 200 kHz wide centered on the operating frequency, The 200 kHz band shall lie wholly within the frequency range of 88-108 MHz Center Freq: f=88.1009MHz Lower Band edge at 200khz bandwidth f=88.009MHz Report No. : EM/2002/A0009 Page : 15 of 18 4.4 Main frequency field strength SUBCLAUSE 15.239(b) (b) The field strength of any emissions within the permitted 200 kHz band shall not exceed 250 microvolts/meter at 3 meters. The emission limit in this paragraph is based on measurement instrumentation employing an average detector.The provisions in Section 15.35 for limiting peak emissions apply. Report No. : EM/2002/A0009 Page : 16 of 18 APPENDIX: Photographs of Test Setup The photos are saved separately Report No. : EM/2002/A0009 Page : 17 of 18 APPENDIX : Photographs of EUT OUT The photos are saved separately Report No. : EM/2002/A0009 Page : 18 of 18 IN The photos are saved separately
