FCC Software Configuration Control Declaration Rev1.0.docx Shenzhen Four Seas Global Link Network Technology Co., Ltd FCC Software Configuration Control Declaration Date: Sept. 01, 2020 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Attn: OET Dept. Product: PCI-E Wireless Adapter Model No.: CF-WP1300 Regarding FCC Country Code Selection guidelines identified in KDB 594280 D01 v02r01. “All applications for equipment authorization for transmitters that can have radio parameters, or other technical parameters, reported to the Commission set by software must have an attestation indicating that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified.” We declare that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified. Date: Sept. 01, 2020 Name: Raymond Wang Title: General Manager

Shenzhen Four Seas Global Link Network Technology Co., Ltd Agent Authorization Company: Shenzhen Four Seas Global Link Network Technology Co., Ltd Address: Room 607-610, Block B, TAOJINDI Electronic Business Incubation Base, Tenglong Road, Longhua District, Shenzhen, China Product Name: PCI-E Wireless Adapter Model Number(s ): CF-WP1300, CF-AX200 PULS, CF-AX200 PRO, CF-AX200 SE, CF- WP1900, CF-WP1750, CF-WP650, CF-AX200, CF-AX300, CF-AX300 PRO Product Description: PCI-E Wireless Adapter We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Sept. 01, 2020 Name: Raymond Wang Title: General Manager Company: Shenzhen Four Seas Global Link Network Technology Co., Ltd

Shenzhen Four Seas Global Link Network Technology Co., Ltd Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: Sept. 01, 2020 Subject; Request for Confidentiality FCC ID: OYR-CFWP1300 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure software security requirement It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Raymond Wang Title: General Manager

Model Difference Declaration To Whom It May Concern, We, Shenzhen Four Seas Global Link Network Technology Co., Ltd(PCI-E Wireless Adapter) Trademark:N/A; Model Number: CF- WP1300, CF-AX200 PULS, CF-AX200 PRO, CF-AX200 SE, CF- WP1900, CF-WP1750, CF-WP650, CF-AX200, CF-AX300, CF- AX300 PRO; All model’s the function, software and electric circuit are the same, only with a product color and model named different for commercial purpose. Test sample model: CF-WP1300 . Please contact me if you have any question. Name: Raymond Wang Date: Sept. 01, 2020 Title: General Manager Signature of applicant:

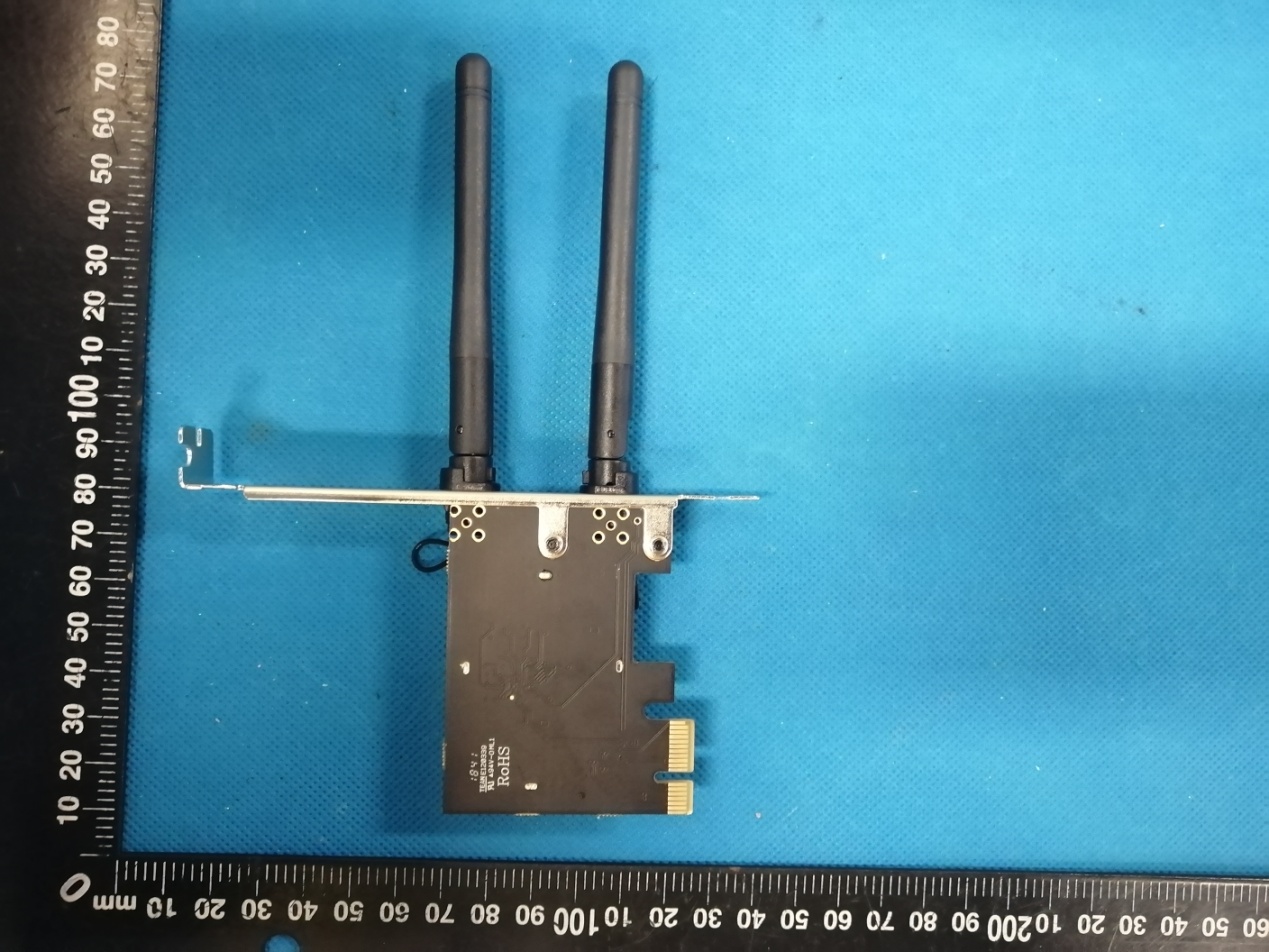

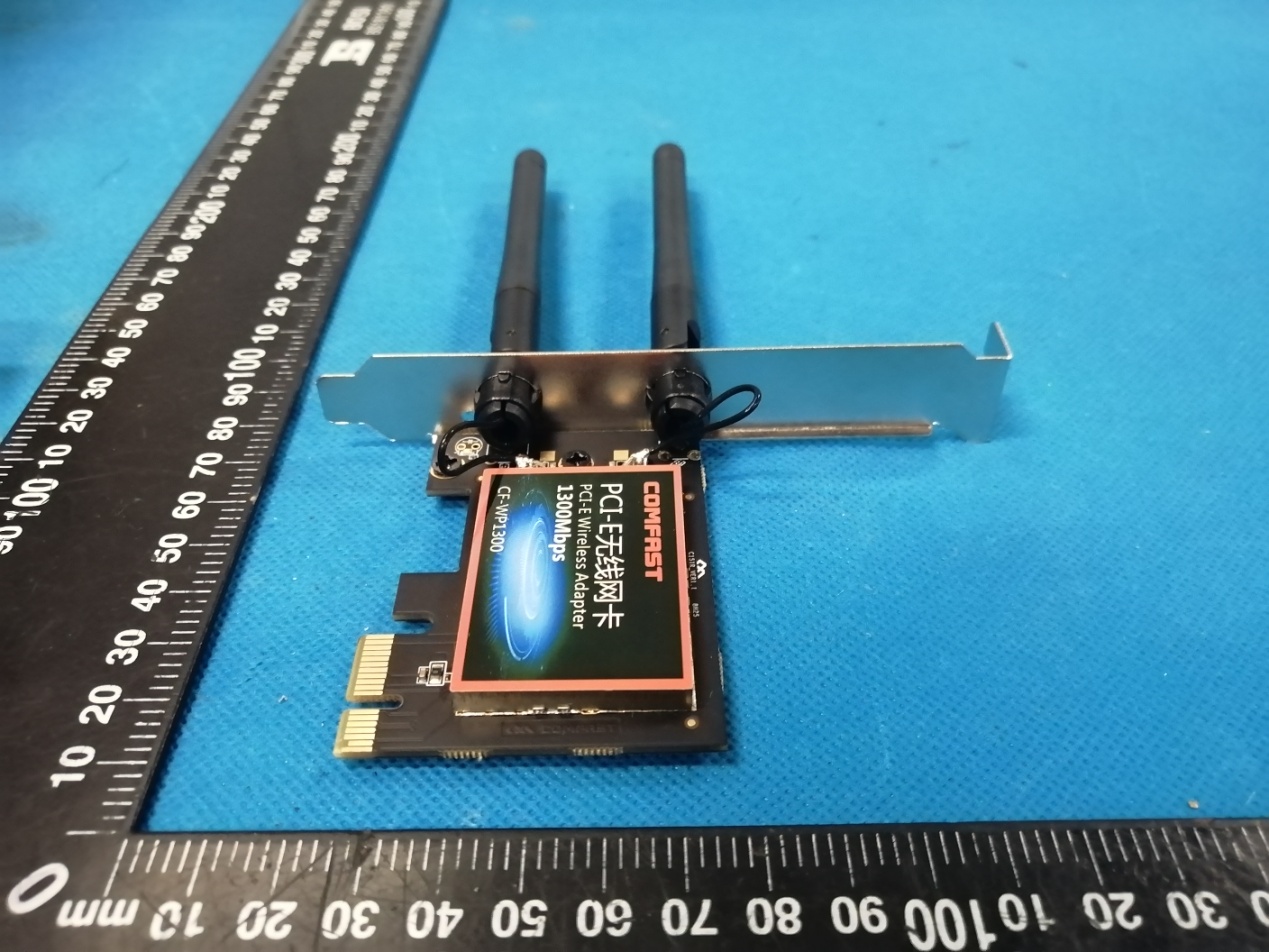

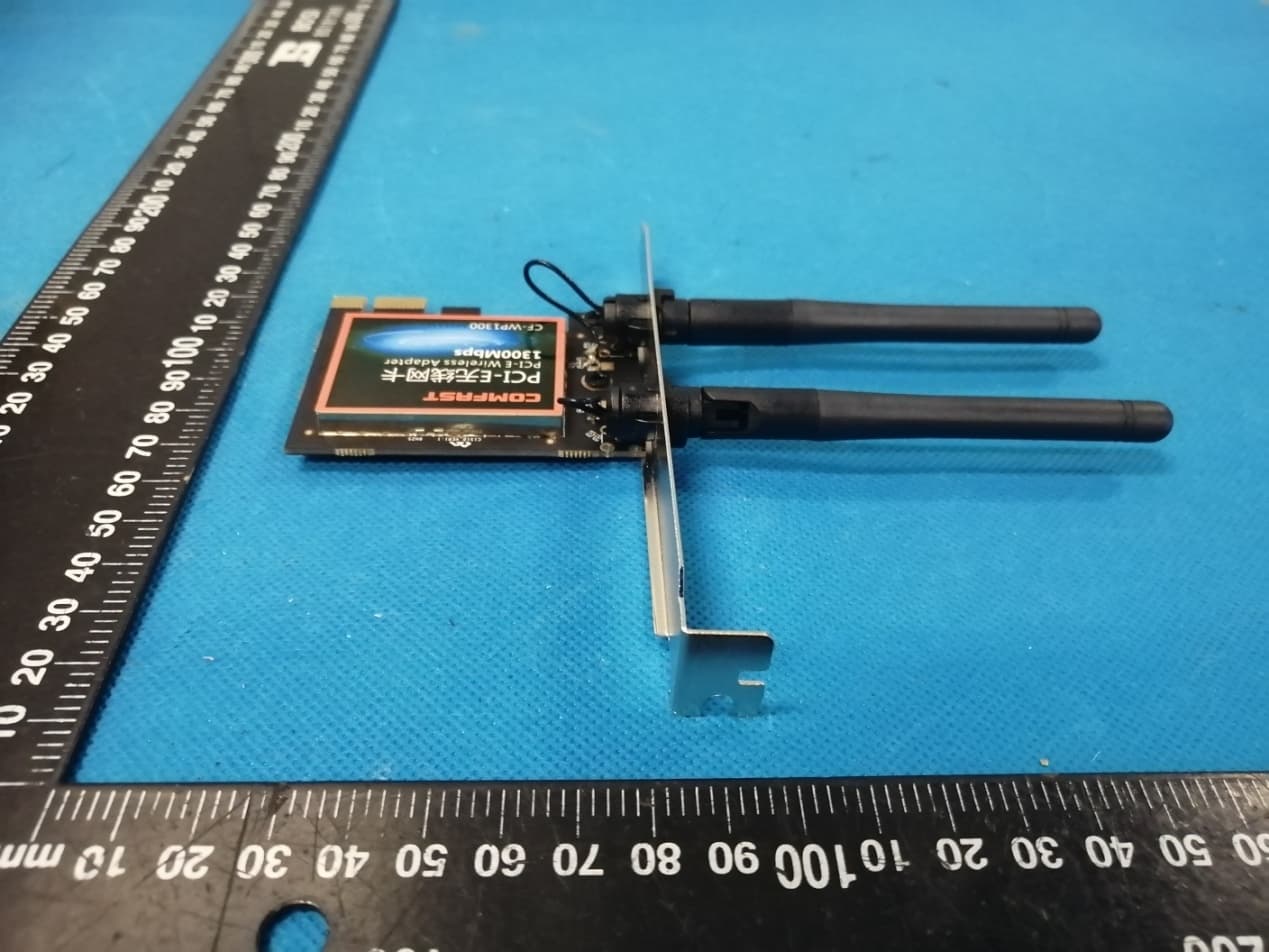

Annex A External Photos Report No.: HK2008122283-1E/2E/3E Page 1 of 3 2.4G/5.2G/5.8G Antenna Report No.: HK2008122283-1E/2E/3E Page 2 of 3 Report No.: HK2008122283-1E/2E/3E Page 3 of 3

FCC ID LABEL: Ca. 5mm x 10mm Include in manual: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Label Location FCC ID: OYR-CFWP1300

Annex B Internal Photos Report No.: HK2008122283-1E/2E/3E Page 1 of 2 Report No.: HK2008122283-1E/2E/3E Page 2 of 2

MPE ESTIMATION FCC ID: OYR-CFWP1300 1,Limit for General Population/ Uncontrolled Exposures Frequency Power density (mW/ cm 2 ) Averaging time(minutes) 300MHz----1.5GHz F/1500 30 1.5GHz---100GHz 1.0 30 Note: F= Frequency in MHz 2, Estimation Result 2.4G WIFI Mode Frequency (MHz) Max PK Output power(dBm) Tune Up Power(dBm) Max Tune Up power(mW) Antenna Gain(dBi) Antenna Gain (linear) MPE ( mW/cm²) 2.4G WiFi Ant1 2412 14.97 15±1(16) 39.81 0 1.0000 0.01255 2.4G WiFi Ant2 2422 14.56 15±1(16) 39.81 0 1.0000 0.01255 MIMO / / / / / / 0.02510 5.2G WiFi Ant1 5200 14.45 14±1(15) 31.62 0 1.0000 0.00997 5.2G WiFi Ant2 5180 14.76 14±1(15) 31.62 0 1.0000 0.00997 MIMO / / / / / / 0.01994 5.8G WiFi Ant1 5825 14.45 14.5±1(15.5) 35.48 0 1.0000 0.00706 5.8G WiFi Ant2 5825 14.45 14.5±1(15.5) 35.48 0 1.0000 0.00706 MIMO / / / / / / 0.01412 Note: Note: The estimation distance is 20cm Note: PK Output power= conducted power. Conducted power see the test report HK2008122283-1E/2E/3E, antenna gain=0dBi when the minimum test separation distance is >20 cm, a distance of 20 cm is applied to determine RF Exposure test exclusion. The test exclusion threshold is 0.02510 mW/cm² which is< 1.0mW/cm², RF Exposure testing is not required. -------The End-------
