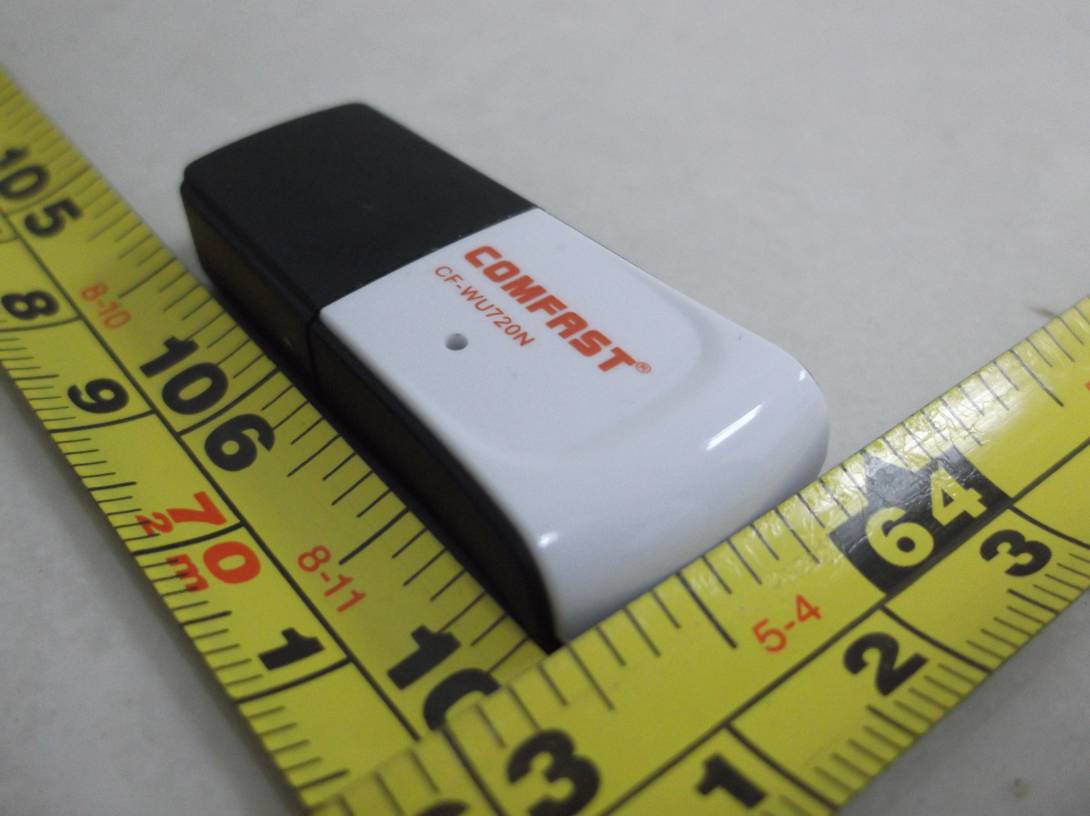

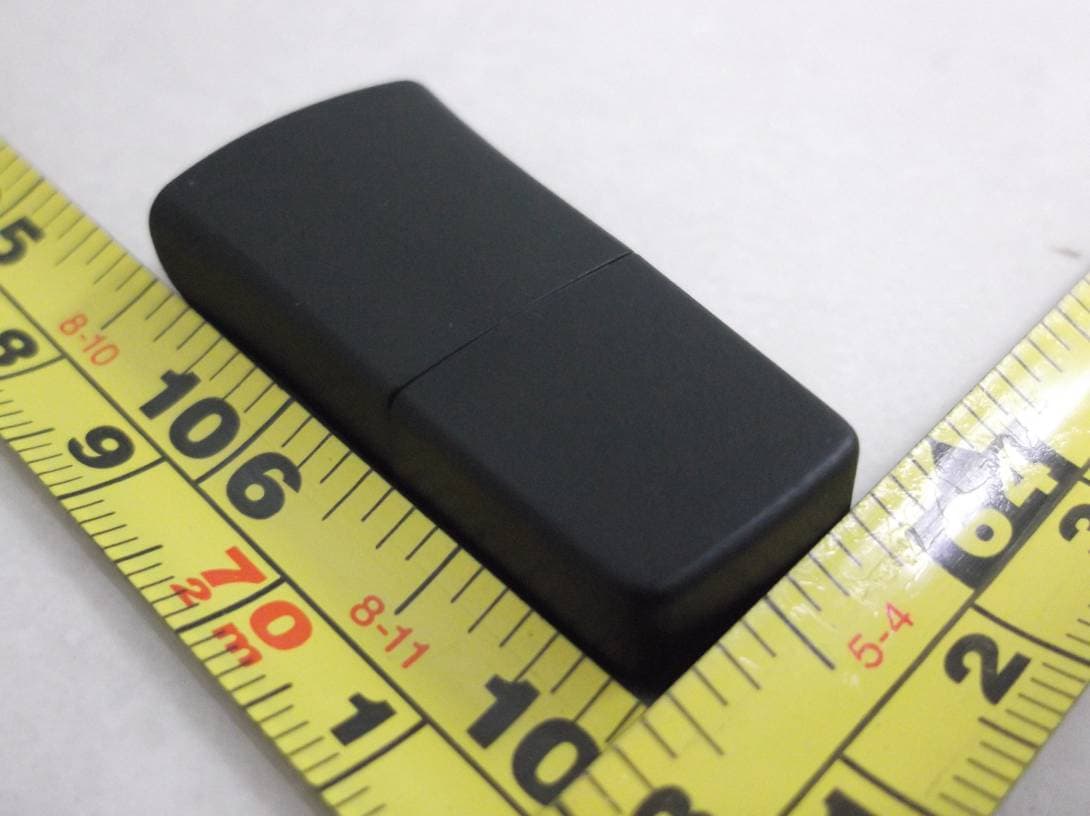

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OYR-COMFAST88 Report No.: LCS120712087TF ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 2 1. EXTRIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OYR-COMFAST88 Report No.: LCS120712087TF ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 2 Fig.3

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OYR-COMFAST88 Report No.: LCS120712087TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 LABEL AND LOCATION Size: 1.5cm(L)x1.0cm(W) Label Location Trade Mark: COMFAST Model: CF-WU720N FCC ID: OYR-COMFAST88

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OYR-COMFAST88 Report No.: LCS120712087TF ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 2 1. INTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OYR-COMFAST88 Report No.: LCS120712087TF ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 2 Fig.3 Fig.4 Antenna

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OYR-COMFAST88 Report No.: LCS120712087TF ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 1 5.9. RF Exposure 5.9.1 Limit According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. 5.9.2 EUT Specification Maximum measured transmitter power: 802.11b Conducted Power (dBm) Max Antenna Gain (dBi) EIRP (mw) 10.82 2.0 19.143 Maximum measured transmitter power: 802.11g Conducted Power (dBm) Max Antenna Gain (dBi) EIRP (mw) 10.63 2.0 18.323 Maximum measured transmitter power: 802.11n HT20 Mode Conducted Power (dBm) Max Antenna Gain (dBi) EIRP (mw) 10.34 2.0 17.140 Maximum measured transmitter power: 802.11n HT40 Mode Conducted Power (dBm) Max Antenna Gain (dBi) EIRP (mw) 10.42 2.0 17.458 5.9.3 Test Results Threshold at which no SAR required is 24.62 mw. Maximum Tx Output power is 19.143mw EIRP. Conclusion: No SAR is required. Frequency Range Low Frequency (MHz) High Frequency (MHz) Center frequency (MHz) 60/f SAR Limitation (mw) 2412 2462 2437 24.62

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OYR-COMFAST88 Report No.: LCS120712087TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 79 RADIO TEST REPORT For Shenzhen Four Seas Global Link Network Technology Co., Ltd. Wireless Adapter Model No.: CF-WU720N Prepared for : Shenzhen Four Seas Global Link Network Technology Co., Ltd. Address : Hangdu Building 11CD Shennan Road, Futian District, Shenzhen, China Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 1F., Xingyuan Industrial Park, Tongda Road, Bao’an Blvd., Bao’an District, Shenzhen, Guangdong, China Date of receipt of test sample : July 12, 2012 Number of tested samples : 1 Serial number : Prototype Date of Test : July 12, 2012 – August 02, 2012 Date of Report : August 02, 2012 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OYR-COMFAST88 Report No.: LCS120712087TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 79 RADIO TEST REPORT FCC CFR 47 PART 15 C(15.247) Report Reference No. .............. : LCS120712087TF Date of Issue ................................ : August 02, 2012 Testing Laboratory Name ......... : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ........................................ : 1F., Xingyuan Industrial Park, Tongda Road, Bao’an Blvd., Bao’an District, Shenzhen, Guangdong, China Testing Location/ Procedure........ : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name....................... : Shenzhen Four Seas Global Link Network Technology Co., Ltd. Address ........................................ : Hangdu Building 11CD Shennan Road, Futian District, Shenzhen, China Test Specification Standard ....................................... : FCC CFR 47 PART 15 Subpart C: 2011, ANSI C63.4-2003 Test Report Form No................. : LCSEMC-1.0 TRF Originator ............................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF .................................. : Dated 2011-03 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. ............... : Wireless Adapter Trade Mark : COMFAST Manufacturer................................ : Shenzhen Sihaijialan Electronic Technology Co., Ltd. Model/ Type reference................. : CF-WU720N Ratings ......................................... : DC 5V Conneted to PC Input AC 120V/60Hz, Current: 450mA Result ......................................... : Positive Compiled by: Supervised by: Approved by: Ada Liang / File administrators Vito Cao/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OYR-COMFAST88 Report No.: LCS120712087TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 79 RADIO -- TEST REPORT Test Result: Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS120712087TF August 02, 2012 Date of issue Type / Model........................... : Wireless Adapter EUT......................................... : CF-WU720N Applicant............................... : Shenzhen Four Seas Global Link Network Technology Co., Ltd. Address.................................. : Hangdu Building 11CD Shennan Road, Futian District, Shenzhen, China Telephone............................... : / Fax.......................................... : / Manufacturer........................ : Shenzhen Sihaijialan Electronic Technology Co., Ltd. Address................................... : Floor 4, Building 9, Hongxin Industrial Park, Eastern of Meiguan Highway, Dabuxiang Community, Guanlan, Bao'an District, Shenzhen, 518110, P.R. China Telephone............................... : / Fax.......................................... : / Factory................................... : Shenzhen Sihaijialan Electronic Technology Co., Ltd. Address................................... : Floor 4, Building 9, Hongxin Industrial Park, Eastern of Meiguan Highway, Dabuxiang Community, Guanlan, Bao'an District, Shenzhen, 518110, P.R. China Telephone............................... : / Fax.......................................... : / SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OYR-COMFAST88 Report No.: LCS120712087TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 79 TABLE OF CONTENTS 1. GENERAL INFORMATION .................................................................................................................................. 5 1.1. DESCRIPTION OF DEVICE (EUT) ...........................................................................................................................5 1.2. HOST SYSTEM CONFIGURATION LIST AND DETAILS............................................................................................. 5 1.3. EXTERNAL I/O CABLE.......................................................................................................................................... 5 1.4. DESCRIPTION OF TEST FACILITY........................................................................................................................... 5…
