OYRCF-912ACUSB Wireless Adapter

CONTENTS Hardware Installation..............................1 Drive Software Installatiao .....................1 Network connection Settings ..................4 Copyright information ...........................7 1 2 3 4 5 6 7 8

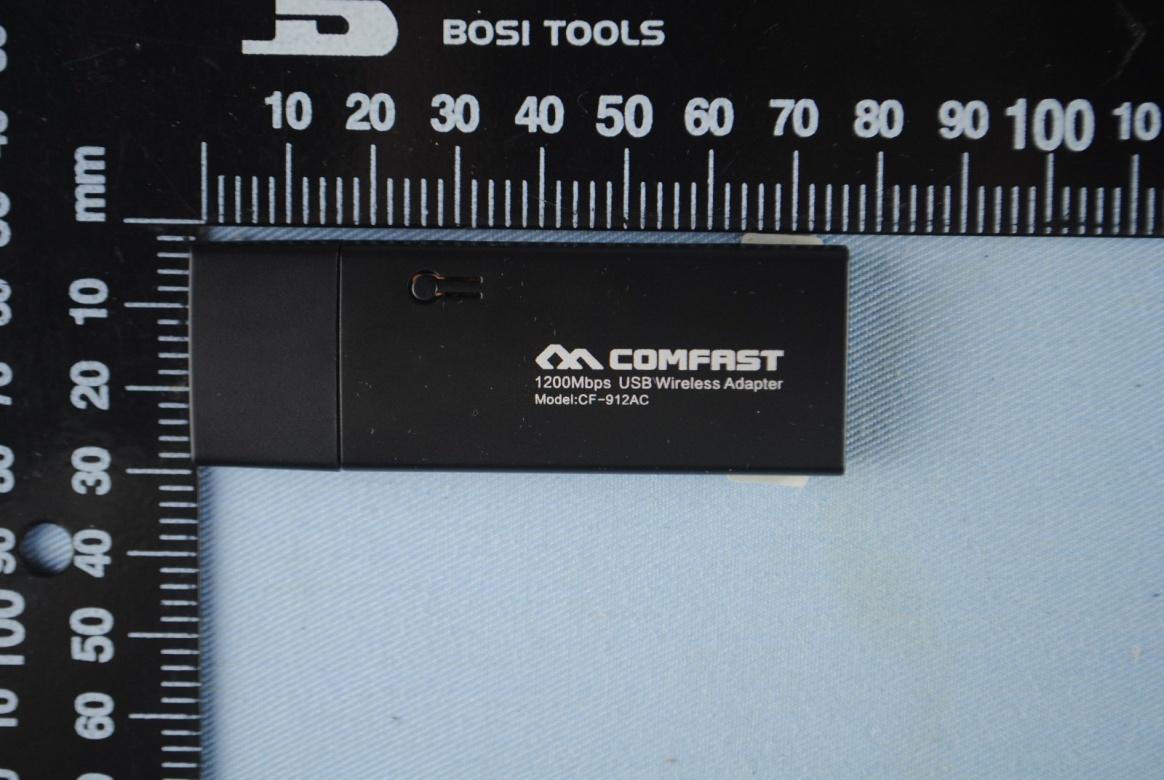

External Photos OYRCF-912AC External Photos OYRCF-912AC 1 / 3 EUT top view External Photos OYRCF-912AC External Photos OYRCF-912AC 2 / 3 EUT bottom view External Photos OYRCF-912AC External Photos OYRCF-912AC 3 / 3

ID Label & Location Info OYRCF-912AC ID Label & Location Info OYRCF-912AC 1 / 1 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The Label must not be a stick-on paper label. The Label on these products must be permanently affixed to the product and readily visible at the time of purchase and must last the expected lifetime of the equipment not be readily detachable. Proposed Label Location on EUT FCC ID: OYRCF-912AC

RF Exposure DTS RF Exposure DTS 1 / 1 7. RF Exposure Requirements 7. 1 Test Equipment Please refer to Section 10 this report. 7. 2 Limit According to FCC 15.247(e)(i) and FCC 1.1307(b)(1), Systems operating under provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commissions guidelines. According to KDB 447498 D01 General RF Exposure v05, section 4.3.1 SAR Test Exclusion Thresholds for 100 MHz-6GHz and <=5mm Frequency Range Maximum measured transmitter power frequency(MHz) SAR Limitation (mW) Low Frequency(MHz) High Frequency(MHz) 2412 2462 2462 10 7. 3 Test Result Product : Wireless Adapter Test Mode : IEEE 802.11b/g/n Test Item : RF Exposure Temperature : 25 °C Test Voltage : DC 5V (From Host) Humidity : 56%RH Test Result : PASS RF Exposure Requirements Compliance with FCC Rules S=PG/4∏R2 Where: S=Power density P=Power input to antenna G=Power gain of the antenna relative to an isotropic radiator R=Distance to the center of radiation of the antenna Maximum output power at antenna input terminal: 5.90 dBm = 3.52 mW (802.11b, 2462MHz) 4.99 dBm = 3.16 mW (802.11g, 2437MHz) 5.94 dBm = 3.92 mW (802.11n/20MHz, 2412MHz) 4.65 dBm = 2.92 mW (802.11n/40MHz, 2452MHz) Prediction distance: <=5mm Antenna gain : 2.0 dBi SAR Test Exclusion Threshold is 10 mW (802.11b, 2462MHz):8.71 mW (802.11g, 2437MHz):7.06 mW (802.11n/20MHz, 2412MHz):8.78 mW (802.11n/40MHz, 2452MHz):6.54 mW The max. output power E.I.R.P < 10 mW Conclusion: No SAR is required.

The test report consists 71 pages in total. It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of Ke Mei Ou Laboratory Corporation. The test result in the report only applied to the tested sample. FCC TEST REPORT Under FCC 15 Subpart C, Paragraph 15.247 Operating in 2400 ~ 2483.5 MHz Band Prepared For : Shenzhen Four Seas Global Link Network Technology Co., Ltd. Room 607-610, Block B, TAOJINDI Electronic Business Incubation Base, Tenglong Road, Longhua District, Shenzhen, China. FCC ID: OYRCF-912AC EUT: Wireless Adapter Model: CF-912AC December 11, 2015 Issue Date: Original Report Report Type: Test Engineer: Review By: Apollo Liu / Manager E506, 5th Floor, No.39 Keji Middle 2nd Rd, Science & Technology Park, Nanshan District, Shenzhen, P. R. China Tel: + 86 755 83642690 Fax: + 86 755 83297077 www.kmolab.com Shenzhen Four Seas Global Link Network Technology Co., Ltd. FCC ID: OYRCF-912AC KMO FCC ID Report Report #: KSZ2015102801J01 Page 2 of 71 TABLE OF CONTENTS 1. General Information ........................................................................................................................................................... 3 1. 1 Notes ............................................................................................................................................................................... 3 1. 2 Testing Laboratory .......................................................................................................................................................... 3 1. 3 Details of Applicant ........................................................................................................................................................ 3 1. 4 Application Details ......................................................................................................................................................... 3 1. 5 Test Item ......................................................................................................................................................................... 3 1. 6 Test Standards ................................................................................................................................................................. 3 2. Technical Test ....................................................................................................................................................................... 4 2. 1 Summary of Test Results ................................................................................................................................................ 4 2. 2 Antenna Requirement ..................................................................................................................................................... 4 3. EUT Modifications .............................................................................................................................................................. 4 4. Conducted Power Line Test ................................................................................................................................................ 5 4. 1 Test Equipment ............................................................................................................................................................... 5 4. 2 Test Procedure ................................................................................................................................................................ 5 4. 3 Test Setup ....................................................................................................................................................................... 5 4. 4 Configuration of the EUT ............................................................................................................................................... 6 4. 5 EUT Operating Condition ............................................................................................................................................... 8 4. 6 Conducted Power Line Emission Limits ........................................................................................................................ 8 4. 7 Conducted Power Line Test Result ................................................................................................................................. 9 5. FCC Part 15.247 Requirements for 802.11b/g/n Systems ................................................................................................ 11 5. 1 Test Equipment ..............................................................................................................................................................11 5. 2 Test Procedure ...............................................................................................................................................................11 5. 3 Test Setup ......................................................................................................................................................................11 5. 4 Configuration of the EUT ..............................................................................................................................................11 5. 5 EUT Operating Condition ..............................................................................................................................................11 5. 6 Limit ............................................................................................................................................................................. 12 5. 7 Test Result .................................................................................................................................................................... 13 6. Transmitter Spurious Radiated Emission at 3 Meters .....................…

Text truncated - open the document above for the full version.

Test Setup Photos OYRCF-912AC FCC15B Test Setup Photos OYRCF-912AC FCC15B 1 / 2 Radiated Emission test view Test Setup Photos OYRCF-912AC FCC15B Test Setup Photos OYRCF-912AC FCC15B 2 / 2 Conducted Emission test view
