OYRCF-WR300NWireless Repeater

User Guide Wireless Repeater M/N: CF‐WR300N Trade Mark: COMFAST Manufacturer: Shenzhen Four Seas Global Link Network Technology Co., Ltd 1、 Product Specification This device as a complement of wired LAN (local area network) achieved the wireless access function of the wired LAN network, plug‐and‐play. Suitable environments: Hotels, School dormitories, House, Apartments, Buildings Note: COMFAST mini repeater has two shape, please find the corresponding description of the product according to your item appearance. WPS/Reset button: WPS/Reset button is at the bottom of This device beside LAN/WAN port. When power is on, press and hold the WPS/Reset button for 2 seconds, you will enable the WPS function, press and hold the button for 10 seconds and release, then it is restoring the factory value function the device will restore to factory settings. Warning: 1.Please remove the device if it's the thunderstorm weather to keep from lightning strikes 2.Keep away from heat source and keep ventilation. 3.Please pay attention to waterproof when it is in storing, transporting and operating environment. 2、 Introduction of 3 Application Modes 2.1 AP Mode(Access Point) This device as a complement of wired LAN(Local Area Network),achieved the wireless access function of the wired LAN, plug‐and‐play. Under this mode, the RJ45 wire port is being used as LAN port, computer can connect with This device through wired or wireless way. you have to set your computer' s IP address manually if you want to log in the setting page. 2.2 Repeater Mode This device is used for extending the wireless signal's coverage of existing AP or wireless router. Under this mode, the RJ45 wire port is being used as LAN port, computer can connect with this device by wired or wireless signal. You should set your computer's IP address manually or press the reset button for restoration(note: after restoration, it is router mode by default, the computer must through wireless way log in the setting page) Application environments: Duplex houses, Large‐area places. 2.3 Router Mode This device has wireless router function, its wired RJ45 port used as WAN port, it can connect with ADSL modem by web cable, computer will get sharing network by connecting with This device through wireless way. Under this mode, the RJ45 wired port as WAN port, only through wireless way the computer can connect with This device, device's DHCP server is enabled by default, we suggest making the IP address and DNS address acquired automatically. Application environments: House, Apartments Note: In most cases, the network of holes or school dormitories adopt dynamic IP addressing, at this time, computer/wifi mobile phone/pad only need make their IP address and DNS address acquired automatically. In a few cases, the network is fixed IP address, need make the computer/wifi mobile phone/pad's IP address and DNS address same as the address which the network administrator specified. 3、 Check network IP address(Windows 7 or XP) Windows 7 1.Click"Start‐Control Panel‐Network and Internet‐Network and sharing Center‐Change adapter settings‐Wireless Network Connection", right click the wireless Network Connection, choose "Properties" 2.Double click "Internet Protocol Version 4(TCP/IPv4)". 3. If your computer's IP address, sub net mask and default gateway were set manually, please revise them to "Automatically get the IP address and" Obtain DNS server address automatically then click "OK", previous interface also click "OK" Windows XP 1.Right click the "My Network Places" on the desktop and choose "Properties" 2.Right click the "Wireless Network Connection" and choose "Properties" 3.Double click "Internet protocol(TCP/IP)" 4.If your computer's IP address sub net mask and default gateway were set manually, please revise them to "Automatically get the IP address "and" Obtain DNS server address automatically", then click "OK", previous interface also click "OK" 4、 Wireless Network Connection(Win 7 and XP) Windows 7 1.After the installation of the wireless adapter, bottom right corner will appear icon, click this icon. 2.From the pop‐up network list, please select the network which is to be connected, This device default SSID name is "COMFAST" select it and click "Connect" 3.In the first use, it will appear tips as below picture, please select "connect to the network without setting up the network", then click "OK" 4.When it shows “connected”, means that your computer has successfully accessed the wireless network Windows XP 1. After the installation of the wireless icon, click this icon 2.From the pop‐up network list, please select the network which is to be connected, This device default SSID name is ”COMFAST”, select it and 3.When the up right corner appears ”Connected’ mark, means that the computer has successfully accessed the wireless network. 5、 The Product Log in Interface 1.Open a web browser,type”192.168.10.1",hit”Enter”,language select” English”, and fill the” User name” and” Password”(all is ”admin” by default),then click” Log in”. 2.After log in in the This device setting page, there are 3 working modes and some system information as shown below:6AP mode settings 6、 AP mode settings 1.Choose ”AP ” mode as shown below: 2.Wireless SSID is the name of the wireless network, you can keep default name, but suggest change to other name; Channel you can select from 1 to 13 or Auto; Encryption recommended using WPA/WPA2;key need type more than 8 letters or numbers 3.Click”APPLY” button, set up waiting for 20 seconds, then plug web cable into the RJ45 wire port of This device, wireless hot spot created successfully, at this time, laptop/mobile phone/pad etc. devices can search out the SSID name which you set up, type the key to connect and get the Internet. 7、 Repeater Mode 1.Choose”Repeater”mode as shown below, search and select the SSID which you want to repeat and set up the” Repeater SSID” (default name is “COMFAST”)an “Pre‐shared key”(note: pre‐shared key is same as the key…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (current) 4.0 5.0 Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 5.0 Shenzhen Four Seas Global Link Network Technology Co., Ltd Add: Room 607-610, Block B, TAOJINDI Electronic Business Incubation Base,Tenglong Road, Longhua District, Shenzhen, China Tel: 86-0755-86-83790059 Fax.: 86-0755-83790059-808 2015-06-23 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA FCC ID: OYRCF-WR300N Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, Shenzhen Four Seas Global Link Network Technology Co., Ltd, hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): (Product description, model name): Wireless Repeater / CF-WR300N, CF-WR150N, CF-WR302S, CF-WR350N, CF-WR351N, CF-WR360N, CF-WR800N, CF-WR802S, CF-WR750AC Sincerely, Client’s name / title : Raymond Wang / General Manager Contact information / address : Room 607-610, Block B, TAOJINDI Electronic Business Incubation Base,Tenglong Road, Longhua District, Shenzhen, China Tel: 86-0755-86-83790059 Fax.: 86-0755-83790059-808 Email: [email protected]

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 4.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (obsolete) 2.0 3.0 Jan-31-2012 Added IC confidentiality letter form (current) 3.0 4.0 March-26-2015 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 4.0 Shenzhen Four Seas Global Link Network Technology Co., Ltd 2015-06-23 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: OYRCF-WR300N We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s name / title : Raymond Wang / General Manager Contact information / address : Room 607-610, Block B, TAOJINDI Electronic Business Incubation Base,Tenglong Road, Longhua District, Shenzhen, China Tel: 86-0755-86-83790059 Fax.: 86-0755-83790059-808 Email: [email protected]

Shenzhen Four Seas Global Link Network Technology Co., Ltd WIFI Channel 12 & 13 Declaration Letter To whom it may concern : We have declared below featured for FCC equipment authorization in regard to 802.11b/g/n channel 12 & 13 operating capability for FCC ID : ORYCF-WR300N Please check Product hardware does not have the capability to operate on channel 12 & 13 Product hardware has the capability to operate on channel 12 & 13. However , these 2 channels will be disabled via software and user will not able to enable these 2 channels Product hardware has the capability to operate on channel 12 & 13. And meeting KDB 594280 D01 requirement. Pls explain detail here. Others Pls explain detail here. Company Name: Shenzhen Four Seas Global Link Network Technology Co., Ltd Address : Room 607-610, Block B, TAOJINDI Electronic Business Incubation Base,Tenglong Road, Longhua District, Shenzhen, China Name / Title : Raymond Wang / General Manager Signature : Phone : 86-0755-86-83790059 Email : [email protected] Date : 2015-06-29

Shenzhen Four Seas Global Link Network Technology Co., Ltd Add: Room 607-610, Block B, TAOJINDI Electronic Business Incubation Base,Tenglong Road, Longhua District, Shenzhen, China Tel: 86-0755-86-83790059 Fax.: 86-0755-83790059-808 Date: 2015-06-23 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA FCC ID: OYRCF-WR300N Dear Sir/Madam, We, Shenzhen Four Seas Global Link Network Technology Co., Ltd Hereby declares the following statement for SIEMIC, INC, PCB board, circuit, structure and internal of these model(s) are the same, Only color and model number is different for these model: Product name: Wireless Repeater Model no.: CF-WR300N, CF-WR150N, CF-WR302S, CF-WR350N, CF-WR351N, CF-WR360N, CF-WR800N, CF-WR802S, CF-WR750AC Sincerely, Client’s name / title : Raymond Wang / General Manager Contact information / address : Room 607-610, Block B, TAOJINDI Electronic Business Incubation Base,Tenglong Road, Longhua District, Shenzhen, China Tel: 86-0755-86-83790059 Fax.: 86-0755-83790059-808 Email: [email protected]

Shenzhen Four Seas Global Link Network Technology Co., Ltd Add: Room 607-610, Block B, TAOJINDI Electronic Business Incubation Base,Tenglong Road, Longhua District, Shenzhen, China Tel: 86-0755-86-83790059 Fax.: 86-0755-83790059-808 2016-06-23 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD We, Shenzhen Four Seas Global Link Network Technology Co., Ltd, declare that this EUT (FCC ID: OYRCF-WR300N) doesn’t have Ad Hoc mode function on“non-US/Canada frequencies”. In addition. The frequency selection feature is disabled by firmware for devices marked to the US/Canada. For DTS part of this device, only channels 1-11 will be used in North America, Country code selection is disabled. Should you have any questions or comments regarding this matter, please have my best attention. Client’s name / title : Raymond Wang / General Manager Contact information / address : Room 607-610, Block B, TAOJINDI Electronic Business Incubation Base,Tenglong Road, Longhua District, Shenzhen, China Tel: 86-0755-86-83790059 Fax.: 86-0755-83790059-808 Email: [email protected]

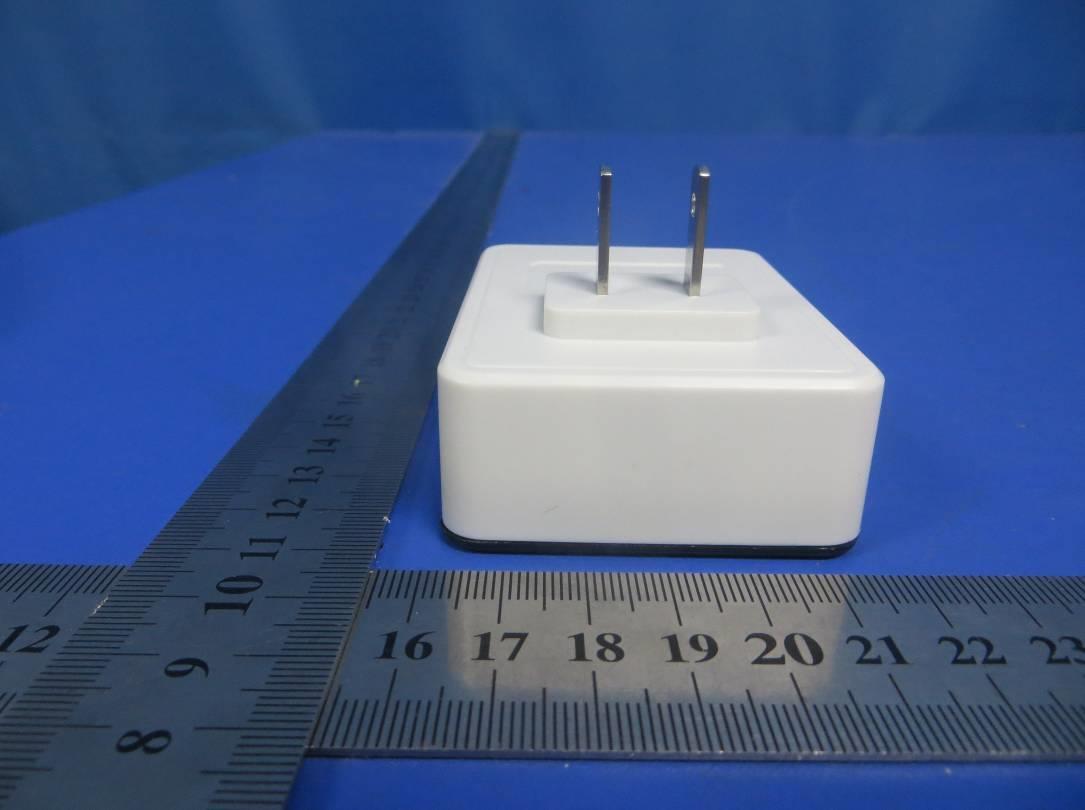

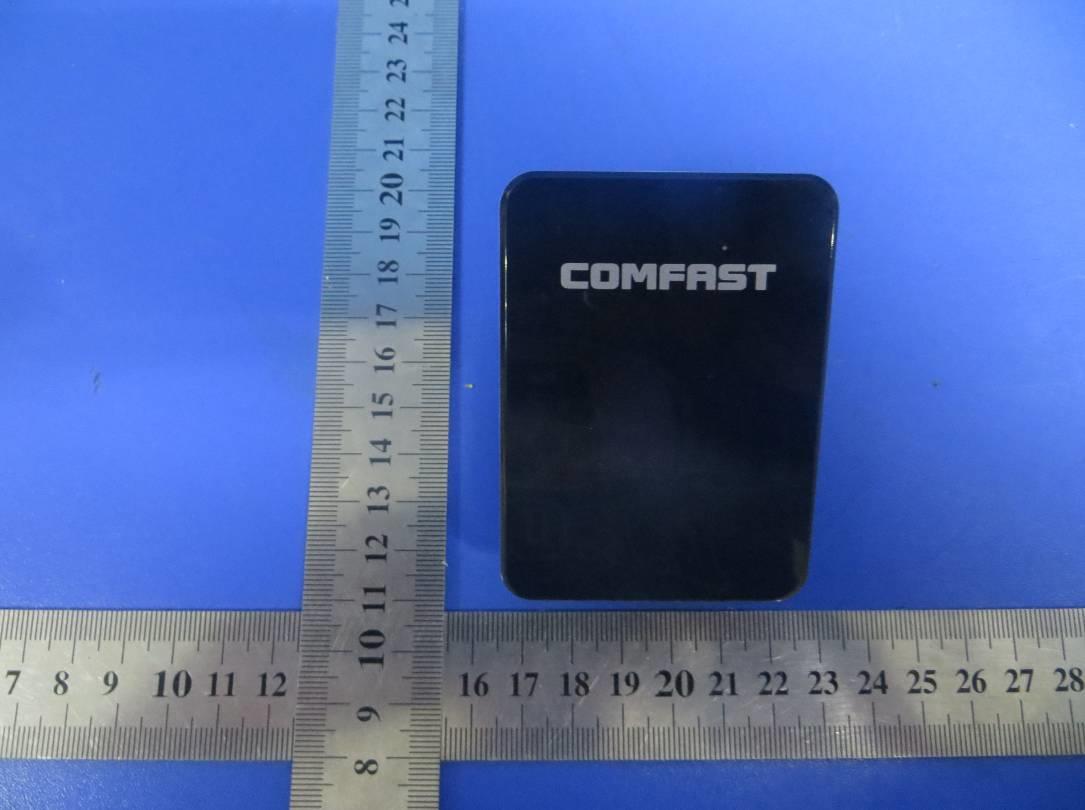

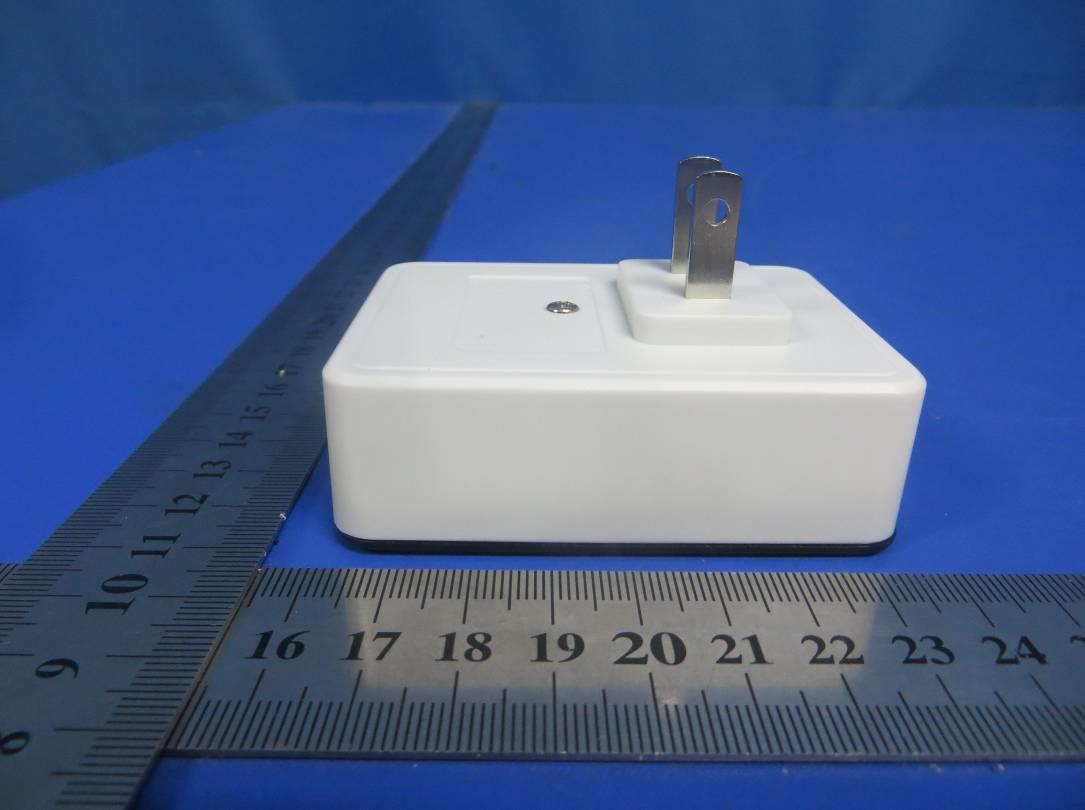

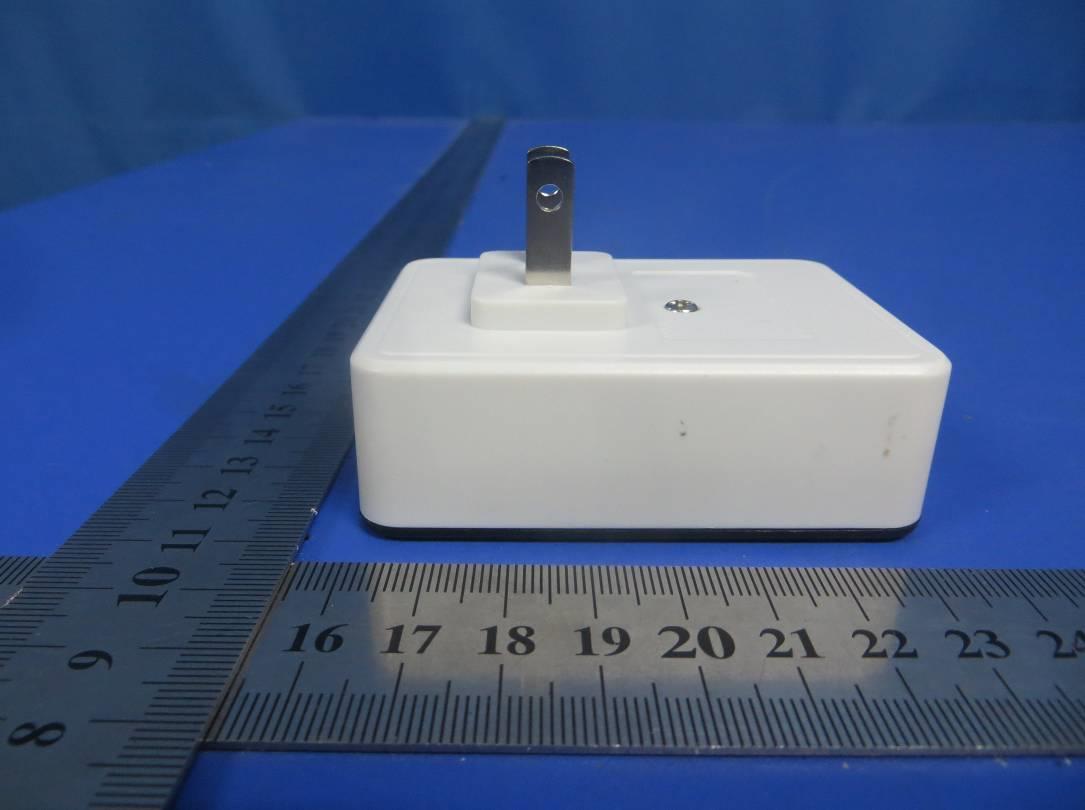

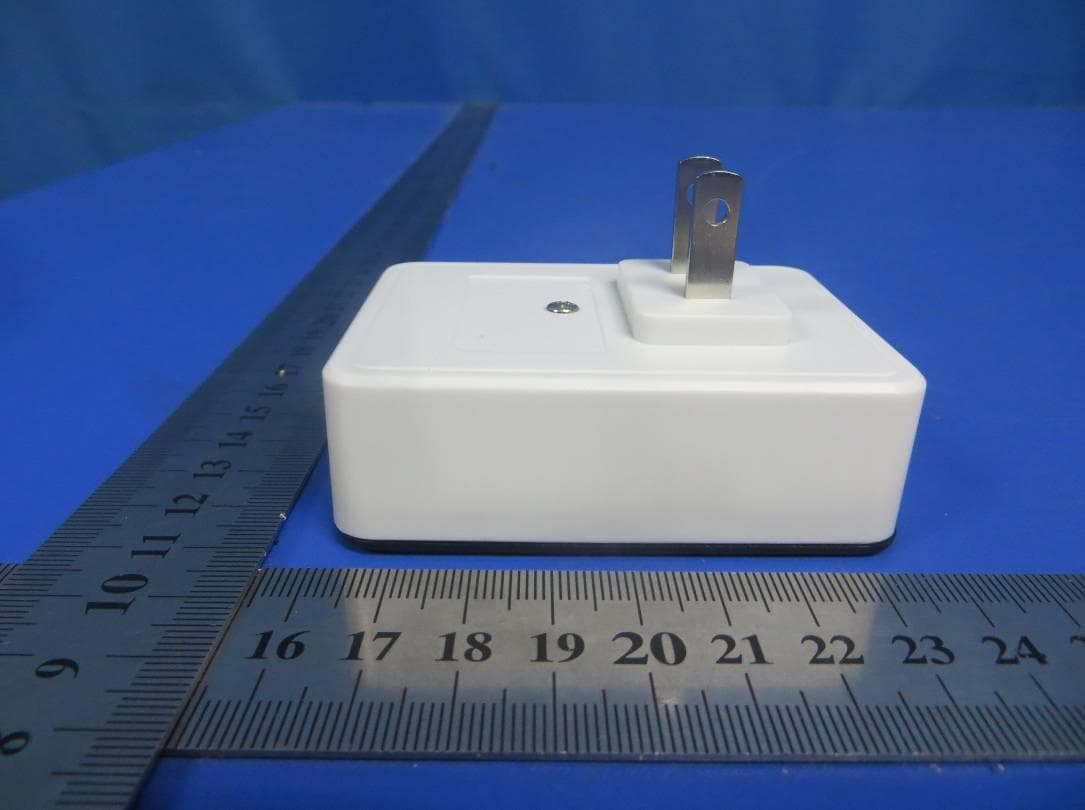

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OYRCF-WR300N Report No.: LCS1505130688E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 3 1. EXTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OYRCF-WR300N Report No.: LCS1505130688E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 3 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OYRCF-WR300N Report No.: LCS1505130688E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 3 Fig.5 Fig.6

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OYRCF-WR300N Report No.: LCS1505130688E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 LABEL AND LOCATION Size: L3.4cm*W2.0cm Material: Tagboard Glue: adhesive sticker Font color: Black Label color: White Label And Location Shenzhen Four Seas Global Link Network Technology Co., Ltd Wireless Repeater Trade Mark: COMFAST M/N: CF-WR300N FCC ID: OYRCF-WR300N

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OYRCF-WR300N Report No.: LCS1505130688E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 3 1. INTERIOR PHOTOGRAPHS Fig.1 Fig.2 ANT_1 ANT_2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OYRCF-WR300N Report No.: LCS1505130688E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 3 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OYRCF-WR300N Report No.: LCS1505130688E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 3 Fig.5

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OYRCF-WR300N Report No.: LCS1505130688E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 2 7. RADIO FREQUENCY EXPOSURE 7.1．Limit According to §1.1310 and §2.1091 RF exposure is calculated. Table: Limits for General Population/Uncontrolled Exposure F = frequency in MHz * = Plane-wave equivalent power density Maximum Permissible Exposure The MPE was calculated at 20cm to show compliance with the power density limit. S = PG/4πR 2 S = Power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna. Note: 1. Manufacturer declared that the maximum antenna gain is 2.0dBi(Max.). 2. Manufacturer declared that the nearest distance between human and the EUT is 20cm. 3. Only record worst case data. SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OYRCF-WR300N Report No.: LCS1505130688E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 2 Test Mode Channel Frequency (MHz) ANT_1 Power (dBm) ANT_1 Power Tune Up (dBm) ANT_2 Power (dBm) ANT_2 Power Tune Up (dBm) 802.11b Low 2412 15.15 15.0±1.0 15.45 15.0±1.0 Middle 2437 14.82 15.0±1.0 15.12 15.0±1.0 High 2462 14.23 15.0±1.0 14.76 15.0±1.0 802.11g Low 2412 14.74 14.0±1.0 13.38 14.0±1.0 Middle 2437 14.80 14.0±1.0 13.38 14.0±1.0 High 2462 14.47 14.0±1.0 13.26 14.0±1.0 802.11n HT20 Low 2412 15.13 15.0±1.0 14.68 15.0±1.0 Middle 2437 15.02 15.0±1.0 14.49 15.0±1.0 High 2462 14.74 15.0±1.0 14.33 15.0±1.0 802.11n HT40 Low 2422 16.02 16.0±1.0 16.02 16.0±1.0 Middle 2437 15.79 16.0±1.0 15.87 16.0±1.0 High 2452 15.61 16.0±1.0 15.70 16.0±1.0 7.2 Test Results Test Mode Channel ANT_1 Max. Tune Up Power (mW) ANT_1 MPE (mW/cm 2 ) ANT_2 Max. Tune Up Power (mW) ANT_2 MPE (mW/cm 2 ) ANT_1+ANT_2 MPE (mW/cm 2 ) Limit (mW/cm 2 ) 802.11b Low 39.81 0.0126 39.81 0.0126 N/A 1.0 Middle 39.81 0.0126 39.81 0.0126 N/A 1.0 High 39.81 0.0126 39.81 0.0126 N/A 1.0 802.11g Low 31.62 0.0100 31.62 0.0100 N/A 1.0 Middle 31.62 0.0100 31.62 0.0100 N/A 1.0 High 31.62 0.0100 31.62 0.0100 N/A 1.0 802.11n HT20 Low 39.81 0.0126 39.81 0.0126 1.0 Middle 39.81 0.0126 39.81 0.0126 1.0 High 39.81 0.0126 39.81 0.0126 1.0 802.11n HT40 Low 50.12 0.0158 50.12 0.0158 0.0316 1.0 Middle 50.12 0.0158 50.12 0.0158 0.0316 1.0 High 50.12 0.0158 50.12 0.0158 0.0316 1.0 Antenna Gain (typical): 2.0dBi, 1.585(numeric) Prediction distance: >=20cm The power density level worst case at 20 cm is below the uncontrolled exposure limit. 0.0252 0.0252 0.0252

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OYRCF-WR300N Report No.: LCS1505130688E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 83 FCC TEST REPORT For Shenzhen Four Seas Global Link Network Technology Co., Ltd Wireless Repeater Test Model: CF-WR300N Additional Model No. : See more details at section 1.1 Prepared for : Shenzhen Four Seas Global Link Network Technology Co., Ltd Address : Room 607-610, Block B, TAOJINDI Electronic Business Incubation Base,Tenglong Road, Longhua District, Shenzhen, China Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 1/F., Xingyuan Industrial Park, Tongda Road, Bao'an Avenue, Bao'an District, Shenzhen, Guangdong, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : May 26, 2015 Number of tested samples : 1 Serial number : 6955410011631 Date of Test : May 26, 2015 - June 08, 2015 Date of Report : June 23, 2015 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OYRCF-WR300N Report No.: LCS1505130688E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 83 FCC TEST REPORT FCC CFR 47 PART 15 C(15.247): 2014 Report Reference No. .............. : LCS1505130687E Date of Issue ................................ : June 23, 2015 Testing Laboratory Name ......... : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ........................................ : 1/F., Xingyuan Industrial Park, Tongda Road, Bao'an Avenue, Bao'an District, Shenzhen, Guangdong, China Testing Location/ Procedure ........ : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ....................... : Shenzhen Four Seas Global Link Network Technology Co., Ltd Address ........................................ : Room 607-610, Block B, TAOJINDI Electronic Business Incubation Base,Tenglong Road, Longhua District, Shenzhen, China Test Specification Standard ....................................... : FCC CFR 47 PART 15 C(15.247): 2014 / ANSI C63.10: 2013 Test Report Form No. ................ : LCSEMC-1.0 TRF Originator ............................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF .................................. : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. ............... : Wireless Repeater Trade Mark .................................. : COMFAST Test Model ................................... : CF-WR300N Ratings ......................................... : Input AC 100~240V, 50/60Hz Result ......................................... : Positive Compiled by: Supervised by: Approved by: Leo Lee/ File administrators Glin Lu/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OYRCF-WR300N Report No.: LCS1505130688E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 83 FCC -- TEST REPORT Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS1505130687E June 23, 2015 Date of issue Test Model.............................. : CF-WR300N EUT......................................... : Wireless Repeater Applicant............................... : Shenzhen Four Seas Global Link Network Technology Co., Ltd Address.................................. : Room 607-610, Block B, TAOJINDI Electronic Business Incubation Base,Tenglong Road, Longhua District, Shenzhen, China Telephone............................... : / Fax.......................................... : / Manufacturer........................ : Shenzhen Four Seas Global Link Network Technology Co., Ltd Address................................... : Room 607-610, Block B, TAOJINDI Electronic Business Incubation Base,Tenglong Road, Longhua District, Shenzhen, China Telephone............................... : / Fax.......................................... : / Factory................................... : Shenzhen Four Seas Global Link Network Technology Co., Ltd Address................................... : Room 607-610, Block B, TAOJINDI Electronic Business Incubation Base,Tenglong Road, Longhua District, Shenzhen, China Telephone............................... : / Fax.......................................... : / SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OYRCF-WR300N Report No.: LCS1505130688E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 83 TABLE OF CONTENTS 1. GENERAL INFORMATION .............................................................................................................................. 5 1.1. DESCRIPTION OF DEVICE (EUT) ....................................................................................................................... 5 1.2. HOST SYSTEM CONFIGURATION LIST AND DETAILS ......................................................................................... 6 1.3. EXTERNAL I/O .................................................................................................................................................. 6 1.4. D…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OYRCF-WR300N Report No.: LCS1505130688E _______________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 2 1. TEST SETUP PHOTOGRAPHS 1.1. Photo of Radiated Emissions Measurement Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: OYRCF-WR300N Report No.: LCS1505130688E _______________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 2 1.2. Photo of Line Conducted Emissions Measurement
