OZ5145TRRF Transmitter Remote Control

Date Rev Revision Approved 2003.05.12 1 Initial Release Job Approvals Date Design J.H Park 2003.05.12 Check OHSUNG ELECTRONICS CO., LTD. Approved Title: 6711R1N145A RF Remote Controller Specification Part No. OHS3xxxP Sheet 5 Page CAGE No. / No. –

July 14, 2003 Federal Communications Commission Authorization & Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: OHSUNG Electronics Co., Ltd. FCC ID: OZ5145TR Gentlemen: Submitted herewith, on behalf of OHSUNG Electronics Co. Ltd., is an application for Part 15 Class B certification of the RF Transmitter Remote Control. Attached are the authorization letter, measurement report (measurement data and test plots), FCC ID label and location, test setup photographs, internal and external photographs, block diagram, schematic diagram, and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc: OHSUNG Electronics Co., Ltd.

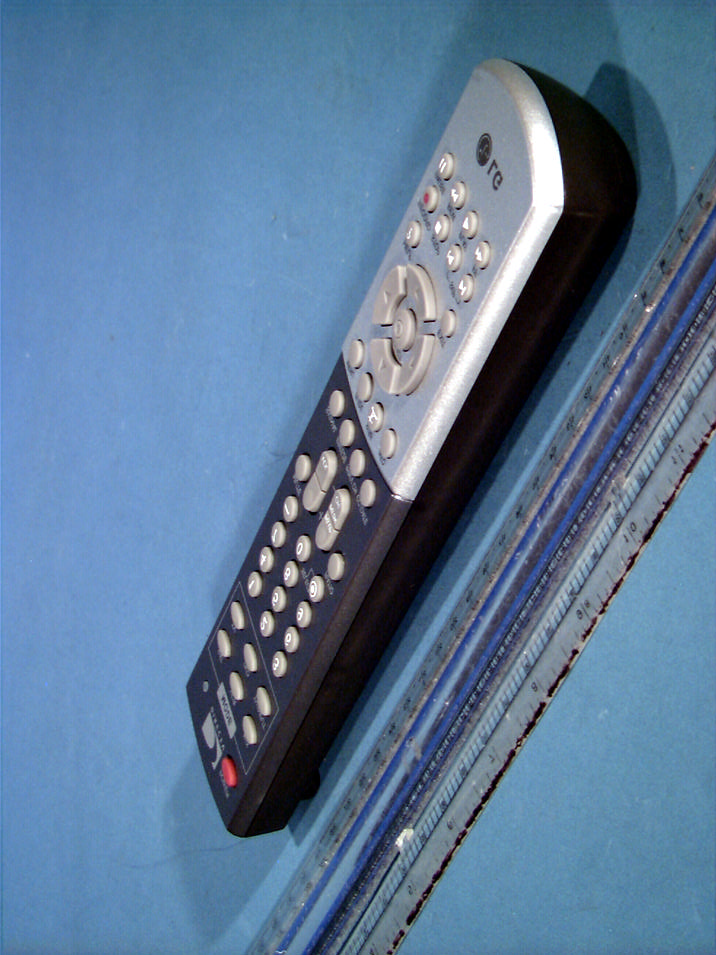

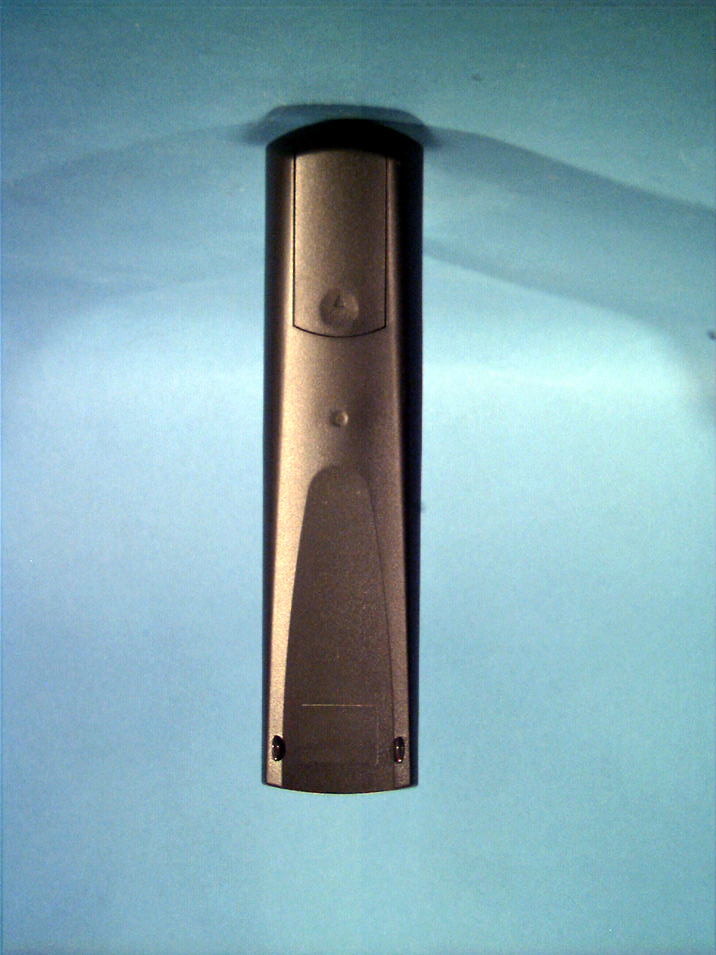

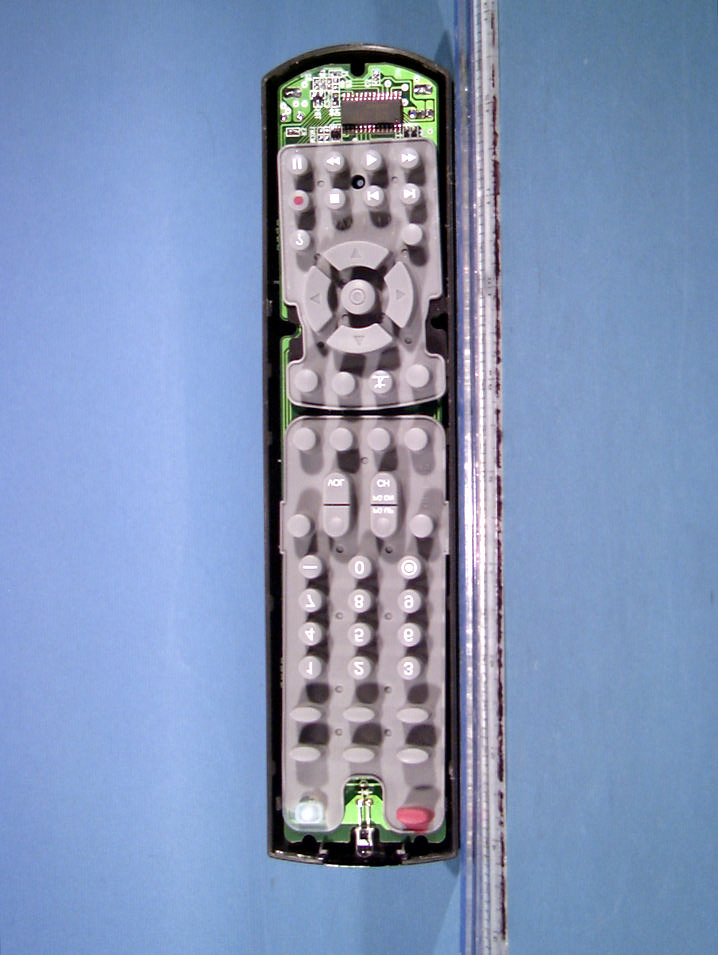

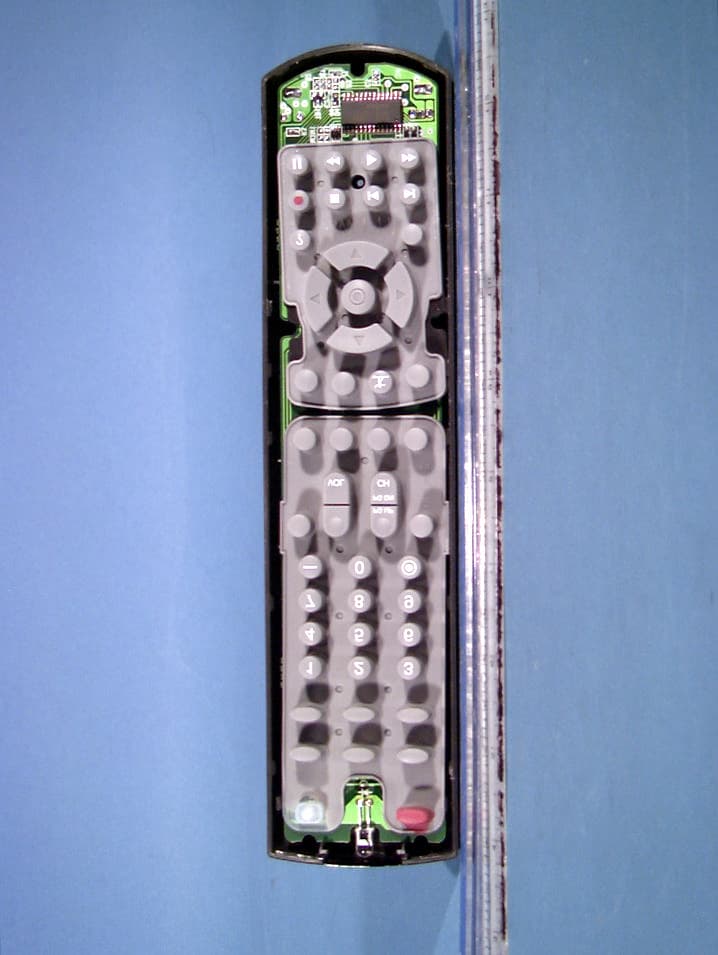

OHSUNG RF Transmitter Remote Control EUT Photographs © 2003 PCTEST Lab. FCC ID: OZ5145TR NVLAP Lab Code: 100431-0 OHSUNG RF Transmitter Remote Control EUT Photographs © 2003 PCTEST Lab. FCC ID: OZ5145TR NVLAP Lab Code: 100431-0 OHSUNG RF Transmitter Remote Control EUT Photographs © 2003 PCTEST Lab. FCC ID: OZ5145TR NVLAP Lab Code: 100431-0 OHSUNG RF Transmitter Remote Control EUT Photographs © 2003 PCTEST Lab. FCC ID: OZ5145TR NVLAP Lab Code: 100431-0 OHSUNG RF Transmitter Remote Control EUT Photographs © 2003 PCTEST Lab. FCC ID: OZ5145TR NVLAP Lab Code: 100431-0

PCTEST PT. 15.231 REPORT FCC Certification Reviewed By: Quality Manager Test Report S/N: TX.230627312.OZ5 Test Dates: July 10, 2003 EUT Type: RF Transmitter Remote Control FCC ID: OZ5145TR FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 & §§ 15.19 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE)

2-1. Sending Signals 9 2. IMPORTANT OVERVIEW Digital broadcasting is a new way of sending programs over the airwaves with superior qual- ity video and audio. The DIRECTV ® HD Receiver enables you to take full advantage of digital broadcasting. To fully enjoy it, it is helpful to understand the ways that program signals are sent. There are two types of TV signal formats; analog (often called NTSC format; National Television System Committee) and digital (ATSC format; Advanced Television System Committee). Digital formats are classified into three categories: High Definition (HD), Enhanced Definition (ED), and Standard Definition (SD) according to the resolution or digital picture quality. There are also three ways that program signals can be received; over-the-air (NTSC, ATSC), cable (analog and digital), and satellite. This receiver contains a QAM tuner which should allow you to receive unscrambled QAM dig- ital television programming via subscription service to a cable service provider. This receiver will not be able to tune encrypted (scrambled) digital programming or advanced interactive digital cable services. Contact your local cable service provider for further information regard- ing the availability of unscrambled digital cable programming. TV HD Receiver Phone Jack Digital signal Analog signal DIRECTV Sat A 101 Sat B 110Sat C 119 Satellite Unscrambled Analog Cable service Unscrambled Digital Cable service 10 Signal FormatAnalog Digital SD/EDHD 2-2. TV Signal Formats The digital TV standards allow several different formats. Broadcasters can choose between four formats: • 480p - The picture is 704 x 480 pixels, sent at 60 complete frames per second (480i is also possible, sent at 60 interlaced frames per second). • 720p - The picture is 1280 x 720 pixels, sent at 60 complete frames per second. • 1080i - The picture is 1920 x 1080 pixels, sent at 60 interlaced frames per second (30 complete frames per second). (The “p” and “i” designations stand for “progressive” and “interlaced.” In a progressive for- mat, the full picture updates every sixtieth of a second. In an interlaced format, half of the pic- ture updates every sixtieth of a second.) The 480i format is called SD. 480p format is called the ED format. 480i is roughly equivalent to a normal analog TV picture. The 720p and 1080i formats are called the HD formats. Some analog televisions can display a picture 720 pixels wide by 480 pixels high, that’s a total of 345,600 pixels. HD digital signals can have a maximum resolution of 1920 x 1080, that’s 2,073,600 pixels, or six times more pixels than the older resolution. Pictures will be crisper and cleaner, with more detail in every close-up and every panorama. Standard Comparison Table Active Lines480480720 or 1080 SoundStereo (2 ch) Dolby Digital ® (5.1 ch)Dolby Digital (5.1 ch) MPEG Audio (2 ch) Aspect Ratio4 : 34 : 3 or 16 : 916 : 9 Resolution720 x 480 640 x 4801280 x 720 704 x 4801920 x 1080 2. IMPORTANT OVERVIEW 11 2-3. Display Formats Display Format modesInput Signal format Output Signal format 1080iall formats1080i 720pall formats720p 480pall formats480p 480iall formats480i native1080i 1080i 720p720p 480p480p 480i480i(Component, DVI), 480p(RGB) variable 11080i1080i 720p 720p 480p/480i480p variable 21080i/720p1080i 480p/480i480p variable 31080i/720p720p 1080i480p EZ DVIall formatschanges according to monitor type The DIRECTV ® HD Receiver provides several display formats. Pressing the DISPLAY FORMATbutton repeatedly on the front panel changes the display formats following order: 1080i→720p→ 480p→480i→native→variable 1 →variable 2 →variable 3 →EZ DVI. In1080i, 720p, 480p,and480imodes, all input signal formats are converted to the chosen dis- play format. In native, variable 1, variable 2,andvariable 3modes, the output display for- mat is automatically adapted depending on input signal format, as follows. In EZ DVI mode, the output display format is automatically adapted based on the preferred res- olution format of the DVI-HDTV monitor. The format may be converted from the original broad- cast format. Note : Only one of the YPbPr, RGB or DVI-HDTV jacks is available at any one time, depending on the TYPE switch setting and DVI-HDTV connection status. Note : The EZ DVI mode is only available when a DVI-HDTV compatible monitor is connected to the receiver. 12 2-4. Normal and Wide Format Signals When you view a high definition picture(16:9) with 480i or 480p format setting, the RATIObut- ton on the remote control changes the wide mode in the cycle of Letterbox →Cropped,→ Squeezed. When you view a standard definition picture (4:3) with 720p or 1080i format setting, the RATIO button on the remote control changes th e wide mode in the cycle of Normal →Wide→ Panorama→Zoom→CINE-Zoom. (Refer to section 8-13, ‘ Choosing the Aspect Ratio ‘ ) Standard Definition (4:3) Standard Definition Output Format (4:3) No Adjustment Options High Definition (16:9) WHEN YOU SET THE DISPLAY FORMAT TO SDTV (480i/480p) Letter box Choose when you want to view a wide format (16:9) picture on a nor- mal screen (4:3) without squeezing. Cropped Choose when you want to view a picture filling the entire screen while keeping the wide format. Left and right portions of the pic- ture will not be shown. (cropped) Squeezed Choose when you want to view a full picture filling the entire screen with no black bars. The picture in a 16:9 format will be horizontally adjusted or squeezed to fit the 4:3 ratio monitor. antenna Program Format 13 2. IMPORTANT OVERVIEW 2-4. Normal and Wide Format Signals WHEN YOU SET THE DISPLAY FORMAT TO HDTV (1080i/720p) Normal Choose when you want to view a picture with an original 4:3 aspect ratio on your 16:9 TV. Black or gray bars will show at the left and right sides. Wide Choose when you want to evenly stretch the width of a normal picture to fill the entire screen. Panorama Choose when you want to evenly stretch the edges of a normal picture to fill a wide screen. Zoom Choose when you w…

Text truncated - open the document above for the full version.

PCTEST PT. 15.231 REPORT FCC Certification Reviewed By: Quality Manager Test Report S/N: TX.230627312.OZ5 Test Dates: July 10, 2003 EUT Type: RF Transmitter Remote Control FCC ID: OZ5145TR Page 1 of 15 © 2003 PCTEST ENGINEERING LABORATORY, INC. PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 15.231 Certification OHSUNG ELECTRONICS CO., LTD. Dates of Tests: July 10, 2003 #181 Dong Dan-Dong Test Report S/N: TX.230627312.OZ5 Gu-Mi Kyung Buk, Korea Test Site: PCTEST Lab, MD U.S.A. Attention: D.J. Jung, Manager FCC ID OZ5145TR APPLICANT OHSUNG ELECTRONICS CO., LTD. FCC Rule Part(s): § 15.231 Subpart C – Intentional Radiator Classification: Remote Control Transmitter (DSC) EUT Type: RF Transmitter Remote Control Tx Frequency: 417.5 – 418.5 MHz Trade Name: LG Model No.: 6711R7N145A This device has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified is ANSI C63.4-1992. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 230627312.OZ5 PCTEST PT. 15.231 REPORT FCC Certification Reviewed By: Quality Manager Test Report S/N: TX.230627312.OZ5 Test Dates: July 10, 2003 EUT Type: RF Transmitter Remote Control FCC ID: OZ5145TR Page 2 of 15 © 2003 PCTEST ENGINEERING LABORATORY, INC. TABLE OF CONTENTS ATTACHMENT A: COVER LETTER(S) ATTACHMENT B: ATTESTATION STATEMENT(S) ATTACHMENT C: TEST REPORT SCOPE 3 INTRODUCTION (SITE DESCRIPTION) 4 PRODUCTION INFORMATION 5 DESCRIPTION OF TESTS (CONDUCTED) 6 DESCRIPTION OF TESTS (RADIATED) 7 ANTENNA REQUIREMENT / BANDWIDTH MEASUREMENT 8 FREQUENCY MEASUREMENTS (SPURIOUS) 9 FREQUENCY MEASUREMENTS (HARMONICS) 10 PLOTS OF EMISSION 11 SAMPLE CALCULATIONS 12 ACCURACY OF MEASUREMENT 13 LIST OF TEST EQUIPMENT 14 CONCLUSION 15 ATTACHMENT D: TEST PLOTS ATTACHMENT E: FCC ID LABEL & LOCATION ATTACHMENT F: BLOCK DIAGRAM(S) ATTACHMENT G: SCHEMATIC DIAGRAM(S) ATTACHMENT H: TEST SETUP PHOTOGRAPHS ATTACHMENT I: EXTERNAL PHOTOGRAPHS ATTACHMENT J: INTERNAL PHOTOGRAPHS ATTACHMENT K: USERS MANUAL PCTEST PT. 15.231 REPORT FCC Certification Reviewed By: Quality Manager Test Report S/N: TX.230627312.OZ5 Test Dates: July 10, 2003 EUT Type: RF Transmitter Remote Control FCC ID: OZ5145TR Page 3 of 15 © 2003 PCTEST ENGINEERING LABORATORY, INC. MEASUREMENT REPORT Scope - Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. Company Name: OHSUNG ELECTRONICS CO., LTD. Address: #181 Dong Dan-Dong Gu-Mi Kyung Buk, Korea Attention: D.J. Jung, Manager • FCC ID: OZ5145TR • Model: 6711R7N145A • Trade Name: LG • EUT Type: RF Transmitter Remote Control • Application Type: Transmitter Certification • Tx Frequency: 417.5 – 418.5 MHz • FCC Rule Part(s): § 15.231 Subpart C – Intentional Radiator • Dates of Tests: July 10, 2003 • Place of Tests: PCTEST Lab, Columbia, MD U.S.A. • Test Report S/N: TX. 230627312.OZ5 PCTEST PT. 15.231 REPORT FCC Certification Reviewed By: Quality Manager Test Report S/N: TX.230627312.OZ5 Test Dates: July 10, 2003 EUT Type: RF Transmitter Remote Control FCC ID: OZ5145TR Page 4 of 15 © 2003 PCTEST ENGINEERING LABORATORY, INC. 1.1 INTRODUCTION The measurement procedure described in American National Standard for Methods of Measurement of Radio- Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz (ANSI C63.4-1992) was used in determining radiated and conducted emissions emanating from OHSUNG (Model: 6711R7N145A) RF Transmitter Remote Control FCC ID: OZ5145TR. These measurement tests were conducted at PCTEST Engineering Laboratory, Inc. facility in New Concept Business Park, Guilford Industrial Park, Columbia, Maryland. The site address is 6660-B Dobbin Road, Columbia, MD 21045. The test site is one of the highest points in the Columbia area with an elevation of 390 feet above mean sea level. The site coordinates are 39° 11'15" N latitude and 76° 49'38" W longitude. The facility is 1.5 miles North of the FCC laboratory, and the ambient signal and ambient signal strength are approximately equal to those of the FCC laboratory. There are no FM or TV transmitters within 15 miles of the site. The detailed description of the measurement facility was found to be in compliance with the requirements of § 2.948 according to ANSI C63.4 on October 19, 1992. 1.2 PCTEST Location The map at right shows the location of the PCTEST Lab, its proximity to the FCC Lab, the Columbia vicinity area, the Baltimore-Washington International (BWI) airport, and the city of Baltimore, and the Washington, D.C. area. (see Figure1). Figure 1. Map of the Greater Baltimore and Metropolitan Washington, D.C. area. PCTEST PT. 15.231 REPORT FCC Certification Reviewed By: Quality Manager Test Report S/N: TX.230627312.OZ5 Test Dates: July 10, 2003 EUT Type: RF Transmitter Remote Control FCC ID: OZ5145TR Page 5 of 15 © 2003 PCTEST ENGINEERING LABORATORY, INC. 2.1 Product Information 2.2 Equipment Description The Equipment Under Test (EUT) is the OHSUNG (Model: 6711R7N145A) RF Transmitter Remote Control FCC ID: OZ5145TR. * Tx Frequency: 417.5 – 418.5 MHz * Oscillator(s): 418 MHz * Antenna: Built-in internal looped antenna on-board * Power Supply: (2) AA Batteries 2.3 EMI Suppression Device(s) EMI suppression devic…
