OZ5C008Remote Controller

Order Number : GETEC-C1-20-463 FCC Part 15 subpart C Test Report Number : GETEC-E3-20-070 Page 1 / 1 EUT Type: Remote Controller FCC ID.: OZ5C008 APPENDIX H : USER’S MANUAL C008 RCU MANUAL Address: #181 GONG DAN-DONG, GUMI, GYEONG BUK, KOREA Page 1/ 18 TEL: 82-54-468-7063 / FAX: 82-54-461-8368 http://www.ohsungec.com/ 1 - Mechanical 1.1 - Pictures C008 RCU MANUAL Address: #181 GONG DAN-DONG, GUMI, GYEONG BUK, KOREA Page 2/ 18 TEL: 82-54-468-7063 / FAX: 82-54-461-8368 http://www.ohsungec.com/ 1.2 - Dimensions 1.3 - Materials & colours PART NAME DESCRIPTION SPECIFICATION TOP/BOTTOM CASE MATERIAL ABS(ROCK CANDY) BATTERY COVER MATERIAL ABS(ROCK CANDY) NAVI KNOB MATERIAL ABS(MARBLE GRAY) OK KNOB MATERIAL ABS(ROCK CANDY) WINDOW FILTER MATERIAL PC RUBBER BUTTON MATERIAL SILICONE RUBBER(경도80도) EXCEPT FOR DESIGNATED FORMING COLOR P.T 5315C(ROCK CANDY) EXCEPT FOR DESIGNATED PRINT COLOR P.T COOL GRAY 3C (CEMENT GRAY) PRINT COLOR (ASSISTANT/HOME) P.T 5315C(ROCK CANDY) FORMING COLOR (ASSISTANT/HOME) P.T COOL GRAY 3C (CEMENT GRAY) YOU TUBE 1 P.T 1795 C (RED) hulu 2 P.T 361M (GREEN) NETFLIX 3 P.T116M(YELLOW) DISNEY + 4 P.T 2925M (BLUE) SUFACE TREAMENT SILICON COATING C008 RCU MANUAL Address: #181 GONG DAN-DONG, GUMI, GYEONG BUK, KOREA Page 3/ 18 TEL: 82-54-468-7063 / FAX: 82-54-461-8368 http://www.ohsungec.com/ 1.4 - QR code label It is attached to the PCB and it can be seen into the battery compartment after removing the battery cover. 1.5 - Packing 1.5.1 - Remote Control - PE bag dimensions : 80 x 250mm (LDPE 0.05t) - Weight: 60g (without battery) 1.5.2 - Carton box - Box dimensions : W 600 x D 400 x H 200 mm - Quantity: 140pcs - Box weight: 11.2Kg - Barcode label attached on each box - Data as follows:  Customer part number  Manufacturer name  Manufacturer part number C008 RCU MANUAL Address: #181 GONG DAN-DONG, GUMI, GYEONG BUK, KOREA Page 4/ 18 TEL: 82-54-468-7063 / FAX: 82-54-461-8368 http://www.ohsungec.com/ Quantity Date code Purchase Order number Box ID 1.5.3 - Pallet - Pallet itself dimensions: W 1200 x D 800 x H 140 mm - Overall pallet dimensions: W 1200 x D 800 x H 1340mm - Quantity per pallet: 2,800pcs (4 boxes / layer - 5 layers) - Pallet weight: 240Kg - Label / Packing list with barcode attached on each pallet - Data as follows: Manufacturer name Manufacturer part number Quantity Date code Purchase Order number Pallet ID 2 - Electrical 2.1 - Electrical Characteristic Parameter Condition Spec Unit Frequency Range Bluetooth Low Energy Specification 2.402 ~ 2.480 [GHz] Channel 40 [Num] RF Power 8 [dBm] Test channel TC-3000 (RF measuring instrument) 19 [Num] RF Power PAvg -20~+10[dBm] PMax +8[dBm] Pmin -20[dBm] Modulation Characteristic s ∆f1 avg 225~275 [KHz] ∆f2 avg ≥ 185 [KHz] ∆f2/∆f1 0.8 ∆f2min ≥ 92.5 [KHz] C008 RCU MANUAL Address: #181 GONG DAN-DONG, GUMI, GYEONG BUK, KOREA Page 5/ 18 TEL: 82-54-468-7063 / FAX: 82-54-461-8368 http://www.ohsungec.com/ ∆f2rate ≥ 99 [%] Carrier Frequency Offset and Drift fTx-fn ≤ 150 [KHz] ∆f0-fn ≤ 50 [KHz] f1-f0 ≤ 20 [KHz] ∆fn-f(n-5) ≤ 20 [KHz] Operating Voltage RF (Bluetooth) 2.2~3.6 [V] LVI Voltage Low Voltage Indicate 2.25±0.2V [V] Operating current (IR) Power: 3V ≤ 50 [mA] Operating current (RF KEY) Power: 3V Non-directional distance ≤ 10 [mA] Operating current (RF+Voice) ≤ 20 [mA] Leakage current 10 [㎂] RF range (distance) ≥10 [m] IR Range Direct ≥12 [m] Horizontal 7 (±15°) [m] VOICE 300Hz Voice Inspection JIG -30~-14[dB] 2KHz -30~-10[dB] 3.8KHz -30~-14[dB] 2.2 - Battery Management a)Remote Control sends the information for battery level using Bluetooth battery service. b)Level of LVD is 2.1V ±0.1V. c)If the battery voltage as reached the LVD value, Remote Control cannot enter the pairing mode and the factory reset mode. d) If the battery voltage is under 2.0V, Remote Control does not operate. e)When the battery voltage is 2.1V or higher, the REMOTE CONTROL operates again. C008 RCU MANUAL Address: #181 GONG DAN-DONG, GUMI, GYEONG BUK, KOREA Page 6/ 18 TEL: 82-54-468-7063 / FAX: 82-54-461-8368 http://www.ohsungec.com/ 3 - Software 3.1 - Bluetooth 5.0 LE identification a)Device Name: RemoteG10 b)Vender ID: 0x (TBD) c)Product ID: 0x (TBD) d)Vendor ID Source : Blutooth SIG e)Hardware Version : 'T', 'L', ' ', 'V', '0', '1' 3.2 - Pairing mode & Re-pairing mode a)If user presses the [HOME] + [BACK] keys on the Remote Control for more than 4 seconds, the Remote Control enters pairing mode. b)The led stays on while pressing and holding the keys. c)After that, the led starts blinking to indicate that the Remote Control has entered pairing mode. d)If pairing is successfully made, the led stop blinking and the Remote Control starts working in Bluetooth. e)If pairing is not successfully made for 2mins(re-pairing) or 10mins(pairing), the led stop blinking. The Remote Control stops pairing and goes back to the previous state. f)If pin or key missing, the Remote Control send the un-direct advertising data for 90sec in pairing mode after disconnect. (TBD) 3.3 - Advertising a)The Remote Control shall choose a very aggressive advertising interval, aimed at the best possible reconnection experience. b)An advertisement interval of 20ms is recommended. c)This interval may be downgraded after 30s if no connection has been established. d)Additional Data of Un-direct advertising Data Item Data Detail Appearance (TBD) 0x80, 0x01 Generic Remote Control UUID (TBD) 0x12, 0x18,0x0F, 0x18 Human Interface Device Complete local name RemoteG10 C008 RCU MANUAL Address: #181 GONG DAN-DONG, GUMI, GYEONG BUK, KOREA Page 7/ 18 TEL: 82-54-468-7063 / FAX: 82-54-461-8368 http://www.ohsungec.com/ 3.4 - Scan Response Data Item Data Detail Complete local name RemoteG10 3.5 - Un-Pairing mode a)Un-pairing from the STB clears Remote Control bonding cache. b)Remove Device bonding cache (manual approach - Optional): Press and hold [BACK] key while inserting batteris. 3.6 - Connection Parameter (TBD) a)Connection Interval Time: ms b)Connection Slave Latency: (sec) c)Connection Supervisio…

Text truncated - open the document above for the full version.

Order Number : GETEC-C1-20-463 FCC Part 15 subpart C Test Report Number : GETEC-E3-20-070 Page 1 / 1 EUT Type: Remote Controller FCC ID.: OZ5C008 APPENDIX A : ATTESTATION STATEMENT Aug. 27, 2020 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 U.S.A. To whom it may concern: We, the undersigned, hereby authorize GUMI University EMC Center to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relation to these matters. Any and all acts carried out by GUMI University EMC Center on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to the application is subject of a denial of benefits, including FCC benefits, pursuant 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Sincerely, HAK-KI, KIM / General Manager OHSUNG ELECTRONICS CO., LTD.

SCS-F19: Confidentiality Request Letter Page 1 of 3 Rev 6.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (obsolete) 2.0 3.0 Jan-31-2012 Added IC confidentiality letter form (obsolete) 3.0 4.0 March-26-2015 Corrections to STC form. Added reference to KDB (obsolete) 4.0 5.0 Nov-19-2015 Updated company logo (current) 5.0 6.0 Jun-26-2019 SCS-F19: Confidentiality Request Letter Page 2 of 3 Rev 6.0 Ohsung Electronics Co.,Ltd #181 Gongdan-Dong, Gumi-Si,Gyeongsangbuk-Do, South Korea Tel: +82-54-468-7282, Fax: +82-54-461-8368 2020.01.02 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: OZ5C008 Pursuant to sections 0.457 and 0.459 of CFR 47, we respectfully request permanent confidential treatment of the following Exhibits accompanying this application as: - Schematic Diagram - Block Diagram - Part List - Operational Description - Antenna Specification The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature Client’s name / title Hak-Ki Kim / General Manager Contact information / address +82-54-468-7282 / #181 Gongdan-Dong, Gumi-Si,Gyeongsangbuk-Do, South Korea SCS-F19: Confidentiality Request Letter Page 3 of 3 Rev 6.0 Ohsung Electronics Co.,Ltd #181 Gongdan-Dong, Gumi-Si,Gyeongsangbuk-Do, South Korea Tel: +82-54-468-7282, Fax: +82-54-461-8368 2020.01.02 To: Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Short Term Confidentiality Request for FCC ID: OZ5C008 To Whom It May Concern: Pursuant to sections 0.457 and 0.459 of CFR 47, and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 45 or 180 days; or for a specified date of / / not to exceed 180 days from the Grant Date. See KDB 726920. - Internal Photos - External Photos - Test Setup Photos - User Manual The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Sincerely, Client’s signature Client’s name / title Hak-Ki Kim / title: General Manager Contact information / address +82-54-468-7282 / #181 Gongdan-Dong, Gumi-Si,Gyeongsangbuk-Do, South Korea

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 6.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (obsolete) 4.0 5.0 Sep-16-2014 Updated company name & logo (current) 5.0 6.0 Jun-27-2018 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 6.0 Ohsung Electronics Co.,Ltd #181 Gongdan-Dong, Gumi-Si,Gyeongsangbuk-Do, South Korea Tel: +82-54-468-7282, Fax: +82-54-461-8368 2020.09.02 To: BVCPS, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, Ohsung Electronics Co.,Ltd. hereby authorize Bureau Veritas Consumer Product Services, Inc. to act as a Certification Body for certifying for the following project(s): FCC ID: OZ5C008 Product Description: Remote Controller Model: C008 Sincerely, Client’s signature Client’s name / title Hak-Ki Kim / title: General Manager Contact information / address +82-54-468-7282 / #181 Gongdan-Dong, Gumi-Si,Gyeongsangbuk- Do, South Korea

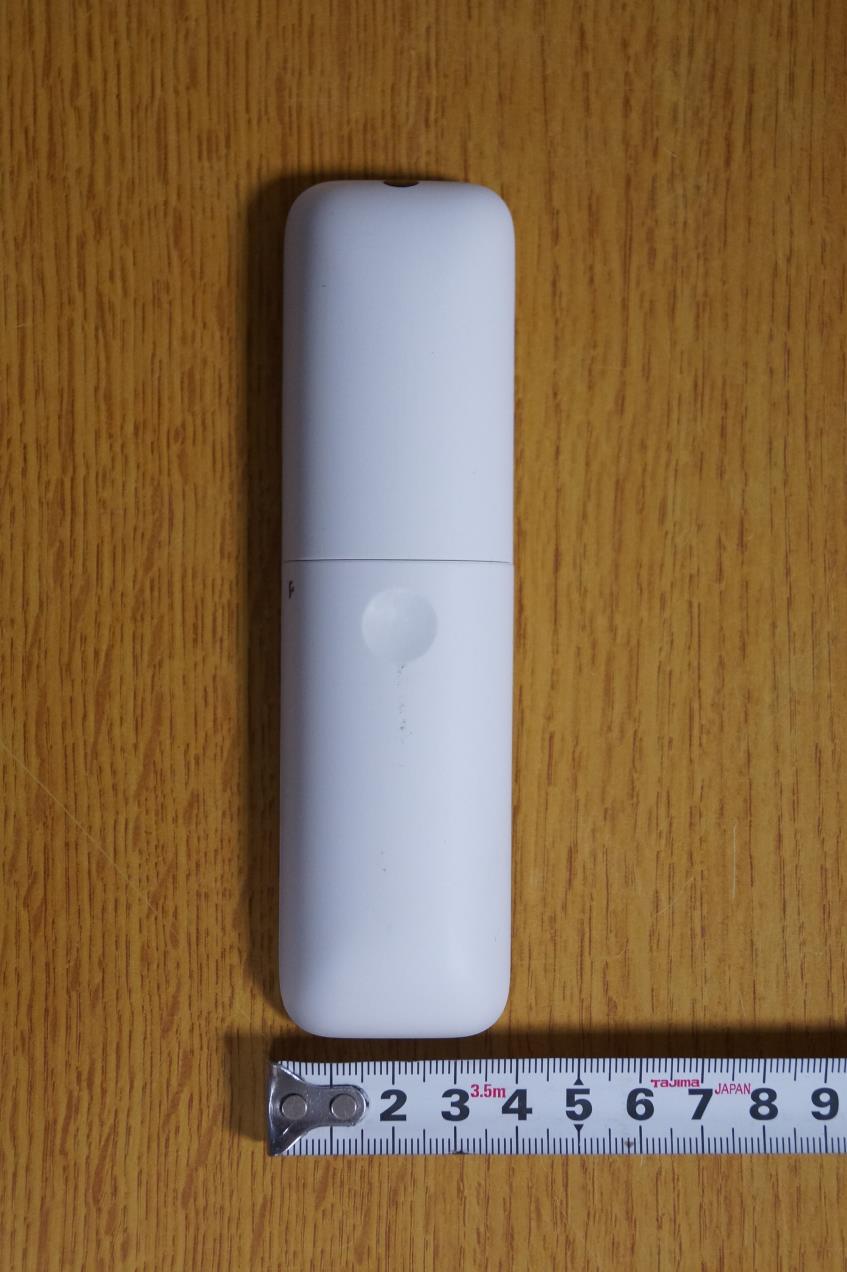

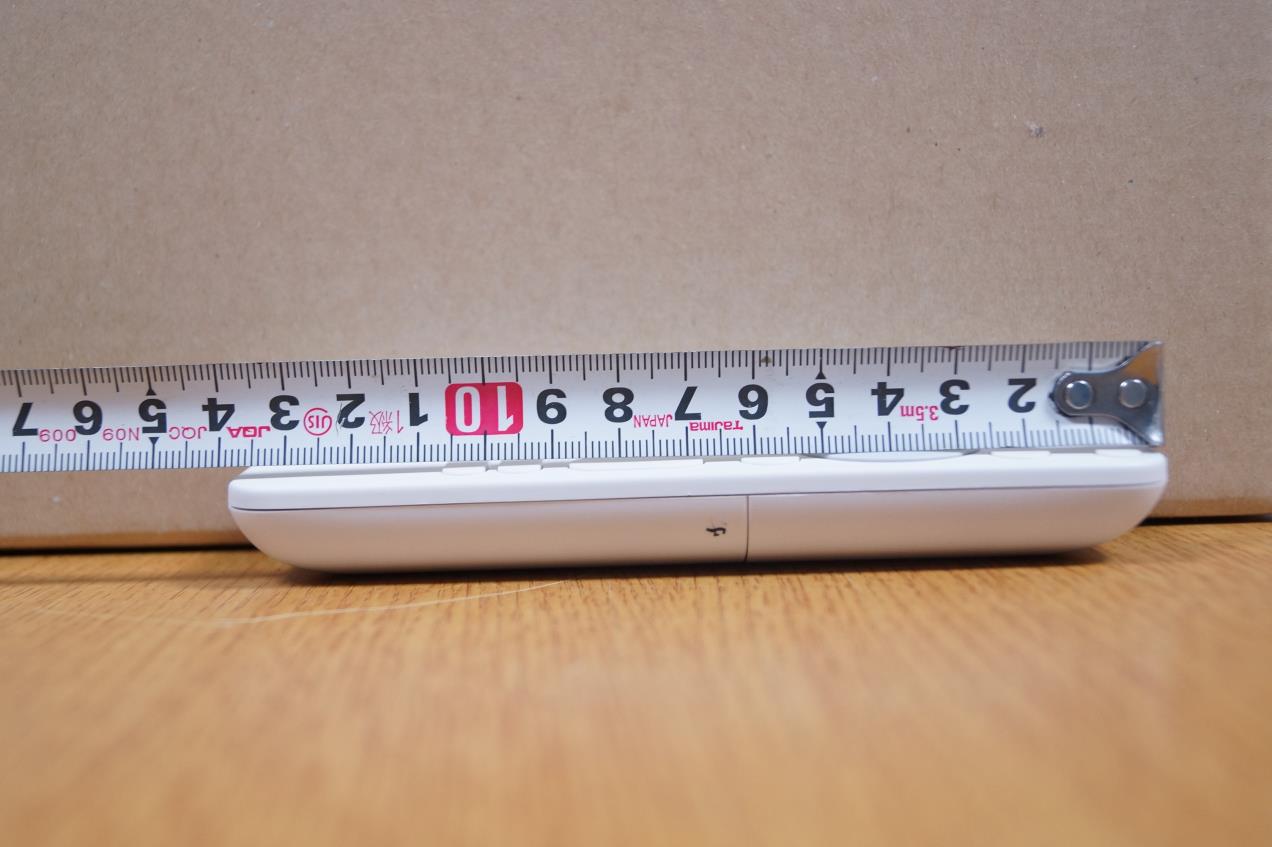

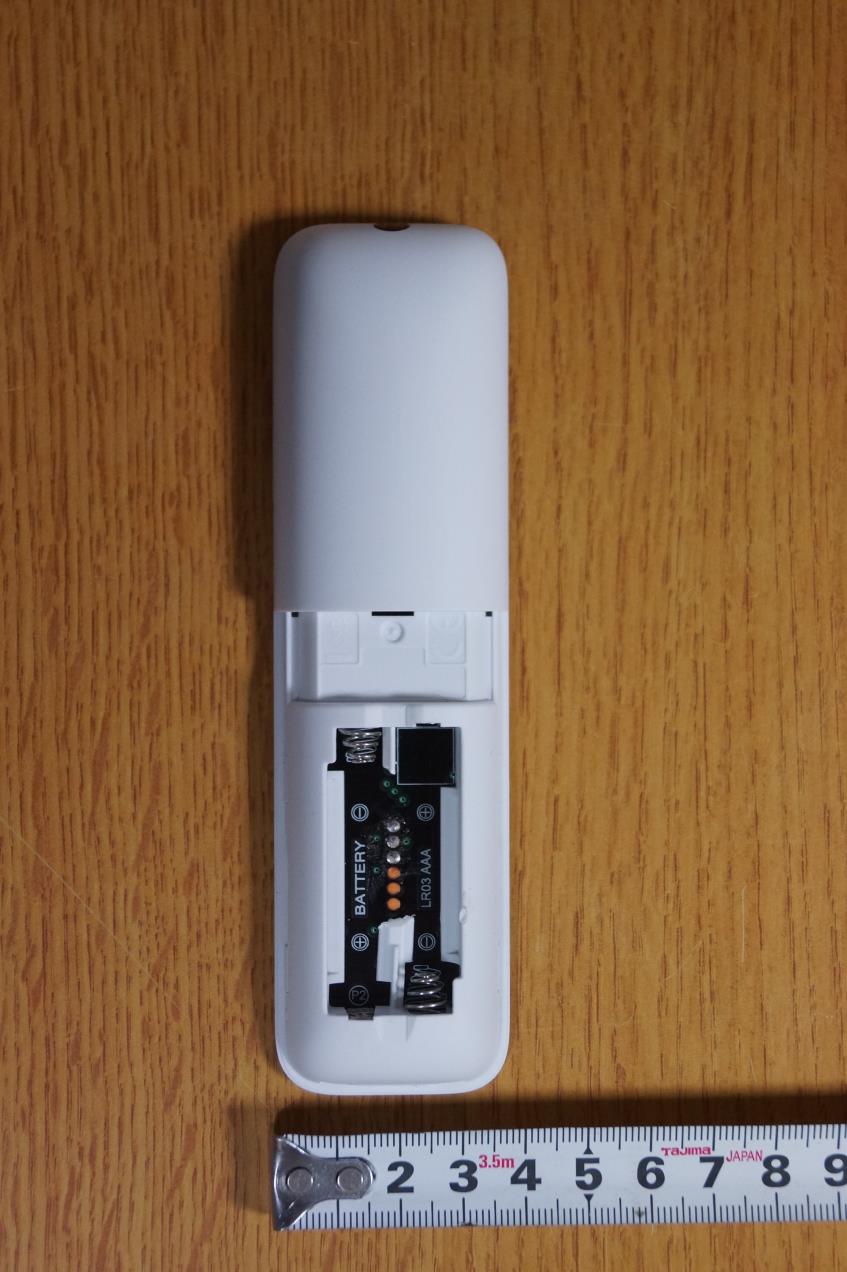

Order Number : GETEC-C1-20-463 FCC Part 15 subpart C Test Report Number : GETEC-E3-20-070 Page 1 / 8 EUT Type: Remote Controller FCC ID.: OZ5C008 APPENDIX F : EXTERNAL PHOTOGRAPHS Order Number : GETEC-C1-20-463 FCC Part 15 subpart C Test Report Number : GETEC-E3-20-070 Page 2 / 8 EUT Type: Remote Controller FCC ID.: OZ5C008 < Front view > Order Number : GETEC-C1-20-463 FCC Part 15 subpart C Test Report Number : GETEC-E3-20-070 Page 3 / 8 EUT Type: Remote Controller FCC ID.: OZ5C008 < Rear view #1 > Order Number : GETEC-C1-20-463 FCC Part 15 subpart C Test Report Number : GETEC-E3-20-070 Page 4 / 8 EUT Type: Remote Controller FCC ID.: OZ5C008 < Rear view #2 > Order Number : GETEC-C1-20-463 FCC Part 15 subpart C Test Report Number : GETEC-E3-20-070 Page 5 / 8 EUT Type: Remote Controller FCC ID.: OZ5C008 < Left view > Order Number : GETEC-C1-20-463 FCC Part 15 subpart C Test Report Number : GETEC-E3-20-070 Page 6 / 8 EUT Type: Remote Controller FCC ID.: OZ5C008 < Right view > Order Number : GETEC-C1-20-463 FCC Part 15 subpart C Test Report Number : GETEC-E3-20-070 Page 7 / 8 EUT Type: Remote Controller FCC ID.: OZ5C008 < Top view > Order Number : GETEC-C1-20-463 FCC Part 15 subpart C Test Report Number : GETEC-E3-20-070 Page 8 / 8 EUT Type: Remote Controller FCC ID.: OZ5C008 < Bottom view >

Order Number : GETEC-C1-20-463 FCC Part 15 subpart C Test Report Number : GETEC-E3-20-070 Page 1 / 2 EUT Type: Remote Controller FCC ID.: OZ5C008 APPENDIX B : ID SAMPLE LABEL & LOCATION Order Number : GETEC-C1-20-463 FCC Part 15 subpart C Test Report Number : GETEC-E3-20-070 Page 2 / 2 EUT Type: Remote Controller FCC ID.: OZ5C008 LABELLING REQUIREMENTS The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase.  ID Label  ID Label Location of EUT ID Label

Order Number : GETEC-C1-20-463 FCC Part 15 subpart C Test Report Number : GETEC-E3-20-070 Page 1 / 5 EUT Type: Remote Controller FCC ID.: OZ5C008 APPENDIX G : INTERNAL PHOTOGRAPHS Order Number : GETEC-C1-20-463 FCC Part 15 subpart C Test Report Number : GETEC-E3-20-070 Page 2 / 5 EUT Type: Remote Controller FCC ID.: OZ5C008 < Inside view > Order Number : GETEC-C1-20-463 FCC Part 15 subpart C Test Report Number : GETEC-E3-20-070 Page 3 / 5 EUT Type: Remote Controller FCC ID.: OZ5C008 < Main board Top view #1 > Order Number : GETEC-C1-20-463 FCC Part 15 subpart C Test Report Number : GETEC-E3-20-070 Page 4 / 5 EUT Type: Remote Controller FCC ID.: OZ5C008 < Main board Top view #2 > Order Number : GETEC-C1-20-463 FCC Part 15 subpart C Test Report Number : GETEC-E3-20-070 Page 5 / 5 EUT Type: Remote Controller FCC ID.: OZ5C008 < Main board bottom view > PIFA Antenna

Order Number : GETEC-C1-20-463 FCC Part 15 subpart C Test Report Number : GETEC-E3-20-070 Page 1 / 2 EUT Type: Remote Controller FCC ID.: OZ5C008 APPENDIX L : RF EXPOSURE EVALUATION Order Number : GETEC-C1-20-463 FCC Part 15 subpart C Test Report Number : GETEC-E3-20-070 Page 2 / 2 EUT Type: Remote Controller FCC ID.: OZ5C008 1. RF Exposure Evaluation Test Result of RF Exposure Evaluation According to the KDB-447498 D01 V06, FCC 47CFR § 2.1093 the following RF exposure evaluation shall to demonstrate RF exposure compliance [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] *[√f(GHz)] Frequency (MHz) Average Conducted Output Power(dBm) Target Power /tolerance (dBm) Max tune up power Tolerance (dBm) Maximum Average Output Power(mW) Separation Destance (mm) RF Exposure 2 402 7.75 8 ± 1 9 7.943 5 2.46 2 440 7.85 8 ± 1 9 7.943 5 2.48 2 480 8.45 8 ± 1 9 7.943 5 2.50 The Max RF exposure is 2.50 Threshold at which no SAR required is << 3 for 1-g SAR, Separation distance is 5 mm Conclusion: So no SAR is required.

Order Number : GETEC-C1-20-463 FCC Part 15 Subpart C Test Report Number : GETEC-E3-20-070 Page 2 / 32 GETEC-QP-16-008 (Rev.00) EUT Type: Remote Controller FCC ID.: OZ5C008 G E T E C Version Test Report No. Date Description GETEC-E3-20-070 Aug. 28, 2020 - First Approval Report Order Number : GETEC-C1-20-463 FCC Part 15 Subpart C Test Report Number : GETEC-E3-20-070 Page 3 / 32 GETEC-QP-16-008 (Rev.00) EUT Type: Remote Controller FCC ID.: OZ5C008 G E T E C CONTENTS 1. GENERAL INFORMATION ...................................................................................................................................... 5 2. INTRODUCTION ........................................................................................................................................................ 6 3. PRODUCT INFORMATION ...................................................................................................................................... 7 3.1 DESCRIPTION OF EUT .............................................................................................................................................. 7 3.2 DEFINITION OF MODELS ........................................................................................................................................... 7 3.3 SUPPORT EQUIPMENT / CABLES USED ..................................................................................................................... 8 3.4 MODIFICATION ITEM(S) ........................................................................................................................................... 8 4. ANTENNA REQUIREMENT - §15.203 ..................................................................................................................... 9 4.1 DESCRIPTION OF ANTENNA ...................................................................................................................................... 9 5. DESCRIPTION OF TESTS ......................................................................................................................................... 9 5.1 TEST CONDITION ...................................................................................................................................................... 9 6. REFERENCES STANDARDS .................................................................................................................................... 9 7. SUMMARY OF TEST RESULTS ............................................................................................................................. 10 8. 6 DB BANDWIDTH MEASUREMENT .................................................................................................................. 11 8.1 OPERATING ENVIRONMENT.................................................................................................................................... 11 8.2 TEST SET-UP (LAYOUT) .......................................................................................................................................... 11 8.3 LIMIT ...................................................................................................................................................................... 11 8.4 TEST EQUIPMENT USED .......................................................................................................................................... 11 8.5 TEST TEST PROCEDURE ......................................................................................................................................... 11 8.6 TEST RESULT .......................................................................................................................................................... 12 9. CONDUCTED MAXIMUM OUTPUT POWER MEASUREMENT .................................................................... 14 9.1 OPERATING ENVIRONMENT.................................................................................................................................... 14 9.2 TEST SET-UP (LAYOUT) .......................................................................................................................................... 14 9.3 LIMIT ...................................................................................................................................................................... 14 9.4 TEST EQUIPMENT USED .......................................................................................................................................... 14 9.5 TEST PROCEDURE .................................................................................................................................................. 14 9.6 TEST RESULT .......................................................................................................................................................... 15 10. POWER SPECTRAL DENSITY MEASUREMENT ............................................................................................ 16 10.1 OPERATING ENVIRONMENT ................................................................................................................................. 16 10.2 TEST SET-UP (LAYOUT) ........................................................................................................................................ 16 10.3 LIMIT .................................................................................................................................................................... 16 10.4 TEST EQUIPMENT USED ........................................................................................................................................ 16 10.5 TEST PROCEDURE ................................................................................................................................................ 16 10.6 TEST RESULT .................................................................................................................................…

Text truncated - open the document above for the full version.

Order Number : GETEC-C1-20-463 FCC Part 15 subpart C Test Report Number : GETEC-E3-20-070 Page 1 / 3 EUT Type: Remote Controller FCC ID.: OZ5C008 APPENDIX E : TEST SET UP PHOTOGRAPHS Order Number : GETEC-C1-20-463 FCC Part 15 subpart C Test Report Number : GETEC-E3-20-070 Page 2 / 3 EUT Type: Remote Controller FCC ID.: OZ5C008  Radiated Test Picture: Below 30 MHz  Radiated Test Picture: Below 1 GHz Order Number : GETEC-C1-20-463 FCC Part 15 subpart C Test Report Number : GETEC-E3-20-070 Page 3 / 3 EUT Type: Remote Controller FCC ID.: OZ5C008  Radiated Test Picture: Above 1 GHz  EUT Setup Picture
