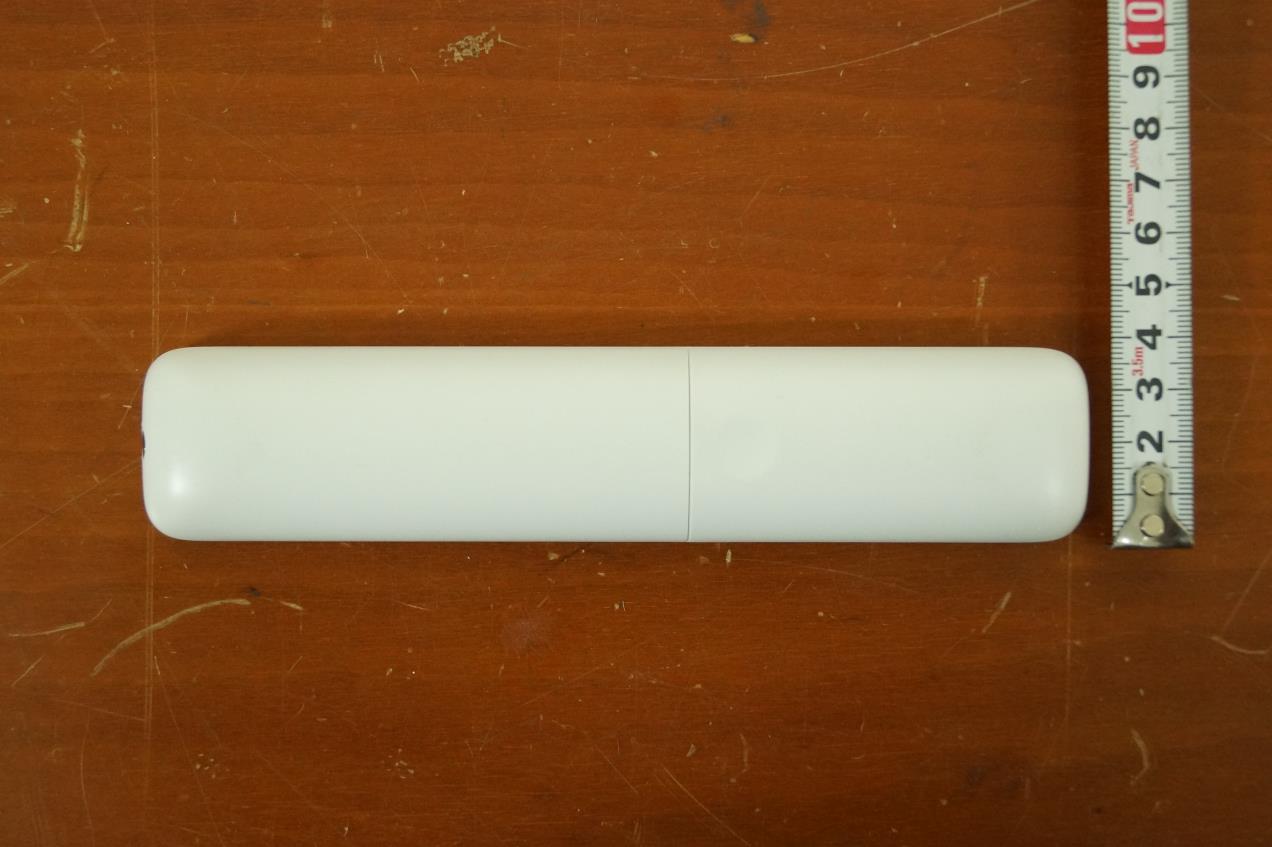

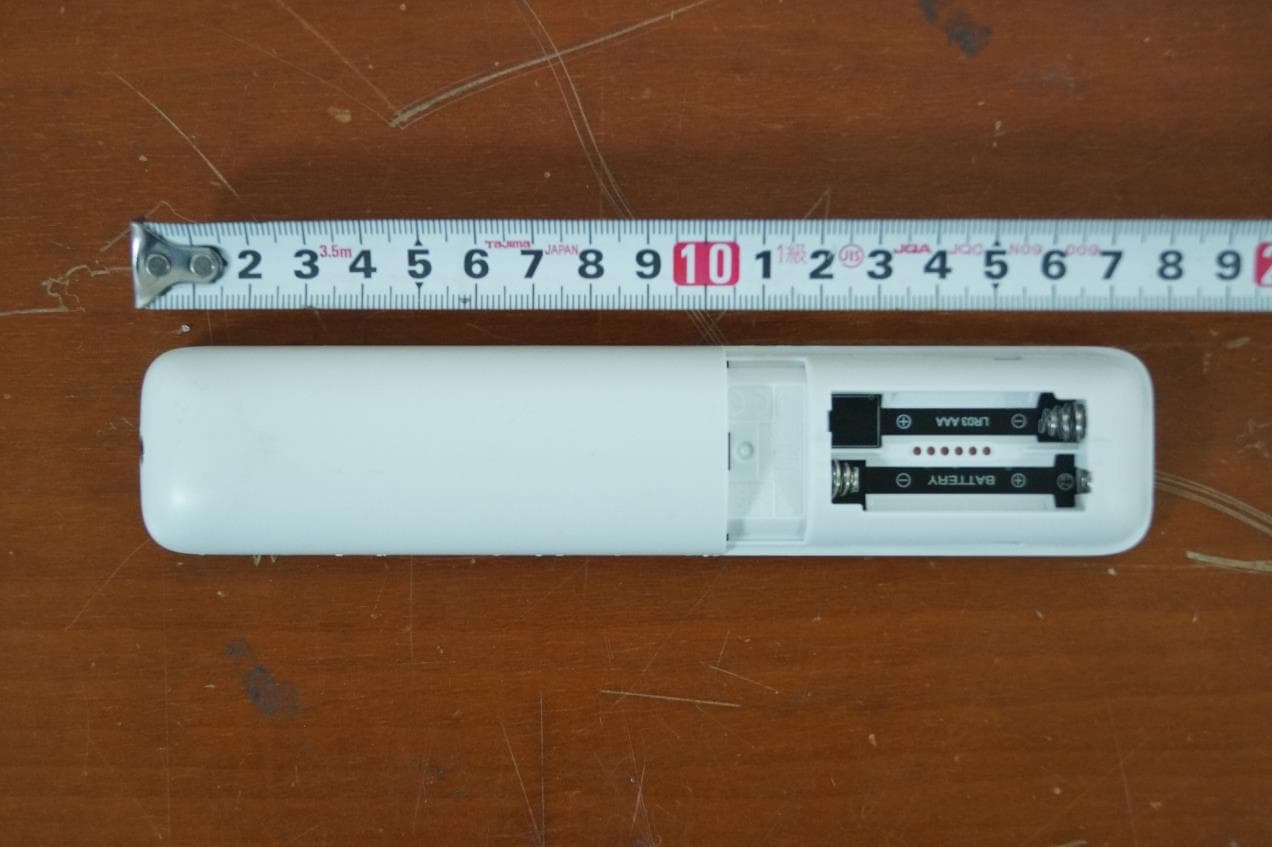

OZ5C009RF Remote Control Unit

Order Number : GETEC-C1-20-742 FCC Part 15 subpart C Test Report Number : GETEC-E3-20-089 Page 1 / 1 EUT Type: Remote Controller FCC ID.: OZ5C009 APPENDIX H : USER’S MANUAL C009 RCU MANUAL Address: #181 GONG DAN-DONG, GUMI, GYEONG BUK, KOREA Page 1/ 20 TEL: 82-54-468-7063 / FAX: 82-54-461-8368 http://www.ohsungec.com/ 1 - Mechanical C009 RCU MANUAL Address: #181 GONG DAN-DONG, GUMI, GYEONG BUK, KOREA Page 2/ 20 TEL: 82-54-468-7063 / FAX: 82-54-461-8368 http://www.ohsungec.com/ 1.2 - Dimensions 1.3 - Materials & colours PART NAME DESCRIPTION SPECIFICATION TOP/BOTTOM CASE MATERIAL ABS(DARK ANTHRACITE) BATTERY COVER MATERIAL ABS(DARK ANTHRACITE) NAVI KNOB MATERIAL ABS(ROCK CANDY) OK KNOB MATERIAL ABS(DARK ANTHRACITE) WINDOW FILTER MATERIAL PC RUBBER BUTTON MATERIAL SILICONE RUBBER EXCEPT FOR DESIGNATED FORMING COLOR DARK ANTHRACITE EXCEPT FOR DESIGNATED PRINT COLOR ROCK CANDY PRINT COLOR (ASSISTANT) BLUE P.T 2173C RED P.T 1795C YELLOW P.T 1225C GREEN P.T 7738C PRINT COLOR (HOME) DARK ANTHRACITE FORMING COLOR (ASSISTANT/HOME/YOUTUBE,NETFLIX) ROCK CANDY FORMING COLOR (ASSISTANT/HOME) ROCK CANDY PRINT COLOR YOUTUBE BLACK P.T 1795C NETFLIX P.T 1795C SUFACE TREAMENT PU COATING C009 RCU MANUAL Address: #181 GONG DAN-DONG, GUMI, GYEONG BUK, KOREA Page 3/ 20 TEL: 82-54-468-7063 / FAX: 82-54-461-8368 http://www.ohsungec.com/ 1.4 – Barcode label It is attached to the PCB and it can be seen into the battery compartment after removing the battery cover. 1.5 - Packing 1.5.1 - Remote Control - PE bag dimensions : 80 x 250mm (LDPE 0.05t) - Weight: 60g (without battery) 1.5.2 - Carton box - Box dimensions : W 600 x D 400 x H 200 mm - Quantity: 140pcs - Box weight: TBD 1.5.3 - Pallet - Pallet itself dimensions: W 1200 x D 800 x H 140mm - Overall pallet dimensions: W 1200 x D 800 x H 1340mm - Quantity per pallet: 2,800pcs (4 boxes / layer - 5 layers) C009 RCU MANUAL Address: #181 GONG DAN-DONG, GUMI, GYEONG BUK, KOREA Page 4/ 20 TEL: 82-54-468-7063 / FAX: 82-54-461-8368 http://www.ohsungec.com/ - Pallet weight: TBD 2 - Electrical 2.1 - Electrical Characteristic Parameter Condition Spec Unit Frequency Range Bluetooth Low Energy Specification 2.402 ~ 2.480 [GHz] Channel 40 [Num] RF Power 4 [dBm] Test channel TC-3000 (RF measuring instrument) 19 [Num] RF Power PAvg -20~+10[dBm] PMax +8[dBm] Pmin -20[dBm] Modulation Characteristic s ∆f1 avg 225~275 [KHz] ∆f2 avg ≥ 185 [KHz] ∆f2/∆f1 0.8 ∆f2min ≥ 92.5 [KHz] ∆f2rate ≥ 99 [%] Carrier Frequency Offset and Drift fTx-fn ≤ 150 [KHz] ∆f0-fn ≤ 50 [KHz] f1-f0 ≤ 20 [KHz] ∆fn-f(n-5) ≤ 20 [KHz] Operating Voltage RF (Bluetooth) 2.2~3.6 [V] LVI Voltage Low Voltage Indicate 2.25±0.2V [V] Operating current (IR) Power: 3V ≤ 50 [mA] Operating current (RF KEY) Power: 3V Non-directional distance ≤ 10 [mA] Operating current (RF+Voice) ≤ 20 [mA] Leakage current 10 [㎂] RF range (distance) ≥10 [m] C009 RCU MANUAL Address: #181 GONG DAN-DONG, GUMI, GYEONG BUK, KOREA Page 5/ 20 TEL: 82-54-468-7063 / FAX: 82-54-461-8368 http://www.ohsungec.com/ IR Range Direct ≥12 [m] Horizontal 7 (±15°) [m] VOICE 300Hz Voice Inspection JIG -30~-14 [dB] 2KHz -30~-10 [dB] 3.8KHz -30~-14 [dB] 2.2 - Battery Management a) Remote Control sends the information for battery level using Bluetooth battery service. b) Level of LVD is 2.1V ±0.1V. c) If the battery voltage as reached the LVD value, Remote Control cannot enter the pairing mode and the factory reset mode. d) If the battery voltage is under 2.0V, Remote Control does not operate. e) When the battery voltage is 2.2V or higher, the Remote Control operates again. C009 RCU MANUAL Address: #181 GONG DAN-DONG, GUMI, GYEONG BUK, KOREA Page 6/ 20 TEL: 82-54-468-7063 / FAX: 82-54-461-8368 http://www.ohsungec.com/ 3 - Software 3.1 - Bluetooth 5.0 LE identification a) Device Name: RemoteG20 b) Vender ID: 0x0957 c) Product ID: 0x0001 d) Vendor ID Source : Blutooth SIG e) Hardware Version : 'V', '1', ’.’, '0' 3.2 - Pairing mode & Re-pairing mode a) If user presses the [HOME] + [BACK] keys on the Remote Control for more than 4 secs, the Remote Control enters pairing mode. b) The green led stays on while pressing and holding the keys. c) After that, the green led starts blinking to indicate that the Remote Control has entered pairing mode. d) If pairing is successfully made, the green led stop blinking and the Remote Control starts working in Bluetooth. e) If pairing is not successfully made for 2mins(re-pairing) or 10mins(pairing), the green led stop blinking and the red led blinks 4times. The Remote Control stops pairing and goes back to the previous state. f) If pin or key missing, the Remote Control send the un-direct advertising data for 2mins or 10mins in pairing mode after disconnect. 3.3 - Advertising a) The Remote Control shall choose a very aggressive advertising interval, aimed at the best possible reconnection experience. b) An advertisement interval of 20ms is recommended. c) This interval may be downgraded after 30s if no connection has been established. d) Additional Data of Un-direct advertising Data Item Data Detail Appearance 0x80, 0x01 Generic Remote Control C009 RCU MANUAL Address: #181 GONG DAN-DONG, GUMI, GYEONG BUK, KOREA Page 7/ 20 TEL: 82-54-468-7063 / FAX: 82-54-461-8368 http://www.ohsungec.com/ UUID 0x12, 0x18,0x0F, 0x18 Human Interface Device Battery Complete local name RemoteG20 Device Name 3.4 - Scan Response Data Item Data Detail Complete local name RemoteG20 Device Name 3.5 - Un-Pairing mode a) Un-pairing from the STB clears Remote Control bonding cache. b) Remove Device bonding cache (manual approach - Optional): Press and hold [BACK] key while inserting batteris. 3.6 - Connection Parameter a) Connection Interval Time: 10ms b) Connection Slave Latency: 99 (1s) c) Connection Supervision Time Out: 4s 3.7 - Reconnection a) Upon an unexpected disconnect from the STB, the Remote Control shall automatically attempt to reconnect to the STB. b) It is recommended that the Remote Control uses an aggressive advertising interval (ex. 20ms) for the fir…
