OZ5JHTS907Wi-Fi/BT Combo Module

Order Number : GETEC-C1-20-450 FCC Part 15 subpart C Test Report Number : GETEC-E3-20-068 Page 1 / 1 EUT Type: Wi-Fi/BT Combo Module FCC ID.: OZ5JHTS907 APPENDIX H : USER’S MANUAL (1) Overview 1) This is a BLE/Wi-Fi module 2) BLE is a technology for low cost and energy wireless networks, this technology is mainly used in home networks and wireless sensor networks based on two-way wireless personal area networks. 3) Wi-Fi wireless communication with wired LAN IoT product for protocol and application performance based on IEEE 802.11 b/g/n standard technology 4) Wi-Fi and BLE do not operate at the same time 5) This module is mounted on the body using a connector 6) Module pin header Pin Map BLE nRST BLE GPIO GNDGND Wi-Fi Wake_Up Wi-Fi UART_RX BLE UART_TX BLE UART_RX BLE VDD Wi-Fi VDD Wi-Fi nRESET Wi-Fi UART_TX S907-JEWB-C User Information (Model Name : S907-JEWB-C) Contents 1. Overview and Specification (1) Overview (2) Specification 2. Federal Communication Commission (FCC) Radiation Exposure statement 1. Overview and Specification Federal Communication Commission (FCC) Radiation Exposure statement This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This modular must be installed and operated with a minimum distance of 20 cm between the radiator and user body. Warning! Changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment. Note : The manufacturer is not responsible for any Radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. 2. Federal Communication Commission (FCC) Radiation Exposure statement (2) Specification _ Wi-Fi Category Details Model No. S907-JEWB-C Range of Frequency 2412MHz ~ 2484MHz Channel 15EA Transmission output 16 dBm Reception sensitivity –96 dBm Modulation CCK/OFDM/MCS7 Antenna PCB Pattern Antenna Power DC 3.3V (2) Specification _ BLE Categories Details Model No. S907-JEWB-C Range of Frequency 2402MHz ~ 2480MHz Channel 40EA Transmission output 4 dBm Reception Sensitivity –90 dBm Antenna PCB Pattern Antenna Power DC 3.3V FCC Caution This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1.This device may not cause harmful interference 2.This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the authority to operate equipment. The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Grantees are responsible for the continued compliance of their modules to the FCC rules. This includes advising host product manufacturers that they need to provide a physical or e-label stating “Contains FCC ID” with their finished product. See Guidelines for Labeling and User Information for RF Devices – KDB Publication 784748. Additional guidance for testing host products is given in KDB Publication 996369 D04 Module Integration Guide. Test modes should take into consideration different operational conditions for a stand-alone modular transmitter in a host, as well as for multiple simultaneously transmitting modules or other transmitters in a host product. The grantee should provide information on how to configure test modes for host product evaluation for different operational conditions for a stand-alone modular transmitter in a host, versus with multiple, simultaneously transmitting modules or other transmitters in a host. Grantees can increase the utility of their modular transmitters by providing special means, modes, or instructions that simulates or characterizes a connection by enabling a transmitter. This can greatly simplify a host manufacturer’s determination that a module as installed in a host complies with FCC requirements. The grantee should include a statement that the modular transmitter is only FCC authorized for the specific rule parts (i.e., FCC transmitter rules) listed on the grant, and that the host product manufacturer is responsible for compliance to any other FCC rules that apply to the host not covered by the modular transmitter grant of certification. If the grantee markets their product as being Part 15 Subpart B compliant (when it also contains unintentional-radiator digital circuity), then the grantee shall provide a notice stating that the final host product still requires Part 15 Subpart B compliance testing with the modular transmitter installed.

Order Number : GETEC-C1-20-450 FCC Part 15 subpart C Test Report Number : GETEC-E3-20-068 Page 1 / 1 EUT Type: Wi-Fi/BT Combo Module FCC ID.: OZ5JHTS907 APPENDIX A : ATTESTATION STATEMENT Jul. 2 8, 2020 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakla nd Mills Road Columbia, MD 21046 U.S.A. To whom it may concern: We, the undersigned, hereby authorize Hyun Kim at GUMI University EMC Center to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relation to these matters. Any and all acts carried out by Hyun Kim at GUMI University EMC Center on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to the application is subject of a denial of benefits, including FCC benefits, pursuant 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Sincerely, Hak-Ki, Kim / General Manager OHSUNG ELECTRONICS CO., LTD.

Confidentiality Request Letter Ohsung Electronics Co.,Ltd #181 Gongdan-Dong, Gumi-Si,Gyeongsangbuk-Do, South Korea Tel: +82-54-468-7282, Fax: +82-54-461-8368 Feb. 09, 2021 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: OZ5JHTS907 Pursuant to sections 0.457 and 0.459 of CFR 47, we respectfully request permanent confidential treatment of the following Exhibits accompanying this application as: - Schematic Diagram - Block Diagram - Part List - Operational Description - Antenna Specification The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature Client’s name : Hak-Ki Kim Title : General Manager Contact information : +82-54-468-7282 Address : #181 Gongdan-Dong, Gumi-Si,Gyeongsangbuk-Do, South Korea Ohsung Electronics Co.,Ltd #181 Gongdan-Dong, Gumi-Si,Gyeongsangbuk-Do, South Korea Tel: +82-54-468-7282, Fax: +82-54-461-8368 Feb. 09, 2021 To: Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Short Term Confidentiality Request for FCC ID: OZ5JHTS907 To Whom It May Concern: Pursuant to sections 0.457 and 0.459 of CFR 47, and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 45 or 180 days; or for a specified date of / / not to exceed 180 days from the Grant Date. See KDB 726920. - User Manual - Test Setup Photos - External Photos - Internal Photos The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Sincerely, Client’s signature Client’s name : Hak-Ki Kim Title : General Manager Contact information : +82-54-468-7282 Address : #181 Gongdan-Dong, Gumi-Si,Gyeongsangbuk-Do, South Korea

Ohsung Electronics Co.,Ltd #181 Gongdan-Dong, Gumi-Si,Gyeongsangbuk-Do, South Korea Tel: +82-54-468-7282, Fax: +82-54-461-8368 Federal Communications Commission Authorization and Evaluation Division Feb. 09, 2021 Modular Approval for FCC ID: OZ5JHTS907 Applicant/Grantee Ohsung Electronics Co.,Ltd. FCC ID: OZ5JHTS907 Section 15.212 Modular Transmitters Request for Modular Approval Request for Limited Modular Approval Requirements EUT Conditions Comply (Y/N) Single Modular Approval Requirements 1 The radio elements of the modular transmitter must have their own shielding. The physical crystal and tuning capacitors may be located external to the shielded radio elements. Shield is over the radio circuit module. Refer to the external photos. Y 2 The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. All inputs to the modules are buffered through logic or microprocessor inputs.” Y 3 The modular transmitter must have its own power supply regulation. The module has internal voltage regulation. Refer to block diagram. Y 4 The modular transmitter must comply with the antenna and transmission system requirements of Sections 15.203, 15.204(b) and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). The “professional installation” provision of Section 15.203 is not applicable to modules but can apply to limited modular approvals under paragraph (b) of this section. Chip Antenna. Refer to the internal photos. Y 5 The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing for compliance with Part 15 requirements. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in Section 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see Section 15.27(a)). The length of these lines shall be the length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting equipment. Any accessories, peripherals, or support equipment connected to the The Module was tested in stand-alone configuration. Refer to the test setup photos. Y module during testing shall be unmodified and commercially available (see Section 15.31(i)). 6 The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. (A) If using a permanently affixed label, the modular transmitter must be labeled with its own FCC identification number, and, if the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. (B) If the modular transmitter uses an electronic display of the FCC identification number, the information must be readily accessible and visible on the modular transmitter or on the device in which it is installed. If the module is installed inside another device, then the outside of the device into which the module is installed must display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains FCC certified transmitter module(s).” Any similar wording that expresses the same meaning may be used. The user manual must include instructions on how to access the electronic display. A copy of these instructions must be included in the application for equipment authorization. Refer to the user manual Y 7 The modular transmitter must comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. Refer to the user manual. Y 8 The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. Refer to the RF exposure statement for more details. Y A limited modular approval may be granted for single or split modular transmitters that do not comply with all of the above requirements, e.g., shielding, minimum signaling amplitude, buffered modulation/data inputs, or power supply regulation, if the manufacturer can demonstrate by alternative means in the application for equipment authorization that the modular transmitter meets all the applicable Part 15 requirements under the operating conditions in which the transmitter will be used. Limited modular approval also may be granted in those instances where compliance with RF exposure rules is demonstrated only for particular product configurations. The applicant for certification must state how control of the end product into which the module will be installed will be maintained such that full compliance of the end product is always ensured. Sincerely, Client’s signature Client’s name : Hak-Ki Kim Title : General Manager Contact information : +82-54-468-7282 Address : #18…

Text truncated - open the document above for the full version.

Order Number : GETEC-C1-20-450 FCC Part 15 subpart C Test Report Number : GETEC-E3-20-068 Page 1 / 7 EUT Type: Wi-Fi/BT Combo Module FCC ID.: OZ5JHTS907 APPENDIX F : EXTERNAL PHOTOGRAPHS Order Number : GETEC-C1-20-450 FCC Part 15 subpart C Test Report Number : GETEC-E3-20-068 Page 2 / 7 EUT Type: Wi-Fi/BT Combo Module FCC ID.: OZ5JHTS907 < Front view > Order Number : GETEC-C1-20-450 FCC Part 15 subpart C Test Report Number : GETEC-E3-20-068 Page 3 / 7 EUT Type: Wi-Fi/BT Combo Module FCC ID.: OZ5JHTS907 < Rear view > Order Number : GETEC-C1-20-450 FCC Part 15 subpart C Test Report Number : GETEC-E3-20-068 Page 4 / 7 EUT Type: Wi-Fi/BT Combo Module FCC ID.: OZ5JHTS907 < Left view > Order Number : GETEC-C1-20-450 FCC Part 15 subpart C Test Report Number : GETEC-E3-20-068 Page 5 / 7 EUT Type: Wi-Fi/BT Combo Module FCC ID.: OZ5JHTS907 < Right view > Order Number : GETEC-C1-20-450 FCC Part 15 subpart C Test Report Number : GETEC-E3-20-068 Page 6 / 7 EUT Type: Wi-Fi/BT Combo Module FCC ID.: OZ5JHTS907 < Top view > Order Number : GETEC-C1-20-450 FCC Part 15 subpart C Test Report Number : GETEC-E3-20-068 Page 7 / 7 EUT Type: Wi-Fi/BT Combo Module FCC ID.: OZ5JHTS907 < Bottom view >

Order Number : GETEC-C1-20-450 FCC Part 15 subpart C Test Report Number : GETEC-E3-20-068 Page 1 / 2 EUT Type: Wi-Fi/BT Combo Module FCC ID.: OZ5JHTS907 APPENDIX B : ID SAMPLE LABEL & LOCATION Order Number : GETEC-C1-20-450 FCC Part 15 subpart C Test Report Number : GETEC-E3-20-068 Page 2 / 2 EUT Type: Wi-Fi/BT Combo Module FCC ID.: OZ5JHTS907 LABELLING REQUIREMENTS The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase.  ID Label  ID Label Location of EUT ID Label

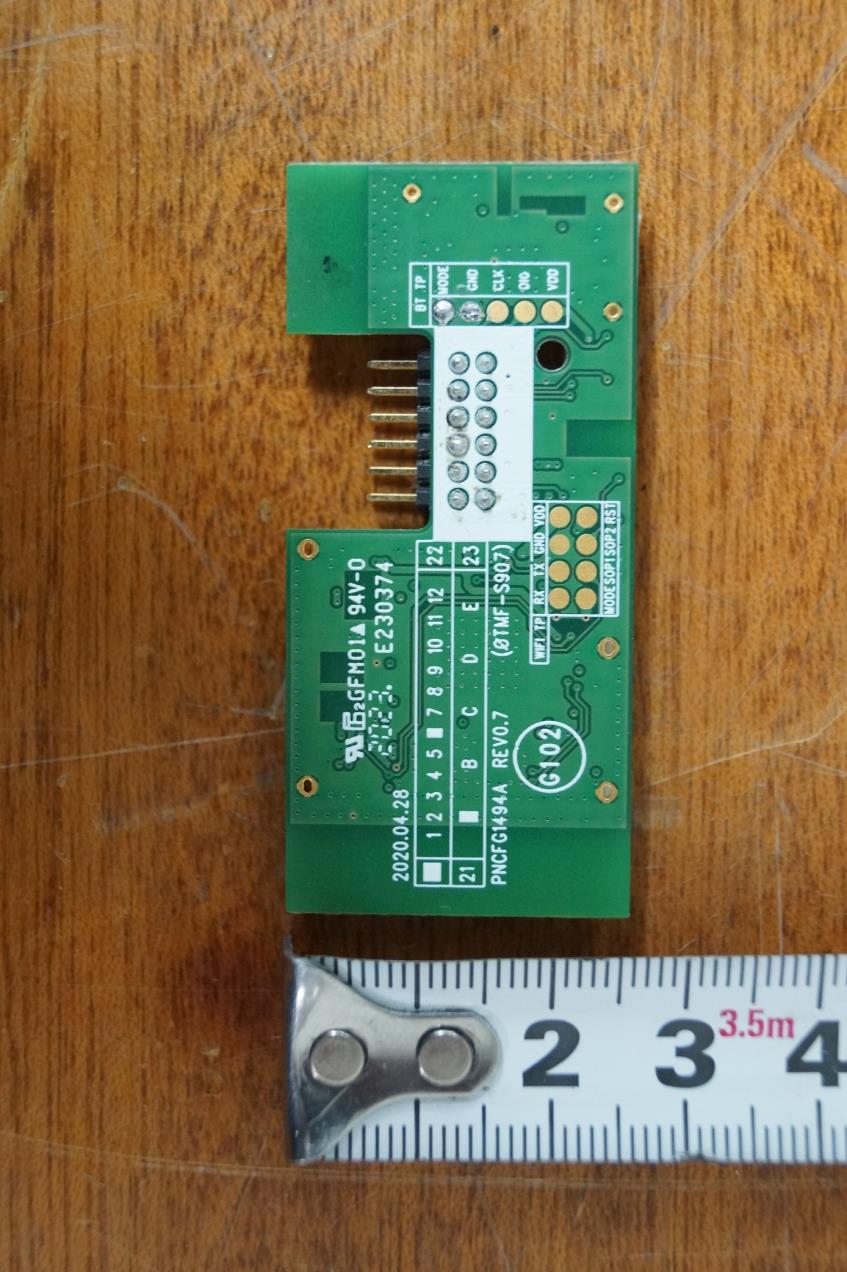

Order Number : GETEC-C1-20-450 FCC Part 15 subpart C Test Report Number : GETEC-E3-20-068 Page 1 / 3 EUT Type: Wi-Fi/BT Combo Module FCC ID.: OZ5JHTS907 APPENDIX G : INTERNAL PHOTOGRAPHS Order Number : GETEC-C1-20-450 FCC Part 15 subpart C Test Report Number : GETEC-E3-20-068 Page 2 / 3 EUT Type: Wi-Fi/BT Combo Module FCC ID.: OZ5JHTS907 < Inside view > WiFi Antenna Bluetooth LE Antenna Order Number : GETEC-C1-20-450 FCC Part 15 subpart C Test Report Number : GETEC-E3-20-068 Page 3 / 3 EUT Type: Wi-Fi/BT Combo Module FCC ID.: OZ5JHTS907 < Main board bottom view >

Order Number : GETEC-C1-20-450 FCC Part 15 subpart C Test Report Number : GETEC-E3-20-068 Page 1 / 3 EUT Type: Wi-Fi/BT Combo Module FCC ID.: OZ5JHTS907 APPENDIX L : RF EXPOSURE EVALUATION Order Number : GETEC-C1-20-450 FCC Part 15 subpart C Test Report Number : GETEC-E3-20-068 Page 2 / 3 EUT Type: Wi-Fi/BT Combo Module FCC ID.: OZ5JHTS907 1. RF Exposure Evaluation Radiofrequency radiation exposure limits. Specific absorption rate (SAR) shall be used to evaluate the environmental impact of human exposure to radiofrequency (RF) radiation as specified in § 1.1307(b) of this part within the frequency range of 100 kHz to 6 GHz (inclusive). Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) (i) Limits for Occupational/Controlled Exposure 0.3-3.0 614 1.63 *(100) ≤6 3.0-30 1842/f 4.89/f *(900/f 2 ) <6 30-300 61.4 0.163 1.0 <6 300-1,500 f/300 <6 1,500-100,000 5 <6 (ii) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *(100) <30 1.34-30 824/f 2.19/f *(180/f 2 ) <30 30-300 27.5 0.073 0.2 <30 300-1,500 f/1500 <30 1,500-100,000 1.0 <30 f = frequency in MHz. * = Plane-wave equivalent power density. Friis Formula Friis transmission formula: Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance r. Order Number : GETEC-C1-20-450 FCC Part 15 subpart C Test Report Number : GETEC-E3-20-068 Page 3 / 3 EUT Type: Wi-Fi/BT Combo Module FCC ID.: OZ5JHTS907 Bluetooth Low Energy Antenna Gain: 1.24 dBi Frequency (MHz) Average Conducted Output Power (dBm) Average Conducted Output Power (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 2 402 3.00 4.77 0.001 177 1.0 2 440 3.00 4.77 0.001 177 1.0 2 480 3.00 4.77 0.001 177 1.0 Wi-Fi Antenna Gain: 1.23 dBi IEEE 802.11b Frequency (MHz) Average Conducted Output Power (dBm) Average Conducted Output Power (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 2 412 15.00 11.76 0.008 750 1.0 2 442 14.30 11.55 0.008 594 1.0 2 462 14.70 11.67 0.008 683 1.0 IEEE 802.11g Frequency (MHz) Average Conducted Output Power (dBm) Average Conducted Output Power (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 2 412 9.80 9.91 0.007 374 1.0 2 442 14.10 11.49 0.008 549 1.0 2 462 9.40 9.73 0.007 240 1.0 IEEE 802.11n Frequency (MHz) Average Conducted Output Power (dBm) Average Conducted Output Power (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 2 412 9.80 9.91 0.007 374 1.0 2 442 13.10 11.17 0.008 311 1.0 2 462 9.30 9.68 0.007 202 1.0

Order Number : GETEC-C1-20-450 FCC Part 15 Subpart C Test Report Number : GETEC-E3-20-068 Page 2 / 33 GETEC-QP-16-008 (Rev.00) EUT Type: Wi-Fi/BT Combo Module FCC ID.: OZ5JHTS907 G E T E C Version Test Report No. Date Description GETEC-E3-20-068 Sep. 03, 2020 - First Approval Report Order Number : GETEC-C1-20-450 FCC Part 15 Subpart C Test Report Number : GETEC-E3-20-068 Page 3 / 33 GETEC-QP-16-008 (Rev.00) EUT Type: Wi-Fi/BT Combo Module FCC ID.: OZ5JHTS907 G E T E C CONTENTS 1. GENERAL INFORMATION ...................................................................................................................................... 5 2. INTRODUCTION ........................................................................................................................................................ 6 3. PRODUCT INFORMATION ...................................................................................................................................... 7 3.1 DESCRIPTION OF EUT .............................................................................................................................................. 7 3.2 DEFINITION OF MODELS ........................................................................................................................................... 7 3.3 SUPPORT EQUIPMENT / CABLES USED ..................................................................................................................... 8 3.4 MODIFICATION ITEM(S) ........................................................................................................................................... 8 4. ANTENNA REQUIREMENT - §15.203 ..................................................................................................................... 9 4.1 DESCRIPTION OF ANTENNA ...................................................................................................................................... 9 5. DESCRIPTION OF TESTS ......................................................................................................................................... 9 5.1 TEST CONDITION ...................................................................................................................................................... 9 6. REFERENCES STANDARDS .................................................................................................................................... 9 7. SUMMARY OF TEST RESULTS ............................................................................................................................. 10 8. 6 DB BANDWIDTH MEASUREMENT .................................................................................................................. 11 8.1 OPERATING ENVIRONMENT.................................................................................................................................... 11 8.2 TEST SET-UP (LAYOUT) .......................................................................................................................................... 11 8.3 LIMIT ...................................................................................................................................................................... 11 8.4 TEST EQUIPMENT USED .......................................................................................................................................... 11 8.5 TEST TEST PROCEDURE ......................................................................................................................................... 11 8.6 TEST RESULT .......................................................................................................................................................... 12 9. CONDUCTED MAXIMUM OUTPUT POWER MEASUREMENT .................................................................... 14 9.1 OPERATING ENVIRONMENT.................................................................................................................................... 14 9.2 TEST SET-UP (LAYOUT) .......................................................................................................................................... 14 9.3 LIMIT ...................................................................................................................................................................... 14 9.4 TEST EQUIPMENT USED .......................................................................................................................................... 14 9.5 TEST PROCEDURE .................................................................................................................................................. 14 9.6 TEST RESULT .......................................................................................................................................................... 15 10. POWER SPECTRAL DENSITY MEASUREMENT ............................................................................................ 16 10.1 OPERATING ENVIRONMENT ................................................................................................................................. 16 10.2 TEST SET-UP (LAYOUT) ........................................................................................................................................ 16 10.3 LIMIT .................................................................................................................................................................... 16 10.4 TEST EQUIPMENT USED ........................................................................................................................................ 16 10.5 TEST PROCEDURE ................................................................................................................................................ 16 10.6 TEST RESULT ...................................................................................................................…

Text truncated - open the document above for the full version.

Order Number : GETEC-C1-20-450 FCC Part 15 Subpart C Test Report Number : GETEC-E3-20-069 Page 2 / 45 GETEC-QP-16-008 (Rev.00) EUT Type: Wi-Fi/BT Combo Module FCC ID.: OZ5JHTS907 G E T E C Version Test Report No. Date Description GETEC-E3-20-069 Sep. 03, 2020 - First Approval Report Order Number : GETEC-C1-20-450 FCC Part 15 Subpart C Test Report Number : GETEC-E3-20-069 Page 3 / 45 GETEC-QP-16-008 (Rev.00) EUT Type: Wi-Fi/BT Combo Module FCC ID.: OZ5JHTS907 G E T E C CONTENTS 1. GENERAL INFORMATION ...................................................................................................................................... 5 2. INTRODUCTION ........................................................................................................................................................ 6 3. PRODUCT INFORMATION ...................................................................................................................................... 7 3.1 DESCRIPTION OF EUT .............................................................................................................................................. 7 3.2 DEFINITION OF MODELS ........................................................................................................................................... 7 3.3 SUPPORT EQUIPMENT / CABLES USED ..................................................................................................................... 8 3.4 MODIFICATION ITEM(S) ........................................................................................................................................... 8 4. ANTENNA REQUIREMENT - §15.203 ..................................................................................................................... 9 4.1 DESCRIPTION OF ANTENNA ...................................................................................................................................... 9 5. DESCRIPTION OF TESTS ......................................................................................................................................... 9 5.1 TEST CONDITION ...................................................................................................................................................... 9 6. REFERENCES STANDARDS .................................................................................................................................... 9 7. SUMMARY OF TEST RESULTS ............................................................................................................................. 10 8. 6 DB BANDWIDTH MEASUREMENT .................................................................................................................. 11 8.1 OPERATING ENVIRONMENT.................................................................................................................................... 11 8.2 TEST SET-UP (LAYOUT) .......................................................................................................................................... 11 8.3 LIMIT ...................................................................................................................................................................... 11 8.4 TEST EQUIPMENT USED .......................................................................................................................................... 11 8.5 TEST TEST PROCEDURE ......................................................................................................................................... 11 8.6 TEST RESULT .......................................................................................................................................................... 12 9. CONDUCTED MAXIMUM OUTPUT POWER MEASUREMENT .................................................................... 16 9.1 OPERATING ENVIRONMENT.................................................................................................................................... 16 9.2 TEST SET-UP (LAYOUT) .......................................................................................................................................... 16 9.3 LIMIT ...................................................................................................................................................................... 16 9.4 TEST EQUIPMENT USED .......................................................................................................................................... 16 9.5 TEST PROCEDURE ....................................................................................…

Text truncated - open the document above for the full version.
