OZ5NGIHKRRemote controller

Hard-key definitions NGI HKRThe controller have the following hard - keys as shown below: NGI HKR Manual Specification of NGI HKRThe controller support Bluetooth for user command functions FCC ID: OZ5NGIHKR The controller have the following hard keys as shown below: 1 UP The controller support Bluetooth for user command functions . 1) Bluetooth Version : 2.02) Power Class : Class 23) Supported Profiles : AVRCP, IOPT 4) Power Suppy : DC +3 0V 2 X AAA Cells 1 – UP 2 – DOWN3 – LEFT4 – RIGHT5 – DVD MENU 4) Power Suppy : DC +3 . 0V , 2 X AAA Cells 5) Illumination : LED Backlight 6 – REAR ENVIRONMENT7 – FAVOURITES8 – OK9 – SOURCE10 – HELP/SETTINGS 10 HELP/SETTINGS 11 – POWER12 – VOL +13 – VOL –14 – PLAY/PAUSE15 FWD 15 – FWD 16 – REWD17 – LEFT SELECT18 – RIGHT SELECT19 – HOME20 – CABIN AUDIO21 – BACK Pairing1) User enters " Rear Media Settings " as shown below: 2) User selects " Pair Remote Control " as shown below: NGI HKR Manual FCC ID: OZ5NGIHKR 1) User enters Rear Media Settings as shown below: 2) User selects Pair Remote Control as shown below: 3) Display shows the below screen instructing the user to press and hold the power button for 7 seconds. 4) On successful pairing, th e display shows Remote found as shown below: 5) If a remote control is al ready paired to the system, the NGI HKR Manual Failed Pairing FCC ID: OZ5NGIHKR display shows below screen, asking for confirmation to proceed (or not): Should the pairing process fa il, the display shows the below screen, prompting the us er to retry or cancel. NGI HKR Manual Low Battery WarningBatter y level warnin g s are g iven b y the AVRCP p rotocol to the ISC. There are two levels of batter y warnin g g iven to the user FCC ID: OZ5NGIHKR yggyp ygg indicating that the batteries are 1) getting low (a standard warning) and 2) t hey need replacing (critical warning). The attached HMI images show the int ent (exact wording may change as thes e screens have not been finalised): NGI HKR Manual FCC Information to User FCC ID: OZ5NGIHKR This equipment has been tested and found to comply with the lim its for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable prot ection against harmful interference in a residential installation. This equipment generates, uses and can radiate ra dio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interferenc e to radio communications. However, there is no guarantee that interference will not occur in a particular installation If this equi pment does cause harmful interference to radio or that interference will not occur in a particular installation . If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the eq uipment off and on, the user is encouraged to try to correct the interference by one of the following measures:• Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver • Increase the separation between the equipment and receiver . • Connect the equipment into an outlet on a circuit different f rom that to which the receiver is con-nected. • Consult the dealer or an experienced radio/TV technician for help. Caution Modifications not expressly approved by the party responsible f or compliance could void the user’s authority to operate the equipment.FCC Compliance Information : This device complies with Part 15 of the FCC Rules. Operation i s subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including int erference that may cause undesired operation NOTE: THE GRANTEE IS NOT RESPONSIB LE FOR ANY CHANGES OR MODIFICA TIONS NOT EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIANCE. SUCH MODIFICATIONS COULD VOI D THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.

Ohsung Electronics co.,ltd #181 Gong-dan-dong, Gumi-Si, Gyeongsangbuk-Do, Korea Date: August 21, 2014 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. Timco Engineering, Inc. Certification Division 849 N.W. State Road 45 P.O. Box 370 Newberry, Florida 32669 USA To whom it may concern: I, the undersigned, hereby authorize Technical Manager Issac Jin of MOVON CORPORATION and hereafter referred to as MOVON CORPORATION , to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these m atters. Any and all acts carried out by Technical Manager Issac Jin of MOVON CORPORATION on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing MOVON CORPORATION as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; Ohsung Electronics co.,ltd #181 Gong-dan-dong, Gumi-Si, Gyeongsangbuk-Do, Korea e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Hak-Ki, Kim / General manager Ohsung Electronics co.,ltd REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us. 3. Authorized signature must be in agreement with grantee code contact in FCC database.

Ohsung Electronics co.,ltd #181 Gong-dan-dong, Gumi-Si, Gyeongsangbuk-Do, Korea Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: OZ5NGIHKR To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematics Block Diagram Operational Description Parts List Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Sincerely Yours, Hak-Ki, Kim / General manager Ohsung Electronics co.,ltd

External photos of EUT Front view of EUT Rear view of EUT Side view of EUT Side view of EUT Side view of EUT Side view of EUT

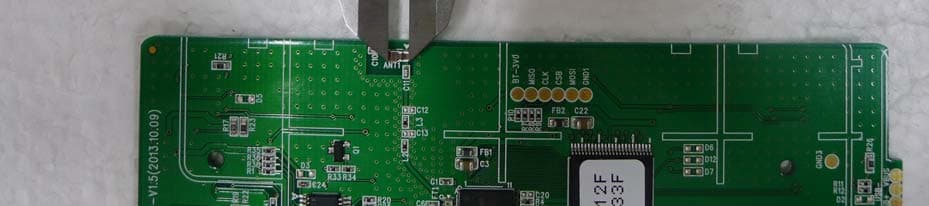

Internal photos of EUT Main board(Front) Main board (Rear) Bluetooth Antenna (Chip antenna) Internal photo

Dielectric Chip Antenna - Application Frequency Band[MHz] Bluetooth2400 ~ 2485 WiFi/Zigbee2400 ~ 2485 S-DMB2630 ~ 2655 Wibro 2300 ~ 2390 band1 : 2300 ~ 2327 band2 : 2331.5 ~ 2358.5 bnad3 : 2363 ~ 2390 Original Design Chip Antenna Data Sheet - P/N : SDBTPTR3015 - Dielectric Chip Antenna ■ SDBTPTR3015 Dimension ParameterLWTABCDE Value[mm] 3.0 ±0.1 1.5 ±0.1 1.2 ±0.1 1.00.550.41.10.65 Unless Specified tolerances are ± 0.05 mm Dielectric Chip Antenna ■ AutoCAD Drawing of Reference PCB Design for SDBTPTR3015 Product 41 2 3 Dielectric Chip Antenna ■ PCB Drawing Top View Case #1 <Default> 12 3 4 Case #2 12 3 4 Case #3 12 3 4 Case #4 12 3 4 Bottom View <Equivalent Circuit> Dielectric Chip Antenna ■ Matching Value Band (MHz) Matching Value (Default) Bluetooth / WiFi / Zigbee (2400 ~ 2485) Connector N/C Ant. 100pF 1.8pF 100 pF N/C S-DMB ( 2630 ~ 2655) Connector N/C Ant. 100pF 1.0nH 100 pF N/C Wibro (2300 ~ 2390) band1:2300~2327 band2:2331.5~2358.5 bnad3:2363~2390 Connector N/C Ant. 100pF 2.0pF 100 pF N/C Dielectric Chip Antenna - 3D Passive Gain For Bluetooth / WiFi / Zigbee ■ Test Result for Ver 0.0 SWR & Smith chart3D Peak [dBi] Average [dBi] Efficiency [%] 2400MHz1.96-0.9780.18 2425MHz1.99-0.6685.92 2445MHz1.74-0.8582.42 2465MHz1.27-1.2575.12 2485MHz0.86-1.6468.59 ■ Radiation PatternVer 0.0 3D Passive Dielectric Chip Antenna - 3D Passive Gain For S-DMB ■ Test Result for Ver 0.0 SWR & Smith chart3D Peak [dBi] Average [dBi] Efficiency [%] 2627MHz4.33-0.3891.80 2642MHz4.67-0.3692.06 2657MHz4.71-0.5688.02 ■ Radiation PatternVer 0.0 3D Passive Dielectric Chip Antenna - 3D Passive Gain For Wibro ■ Test Result for Ver 0.0 SWR & Smith chart3D Peak [dBi] Average [dBi] Efficiency [%] 2300MHz2.51-0.8482.52 2322.5MHz2.68-0.7883.71 2345MHz3.15-0.4590.20 2367.5MHz3.02-0.7883.76 2390MHz3.09-0.8682.12 ■ Radiation PatternVer 0.0 3D Passive Dielectric Chip Antenna - Application Frequency Band[MHz] Bluetooth2400 ~ 2485 WiFi/Zigbee2400 ~ 2485 S-DMB2630 ~ 2655 Wibro 2300 ~ 2390 band1 : 2300 ~ 2327 band2 : 2331.5 ~ 2358.5 bnad3 : 2363 ~ 2390 Original Design Chip Antenna Data Sheet - P/N : SDBTPTR3015 - Dielectric Chip Antenna ■ SDBTPTR3015 Dimension ParameterLWTABCDE Value[mm] 3.0 ±0.1 1.5 ±0.1 1.2 ±0.1 1.00.550.41.10.65 Unless Specified tolerances are ± 0.05 mm Dielectric Chip Antenna ■ AutoCAD Drawing of Reference PCB Design for SDBTPTR3015 Product 41 2 3 Dielectric Chip Antenna ■ PCB Drawing Top View Case #1 <Default> 12 3 4 Case #2 12 3 4 Case #3 12 3 4 Case #4 12 3 4 Bottom View <Equivalent Circuit> Dielectric Chip Antenna ■ Matching Value Band (MHz) Matching Value (Default) Bluetooth / WiFi / Zigbee (2400 ~ 2485) Connector N/C Ant. 100pF 1.8pF 100 pF N/C S-DMB ( 2630 ~ 2655) Connector N/C Ant. 100pF 1.0nH 100 pF N/C Wibro (2300 ~ 2390) band1:2300~2327 band2:2331.5~2358.5 bnad3:2363~2390 Connector N/C Ant. 100pF 2.0pF 100 pF N/C Dielectric Chip Antenna - 3D Passive Gain For Bluetooth / WiFi / Zigbee ■ Test Result for Ver 0.0 SWR & Smith chart3D Peak [dBi] Average [dBi] Efficiency [%] 2400MHz1.96-0.9780.18 2425MHz1.99-0.6685.92 2445MHz1.74-0.8582.42 2465MHz1.27-1.2575.12 2485MHz0.86-1.6468.59 ■ Radiation PatternVer 0.0 3D Passive Dielectric Chip Antenna - 3D Passive Gain For S-DMB ■ Test Result for Ver 0.0 SWR & Smith chart3D Peak [dBi] Average [dBi] Efficiency [%] 2627MHz4.33-0.3891.80 2642MHz4.67-0.3692.06 2657MHz4.71-0.5688.02 ■ Radiation PatternVer 0.0 3D Passive Dielectric Chip Antenna - 3D Passive Gain For Wibro ■ Test Result for Ver 0.0 SWR & Smith chart3D Peak [dBi] Average [dBi] Efficiency [%] 2300MHz2.51-0.8482.52 2322.5MHz2.68-0.7883.71 2345MHz3.15-0.4590.20 2367.5MHz3.02-0.7883.76 2390MHz3.09-0.8682.12 ■ Radiation PatternVer 0.0 3D Passive

MOVON CORPORATION Report Number: MOV-14-RF-I045 Page : (1) of (43) The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without the written approval of MOVON CORPORATION. FCC Part 15 Subpart B&C §15.247 Test Report Equipment Under Test Remote controller Model Name NGI HKR Variant model name NGI HKR JAGUAR, NGI HKR LAND ROVER Applicant Ohsung Electronics co.,ltd FCC ID OZ5NGIHKR Manufacturer Ohsung Electronics co.,ltd Date of Test(s) 2014. 08. 04 ~ 2014. 08. 21 Date of Issue 2014. 08. 25 In the configuration tested, the EUT complied with the standards specified above. Issue to Issue by Ohsung Electronics co.,ltd #181 Gong-dan-dong, Gumi-Si, Gyeongsangbuk-Do, Korea Tel.: +82-54-468-7130 Fax: +82-54-461-8368 MOVON CORPORATION 498-2, Geumeo-ro, Pogok-eup, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea, 449-812 Tel.: +82-31-338-8837 Fax: +82-31-338-8847 MOVON CORPORATION Report Number: MOV-14-RF-I045 Page : (2) of (43) The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without the written approval of MOVON CORPORATION. Revision history Revision Date of issue Description Revised by -- August 25, 2014 Initial -- MOVON CORPORATION Report Number: MOV-14-RF-I045 Page : (3) of (43) The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without the written approval of MOVON CORPORATION. Table of contents 1. ATTESTATION OF TEST RESULTS ............................................................................. 4 2. EUT DESCRIPTION ........................................................................................................ 6 3. FREQUENCY HOPPING SYSTEM REQUIREMENTS ................................................... 6 4. MEASUREMENT EQUIPMENT ...................................................................................... 8 5. TRANSMITTER RADIATED SPURIOUS EMISSIONS AND CONDUCTED SPURIOUS EMISSIONS .................................................................................................................. 9 6. 20 ㏈ BANDWIDTH MEASUREMENT ........................................................................ 24 7. MAXIMUM PEAK OUTPUT POWER MEASUREMENT ............................................... 27 8. HOPPING CHANNEL SEPARATION ........................................................................... 30 9. NUMBER OF HOPPING FREQUENCY ........................................................................ 32 10. TIME OF OCCUPANCY (DWELL TIME) .................................................................... 34 11. ANTENNA REQUIREMENT ....................................................................................... 39 12. RF EXPOSURE EVALUATION .................................................................................. 40 13. TEST SETUP PHOTO OF EUT .................................................................................. 42 MOVON CORPORATION Report Number: MOV-14-RF-I045 Page : (4) of (43) The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without the written approval of MOVON CORPORATION. 1. Attestation of test results 1.1. Details of applicant and Manufacturer Applicant / Manufacturer : Ohsung Electronics co.,ltd Address : #181 Gong-dan-dong, Gumi, Gyeong Buk, Korea Contact Person : Hak-Ki, Kim Telephone : + 82-54-468-7281 Fax : + 82-54-461-8368 MOVON CORPORATION Report Number: MOV-14-RF-I045 Page : (6) of (43) The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without the written approval of MOVON CORPORATION. 2. EUT Description Kind of product Remote Controller Model NGI HKR Variant model name NGI HKR JAGUAR, NGI HKR LAND ROVER Serial Number N/A Power supply DC 3.0 V Frequency range 2 402 ㎒ ~ 2 480 ㎒ Modulation technique GFSK Number of channels 79 Operating conditions - 20°C~ + 50°C Antenna gain 1.99㏈i (Max.) TEST SITE REGISTRATION NUMBER FCC(670686) 2.1. Declarations by the manufacturer None 2.2. Details of modification None 3. Frequency Hopping System Requirements 3.1. Standard Applicable According to FCC Part 15.247(a)(1), The system shall hop to channel frequencies that are selected at the system hopping rate from a pseudo randomly ordered list of hopping frequencies. Each frequency must be used equally on the average by each transmitter. The system receivers shall have input bandwidths that match the hopping channel bandwidths of their corresponding transmitters and shall shift frequencies in synchronization with the transmitted signals. (g) Frequency hopping spread spectrum systems are not required to employ all available hopping channels during each transmission. However, the system, consisting of both the transmitter and the receiver, must be designed to comply with all of the regulations in this section should the transmitter be presented with a continuous data (or information) stream. In addition, a system employing short transmission bursts must comply with the definition of a frequency hopping system and must distribute its transmissions over the minimum number of hopping channels specified in this section. (h) The incorporation of intelligence within a frequency hopping spread spectrum system that permits the system to recognize other users within the spectrum band so that it individually and independently chooses and adapts its hopsets to avoid hopping on occupied channels is permitted. The coordination of frequency hopping systems in any other manner for the express purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters is not permitted. MOVON CORPORATION Report Number: MOV-14-RF-I045 Page…

Text truncated - open the document above for the full version.

Test setup photo of EUT A. Setup photo of EUT Photo of radiated spurious emission at below 30 ㎒ Photo of radiated spurious emission at 30 ㎒ ~ 1 000 ㎒ Photo of radiated spurious emission at above 1 000 ㎒
