OZ5URC9000LRFRF Remote Controller

Order Number : GETEC-C1-11-075 FCC Part 15 subpart C Test Report Number : GETEC-E3-11-025 Page 1 / 1 EUT Type: RF REMOTE CONTROLLER FCC ID.: OZ5URC9000LRF APPENDIX I : USER’S MANUAL K. Programming Channel Control You can program the channel controls (Channel Up, Channel Down, Last and Numbers) from one Device to operate in another Device mode. Default channel con- trol settings on the remote control are as follows: CBL: CBL T V:CBLAUD: AUD DVD:DVDAUX:AUX If you wish to store the TV channel controls in TV mode, use the following steps. STEP1 Press the [OK/SEL] button and [TV] button simulta- neously for three seconds. The device LED will turn on for 30 seconds. The next step must be performed while the LED is on. STEP2 Press the [VOL ] button. The device LED will blink. STEP3 Press [TV] button. The device LED will blink twice to confirm the programming. *Note : To return TV device to CBL channel repeat steps above replacing [TV] with [CBL] in Step 3. L. Programming a ‘Macro’ button. If your remote model has custom-programmable Macro but- tons available(See Section 4), they can be programmed to act as a 'Macro' or Favorite Channel button in CABLE mode. This allows you to program up to five 2-digit channels, four 3-digit channels or three 4-digit channels that can be accessed with one button press. STEP1 Press the [CBL] button to select the CBL mode. STEP2 Press the [MACRO] button and [OK/SEL] button simultaneously for 3 seconds. The [CBL] button will turn on for 30 seconds. STEP3 Enter the the 2, 3 or 4-digit code for the channel you want programmed first (for example, 007) using the Number Pad, then press the [STOP] button. Then enter the code for the next channel (for example, 050), then press the [STOP] button. Repeat this process for the third channel. The [CBL] button will blink once for each channel entered. STEP4 Press the [CH] button to store the channels that were selected. The [CBL] button will blink twice to confirm the storage of commands. To access the programmed channels, press the [MACRO] button once. This will bring up the first channel. Press once again and it will bring up the second channel. Press again and it will bring up the third channel. M. RF Setting Method.(RF Frequency: 418Mhz) STEP1 After installing the MRF-250C, press the [CBL] and [LIST] button simultaneously for 3 sec- onds. The [CBL] device LED will turn on indi- cating that it is ready to be programmed. The LED will remain on for 30 seconds. STEP2 Enter the 2-digit ID number assigned to your MRF-250C ID #. (00~09, A : 10, B : 11, C : 12, D : 13, E : 14, F : 15) STEP3 Once you have completed RF ID setting, Store the 2-digit number by pressing the [CBL] button once again. The [CBL] device LED will blink twice to confirm that the RF ID number has been stored. *Note : Install and select the ID # on the MRF-250C. (For further details, refer to the MRF-250C manual.) You can operate up to 15 different equipment locations, each with an MRF-250C unique Receiver ID #. N. Low Battery Warning When the batteries are low and need to be replaced with fresh batteries, the Device LED lights will blink 2 times in H. Programming the AUX Device You can take advantage of the AUX function to program a devices such as a media PC, gaming console or satellite radio receiver. Follow the instruction in section B to pro- gram an AUX device. You can also program the AUX but- ton for a second TV, DVD or Audio Device. To do this fol- low the instructions below. STEP1 Turn on the 5th device you want to program (TV, AUD, DVD, etc.). STEP2 Press the [AUX] button and the [OK/SEL] button simultaneously for 3 seconds. The [AUX] device LED will turn on for 30 seconds. STEP3 Press the [Device] button For the type of device you want to setup. Point the remote control toward the device and enter the 3-digit code number assigned to your brand. *Note : To program a second TV press TV, etc. STEP4 When the equipment turns off verify that you have selected the correct code by pressing the [POWER] button. The equipment should turn back on. Then try all of the functions on the remote control (i.e. volume, mute, etc.) to ensure you have the correct code. If any of the functions do not operate as they should, enter the next 3- digit code number from the brand list. STEP5 Once you have found the correct 3-digit code, save it by pressing the [AUX] button one more time. The [AUX] LED light will blink twice to confirm the code was stored. I. Programming the System On/Off Button This allows you to program the System On/Off button so it can send up to five power On/Off commands with one but- ton press. STEP1 Press the [CBL] button. STEP2 Press the [SYSTEM ON/OFF] button and the [OK/SEL] button simultaneously for 3 seconds. The [CBL] button will turn on for 30 seconds. STEP3 Press the first [DEVICE] button you want to store in the [SYSTEM ON/OFF] button and then the [POWER] button. Repeat this for other Components until you have stored all the desired power commands into the [SYSTEM ON/OFF] button. STEP4 Press the [CH] button to save the power com- mands you stored. The [CBL] button will blink twice to confirm the commands have been saved. J. Programming Volume Control Volume and Mute control are factory programmed to auto- matically transfer to the respective Device mode You select, as follows: CBL: CBL T V:TVAUD: AUD DVD:TVAUX: AUX If you wish to store the TV volume control in CBL mode, use the following steps. STEP1 Press the [OK/SEL] button and [CBL] button simultaneously for three seconds. The device LED will turn on for 30 seconds. The next step must be performed while the LED is on. STEP2 Press the [VOL] button. The device LED will blink. STEP3 Press [TV] button. The device LED will blink twice to confirm the programming. *Note : To return CBL device to CBL volume repeat steps above replacing [TV] with [CBL] in Step 3 . Quick Set-up Code Tables 6 Set-up Code Tables 7 0SANYO 1SONY 2SAMSUNG 3LG 4TOSHIBA 5PANASONIC 6PHILIPS 7HITACHI 8SHARP 9VIZIO CISCO/SA…

Text truncated - open the document above for the full version.

2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 OHSUNG ELECTRONICS CO., LTD #181 Gongdan-Dong, Gumi-Si,Gyeongsangbuk-Do, Korea Tel: +82-54-468-7282, Fax: +82-54-461-8368 April 12, 2011 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, OHSUNG ELECTRONICS CO., LTD, hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product Name: RF Remote Controller FCC ID: OZ5URC9000LRF We affirm that between SIEMIC and OHSUNG ELECTRONICS CO., LTD, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, --------------------------------------------- Hak-Ki Kim, Q.C Manager OHSUNG ELECTRONICS CO.,LTD SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0

Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 OHSUNG ELECTRONICS CO., LTD #181 Gongdan-Dong, Gumi-Si,Gyeongsangbuk-Do, Korea Tel: +82-54-468-7282, Fax: +82-54-461-8368 SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006 Federal Communications Commission Authorization and Evaluation Division April 12, 2011 Confidentiality Request regarding application for certification of FCC ID: OZ5URC9000LRF We hereby request confidential treatment of information accompanying this application as outlined below: Exhibit TypeFile Name URC9000LRF_BlkDia.pdf BLOCK DIAGRAM URC9000LRF_SchDia.pdf SCHEMETIC DIAGRAM URC9000LRF_OpeDes.pdf OPERATIONAL DESCRIPTION The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. In addition to above mentioned documents, pursuant to Public DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR 2.803 and the importation rules in 47 CFR 2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following Exhibit TypeFile Name URC9000LRF_Tsup.pdf TEST SET UP PHOTOS URC9000LRF_ExtPho.pdf EXTERNAL PHOTOGRAPHS URC9000LRF_IntPho.pdf INTERNAL PHOTOGRAPHS URC9000LRF_UseMan.pdf USER’S MANUAL The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, --------------------------------------------- Hak-Ki Kim, Q.C Manager OHSUNG ELECTRONICS CO.,LTD

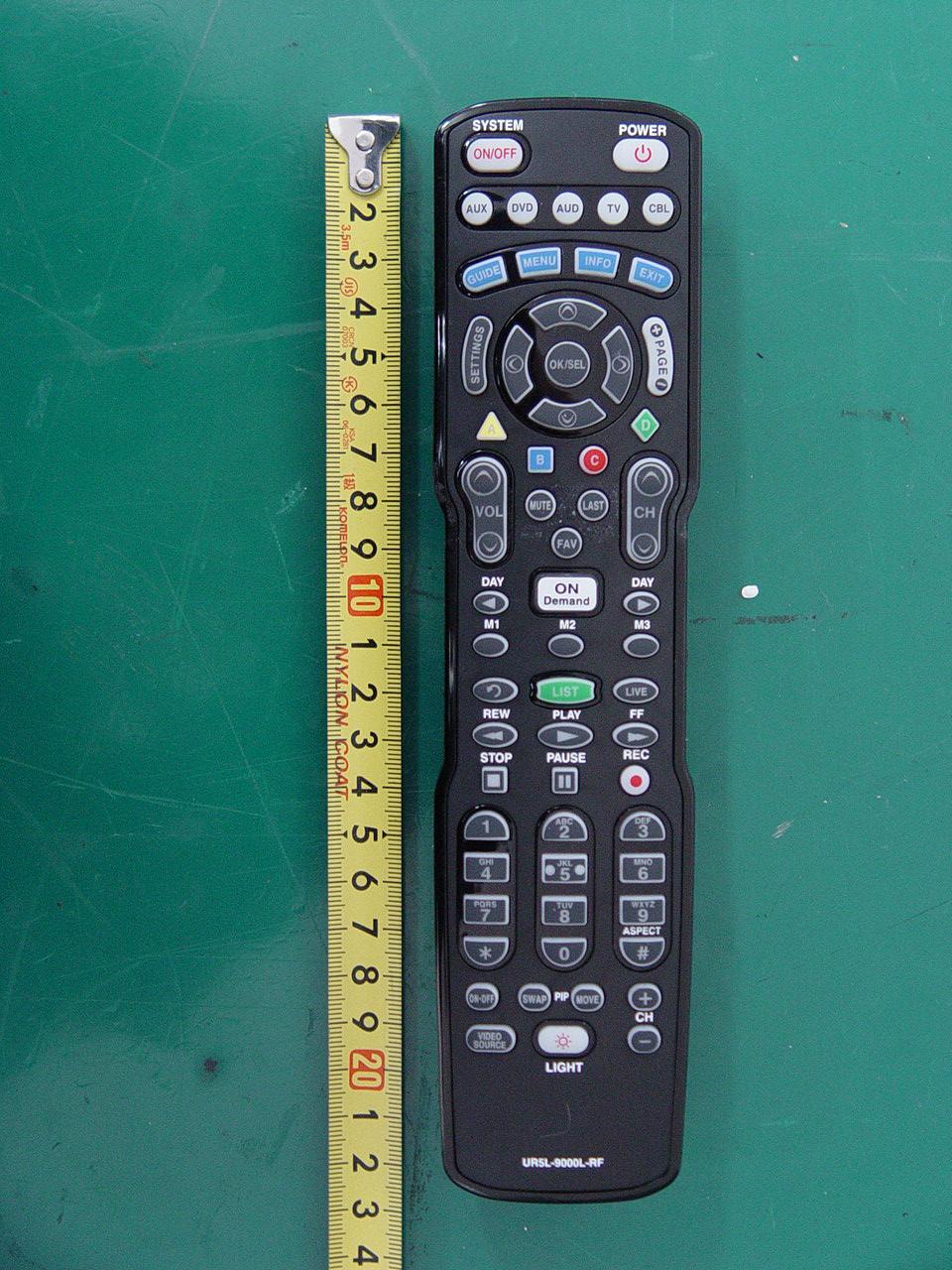

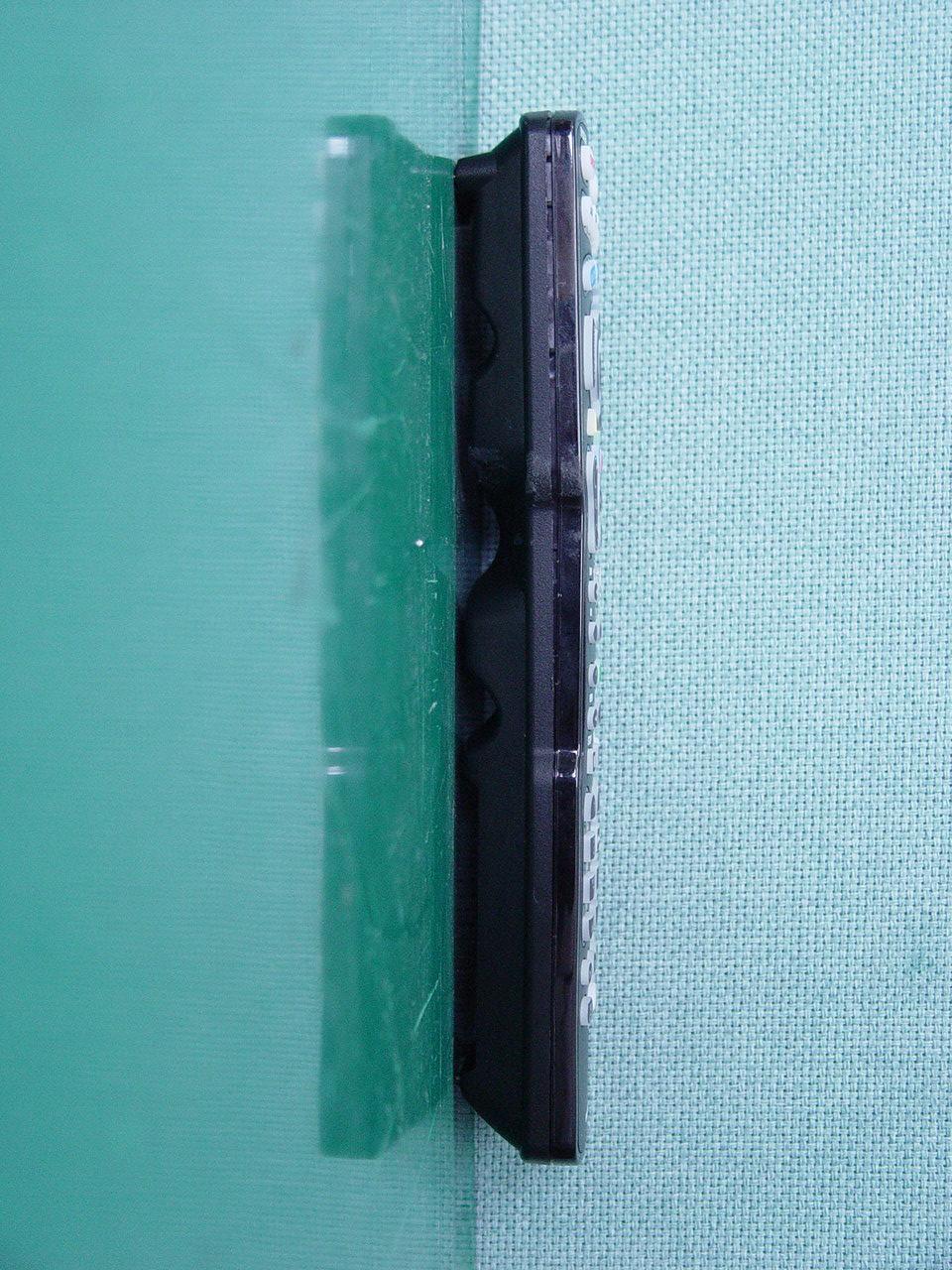

Order Number : GETEC-C1-11-075 FCC Part 15 subpart C Test Report Number : GETEC-E3-11-025 Page 1 / 7 EUT Type: RF REMOTE CONTROLLER FCC ID.: OZ5URC9000LRF APPENDIX G : EXTERNAL PHOTOGRAPHS Order Number : GETEC-C1-11-075 FCC Part 15 subpart C Test Report Number : GETEC-E3-11-025 Page 2 / 7 EUT Type: RF REMOTE CONTROLLER FCC ID.: OZ5URC9000LRF Order Number : GETEC-C1-11-075 FCC Part 15 subpart C Test Report Number : GETEC-E3-11-025 Page 3 / 7 EUT Type: RF REMOTE CONTROLLER FCC ID.: OZ5URC9000LRF Order Number : GETEC-C1-11-075 FCC Part 15 subpart C Test Report Number : GETEC-E3-11-025 Page 4 / 7 EUT Type: RF REMOTE CONTROLLER FCC ID.: OZ5URC9000LRF Order Number : GETEC-C1-11-075 FCC Part 15 subpart C Test Report Number : GETEC-E3-11-025 Page 5 / 7 EUT Type: RF REMOTE CONTROLLER FCC ID.: OZ5URC9000LRF Order Number : GETEC-C1-11-075 FCC Part 15 subpart C Test Report Number : GETEC-E3-11-025 Page 6 / 7 EUT Type: RF REMOTE CONTROLLER FCC ID.: OZ5URC9000LRF Order Number : GETEC-C1-11-075 FCC Part 15 subpart C Test Report Number : GETEC-E3-11-025 Page 7 / 7 EUT Type: RF REMOTE CONTROLLER FCC ID.: OZ5URC9000LRF

Order Number : GETEC-C1-11-075 FCC Part 15 subpart C Test Report Number : GETEC-E3-11-025 Page 1 / 2 EUT Type: RF REMOTE CONTROLLER FCC ID.: OZ5URC9000LRF APPENDIX C : ID SAMPLE LABEL & LOCATION Order Number : GETEC-C1-11-075 FCC Part 15 subpart C Test Report Number : GETEC-E3-11-025 Page 2 / 2 EUT Type: RF REMOTE CONTROLLER FCC ID.: OZ5URC9000LRF LABELLING REQUIREMENTS The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase.  ID Label  ID Label Location of EUT ID Label

Order Number : GETEC-C1-11-075 FCC Part 15 subpart C Test Report Number : GETEC-E3-11-025 Page 1 / 7 EUT Type: RF REMOTE CONTROLLER FCC ID.: OZ5URC9000LRF APPENDIX H : INTERNAL PHOTOGRAPHS Order Number : GETEC-C1-11-075 FCC Part 15 subpart C Test Report Number : GETEC-E3-11-025 Page 2 / 7 EUT Type: RF REMOTE CONTROLLER FCC ID.: OZ5URC9000LRF Order Number : GETEC-C1-11-075 FCC Part 15 subpart C Test Report Number : GETEC-E3-11-025 Page 3 / 7 EUT Type: RF REMOTE CONTROLLER FCC ID.: OZ5URC9000LRF Order Number : GETEC-C1-11-075 FCC Part 15 subpart C Test Report Number : GETEC-E3-11-025 Page 4 / 7 EUT Type: RF REMOTE CONTROLLER FCC ID.: OZ5URC9000LRF Order Number : GETEC-C1-11-075 FCC Part 15 subpart C Test Report Number : GETEC-E3-11-025 Page 5 / 7 EUT Type: RF REMOTE CONTROLLER FCC ID.: OZ5URC9000LRF Order Number : GETEC-C1-11-075 FCC Part 15 subpart C Test Report Number : GETEC-E3-11-025 Page 6 / 7 EUT Type: RF REMOTE CONTROLLER FCC ID.: OZ5URC9000LRF Order Number : GETEC-C1-11-075 FCC Part 15 subpart C Test Report Number : GETEC-E3-11-025 Page 7 / 7 EUT Type: RF REMOTE CONTROLLER FCC ID.: OZ5URC9000LRF

nn~많{$gR￡$FE Page 1 of20 FCCEκ4LUATION REPORT FOR CERTIFICATION Manufacturer : OHSUNG ELECTRONICS CO., LTD. #181 Gongdan-dong , Gumi-si, Gyeongbuk Date of Issue : April12, 2011 Order Number: GETEC-C1-11-075 Republic of Korea. Attn : Mr. Hak-Ki Kim / General Manager Test Report Number: GETEC-E3-11-025 Test Site: Gumi CoUege EMC Center FCC Registration Number: (100749,443957) FCC ID. OZ5URC9000LRF Applicant: OHSUNG ELECTRONICS CO., LTD. Rule Part(s) : FCC Part 15 Subpart C-Intentional Radiator ~ 15.231 Equipment Class : Remote Control Transmitter (DSC) EUT Type : RF REMOTE CONTROLLER Type of Authority : Certification Model Name : UR5L-9000LRF Trade Name : UNIVERSAL Remote Control This equipment has been shown to be in compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.4-2003 1 attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the vest of my knowledge and belief. 1 assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Tested by, S00η Hιeη Soon-Hoon Jeong, Associate Engineer GUMI CoUege EMC center GET드C-QP-28-007 (Rev.OO) Reviewed by, Jae-Hoon Jeong, S뼈ior Engineer GUMI CoUege E~C center 전자파센터 This test report only contains the result of a specific sample supplied for the examination It is not allowed to copy this report even partly without the approval of EMC center Order Number : GETEC-C1-11-075 FCC Part 15 subpart C Test Report Number : GETEC-E3-11-025 Page 2 / 20 EUT Type: RF REMOTE CONTROLLER FCC ID.: OZ5URC9000LRF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................ 4 2. INTRODUCTION ................................................................................................................................................. 5 3. PRODUCT INFORMATION ................................................................................................................................ 6 3.1 DESCRIPTION OF EUT ....................................................................................................................................... 6 3.2 SUPPORT EQUIPMENT / CABLES USED ................................................................................................................ 6 3.3 MODIFICATION ITEM(S) .................................................................................................................................... 6 4. ANTENNA REQUIREMENT - §15.203 ................................................................................................................ 7 4.1 DESCRIPTION OF ANTENNA ............................................................................................................................... 7 5. DESCRIPTION OF TESTS .................................................................................................................................. 7 5.1 TEST CONDITION ............................................................................................................................................... 7 5.2 CONDUCTED EMISSION...................................................................................................................................... 8 5.3 RADIATED EMISSION ......................................................................................................................................... 9 5.4 DUTY CYCLE CORRECTION ............................................................................................................................. 10 5.5 OCCUPIED BANDWIDTH ................................................................................................................................... 10 6. DUTY CYCLE CORRECTION .......................................................................................................................... 11 6.1 OPERATING ENVIRONMENT ............................................................................................................................. 11 6.2 TEST SET-UP .................................................................................................................................................... 11 6.3 TEST EQUIPMENT USED ................................................................................................................................... 11 6.4 TEST RESULT OF DUTY CYCLE ......................................................................................................................... 11 7. ACTIVATION TIME ........................................................................................................................................... 12 7.1 OPERATING ENVIRONMENT ............................................................................................................................. 12 7.2 LIMIT .............................................................................................................................................................. 12 7.3 TEST EQUIPMENT USED ................................................................................................................................... 12 7.4 TEST RESULT OF ACTIVATION TIME.................................................................................................................. 12 8. RADIATED EMISSION ...................................................................................................................................... 13 8.1 OPERATING ENVIRONMENT ............................................................................................................................. 13 8.2 TEST SET-UP ............................................................................................................................................…

Text truncated - open the document above for the full version.

Order Number : GETEC-C1-11-075 FCC Part 15 subpart C Test Report Number : GETEC-E3-11-025 Page 1 / 5 EUT Type: RF REMOTE CONTROLLER FCC ID.: OZ5URC9000LRF APPENDIX B : TEST PLOTS Order Number : GETEC-C1-11-075 FCC Part 15 subpart C Test Report Number : GETEC-E3-11-025 Page 2 / 5 EUT Type: RF REMOTE CONTROLLER FCC ID.: OZ5URC9000LRF 1. Occupied bandwidth Ref 105 dBμVAtt 10 dB * * * 1 PK VIEW A TDS 3DB RBW 100 kHz VBW 100 kHz SWT 5 ms * Center418 MHzSpan1.5 MHz150 kHz/ 75 80 85 90 95 100 105 1 Marker 1 [T1 ] 80.79 dBμV 417.460000000 MHz 2 Marker 2 [T1 ] 99.69 dBμV 417.985000000 MHz 1 Delta 1 [T1 ] -0.84 dB 999.000000000 kHz D1 99.69 dBμV D2 79.69 dBμV Date: 25.MAR.2011 19:26:14 Order Number : GETEC-C1-11-075 FCC Part 15 subpart C Test Report Number : GETEC-E3-11-025 Page 3 / 5 EUT Type: RF REMOTE CONTROLLER FCC ID.: OZ5URC9000LRF 2. Complete Pulse Train / On-time of the Head Order Number : GETEC-C1-11-075 FCC Part 15 subpart C Test Report Number : GETEC-E3-11-025 Page 4 / 5 EUT Type: RF REMOTE CONTROLLER FCC ID.: OZ5URC9000LRF Order Number : GETEC-C1-11-075 FCC Part 15 subpart C Test Report Number : GETEC-E3-11-025 Page 5 / 5 EUT Type: RF REMOTE CONTROLLER FCC ID.: OZ5URC9000LRF

Order Number : GETEC-C1-11-075 FCC Part 15 subpart C Test Report Number : GETEC-E3-11-025 Page 1 / 4 EUT Type: RF REMOTE CONTROLLER FCC ID.: OZ5URC9000LRF APPENDIX F : TEST SET UP PHOTOGRAPHS Order Number : GETEC-C1-11-075 FCC Part 15 subpart C Test Report Number : GETEC-E3-11-025 Page 2 / 4 EUT Type: RF REMOTE CONTROLLER FCC ID.: OZ5URC9000LRF  Radiated Test Picture (Front): 30 MHz to 1 000 MHz  Radiated Test Picture (Rear): 30 MHz to 1 000 MHz Order Number : GETEC-C1-11-075 FCC Part 15 subpart C Test Report Number : GETEC-E3-11-025 Page 3 / 4 EUT Type: RF REMOTE CONTROLLER FCC ID.: OZ5URC9000LRF  Radiated Test Picture (X axis): Above 1 GHz  Radiated Test Picture (Y axis): Above 1 GHz Order Number : GETEC-C1-11-075 FCC Part 15 subpart C Test Report Number : GETEC-E3-11-025 Page 4 / 4 EUT Type: RF REMOTE CONTROLLER FCC ID.: OZ5URC9000LRF  Radiated Test Picture (X axis): Above 1 GHz
