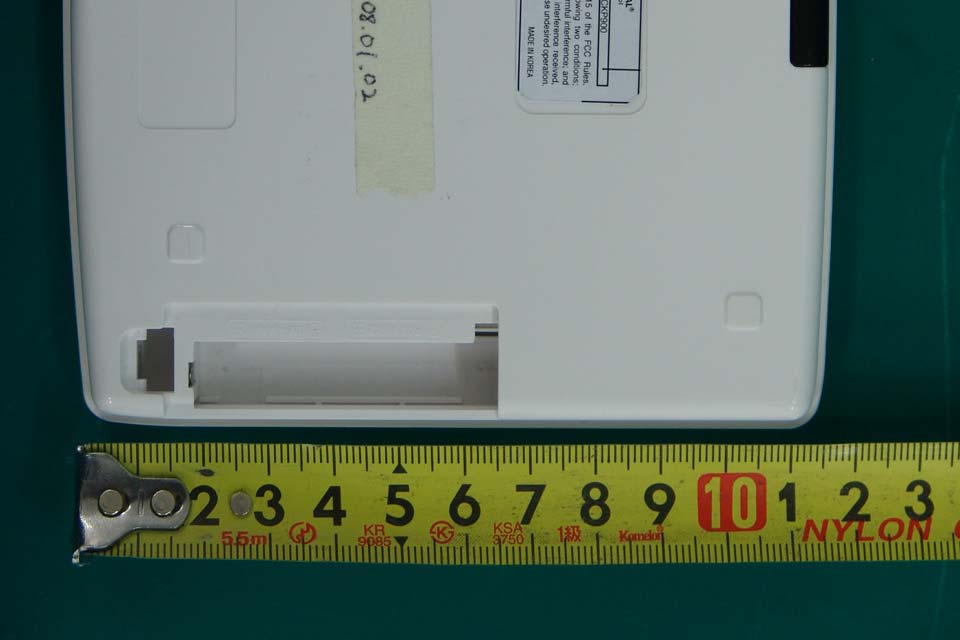

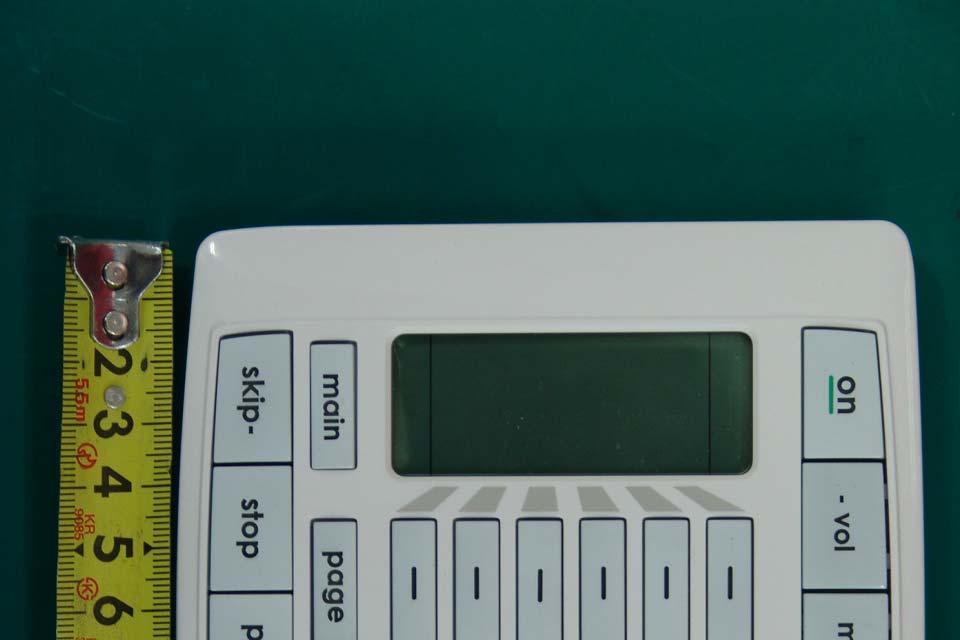

OZ5URCKP900RF REMOTE CONTROLLER

EUT Type: RF Remote Controller FCC ID.: OZ5URCKP900 Test Report No.: GETEC-E3-08-001 FCC Part 15 Subpart B,C APPENDIX I : USER’S MANUAL Operating Your System With The KP-900 Wireless Keypad/Remote COMPLETE ™ UniversalRemoteControl ® CONTROL COMPLETE This remote control was Custom Programmed for you by: For questions about your Custom Programming call: Custom Programming of a complex home theater and/or a multi-room system is one of the most challenging tasks within an audio/video instal- lation. It involves an intimate knowledge of how the components interact and exact details on the proper sequences of control. Only a Complete Control dealer has the requisite experience and training to quickly and effectively customize a remote control for true automated operation. Congratulations on your choice! KP-900 Owners Manual © 2007 Universal Remote Control, Inc. The information in this manual is copyright protected. No part of this manual may be copied or reproduced in any form without prior written consent from Universal Remote Control, Inc. UNIVERSAL REMOTE CONTROL, INC. SHALL NOT BE LIABLE FOR OPERATIONAL, TECHNICAL OR EDITORIAL ERRORS/OMISSIONS MADE IN THIS MANUAL. The information in this manual may be subject to change without prior notice. Complete Control is a registered trademark of Universal Remote Control, Inc. Entertainment Made Simple is a trademark of Universal Remote Control, Inc. All other brand or product names are trademarks or registered trademarks of their respective companies or organizations. Universal Remote Control, Inc. 500 Mamaroneck Avenue, Harrison, NY 10528 Phone: (914) 835-4484 Fax: (914) 835-4532 TABLEOFCONTENTS Introduction1 Understanding LCD Labeled Buttons 1 Optional RF “No Rules” Operation2 Securing the Wall Bracket3 Installing Batteries3 Programming the KP-9004 Selecting a New “Activity”5 Using the KP-900 to Control an “Activity”6 Displaying the Setup Screen7 Selecting from the Setup Screen7 Setting the LCD8 Sound Volume10 Light Settings10 System Settings11 Version Information Displays11 Factory Default 12 USA Limited Warranty Statement12 Specifications14 Contact Universal Remote Control14 Notes: Your Listen Activities15 Notes: Your Watch Activities16 Page 1 KP-900 OWNERSMANUAL Congratulations! You’ve purchased a unique wireless control. The KP-900 can be used as both a wall mounted keypad and as a hand-held remote control. The KP-900 achieves a magnificent combination of power and flexibility, simplifying and automating operation of even the most complex system. Wall Mounted Keypad and Hand-Held Remote Control Once the wall bracket is securely installed on the wall, simply place the KP-900 into the bracket. Magnets snap the KP-900 into place. To use as a hand-held remote control, grasp the KP-900 from the top edge and pull it away from the bracket. One Touch Multi-Colored Backlighting Press any button to backlight the screen and the hard buttons. Integrated Sound Signaling The KP-900 incorporates a small speaker for beeps. Anytime you press a button, the KP-900 signals that it has understood your command with a beep sound. Custom Labeled Buttons The KP-900 is equipped with a bright easy to read LCD screen which labels the six buttons to the right of the screeen. These button labels change based on what you are watching or listening to. Thus, if you have selected Watching TV, you will see a list of buttons that are useful to that activity, while if you select DVD, the buttons will control the DVD. Pressing the MAIN button displays the Main Menu pages of the KP-900. When you select one of the activi- ties listed, the entire functionality of all the buttons changes to operate the selected device. Page 2 KP-900 OWNERSMANUAL Optional RF “No Rules” Operation In combination with a Complete Control RF Base Station, the KP-900 can control your system without being in line-of-sight of the equipment. The MSC-400, the MRF-350 or the MRF-260 RF base station are compatible with the KP-900. All incorporate RF addressing. RF Addressing gives you the ability to control equipment locations throughout your home, even if they are concealed in other rooms or are behind closed doors. 4. Self-adhesive “Flashers” affix to the Infrared sensors on the front panels of your components. The Flashers relay commands to components out of sight of the MRF- 350’s Front Blaster. The flashers plug in to the MRF-350’s rear flasher line outputs via their 10 foot cables. Uniquely, the MRF-350 can also connect to rear panel IR Inputs via its adjustable IR Line Outputs. 3. The MSC-400 routes IR commands to the correct IR Flasher. 1. The KP-900 sends radio waves in every direction, so you don’t have to point the remote any- more! 2. The RFX-250 RF Sensor can be freely positioned for optimal reception. Page 3 KP-900 OWNERSMANUAL Securing the Wall Bracket The KP-900 includes a wall bracket, four screws and four plastic caps to conceal the screwheads. Consult with a professional installer before attempting to secure the bracket to your wall. The included screws may not be appropriate for your walls. Before making a hole in your wall, gather the family and evaluate the best height. Like a thermostat, the KP-900 should be at comfortable eye level for most of the family, typically between 54” to 62” from the floor to the top of the bracket (60” is typical). Use a bubble level and a pencil to draw a line on the wall, then hold the bracket in place. Screw in the four screws and cover the screw heads with the included self adhesive caps. Magnets in the bracket and the keypad keep the KP-900 securely in place, yet make it easy to remove when you need a hand-held remote control. Installing Batteries There are two battery compartments on the rear of the KP-900. Each com- partment holds two AAA batteries for a total of four AAA batteries. Open each battery cover by pressing the release and pulling back the cover on the back of the control. Remove the cover. Observe the + and - polarity indicators on the batteries…
