OZ5URCML600LRF Remote Controller

EUT Type: RF Remote Controller FCC ID.: OZ5URCML600L Test Report Number: GETEC-E3-08-044 FCC Part 15 Subpart C APPENDIX I : USER’S MANUAL Crestron ML-600 Mini LCD RF Wireless Handheld Remote Operations Guide This document was prepared and written by the Technical Documentation department at: Crestron Electronics, Inc. 15 Volvo Drive Rockleigh, NJ 07647 1-888-CRESTRON All brand names, product names and trademarks are the property of their respective owners. ©2006 Crestron Electronics, Inc i Contents Mini LCD RF Handheld Remote: ML-6001 Introduction .............................................................................................1 Features and Functions ...................................................................1 Specifications................................................................................. 2 Physical Description ...................................................................... 2 Miscellaneous ........................................................................................ 8 Using the Backlight ....................................................................... 8 Installing/Changing the Batteries .................................................. 8 Adjusting the Display Contrast...................................................... 9 Cleaning the Screen ....................................................................... 9 Problem Solving................................................................................... 10 Troubleshooting........................................................................... 10 Further Inquiries .......................................................................... 10 Industry Compliance.................................................................... 11 Crestron ML-600Mini LCD RF Wireless Handheld Remote Operations Guide - DOC. 6446Contents • 1 Mini LCD RF Handheld Remote: ML-600 Introduction Crestron ML-600Mini LCD RF Wireless Handheld Remote Operations Guide – DOC. 6446Mini LCD RF Wireless Handheld Remote • Features and Functions The Crestron ® Mini LCD RF Handheld Remote (ML-600) is a universal remote control that can be used to control a Crestron system. A liquid-crystal display (LCD) with switchable backlighting provides the user with a listing of available functions and system commands. With a wireless range of up to 200 feet, the ML-600 can be used almost anywhere in a home or facility. The remote is powered by four AAA batteries (included). Functional Summary • Easy-to-use preprogrammed functions for your Crestron system • 2.1” x 1.4” backlit, LCD screen for function selection • Ten preprogrammed soft keys which can be used to access custom command sequences, system functions, and preferences • Storage for 50 preprogrammed “favorite” functions and/or settings • Up to 200-foot RF wireless range allows system control from almost anywhere in a building • Intuitive interface for easy operation • Five directional buttons for navigating on-screen menus found on A/V devices • Transport controls for controlling a variety of audio and video sources • Volume and channel controls • Numeric keypad for entry of numeric data • Switchable backlighting for viewing display and buttons in a variety of lighting conditions SPECIFICATIONDETAILS Battery Power6.0 VDC (Four AAA Alkaline batteries supplied) RF Output 418 MHz RF Range Up to 200 feet (depending on physical structures and electronic interference) Buttons (1) “ON” button (1) “OFF” button (10) “Soft” buttons (3) Menu navigation buttons (32) “Hard” buttons including a numeric keypad, transport controls, and directional controls LCD Screen 2.10” x 1.40” (5.33 cm x 3.56 cm) Backlighting Switchable backlighting for buttons and LCD screen. Automatic shutoff after 15 seconds. Enclosure High impact, rubberized plastic enclosure Operating Temperature50º to 113º F (10º to 45º C), and Humidity10 to 90% Relative Humidity (non-condensing) Dimensions and WeightHeight: 9.05 in (22.99 cm) (with batteries)Width: 3.07 in (7.80 cm) Depth: 1.40 in (3.56 cm) Weight: 0.5 lbs (0.23 kg) Specifications The following table lists specifications for the ML-600. Specifications for the ML-600 Physical Description The ML-600 (refer to the following illustrations) has a 2.10” x 1.40” (5.33 cm x 3.56 cm) LCD screen. The LCD screen lists the options associated with the 10 preprogrammed soft keys that flank the LCD screen. Three navigation keys are used to switch between control screens on the remote control. There are 34 buttons that are used for device-specific functions. A button on the right side of the remote switches the display/keypad backlighting on and off. For information on the operation of the ML-600, refer to “Menu System” on page 5. 2 Mini LCD RF Wireless Handheld RemoteCrestron ML-600 • Mini LCD RF Wireless Handheld Remote Operations Guide – DOC. 6446 3 ML-600, Front View Crestron ML-600Mini LCD RF Wireless Handheld Remote Operations Guide – DOC. 6446 Mini LCD RF Wireless Handheld Remote • 4 Mini LCD RF Wireless Handheld RemoteCrestron ML-600 • Mini LCD RF Wireless Handheld Remote Operations Guide – DOC. 6446 Physical Views of the ML-600 9.05 in (22.99 cm) 3.07 in (7.80 cm) 1.40 in (3.56 cm) Menu System The ML-600 uses a menu to access all of the functions the remote is capable of performing. The menu has a MAIN section that can contain up to two pages. These main pages can list up to 19 groups of options. Depending on your remote’s configuration, each option can be a selection of a room, device, or system function. Each group can contain up to four pages. Each page lists up to 10 additional options. There is also a “Favorites” section that can contain up to 50 favorite functions or settings that are listed on five pages (up to 10 functions or settings per page). The following diagram illustrates the structure of ML-600’s menus. All of the available options are shown on the LCD screen and are selected with the soft keys that flank the LCD. You can scroll through…

Text truncated - open the document above for the full version.

EUT Type: RF Remote Controller FCC ID.: OZ5URCML600L Test Report Number: GETEC-E3-08-044 FCC Part 15 Subpart C APPENDIX A : ATTESTATION STATEMENT ¾ Authorization ¾ DoC for computer peripheral portion OHSUNG ELECTRONICS CO., LTD #181 Gongdan-Dong, Gumi-Si,Gyeongsangbuk-Do, Korea Tel: +82-54-468-7282, Fax: +82-54-461-8368 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 1435 Oakland Mills Road Columbia, MD 21046 U.S.A March 31, 2008 To whom it may concern: We, the undersigned, hereby authorize GUMI College EMC Center to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relation to these matters. Any and all acts carried out by GUMI College EMC Center on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to the application is subject of a denial of benefits, including FCC benefits, pursuant 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Sincerely, --------------------------------------------- Kwang-Jae Ok, Q.C Manager OHSUNG ELECTRONICS CO.,LTD

EUT Type: RF Remote Controller FCC ID.: OZ5URCML600L Test Report Number: GETEC-E3-08-044 FCC Part 15 Subpart C APPENDIX K : CONFIDENTIAL REQUEST

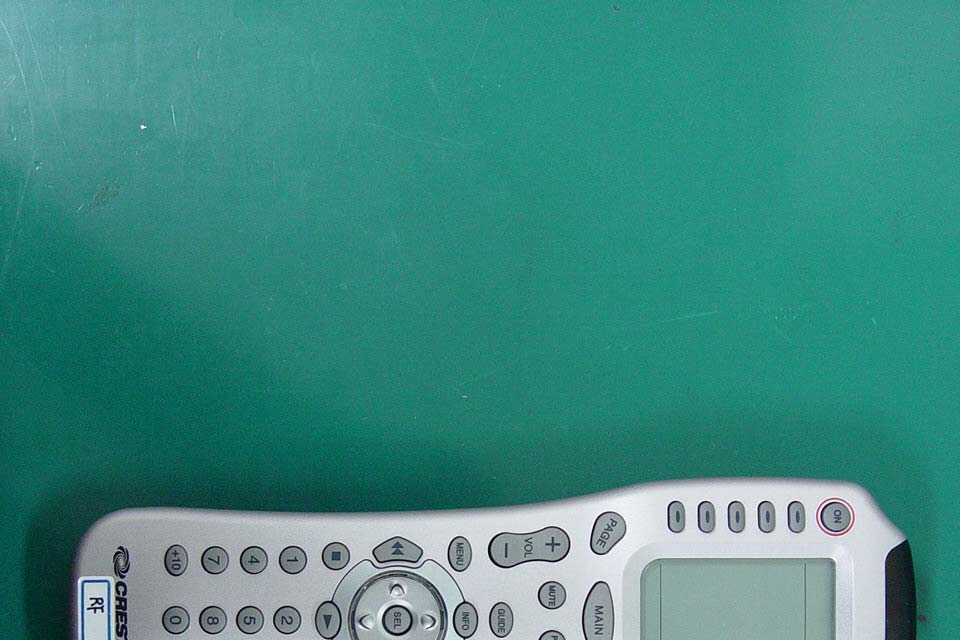

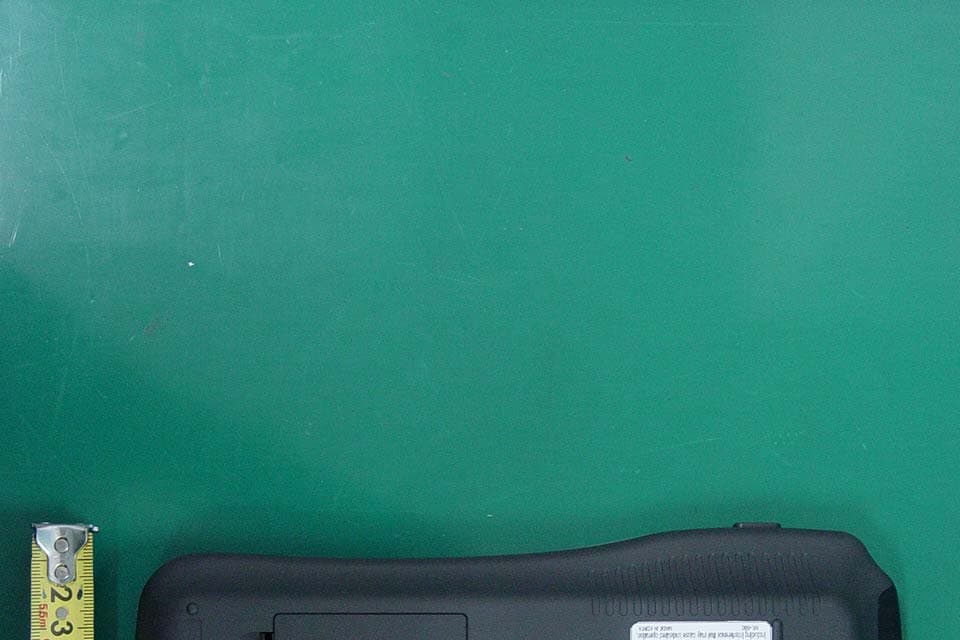

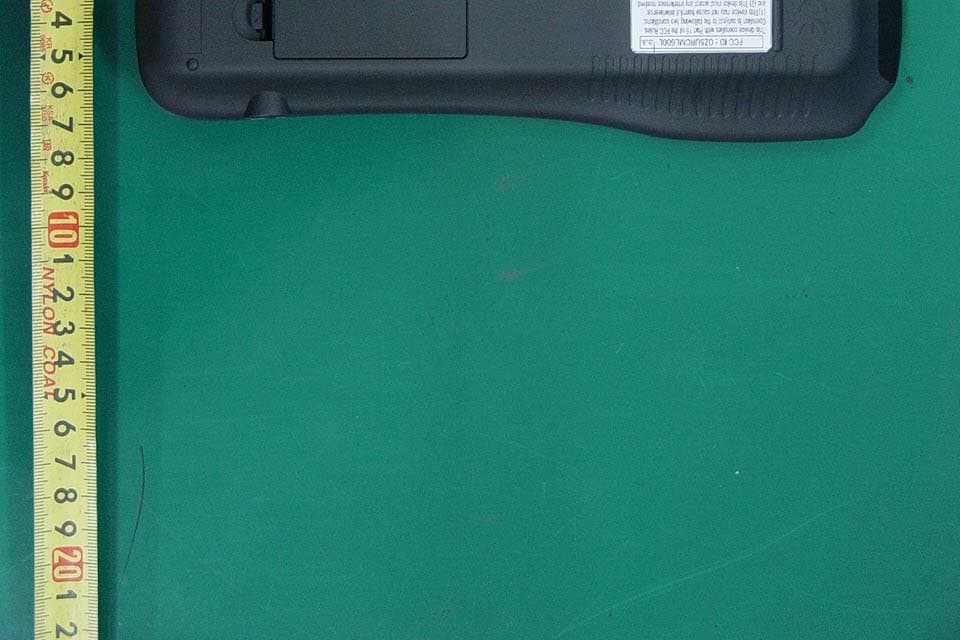

EUT Type: RF Remote Controller FCC ID.: OZ5URCML600L Test Report Number: GETEC-E3-08-044 FCC Part 15 Subpart C APPENDIX G : EXTERNAL PHOTOGRAPHS EUT Type: RF Remote Controller FCC ID.: OZ5URCML600L Test Report Number: GETEC-E3-08-044 FCC Part 15 Subpart C EUT Type: RF Remote Controller FCC ID.: OZ5URCML600L Test Report Number: GETEC-E3-08-044 FCC Part 15 Subpart C

EUT Type: RF Remote Controller FCC ID.: OZ5URCML600L Test Report Number: GETEC-E3-08-044 FCC Part 15 Subpart C APPENDIX C : ID SAMPLE LABEL & LOCATION EUT Type: RF Remote Controller FCC ID.: OZ5URCML600L Test Report Number: GETEC-E3-08-044 FCC Part 15 Subpart C LABELLING REQUIREMENTS The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. „ ID Label „ ID Label Location of EUT ID Label

EUT Type: RF Remote Controller FCC ID.: OZ5URCML600L Test Report Number: GETEC-E3-08-044 FCC Part 15 Subpart C APPENDIX B : TEST PLOTS EUT Type: RF Remote Controller FCC ID.: OZ5URCML600L Test Report Number: GETEC-E3-08-044 FCC Part 15 Subpart C Š Occupied bandwidth TDS A Att 20 dB * Ref 110 dBμV/m Center 418 MHzSpan 2 MHz200 kHz/ SWT 100 ms * 2 PK VIEW * * RBW 100 kHz VBW 100 kHz PRN 60 65 70 75 80 85 90 95 100 105 110 1 Marker 1 [T2 ] 81.46 dBμV/m 417.536000000 MHz 2 Delta 2 [T2 ] -1.46 dB 928.000000000 kHz 3 Marker 3 [T2 ] 100.04 dBμV/m 418.020000000 MHz D1 100.04 dB* D2 80.04 dB* F2 F1 EUT Type: RF Remote Controller FCC ID.: OZ5URCML600L Test Report Number: GETEC-E3-08-044 FCC Part 15 Subpart C Š Complete Pulse Train/ On-time of the Head EUT Type: RF Remote Controller FCC ID.: OZ5URCML600L Test Report Number: GETEC-E3-08-044 FCC Part 15 Subpart C EUT Type: RF Remote Controller FCC ID.: OZ5URCML600L Test Report Number: GETEC-E3-08-044 FCC Part 15 Subpart C

EUT Type: RF Remote Controller FCC ID.: OZ5URCML600L Page 2 of 18 Test Report Number: GETEC-E3-08-044 FCC Part 15 Subpart C CONTENTS 1. GENERAL INFORMATION ......................................................................................................................................4 2. INTRODUCTION ........................................................................................................................................................5 3. PRODUCT INFORMATION ......................................................................................................................................6 3.1 DESCRIPTION OF EUT..............................................................................................................................................6 3.2 SUPPORT EQUIPMENT / CABLES USED.....................................................................................................................7 3.3 MODIFICATION ITEM(S)...........................................................................................................................................7 4. DESCRIPTION OF TESTS.........................................................................................................................................8 4.1 TEST CONDITION......................................................................................................................................................8 5. ANTENNA REQUIREMENT - §15.203 .....................................................................................................................8 5.1 DESCRIPTION OF ANTENNA......................................................................................................................................8 5.3 RADIATED EMISSION................................................................................................................................................9 5.4 DUTY CYCLE CORRECTION...................................................................................................................................10 5.5 OCCUPIED BANDWIDTH.........................................................................................................................................10 6. DUTY CYCLE CORRECTION................................................................................................................................ 11 6.1 OPERATING ENVIRONMENT................................................................................................................................... 11 6.2 TEST SET-UP............................................................................................................................................................ 11 6.3 TEST EQUIPMENT USED.......................................................................................................................................... 11 6.4 TEST RESULT OF DUTY CYCLE...............................................................................................................................11 7. RADIATED EMISSION ............................................................................................................................................12 7.1 OPERATING ENVIRONMENT...................................................................................................................................12 7.2 TEST SET-UP............................................................................................................................................................12 7.3 MEASUREMENT UNCERTAINTY..............................................................................................................................12 7.4 LIMIT......................................................................................................................................................................13 7.5 TEST EQUIPMENT USED..........................................................................................................................................13 7.6 RADIATED EMISSION TEST DATA............................................................................................................................14 8. OCCUPIED BANDWIDTH MEASUREMENT......................................................................................................16 8.1 OPERATING ENVIRONMENT...................................................................................................................................16 8.2 TEST SET-UP............................................................................................................................................................16 8.3 LIMIT......................................................................................................................................................................16 8.4 TEST EQUIPMENT USED..........................................................................................................................................16 8.5 TEST RESULT OF OCCUPIED BANDWIDTH...............................................................................................................16 9. SAMPLE CALCULATIONS.....................................................................................................................................17 9.1 EXAMPLE 1 :...........................................................................................................................................................17 9.2 EXAMPLE 2 :...........................................................................................................................................................17 10. RECOMMENDATION & CONCLUSION............................................................................................................18 APPENDIX A – ATTESTATION STATEMENT APPENDIX B – TEST PLOTS EUT Type: RF Remote Controller FCC ID.: OZ5URCML600L Page 3 of 18 Test Report Number: GETEC-E3-08-044 FCC Part 15 Subpart C…

Text truncated - open the document above for the full version.

EUT Type: RF Remote Controller FCC ID.: OZ5URCML600L Test Report Number: GETEC-E3-08-044 FCC Part 15 Subpart C APPENDIX F : TEST SET UP PHOTOGRAPHS EUT Type: RF Remote Controller FCC ID.: OZ5URCML600L Test Report Number: GETEC-E3-08-044 FCC Part 15 Subpart C The Radiated Test Picture show the worst-case configuration and cable placement. „ Radiated Test Picture (Front) „ Radiated Test Picture (Rear) EUT Type: RF Remote Controller FCC ID.: OZ5URCML600L Test Report Number: GETEC-E3-08-044 FCC Part 15 Subpart C „ Radiated Test Picture ( X axis ) „ Radiated Test Picture ( Y axis ) EUT Type: RF Remote Controller FCC ID.: OZ5URCML600L Test Report Number: GETEC-E3-08-044 FCC Part 15 Subpart C „ Radiated Test Picture ( Z axis )
