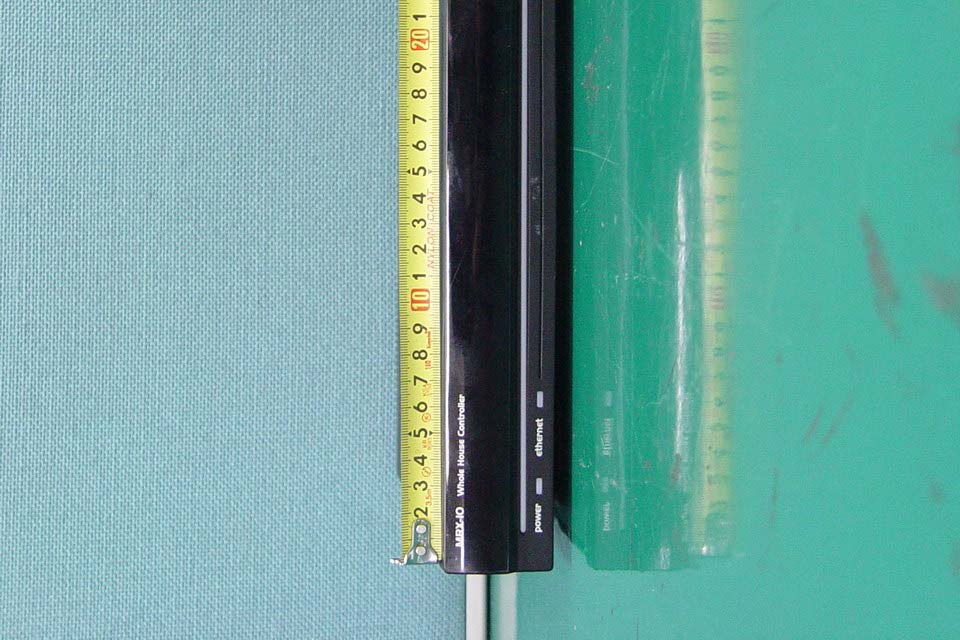

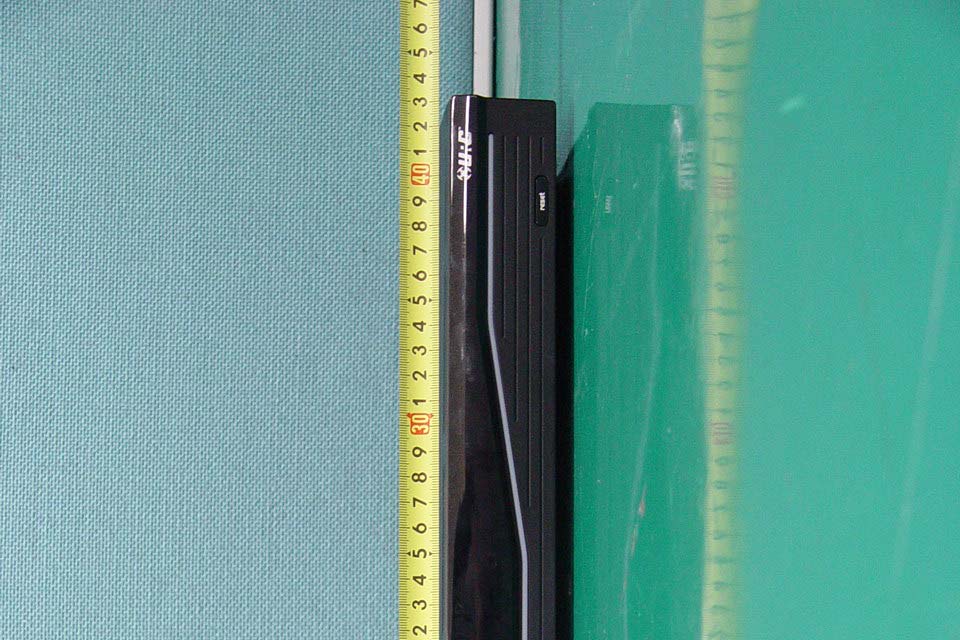

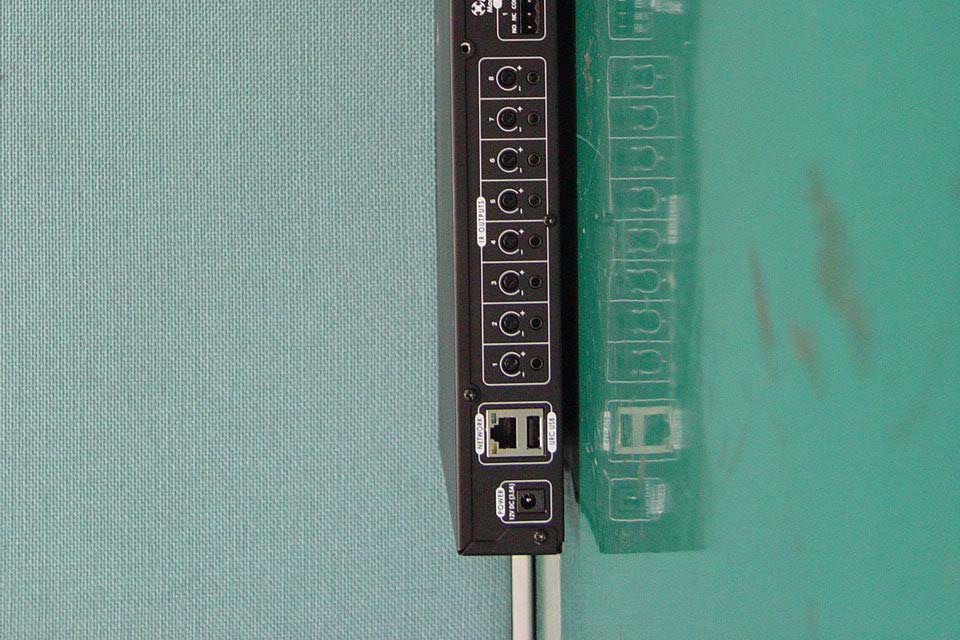

Order Number : GETEC-C1-10-181 FCC Part 15 subpart C Test Report Number : GETEC-E3-10-093 Page 1 / 1 EUT Type: RF Remote Controller FCC ID.: OZ5URCMRX10 APPENDIX H : USER’S MANUAL MRX-10 Owners Manual Advanced Network ystem Controller MRX-10 Owners Manual ©2010 Universal Remote Control,Inc. The information in this manual is copyright protected.No part of this man-ual may be copied or reproduced in any form without prior written consentfrom Universal Remote Control,Inc. UNIVERSAL REMOTE CONTROL,INC.SHALL NOT BE LIABLE FOR OPER- ATIONAL,TECHNICAL OR EDITORIAL ERRORS/OMISSIONS MADE IN THIS MANUAL. The information in this manual may be subject to change without prior notice. Complete Control is a registered trademark of Universal Remote Control,Inc. All other brand or product names are trademarks or registered trademarks of their respective companies or organizations. Universal Remote Control,Inc. 500 Mamaroneck Avenue, Harrison, NY 10528 Phone: (914) 835-4484 Fax: (914) 835-4532 THEDIGITALMULTIZONEAMPLIFIER Introduction1 Features and Benefits1 Parts Guide1 Front and Rear Panel Descriptions2 Specifications4 USA Limited Warranty Statement9 Federal Communication Commission Interference Statement10 Regulatory Information to the user11 Declaration of Conformity12 Page 1 MRX-10 ADVANCEDNETWORKSYSTEMCONTROLLER Introduction The MRX-10 Advanced Network System Controller controls all MRX series connected devices throughout the entire home. Press a button on a Total Control remote or keypad to issue a command from the MRX-10 to turn off the lights in every room all while watching a movie. View the artist name, song title and album art your child is listening to in their room from a Total Control remote or keypad. Also control whole house music from sources such as a DMS-1200, DMS-100, SNP-1 and a PSX-2. Features and Benefits zStores and issues commands and macros for all IP, IR, RS- 232, Relay, Sensor and 12V controlled devices to MRX series base stations in one system zProvides 2-Way communication with Total Control remotes and keypads zControl URC Lighting with an optional RFTX-1 RF Transmitter zCan be programmed off premises via the internet zEasy rack-mounting via optional RMK-1 rack mounting kit. Parts Guide The MRX-10 Advanced Network System Controller includes: 1 - MRX-10 Network System1 - Ethernet Cable 1 - AC Power Adapter8 - IR Emitters with standard 3.5mm 1 - Power Cordplugs 1 - Adjustment Tool1 - InstallationManual Page 2 MRX-10 ADVANCEDNETWORKSYSTEMCONTROLLER Front and Rear Panel Descriptions Front Panel The front panel consists of 2 indicator lights which will illuminate when in use. Power LED: Indicates that the MRX-10 is powered on when lit. Ethernet LED:Indicates the network connectivity status of the MRX- 10. On=Connected, Off=not connected. Total Control Illumination: Attractive, adjustable accent lighting. Reset: Press for one second and release to reboot the MRX-10. Power LEDResetEthernet LEDTotal Control llumination Page 3 MRX-10 ADVANCEDNETWORKSYSTEMCONTROLLER Rear Panel The rear panel ports are: DC 12V Power: Attach the included 12V DC 3.5A power supply here. LAN Connection: RJ45 standard 10/100 Ethernet connection to the local network. URC USB Port: USB port for future expansion IROutputs: Eight standard 3.5mm IR emitter ports with individual output level adjustment screws. Relays NO, NC, COM: Two programmable relays to be normally opened (NO), normally closed (NC) or momentary contacts. An application should be less than 30V/.5A. Sensors: Four sensor ports allow programming of state dependent and triggered macros. Compatible with URCVideo (URC part: VID) and voltage (URC part: VS-100) sensors. 12V OUT: Two programmable 12V/0.2A outputs. Each may be pro- grammed to turn on, off or momentarily toggle its output. RS-232: Four RS-232 ports support Tx(Transmit), Rx(Receive) and GND(Ground) connections for two way communication. Compatible with URC cables RS232F and RS232M. Trigger In: IR and RFtrigger input ports allow integration with other control systems and remotes. RFTX-1: Attach an optional RFTX-1 transmitter to control URC Lighting products via 418MHz or 433.92MHz wireless RF. DC 12V Power URC USB Relay:NO, NC, COM 12V Out Trigger In RFTX-1 RS-232 PortsSensorsIROutputs: #1-8LAN Page 4 MRX-10 ADVANCEDNETWORKSYSTEMCONTROLLER Specifications Input & Outputs: z12V/.2A: Two (Programmable) zIR: Eight adjustable output zUSB: One (for future use) zEthernet: One 10/100 RJ45 port (Indicator 2LED) zRS-232: Four, supporting TX, RX and GND. zSensor: Four, supporting Video or Voltage sensing (requires URC sensors). zRelays: NO, NC or COM RF: zFrequency: 2.4GHz (for MS-780) zRange: 50 to 100 feet, depending upon the environment Power Supply: 12v DC 3.5A External Power Supply Size: 1.7" x 17" x 8.7" (H X W x D Weight: 4.5 lbs. (2.05 Kg) Page 5 MRX-10 ADVANCEDNETWORKSYSTEMCONTROLLER USA Limited Warranty Statement Your Universal Remote Control, when delivered to you in new condition, is warranted against defects in materials or work- manship as follows: UNIVERSAL REMOTE CONTROL, INC. warrants this product against defects in material or workman- ship for a period of one (1) year and as set forth below. Universal Remote Control will, at its sole option, repair the product using new or comparable rebuilt parts, or exchange the product for a comparable new or rebuilt product. In the event of a defect, these are your exclusive remedies. This Limited Warranty covers only the hardware components packaged with the Product. It does not cover technical assis- tance for hardware or software usage and it does not cover any software products whether or not contained in the Product; any such software is provided "AS IS" unless expressly provided for in any enclosed software Limited Warranty. To obtain warranty service, you must deliver the product, freight prepaid, in its original packaging or packaging affording adequate protection to Universal Remote Control at the address provided in the Owner's Manual.…
