OZ5URCMRX4IRRF Remote Controller

Order Number : GETEC-C1-12-197 FCC Part 15 subpart C Test Report Number : GETEC-E3-12-065 Page 1 / 1 EUT Type: BASE STATION FCC ID.: OZ5URCMRX4IR APPENDIX H : USER’S MANUAL MRX-4IR Network Base Station Owner’s Manual 500 Mamaroneck Avenue, Harrison, NY 10528 Phone: (914) 835-4484 Fax: (914) 835-4532 MRX-4IR Network Base Station Owners Manual ©2012 Universal Remote Control, Inc. The information in this manual is copyright protected. No part of this manual may be copied or reproduced in any form without prior written consent from Universal Remote Control, Inc. UNIVERSAL REMOTE CONTROL, INC. SHALL NOT BE LIABLE FOR OPERATIONAL, TECHNICAL OR EDITORIAL ERRORS/OMISSIONS MADE IN THIS MANUAL. The information in this manual may be subject to change without prior notice. Total Control is a registered trademark of Universal Remote Control, Inc. All other brand or product names are trademarks or registered trademarks of their respective companies or organizations. TABLE OFCONTENTS Introduction1 Features and Benefits1 Parts Guide1 Front, Rear and Bottom Panel Descriptions2 Network Installation5 Network Discovery & Download6 Optimizing IR Flasher Levels7 Overview of IR Routing8 USA Limited Warranty Statement9 Specifications11 Federal Communication Commission Interference Statement12 Regulatory Information to the user13 Declaration of Conformity14 Page 1 MRX-4IR NETWORKBASESTATION Introduction Thank you for purchasing the MRX-4IR Network Base Station. The MRX-4IR requires a Total Control MRX Advanced System Controller and compatible interfaces, programmed by a Custom Professional, to control your home. Communicating over the network using Wi- Fi, or a wired LAN connection, the MRX-4IR receives commands from the System Controller and relays them, via IR, to four or more devices. Controlling your home is simple with the MRX-4IR. Features and Benefits  IR Flasher Outputs Control up to four of your components without ever getting up from your seat.  Front IR Blaster Control IR devices where an IR emitter cannot reach the device’s location, like a TV over a fireplace.  Network Connectivity Receives commands over the network from an MRX Advanced System Controller and then sends IR signals to control your components.  Compact Size The small size of the MRX-4IR allows it to easily fit behind devices or into places where a traditional base station would not. Parts Guide The MRX-4IR includes: 1 - MRX-4IR 1 - AC Power Adapter 4 - Mounting Screws 1 - Mounting Plate 4 - IR Emitters (3.5mm plugs) 1 - Owner’s Manual Page 2 MRX-4IR NETWORKBASESTATION Front, Rear and Bottom Panel Descriptions Front Panel The front panel consists of 3 indicator lights and an IR Blaster. Power LED: The Power LED illuminates when the unit is powered. Status LED: When the MRX-4IR powers up, both the Status and Data LEDs blink. When a network connection is made, the Status LED color will vary depending upon its “connected state”: good signal strength is represented by “Green”, poor signal strength by “Orange” (which is only present when a wireless connection is used) and no connection is OFF. Data LED: The Data LED flashes as the MRX-4IR transmits IR data. IR Blaster: The front IR Blaster sends IR signals to one or more components placed in direct line of sight. IR Blaster MRX-4IR NETWORK BASESTATION Rear Panel The rear panel ports are: DC 12V Power: Plug in the included 12V DC 1A power supply. IR Outputs: Connect an included 3.5mm IR emitter to each of the four IR outputs. Adjust the IR output signal strength for port 1 using the attenuator located on the bottom of the unit. LAN Connection: If a wired connection is needed, this port uses a standard Ethernet (RJ-45) plug to communicate via the local area network. Page 3 Page 4 Bottom Panel The bottom panel consists of: Reset Button: The Reset button is located on the bottom of the unit, and requires a stylus, or paper clip to press the button. Pressing the Reset button will cycle the MRX-4IR’s power. (Unplugging the MRX-4IR’s power cable and then plugging it back in, also performs the same function.) Pressing and holding the Reset button for 15 seconds, will factory default the MRX-4IR, and return the unit back to its original unprogrammed state. Mac Address Sticker: The MAC Address (12 numbers) identifies this wireless device when connected to the network. IR Attenuator: Use the included adjustment tool (or a flathead screwdriver) to increase or decrease the intensity level for IR output #1. MRX-4IR NETWORKBASESTATION Page 5 MRX-4IR NETWORKBASESTATION Network Installation WARNING!! Before proceeding, a Custom Professional is required to install and configure your MRX-4IR. The MRX-4IR is a network base station that allows full control of your components with the use of Total Control MRX Advanced System Controllers and compatible interfaces. Once installed on the network, and a button is pressed on an interface, a command is transferred over the customer’s network to the MRX Advanced Network System Controller, which in turn is routed to the MRX-4IR and then sends IR commands to the components you specify. 1. Connect the MRX-4IR onto the network (wired or wireless). 2. Connect your laptop into the same networkas the MRX-4IR. MRX-4IR Wi-Fi Router Page 6 MRX-4IR NETWORKBASESTATION Network Discovery & Download WARNING!! Before proceeding, a Custom Professional is required to install and configure your MRX-4IR. 1. Open a new or current project. In Step 3: Add URC Devices, add an MRX-4IRto a room included in your project which represents the physical location of the unit. 2. In Step 6: Network Setup, discover the MRX-4IR using the same process used for other Total Control network products in the project. 3. Press the Downloadbutton within the Program menu. 4. Make sure to check the MRX-4IR checkbox, then press the Download to Selected Devices (Direct)button. MRX-4IR N ETWORKBASESTATION Page 7 Optimizing IR Flasher Levels Test a few commands for each component before fixing the flasher in place…

Text truncated - open the document above for the full version.

OHSUNG ELECTRONICS CO., LTD #181 Gongdan-Dong, Gumi-Si,Gyeongsangbuk-Do, Korea Tel: +82-54-468-7282, Fax: +82-54-461 -8368 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 1435 Oakland Mills Road Columbia, MD 21046 U.S.A July 30, 2012 Subject: FCC Application for OZ5URCMR41R We, the undersigned, hereby attest to the fact that we will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite filing. Sincerely, --------------------------------------------- Hak-Ki Kim, Q.C Manager OHSUNG ELECTRONICS CO., LTD

February 14, 2011 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 U.S.A. To whom it may concern: We, the undersigned, hereby authorize GUMI College EMC Center to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relation to these matters. Any and all acts carried out by GUMI College EMC Center on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to the application is subject of a denial of benefits, including FCC benefits, pursuant 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Sincerely, HAK-KI, KIM / General Manager OHSUNG ELECTRONICS CO., LTD.

OHSUNG ELECTRONICS CO., LTD #181 Gongdan-Dong, Gumi-Si,Gyeongsangbuk-Do, Korea Tel: +82-54-468-7282, Fax: +82-54-461-8368 SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006 Federal Communications Commission Authorization and Evaluation Division August 13, 2012 Confidentiality Request regarding application for certification of FCC ID: OZ5URCMRX4IR We hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name BLOCK DIAGRAM URCMRX4IR_BlkDia.pdf SCHEMETIC DIAGRAM URCMRX4IR_SchDia.pdf OPERATIONAL DESCRIPTION URCMRX4IR_OpeDes.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. In addition to above mentioned documents, pursuant to Public DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR 2.803 and the importation rules in 47 CFR 2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following for 180 days. Exhibit Type File Name TEST SET UP PHOTOS URCMRX4IR_Tsup.pdf EXTERNAL PHOTOGRAPHS URCMRX4IR_ExtPho.pdf INTERNAL PHOTOGRAPHS URCMRX4IR_IntPho.pdf USER’S MANUAL URCMRX4IR_UseMan.pdf The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, --------------------------------------------- Hak-Ki Kim, Q.C Manager OHSUNG ELECTRONICS CO.,LTD

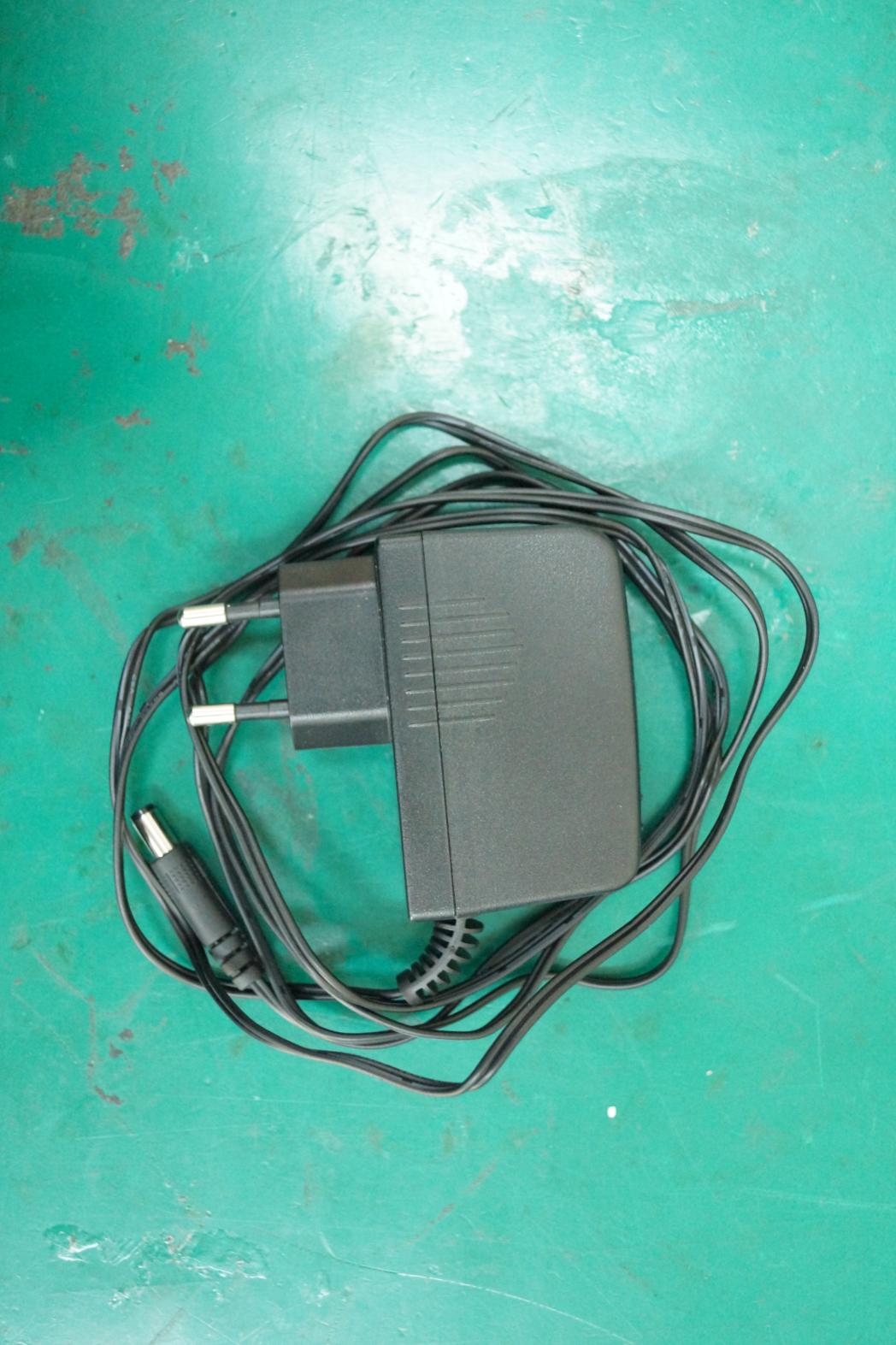

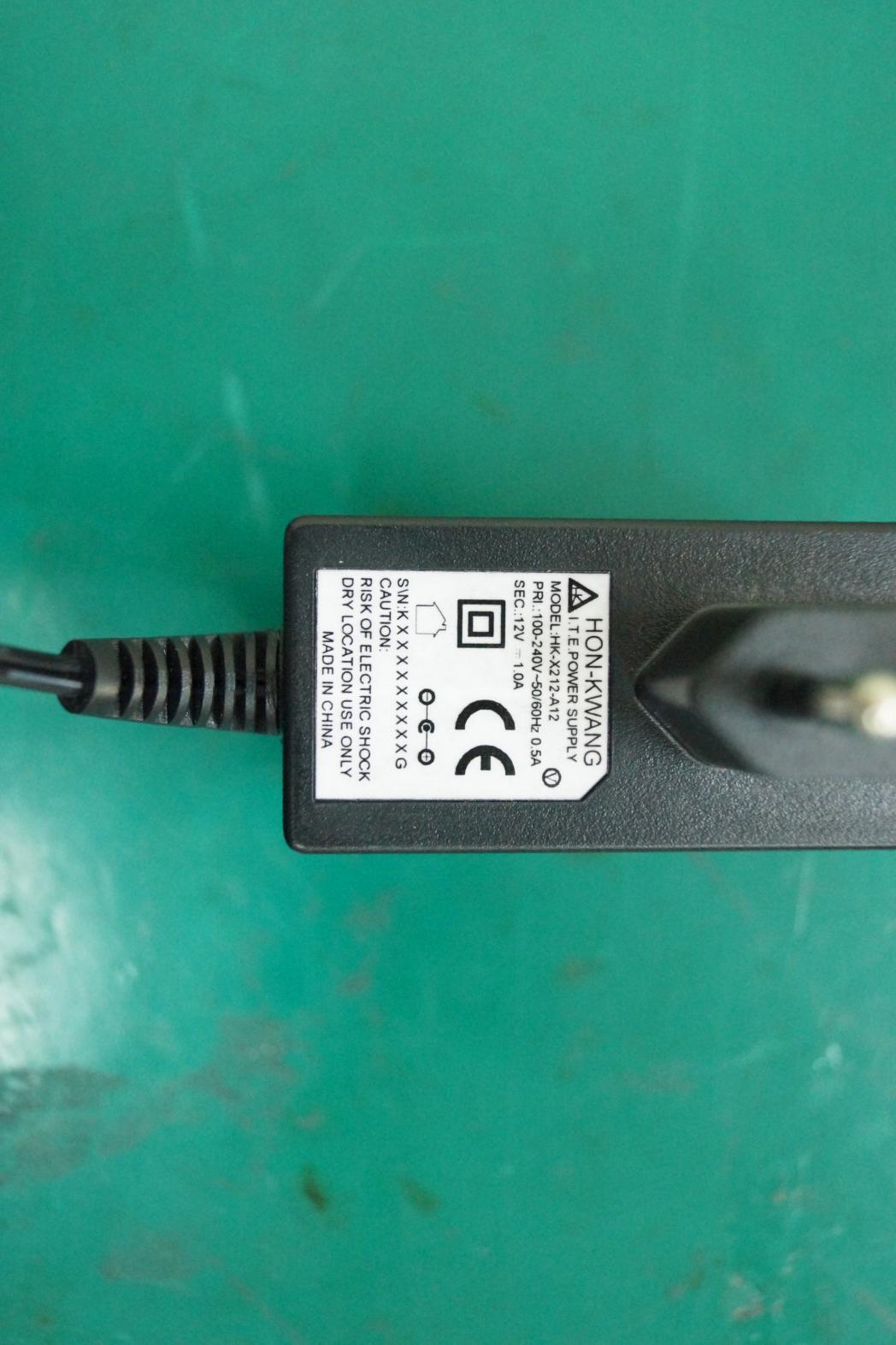

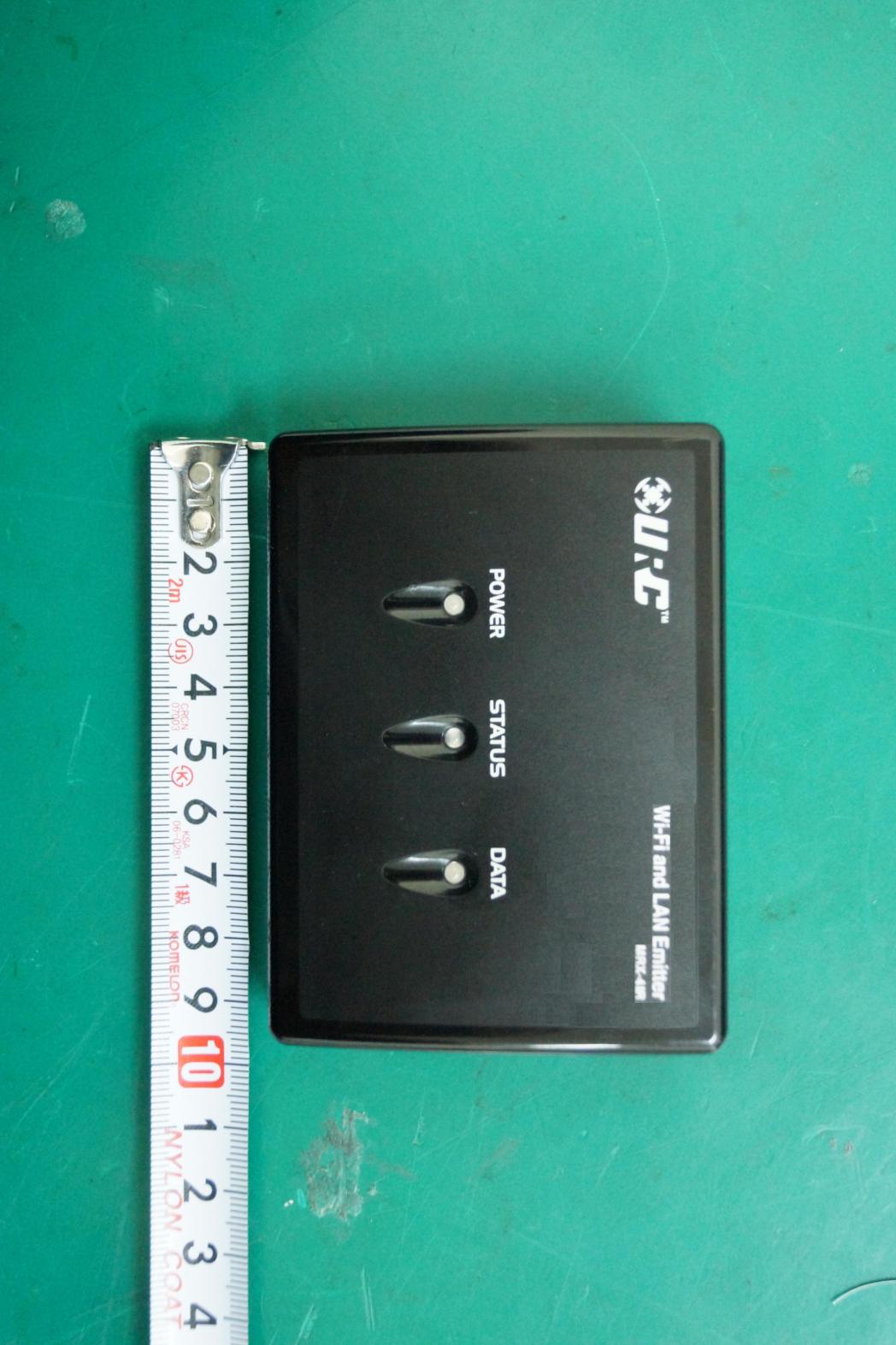

Order Number : GETEC-C1-12-197 FCC Part 15 subpart C Test Report Number : GETEC-E3-12-065 Page 1 / 7 EUT Type: BASE STATION FCC ID.: OZ5URCMRX4IR APPENDIX F : EXTERNAL PHOTOGRAPHS Order Number : GETEC-C1-12-197 FCC Part 15 subpart C Test Report Number : GETEC-E3-12-065 Page 2 / 7 EUT Type: BASE STATION FCC ID.: OZ5URCMRX4IR < Front > Order Number : GETEC-C1-12-197 FCC Part 15 subpart C Test Report Number : GETEC-E3-12-065 Page 3 / 7 EUT Type: BASE STATION FCC ID.: OZ5URCMRX4IR < Rear > Order Number : GETEC-C1-12-197 FCC Part 15 subpart C Test Report Number : GETEC-E3-12-065 Page 4 / 7 EUT Type: BASE STATION FCC ID.: OZ5URCMRX4IR < I/O port > Order Number : GETEC-C1-12-197 FCC Part 15 subpart C Test Report Number : GETEC-E3-12-065 Page 5 / 7 EUT Type: BASE STATION FCC ID.: OZ5URCMRX4IR < Adapter > Order Number : GETEC-C1-12-197 FCC Part 15 subpart C Test Report Number : GETEC-E3-12-065 Page 6 / 7 EUT Type: BASE STATION FCC ID.: OZ5URCMRX4IR < Adapter label > Order Number : GETEC-C1-12-197 FCC Part 15 subpart C Test Report Number : GETEC-E3-12-065 Page 7 / 7 EUT Type: BASE STATION FCC ID.: OZ5URCMRX4IR < IR cable >

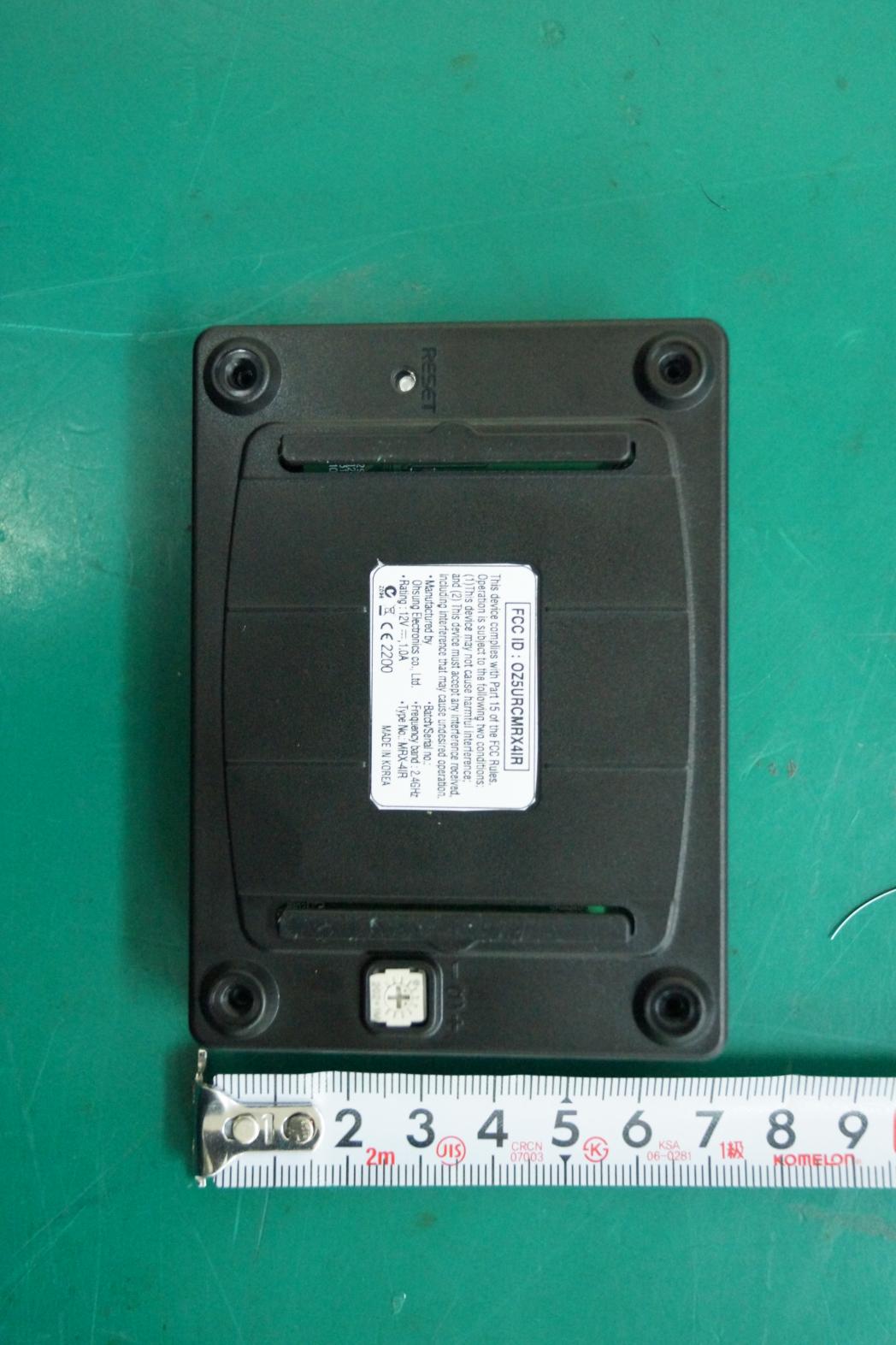

Order Number : GETEC-C1-12-197 FCC Part 15 subpart C Test Report Number : GETEC-E3-12-065 Page 1 / 2 EUT Type: BASE STATION FCC ID.: OZ5URCMRX4IR APPENDIX B : ID SAMPLE LABEL & LOCATION Order Number : GETEC-C1-12-197 FCC Part 15 subpart C Test Report Number : GETEC-E3-12-065 Page 2 / 2 EUT Type: BASE STATION FCC ID.: OZ5URCMRX4IR LABELLING REQUIREMENTS The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase.  ID Label  ID Label Location of EUT ID Label

Order Number : GETEC-C1-12-197 FCC Part 15 subpart C Test Report Number : GETEC-E3-12-065 Page 1 / 6 EUT Type: BASE STATION FCC ID.: OZ5URCMRX4IR APPENDIX G : INTERNAL PHOTOGRAPHS Order Number : GETEC-C1-12-197 FCC Part 15 subpart C Test Report Number : GETEC-E3-12-065 Page 2 / 6 EUT Type: BASE STATION FCC ID.: OZ5URCMRX4IR < Inside > Order Number : GETEC-C1-12-197 FCC Part 15 subpart C Test Report Number : GETEC-E3-12-065 Page 3 / 6 EUT Type: BASE STATION FCC ID.: OZ5URCMRX4IR < Main board front > Order Number : GETEC-C1-12-197 FCC Part 15 subpart C Test Report Number : GETEC-E3-12-065 Page 4 / 6 EUT Type: BASE STATION FCC ID.: OZ5URCMRX4IR < Main board rear > Order Number : GETEC-C1-12-197 FCC Part 15 subpart C Test Report Number : GETEC-E3-12-065 Page 5 / 6 EUT Type: BASE STATION FCC ID.: OZ5URCMRX4IR < RF module front > Pattern antenna Order Number : GETEC-C1-12-197 FCC Part 15 subpart C Test Report Number : GETEC-E3-12-065 Page 6 / 6 EUT Type: BASE STATION FCC ID.: OZ5URCMRX4IR < RF module rear >

Order Number : GETEC-C1-12-197 FCC Certification Test Report Number : GETEC-E3-12-065 Page 1 / 3 EUT Type: BASE STATION FCC ID.: OZ5URCMRX4IR APPENDIX L : MAXIMUM PERMISSIBLE EXPOSURE Order Number : GETEC-C1-12-197 FCC Certification Test Report Number : GETEC-E3-12-065 Page 2 / 3 EUT Type: BASE STATION FCC ID.: OZ5URCMRX4IR Maximum Permissible Exposure 1.1 Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device (A) Limits for Occupational / Controlled Exposure Frequency range(MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density(S) (mW/cm2) Averaging Time |E|2, |H|2 or S (minutes) 0.3 ~ 3.0 614 1.63 (100)* 6 3.0~30 1842/f 4.89/f (900/f)* 6 30~300 61.4 0.163 1.0 6 300 ~ 1,500 f/300 6 1,500 ~ 100,000 5.0 6 (B) Limits for General Population / Uncontrolled Exposure Frequency range(MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density(S) (mW/cm2) Averaging Time |E|2, |H|2 or S (minutes) 0.3 ~ 1.34 614 1.63 (100)* 30 1.34 ~ 30 824/f 2.19/f (180/f)* 30 30~ 300 27.5 0.073 0.2 30 300 ~ 1,500 f/1500 30 1,500 ~ 100,000 1.0 30 Note: f=frequency in MHz; *Plane-wave equivalent power density 1.2 MPE Calculation Method d GP mVE   30 )/( Power Density: 377 )/( 2 2 E mWPd E = Electric field (V/m) P = Peak RF output power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to 2 377 30 d GP Pd    From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Order Number : GETEC-C1-12-197 FCC Certification Test Report Number : GETEC-E3-12-065 Page 3 / 3 EUT Type: BASE STATION FCC ID.: OZ5URCMRX4IR 1.3 Calculated Result and Limit Antenna type: chip antenna Antenna gain (dBi) Antenna gain (numeric) Peak output power (dBm) Peak output power (mW) Power Density (s) (mW/cm 2 ) Limit of Power density (S) (mW/cm 2 ) 3.944 2.48 15.81 38.11 0.012 1
