OZ5URCMXAudio/Video Remote Control

Ohsung Electronics Co., Ltd.

Click to zoom

Application Details

Equipment Class: DSC - Part 15 Security/Remote Control Transmitter
Date of Grant: Mar 19, 2001
Application Purpose: Original Equipment
Date of Application: Feb 25, 2001

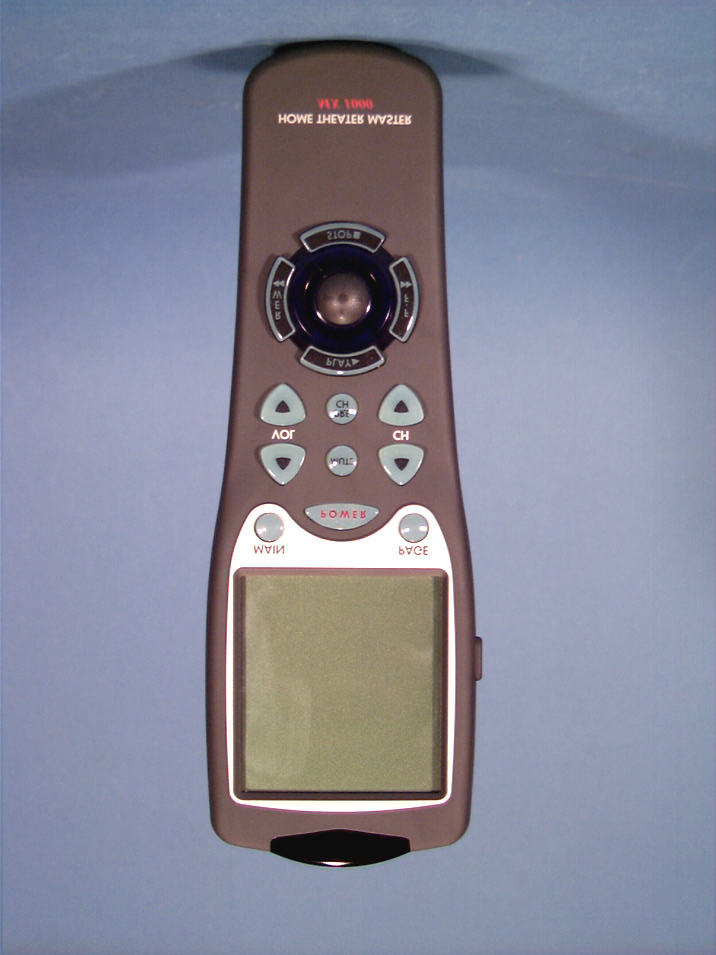

Equipment Note: Audio/Video Remote Control
Frequency Range: 418.00000000 - 418.00000000
Company: Ohsung Electronics Co., Ltd.
Country: South Korea

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Cover Letter(s)

February 6, 2001 Federal Communications Commission Authorization & Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: Ohsung Electronics Co., Ltd. FCC ID: OZ5URCMX Gentlemen: Submitted herewith, on behalf of Ohsung Electronics Co. Ltd., is an application for Part 15 certification of the following remote control transmitter: FCC ID: OZ5URCMX MODEL: URC MX-1000/1500 Equip. Class: Remote Control Transmitter (DSC) EUT Type: Infrared Remote Control FREQ. Range: 418MHz Attached are the authorization letter, measurement report (measurement data and test plots), FCC ID label and location, test setup photographs, internal and external photographs, block diagram, schematic diagram, and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc: Ohsung Electronics Co., Ltd.

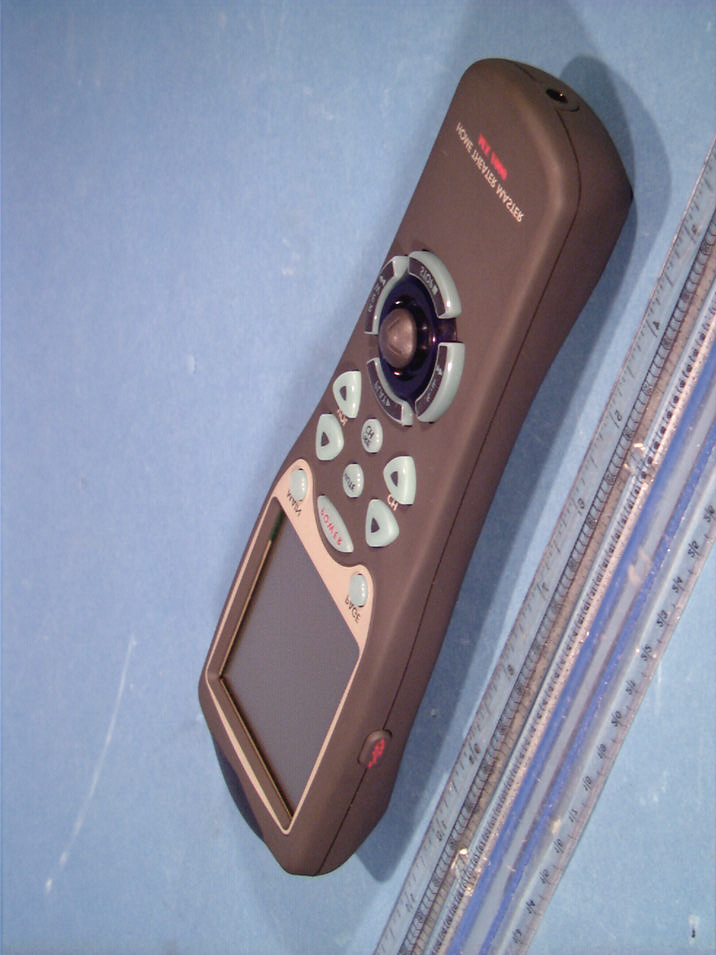

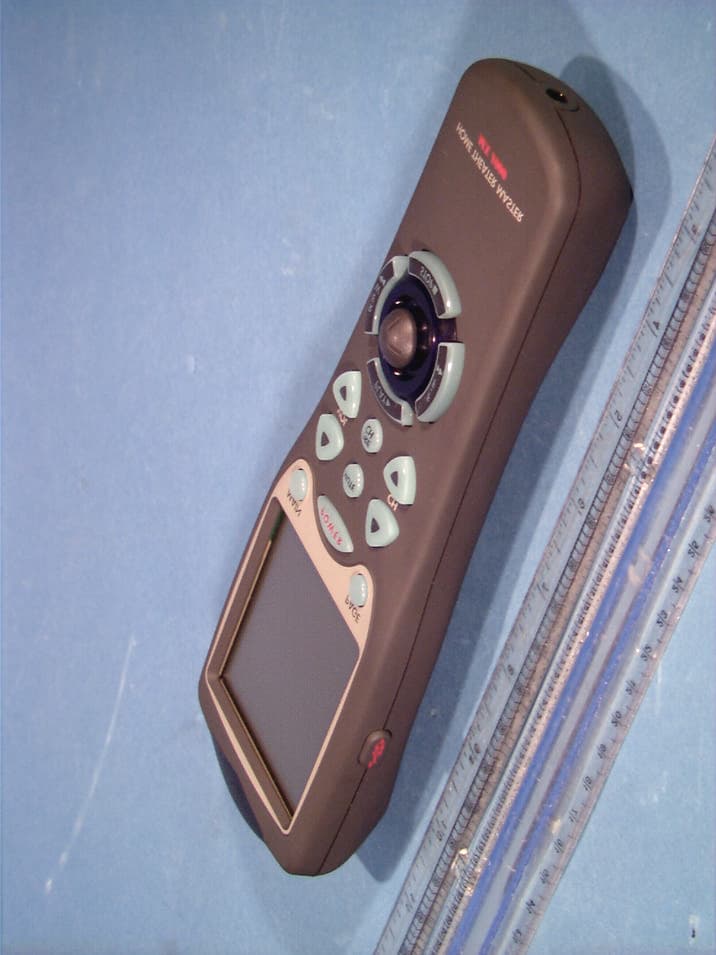

External Photos

ID Label/Location Info

© 2001 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 & §§ 15.19 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE) FCC ID: OZ5URCMX

Internal Photos

© 2001 PCTEST Lab FCC ID: OZ5URCMX NVLAP Lab Code: 100431-0 OHSUNG Infrared Remote Control © 2001 PCTEST Lab FCC ID: OZ5URCMX NVLAP Lab Code: 100431-0 OHSUNG Infrared Remote Control © 2001 PCTEST Lab FCC ID: OZ5URCMX NVLAP Lab Code: 100431-0 OHSUNG Infrared Remote Control © 2001 PCTEST Lab FCC ID: OZ5URCMX NVLAP Lab Code: 100431-0 OHSUNG Infrared Remote Control © 2001 PCTEST Lab FCC ID: OZ5URCMX NVLAP Lab Code: 100431-0 OHSUNG Infrared Remote Control © 2001 PCTEST Lab FCC ID: OZ5URCMX NVLAP Lab Code: 100431-0 OHSUNG Infrared Remote Control © 2001 PCTEST Lab FCC ID: OZ5URCMX NVLAP Lab Code: 100431-0 OHSUNG Infrared Remote Control © 2001 PCTEST Lab FCC ID: OZ5URCMX NVLAP Lab Code: 100431-0 OHSUNG Infrared Remote Control © 2001 PCTEST Lab FCC ID: OZ5URCMX NVLAP Lab Code: 100431-0 OHSUNG Infrared Remote Control © 2001 PCTEST Lab FCC ID: OZ5URCMX NVLAP Lab Code: 100431-0 OHSUNG Infrared Remote Control

Test Report

© 2001 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 66606660--B Dobbin Road B Dobbin Road •• Columbia, MD 21045 Columbia, MD 21045 •• U.S.A. U.S.A. TEL (410) 290TEL (410) 290--6652 6652 •• FAX (410) 290 FAX (410) 290--66546654 http://www.pctestlab.comhttp://www.pctestlab.com CERTIFICATE OF COMPLIANCE OHSUNG ELECTRONICS CO., LTD. Dates of Tests: January 30-31, 2001 #181 Dong Dan-Dong Test Report S/N: TX.210123037.OZ5 Gu-Mi Kyung Buk, Korea Test Site: PCTEST Lab, MD U.S.A. Attention: D.J. Jung, Manager FCC ID OZ5URCMX APPLICANT OHSUNG ELECTRONICS CO., LTD. FCC Rule Part(s): § 15.231 Subpart C – Intentional Radiator Classification: Remote Control Transmitter (DSC) EUT Type: Infrared Remote Control Freq. Range: 418MHz ~ 418MHz Trade Name: HOME THEATER MASTER Model: URC MX-1000/1500 This device has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified is ANSI C63.4-1992. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Lab Code 100431-0 © 2001 PCTEST Engineering Laboratory, Inc. TX Certification TABLE OF CONTENTS ATTACHMENT A: COVER LETTER(S) ATTACHMENT B: ATTESTATION STATEMENT(S) ATTACHMENT C: TEST REPORT SCOPE 1 INTRODUCTION (SITE DESCRIPTION) 2 PRODUCTION INFORMATION 3 DESCRIPTION OF TESTS (CONDUCTED) 4 DESCRIPTION OF TESTS (RADIATED) 5 ANTENNA REQUIREMENT / BANDWIDTH MEASUREMENT 6 FREQUENCY MEASUREMENTS (SPURIOUS) 7 LIST OF SUPPORT EQUIPMENT 8 PLOTS OF EMISSION 9 SAMPLE CALCULATIONS 10 ACCURACY OF MEASUREMENT 11 LIST OF TEST EQUIPMENT 12 CONCLUSION 13 ATTACHMENT D: TEST PLOTS ATTACHMENT E: FCC ID LABEL & LOCATION ATTACHMENT F: BLOCK DIAGRAM(S) ATTACHMENT G: SCHEMATIC DIAGRAM(S) ATTACHMENT H: TEST SETUP PHOTOGRAPHS ATTACHMENT I: EXTERNAL PHOTOGRAPHS ATTACHMENT J: INTERNAL PHOTOGRAPHS ATTACHMENT K: USER’S MANUAL Test Report S/N: TX.210123037.OZ5 FCC Part 15.231 Subpart C Dates of Tests: January 30-31, 2001 Transmitter Certification © 2001 PCTEST Lab FCC ID: OZ5URCMX 1 OHSUNG Infrared Remote Control MEASUREMENT REPORT Scope - Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. Company Name: OHSUNG ELECTRONICS CO., LTD. Address: #181 Dong Dan-Dong Gu-Mi Kyung Buk, Korea Attention: D.J. Jung, Manager • FCC ID: OZ5URCMX • Model: URC MX-1000/1500 • Trade Name: HOME THEATER MASTER • EUT Type: Infrared Remote Control • Application Type: Transmitter Certification • Freq. Range: 418MHz ~ 418MHz • FCC Rule Part(s): § 15.231 Subpart C – Intentional Radiator • Dates of Tests: January 30-31, 2001 • Place of Tests: PCTEST Lab, Columbia, MD U.S.A. • Test Report S/N: TX. 210123037.OZ5 Test Report S/N: TX.210123037.OZ5 FCC Part 15.231 Subpart C Dates of Tests: January 30-31, 2001 Transmitter Certification © 2001 PCTEST Lab FCC ID: OZ5URCMX 2 OHSUNG Infrared Remote Control 1.1 INTRODUCTION The measurement procedure described in American National Standard for Methods of Measurement of Radio- Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz (ANSI C63.4-1992) was used in determining radiated and conducted emissions emanating from OH SUNG (Model: URC MX-1000/1500) Infrared Remote Control FCC ID: OZ5URCMX. These measurement tests were conducted at PCTEST Engineering Laboratory, Inc. facility in New Concept Business Park, Guilford Industrial Park, Columbia, Maryland. The site address is 6660-B Dobbin Road, Columbia, MD 21045. The test site is one of the highest points in the Columbia area with an elevation of 390 feet above mean sea level. The site coordinates are 39° 11'15" N latitude and 76° 49'38" W longitude. The facility is 1.5 miles North of the FCC laboratory, and the ambient signal and ambient signal strength are approximately equal to those of the FCC laboratory. There are no FM or TV transmitters within 15 miles of the site. The detailed description of the measurement facility was found to be in compliance with the requirements of § 2.948 according to ANSI C63.4 on October 19, 1992. 1.2 PCTEST Location The map at right shows the location of the PCTEST Lab, its proximity to the FCC Lab, the Columbia vicinity area, the Baltimore-Washington International (BWI) airport, and the city of Baltimore, and the Washington, D.C. area. (see Figure1). Figure 1. Map of the Greater Baltimore and Metropolitan Washington, D.C. area. Test Report S/N: TX.210123037.OZ5 FCC Part 15.231 Subpart C Dates of Tests: January 30-31, 2001 Transmitter Certification © 2001 PCTEST Lab FCC ID: OZ5URCMX 3 OHSUNG Infrared Remote Control 2.1 Product Information 2.2 Equipment Description The Equipment Under Test (EUT) is the OHSUNG (Model: URC MX-1000/1500) Infrared Remote Control FCC ID: OZ5URCMX. * Tx Freq. Range: 418MHz ~ 418MHz * Oscillator(s): 418MHz * Antenna: Built-in internal looped antenna on-board * Power Supply: (4) AA Batteries * Weight: 7.38 Oz (not including batteries) * Dimensions (WxHxD): 8.9” x 3.0” x 1.5” Test Report S/N: TX.210123037.OZ5 FCC Part 15.231 Subpart C Dates of Tests: January 30-31, 2001 Transmitter Certification © 2001 PCTEST Lab FCC ID: OZ5URCMX 4 OHSUNG Infrared Remote Control 3.1 Description of Tests 3.2 Conducted Emissions (n/a - powered by Four AA batteries) The line-conducted facility is located inside a 16'x20'x10' shielded enclosure. It is manufactured by Ray Proof Series 81 (see Figure 2). The shiel…
