OZ5URCMX-3000Remote Controller

MX-3000 Owners Manual This remote control was Custom Programmed for you by: For questions about your Custom Programming call: Custom Programming of a complex home theater and/or a multi-room system is one of the most challenging tasks within an audio/video installation. It involves an intimate knowledge of how the components interact and exact details on the proper sequences of control. Only a Home Theater Master dealer has the requisite experience and training to quickly and effectively customize a remote control for true automated operation. Congratulations on your choice! MX-3000 Owners Manual © 2004 Universal Remote Control, Inc. The information in this manual is copyright protected. No part of this manual may be copied or reproduced in any form without prior written consent from Universal Remote Control, Inc. UNIVERSAL REMOTE CONTROL, INC. SHALL NOT BE LIABLE FOR OPERATIONAL, TECHNICAL OR EDITORIAL ERRORS/OMISSIONS MADE IN THIS MANUAL. The information in this manual may be subject to change without prior notice. Home Theater Master is a registered trademark of Universal Remote Control, Inc. Entertainment Made Simple is a trademark of Universal Remote Control, Inc. All other brand or product names are trademarks or registered trademarks of their respective companies or organizations. 500 Mamaroneck Avenue, Harrison, NY 10528 Phone: (914) 835-4484 Fax: (914) 835-4532 TABLEOFCONTENTS Congratulations1 Connecting the Battery Pack1 Using the Charging Base2 Programming the MX-30002 No More Pointing!3 Operating Your System4 Displaying the Settings Screen5 Adjusting Backlighting5 Adjusting Brightness5 Button Light Settings5 Sound6 Setting Time and Date6 Power Settings6 System6 Pickup Settings7 Calibration7 Factory Default7 Exit7 Maintaining Your MX-30008 Warranty8 Specifications8 Page 1 MX-3000 COLORTOUCHSCREEN Congratulations You’ve purchased a unique synthesis of hardware and software engineering, the Home Theater Master MX-3000. The twin goals of the design team were to improve the elegance and usability of touch screens through the physical design while providing a new standard in brightness, clarity and animation for the touch screen itself. Easy Operation By assigning the important home theater operational buttons to the natu- ral resting place of the end users thumbs, the MX-3000 achieves a new standard in use and comfort. Automatic Backlighting The integral motion sensor detects any movement of the touch screen and automatically backlights the screen. You do not have to press any button to display the screen. Any movement of the MX-3000 renews the backlighting. To adjust the backlighting, see page 5. Connecting the Battery Pack Unlock the rear cover by using a coin to move the locking screw to the Unlock position. Remove the cover. For shipment from the fac- tory, the battery cable is left unplugged. Plug the cable into the socket next to the battery. The connector is slotted to prevent plugging it in the wrong way, so don’t force it. Replace the cover and lock it into place with a coin. Locked Battery Cable Plugged In Un-Locked Page 2 MX-3000 COLORTOUCHSCREEN Using the Charging Base Plug the 5V DC adapter into a power outlet and into the back of the charging base. Gently place the MX-3000 into the cradle of the charging base. Push down on the base of the MX-3000 until you hear and feel a firm “click”. The Status light should immediately light. Red indicates that it is charging. Blue shows that it is fully charged. There is no harm in leaving the MX-3000 on its charging base whenever it is not in use. Programming the MX-3000 The MX-3000 is programmed via a windows PC equipped with a USB port (we include a programming cable in the box), using our proprietary software, MX-3000 Editor. You can download this software from our website: www.universalremote.com Basic setup takes only a few minutes with this software. However, to fully automate an audio/video system the user must have a detailed knowledge of how the system is connected and operated. We highly recommend that you use a professional audio/video installer to program your MX-3000 if you would like to enjoy one touch operation via macros. The MX-3000 on it’s Charging Base. No More Pointing! The combination of the MX-3000 with it’s companion MRF-250 base station will enable you to place your audio/video components out of sight behind closed doors and/or in another room of your house. The MX-3000 sends radio signals to the MRF-250 throughout your house (50-100’ away, indoors or outdoors). The MRF-250 converts your commands to the infrared signals that control your A/V components. Page 3 MX-3000 COLORTOUCHSCREEN 1. The MX-3000 remote control sends radio waves in every direction, so you don’t have to point the remote anymore! 2. The MRF-250’s built-in Front Blaster sends commands to components in the same cabinet space as the MRF-250. 3. Self-adhesive “Flashers” affix to the Infrared sensors on the front panels of your components. The Flashers relay commands to com- ponents out of sight of the MRF- 250’s Front Blaster. The flashers plug in to the MRF-250’s rear flasher line outputs via their 10 foot cables. Operating Your System The MX-3000’s MAIN menu displays the most popular activities and devices in your system. Press the MAIN button to see the MAIN menu. Large systems may have more than one page. Press the page button if you don’t see all your devices. Gently press any screen button with your finger to select an activity or a device. The screen will change to a display of the buttons you need for that activity/device. The PAGE buttons may reveal additional buttons for some devices and activities. When you would like to control another device, press the MAIN button and select a new device from the MAIN menu. Page 4 MX-3000 COLORTOUCHSCREEN The PAGE buttons reveal additional pages of buttons when they are available. The Volume and Mute buttons are always available regardless of what screen is displayed. To select a touch screen but…

Text truncated - open the document above for the full version.

MX MXMXMX- ---3000 H/W Block Digagram 3000 H/W Block Digagram3000 H/W Block Digagram3000 H/W Block Digagram Bus Clock : 100MHz FLASH 64MB SDRAM 32MB*2 ARM9 S2410 (200MHz) O/S : WINCE4.2 JTAG(개발 , 생산용 ) uCOM IR RF USB KEY POWER / RESET (BATTERY) LCD CONTROLLER AUDIO CODEC TFT LCD 3.6 ’ 320*240 TOUCH&LIGHT AMP MODULE 418MHz X-tal:12MHz 32.768KHz RF AMP ANT DESCRIPTOIN 12 345 No Q'TY MODEL NANE Tx Block Diagram CHECK ED MATERLAL DATA PART NAME KOREA I.S Co., Ltd DESIGN ED CHECK ED APPRO VAL DRAWN 2003 12. 02 DATA IN VCO

ONETECH Corp. http://www.onetech.co.kr 505 SK APT Factory, 223-28 Sangdaewon 1-Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do 462-121, Korea [ Tel ] 82-31-746-8500, [ Fax ] 82-31-746-8700 ONETECH May 13, 2005 FCC Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Attention: Application Examiner Reviewing Engineer Re: Request for confidentiality per Section 0.459 of FCC Rules Applicant: Oh Sung Electronics Co., Ltd. FCC ID: OZ5URCMX-3000 To whom it may concern, Request is hereby submitted, on behalf of my client, Oh Sung Electronics, Co., Ltd, to withhold from public review certain portions of the application for equipment certification for the referenced FCC identifier. In particular, the following sections of the application and report are requested to be kept confidential: Schematics Rationale for request for confidentiality: Oh Sung Electronics, Co., Ltd has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the confidential portions of this application to competitors would give them competitive advantage in developing similar products. If you have questions or need further information, please contact the undersigned. Sincerely, Y.K. Kwon / Chief Engineer Onetech Corp. Email: [email protected]

Helen Zhao Subject: FW: OH SUNG ELECTRONICS CO., LTD., FCC ID: OZ5URCMX-3000, Assessment NO.: AN05T4799, Notice#1 7/12/2005 From: Y.G. GwonSent: Monday, July 11, 2005 11:15 PM To: Helen Zhao Subject: Re: OH SUNG ELECTRONICS CO., LTD., FCC ID: OZ5URCMX-3000, Assessment NO.: AN05T4799, Notice#1 Dear Helen, Regarding your question of above subject, I would like to answer that as following. Question #1: Since the device uses touch screen, not the traditional buttons, to do remote control, please provide information as how the device can meet 15.231(a)(1): A manually operated transmitter shall employ a switch that will automatically deactivate the transmitter within not more than 5 seconds of being released. You may need to provide more detailed operational description or back- end design machanism. (Answer): The function of touch screen is same as traditional button keys, because the OS in the EUT scan the area of touch screen and then detects whether which area was pushed or not. Traditional button keys use key matrix and then detects which key was pushed. Also the cord format is continuously consist of 1(one) and 0(zero) . At that time 1 is RF ON and 0 is RF off and the time for command repeated something like 10ms RF ON and 100ms RF OFF. If you need more information, please inform me that in detail. Best regards, Y. G. Gwon

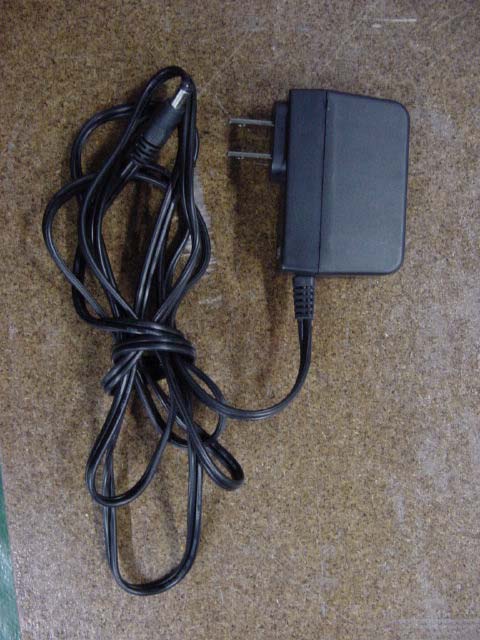

FCC ID.: OZ5URCMX-3000 File No. : E055R-017 ONETECH Testing & Evaluation Lab. FCC ID.: OZ5URCMX-3000 File No. : E055R-017 ONETECH Testing & Evaluation Lab. FCC ID.: OZ5URCMX-3000 File No. : E055R-017 ONETECH Testing & Evaluation Lab. FCC ID.: OZ5URCMX-3000 File No. : E055R-017 ONETECH Testing & Evaluation Lab. FCC ID.: OZ5URCMX-3000 File No. : E055R-017 ONETECH Testing & Evaluation Lab. FCC ID.: OZ5URCMX-3000 File No. : E055R-017 ONETECH Testing & Evaluation Lab.

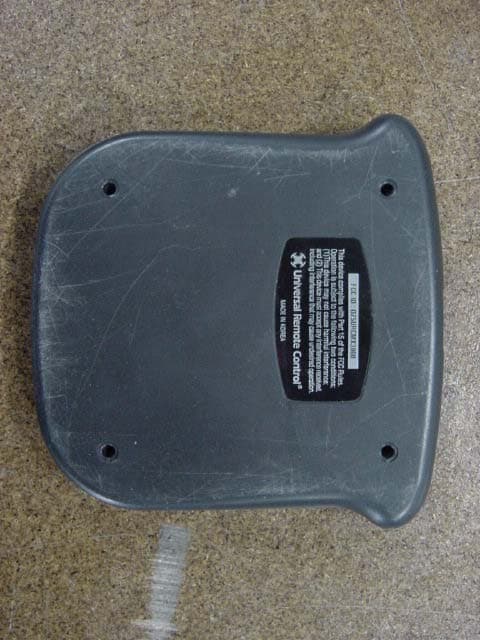

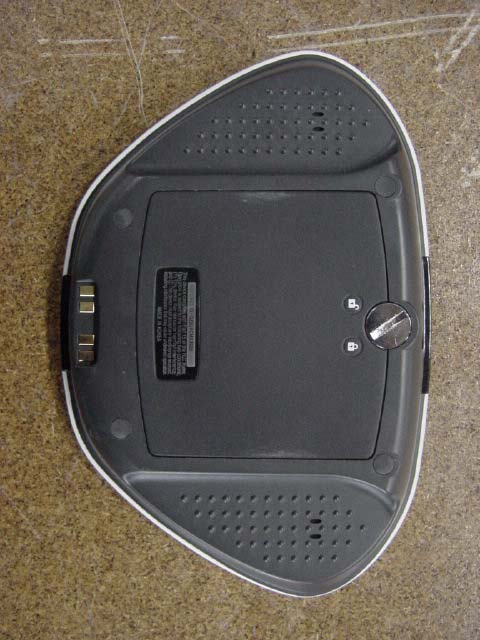

FCC ID.: OZ5URCMX-3000 File No.: E055R-017 ONETECH Testing & Evaluation Lab. IDENTIFICATION LABEL: PROPOSED FCC ID LABEL The label included following statement will be affixed to the bottom side of the product. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operations. Made in Korea FCC ID : OZ5URCMX-3000 FCC ID Location

FCC ID.: OZ5URCMX-3000 File No. : E055R-017 ONETECH Testing & Evaluation Lab. FCC ID.: OZ5URCMX-3000 File No. : E055R-017 ONETECH Testing & Evaluation Lab. FCC ID.: OZ5URCMX-3000 File No. : E055R-017 ONETECH Testing & Evaluation Lab. FCC ID.: OZ5URCMX-3000 File No. : E055R-017 ONETECH Testing & Evaluation Lab. FCC ID.: OZ5URCMX-3000 File No. : E055R-017 ONETECH Testing & Evaluation Lab. FCC ID.: OZ5URCMX-3000 File No. : E055R-017 ONETECH Testing & Evaluation Lab. FCC ID.: OZ5URCMX-3000 File No. : E055R-017 ONETECH Testing & Evaluation Lab. FCC ID.: OZ5URCMX-3000 File No. : E055R-017 ONETECH Testing & Evaluation Lab. FCC ID.: OZ5URCMX-3000 File No. : E055R-017 ONETECH Testing & Evaluation Lab. FCC ID.: OZ5URCMX-3000 File No. : E055R-017 ONETECH Testing & Evaluation Lab. FCC ID.: OZ5URCMX-3000 File No. : E055R-017 ONETECH Testing & Evaluation Lab. FCC ID.: OZ5URCMX-3000 File No. : E055R-017 ONETECH Testing & Evaluation Lab. FCC ID.: OZ5URCMX-3000 File No. : E055R-017 ONETECH Testing & Evaluation Lab. FCC ID.: OZ5URCMX-3000 File No. : E055R-017 ONETECH Testing & Evaluation Lab. FCC ID.: OZ5URCMX-3000 File No. : E055R-017 ONETECH Testing & Evaluation Lab. FCC ID.: OZ5URCMX-3000 File No. : E055R-017 ONETECH Testing & Evaluation Lab. FCC ID.: OZ5URCMX-3000 File No. : E055R-017 ONETECH Testing & Evaluation Lab.

MX-3000 RF Tx 동작 설명 Tx 418MHz 1. The antenna port has given – 15 to – 20dBm transmitted power. 2. The transmitting data is coming through base of Q1 and Q3. 3. Tx data will turns on and off saw resonator for amplitude Sh ift Key. 4. X1 is saw resonator. 5. The frequency of this system is 418MHz.

Page 1 of 16 FCC ID. : OZ5URCMX-3000 File No. : E055R-017 This report shall not be reproduced except in full without our written approval. FCC-004 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do, 462-121, Korea (TEL: 82-31-746-8500 FAX: 82-31-746-8700) EMC Testing Dept : 426-1 Daessangryung-Ri, Chowol-Myun, Kwangju-Kun, Kyunggi-Do 464-860 Korea. (TEL: 82-31-765-8289 FAX: 82-31-766-2904) ONETECH Testing & Evaluation Lab. ELECTROMAGNETIC EMISSION C OMPLIANCE REPORT FOR LOW-POWER, NON-LICENSED TRANSMITTER Test report file number : E055R-017 Applicant : OH SUNG ELECTRONICS CO., LTD. Address : #181 Gongdan-dong, Gumi, Gyeong Buk, Korea Manufacturer : OH SUNG ELECTRONICS CO., LTD. Address : #181 Gongdan-dong, Gumi, Gyeong Buk, Korea Type of Equipment : REMOTE CONTROLLER FCC ID : OZ5URCMX-3000 Model / Type No. : MX-3000 Serial number : N/A Total page of Report : 16 pages (including this page) Date of Incoming : March 21, 2005 Date of issuing : May 07, 2005 SUMMARY The equipment complies with the regulation; FCC PART 15 SUBPART C §15.231 This test report contains only the result of a single test of the sample supplied for the examination. It is not a general valid assessment of the features of the respective products of the mass-production. Prepared by: Reviewed by: Young-Min, Choi / Project Engineer Y. K. Kwon / Director EMC Div. EMC Div. ONETECH Corp. ONETECH Corp. Page 2 of 16 FCC ID. : OZ5URCMX-3000 File No. : E055R-017 This report shall not be reproduced except in full without our written approval. FCC-004 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do, 462-121, Korea (TEL: 82-31-746-8500 FAX: 82-31-746-8700) EMC Testing Dept : 426-1 Daessangryung-Ri, Chowol-Myun, Kwangju-Kun, Kyunggi-Do 464-860 Korea. (TEL: 82-31-765-8289 FAX: 82-31-766-2904) ONETECH Testing & Evaluation Lab. CONTENTS Page 1. VERIFICATION OF COMPLIANCE ............................................................................................................................3 2. GENERAL INFORMATION...........................................................................................................................................4 2.1 PRODUCT DESCRIPTION..................................................................................................................................................4 2.2 RELATED SUBMITTAL(S) / GRANT(S) ..............................................................................................................................4 2.3 TEST SYSTEM DETAILS...................................................................................................................................................5 2.4 TEST METHODOLOGY.....................................................................................................................................................5 2.5 TEST FACILITY................................................................................................................................................................5 3. SYSTEM TEST CONFIGURATION..............................................................................................................................5 3.1 JUSTIFICATION................................................................................................................................................................5 3.2 EUT EXERCISE SOFTWARE.............................................................................................................................................5 3.3 EQUIPMENT MODIFICATIONS..........................................................................................................................................5 3.4 CONFIGURATION OF TEST SYSTEM.................................................................................................................................6 3.5 ANTENNA REQUIREMENT...............................................................................................................................................6 4. PRELIMINARY TEST .....................................................................................................................................................6 4.1 AC POWER LINE CONDUCTED EMISSIONS TESTS............................................................................................................6 4.2 RADIATED EMISSIONS TESTS..........................................................................................................................................6 5. FINAL RESULT OF MEASURMENT ...........................................................................................................................7 5.1 CONDUCTED EMISSION TEST........................................................................................................................................7 5.2 FIELD STRENGTH OF THE CARRIER TEST....................................................................................................................9 5.3 MAXIMUM MODULATION PERCENTAGE (MMP).........................................................................................................9 5.4 BANDWIDTH OF THE OPERATING FREQUENCY...........................................................................................................13 6. FIELD STRENGTH CALCULATION .........................................................................................................................15 7. LIST OF TEST EQUIPMENT.......................................................................................................................................16 Page 3 of 16 FCC ID. : OZ5URCMX-3000 File No. : E055R-017 This report shall not be reproduced except in full without our written approval. FCC-004 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do, 462-121, Korea (TEL: 82-31-746-8500 FAX: 82-31…

Text truncated - open the document above for the full version.

FCC ID.: OZ5URCMX-3000 File No. : E055R-017 ONETECH Testing & Evaluation Lab. FCC ID.: OZ5URCMX-3000 File No. : E055R-017 ONETECH Testing & Evaluation Lab.
