OZ5URCMX890IRF REMOTE CONTROLLER

Ohsung Electronics Co., Ltd.
RF REMOTE CONTROLLER - FCC ID OZ5URCMX890I - Ohsung Electronics Co., Ltd.
Click to zoom

Application Details

Equipment Class
DSR - Part 15 Remote Control/Security Device Transceiver
Date of Grant
Jan 15, 2013
Application Purpose
Original Equipment
Date of Application
Jan 15, 2013
Equipment Note
RF REMOTE CONTROLLER
Frequency Range
433.92000000 - 433.92000000
Company
Ohsung Electronics Co., Ltd.
Country
South Korea

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗

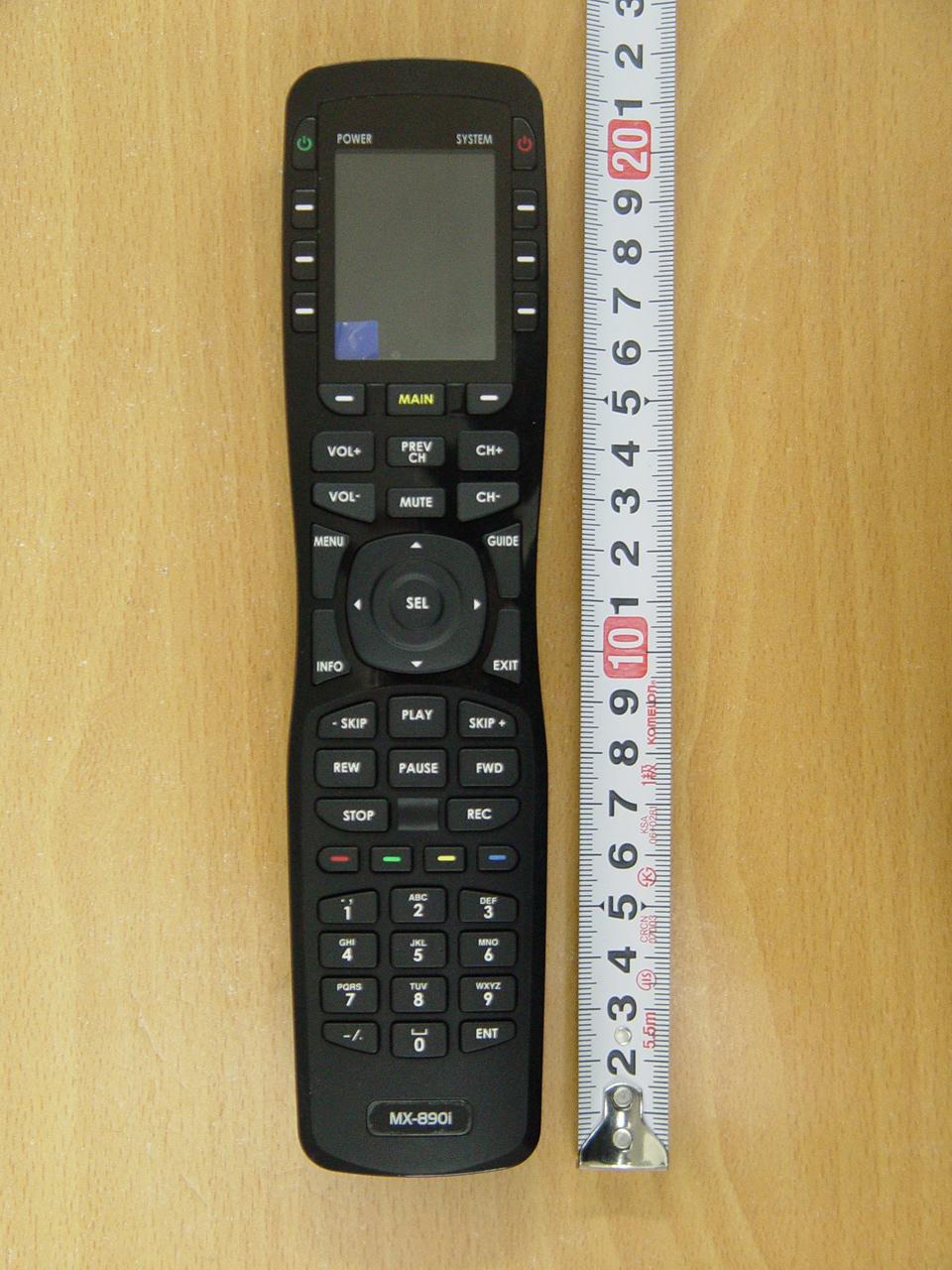

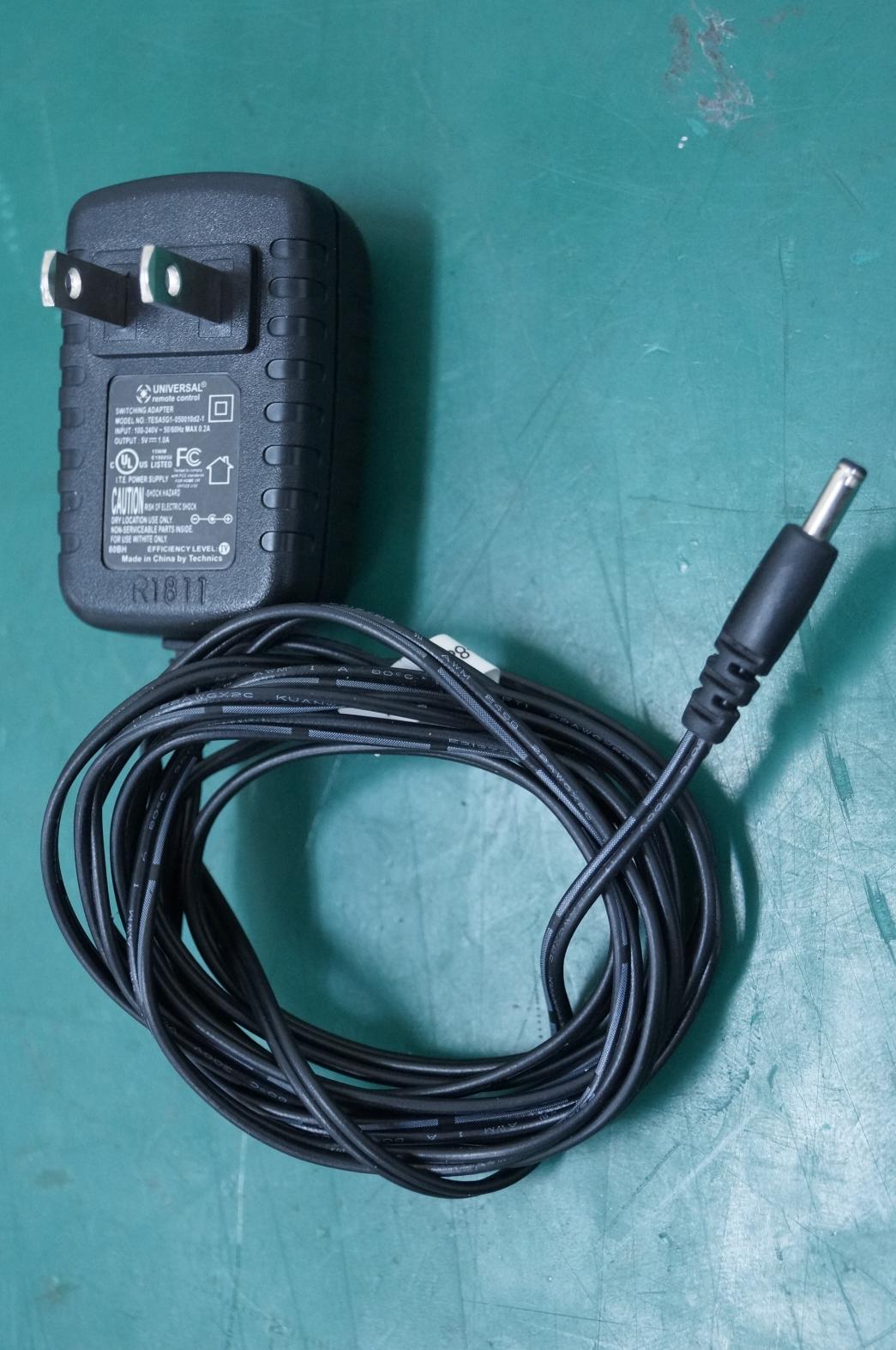

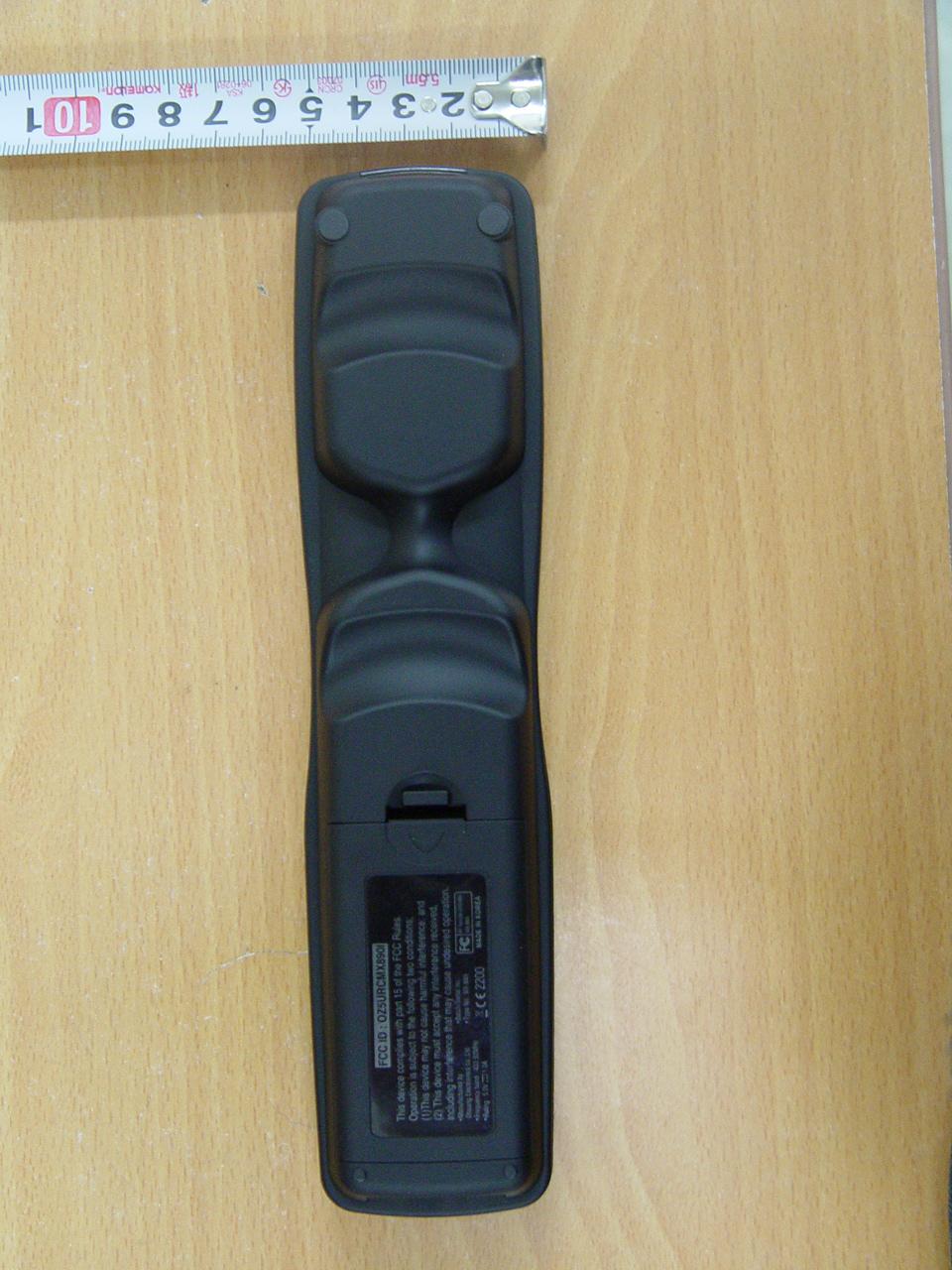

External Photos

↗

ID Label/Location Info

↗

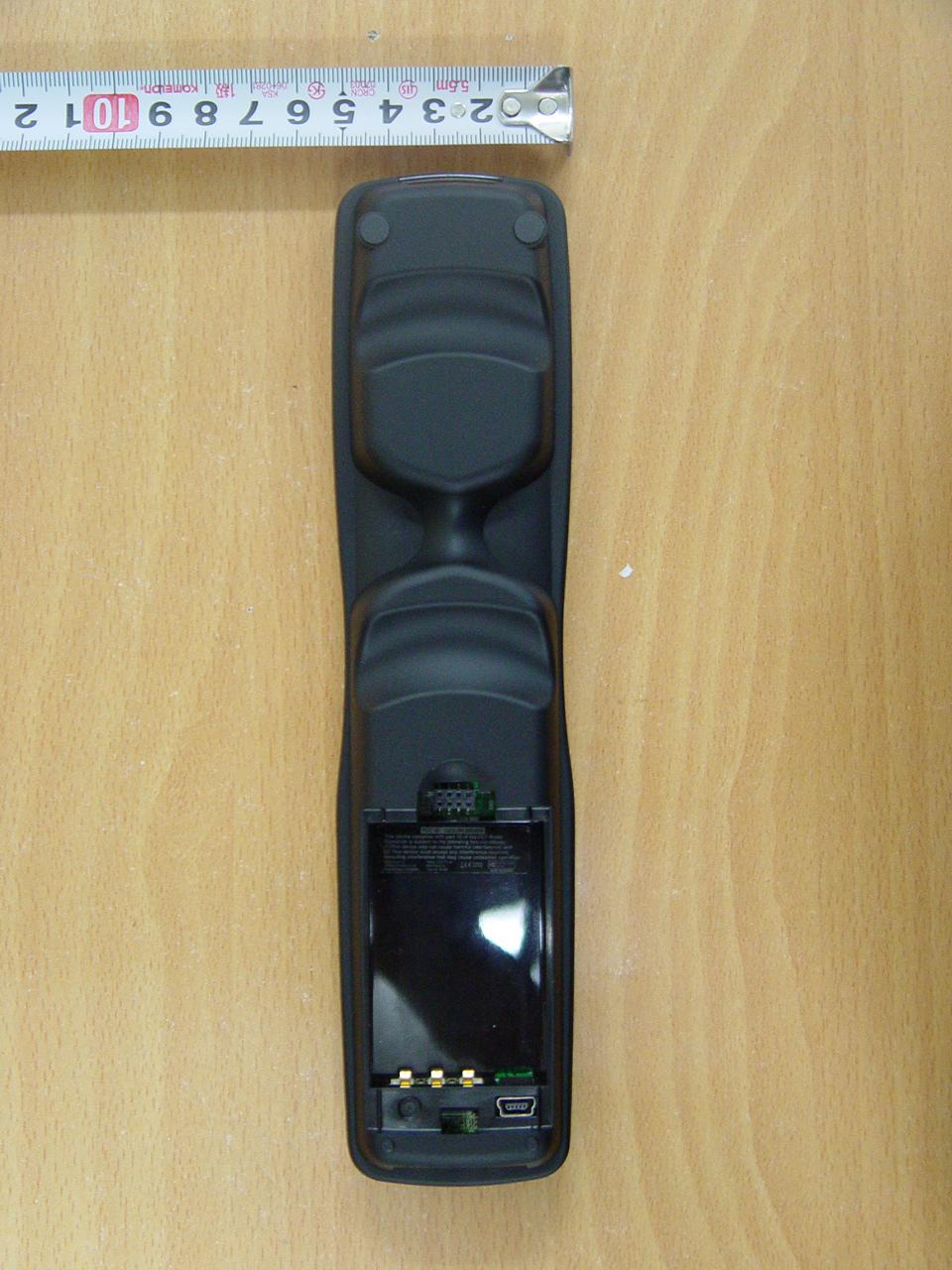

Internal Photos

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Order Number : GETEC-C1-12-375 FCC Part 15 subpart C Test Report Number : GETEC-E3-12-134 Page 1 / 1 EUT Type: RF REMOTE CONTROLLER FCC ID.: OZ5URCMX890I APPENDIX H : USER’S MANUAL MX-890i Color LCD Screen Owner’s Manual 500 Mamaroneck Avenue, Harrison, NY 10528 Phone: (914) 835-4484 Fax: (914) 835-4532 This remote control was Custom Programmed for you by: For questions about your Custom Programming call: Custom Programming of a complex home theater and/or a multi-room system is one of the most challenging tasks within an audio/video installation. It involves an intimate knowledge of how the components interact and exact details on the proper sequences of control. Only a Complete Control dealer has the requisite experience and training to quickly and effectively customize a remote control for true automated operation. Congratulations on your choice! MX-890i Owner's Manual © 2012 Universal Remote Control, Inc. The information in this manual is copyright protected. No part of this manual may be copied or reproduced in any form without prior written consent from Universal Remote Control, Inc. UNIVERSAL REMOTE CONTROL, INC. SHALL NOT BE LIABLE FOR OPERATIONAL, TECHNICAL OR EDITORIAL ERRORS/OMISSIONS MADE IN THIS MANUAL. The information in this manual may be subject to change without prior notice. Complete Control is a registered trademark of Universal Remote Control, Inc. All other brand or product names are trademarks or registered trademarks of their respective companies or organizations. TABLEOFCONTENTS Congratulations!1 Using the MX-890i2 Connecting the Battery Pack3 Using the Charging Base3 Resetting the MX-890i3 Displaying the Settings Screen4 Sleep Settings5 System5 Brightness5 Power6 Button Light6 Date and Time6 Sound7 Pickup Settings7 Factory Default7 Exit7 Maintaining Your MX-890i8 Specifications8 USA Limited Warranty Statement9 Federal Communication Commission Interference Statement11 Regulatory Information to the user12 Declaration of Conformity13 Precautions and Information Concerning Rechargeable Lithium-Ion Batteries14 MX-890i COLORLCD SCREEN Page 1 Congratulations Thank you for purchasing the Complete Control MX-890i color LCD screen universal remote control. This remote can directly control your devices via IR or wirelessly control your devices throughout the home using an RF base station. Controlling your home is simple with the MX-890i remote. Brilliant 2" color LCD screen with pickup sensor The MX-890i has a programmable 2” color LCD screen. When the remote is picked up, the color LCD screen as well as the remote buttons, will light up. Control devices using ultra-reliable narrow band RF The MX-890i can communicate directly to RF base stations, such as the MRX-1/RFX-250i, MRF-350i and the MRF-260i. It also natively communicates to URC Lighting via RF. This gives the MX-890i the ability to control your system without being in direct line-of-sight. Identify a remote using Room Labels Use the included room labels to keep track of each room’s MX-890i. No longer will you have the kitchen remote in the living room; simply add a room label for easy identification. Charging Base Included... no need for batteries There is no need to constantly purchase batteries, just place the remote on the charging base and recharge the battery...DONE! Fast setup of complex systems via Complete Control PC Program To fully automate your audio/video system, the programmer must have detailed knowledge of each component and how the system is connected and operated. Only a trained and certified professional audio/video installer can program an MX-890i remote control in a timely and efficient manner. User interface customizable for any activity Each button is customizable for activities such as Watch TV or Listen to Radio. These activities can contain multiple commands (macros) which enable a single button press to turn the needed devices ON or OFF. Only a trained and certified professional audio/video installer can program an MX-890i remote control in a timely and efficient manner. MX-890i COLORLCD SCREEN Using the MX-890i The MX-890i's main pages display the activities and devices in your system. Press the MAIN button to view your devices or the activities placed here by your custom professional. Large systems may have more than one page. Press either of the PAGE buttons if you don’t see all your devices. Press any LCD hard button, to select an activity or a device. The screen will change to display the buttons you need for that activity/device. The PAGE buttons may reveal additional buttons for some devices and activities. When you would like to control another device, press the MAIN page button and select a new device button. The Power button turns your system ON. The Volumeand Mute buttons always control the sound regardless of what screen is displayed. Press either of the Page buttons to see any other available choices. The Transport buttons (Play, Stop, Rec, Skip-, Skip+, FF, REW and Pause)operate when the selected device requires them. When watching Cable TV, use the number keypad to enter channel numbers. When listening to a CD, the number keypad enters track numbers. The Channel and Previous Channel buttons will change channels when you have selected devices like CABLE. The Number keypad enters numbers for the devices you’ve selected. When watching Cable TV, use the number keypad to enter channel numbers. When listening to a CD, the number keypad enters track numbers. Page 2 When pressed, these LCD hard buttons execute the activity/ command/device on the associated icon. The Navigation buttons enable you to navigate on screen guides and menus with ease. The Systembutton turns all your equipment OFF. The Colorbuttons work to control additional options provided by other devices like Cable, Satellite or Blu-Ray. The Mainbutton accesses all programmed activities and devices. MX-890i COLORLCD SCREEN Connecting the Battery Pack Unlock the rear cover by pressing down on the spring lock at the top o…
