P23HHMC-6004F2501RF Adaptor for TV Interface Device

Hip Hing Cable & Plug Manufactory Limited
RF Adaptor for TV Interface Device - FCC ID P23HHMC-6004F2501 - Hip Hing Cable & Plug Manufactory Limited
Click to zoom

Application Details

Equipment Class
HID - Part 15 TV Interface Device
Date of Grant
Dec 13, 2001
Application Purpose
Original Equipment
Date of Application
Dec 13, 2001
Equipment Note
RF Adaptor for TV Interface Device
Frequency Range
60.41700000 - 66.54500000
Company
Hip Hing Cable & Plug Manufactory Limited
Country
Hong Kong

Documents & Files

Select a file to view

Users Manual

β†—

Block Diagram

β†—

Cover Letter(s)

β†—

External Photos

β†—
β†—

ID Label/Location Info

β†—

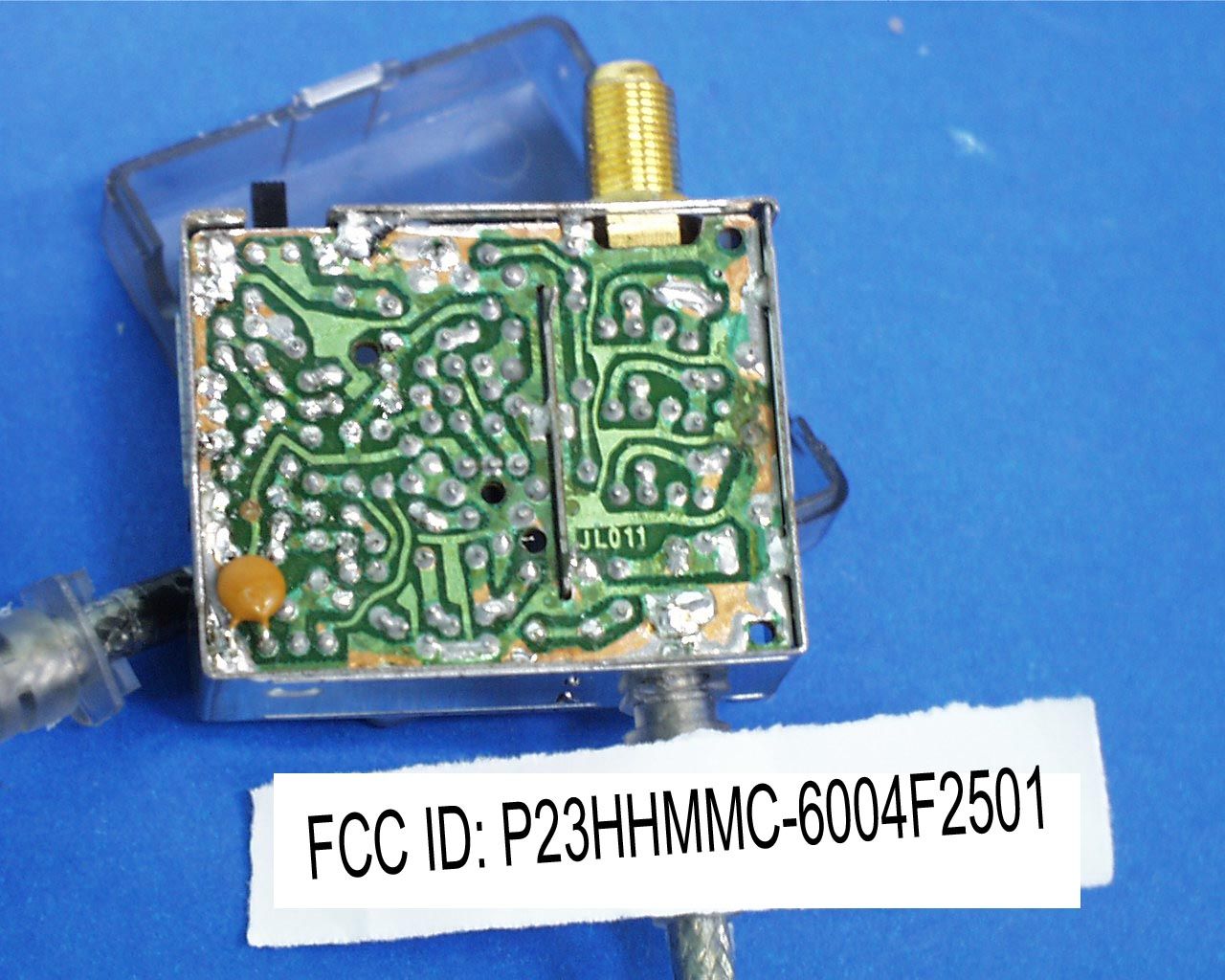

Internal Photos

β†—
β†—
β†—

Operational Description

β†—

Schematics

β†—

Test Report

β†—

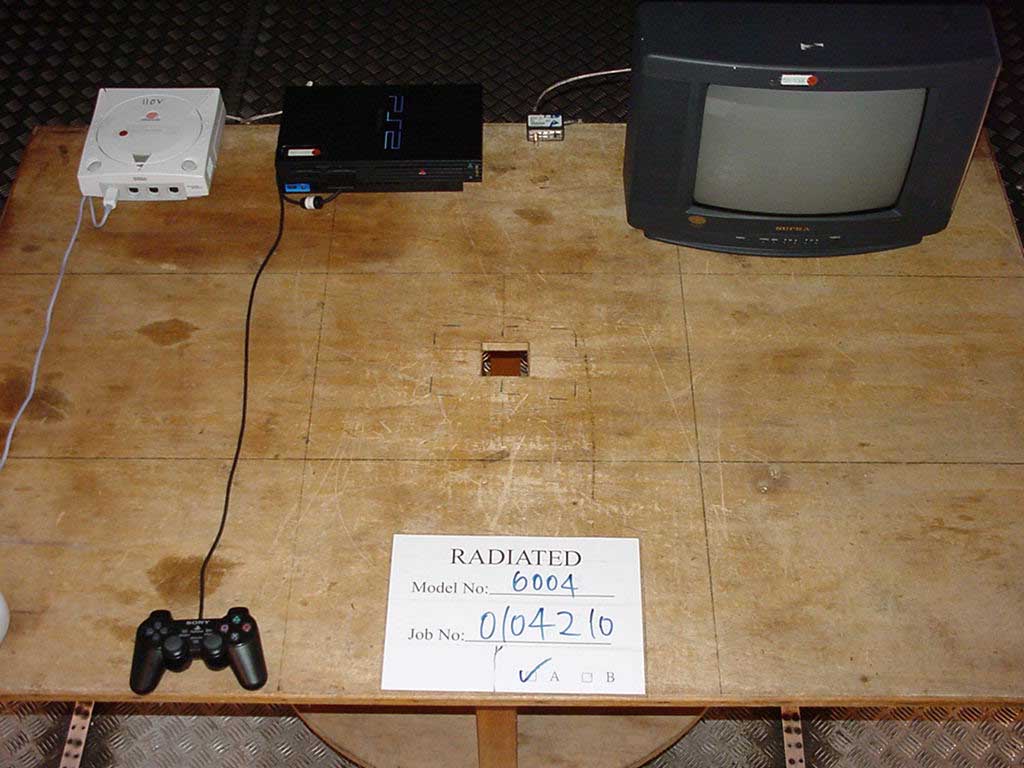

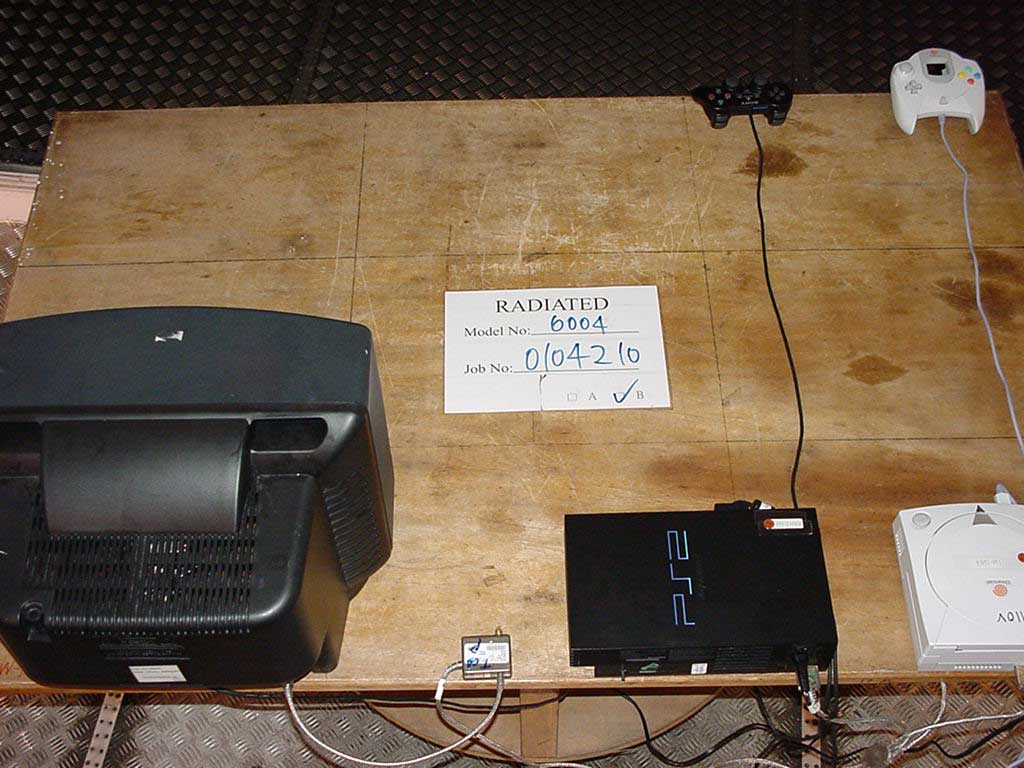

Test Setup Photos

β†—
β†—

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Cover Letter(s)

From:Ivan Wong ITS/ES-HKG Sent:Monday, November 05, 2001 9:04 PM To:Roland Gubisch ITS/ES-Box Cc:Danielle Gravelle ITS/ES-Box Subject: RE: Hip Hing FCC ID: PQAHHMC-6004F2501 Dear Roland, Thanks for your comment, I would like to revise the Test Report, Form 731 and the Label Artwork as follows: Best regards, Iva n -----Original Message----- From: Roland Gubisch ITS/ES-Box Sent:Thursday, November 01, 2001 4:27 AM To:Lee Wing Yan ITS/ES-HKG Cc:Danielle Gravelle ITS/ES-Box; Wilbur Ng ITS/ES-HKG Subject: Hip Hing FCC ID: PQAHHMC-6004F2501 Dear Yan: Technical review of this application is complete, and the following items are noted: A. Form 731 1) Item 10 gives the Equipment Code as DXX. This is for a transmitter. The correct code is HID, for TV Interface Device. Please correct. (Revised, please see attached Form731.pdf) 2) Item 10 shows the applicable Rule Part as 15C. The correct Rule Part for a TV Interface Device is 15B, not 15C. Please correct. (Revised) B. Test Report 1) Test report should reference the most recent edition of CFR 47 Part 15, w hich is 10-1-2000. Please update this on the report cover page and elsewhere where it occurs. (Revised, please see attached report1.pdf) 2) System Justification sections 2.1 and 2.5 says the EUT was "operated standalone." The config photos show it was connected to a TV receiver and video game. Please change the justifications accordingly. (Revised) 3) System Justification sections 2.1 and 2.5 does not describe the signal source compliance with ANSI C63.4-1992 section 12.2.1. Please review the ANSI section and address this point. (Added) 4) System Justification section 2.1 should describe the actual frequency range of radiated emissions observed. Please add. (Added) 5) Special accessories section 2.3 does not indicate that the unit was tested with TV receiver input cables to be supplied by the applicant. Section 15.115(c) requires TV Interface Devices which are NOT used with a master antenna to be supplied with cables to the TV receiver by the applicant. Please address this point. (Added) 6) Special test procedures for TV Interface Devices in ANSI C63.4-1992 section 12.2 are not described or referenced. Please address this point. (Added in section 8.2 of the test report) 7) The radiated emissions data tables have conflicting footnotes (1) and (4). Please attach footnote (1) into the correct entries in the data table. (Footnote 1 and 4 Revised) 8) Output voltage tables 3 - 5 show limits which are higher than Rule 15.115(b)(2)(ii) specifies. This rule sets the limit at 95 microvolts for frequencies which are either lower than 4.6 MHz below the video carrier or higher than 7.4 MHz above the video carrier frequency. The limits for all but the top entry in each table should be changed accordingly. The measurements continue to comply with these lower limits. (Tables 3-6 Revised) 9) The voltage at the receiving antenna input terminals per 15.115(c)(1)(ii) is not indicated. If this was measured, please indicate. If not measured, please justify. (Added Section 3.5 in the test report) 10) If a transfer switch is required for this device, measurements of transfer switch isolation must be provided. If a transfer switch is NOT required, the label must provide the wording specified in 15.115(c)(5). I cannot find either the transfer switch measurements or the 15.115(c)(5) label wording. Please address this point. (The additional label wording was added in the label, please see attached label1.pdf) Regards, Roland

Operational Description

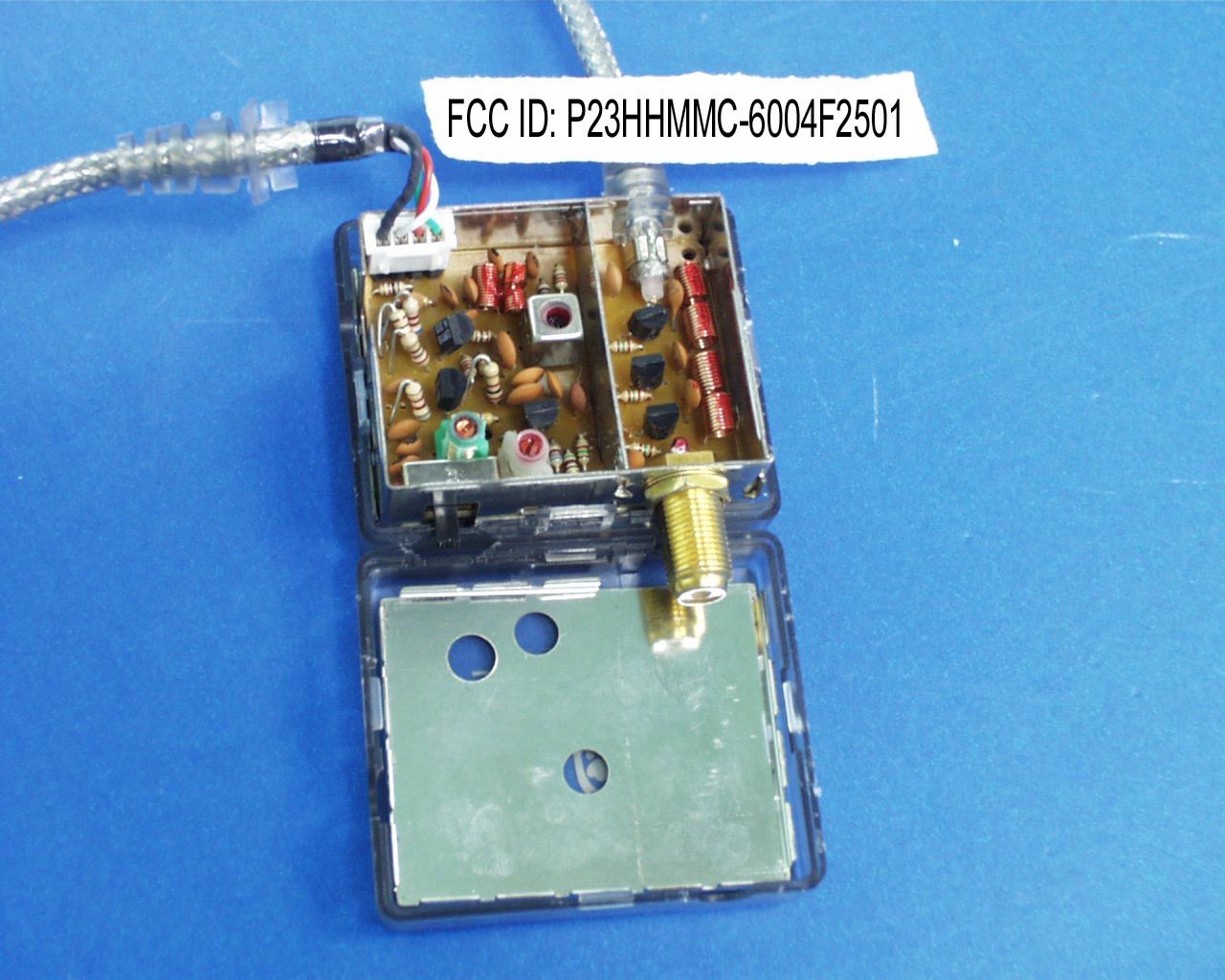

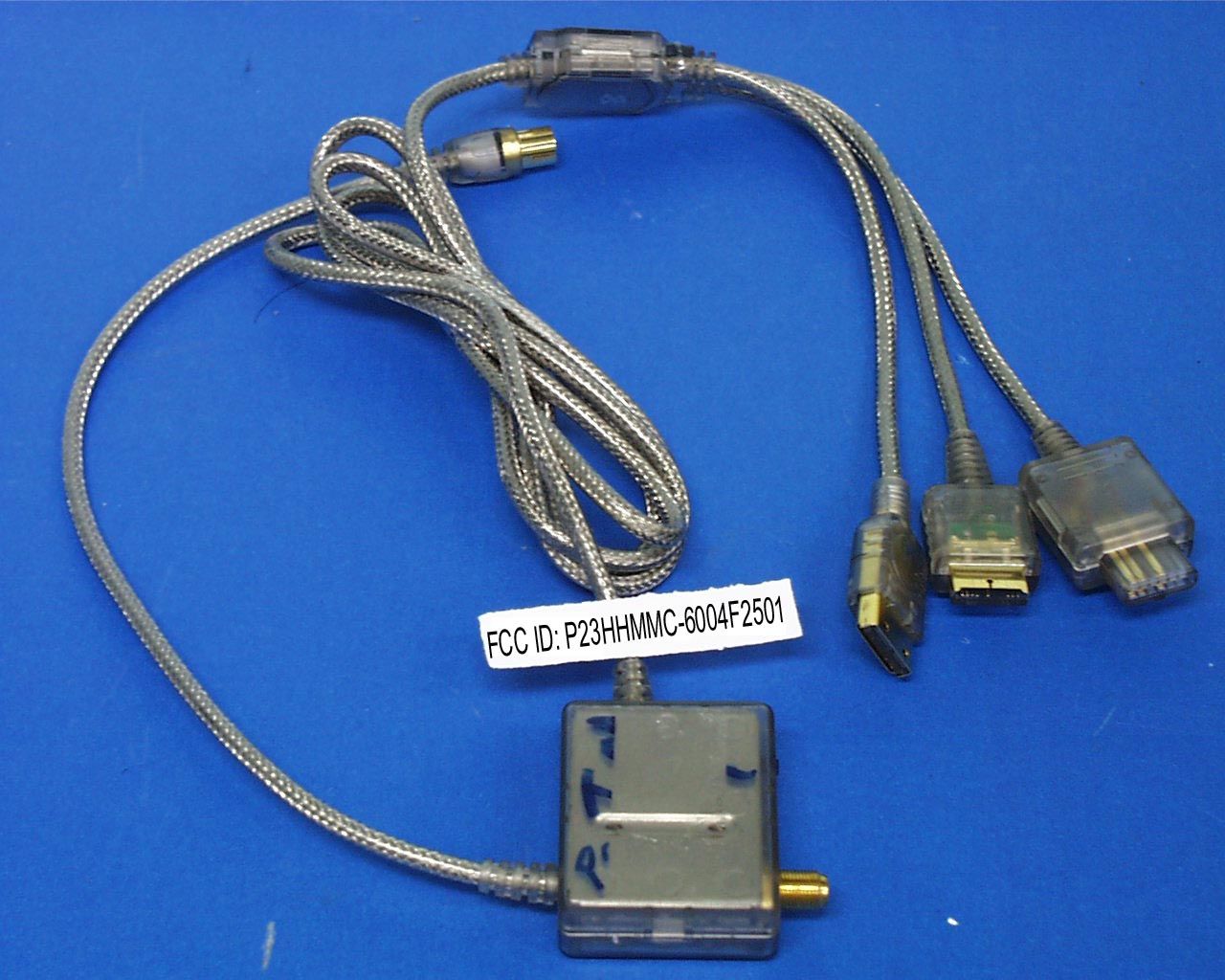

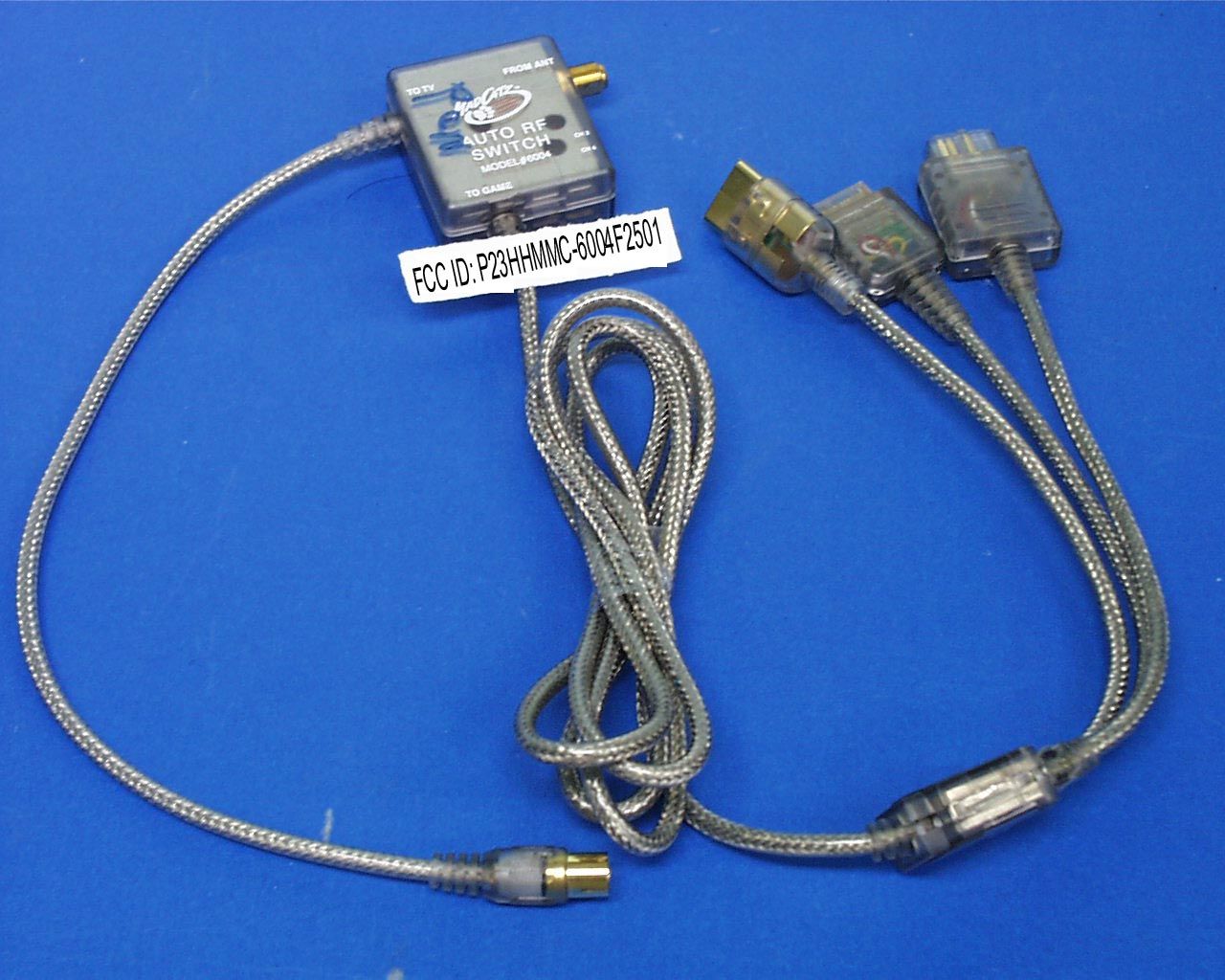

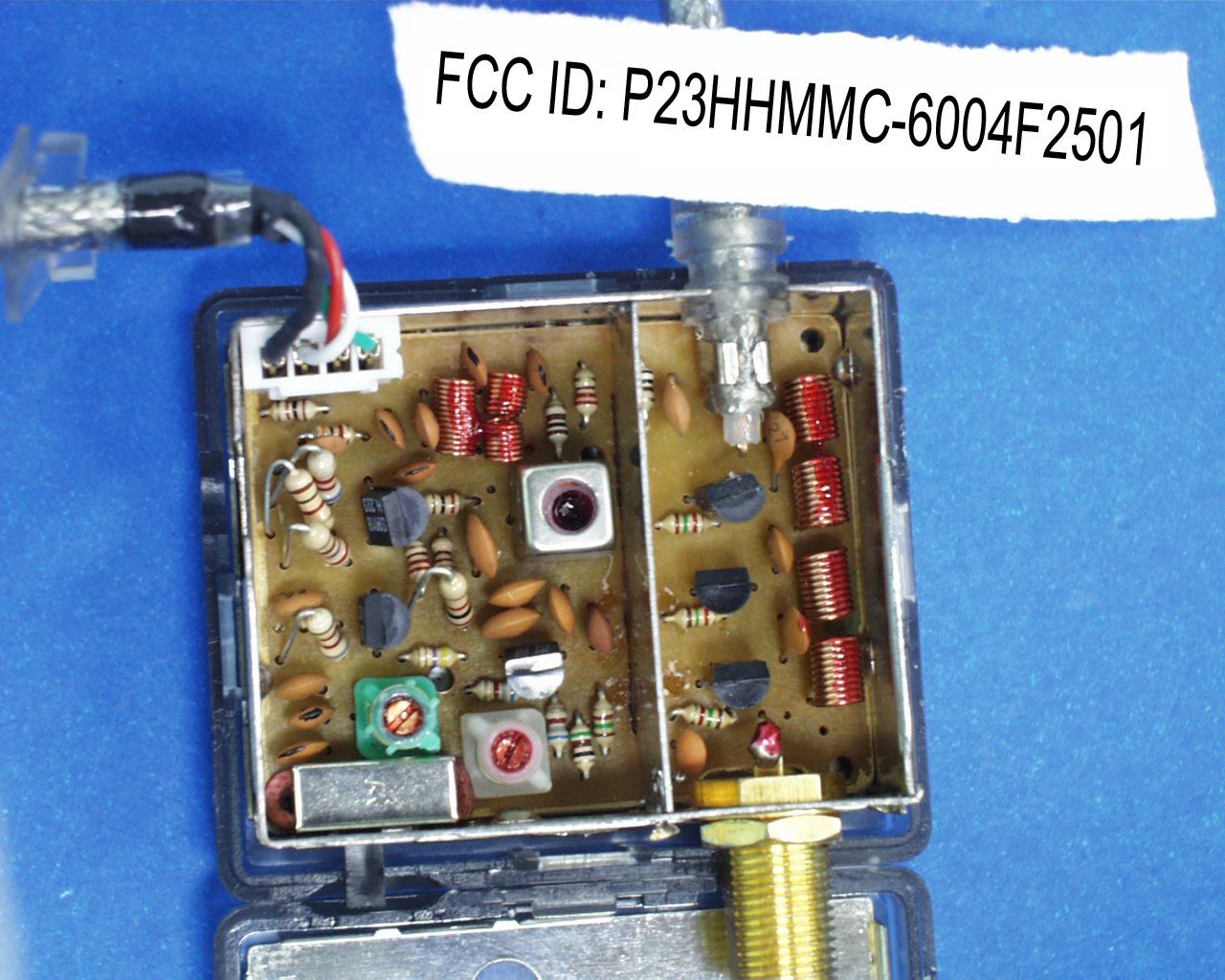

FCC ID: P23HHMC-6004F2501 Operation Description: The equipment under test (EUT) is RF Adapter for TV Interface Device operate at 60.417 MHz and 66.545 MHz which is controlled by a L.C. Oscillator. The EUT is powered by Game Station. There are a channel switch, one RF output port, 3 signal input port of N64, Play Station and Dream Cast. Connect one of the signal input port to the game station, connect the RF output port to the TV RF input, and select the channel on the TV to obtain the game picture and sound from the Game Station. Circuit Description: The brief circuit description is listed as follows: - Q1, C1, C2, T1, T2 and the associated circuit act as LC Oscillator. - Q2 and associated circuit act as Mixer. - Q3, T3 and associated circuit act as Pre-amplifier. Antenna Used: A RF TV antenna socket has been used.

Test Report

β€’ The test results reported in this report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. β€’ This report shall not be reproduced except in full without prior authorization from Intertek Testing Services Hong Kong Limited FCC ID : P23HHMC-6004F2501 Mad Catz (Asia) Ltd. Application For Certification (FCC ID: P23HHMC-6004F2501) Transmitter, Model : 6004 We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart B for TV interface devices, mention 47 CFR [10-1-2000 edition] WO# 0104210 WN/at November 19, 2001 INTERTEK TESTING SERVICES FCC ID: P23HHMC-6004F2501 i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1:General Description EXHIBIT 2:System Test Configuration EXHIBIT 3:Emission Results EXHIBIT 4:Equipment Photographs EXHIBIT 5:Product Labelling EXHIBIT 6:Technical Specifications EXHIBIT 7:Instruction Manual EXHIBIT 8:Miscellaneous Information INTERTEK TESTING SERVICES FCC ID: P23HHMC-6004F2501 ii MEASUREMENT/TECHNICAL REPORT Mad Catz (Asia) Ltd. - MODEL: 6004 FCC ID: P23HHMC-6004F2501 November 19, 2001 This report concerns (check one:)Original Grant X Class II Change Equipment Type: TV interface devices (example: computer, printer, modem, etc.) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)?Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37?Yes No X If no, assumed Part 15, Subpart B for TV interface devices. Report prepared by:Wilbur Ng Intertek Testing Services 2/F., Garment Center, 576, Castle Peak Road, HONG KONG Phone:852-2173-8502 Fax:852-2742-9149 INTERTEK TESTING SERVICES FCC ID: P23HHMC-6004F2501 iii Table of Contents 1.0 General Description.......................................................................................................................2 1.1 Product Description...................................................................................................................2 1.2 Related Submittal(s) Grants.....................................................................................................2 1.3 Test Methodology......................................................................................................................3 1.4 Test Facility...............................................................................................................................3 2.0 System Test Configuration............................................................................................................5 2.1 Justification...............................................................................................................................5 2.2 EUT Exercising Software..........................................................................................................6 2.3 Special Accessories....................................................................................................................6 2.4 Equipment Modification...........................................................................................................6 2.5 Support Equipment List and Description.................................................................................6 3.0 Emission Results............................................................................................................................8 3.1 Field Strength Calculation........................................................................................................9 3.1 Field Strength Calculation (cont’d).........................................................................................10 3.2 Radiated Emission Configuration Photograph......................................................................11 3.3 Radiated Emission Data.........................................................................................................12 3.4 RF Output Voltage Measurement Data.................................................................................14 3.5 Voltage Measurement at the receiving antenna input terminal per 15.115 c (1)(ii.............17 4.0 Equipment Photographs.............................................................................................................19 5.0 Product Labelling.........................................................................................................................21 6.0 Technical Specifications..............................................................................................................23 7.0 Instruction Manual......................................................................................................................25 8.0 Miscellaneous Information.........................................................................................................27 8.1 Measured Bandwidth..............................................................................................................28 8.2 Emissions Test Procedures.....................................................................................................29 8.2 Emissions Test Procedures (cont'd)........................................................................................30 INTERTEK TESTING SERVICES FCC ID: P23HHMC-6004F2501 iv List of attached file Exhibit typeFile Descriptionfilename Test ReportTest Reportreport.doc Operation DescriptionTechnical Descriptiondescri.pdf Test Setup PhotoRadiated Emissionradiated1.jpg to radiated2.jpg Test ReportBandwidth Plotbw.pdf External PhotoExternal Photoophoto1.jpg to ophoto2.jpg Internal PhotoInternal Photoiphoto1.jpg to iphoto3.jpg Block DiagramBlock Diagramblock.pdf SchematicsCircuit Diagramcircuit.pdf ID Label/LocationLabel Artwork and Locationlabel.pdf User ManualUser Manualmanual.pdf INTERTEK TESTING SERVICES FCC …

Text truncated - open the document above for the full version.

Contact Information

Applicant

Wilbur Ng(Manager)
[email protected](852) 21738502Fax: (852) 27429149

Technical Contact

Intertek Testing Services Hong Kong Ltd.Wilbur Ng
[email protected]852 2173 8502

2/F, Garment Centre Β· Kowloon Β· Hong Kong

Non-Technical Contact

Intertek Testing Services Hong Kong Ltd.Wilbur Ng
[email protected]852 2173 8502

Test Firm

Intertek Testing Services Hong KongBilly Chow
[email protected]852-2173-8528Fax: 852-2371-0914

Technical Specifications

#Rule PartsFrequency RangePower Output
115B60.417 MHz - 66.545 MHz-
