P27-SSGB5R0Glass Break Sensor

Sercomm Corporation
Glass Break Sensor - FCC ID P27-SSGB5R0 - Sercomm Corporation
Click to zoom

Application Details

Equipment Class
PUB - Part 15 Unlicensed PCS Base Station
Date of Grant
Oct 07, 2023
Application Purpose
Original Equipment
Date of Application
Oct 07, 2023
Equipment Note
Glass Break Sensor
Frequency Range
1921.53600000 - 1928.44800000
Company
Sercomm Corporation
Country
Taiwan

Documents & Files

Select a file to view

Users Manual

↗

Attestation Statements

↗
↗
↗

Cover Letter(s)

↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

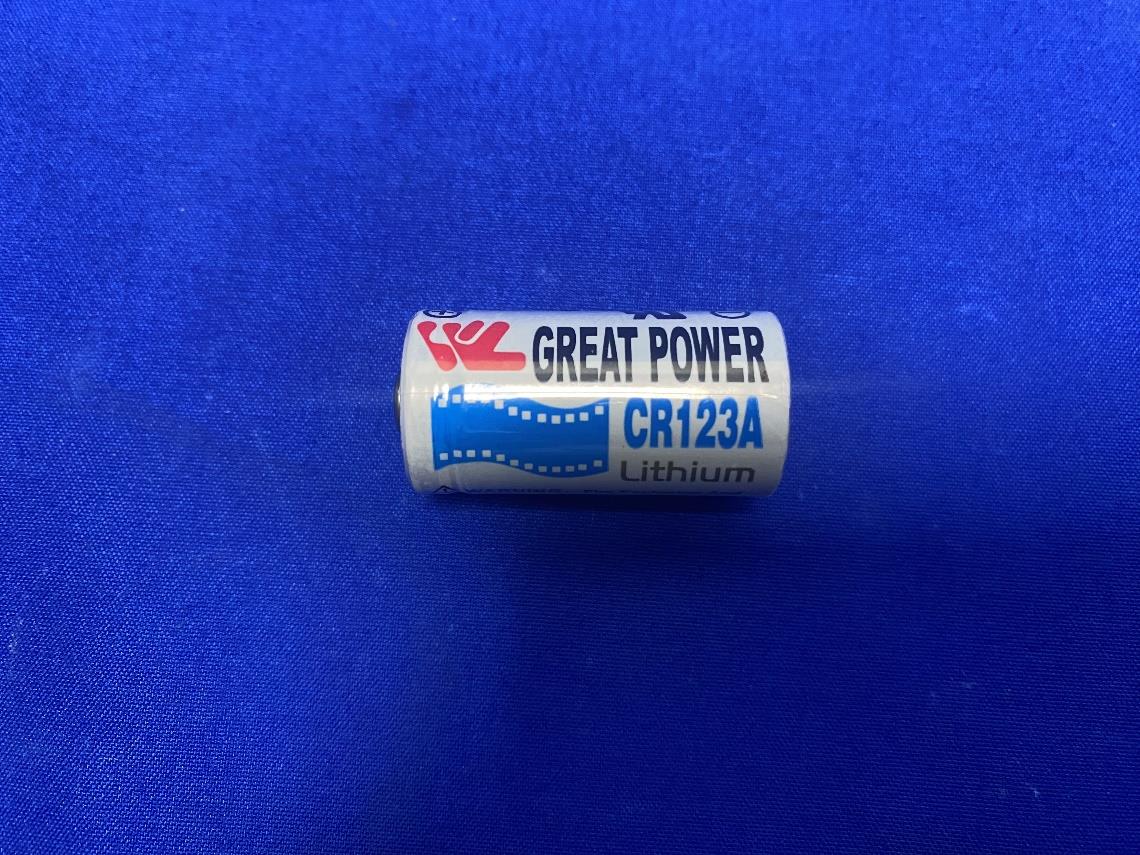

1 SSGB5R0-29 Quick Installation Guide Indoor battery Glass Break Sensor is a DECT/ULE protocol device and ability to communicate with ADT base, Glass break sound will trigger sensor event to Base and notify end user via APP, sensor status will change if trigger Tamper or battery voltage in Low battery & Critical low battery level. Specification Frequency 1.9 GHz Battery Type CR123A * 4 RF Transmission Range Outdoor: 100 Meters Operating Temperature 0 C to 55 C (32° - 104°F) Storage Temperature -10 C to 60 C (14° - 140°F) Battery Life 5 Years Dimensions (W x L x H) Diameter: 105mm*23mm Detect Range Glass break sound level has to reach 85dBc Distance: Max. 0.2M ~ 7M 2 Package Contents 3 Intallation 1. Unlock and remove mounting plate. 4 2. Insert CR123A Battery into Glass Break Sensor 3. The Glass Break Sensor of LED indicator will be blinking for 90sec while attempting to pair with the gateway or base station.. Operation 1. Indicator LED (Red, Green, Blue color) 2. Microphone hole 3. Tamper • When the battery is installed, the Blue LED will be blinking for 90 seconds which indicates paring process is on going. • If pairing succces, Blue LED will be solid on for 3 seconds.If paring fail, Red LED will be solid on for 3 seconds. • If paring fail, remove battery and insert againg to restart paring process. 1 2 3 5 FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. (Example - use only shielded interface cables when connecting to computer or peripheral devices). FCC Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Attestation Statements

FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 USA Date:September18,2023 Ref:AttestationStatementsPart2.911(d)(5)(i)Filing FCCID:P27-SSGB5R0 SercommCorporation(“theapplicant”)certifiesthattheequipmentforwhichauthorizationissoughtis not“covered”equipmentprohibitedfromreceivinganequipmentauthorizationpursuanttosection 2.903oftheFCCrules. Sincerely, ________________ Name:NickWu Title:Manager Email:[email protected] Date:September18,2023

Attestation Statements

FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 USA Date:September14,2023 Ref:AttestationStatementsPart2.911(d)(5)(ii)Filing FCCID:P27-SSGB5R0 SercommCorporation(“theapplicant”)certifiesthat,asofthedateofthefilingoftheapplication,the applicantisnotidentifiedontheCoveredListasanentityproducing“covered”equipment. Sincerely, ________________ Name:NickWu Title:Manager Email:[email protected] Date:September14,2023

Attestation Statements

U.S. Agent for Service of Process Attestation To the attention of Federal Communications Commission Authorization and Evaluation Division U.S. Agent Company Name: TianHeng Consulting, LLC FRN: 0033401258 Contact Name: Hualing Dong Street Address: 392 Andover Street, Wilmington, MA 01887, United States Telephone No: +1 (617) 997-4010 Email: [email protected] This letter is to confirm that we have accepted the responsibility to act as the designated U.S. Agent for service of process as required by §2.911(d)(7) on behalf of theApplicantnoted below. U.S. Agent Signature: Date:2023-09-18 Signed byHualing Dong Hualing Dong, President Applicant Companyname:SercommCorporation FRN:0015548027 FCCID:P27-SSGB5R0 ContactName:NickWu StreetAddress:8F,No.3-1,YuanQuSt,NanKang City/Province/Zip:Taipei,Taiwan,115 TelephoneNo:+886-2-2655-3988 Email:[email protected] ThisletteristoconfirmthattheApplicanthasdesignatedtheU.SAgentnotedaboveforthe purposeofacceptingserviceofprocessontheirbehalfasrequiredby§2.911(d)(7).The Applicantfurtheracknowledgesacceptancetomaintainanagentfornolessthanoneyearafter thegranteehasterminatedallmarketingandimportationortheconclusionofanyCommission- relatedproceedinginvolvingtheequipment. ApplicantSignature: Date:2023-09-18 SignedbyNickWu

Cover Letter(s)

ConfidentialityRequestLetter FederalCommunicationsCommission AuthorizationandEvaluationDivision FCCID:P27-SSGB5R0 PursuanttoSections0.457and0.459oftheCommission’sRules,weherebyrequest confidentialtreatmentofinformationaccompanyingthisapplicationasoutlined below: 1.BlockDiagram 2.Schematics 3.OperationalDescription Theabovematerialscontaintradesecretsandproprietaryinformationnotcustomarily releasedtothepublic.Thepublicdisclosureofthesemattersmightbeharmfultothe applicantandprovideunjustifiedbenefitstoitscompetitors. TheapplicantunderstandsthatpursuanttoRule0.457,disclosureofthisapplication andallaccompanyingdocumentationwillnotbemadebeforethedateoftheGrant forthisapplication. Sincerely, _________________ Name:NickWu Title:Manager Email:[email protected] Date:September18,2023

Cover Letter(s)

DeclarationofAuthorization We Name:SercommCorporation Address:8F,No.3-1,YuanQuSt.,NanKang,Taipei115,Taiwan,R.O.C. Declarethat: NameRepresentativeofagent:MarlinChen AgentCompanyname:MRTTechnology(Suzhou)Co.,Ltd Address:D8Building,YouxinIndustrialPark,No.2 Tian'edangRd.,WuzhongEconomicDevelopment Zone City:Suzhou Country:China isauthorizedtoapplyforCertificationofthefollowingproduct(s): Product:GlassBreakSensor FCCID:P27-SSGB5R0 ModelNo.:SSGB5R0-29xxxxx (the1stxshouldbe"blank"or"-";therestxcould be0to9,AtoZ,atoz,"blank"or"-",forthe marketingpurpose) Sincerely, Name:NickWu Title:Manager Email:[email protected] Date:September14,2023

Cover Letter(s)

FederalCommunicationsCommission AuthorizationandEvaluationDivision Date:September18,2023 ConfidentialityRequest FCCID:P27-SSGB5R0 PursuanttoSections0.457and0.459ofthecommission'srules,werequestshort-term confidentialtreatmentforthefollowinginformationuntil180daysaftertheGrantDateof EquipmentAuthorizationinordertoensuresensitivebusinessinformationremains confidentialuntiltheactualmarketingofthedevice: Externalphotos TestSetupphotos UserManual InternalPhotos Thankyou, Sincerelyyours, _________________ Name:NickWu Title:Manager Email:[email protected] Date:September18,2023

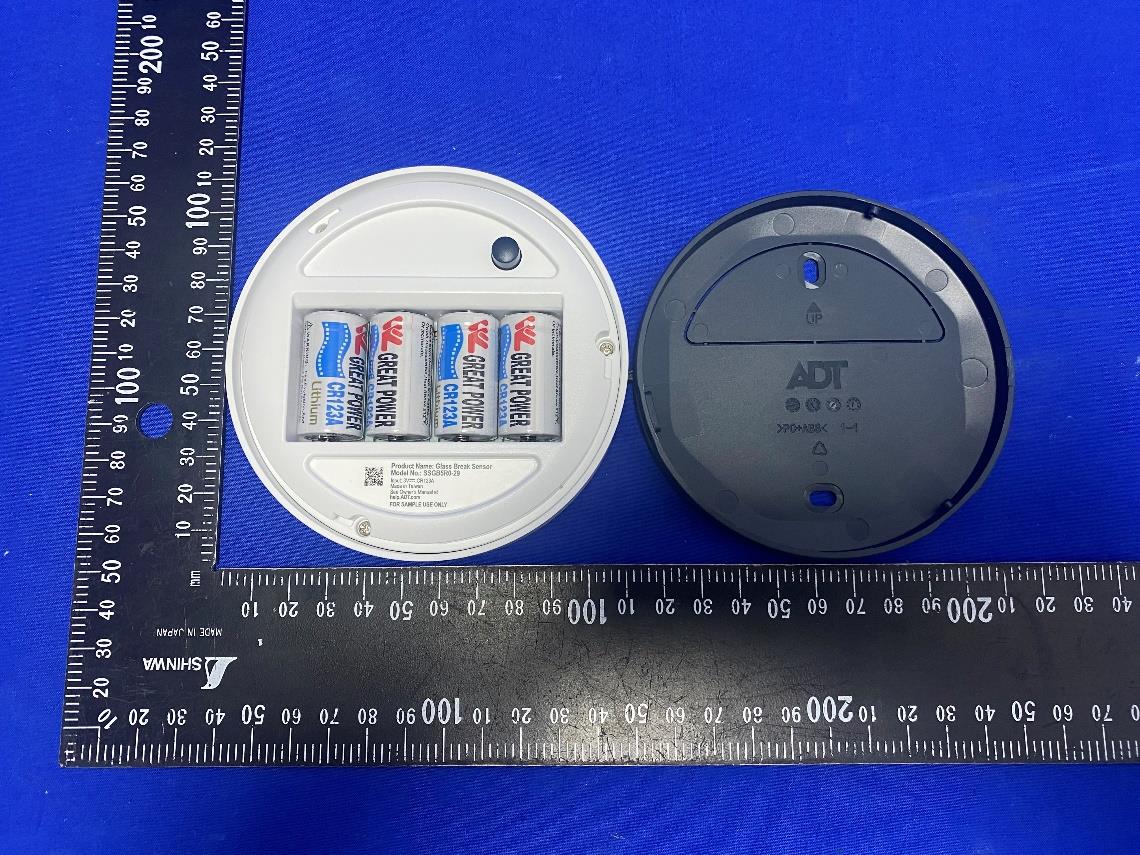

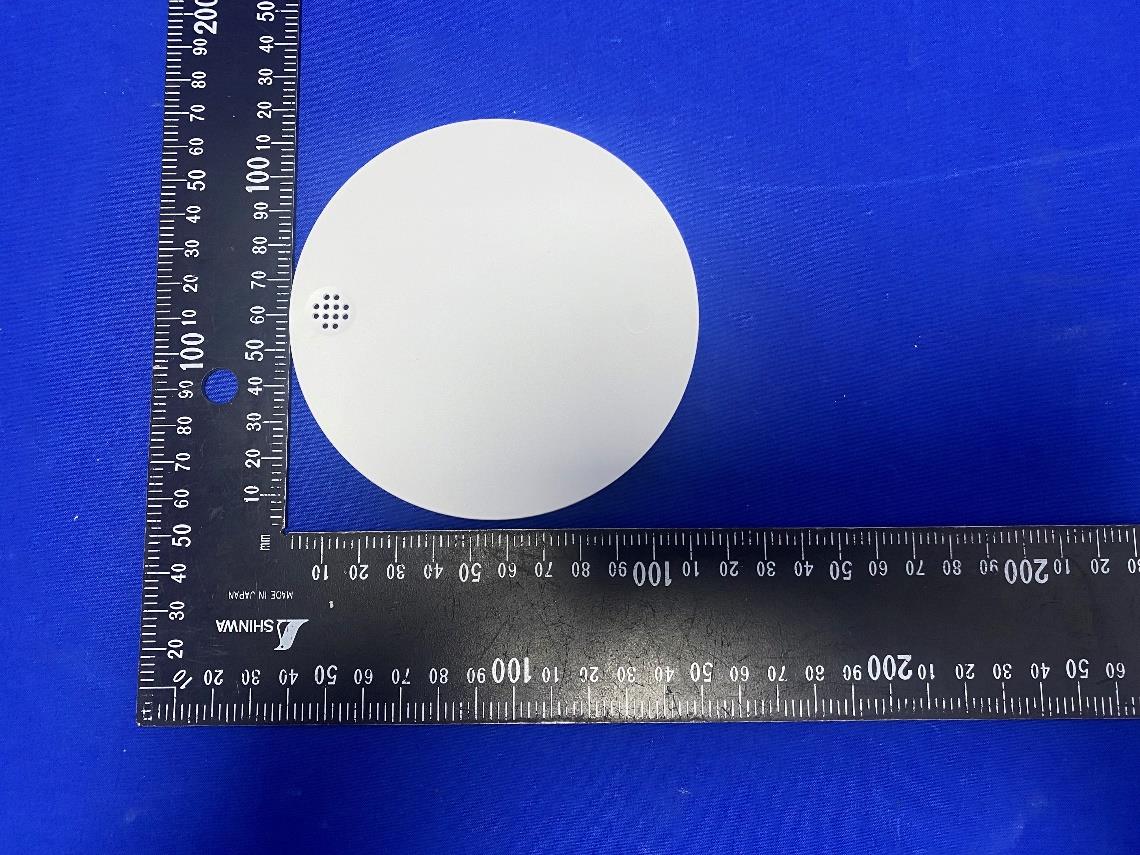

External Photos

Report No.: 2309RSU043-UE 1 of 4 EUT External Photograph (1)EUT Photo (2)EUT Photo Report No.: 2309RSU043-UE 2 of 4 (3)EUT Photo (4)EUT Photo Report No.: 2309RSU043-UE 3 of 4 (5)EUT Photo (6)EUT Photo Report No.: 2309RSU043-UE 4 of 4 (7)EUT Photo

Internal Photos

Report No.: 2309RSU043-UE 1 of 3 EUT Internal Photograph (1) EUT Photo (2) EUT Photo Report No.: 2309RSU043-UE 2 of 3 (3) EUT Photo (4) EUT Photo Report No.: 2309RSU043-UE 3 of 3 (5) EUT Photo (6) EUT Photo

RF Exposure Info

MRT Technology (Suzhou) Co., Ltd Report No.: 2309RSU043-U3 Phone: +86-512-66308358 Report Version: V01 Web: www.mrt-cert.com Issue Date: 2023-09-28 Template Version:0.0 1 of 11 RF Exposure Evaluation Declaration FCC ID: P27-SSGB5R0 Applicant: Sercomm Corporation Product: Glass Break Sensor Model No.: SSGB5R0-29xxxxx (the 1st x should be "blank" or "-"; the rest x could be 0 to 9, A to Z, a to z, "blank" or "-", for the marketing purpose) Brand Name: ADT FCC Classification: Unlicensed PCS Base Station (PUB) FCC Rule Part(s): FCC Part 2.1091 Evaluation Date: 2023-09-25 Result: Complies Reviewed By: Approved By: The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standards through the calibration of the equipment and evaluated measurement uncertainty herein. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 2309RSU043-U3 2 of 11 Revision History Report No. Version Description Issue Date Note 2309RSU043-U3 V01 Initial Report 2023-09-28 Valid Report No.: 2309RSU043-U3 3 of 11 CONTENTS Description Page 1. General Information ................................................................................................................................ 4 1.1. Applicant ........................................................................................................................................ 4 1.2. Manufacturer ................................................................................................................................. 4 1.3. Testing Facility ............................................................................................................................... 4 1.4. Product Information ....................................................................................................................... 5 1.5. Antenna Details ............................................................................................................................. 5 1.6. Applied Standards ......................................................................................................................... 5 2. RF Exposure Evaluation ......................................................................................................................... 6 2.1. Test Limits ..................................................................................................................................... 6 2.1. MPE Exemptions ........................................................................................................................... 7 2.2. Calculated Result ........................................................................................................................ 10 Report No.: 2309RSU043-U3 4 of 11 1. General Information 1.1. Applicant Sercomm Corporation 8F, No. 3-1, YuanQu St., NanKang, Taipei 115, Taiwan, R.O.C. 1.2. Manufacturer Sercomm Corporation 8F, No. 3-1, YuanQu St., NanKang, Taipei 115, Taiwan, R.O.C. 1.3. Testing Facility Test Site – MRT Suzhou Laboratory Laboratory Location (Suzhou - Wuzhong) D8 Building, No.2 Tian’edang Rd., Wuzhong Economic Development Zone, Suzhou, China Laboratory Location (Suzhou - SIP) 4b Building, Liando U Valley, No.200 Xingpu Rd., Shengpu Town, Suzhou Industrial Park, China Laboratory Accreditations A2LA: 3628.01 CNAS: L10551 FCC: CN1166 ISED: CN0001 VCCI: R-20025 G-20034 C-20020 T-20020 R-20141 G-20134 C-20103 T-20104 Test Site – MRT Shenzhen Laboratory Laboratory Location (Shenzhen) 1G, Building A, Junxiangda Building, Zhongshanyuan Road West, Nanshan District, Shenzhen, China Laboratory Accreditations A2LA: 3628.02 CNAS: L10551 FCC: CN1284 ISED: CN0105 Test Site – MRT Taiwan Laboratory Laboratory Location (Taiwan) No. 38, Fuxing 2nd Rd., Guishan Dist., Taoyuan City 333, Taiwan (R.O.C.) Laboratory Accreditations TAF: 3261 FCC: 291082, TW3261 ISED: TW3261 Report No.: 2309RSU043-U3 5 of 11 1.4. Product Information Product Name Glass Break Sensor Model No. SSGB5R0-29xxxxx (the 1st x should be "blank" or "-"; the rest x could be 0 to 9, A to Z, a to z, "blank" or "-", for the marketing purpose) Brand Name. ADT Radio Specification DECT Antenna Information Refer to section 1.5 Working Voltage Battery CR123A (3.0Vdc) Operating Temperature 0~55°C Accessories Battery Model: CR123A Output: 1500mAh/3.0V Notes: 1. The information of EUT was provided by the manufacturer, and the accuracy of the information shall be the responsibility of the manufacturer. 2. The difference of models just marketing requirement, all of hardware and software are the same. We chose the Model SSGB5R0-29 to do testing. 1.5. Antenna Details Antenna Type Frequency Band (MHz) T X Paths Max Antenna Gain (dBi) PIFA 1920 ~ 1930 1 3.6 Note: The antenna gain is from antenna data sheet provided by the manufacturer. 1.6. Device Classification According to the user manual, this device is classified as a Mobile Device. So, the RF exposure evaluation requirements of § 2.1091 for mobile device exposure conditions subject to MPE limits. 1.7. Applied Standards According to the specifications of the manufacturer, the EUT must comply with the requirements of the following standards: ⚫ FCC Part 2.1091 & KDB 447498 D04 Interim General RF Exposure Guidance v01 Report No.: 2309RSU043-U3 6 of 11 2. RF Exposure Evaluation 2.1. Test Limits According to FCC §1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in §1.1307(b) Limits For Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 0.3-3.0 614 1.63 *(100) ≤6 3.0-30 1842/f 4.89/f *(900/f 2 ) <6 30-300 61.4 0.163 1.0 <6 300-1,500 -- -- f/300 <6 1,500-100,000 -- -- 5 <6 (B) Lim…

Text truncated - open the document above for the full version.

Test Report

September. 13, 2023 ADT / SSGB5R0-29 Internal Antenna Data Sheet Confidential & Proprietary 2 Outline •Antenna Infomation •Antenna Structure & Placement •Return Loss •Radiation Pattern •Peak Gain & Efficiency Confidential & Proprietary 3 Antenna Infomation IteamDescription Model numberSSGB5R0-29_Antenna Part number617211ZL ApplicationDECT Antenna TypePIFA ManufacturerSerComm Corporation Address8F, No. 3-1, YuanQu St. Taipei, Taiwan 115 R.O.C. Operating Band1920MHz ~ 1930MHz Return Loss (dB)Used for device > 10dB Efficiency (%)> 65% Impedance (ohm)50Ω Cable TypeΦ1.13mm ConnectorI-pex Confidential & Proprietary 4 Antenna Structure & Placement Ant No.Operating BandTypeMaterial FeedingDimension DECT Ant1920MHz ~ 1930MHzPIFAMetalCable55 x 8 x 0.2 mm 3 Confidential & Proprietary 5 Return Loss Confidential & Proprietary 6 Radiation Pattern X-Y plane Z-X plane Z-Y plane Y X Z Antenna Confidential & Proprietary 7 Radiation Pattern •ETS AMS-8500 antenna measurement system •Interior dimensions : 7.32(L)×3.66(W)×3.66(H)m 3 •Operating band : 700 MHz –10 GHz •Support passive test & active test •Provide graphic data display Confidential & Proprietary 8 Peak Gain & Efficiency DECT Antenna Performance Frequency (MHz) Efficiency (%) Peak Gain (dBi) 1920 653.4 1925 663.5 1930 663.6 Confidential & Proprietary 9 Summary •Antenna Performance is very good.

Test Report

MRT Technology (Suzhou) Co., Ltd Report No.: 2309RSU043-U1 Phone: +86-512-66308358 Report Version: V01 Web: www.mrt-cert.com Issue Date: 2023-09-28 Template Version:0.0 1 of 54 RF MEASUREMENT REPORT FCC ID: P27-SSGB5R0 Applicant: Sercomm Corporation Product: Glass Break Sensor Model No.: SSGB5R0-29xxxxx (the 1st x should be "blank" or "-"; the rest x could be 0 to 9, A to Z, a to z, "blank" or "-", for the marketing purpose) Brand Name: ADT FCC Classification: Unlicensed PCS Base Station FCC Rule Part(s): FCC Part 15, Subpart D Result: Complies Received Date 2023-09-15 Test Date: 2023-09-15 ~ 2023-09-22 Reviewed By: Approved By: The test results relate only to the samples tested. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.17. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 2309RSU043-U1 2 of 54 Revision History Report No. Version Description Issue Date Note 2309RSU043-U1 V01 Initial Report 2023-09-28 Valid Report No.: 2309RSU043-U1 3 of 54 CONTENTS Description Page 1. General Information .................................................................................................................................. 6 1.1. Applicant ........................................................................................................................................ 6 1.2. Manufacturer ................................................................................................................................. 6 1.3. Testing Facility ............................................................................................................................... 6 1.4. Product Information ....................................................................................................................... 7 1.5. Radio Specification ........................................................................................................................ 8 1.6. Working Frequencies .................................................................................................................... 8 1.7. Description of Available Antennas ................................................................................................. 8 2. Test Configuration .................................................................................................................................... 9 2.1. Test Mode...................................................................................................................................... 9 2.2. Test System Connection Diagram ................................................................................................ 9 2.3. Test System Details ...................................................................................................................... 9 2.4. Test Environment Condition .......................................................................................................... 9 2.5. Labeling Requirements ............................................................................................................... 10 2.6. Automatic Discontinuation of Transmission ................................................................................ 10 3. Antenna Requirements ........................................................................................................................... 11 4. Measuring Instrument ............................................................................................................................12 5. Measurement Uncertainty ......................................................................................................................13 6. Test Result ...............................................................................................................................................14 6.1. Summary ..................................................................................................................................... 14 6.2. AC Power Line Conducted Measurement Emissions ................................................................. 15 6.2.1. Test Limit ..................................................................................................................................... 15 6.2.2. Test Setup.................................................................................................................................... 15 6.2.3. Test Result ................................................................................................................................... 16 6.3. Emission Bandwidth Measurement ............................................................................................. 17 6.3.1. Test Limit ..................................................................................................................................... 17 6.3.2. Test Procedure used ................................................................................................................... 17 6.3.3. Test Setup.................................................................................................................................... 17 6.3.4. Test Result ................................................................................................................................... 18 6.4. Peak Power Output ..................................................................................................................... 19 6.4.1. Test Limit ..................................................................................................................................... 19 6.4.2. Test Procedure Used ...........................................................................................…

Text truncated - open the document above for the full version.

Test Setup Photos

Report No.: 2309RSU043-UT RF Test Setup Photo Description: Radiated Spurious Emission Test Setup for Below 30MHz Description: Radiated Spurious Emission Test Setup for Below 1GHz Report No.: 2309RSU043-UT Description: Radiated Spurious Emission Test Setup for Above 1GHz Description: Conducted Test Setup

Contact Information

Applicant

Nick Wu(Engineer)
[email protected]886-2-2655-3988Fax: 886-2-2655-3965

Technical Contact

MRT Technology (Suzhou) Co., LtdRobin Wu
[email protected]86-512-66308358

D8 Building, Youxin Industrial Park, No.2 Tian'eda · Suzhou · China

Test Firm

MRT Technology (Suzhou) Co., Ltd.Mr. Marlin Chen
[email protected]8651266308358

Technical Specifications

#Rule PartsFrequency RangePower Output
115D1.92 GHz - 1.93 GHz107.20 mW
Confidentiality
Long Term
Grant Notes
Power Output listed is conducted. The device has been certified for mobile use and any co-location must be done through the use of FCC multi-transmitter product procedures. End-users and installers must be provided with antenna installation instructions and transmitteroperating conditions for satisfying RF exposure compliance.
