P27-WAP121Wireless-N Access Point with Power over Ethernet

5(9,(:'5$)79HUVLRQ{&,6&2&21),'(17,$// &LVFR6PDOO%XVLQHVV :$ 3 :$3 $'0,1,675$7,21 *8,'( Cisco Small Business WAP121 and WAP321 Wireless-N Access Point with PoE2 REVIEW DRAFT Version 2—CISCO CONFIDENTIAL &RQWHQWV &KDSWHU*HWWLQJ6WDUWHG Starting the Web-based AP Configuration Utility7 Launching the Utility8 Logging In8 Logging Out8 Using the Access Point Setup Wizard9 Getting Started10 Window Navigation11 Application Header11 Navigation Window11 Management Buttons12 &KDSWHU9LHZLQJ6WDWLVWLFV System Summary14 Network Interfaces15 Traffic Statistics16 WorkGroup Bridge Transmit/Receive17 Associated Clients18 TSPEC Client Associations19 Rogue AP Detection21 TSPEC Status and Statistics25 TSPEC AP Statistics26 RADIO Statistics27 Email Alert Status28 Log29 &KDSWHU/$16HWWLQJV Port Settings30 LAN31 Time Settings33 Cisco Small Business WAP121 and WAP321 Wireless-N Access Point with PoE3 REVIEW DRAFT Version 2—CISCO CONFIDENTIAL &RQWHQWV &KDSWHU:LUHOHVV6HWWLQJV Radio36 Networks43 SSID Naming Conventions43 VLAN IDs44 Configuring VAPs44 Configuring Security Settings47 None (Plain-text)47 Static WEP47 Dynamic WEP50 WPA Personal51 WPA Enterprise53 Scheduler55 Adding Scheduler Profiles56 Configuring Scheduler Rules57 Scheduler Association58 Bandwidth Utilization58 MAC Filtering59 Configuring a MAC Filter List Locally on the AP59 Configuring MAC Authentication on the RADIUS Server60 WDS Bridge60 Work Group Bridge62 QoS65 WPS Setup67 WPS Overview68 Usage Scenarios68 WPS Roles69 Enabling and disabling WPS on a VAP69 External and Internal Registration70 Client Enrollment70 Optional Use of Internal Registrar71 Lockdown Capability71 VAP Configuration Changes72 External Registration72 Cisco Small Business WAP121 and WAP321 Wireless-N Access Point with PoE4 REVIEW DRAFT Version 2—CISCO CONFIDENTIAL &RQWHQWV Exclusive Operation of WPS Transactions72 Backward Compatibility with WPS Version 1.073 Configuring WPS Settings73 WPS Process74 Enrolling a Client Using the PIN Method74 Enrolling a Client Using the Push Button Method75 Viewing Instance Summary Information76 &KDSWHU6103Y SNMP Overview77 General SNMP Settings78 SNMP Views80 SNMP Groups81 SNMP Users83 SNMP Targets84 &KDSWHU$GPLQLVWUDWLRQ System Settings86 User Accounts87 Adding a User87 Changing a User Password88 Firmware Upgrade89 TFTP Upgrade89 HTTP Upgrade90 Packet Capture90 Packet Capture Configuration91 Local Packet Capture92 Remote Packet Capture93 Packet Capture File Download96 Log Settings97 Configuring the Persistent Log97 Remote Log Server98 Cisco Small Business WAP121 and WAP321 Wireless-N Access Point with PoE5 REVIEW DRAFT Version 2—CISCO CONFIDENTIAL &RQWHQWV Email Alert99 Discovery—Bonjour101 HTTP/HTTPS Service102 Configuring HTTP and HTTPS Services102 Managing SSL Certificates103 Telnet/SSH Service104 Management Access Control104 Download/Backup Configuration File105 Backing Up a Configuration File106 Downloading a Configuration File107 Configuration Files Properties107 Copying and Saving the Configuration108 Rebooting109 &KDSWHU6\VWHP6HFXULW\ RADIUS Server110 802.1X Supplicant112 Password Complexity113 WPA-PSK Complexity114 &KDSWHU&DSWLYH3RUWDO Configuring Global Captive Portal Settings117 Configuring Instances118 Configuring VAPs120 Uploading Binary Files121 Customizing the Captive Portal Web Pages122 Web Customization Preview124 Local Groups125 Local Users125 Local User/Group Associations127 Cisco Small Business WAP121 and WAP321 Wireless-N Access Point with PoE6 REVIEW DRAFT Version 2—CISCO CONFIDENTIAL &RQWHQWV Authenticated Clients127 Failed Authentication Clients128 &KDSWHU&OLHQW4XDOLW\RI6HUYLFH ACLs130 IPv4 and IPv6 ACLs130 MAC ACLs131 Configuring ACLs131 Class Map137 Adding a Class Map138 Defining a Class Map138 Policy Map142 Client QoS Association144 Client QoS Status145 2 Cisco Small Business WAP121 and WAP321 Wireless-N Access Point with PoE7 REVIEW DRAFT Version 2—CISCO CONFIDENTIAL *HWWLQJ6WDUWHG This chapter provides an introduction to the web-based access point (AP) configuration utility, and includes the following topics: •6WDUWLQJWKH:HEEDVHG$3&RQILJXUDWLRQ8WLOLW\ •8VLQJWKH$FFHVV3RLQW6HWXS:L]DUG •*HWWLQJ6WDUWHG •:LQGRZ1DYLJDWLRQ 6WDUWLQJWKH:HEEDVHG$3&RQILJXUDWLRQ8WLOLW\ This section describes how to navigate the AP configuration utility. Browsers have the following restrictions: •If you are using Internet Explorer 6, you cannot directly use an IPv6 address to access the AP. You can, however, use the DNS (Domain Name System) server to create a domain name that contains the IPv6 address, and then use that domain name in the address bar in place of the IPv6 address. •To use Internet Explorer 8, open a browser window and configure the following settings: Click 7RROV!,QWHUQHW2SWLRQV and then select the 6HFXULW\ tab. Select /RFDO,QWUDQHW and click 6LWHV. Click $GYDQFHG and then click $GG. Add the intranet address of the AP (http://<ip-address>) to the local intranet zone. The IP address can also be specified as the subnet IP address, so that all addresses in the subnet are added to the local intranet zone. •If you have multiple IPv6 interfaces on your management station, use the IPv6 global address instead of IPv6 link local address to access the AP from your browser. *HWWLQJ6WDUWHG Starting the Web-based AP Configuration Utility Cisco Small Business WAP121 and WAP321 Wireless-N Access Point with PoE8  REVIEW DRAFT Version 2—CISCO CONFIDENTIAL /DXQFKLQJWKH8WLOLW\ To open the web-based AP configuration utility: 67(3 Open a Web browser. 67(3 Enter the IP address of the AP you are configuring in the address bar on the browser, and then press Enter. The Login page opens. /RJJLQJ,Q To log in to the web-based AP configuration utility: 67(3 Enter the user name and password. The factory default user name is FLVFR and the default password is FLVFR. 67(3 If this is the first time that you logged on with the default user name (FLVFR…

Text truncated - open the document above for the full version.

:LUHOHVV6HWWLQJV WPS Setup Cisco Small Business WAP121 and WAP321 Wireless-N Access Point with PoE71  REVIEW DRAFT Version 2—CISCO CONFIDENTIAL PIN Control A client may also enroll with a registrar by using a PIN. For example, the AP administrator may start an enrollment transaction for a particular VAP by entering the PIN of a client. When the client detects the WPS-enabled device, its user can then supply its PIN to the AP to continue the enrollment process. After the WPS protocol has completed, the client securely joins the network. The client can also initiate this process. As with the PBC method, if the AP begins the enrollment transaction and no client attempts to enroll after 120 seconds, the AP terminates the pending transaction. 2SWLRQDO8VHRI,QWHUQDO5HJLVWUDU Although the AP supports an internal registrar for WPS, its use is optional. After an external registrar has configured the AP, the AP acts as a proxy for that external registrar, regardless of whether the AP’s internal registrar is enabled (it is enabled by default). /RFNGRZQ&DSDELOLW\ Each AP stores a WPS-compatible device PIN in nonvolatile RAM. WPS requires this PIN if an administrator wants to allow an unconfigured AP (that is, one with only factory defaults, including WPS being enabled on a VAP) to join a network. In this "out-of-box" scenario, the administrator obtains the PIN value from the UI of the AP. The administrator may wish to change the PIN if network integrity has been compromised in some way. The AP provides a method for generating a new PIN and storing this value in NVRAM. In the event that the value in NVRAM is corrupted, erased, or missing, a new PIN is generated by the AP and stored in NVRAM. The PIN method of enrollment is potentially vulnerable by way of "brute force" attacks. A network intruder could, in theory, try to pose as an external registrar on the wireless LAN and attempt to derive the AP's PIN value by exhaustively applying WPS-compliant PINs. To address this vulnerability, in the event that a registrar fails to supply a correct PIN in three attempts within 60 seconds, the AP prohibits any further attempts by an external registrar to register the AP on the WPS-enabled VAP for 60 seconds. However, wireless client stations may enroll with the AP's internal registrar, if enabled, during this “lockdown” period. The AP also continues to provide proxy services for enrollment requests to external registrars. The AP adds an additional security mechanism for protecting its device PIN. Once the AP has completed registration with an external registrar, and the resulting WPS transaction has concluded, the device PIN is automatically regenerated. :LUHOHVV6HWWLQJV WPS Setup Cisco Small Business WAP121 and WAP321 Wireless-N Access Point with PoE72  REVIEW DRAFT Version 2—CISCO CONFIDENTIAL 9$3&RQILJXUDWLRQ&KDQJHV The WPS protocol on a WPS-enabled VAP may configure the following parameters: •Network SSID •Key management options (WPA-PSK, or WPA-PSK and WPA2-PSK) •Cryptography options (CCMP/AES, or TKIP and CCMP/AES) •Network (public shared) key If a VAP is enabled for WPS, these configuration parameters are subject to change, and are persistent between reboots of the AP. ([WHUQDO5HJLVWUDWLRQ The AP supports the registration with WPS external registrars (ER) on the wired and wireless LAN. On the WLAN, external registrars advertise their capabilities within WPS-specific information elements (IEs) of their beacon frames; on the wired LAN, external registrars announce their presence via UPnP. WPS v2.0 does not require registration with an ER to be done explicitly through the AP’s user interface. The AP administrator can register the AP with an ER by: 1. Initiating the registration process on the AP by entering the ER’s PIN on the AP. 2. Registering the AP by entering the AP's PIN on the user interface of the ER. 127(The registration process can also configure the AP as specified in 9$3 &RQILJXUDWLRQ&KDQJHVSDJH if the AP has declared within the WPS-specific IEs of its beacon frames or UPnP messages that it requires such configuration. The AP is capable of serving as a proxy for up to three external registrars simultaneously. ([FOXVLYH2SHUDWLRQRI:367UDQVDFWLRQV Any one VAP on the AP can be enabled for WPS. At most, one WPS transaction (for example, enrollment and association of an 802.11 client) can be in progress at a time on the AP. The AP administrator can terminate the transaction in progress from the web-based AP configuration utility. The configuration of the VAP, however, should not be changed during the transaction; nor should the VAP be changed during the authentication process. This restriction is recommended but not enforced on the AP. :LUHOHVV6HWWLQJV WPS Setup Cisco Small Business WAP121 and WAP321 Wireless-N Access Point with PoE73  REVIEW DRAFT Version 2—CISCO CONFIDENTIAL %DFNZDUG&RPSDWLELOLW\ZLWK:369HUVLRQ Although the WAP121 supports WPS version 2.0, the AP interoperates with enrollees and registrars that are certified by the Wi-Fi Alliance to conform to version 1.0 of the WPS protocol. &RQILJXULQJ:366HWWLQJV You can use the WPS Setup page to enable the AP as a WPS-capable device and configure basic settings. When you are ready to use the feature to enroll a new device or add the AP to a WPS-enabled network, use the WPS Process page. ! &$87,21For security reasons, it is recommended, but not required, that you use an HTTPS connection to the web-based AP configuration utility when configuring WPS. To configure the AP as a WPS-capable device: 67(3 Click :LUHOHVV > :366HWXS in the navigation window. The WPS Setup page shows global parameters and status, and parameters and status of the WPS instance. An instance is an implementation of WPS that is associated with a VAP on the network. The AP supports one instance only. 67(3 Configure the global parameters: •6XSSRUWHG:369HUVLRQ—The WPS protocol version that the AP supports. •:36'HYLFH1DPH—A default device na…

Text truncated - open the document above for the full version.

&OLHQW4XDOLW\RI6HUYLFH Class Map Cisco Small Business WAP121 and WAP321 Wireless-N Access Point with PoE141  REVIEW DRAFT Version 2—CISCO CONFIDENTIAL -6HOHFWIURP/LVW—Matches the Ethertype in the datagram header with the selected protocol types: appletalk, arp, ipv4, ipv6, ipx, netbios, pppoe. -0DWFKWR9DOXH—Matches the Ethertype in the datagram header with a custom protocol identifier that you specify. The value can be a four-digit hexadecimal number in the range of 0600–FFFF. •&ODVVRI6HUYLFH—A class of service 802.1p user priority value to be matched for the packets. The valid range is 0–7. •6RXUFH0$&$GGUHVV—A source MAC address to compare against an Ethernet frame. •6RXUFH0$&0DVN—The source MAC address mask specifying which bits in the destination MAC to compare against an Ethernet frame. An f indicates that the address bit is significant, and a 0 indicates that the address bit is to be ignored. A MAC mask of ff:ff:ff:ff:ff:ff matches a single MAC address. •'HVWLQDWLRQ0$&$GGUHVV—The destination MAC address to compare against an Ethernet frame. •'HVWLQDWLRQ0$&0DVN—The destination MAC address mask specifying which bits in the destination MAC to compare against an Ethernet frame. An f indicates that the address bit is significant, and a 0 indicates that the address bit is to be ignored. A MAC mask of ff:ff:ff:ff:ff:ff matches a single MAC address. •9/$1,'—A VLAN ID to be matched for packets. The VLAN ID range is 0–4095. The following Service Type fields display for IPv4 only. You can specify one type of service to use in matching packets to class criteria. •,3'6&3—A differentiated services code point (DSCP) value to use as a match criteria: -6HOHFWIURP/LVW—A list of DSCP types. -0DWFKWR9DOXH—A DSCP value that you specify, from 0–63. •,33UHFHGHQFH (IPv4 only)—Matches the packet's IP Precedence value to the class criteria IP Precedence value. The IP Precedence range is 0–7. •,3726%LWV (IPv4 only)—Uses the packet's Type of Service bits in the IP header as match criteria. &OLHQW4XDOLW\RI6HUYLFH Policy Map Cisco Small Business WAP121 and WAP321 Wireless-N Access Point with PoE142  REVIEW DRAFT Version 2—CISCO CONFIDENTIAL The TOS bit value ranges between (00–FF). The high-order three bits represent the IP precedence value. The high-order six bits represent the IP Differentiated Services Code Point (DSCP) value. 67(3 Click 6DYH. The changes are saved to the Running Configuration and to the Startup Configuration. 127(To delete a class map, select it in the &ODVV0DS1DPH list and click 'HOHWH. The class map cannot be deleted if it is already attached to a policy. 3ROLF\0DS Packets are classified and processed based on defined criteria. The classification criteria is defined by a class on the Class Map page. The processing is defined by a policy's attributes on the Policy Map page. Policy attributes may be defined on a per-class instance basis and determine how traffic that matches the class criteria is handled. The AP supports up to 50 Policy Maps. A Policy Map can contain up to 10 Class Maps. To add and configure a policy map: 67(3 Click &OLHQW4R6 > 3ROLF\0DSin the navigation window. 67(3 Enter a 3ROLF\0DS1DPH and click $GG3ROLF\0DS. The page redisplays with additional fields for configuring the policy map. 67(3 In the Policy Class Definition area, ensure the newly created policy map displays in the3ROLF\0DS1DPH list. 67(3 In the &ODVV0DS1DPH list, select the class map that this policy will apply to. 67(3 Configure the parameters: •3ROLFH6LPSOH—Establishes the traffic policing style for the class. The simple form of the policing style uses a single data rate and burst size, resulting in two outcomes: conform and nonconform. If you select this field, configure one of the following fields: -&RPPLWWHG5DWH—The committed rate, in Kbps, to which traffic must conform. The range is 1-4294967295 Kbps. &OLHQW4XDOLW\RI6HUYLFH Policy Map Cisco Small Business WAP121 and WAP321 Wireless-N Access Point with PoE143  REVIEW DRAFT Version 2—CISCO CONFIDENTIAL -&RPPLWWHG%XUVW—The committed burst size, in bytes, to which traffic must conform. The range is 1-64000 bytes. •6HQG—Specifies that all packets for the associated traffic stream are to be forwarded if the class map criteria is met. •'URS—Specifies that all packets for the associated traffic stream are to be dropped if the class map criteria is met. •0DUN&ODVVRI6HUYLFH—Marks all packets for the associated traffic stream with the specified class of service value in the priority field of the 802.1p header. If the packet does not already contain this header, one is inserted. The CoS value is an integer from 0 – 7. •0DUN,3'6&3—Marks all packets for the associated traffic stream with the IP DSCP value you select from the list or specify. -6HOHFWIURP/LVW—A list of DSCP types. -0DWFKWR9DOXH—A DSCP value that you specify (0 – 63). •0DUN,33UHFHGHQFH—Marks all packets for the associated traffic stream with the specified IP precedence value. The IP precedence value is an integer from 0–7. •'LVDVVRFLDWH&ODVV0DS—Removes the class selected in the Class Map Name list from the policy selected in the Policy Map Name list. •0HPEHU&ODVVHV—Lists all DiffServ classes currently defined as members of the selected policy. If no class is associated with the policy, the field is empty. 67(3 Click 6DYH. The changes are saved to the Running Configuration and to the Startup Configuration. 127(To delete a policy map, select it in the 3ROLF\0DS1DPH list and click 'HOHWH. &OLHQW4XDOLW\RI6HUYLFH Client QoS Association Cisco Small Business WAP121 and WAP321 Wireless-N Access Point with PoE144  REVIEW DRAFT Version 2—CISCO CONFIDENTIAL &OLHQW4R6$VVRFLDWLRQ The Client QoS Association page provides additional control over certain QoS aspects of wireless clients that connect to the network, such as the amount of bandwidth an individual client is allowed to send and receive. To control general categories …

Text truncated - open the document above for the full version.

19 Regulatory Compliance and Safety Information for the Cisco Small Business Wired and Wireless Routers, and Access Points (EMC 78-19314-01 Translated Safety Warnings ¡Advertencia! La instalación del equipo debe cumplir con las normativas de electricidad locales y nacionales. Varning! Installation av utrustningen måste ske i enlighet med gällande elinstallationsföreskrifter. 20 Regulatory Compliance and Safety Information for the Cisco Small Business Wired and Wireless Routers, and Access Points (EMC 78-19314-01 Translated Safety Warnings Statement 1075—Hazardous Voltage or Energy Present on DC Power Terminals WarningHazardous voltage or energy may be present on DC power terminals. Always replace cover when terminals are not in service. Be sure uninsulated conductors are not accessible when cover is in place. Waarschuwing Op DC-aansluitingspunten kunnen zich gevaarlijke voltages of energieën voordoen. Plaats altijd de afsluiting wanneer de aansluitingspunten niet worden gebruikt Zorg ervoor dat blootliggende contactpunten niet toegankelijk zijn wanneer de afsluiting is geplaatst. Va ro i t u s Tasavirtaliittimissä saattaa olla huomattava jännite tai teho. Sulje suojus aina, kun liittimet eivät ole käytössä. Suojuksen ollessa suljettuna varmista, että kohde on suojattu eristämättömiltä johtimilta. Attention Le voltage ou l'énergie électrique des terminaux à courant continu peuvent être dangereux. Veillez à toujours replacer le couvercle lors les terminaux ne sont pas en service. Assurez-vous que les conducteurs non isolés ne sont pas accessibles lorsque le couvercle est en place. Warnung In mit Gleichstrom betriebenen Terminals kann es zu gefählicher Spannung kommen. Die Terminals müssen abgedeckt werden, wenn sie nicht in Betrieb sind. Stellen Sie bei Benutzung der Abdeckung sicher, dass alle nicht isolierten, stromführenden Kabel abgedeckt sind. Avvertenza I terminali di alimentazione DC potrebbero contenere voltaggio o energia pericolosi. Accertarsi di sostituire il coperchio ogni qualvolta i terminali non sono operativi. Accertarsi che i conduttori scoperti non siano accessibili quando il coperchio è inserito. Advarsel Det kan forekomme farlig spenning eller energi i likestrømsterminaler. Sett alltid dekselet på plass når terminalene ikke er i bruk. Kontroller at uisolerte ledere ikke er tilgjengelige når dekselet er på plass. Aviso Os terminais de corrente contínua podem fornecer tensão ou energia perigosa. Volte a colocar a tampa, sempre que os terminais não estiverem a ser utilizados. Certifique-se de que os condutores sem isolamento não estão acessíveis, quando a tampa estiver colocada. ¡Advertencia! Puede haber energía o voltaje peligrosos en los terminales eléctricos de CC. Reemplace siempre la cubierta cuando no estén utilizándose los terminales. Asegúrese de que no haya acceso a conductores descubiertos cuando la cubierta esté colocada. Varning! Farlig spänning eller skadlig energi kan finnas i likströmsterminalerna. Sätt alltid tillbaka höljet när terminalerna inte används. Försäkra att inga oisolerade ledare kan nås när höljet sitter på plats. 21 Regulatory Compliance and Safety Information for the Cisco Small Business Wired and Wireless Routers, and Access Points (EMC 78-19314-01 Translated Safety Warnings Statement 248—Unit Mounting Warning WarningThis unit is intended to be mounted on a wall. Please read the wall mounting instructions carefully before beginning installation. Failure to use the correct hardware or to follow the correct procedures could result in a hazardous situation to people and damage to the system. Waarschuwing Deze eenheid dient aan een wand te worden bevestigd. Lees voordat u met de installatie begint, de instructies voor wandmontage aandachtig door. Het niet gebruiken van de juiste apparatuur of het niet volgen van de juiste procedures kan leiden tot gevaarlijke situaties of beschadiging van het systeem. Va ro i t u s Tämä laite on tarkoitettu seinälle asennettavaksi. Lue seinäasennusohjeet huolellisesti ennen asennuksen aloittamista. Väärien työkalujen käyttäminen tai ohjeiden noudattamatta jättäminen voi aiheuttaa henkilövahinkoja ja vioittaa laitetta. Attention Cette unité est conçue pour être montée sur un mur. Veuillez lire attentivement les instructions de montage avant de commencer l'installation. L'utilisation d'un matériel incorrect ou l'application inappropriée des procédures peut être à l'origine d'accidents et endommager le système. Warnung Diese Einheit ist für die Montage an einer Wand bestimmt. Lesen Sie die Montageanweisungen sorgfältig durch, bevor Sie mit der Installation beginnen. Nichtverwenden der korrekten Hardware oder Nichtbefolgen der korrekten Vorgehensweise stellt eine potentielle Gefahrenquelle dar und könnte das System beschädigen. Avvertenza L’unità deve essere montata a parete. Leggere attentamente le istruzioni di montaggio a parete prima di procedere all’installazione. L’impiego di utensili non adeguati o di procedure non corrette può comportare un rischio per le persone e per il sistema stesso. 22 Regulatory Compliance and Safety Information for the Cisco Small Business Wired and Wireless Routers, and Access Points (EMC 78-19314-01 European Directives European Directives Non-Radio Models (Not Fitted with Antenna or Antenna Connectors) The following CE mark is affixed to the equipment and packaging: Declaration of Conformity with Regard to the Directives 2006/95/EC and 2004/108/EC This equipment complies with the essential requirements and other provisions of Directives 2006/95/EC and 2004/108/EC. For more information, please refer to the Declaration of Conformity. Radio Models (Models Fitted with Antenna or Antenna Connectors) The following CE mark is affixed to the equipment and packaging: Advarsel Denne enheten er beregnet på veggmontering. Les instruksjonene om veggmontering nøye før du begynner installeringen. Hvis du ikke bruker riktig maskinutstyr eller følger de korrekte prosedyrer, kan det medføre risiko for…

Text truncated - open the document above for the full version.

SerComm Corporation磊 Taipei Office: 8F, No.3-1, YuanQu St., NanKang, Taipei 115, Taiwan, R.O.C. TEL: 886-2-2655-3988 FAX: 886-2-2655-3966 Chu Nan Office: 3F, No. 81, YuYi Rd., Chu-Nan, Miao-Li 350, Taiwan, R.O.C. TEL: 886-37-585-899 FAX: 886-37-585-000 Date:November 30, 2011 Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: FCC ID: P27-WAP121 Only 1-11 channels can be operated in USA, other channels will be disabled by firmware. Channel selection is not available.

SerComm Corporation中磊電子股份有限公司 Taipei Office: 8F, No.3-1, YuanQu St., NanKang, Taipei 115, Taiwan, R.O.C. TEL: 886-2-2655-3988 FAX: 886-2-2655-3966 Chu Nan Office: 3F, No. 81, YuYi Rd., Chu-Nan, Miao-Li 350, Taiwan, R.O.C. TEL: 886-37-585-899 FAX: 886-37-585-000 Date: November 16, 2011 Federal Communications Commission Authorization and Evaluation Division FCC ID： P27-WAP121 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1. Schematics 2. Operational Description 3. Block diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Yours sincerely, _ __________________________ Ronnie Cheng Associate Manager / R&D Division SerComm Corporation TEL: 886-2-2655-3988 #2547 FAX: 886-2-2655-7379 E-Mail: [email protected]

SerComm CorporationύድႝηިҽԖज़Ϧљ Taipei Office: 8F, No.3-1, YuanQu St., NanKang, Taipei 115, Taiwan, R.O.C. TEL: 886-2-2655-3988 FAX: 886-2-2655-3966 Chu Nan Office: 3F, No. 81, YuYi Rd., Chu-Nan, Miao-Li 350, Taiwan, R.O.C. TEL: 886-37-585-899 FAX: 886-37-585-000 Date: November 16, 2011 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Mr. Jason Lin / Section Manager of Compliance Certification Services Inc. and hereafter referred to as CCS, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Mr. Jason Lin / Section Manager of Compliance Certification Services Inc. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; SerComm CorporationύድႝηިҽԖज़Ϧљ Taipei Office: 8F, No.3-1, YuanQu St., NanKang, Taipei 115, Taiwan, R.O.C. TEL: 886-2-2655-3988 FAX: 886-2-2655-3966 Chu Nan Office: 3F, No. 81, YuYi Rd., Chu-Nan, Miao-Li 350, Taiwan, R.O.C. TEL: 886-37-585-899 FAX: 886-37-585-000 e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Yours sincerely, ____ _______________________ Ronnie Cheng Associate Manager / R&D Division SerComm Corporation TEL: 886-2-2655-3988 #2547 FAX: 886-2-2655-7379 E-Mail: [email protected] Ronnie Cheng DNcn=Ronnie Cheng, [email protected] m, o=SerComm Corporation, ou=RD Division, c=TW - 2011.11.16 12:19:38 +08'00'

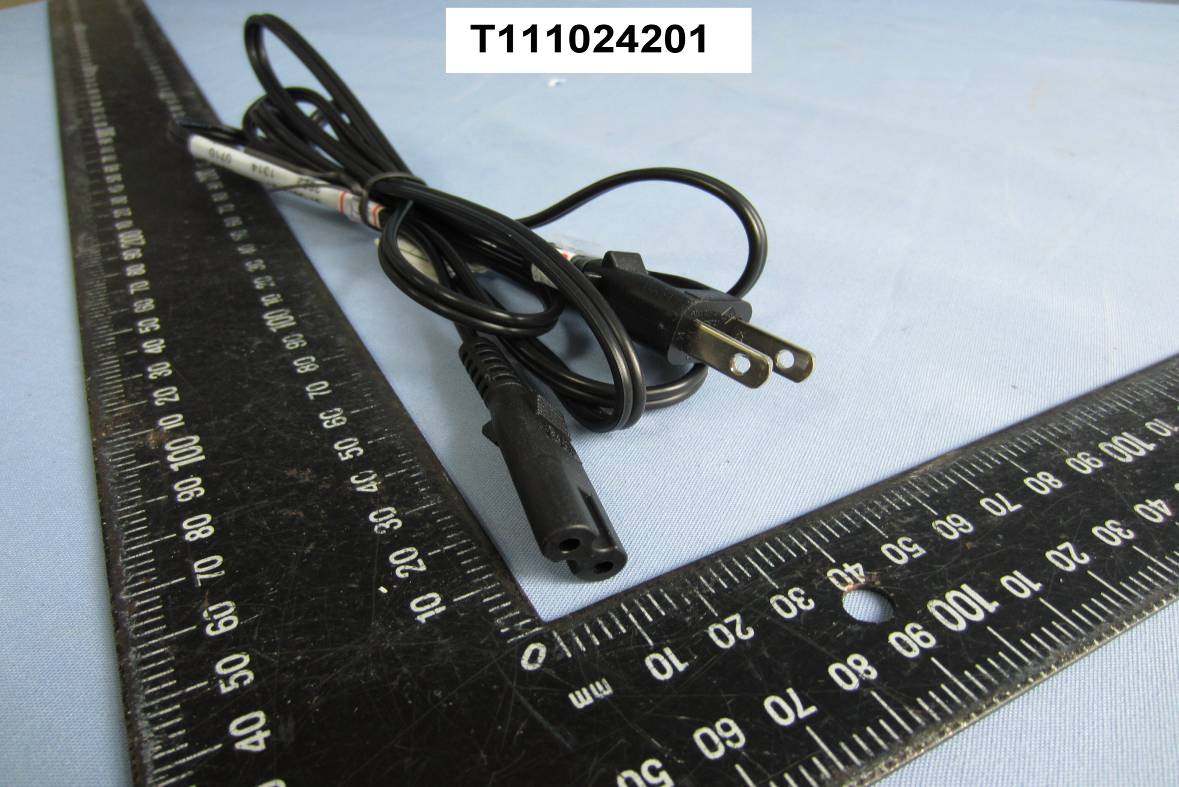

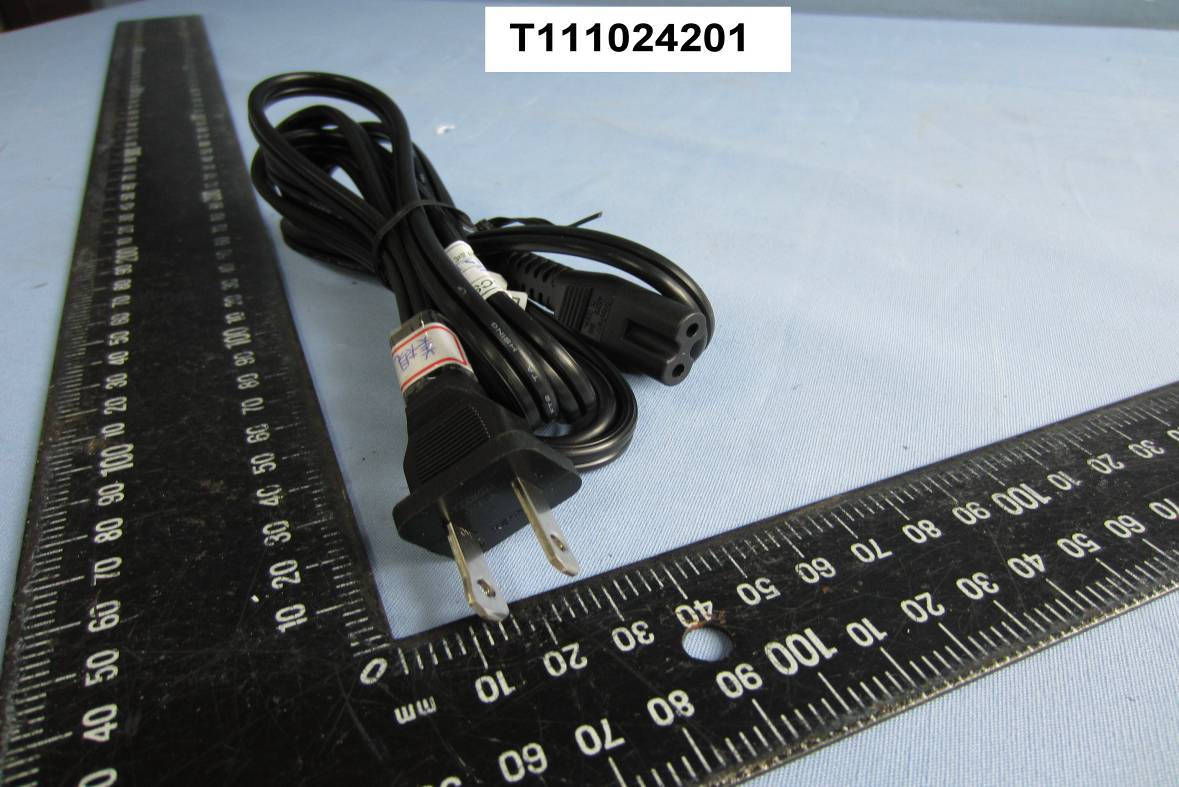

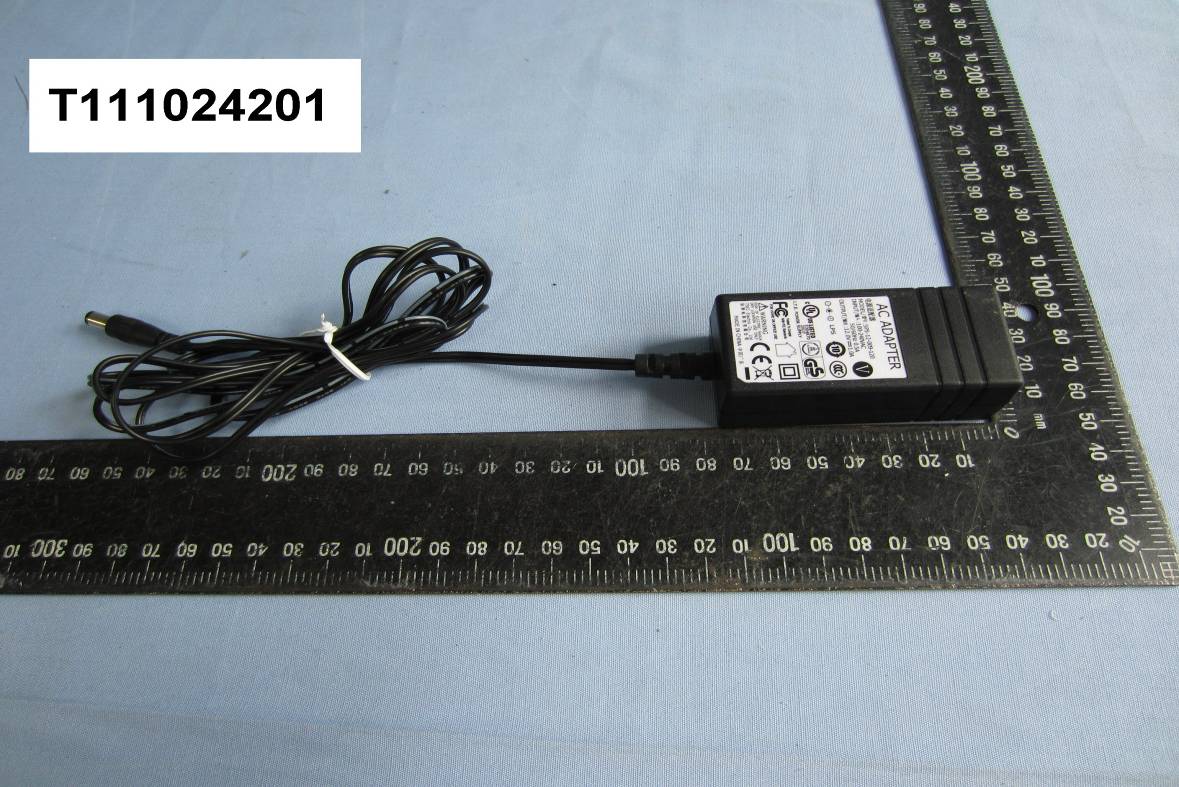

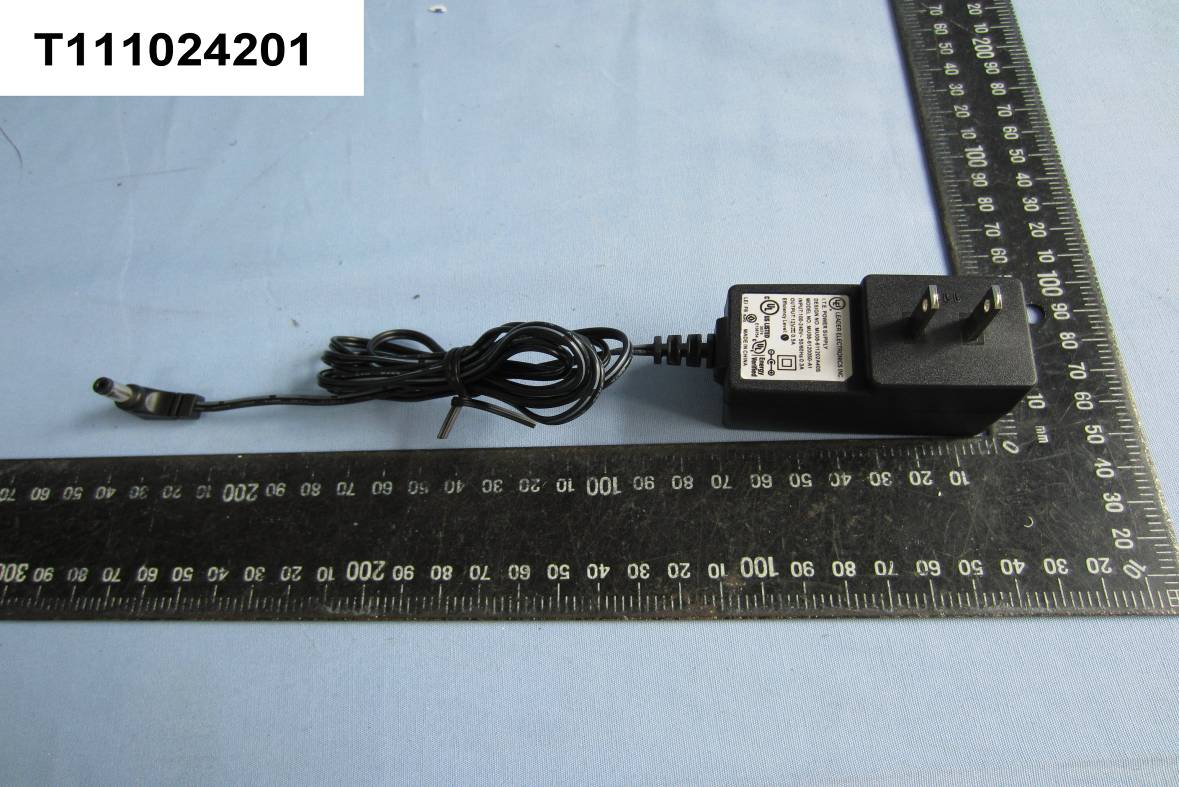

Compliance Certification Services Inc. Report No.: T111024201 Date of Issue: November 18, 2011 A1 - 1 / 15 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T111024201 Date of Issue: November 18, 2011 A1 - 2 Compliance Certification Services Inc. Report No.: T111024201 Date of Issue: November 18, 2011 A1 - 3 Compliance Certification Services Inc. Report No.: T111024201 Date of Issue: November 18, 2011 A1 - 4 Compliance Certification …
