P27-XIONESCM2XiOne-SC (B)

HDMI cable Power adapter Voice Remote Wireless TV Box 2 AA batteries installed The billing for your new Xfinity service(s) will begin within 5 days from the date your order for service(s) is placed. Before you begin, be sure your Wireless Gateway is powered on and activated and within range of your Streaming TV Box. Secure the HDMI cable between your TV and the Wireless TV Box. Turn on your TV and select the HDMI Input. Plug the power adapter into an electrical outlet and connect the other end to the Power port on the Box. Remove the tab from the back of the remote, aim it toward the Box and wait for onscreen instructions. Once the power indicator lights up, you’re ready to go. Only use the supplied power adapter. Avoid outlets controlled by dimmers. You can also use an Ethernet cable (not included) to set up a wired connection instead. Please remove the protective clear film from your devices. 2 AA batteries installed Pull tab Get started 1 2 3 4 If you have a Primary TV Box, be sure that’s also powered on and activated. HDMI HDMI on TV Power FederalCommunicationCommissionInterferenceStatement ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice, pursuanttoPart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonable protectionagainstharmfulinterferenceinaresidentialinstallation.Thisequipmentgenerates, usesandcanradiateradiofrequencyenergyand,ifnotinstalledandusedinaccordancewith theinstructions,maycauseharmfulinterferencetoradiocommunications.However,thereisno guaranteethatinterferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoescause harmfulinterferencetoradioortelevisionreception,whichcanbedeterminedbyturningthe equipmentoffandon,theuserisencouragedtotrytocorrecttheinterferencebyoneofthe followingmeasures: -Reorientorrelocatethereceivingantenna. -Increasetheseparationbetweentheequipmentandreceiver. -Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiveris connected. -Consultthedealeroranexperiencedradio/TVtechnicianforhelp. FCCCaution:Anychangesormodificationsnotexpresslyapprovedbythepartyresponsiblefor compliancecouldvoidtheuser'sauthoritytooperatethisequipment. ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothefollowingtwo conditions:(1)Thisdevicemaynotcauseharmfulinterference,and(2)thisdevicemustaccept anyinterferencereceived,includinginterferencethatmaycauseundesiredoperation. IMPORTANTNOTE: RadiationExposureStatement: ThisequipmentcomplieswithFCCradiationexposurelimitssetforthforanuncontrolled environment.Thisequipmentshouldbeinstalledandoperatedwithminimumdistance20cm betweentheradiator&yourbody. Thistransmittermustnotbeco-locatedoroperatinginconjunctionwithanyotherantennaor transmitter. CountryCodeselectionfeaturetobedisabledforproductsmarketedtotheUS/CANADA IndustryCanadastatement: Thisdevicecontainslicence-exempttransmitter(s)/receiver(s)thatcomplywithInnovation, ScienceandEconomicDevelopmentCanada’slicence-exemptRSS(s).Operationissubjectto thefollowingtwoconditions: (1)Thisdevicemaynotcauseinterference (2)Thisdevicemustacceptanyinterference,includinginterferencethatmaycauseundesired operationofthedevice L’émetteur/récepteurexemptdelicencecontenudansleprésentappareilestconformeauxCNR d’Innovation,SciencesetDéveloppementéconomiqueCanadaapplicablesauxappareilsradio exemptsdelicence.L’exploitationestautoriséeauxdeuxconditionssuivantes: (1)L’appareilnedoitpasproduiredebrouillage; (2)L’appareildoitacceptertoutbrouillageradioélectriquesubi,mêmesilebrouillageest susceptibled’encompromettrelefonctionnement. Caution: (i)thedeviceforoperationintheband5150–5250MHzisonlyforindoorusetoreducethe potentialforharmfulinterferencetoco-channelmobilesatellitesystems; Operationsinthe5.25-5.35GHzbandarerestrictedtoindoorusageonly. Avertissement: (i)lesdispositifsfonctionnantdanslabandede5150à5250MHzsontréservésuniquement pouruneutilisationàl’intérieurafinderéduirelesrisquesdebrouillagepréjudiciableaux systèmesdesatellitesmobilesutilisantlesmêmescanaux; Lesopérationsdanslabandede5.25-5.35GHzsontlimitésàunusageintérieurseulement. RadiationExposureStatement: ThisequipmentcomplieswithCanadaradiationexposurelimitssetforthforanuncontrolled environment.Thisequipmentshouldbeinstalledandoperatedwithminimumdistance20cm betweentheradiator&yourbody. Déclarationd'expositionauxradiations: CetéquipementestconformeCanadalimitesd'expositionauxradiationsdansunenvironnement noncontrôlé.Cetéquipementdoitêtreinstalléetutiliséàdistanceminimumde20cmentrele radiateuretvotrecorps.

Date:June19,2021 FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRd ColumbiaMD21046-1609 Subject:Requestforconfidentiality FCCID:P27-XIONESCM2 Towhomitmayconcern: Short-termconfidentiality PursuanttoDA04-1705oftheCommission’spubicnotice,inordertocomplywiththemarketingregulationsin 47CFR § 2.803andtheimportationrulesin47CFR § 2.1204,whileensuringthatbusinesssensitiveinformation remainsconfidentialuntiltheactualmarketingofnewlyauthorizeddevices.Wearerequestingthecommissionto grantshort-termconfidentialityrequestonthefollowingattachmentsuntil180daysafterissuedate. ☒InternalPhotographs ☒ExternalPhotographs ☒User'smanual ☒TestSetupphoto Permanentconfidentiality PursuanttoSections0.457and0.459oftheCommission’sRules,theApplicantHerebyrequestsconfidential treatmentofinformationaccompanyingthisApplicationAsoutlinedbelow: ☒BlockDiagram ☒Schematics ☒OperationalDescription ☐BillofMaterials ☐Tuneupprocedure Theabovematerialscontaintradesecretsandproprietaryinformationnotcustomarilyreleasedtothepublic. Thepublicdisclosureofthesematerialsmaybeharmfultotheapplicantandprovideunjustifiedbenefitstoits competitors. TheapplicantunderstandsthatpursuanttoSection0.457oftheRules,disclosureofthisapplicationandall accompanyingdocumentationwillnotbemadebeforethedateoftheGrantforthisapplication. Shouldyourequireanyfurtherinformation,pleasecontacttheundersigned. Thankyouforyourconsiderationinthismatter. Applicant:SercommCorporation Address:8F,No.3-1,YuanQuSt.,NanKang,Taipei115,Taiwan,R.O.C. Signature: NameandJobTitle.:NickWu,Engineer E-mail:[email protected] Tel.:+886-2-26553988

Date:June19,2021 Subject:AdHocModeFunctionDeclaration FCCID:P27-XIONESCM2 ToWhomitmayconcern, We,SercommCorporationdeclarethatthedevicedoesnotsupportany non-USchannels,countrycodeselectionandChannel12and13in2.4GHz bandinalltheoperationalmode(s).Also,theclientsoftwareandassociated driverswillnotinitiateanytransmissiononDFSfrequencieswithoutinitiation byamasterandthedevicewithoutsupportDFSdetectioncapability.This includesrestrictionontransmissionsforbeaconsandsupportforad-hoc peer-to-peermodes. Regards, Applicant:SercommCorporation Address:8F,No.3-1,YuanQuSt.,NanKang,Taipei115,Taiwan,R.O.C. Signature: NameandJobTitle.:NickWu,Engineer [email protected] Tel.+886-2-26553988

Date:July29,2021 UNIIDeclarationLetter WehavedeclaredbelowfeaturedforFCCequipmentauthorization,DeviceFCCID:P27-XIONESCM2;IC:5604A- XIONESC2 (1)DFSDevice--ClientwithRadardetectioncapability, Clientwithoutradardetectioncapability (2)Active/PassiveScanning,Adhocmodeaccesspointcapability FrequencyBand (MHz) ActiveScanning (thedevicecan transmitaprobe (beacon)) passivescanning (wherethedevice iscanlistenonly withnoprobes) AdHocMode capability Accesspoint capability 5150–5250Yes,NoYes,NoYes, No Yes, No 5250–5350Yes,NoYes,NoYes, No Yes, No 5470–5725Yes,NoYes,NoYes, No Yes, No 5725–5850Yes,NoYes,NoYes, No Yes, No (3)Countrycodeselectionability-Yes,No Ifno,plsexplainhowwasimplemented: (4)Meet15.202requirement-Yes,No, plscheckbelow: Aclientdeviceisdefinedasadeviceoperatinginamodeinwhichthetransmissionsofthedeviceareunder controlofthemaster.Adeviceinclientmodeisnotabletoinitiateanetwork. (5)Forclientdevicesthathavesoftwareconfigurationcontroltooperateindifferentmodes(activescanningin someandpassivescanninginothers)indifferentbands(deviceswithmultipleequipmentclassesorthose thatoperateonnon-DFSfrequencies)ormodulardeviceswhichconfigurethemodesofoperationsthrough software,theapplicationmustprovidesoftwareandoperationsdescriptiononhowthesoftwareand/or hardwareisimplementedtoensurethatproperoperationsmodescannotbemodifiedbyenduseroran installer. Apply,NoApply , (Ifapply,plshelptoprovideexplanationonhowitwasimplement(Byhardwareorsoftware,andhowsoftwarewascontrolled) Youcansuggestclienttousebelowsentenceifnecessary: OnDFSchannels,theWLANdriveronthedeviceoperatesunderthecontrolofanAPatalltimes,exceptwheninad-hocmode,onUS non-DFSchannels.Asdescribedintheanswertoquestion(2),thedevicepassivelyscansDFSfrequenciesuntilamasterdeviceis detected.Thecontrolofthisfunctionalityisnotaccessibletoanyoneunderanyconditions.Furthermore,thefirmwareislockedby proprietarypasswordandcannotbechangedormodifiedbyenduser. Applicant: SercommCorporation Address: 8F,No.3-1,YuanQuSt.,NanKang,Taipei115,Taiwan,R.O.C. Signature: NameandJobTitle.: NickWu,Engineer

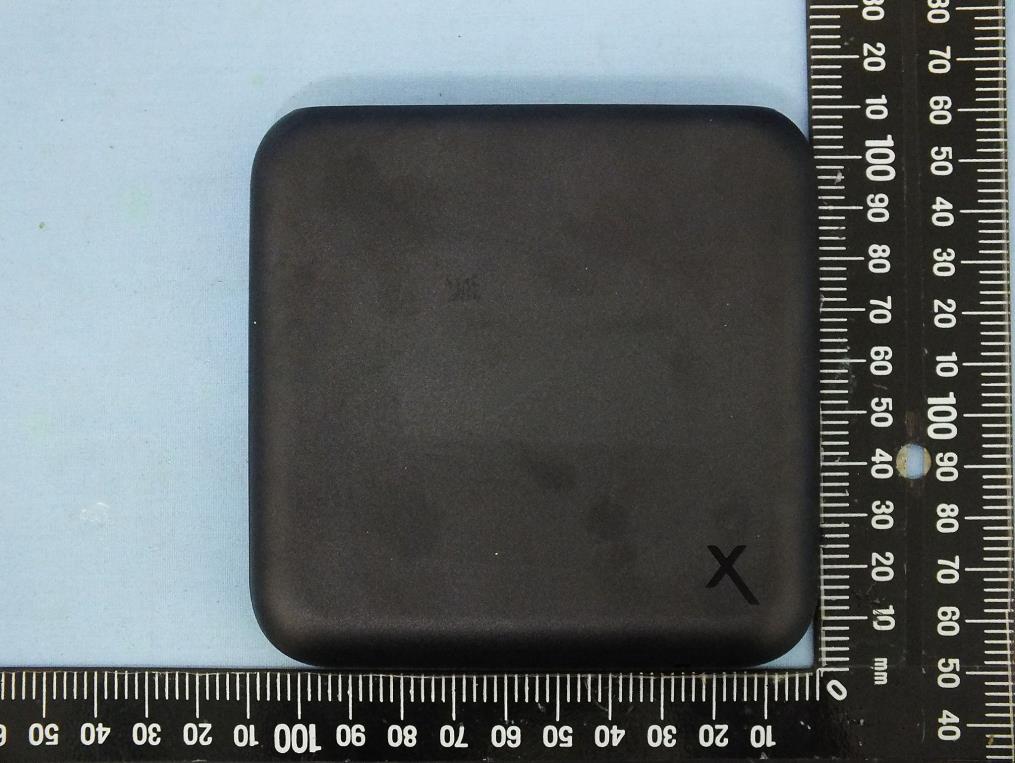

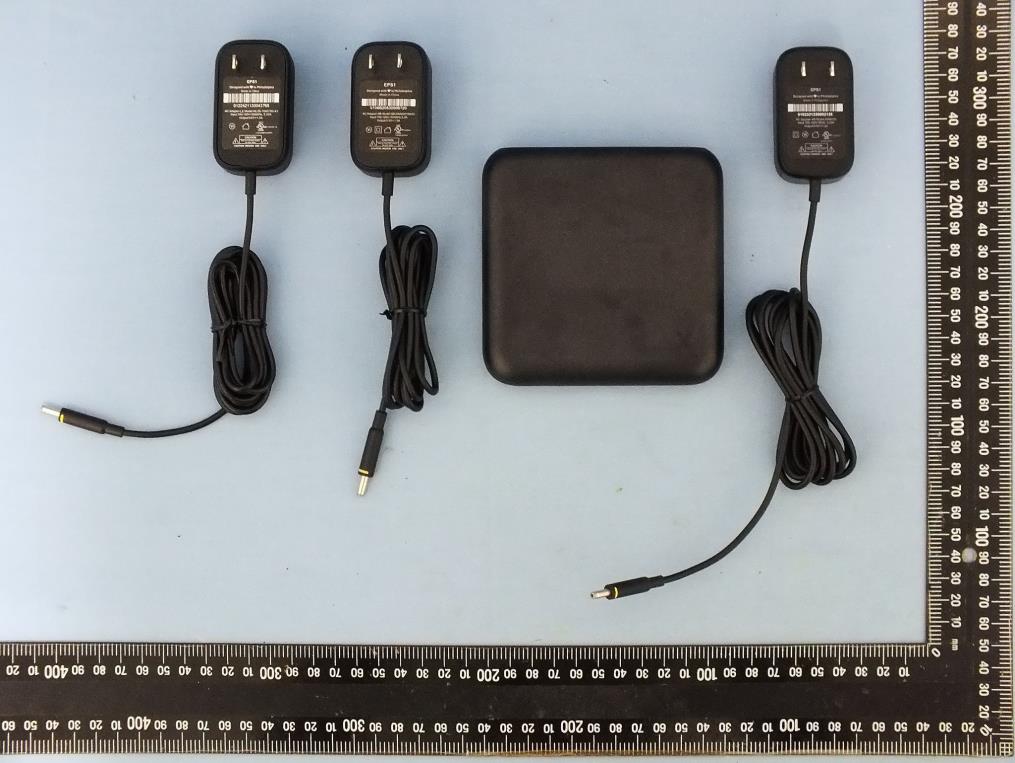

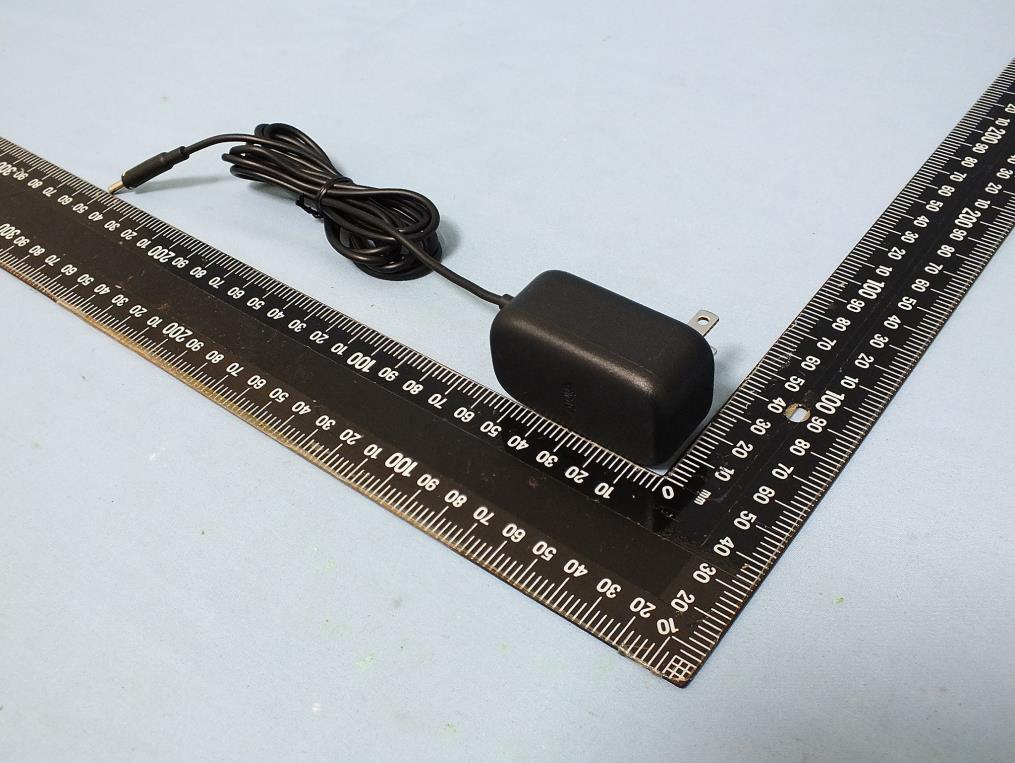

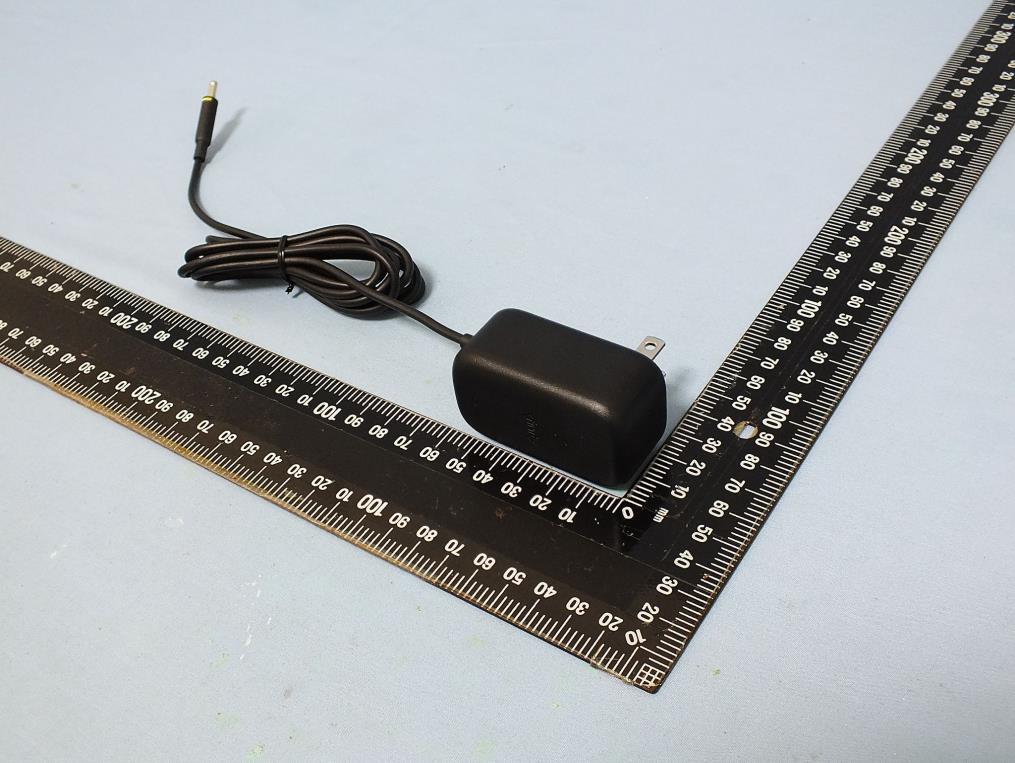

Project No.: EP161001 Page No. : 1 of 20 Photographs of EUT Project No.: EP161001 Page No. : 2 of 20 Project No.: EP161001 Page No. : 3 of 20 Project No.: EP161001 Page No. : 4 of 20 Project No.: EP161001 Page No. : 5 of 20 Project No.: EP161001 Page No. : 6 of 20 Project No.: EP161001 Page No. : 7 of 20 Project No.: EP161001 Page No. : 8 of 20 Project No.: EP161001 Page No. : 9 of 20 Project No.: EP161001 Page No. : 10 of 20

Page 1 of 1

Project No.: EP161001 Page No. : 11 of 20 Project No.: EP161001 Page No. : 12 of 20 Project No.: EP161001 Page No. : 13 of 20 Project No.: EP161001 Page No. : 14 of 20 Project No.: EP161001 Page No. : 15 of 20 Project No.: EP161001 Page No. : 16 of 20 Project No.: EP161001 Page No. : 17 of 20 Project No.: EP161001 Page No. : 18 of 20 Project No.: EP161001 Page No. : 19 of 20 Project No.: EP161001 Page No. : 20 of 20

Report No.: FA161001 Page : 1 of 7 Report Version: Rev. 02 The previous version of the test report has been cancelled and replaced by new version. FCC RF Exposure Report FCC ID : P27-XIONESCM2 Equipment : XiOne-SC (B) Model No. : SCXIxxBEIxCO; SCXIxxBEI (Refer to item 1.1 for more details.) Brand Name : Comcast Xfinity; Cox; Shaw (Refer to item 1.1 for more details.) Applicant : Sercomm Corporation Address : 8F, 3-1, YuanQu St., NanKang, Taipei, 11503, Taiwan Standard : 47 CFR FCC Part 2.1091 Received Date : Jun. 10, 2021 Tested Date : Jun. 12 ~ Jul. 15, 2021 We, International Certification Corporation, would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Reviewed by: Approved by: Along Chen / Assistant Manager Gary Chang / Manager Report No.: FA161001 Page : 2 of 7 Report Version: Rev. 02 The previous version of the test report has been cancelled and replaced by new version. Table of Contents 1 INFORMATION ...................................................................................................................................... 4 1.1 PRODUCT DETAILS .............................................................................................................................. 4 2 MPE EVALUATION OF MOBILE DEVICES ......................................................................................... 5 2.1 LIMITS FOR GENERAL POPULATION/UNCONTROLLED EXPOSURE............................................. 5 2.2 MPE EVALUATION FORMULA ............................................................................................................. 5 2.3 DEVIATION FROM TEST STANDARD AND MEASUREMENT PROCEDURE ................................... 5 2.4 MEASUREMENT UNCERTAINTY ......................................................................................................... 5 2.5 MPE EVALUATION RESULTS .............................................................................................................. 6 3 TEST LABORATORY INFORMATION ................................................................................................. 7 Report No.: FA161001 Page : 3 of 7 Report Version: Rev. 02 The previous version of the test report has been cancelled and replaced by new version. Release Record Report No. Version Description Issued Date FA161001 Rev. 01 Initial issue Jul. 26, 2021 FA161001 Rev. 02 Modify frequency range of RF4CE Jul. 28, 2021 Report No.: FA161001 Page : 4 of 7 Report Version: Rev. 02 The previous version of the test report has been cancelled and replaced by new version. 1 Information 1.1 PRODUCT DETAILS The following models are provided to this EUT. Brand Name Model Name Product Name Description Comcast Xfinity; Cox; Shaw SCXIxxBEIxCO; SCXIxxBEI XiOne-SC (B) Where "x" may be any alphanumeric for External Body Color.  All models are electrically identical, different model names are for marketing purpose.  The above models, model SCXI11BEI was selected as a representative one for the final test and only its data was recorded in this report. Report No.: FA161001 Page : 5 of 7 Report Version: Rev. 02 The previous version of the test report has been cancelled and replaced by new version. 2 MPE EVALUATION OF MOBILE DEVICES 2.1 LIMITS FOR GENERAL POPULATION/UNCONTROLLED EXPOSURE Frequency Range (MHz) Power Density (mW /cm 2 ) Averaging Time (minutes) 300~1500 F/1500 30 1500~100000 1.0 30 2.2 MPE EVALUATION FORMULA Pd = 2 **4RPi Pt Where Pd= Power density in mW/cm 2 Pt= EIRP in mW Pi= 3.1416 R= Measurement distance 2.3 DEVIATION FROM TEST STANDARD AND MEASUREMENT PROCEDURE None 2.4 MEASUREMENT UNCERTAINTY The measurement uncertainties given below are based on a 95% confidence level (based on a coverage factor (k=2)). Parameters Uncertainty Conducted power ±0.808 dB Declaration of Conformity: The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by manufacturers. Comments and Explanations: The declared of product specification for EUT presented in the report are provided by the manufacturer, and the manufacturer takes all the responsibilities for the accuracy of product specification. Report No.: FA161001 Page : 6 of 7 Report Version: Rev. 02 The previous version of the test report has been cancelled and replaced by new version. 2.5 MPE EVALUATION RESULTS Non-beamforming Frequency Range (MHz) Maximum Conducted Power (dBm) Rated Power (dBm) Antenna Gain (dBi) Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) *Ratio Pass / Fail 2412~2462 (Wi-Fi) 25.83 26.0 3.81 20 0.190 1 0.190 Pass 5150~5250 (Wi-Fi) 23.28 23.5 3.83 20 0.108 1 0.108 Pass 5250~5350 (Wi-Fi) 23.32 23.5 3.87 20 0.109 1 0.109 Pass 5470~5725 (Wi-Fi) 23.81 24.0 3.85 20 0.121 1 0.121 Pass 5725~5850 (Wi-Fi) 26.52 27.0 3.92 20 0.246 1 0.246 Pass 2402-2480 (BT EDR) 12.80 13.0 3.85 20 0.010 1 0.010 Pass 2402-2480 (BT LE) 12.83 13.0 3.85 20 0.010 1 0.010 Pass 2425-2475 (RF4CE) 6.83 7.0 0.02 20 0.00 1 0.001 Pass *Ratio = Power density / Limit. Beamforming Frequency Range (MHz) Maximum Conducted Power (dBm) Rated Power (dBm) Antenna Gain (dBi) Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) *Ratio Pass / Fail 2412~2462 (Wi-Fi) 21.41 21.5 6.60 20 0.128 1 0.128 Pass 5150~5250 (Wi-Fi) 20.27 20.5 6.78 20 0.106 1 0.106 Pass 5250~5350 (Wi-Fi) 20.31 20.5 6.87 20 0.109 1 0.109 Pass 5470~5725 (Wi-Fi) 20.80 21.0 6.84 20 0.121 1 0.121 Pass 5725~5850 (Wi-Fi) 23.51 24.0 6.72 20 0.235 1 0.235 Pass *Ratio = Power density / Limit. Note: For 2.412 ~ 2.462 GHz DG = Directional Gain=10 * log((10 3.37/20 +10 3.81/20 ) 2 /2) = 6.60 dBi For 5.15 ~ 5.25 GHz DG = Directional Gain=10 * log((10 3.7/20 +10 3.83/20 ) 2 /2=6.78 dBi For …

Text truncated - open the document above for the full version.

Report No.: FZ161001 Page : 1 of 19 Report Version: Rev. 01 FCC DFS Test Report FCC ID : P27-XIONESCM2 Equipment : XiOne-SC (B) Model No. : SCXIxxBEIxCO; SCXIxxBEI (Refer to item 1.1.1 for more details.) Brand Name : Comcast Xfinity; Cox; Shaw (Refer to item 1.1.1 for more details.) Applicant : Sercomm Corporation Address : 8F, No. 3-1, YuanQu St., NanKang, Taipei 115, Taiwan. R.O.C. Standard : 47 CFR FCC Part 15.407 Received Date : Jun. 15, 2021 Tested Date : Jun. 15, 2021 Operating Mode : Client Without Radar Detection We, International Certification Corporation, would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Reviewed by: Approved by: Along Chen / Assistant Manager Gary Chang / Manager Report No.: FZ161001 Page : 2 of 19 Report Version: Rev. 01 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information.............................................................................................................................................. 5 1.2 Support Equipment List .......................................................................................................................... 5 1.3 The Equipment List ................................................................................................................................ 6 1.4 Testing Condition ................................................................................................................................... 6 1.5 Testing Facility ....................................................................................................................................... 6 1.6 Test Standards ....................................................................................................................................... 7 1.7 Deviation from Test Standard and Measurement Procedure ................................................................. 7 1.8 Measurement Uncertainty ...................................................................................................................... 7 2 TECHNICAL REQUIREMENTS FOR DFS ............................................................................................ 8 2.1 Applicability of DFS Requirements ......................................................................................................... 8 2.2 DFS Detection Thresholds and Response Requirement ....................................................................... 9 2.3 Radar Test Waveforms ........................................................................................................................ 10 3 DFS TEST RESULT ............................................................................................................................. 14 3.1 DFS Detection Threshold levels ........................................................................................................... 14 3.2 In-Service Monitoring ........................................................................................................................... 15 3.3 Non-Associated .................................................................................................................................... 18 4 TEST LABORATORY INFORMATION ............................................................................................... 19 Report No.: FZ161001 Page : 3 of 19 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FZ161001 Rev. 01 Initial issue Jul. 26, 2021 Report No.: FZ161001 Page : 4 of 19 Report Version: Rev. 01 Summary of Test Results FCC Rules Description of Test Result FCC 15.407 KDB 905462 D02 Non-Occupancy Period Pass FCC 15.407 KDB 905462 D02 Channel Closing Transmission Time Pass FCC 15.407 KDB 905462 D02 Channel Move Time Pass Declaration of Conformity: The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by manufacturers. Comments and Explanations: The declared of product specification for EUT presented in the report are provided by the manufacturer, and the manufacturer takes all the responsibilities for the accuracy of product specification. Report No.: FZ161001 Page : 5 of 19 Report Version: Rev. 01 1 General Description 1.1 Information 1.1.1 Product Details The following models are provided to this EUT. Brand Name Model Name Product Name Description Comcast Xfinity; Cox; Shaw SCXIxxBEIxCO; SCXIxxBEI XiOne-SC (B) Where "x" may be any alphanumeric for External Body Color.  All models are electrically identical, different model names are for marketing purpose.  The above models, model SCXI11BEI was selected as a representative one for the final test and only its data was recorded in this report. 1.1.2 Specification of the Equipment under Test (EUT) Frequency Range (GHz) 5.15~5.25, 5.25~5.35, 5.47~5.725, 5.725~5.85 Wireless Function 11a / HT20 / HT40 / VHT20 / VHT40 / VHT80 / HE20 / HE40 / HE80 Operating Mode at DFS Band Client without radar detection and ad hoc function Firmware / Software Version 1.1000 RC15.0 wl0: Mar 23 2021 21:05:36 version 18.40.16.29 (476eb17dfc63b70107f4fc6c1b41eb7b87d352b8 WLTEST) FWID 01-810747d 1.1.3 Antenna Details Model Type Connector Antenna Gain (dBi) 5250~5350 MHz 5470~5725 MHz Ant0 PIFA UFL 3.87 3.8 Ant1 PIFA N/A 3.85 3.85 1.2 Support Equipment List Support Equipment List No. Equipment Brand Name Model Name Remark 1 AP (Master) ZYXEL WAX650S I88WAX650S 2 Notebook DELL LATITUDE-E5420 B6FV9T1 Report No.: FZ161001 Page : 6 of 19 Report Version: Rev. 01 1.3 The Equipment List Test Site …

Text truncated - open the document above for the full version.

Report No.: FR161001AN Page : 1 of 164 Report Version: Rev. 02 The previous version of the test report has been cancelled and replaced by new version. FCC Test Report FCC ID : P27-XIONESCM2 Equipment : XiOne-SC (B) Model No. : SCXIxxBEIxCO; SCXIxxBEI (Refer to item 1.1.1 for more details.) Brand Name : Comcast Xfinity; Cox; Shaw (Refer to item 1.1.1 for more details.) Applicant : Sercomm Corporation Address : 8F, 3-1, YuanQu St., NanKang, Taipei, 11503, Taiwan Standard : 47 CFR FCC Part 15.407 Received Date : Jun. 10, 2021 Tested Date : Jun. 12 ~ Jul. 15, 2021 We, International Certification Corporation, would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Reviewed by: Approved by: Along Chen / Assistant Manager Gary Chang / Manager Report No.: FR161001AN Page : 2 of 164 Report Version: Rev. 02 The previous version of the test report has been cancelled and replaced by new version. Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Local Support Equipment List .............................................................................................................. 11 1.3 Test Setup Chart .................................................................................................................................. 11 1.4 The Equipment List .............................................................................................................................. 12 1.5 Test Standards ..................................................................................................................................... 13 1.6 Reference Guidance ............................................................................................................................ 13 1.7 Deviation from Test Standard and Measurement Procedure ............................................................... 13 1.8 Measurement Uncertainty .................................................................................................................... 14 2 TEST CONFIGURATION ..................................................................................................................... 15 2.1 Testing Facility...................................................................................................................................... 15 2.2 The Worst Test Modes and Channel Details ....................................................................................... 16 3 TRANSMITTER TEST RESULTS ........................................................................................................ 17 3.1 Conducted Emissions ........................................................................................................................... 17 3.2 Emission Bandwidth ............................................................................................................................. 22 3.3 RF Output Power .................................................................................................................................. 42 3.4 Peak Power Spectral Density ............................................................................................................... 50 3.5 Transmitter Radiated and Band Edge Emissions ................................................................................ 71 3.6 Frequency Stability ............................................................................................................................. 162 4 TEST LABORATORY INFORMATION ............................................................................................. 164 Report No.: FR161001AN Page : 3 of 164 Report Version: Rev. 02 The previous version of the test report has been cancelled and replaced by new version. Release Record Report No. Version Description Issued Date FR161001AN Rev. 01 Initial issue Jul. 26, 2021 FR161001AN Rev. 02 Beamforming information is added Jul. 30, 2021 Report No.: FR161001AN Page : 4 of 164 Report Version: Rev. 02 The previous version of the test report has been cancelled and replaced by new version. Summary of Test Results FCC Rules Test Items Measured Result 15.207 Conducted Emissions [dBuV]: 6.056MHz 49.18 (Margin -10.82dB) - QP Pass 15.407(b) 15.209 Radiated Emissions [dBuV/m at 3m]: 5470.00MHz 68.15 (Margin -0.05dB) - PK Pass 15.407(a) Emission Bandwidth Meet the requirement of limit Pass 15.407(e) 6dB bandwidth Meet the requirement of limit Pass 15.407(a) RF Output Power Max Power [dBm]: 5150~5250MHz: 23.28 5250~5350MHz: 23.32 5470~5725MHz: 23.81 5725~5850MHz: 26.52 Pass 15.407(a) Peak Power Spectral Density Meet the requirement of limit Pass 15.407(g) Frequency Stability Meet the requirement of limit Pass 15.203 Antenna Requirement Meet the requirement of limit Pass Declaration of Conformity: The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by manufacturers. Comments and Explanations: The declared of product specification for EUT presented in the report are provided by the manufacturer, and the manufacturer takes all the responsibilities for the accuracy of product specification. Report No.: FR161001AN Page : 5 of 164 Report Version: Rev. 02 The previous version of the test report has been cancelled and replaced by new version. 1 General Description 1.1 Information 1.1.1 Product Details The following models are provided to this EUT. Brand Name …

Text truncated - open the document above for the full version.

Report No.: FZ161001 Page: : 1 of 1 Report Version: Rev. 01 Photographs of the Test Configuration DFS Test

Report No.: FR161001 Page: : 1 of 5 Report Version: Rev. 01 Photographs of the Test Configuration Conducted Emission Test Report No.: FR161001 Page: : 2 of 5 Report Version: Rev. 01 Radiated Emission Below 1GHz Test Report No.: FR161001 Page: : 3 of 5 Report Version: Rev. 01 Radiated Emission Below 1GHz Test Report No.: FR161001 Page: : 4 of 5 Report Version: Rev. 01 Radiated Emission Above 1GHz Test Report No.: FR161001 Page: : 5 of 5 Report Version: Rev. 01 Radiated Emission Above 1GHz Test
