P270G710Wireless NAS

W W N N S S 5 5 4 4 U U s s e e r r ’ ’ s s G G u u i i d d e e Table of Contents Table of Contents ...............................................................................................1 Introduction....................................................................................................................4 The NAS Server.......................................................................................................................................4 NAS Features...................................................................................................................................4 Package Contents.............................................................................................................................5 System Requirements.......................................................................................................................5 Disclaimer........................................................................................................................................6 Getting Familiar with your NAS.......................................................................................7 LEDs.......................................................................................................................................................7 Rear Panel..............................................................................................................................................8 Audible Warnings....................................................................................................................................9 Basic Installation & Setup.............................................................................................11 Installation............................................................................................................................................11 Requirements..................................................................................................................................11 Procedure.......................................................................................................................................12 USB Devices..........................................................................................................................................14 Configuring Your NAS..........................................................................................................................15 Quick Setup with the NAS Wizard.................................................................................................15 Other Configuration........................................................................................................................18 Client PC Setup............................................................................................................19 Overview...............................................................................................................................................19 Network Logon (Windows 95/98/ME only)...........................................................................................20 Using the NAS Server's Storage............................................................................................................21 Mapping a Network Drive..............................................................................................................22 Page 1 Tips for Storing Data on the NAS.................................................................................................. 24 Using the NAS Server’s Printer............................................................................................................25 Using the Web File Sharing..................................................................................................................27 Changing your Password......................................................................................................................29 Administration...............................................................................................................32 Overview...............................................................................................................................................32 The Web-based Administrative Interface..............................................................................................32 Users Screen...................................................................................................................................35 Status Screen..................................................................................................................................39 Wireless Screen..............................................................................................................................42 LAN Screen....................................................................................................................................47 System Screen................................................................................................................................50 Advanced Menu.....................................................................................................................................55 Groups Screen................................................................................................................................55 Shares Screen.................................................................................................................................61 Share Access..................................................................................................................................64 Backup Screen................................................................................................................................66 Disk Screen...........................................................................................…

Text truncated - open the document above for the full version.

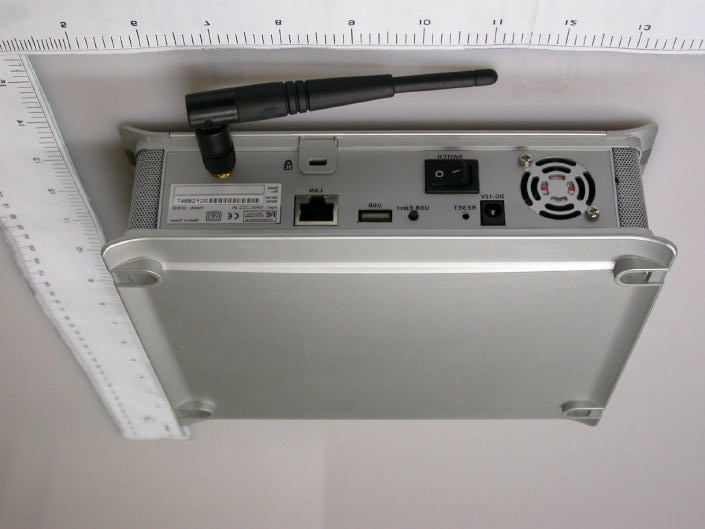

External Photos

Input: 12VDC ____ --- 3A SerComm WNS54 Wireless NAS

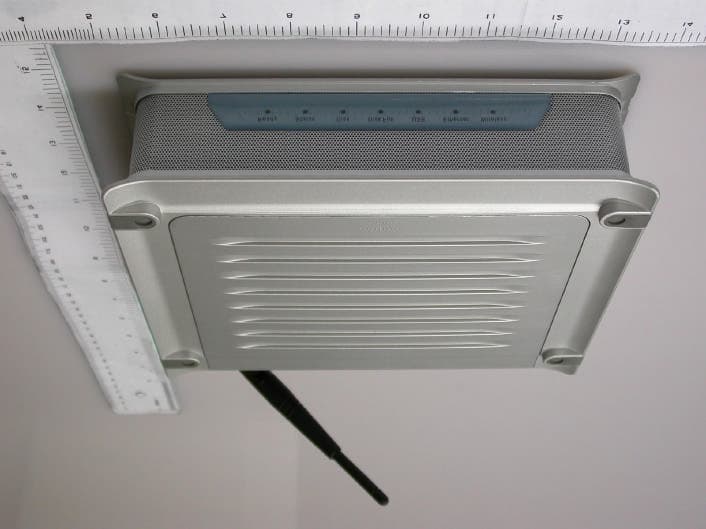

External Photos

WNS54/NS54 Operational Principle WNS54 is wireless storage server. He can save data from local LAN or Internet to internal HDD. The LAN interface maybe wire LAN or wireless LAN. NS54 only run in wire LAN function no wireless module. Integrated 2.4GHz ISM Band RF Baseband Transceiver, U1, AR2414 which is integrated all RF Basband receive and transmit function. On-Chip Power Amplifier GP1214, U6, with up to +18dBm output power at the antenna port. CPU INTEL IXP422 266MHz Flash 8Mbytes SDRAM 32MBytes Ethernet PHY One LAN port USB host controller One USB port Power Adapter DC 12V/5A IDE Controller One IDE port Wireless LAN One 802.11g wireless LAN for WNS54 Hard Driver One 5 1/4” HDD

1.1. Test Result of RF Exposure Evaluation . Product: Wireless NAS . Test Item: RF Exposure Evaluation Data . Test site: OATSI-SD . Test Mode: Normal Operation 1.1.1. Antenna Gain The maximum Gain is 2.0 dBi. 1.1.2. EUT Operation condition Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 1.1.3. Output Power into Antenna & RF Exposure Evaluation Distance Modulation Standard: IEEE 802.11b Test Date: Dec. 12, 2005 Temperature: 24 Humidity: 66 Channel Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density (S) (mW/cm 2 ) 01 2412 18.24 0.0210 06 2437 18.27 0.0210 11 2462 18.23 0.0210 Modulation Standard: IEEE 802.11g Test Date: Dec. 12, 2005 Temperature: 24 Humidity: 66 Channel Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density (S) (mW/cm 2 ) 01 2412 14.62 0.0090 06 2437 13.93 0.0080 11 2462 13.56 0.0070 The MPE is calculated as 0.0210 mW / cm 2 < limit 1 mW / cm 2 . So, RF exposure limit warning or SAR test are not required.

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Dec. 28, 2005 1 of 54 FCC Test Report: FI05121901-A FCC TEST REPORT according to FCC Rules and Regulations Part 15 Subpart C Laboratory Accreditation 1332 ‚ The test result refers exclusively to the test presented test model / sample., ‚ Without written approval of Exclusive Certification Corp. the test report shall not be reproduced except in full. ‚ The EUT is also considered as a kind of computer peripheral, because the connection to computer is necessary for typical use. It has been verified to comply with the requirements of FCC Part 15, Subpart B, Class B (DoC). The test report has been issued separately. Applicant SerComm Corporation Address 8F, No. 3-1, YuanQu St., NanKang, Taipei 115, Taiwan, R.O.C. Equipment Wireless NAS Model No. WNS54 Series No. WNS100 FCC ID P270G710 Trade Name SerComm Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Dec. 28, 2005 2 of 54 FCC Test Report: FI05121901-A Contents 1. Report of Measurements and Examinations .................................................................................... 5 1.1 List of Measurements and Examinations ................................................................................... 5 2. Test Configuration of Equipment under Test ................................................................................... 6 2.1 Feature of Equipment under Test............................................................................................... 6 2.2 RF Specifications ....................................................................................................................... 6 2.3 Test Mode and Test Software..................................................................................................... 7 2.4 Description of Test System......................................................................................................... 7 2.5 Connection Diagram of Test System..........................................................................................8 2.6 General Information of Test........................................................................................................ 9 2.7 History of this test report ............................................................................................................ 9 3. Antenna Requirements.....................................................................................................................10 3.1 Standard Applicable .................................................................................................................10 3.2 Antenna Construction and Directional Gain............................................................................. 10 4. Test of Conducted Emission............................................................................................................ 11 4.1 Test Limit.................................................................................................................................. 11 4.2 Test Procedures....................................................................................................................... 11 4.3 Typical Test Setup ...................................................................................................................12 4.4 Measurement equipment .........................................................................................................12 4.5 Test Result and Data................................................................................................................13 5. Test of Radiated Emission ...............................................................................................................16 5.1 Test Limit..................................................................................................................................16 5.2 Test Procedures.......................................................................................................................17 5.3 Typical Test Setup ....................................................................................................................18 5.4 Measurement equipment .........................................................................................................18 5.5 Test Result and Data................................................................................................................19 6. 6dB Bandwidth Measurement Data .................................................................................................36 6.1 Test Limit ..................................................................................................................................36 6.2 Test Procedures .......................................................................................................................36 6.3 Test Setup Layout ....................................................................................................................36 6.4 Measurement equipment .........................................................................................................36 6.5 Test Result and Data................................................................................................................36 7. Maximum Peak Output Power .........................................................................................................40 7.1 Test Limit ..................................................................................................................................40 7.2 Test Procedures .......................................................................................................................40 7.3 Test Setup Layout ....................................................................................................................40 7.4 List of Measuring Equipment Used ......................................................................…

Text truncated - open the document above for the full version.

Test Setup Photos
