P270GV00Wireless Network Camera

Wireless/Ethernet Network Camera User’s Guide Regulatory Approvals FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communica- tions. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. (Example - use only shielded interface cables when connecting to computer or peripheral devices). FCC Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. Channel The Wireless Channel sets the radio frequency used for communication. Access Points use a fixed Channel. You can select the Channel used. This allows you to choose a Channel which provides the least interference and best performance. In the USA and Canada, 11 channel are available. If using multiple Access Points, it is better if adjacent Access Points use different Channels to reduce interference. In "Infrastructure" mode, Wireless Stations normally scan all Channels, looking for an Access Point. If more than one Access Point can be used, the one with the strongest signal is used. (This can only happen within an ESS.) If using "Ad-hoc" mode (no Access Point), all Wireless stations should be set to use the same Channel. However, most Wireless stations will still scan all Channels to see if there is an existing "Ad-hoc" group they can join. CAUTION: 1) To comply with FCC RF exposure compliance requirements, a separation distance of at least 20 cm must be maintained between the antenna of this device and all persons. 2) This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. i Table of Contents CHAPTER 1 INTRODUCTION.........................................................................................1 Overview.......................................................................................................................1 Physical Details.............................................................................................................3 Package Contents.........................................................................................................5 CHAPTER 2 BASIC SETUP...............................................................................................6 System Requirements...................................................................................................6 Installation....................................................................................................................6 Setup.............................................................................................................................8 CHAPTER 3 ADVANCED VIEWING SETUP................................................................14 Introduction................................................................................................................14 Adjusting the Video Image.........................................................................................14 Controlling User Access to the Video Stream............................................................17 Making Video available from the Internet.................................................................18 Motion Detection/E-mail Alerts.................................................................................21 CHAPTER 4 WEB-BASED MANAGEMENT.................................................................23 Introduction................................................................................................................23 Connecting to Wireless/Ethernet Network Camera...................................................23 Welcome Screen..........................................................................................................24 View Video Screen......................................................................................................25 Administration Menu.................................................................................................26 System Screen.............................................................................................................26 Network Screen......................................................…

Text truncated - open the document above for the full version.

Exclusive Certification Corp. 4F-2, No. 28, Lane 78, Xing-Ai Rd. Nei-hu, Taipei City 114 Taiwan R.O.C 11478284-2F Tel: 886-2-2792-3366 Fax: 886-2-2792-1100 To whom it may concern: The enclosed documents constitute a formal submittal and application for a Grant of Equipment Authorization pursuant to Subpart C of Part 15 of FCC rules (CFR47) regarding Wireless Network Camera for the SerComm model NCS801A. Data within this report demonstrates that the equipment tested complied with the FCC limits for intentional radiators. Exclusive Certificate Corp. (ECC), as duly authorized agent prepared this submittal. A copy of the letter of our appointment as agent is enclosed. If there are any questions or if further information is needed, please contact ECC for assistance. Ivy Chen TEL: +886-2-2792-3366 # 204 FAX: +886-2-2792-1100 E-mail: [email protected]

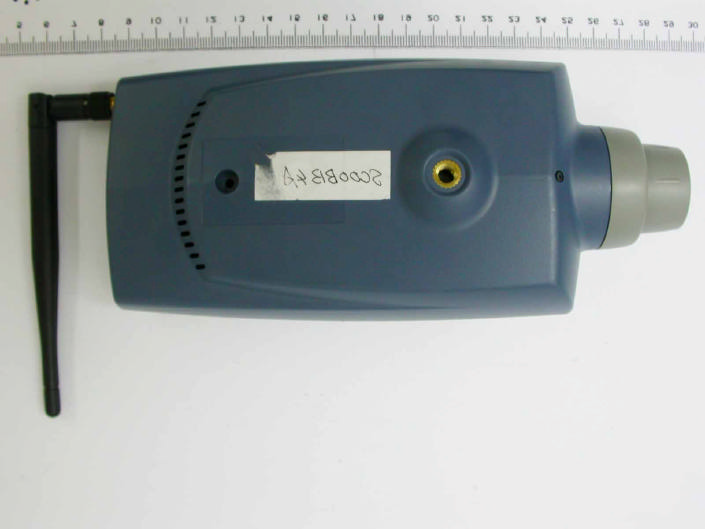

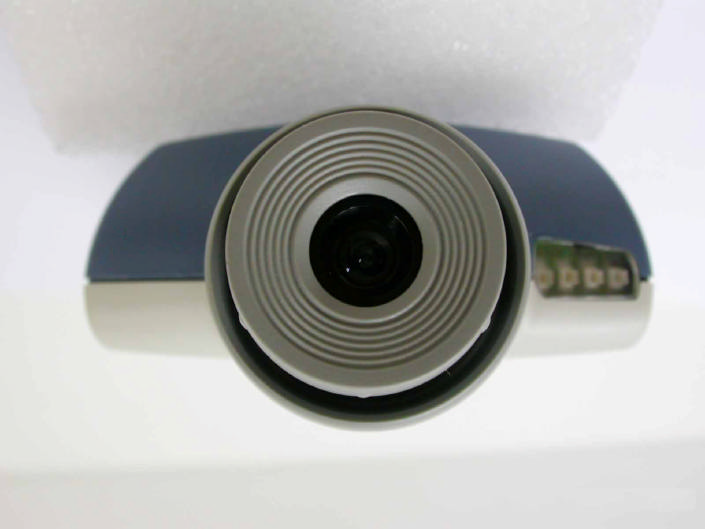

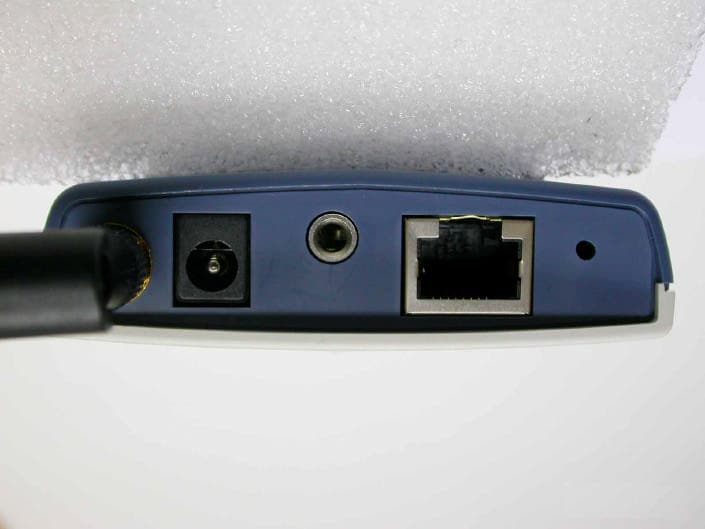

External Photos

44mm 26.5 mm Model No.: Serial No.: Server Name: Input5VDC: 2A Polarity: 0.2 0.2 4-R0.5 Made in Taiwan FCC ID:P270GV00

Internal Photos

NCS801A HARDWARE DESCRIPTION 1. INTRODUCTION The Wireless Network Camera is a device which is able to provide video streaming images through Local-Area-Network and Internet. It supports both Ethernet or 802.11g WLAN. With a CMOS type digital image sensor and advanced MPEG-4 technology, it is able to display high quality video over Wireless LAN, LAN, and Internet. 2. FUNCTION DESCRIPTION This project uses the TI TMS320DM270 Digital Media Processor which include an ARM7 CPU core and a DSP subsystem to process image and voice data. Video images captured by the CMOS image sensor are processed by the video encoder using MPEG-4 technology and transmitted over the internet through the Ethernet or 802.11g WLAN interface. The LAN interface supports 10/100BaseT with Auto-MDIX function whereas the wireless LAN interface supports 802.11b and 802.11g. This device also supports voice that can be transferred and recorded simultaneously with the video images. The analog signals captured by a microphone are digitized by the audio codec and processed by the DSP subsystem. There are several LEDs to display the status of the camera, LAN and wireless interfaces. Refer to Table 1. This device derives its power from a 5V DC power adapter which needs to be converted to 1.5V, and 3.3V DC. The functional requirements of the system are as follows: 1. CPU TI TMS320DM270 2. CODE SIZE 4 Mbytes expandable to 8Mbytes 3. SDRAM 32Mbytes expandable to 64Mbytes 4. RTC Seiko S-3530A 5. Image Sensor CMOS, VGA 644x484 pixels, Effective:640x480 pixels 6. Audio Analog Codec TI TLV320AIC23 7. LAN MAC Davicom DM9000 8. LAN PHY Realtek RTL8201CP, Auto-MDIX 9. Wireless Module Broadcom 802.11b/g PCMCIA Module (mini-PCI connector) 10. Antenna 1.8dBi, 2.4GHz 11. Debug Support Provide JTAG interface for S/W Development Serial port 12. LEDs See Table 1. 13. EMC FCC Class B (RF), CE_RF, RSS-210, ICES-003 14. PCB Size 140*68 mm 15. PCB Layout 4 layers 16. PCB Power input 5V/2A, 2.5mm Table1. LED Status LED Color Control Activity Actions Off Camera is Powered Off On Camera is Powered On Power Green F/W Blink Camera is booting Off Camera is not capturing video Active Green F/W Blink Camera is capturing video On Ethernet Connection is detected LAN Green H/W Blink Sending/Receiving Data Wireless Green F/W On Wireless Connection is detected 3. BLOCK DIAGRAM TI CPU DM270 Flash 2M x 16 SDRAM 4M x 16 XTAL 25MHz Reset EM6325 MAC Controller DM9000 TI 802.11b/g wireless module Power Circuit SDRAM Bus Interface External Memory Interface Pushbutton MII Bus Interface PHY RTL8201 DC3.3V Antenna SDRAM 8M x 16 ISA Bus Interface PCMCIA Bus Interface Ethernet Transformer LAN DC5V DC1.5V ISA Bus Interface RJ45 AUDIO CODEC TLV320AIC23 MIC Serail Port Interface 1 MIC PRE-AMP LED Display OSC 27MHz CMOS MODULE XTAL 12MHz RTC S3530A XTAL 32.768KHz DSP Audio Interface I 2 C Bus Battery FOR NCS801A ONLY 4. FUNCTIONAL BLOCK DESCRIPTION For the following description, please refer to the block diagram. a) VIDEO SUBSYSTEM Video images are captured by the CMOS sensor in the CMOS module and the data is transferred to the video encoder inside the DM270 Digital Media Processor. The video data is encoded using MPEG-4 technology and will be transmitted either through the wired LAN or wireless LAN interface. b) AUDIO SUBSYSTEM Audio sound is captured up either by the built-in microphone or an external microphone. The signal is amplified by the pre-amplifier before being sent to the audio codec. The audio codec digitizes the analog signal and the data is transferred to the DSP subsystem inside the DM270 Digital Media Processor. c) WIRED LAN SUBSYSTEM The wired LAN subsystem consists of the DM9000 MAC controller and the PHY transceiver RTL8201CP, which provide a LAN interface according to the IEEE 802.3 specification. The PHY transceiver, together with the transformer implements auto-cross over detection features thus allowing the use of a plain or a cross-over cable to connect to the Ethernet. d) WIRELESS LAN SUBSYSTEM The wireless LAN consists of the Mini-PCI wireless module which is based on the TI TNETW1100 Wireless LAN MAC and Baseband processor. The host interface of the TNETW1100 is configured in the generic slave mode to communicate with the DM270 processor. The wireless module supports both the IEEE 802.11b and IEEE 802.11g standards. e) MEMORY SUBSYSTEM The memory subsystem consists of 4Mbytes Flash and 32Mbytes SDRAM. Configuration data for the device and the firmware required to run the device are stored in the Flash EEPROM. Upon power-up, the firmware in the flash is transferred to the SDRAM and executed from there for increased performance. In addition to executing the firmware to run the device, the SDRAM also stores video and audio data from the video and audio subsystems. f) REAL-TIME CLOCK SUBSYSTEM The Real-Time Clock (RTC) uses the Seiko S3530A, which keeps timing information required by the video subsystem. The RTC communicates with the DM270 processor through the I 2 C bus interface. A rechargeable battery is provided to back up the RTC when the device is powered down. g) POWER SUBSYSTEM The input power required by the device is 5V DC. The 5V input power is converted to 3.3V to power the peripheral subsystems, and 1.5V required by the core of the DM270 processor. The power subsystem incorporates protection against input voltage polarity reversal and overvoltage.

1.1. Test Result of RF Exposure Evaluation . Product: Wireless Network Camera . Test Item: RF Exposure Evaluation Data . Test site: OATSI-SD . Test Mode: Normal Operation 1.1.1. Antenna Gain The maximum Gain is 1.8 dBi. 1.1.2. EUT Operation condition Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 1.1.3. Output Power into Antenna & RF Exposure Evaluation Distance Modulation Standard: IEEE 802.11b Test Date: Sep. 01, 2004 Temperature: 23 Humidity: 65 Channel Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density (S) (mW/cm 2 ) 01 2412 17.36 0.0164 06 2437 17.15 0.0156 11 2462 17.23 0.0159 Modulation Standard: IEEE 802.11g Test Date: Sep. 01, 2004 Temperature: 23 Humidity: 65 Channel Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density (S) (mW/cm 2 ) 01 2412 12.34 0.0052 06 2437 12.89 0.0059 11 2462 13.27 0.0064 The MPE is calculated as 0.0164 mW / cm 2 < limit 1 mW / cm 2 . So, RF exposure limit warning or SAR test are not required.

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Nov. 23, 2004 1 of 77 FCC ID: P270GV00 FCC Test Report: FI04081401-C FCC TEST REPORT according to FCC Rules and Regulations Part 15 Subpart C † The test result refers exclusively to the test presented test model / sample., † Without written approval of Exclusive Certification Corp. the test report shall not be reproduced except in full. Applicant SerComm Corporation Address 8F, No. 3-1, YuanQu St., NanKang, Taipei 115, Taiwan, R.O.C. Equipment Wireless Network Camera Model No. NCS801A FCC ID P270GV00 Trade Name Sercomm Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Nov. 23, 2004 2 of 77 FCC ID: P270GV00 FCC Test Report: FI04081401-C Contents 1. Report of Measurements and Examinations..................................................................................4 1.1. List of Measurements and Examinations............................................................................4 1.2. Antenna Requirements......................................................................................................5 1.3. Test of Conducted Emission..............................................................................................6 1.4. Test of Radiated Emission.................................................................................................8 1.5. 6dB Bandwidth.................................................................................................................9 1.6. Maximum Peak Output Power...........................................................................................9 1.7. Band Edges Measurement..............................................................................................10 1.8. Power Spectral Density...................................................................................................10 1.9. Restricted Bands of Operation..........................................................................................11 1.10. Labeling Requirement......................................................................................................11 1.11. RF Exposure..................................................................................................................12 2. Test Configuration of Equipment under Test................................................................................14 2.1. Test Mode and Test Software...........................................................................................14 2.2. Description of Test System..............................................................................................14 2.3. Connection Diagram of Test System................................................................................15 2.4. Feature of Equipment under Test.....................................................................................15 2.5. History of this test report.................................................................................................15 3. General Information of Test.......................................................................................................16 4. Test Result and Data.................................................................................................................17 4.1. Antenna Requirement.....................................................................................................17 4.2. Test Result of Conducted Emission..................................................................................18 4.3. RF Portion......................................................................................................................35 4.4. 6dB Bandwidth Measurement Data..................................................................................53 4.5. Peak Output Power Measurement Data...........................................................................57 4.6. Band Edges Measurement Data......................................................................................61 4.7. Power Spectral Density Measurement Data......................................................................72 4.8. Test Result of RF Exposure Evaluation.............................................................................76 5. List of Measuring Equipment Used.............................................................................................77 Appendix A. Photographs of EUT..................................................................... ..............A1 ~ A10 Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Nov. 23, 2004 3 of 77 FCC ID: P270GV00 FCC Test Report: FI04081401-C CERTIFICATE OF COMPLIANCE according to FCC Rules and Regulations Part 15 Subpart C Applicant SerComm Corporation Address 8F, No. 3-1, YuanQu St., NanKang, Taipei 115, Taiwan, R.O.C. Equipment Wireless Network Camera Model No. NCS801A FCC ID P270GV00 I HEREBY CERTIFY THAT : The measurements shown in this test report were made in accordance with the procedures given in ANSI C63.4. The equipment was passed the test performed according to FCC Rules and Regulations Part 15 Subpart C (2002). The test was carried out on Sep. 03, 2004 at Exclusive Certification Corp. Signature Anson Chou / Manager Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Nov. 23, 2004 4 of 77 FCC ID: P270GV00 FCC Test Report: FI04081401-C 1. Report of Measurements and Examinations 1.1. List of Measurements and Examinations FCC Rule . Description of Test Result 15.203 . Antenna Requirement Pass 15.207 . Conducted Emission Pass 15.209 . Radiated Emission Pass 15.247(a)(2) . 6dB Bandwidth Pass 15.247(b) . Maximum Peak Output Power Pass 15.247(c) . 100kHz Bandwidth of Frequency Band Edges Pass 15.247(d) . Power Spectral Density Pass 1.1307 1.1310 2.1091 2.1093 . RF Exposure Compliance Pass Test by: Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2…

Text truncated - open the document above for the full version.

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Nov. 23, 2004 18 of 77 FCC ID: P270GV00 FCC Test Report: FI04081401-C 4.2. Test Result of Conducted Emission Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Nov. 23, 2004 19 of 77 FCC ID: P270GV00 FCC Test Report: FI04081401-C Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Nov. 23, 2004 20 of 77 FCC ID: P270GV00 FCC Test Report: FI04081401-C Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Nov. 23, 2004 21 of 77 FCC ID: P270GV00 FCC Test Report: FI04081401-C Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Nov. 23, 2004 22 of 77 FCC ID: P270GV00 FCC Test Report: FI04081401-C Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Nov. 23, 2004 23 of 77 FCC ID: P270GV00 FCC Test Report: FI04081401-C Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Nov. 23, 2004 24 of 77 FCC ID: P270GV00 FCC Test Report: FI04081401-C Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Nov. 23, 2004 25 of 77 FCC ID: P270GV00 FCC Test Report: FI04081401-C Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Nov. 23, 2004 26 of 77 FCC ID: P270GV00 FCC Test Report: FI04081401-C Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Nov. 23, 2004 27 of 77 FCC ID: P270GV00 FCC Test Report: FI04081401-C

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Nov. 23, 2004 28 of 77 FCC ID: P270GV00 FCC Test Report: FI04081401-C Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Nov. 23, 2004 29 of 77 FCC ID: P270GV00 FCC Test Report: FI04081401-C Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Nov. 23, 2004 30 of 77 FCC ID: P270GV00 FCC Test Report: FI04081401-C Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Nov. 23, 2004 31 of 77 FCC ID: P270GV00 FCC Test Report: FI04081401-C Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Nov. 23, 2004 32 of 77 FCC ID: P270GV00 FCC Test Report: FI04081401-C Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Nov. 23, 2004 33 of 77 FCC ID: P270GV00 FCC Test Report: FI04081401-C Test by: Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Nov. 23, 2004 34 of 77 FCC ID: P270GV00 FCC Test Report: FI04081401-C 4.2.1. Photographs of Conducted Emission Test FRONT VIEW REAR VIEW

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Nov. 23, 2004 35 of 77 FCC ID: P270GV00 FCC Test Report: FI04081401-C 4.3. RF Portion 4.3.1. Test Result of Conducted Emission Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Nov. 23, 2004 36 of 77 FCC ID: P270GV00 FCC Test Report: FI04081401-C Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Nov. 23, 2004 37 of 77 FCC ID: P270GV00 FCC Test Report: FI04081401-C Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Nov. 23, 2004 38 of 77 FCC ID: P270GV00 FCC Test Report: FI04081401-C 4.3.2. Test Result of Radiated Emission Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Nov. 23, 2004 39 of 77 FCC ID: P270GV00 FCC Test Report: FI04081401-C Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Nov. 23, 2004 40 of 77 FCC ID: P270GV00 FCC Test Report: FI04081401-C Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Nov. 23, 2004 41 of 77 FCC ID: P270GV00 FCC Test Report: FI04081401-C Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Nov. 23, 2004 42 of 77 FCC ID: P270GV00 FCC Test Report: FI04081401-C Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Nov. 23, 2004 43 of 77 FCC ID: P270GV00 FCC Test Report: FI04081401-C Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Nov. 23, 2004 44 of 77 FCC ID: P270GV00 FCC Test Report: FI04081401-C Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Nov. 23, 2004 45 of 77 FCC ID: P270GV00 FCC Test Report: FI04081401-C Test By: Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Nov. 23, 2004 46 of 77 FCC ID: P270GV00 FCC Test Report: FI04081401-C Modulation Standard: IEEE 802.11b a) Emission frequencies below 1 GHz Channel LO Test Date: Sep. 01, 2004 Temperature: 23 Humidity: 65% Frequency (MHz) Ant-Pol H/V Meter Reading (dBuV) Corrected Factor (dB) Result@3m (dBuV/m) Limit@3m (dBuV/m) Margin (dB) Remark Table Deg. Ant High (m) 169.68 H 51.69 -17.55 34.14 43.5 -9.36 Peak 196 1.5 218.18 H 54.00 -18.02 35.98 40.0 -4.02 Peak 135 1.0 31.94 V 47.32 -10.21 37.11 40.0 -2.89 Q.P 185 1.0 56.19 V 58.02 -19.75 38.27 40.0 -1.73 Q.P 300 1.5 67.83 V 60.84 -22.23 38.61 40.0 -1.39 Q.P 260 1.0 72.68 V 57.36 -21.44 35.93 40.0 -4.07 Peak 190 1.0 80.44 V 58.10 -20.20 37.90 40.0 -2.10 Q.P 165 1.0 96.93 V 54.41 -17.89 36.52 43.5 -6.98 Peak 100 1.5 Notes: 1. Result = Meter Reading + Corrected Factor 2. Corrected Factor = Antenna Factor + Cable Loss – Amplifier b) Emission frequencies above 1 GHz Channel LO Radiated emission frequencies above 1 GHz to 25 GHz were too low to be measured. Frequency (MHz) Ant-Pol H/V Meter Reading (dBuV) Corrected Factor (dB) Result@3m (dBuV/m) Limit@3m (dBuV/m) Margin (dB) Remark Table Deg. Ant High (m) 1663.0 H 51.79 -3.92 47.87 74 -26.13 Peak 173 1.5 2033.5 H 51.08 -1.81 49.26 74 -24.74 Peak 185 1.0 4081.0 H 54.39 5.53 59.92 74 -14.08 Peak 179 1.0 4081.0 H 44.12 5.53 49.65 54 -4.35 Ave 191 1.0 1663.0 V 54.41 -4.48 49.92 74 -24.08 Peak 172 1.5 2038.0 V 58.22 -2.51 55.71 74 -18.29 Peak 185 1.0 2038.0 V 47.08 -2.50 44.58 54 -9.42 Ave 188 1.0 2617.0 V 58.24 -0.52 57.73 74 -16.27 Peak 180 1.0 2617.0 V 45.81 -0.47 45.33 54 -8.67 Ave 173 1.0 4074.0 V 63.17 4.91 68.08 74 -5.92 Peak 182 1.0 4074.0 V 44.38 4.90 49.28 54 -4.72 Ave 171 1.0 4826.0 V 62.17 6.46 68.63 74 -5.37 Peak 168 1.0 4826.0 V 43.39 6.49 49.88 54 -4.12 Ave 165 1.0 6635.5 V 52.91 9.26 62.17 74 -11.83 Peak 192 1.0 6635.5 V 42.18 9.27 51.45 54 -2.55 Ave 183 1.0 7238.0 V 58.00 10.29 68.29 74 -5.71 Peak 181 1.0 7238.0 V 40.91 10.30 51.21 54 -2.79 Ave 177 1.0 Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Nov. 23, 2004 47 of 77 FCC ID: P270GV00 FCC Test Report: FI04081401-C Modulation Standard: IEEE 802.11b a) Emission frequencies below 1 GHz Channel MID Test Date: Sep. 01, 2004 Temperature: 23 Humidity: 65% Frequency (MHz) Ant-Pol H/V Meter Reading (dBuV) Corrected Factor (dB) Result@3m (dBuV/m) Limit@3m (dBuV/m) Margin (dB) Remark Table Deg. Ant High (m) 169.68 H 52.10 -17.55 34.55 43.5 -8.95 Peak 192 1.5 218.18 H 53.46 -18.02 35.44 40.0 -4.56 Peak 120 1.0 31.94 V 46.36 -10.21 36.15 40.0 -3.85 Peak 170 1.0 56.19 V 57.65 -19.75 37.90 40.0 -2.10 Q.P 290 1.5 67.83 V 57.75 -22.23 35.47 40.0 -4.51 Peak 200 1.0 72.68 V 56.01 -21.44 34.57 40.0 -5.43 Peak 165 1.0 80.44 V 56.79 -20.20 36.59 40.0 -3.41 Peak 180 1.0 96.93 V 48.21 -17.89 30.32 43.5 -13.18 Peak 95 1.5 Notes: 1. Result = Meter Reading + Corrected Factor 2. Corrected Factor = Antenna Factor + Cable Loss – Amplifier b) Emission frequencies above 1 GHz Channel MID Radiated emission frequencies above 1 GHz to 25 GHz were too low to be measured. Frequency (MHz) Ant-Pol H/V Meter Reading (dBuV) Corrected Factor (dB) Result@3m (dBuV/m) Limit@3m (dBuV/m) Margin (dB) Remark Table Deg. Ant High (m) 2053 H 50.43 -1.75 48.68 74 -25.32 Peak 171 1.0 4107 H 51.07 5.56 56.63 74 -17.37 Peak 168 1.0 4107 H 40.67 5.58 46.25 54 -7.75 Ave 182 1.0 2053 V 55.73 -2.45 53.28 74 -20.72 Peak 196 1.0 2617 V 56.59 -0.52 56.08 74 -17.92 Peak 185 1.0 2617 V 47.89 -0.47 47.41 54 -6.59 Ave 181 1.0 4124 V 61.55 4.95 66.50 74 -7.50 Peak 176 1.0 4124 V 40.85 4.96 45.81 54 -8.19 Ave 175 1.0 4876 V 56.98 6.63 63.61 74 -10.39 Peak 169 1.0 4876 V 43.83 6.66 50.49 54 -3.51 Ave 172 1.0 Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Nov. 23, 2004 48 of 77 FCC ID: P270GV00 FCC Test Report: FI04081401-C Modulation Standard: IEEE 802.11b a) Emission frequencies below 1 GHz Channel HI Test Date: Sep. 01, 2004 Temperature: 23 Humidity: 65% Frequency (MHz) Ant-Pol H/V Meter Reading (dBuV) Corrected Factor (dB) Result@3m (dBuV/m) Limit@3m (dBuV/m) Margin (dB) Remark Table Deg. Ant High (m…

Text truncated - open the document above for the full version.

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Nov. 23, 2004 53 of 77 FCC ID: P270GV00 FCC Test Report: FI04081401-C 4.4. 6dB Bandwidth Measurement Data (1) Modulation Standard: IEEE 802.11b Test Date: Aug. 27, 2004 Temperature: 25 Humidity: 62% a) Channel 01: 6dB Emission Bandwidth is 12.5 MHz b) Channel 06: 6dB Emission Bandwidth is 12.3 MHz c) Channel 11: 6dB Emission Bandwidth is 12.0 MHz (2) Modulation Standard: IEEE 802.11g Test Date: Aug. 27, 2004 Temperature: 25 Humidity: 62% a) Channel 01: 6dB Emission Bandwidth is 16.5 MHz b) Channel 06: 6dB Emission Bandwidth is 16.5 MHz c) Channel 11: 6dB Emission Bandwidth is 16.5 MHz Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Nov. 23, 2004 54 of 77 FCC ID: P270GV00 FCC Test Report: FI04081401-C Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Nov. 23, 2004 55 of 77 FCC ID: P270GV00 FCC Test Report: FI04081401-C Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Nov. 23, 2004 56 of 77 FCC ID: P270GV00 FCC Test Report: FI04081401-C Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Nov. 23, 2004 57 of 77 FCC ID: P270GV00 FCC Test Report: FI04081401-C 4.5. Peak Output Power Measurement Data (1) Modulation Standard: IEEE 802.11b Test Date: Aug. 27, 2004 Temperature: 25 Humidity: 62% a) Channel 01: Output Peak Power is 17.36 dBm or 54.397 mW b) Channel 06: Output Peak Power is 17.15 dBm or 51.921 mW c) Channel 11: Output Peak Power is 17.23 dBm or 52.811 mW (2) Modulation Standard: IEEE 802.11g Test Date: Aug. 27, 2004 Temperature: 25 Humidity: 62% a) Channel 01: Output Peak Power is 12.34 dBm or 17.122 mW b) Channel 06: Output Peak Power is 12.89 dBm or 19.465 mW c) Channel 11: Output Peak Power …

Text truncated - open the document above for the full version.
