P270K30Wireless Access Point

Multi-Function Wireless Router Wireless Access Point Broadband Internet Access 4-Port Switching Hub User's Guide i Table of Contents CHAPTER 1 INTRODUCTION..............................................................................................................1 Wireless Router Features..............................................................................................................1 Package Contents.............................................................................................................................3 Physical Details................................................................................................................................4 CHAPTER 2 INSTALLATION...............................................................................................................6 Requirements....................................................................................................................................6 Procedure...........................................................................................................................................6 CHAPTER 3 SETUP..................................................................................................................................8 Overview.............................................................................................................................................8 Configuration Program...................................................................................................................9 Setup Wizard...................................................................................................................................11 LAN Screen.....................................................................................................................................14 Wireless Screen.............................................................................................................................16 Password Screen.............................................................................................................................20 CHAPTER 4 PC CONFIGURATION...................................................................................................21 Overview...........................................................................................................................................21 Windows Clients.............................................................................................................................21 Macintosh Clients...........................................................................................................................33 Linux Clients...................................................................................................................................33 Other Unix Systems.......................................................................................................................33 Wireless Station Configuration..................................................................................................34 CHAPTER 5 OPERATION AND STATUS.........................................................................................35 Operation..........................................................................................................................................35 Status Screen..................................................................................................................................35 Connection Status - PPPoE...........................................................................................................37 Connection Status - PPTP.............................................................................................................39 Connection Status - Telstra Big Pond........................................................................................40 Connection Details - SingTel RAS..............................................................................................41 Connection Details - Fixed/Dynamic IP Address......................................................................43 CHAPTER 6 ADVANCED FEATURES...............................................................................................45 Overview...........................................................................................................................................45 Advanced Menu Screen..................................................................................................................45 Advanced Internet Screen.............................................................................................................46 Access Control................................................................................................................................50 Remote Management......................................................................................................................57 Virtual Servers...............................................................................................................................58 Dynamic DNS (Domain Name Server)........................................................................................61 Upgrade Firmware..........................................................................................................................63 CHAPTER 7 ADVANCED CONFIGURATION.................................................................................64 Overview...........................................................................................................................................64 PC Database.....................................................................................................................................65 Options..............................................................................................................................................69 Security.....…

Text truncated - open the document above for the full version.

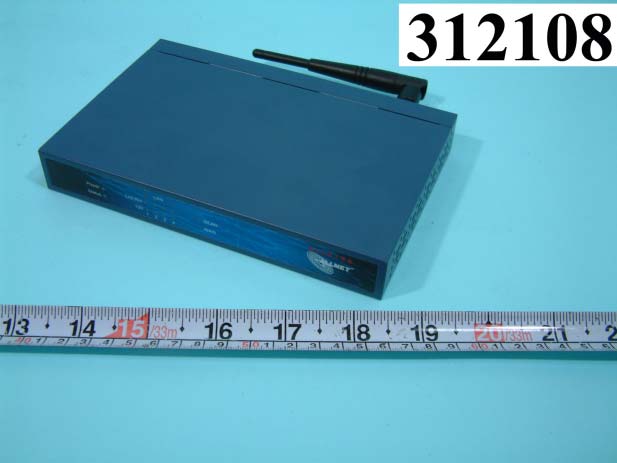

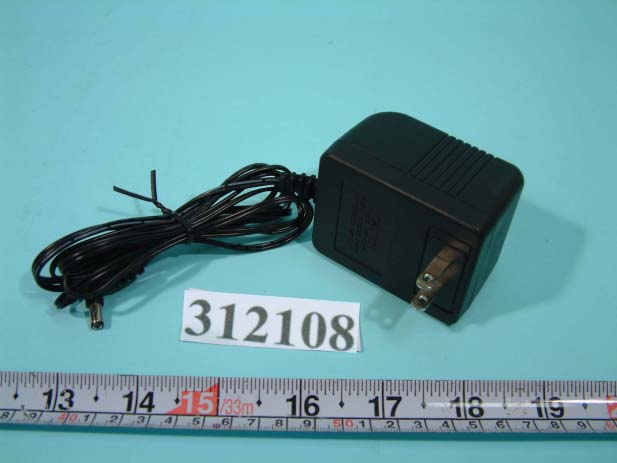

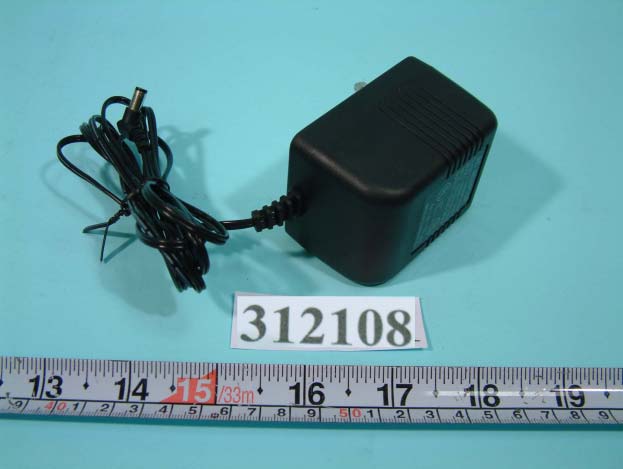

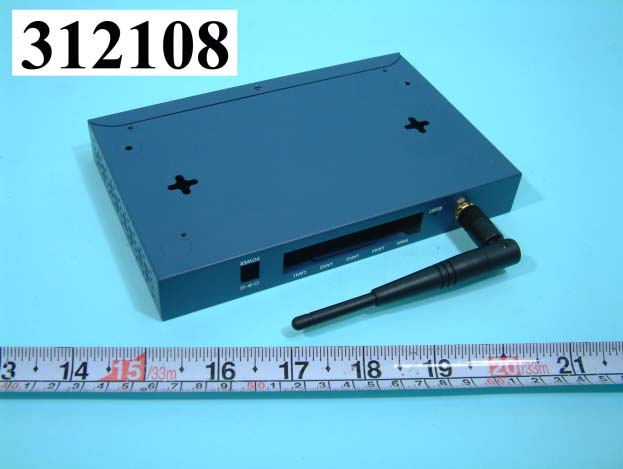

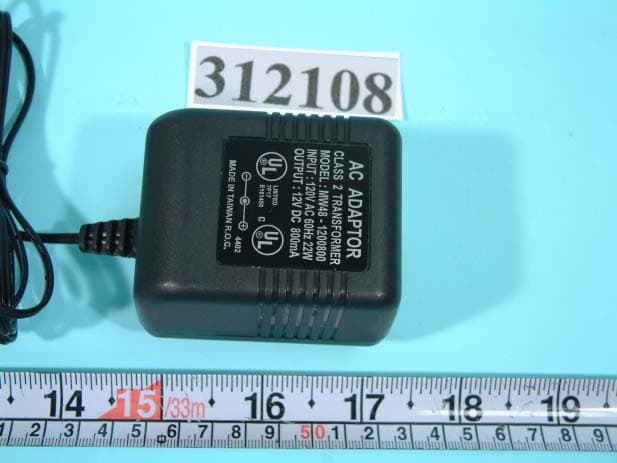

FCC ID: P270K30 NUMBER 1 FRONT SIDE OF EUT FCC ID: P270K30 NUMBER 2 REAR SIDE OF EUT FCC ID: P270K30 NUMBER 3 FRONT SIDE OF EUT FCC ID: P270K30 NUMBER 4 REAR SIDE OF EUT FCC ID: P270K30 NUMBER 5 FRONT SIDE OF EUT FCC ID: P270K30 NUMBER 6 REAR SIDE OF EUT FCC ID: P270K30 NUMBER 7 REAR SIDE OF ADAPTOR FCC ID: P270K30 NUMBER 8 REAR SIDE OF ADAPTOR FCC ID: P270K30 NUMBER 9 FRONT SIDE OF ADAPTOR

Model No.: Serial No.: Server Name: Input:12VDC800mA~1000mAPolarity: This device complies with Part 15 of the FCC rules.Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and (2)This device must accept any interference received, including interference that may cause undesired operation. FCC ID: P270K30 Tested to Comply With FCC Standards FOR HOME OR OFFICE USE 101.00 mm 65.0 mm 4-R1.5 Made in Taiwan

FCC ID: P270K30 Number 1 MECHANICAL CONSTRUCTION FCC ID: P270K30 Number 2 MECHANICAL CONSTRUCTION FCC ID: P270K30 Number 3 MECHANICAL CONSTRUCTION FCC ID: P270K30 Number 4 FRONT SIDE OF MAIN BOARD FCC ID: P270K30 Number 5 REAR SIDE OF MAIN BOARD

Operation Description FCC ID : P270K30 The EUT is use IEEE 802.11b DSSS (Direct Sequence Spread Spectrum) technical. IEEE 802.11b data is encoded using DSSS (direct-sequence spread-spectrum) technology. DSSS works by taking a data stream of zeros and ones and modulating it with a second pattern, the chipping sequence. In 802.11, that sequence is known as the Barker code, which is an 11-bit sequence (10110111000) that has certain mathematical properties making it ideal for modulating radio waves. The basic data stream is exclusive OR'd with the Barker code to generate a series of data objects called chips. Each bit is "encoded" by the 11-bit Barker code, and each group of 11 chips encodes one bit of data. The wireless radio generates a 2.4-GHz carrier wave (2.4 to 2.483 GHz) and modulates that wave using a variety of techniques. For 1-Mbps transmission, BPSK (Binary Phase Shift Keying) is used (one phase shift for each bit). To accomplish 2-Mbps transmission, QPSK (Quadrature Phase Shift Keying) is used. QPSK uses four rotations (0, 90, 180 and 270 degrees) to encode 2 bits of information in the same space as BPSK encodes 1. CCK (Complementary Code Keying) to achieve 11 Mbps, it used a series of codes called Complementary Sequences. Because there are 64 unique code words that can be used to encode the signal, up to 6 bits can be represented by any one particular code word (instead of the 1 bit represented by a Barker symbol). The CCK coding is applied for increasing the data rate, the bit rates are 1,2,5.5.11 Mbps, the symbol rates are 1,1,1.375,1.375Mbps, the chip rates are always 11Mbps.

FCC TEST REPORT Report No. : F312108 SPORTON International Inc. TEL : 886-2-2696-2468 FAX : 886-2-2696-2255 FCC TEST REPORT for 47 CFR, Part 15, Subpart C Equipment : Wireless Access Point Broadband Internet Access 4-Port Switching Hub Model No. : IP706ST FCC ID : P270K30 Filing Type : Certification Applicant : Sercomm Corporation 10 th F1., No. 19-13, Sanchung Road, Nankang, Taipei City, Taiwan 115, R.O.C. (Nankang Software Park, Bldg. #E) ‚ The test result refers exclusively to the test presented test model / sample. ‚ Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. ‚ Certificate or Test Report must not be used by the applicant to claim the product in this test report endorsement by NVLAP or any agency of U.S. government. SPORTON International Inc. 6F, No.106, Sec. 1, Hsin Tai Wu Rd., Hsi Chih, Taipei Hsien, Taiwan, R.O.C. FCC TEST REPORT Report No. : F312108 SPORTON International Inc. FCC ID : P270K30 TEL : 886-2-2696-2468 Page No. : i FAX : 886-2-2696-2255 Issued Date : Feb. 24, 2003 Table of Contents History of this test report..................................................................................................................ii CERTIFICATE OF COMPLIANCE........................................................................................................................1 1. General Description of Equipment under Test.............................................................................................2 1.1. Applicant..........................................................................................................................................................................................2 1.2. Manufacturer ...................................................................................................................................................................................2 1.3. Basic Description of Equipment under Test ....................................................................................................................................2 1.4. Feature of Equipment under Test ...................................................................................................................................................3 2. Test Configuration of Equipment under Test ...............................................................................................5 2.1. Test Manner ....................................................................................................................................................................................5 2.2. Description of Test System .............................................................................................................................................................5 2.3. Connection Diagram of Test System ..............................................................................................................................................8 3. Operation of Equipment under Test ..............................................................................................................9 4. General Information of Test..........................................................................................................................10 4.1. Test Voltage ..................................................................................................................................................................................10 4.2. Standard for Methods of Measurement.........................................................................................................................................10 4.3. Test in Compliance with ................................................................................................................................................................10 4.4. Frequency Range Investigated .....................................................................................................................................................10 4.5. Test Distance ................................................................................................................................................................................10 5. Report of Measurements and Examinations ..............................................................................................11 5.1. List of Measurements and Examinations ......................................................................................................................................11 5.2. 6dB Bandwidth ..............................................................................................................................................................................12 5.3. Peak Output Power .......................................................................................................................................................................16 5.4. Power Spectral Density .................................................................................................................................................................17 5.5. Test of Conducted Emission .........................................................................................................................................................21 5.6. Test of Radiated Emission ............................................................................................................................................................25 5.7. Band Edges Measurement............................................................................................................................................................34 5.8. Antenna Requirements .................................................................................................................................................................37 5.9. RF Exposure ....................................................................…

Text truncated - open the document above for the full version.

FCC TEST REPORT Report No. : F312108 SPORTON International Inc. FCC ID : P270K30 TEL : 886-2-2696-2468 Page No. : 1 of 3 FAX : 886-2-2696-2255 Issued Date : Feb. 24, 2003 1.1. Photographs of Conducted Emission Test Configuration „ The photographs show the configuration that generates the maximum emission. FRONT VIEW REAR VIEW FCC TEST REPORT Report No. : F312108 SPORTON International Inc. FCC ID : P270K30 TEL : 886-2-2696-2468 Page No. : 2 of 3 FAX : 886-2-2696-2255 Issued Date : Feb. 24, 2003 SIDE VIEW FCC TEST REPORT Report No. : F312108 SPORTON International Inc. FCC ID : P270K30 TEL : 886-2-2696-2468 Page No. : 3 of 3 FAX : 886-2-2696-2255 Issued Date : Feb. 24, 2003 1.2. Photographs of Radiated Emission Test Configuration „ The photographs show the configuration that generates the maximum emission. FRONT VIEW REAR VIEW
