  1. Home/
  2. Sercomm Corporation/
  3. P270K3A

P270K3A22Mbps Wireless AP Router

Sercomm Corporation
22Mbps Wireless AP Router - FCC ID P270K3A - Sercomm Corporation
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Jun 09, 2003
Application Purpose
Original Equipment
Date of Application
Jun 09, 2003
Equipment Note
22Mbps Wireless AP Router
Frequency Range
2412.00000000 - 2462.00000000
Company
Sercomm Corporation
Country
Taiwan

Documents & Files

Select a file to view

Users Manual

β†—

Cover Letter(s)

β†—

External Photos

β†—

ID Label/Location Info

β†—

Internal Photos

β†—

Operational Description

β†—

Test Report

β†—
β†—

Test Setup Photos

β†—

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

LevelOne WBR-2400TX 22Mbps Wireless AP Router w/ 4-port Switch User’s Manual Version:1.0 Table of Contents CHAPTER 1 INTRODUCTION.............................................................................................1 LevelOne 22Mbps Wireless AP Router Features...........................................................1 Package Contents..............................................................................................................3 Physical Details.................................................................................................................. 4 CHAPTER 2 INSTALLATION...............................................................................................6 Requirements..................................................................................................................... 6 Procedure...........................................................................................................................6 CHAPTER 3 SETUP................................................................................................................8 Overview............................................................................................................................8 Configuration Program....................................................................................................9 Setup Wizard...................................................................................................................11 LAN Screen......................................................................................................................14 Wireless Screen................................................................................................................16 Password Screen..............................................................................................................20 CHAPTER 4 PC CONFIGURATION..................................................................................21 Overview.......................................................................................................................... 21 Windows Clients..............................................................................................................21 Macintosh Clients............................................................................................................33 Linux Clients.................................................................................................................... 33 Other Unix Systems.........................................................................................................33 Wireless Station Configuration......................................................................................34 CHAPTER 5 OPERATION AND STATUS.........................................................................35 Operation......................................................................................................................... 35 Status Screen.................................................................................................................... 35 Connection Status - PPPoE............................................................................................37 Connection Status - PPTP..............................................................................................39 Connection Details - Fixed/Dynamic IP Address.........................................................40 CHAPTER 6 ADVANCED FEATURES..............................................................................42 Overview.......................................................................................................................... 42 Advanced Internet Screen..............................................................................................42 Conferencing & Telephony.............................................................................................43 Special Applications........................................................................................................44 DMZ.................................................................................................................................46 URL Filter........................................................................................................................ 46 Remote Management......................................................................................................48 Virtual Servers.................................................................................................................49 Dynamic DNS (Domain Name Server)..........................................................................52 CHAPTER 7 ADVANCED CONFIGURATION.................................................................54 Overview.......................................................................................................................... 54 PC Database.....................................................................................................................55 Options.............................................................................................................................57 MAC Address..................................................................................................................59 Routing.............................................................................................................................60 APPENDIX A TROUBLESHOOTING................................................................................64 Overview.......................................................................................................................... 64 i General Problems............................................................................................................64 Internet Access.................................................................................................................64 Wireless Access.…

Text truncated - open the document above for the full version.

External Photos

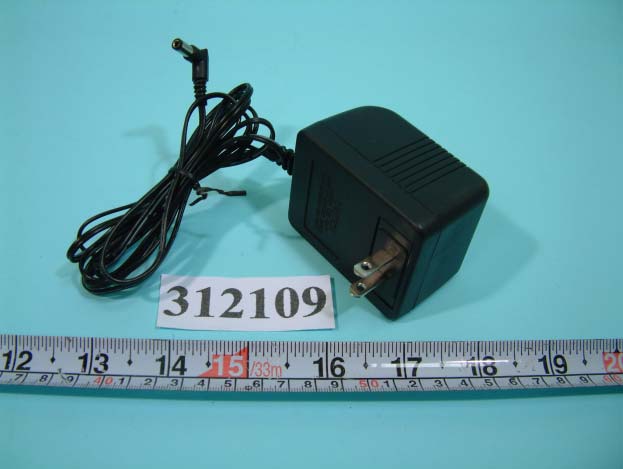

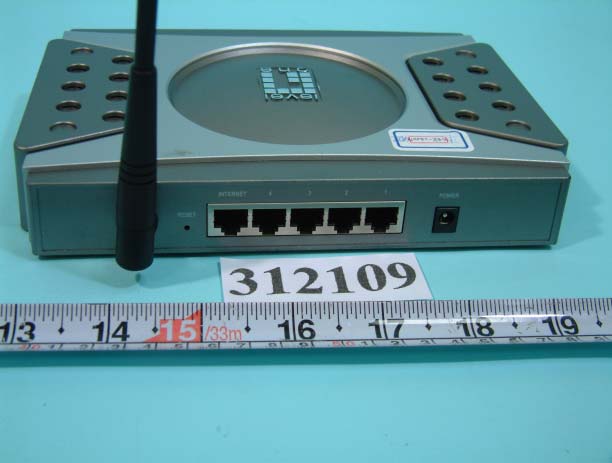

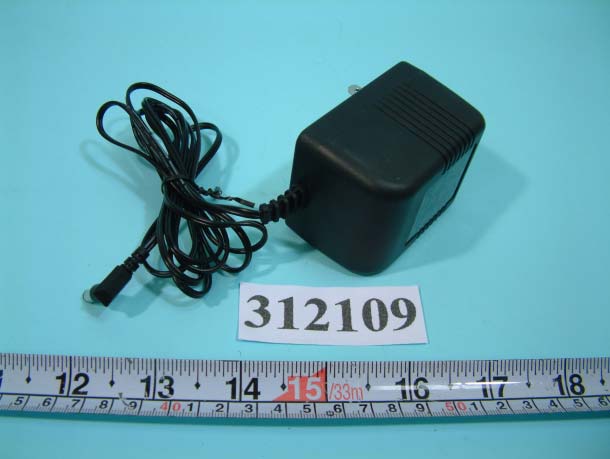

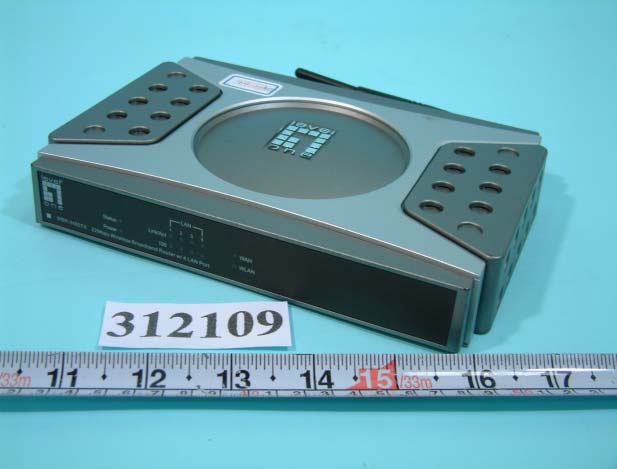

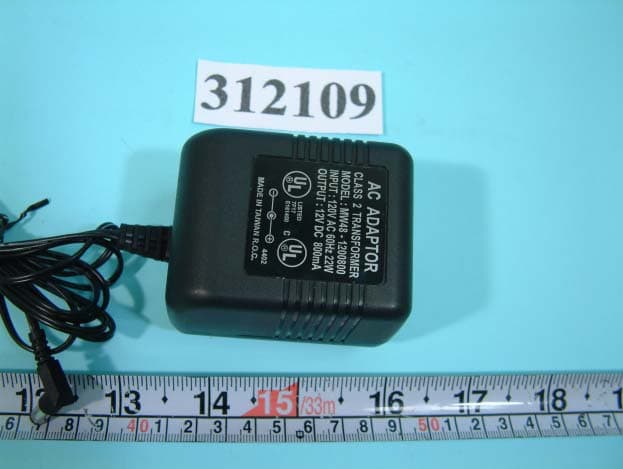

FCC ID: P270K3A NUMBER 1 FRONT SIDE OF EUT FCC ID: P270K3A NUMBER 2 REAR SIDE OF EUT FCC ID: P270K3A NUMBER 3 LATERAL SIDE OF EUT FCC ID: P270K3A NUMBER 4 REAR SIDE OF ADAPTOR FCC ID: P270K3A NUMBER 5 REAR SIDE OF ADAPTOR FCC ID: P270K3A NUMBER 6 FRONT SIDE OF ADAPTOR

ID Label/Location Info

46.5 mm 75 mm THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION FCC ID: P270K3A Serial No.: Server name: Made in Taiwan Scale 1:1

Internal Photos

FCC ID: P270K3A Number 1 MECHANICAL CONSTRUCTION FCC ID: P270K3A Number 2 MECHANICAL CONSTRUCTION FCC ID: P270K3A Number 3 MECHANICAL CONSTRUCTION FCC ID: P270K3A Number 4 FRONT SIDE OF MAIN BOARD FCC ID: P270K3A Number 5 REAR SIDE OF MAIN BOARD FCC ID: P270K3A Number 6 FRONT SIDE OF LED BOARD FCC ID: P270K3A Number 7 REAR SIDE OF LED BOARD

Operational Description

Operation Description FCC ID : P270K3A The EUT is use IEEE 802.11b DSSS (Direct Sequence Spread Spectrum) technical. IEEE 802.11b data is encoded using DSSS (direct-sequence spread-spectrum) technology. DSSS works by taking a data stream of zeros and ones and modulating it with a second pattern, the chipping sequence. In 802.11, that sequence is known as the Barker code, which is an 11-bit sequence (10110111000) that has certain mathematical properties making it ideal for modulating radio waves. The basic data stream is exclusive OR'd with the Barker code to generate a series of data objects called chips. Each bit is "encoded" by the 11-bit Barker code, and each group of 11 chips encodes one bit of data. The wireless radio generates a 2.4-GHz carrier wave (2.4 to 2.483 GHz) and modulates that wave using a variety of techniques. For 1-Mbps transmission, BPSK (Binary Phase Shift Keying) is used (one phase shift for each bit). To accomplish 2-Mbps transmission, QPSK (Quadrature Phase Shift Keying) is used. QPSK uses four rotations (0, 90, 180 and 270 degrees) to encode 2 bits of information in the same space as BPSK encodes 1. CCK (Complementary Code Keying) to achieve 11 Mbps, it used a series of codes called Complementary Sequences. Because there are 64 unique code words that can be used to encode the signal, up to 6 bits can be represented by any one particular code word (instead of the 1 bit represented by a Barker symbol). The CCK coding is applied for increasing the data rate, the bit rates are 1,2,5.5.11 Mbps, the symbol rates are 1,1,1.375,1.375Mbps, the chip rates are always 11Mbps. Because the baseband processor (ACX100) be used the TI solution. The ACX100 proprietary application of PBCC TM (Packet Binary Convolutional Code) technology provides data rates up to 22Mbit/s. The ACX100 MAC architecture supports even higher data rates. So, the 802.11b should be asserted 802.11b+.

Test Report

FCC TEST REPORT Report No. : F312109 SPORTON International Inc. TEL : 886-2-2696-2468 FAX : 886-2-2696-2255 FCC TEST REPORT for 47 CFR, Part 15, Subpart C Equipment : 22Mbps Wireless AP Router w/ 4-Port Switch Model No. : WBR-2400TX FCC ID : P270K3A Filing Type : Certification Applicant : Sercomm Corporation. 10th Fl., No. 19-13, Sanchung Road, Nankang, Taipei, City, Taiwan 115, R.O.C. (Nankang Software Park, Bldg. #E) Β‚ The test result refers exclusively to the test presented test model / sample. Β‚ Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. Β‚ Certificate or Test Report must not be used by the applicant to claim the product in this test report endorsement by NVLAP or any agency of U.S. government. SPORTON International Inc. 6F, No.106, Sec. 1, Hsin Tai Wu Rd., Hsi Chih, Taipei Hsien, Taiwan, R.O.C. FCC TEST REPORT Report No. : F312109 SPORTON International Inc. FCC ID : P270K3A TEL : 886-2-2696-2468 Page No. : i FAX : 886-2-2696-2255 Issued Date : Mar. 05, 2003 Table of Contents History of this test report....................................................................................................................................ii CERTIFICATE OF COMPLIANCE........................................................................................................................1 1. General Description of Equipment under Test.............................................................................................2 1.1. Applicant..........................................................................................................................................................................................2 1.2. Manufacturer ...................................................................................................................................................................................2 1.3. Basic Description of Equipment under Test ....................................................................................................................................2 1.4. Feature of Equipment under Test ...................................................................................................................................................3 2. Test Configuration of Equipment under Test ...............................................................................................5 2.1. Test Manner ....................................................................................................................................................................................5 2.2. Description of Test System .............................................................................................................................................................5 2.3. Connection Diagram of Test System ..............................................................................................................................................8 3. Operation of Equipment under Test ..............................................................................................................9 4. General Information of Test..........................................................................................................................10 4.1. Test Voltage ..................................................................................................................................................................................10 4.2. Standard for Methods of Measurement.........................................................................................................................................10 4.3. Test in Compliance with ................................................................................................................................................................10 4.4. Frequency Range Investigated .....................................................................................................................................................10 4.5. Test Distance ................................................................................................................................................................................10 5. Report of Measurements and Examinations ..............................................................................................11 5.1. List of Measurements and Examinations ......................................................................................................................................11 5.2. 6dB Bandwidth ..............................................................................................................................................................................12 5.3. Peak Output Power .......................................................................................................................................................................16 5.4. Power Spectral Density .................................................................................................................................................................17 5.5. Test of Conducted Emission .........................................................................................................................................................21 5.6. Test of Radiated Emission ............................................................................................................................................................25 5.7. Band Edges Measurement............................................................................................................................................................34 5.8. Antenna Requirements .................................................................................................................................................................37 5.9. RF Exposure ........................................................................…

Text truncated - open the document above for the full version.

Test Setup Photos

FCC TEST REPORT Report No. : F312109 SPORTON International Inc. FCC ID : P270K3A TEL : 886-2-2696-2468 Page No. : 1 of 3 FAX : 886-2-2696-2255 Issued Date : Mar. 05, 2003 1.1. Photographs of Conducted Emission Test Configuration Β„ The photographs show the configuration that generates the maximum emission. FRONT VIEW REAR VIEW FCC TEST REPORT Report No. : F312109 SPORTON International Inc. FCC ID : P270K3A TEL : 886-2-2696-2468 Page No. : 2 of 3 FAX : 886-2-2696-2255 Issued Date : Mar. 05, 2003 SIDE VIEW FCC TEST REPORT Report No. : F312109 SPORTON International Inc. FCC ID : P270K3A TEL : 886-2-2696-2468 Page No. : 3 of 3 FAX : 886-2-2696-2255 Issued Date : Mar. 05, 2003 1.2. Photographs of Radiated Emission Test Configuration Β„ The photographs show the configuration that generates the maximum emission. FRONT VIEW REAR VIEW

Contact Information

Applicant

Nick Wu(Engineer)
[email protected]886-2-2655-3988Fax: 886-2-2655-3965

Test Firm

SPORTON International IncKathy Lin
[email protected]886-2-2696-2468Fax: 886-2-2696-2255

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.41 GHz - 2.46 GHz61.00 mW
Confidentiality
Long Term
Grant Notes
Power listed is conducted. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation and transmitter operating conditions for satisfying RF exposure compliance.
