P270NV00802.11g Wireless mini-PCI LAN Card

The antenna tested for MB801T will not be used in the notebook computer or laptop but the antenna will be installed in the desktop computer with PCI extended adapter. (Please see the figures). The notebook computer manufacturers have their own antennas to fit their design. If we ship MB8001T to the notebook computer manufacturer, we will apply another FCC test with another antenna. OEM Installation Manual NOTE:This divice can only be installedo on the PCI card by the OEM or the OEM integrator. It's can't be installed by end user. FCC ID: P270NV00

802.11g Wireless mini PCI Card User’s Manual P/N: 9560NV0001 REGULATORY STATEMENTS FCC Certification The United States Federal Communication Commission (FCC) and the Canadian Department of Communications have established certain rules governing the use of electronic equipment. Part15, Class B This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interface, and 2) This device must accept any interface received, including interface that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the distance between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. CAUTION: 1)To comply with FCC RF exposure compliance requirements, a separation distance of at least 20 cm must be maintained between the antenna of this device and all persons. 2)This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Channel The Wireless Channel sets the radio frequency used for communication. Access Points use a fixed Channel. You can select the Channel used. This allows you to choose a Channel which provides the least interference and best performance. In the USA and Canada, 11 channel are available. If using multiple Access Points, it is better if adjacent Access Points use different Channels to reduce interference. In "Infrastructure" mode, Wireless Stations normally scan all Channels, looking for an Access Point. If more than one Access Point can be used, the one with the strongest signal is used. (This can only happen within an ESS.) If using "Ad-hoc" mode (no Access Point), all Wireless stations should be set to use the same Channel. However, most Wireless stations will still scan all Channels to see if there is an existing "Ad-hoc" group they can join. Table of Contents INTRODUCTION...................................................................................... 1 WIRELESS NETWORK OPTIONS ................................................................. 1 The Peer-to-Peer Network............................................................ 1 The Access Point Network ........................................................... 2 WIRELESS PCI CARD................................................................................ 2 Power Indicator: (Orange LED) ................................................... 2 Act Indicator: (Green LED) ......................................................... 3 INSTALLATION ....................................................................................... 4 INSTALL THE DRIVER & UTILITY.............................................................. 4 INSTALL THE DEVICE................................................................................. 7 Note for Windows 98 users:......................................................... 7 Note for Windows 2000 users:..................................................... 8 Note for Windows XP users:........................................................ 8 Verify Device Installation ............................................................ 9 NETWORK CONNECTION .................................................................. 11 IN WINDOWS 98/ME............................................................................... 11 IN WINDOWS 2000/XP............................................................................ 14 CONFIGURATION................................................................................. 17 ACCESSING THE CONFIGURATION UTILITY............................................. 17 M AIN TAB............................................................................................... 18 ADVANCED TAB ..................................................................................... 22 PRIVACY TAB ......................................................................................... 22 STATISTICS TAB...................................................................................... 29 ABOUT TAB ............................................................................................ 30 UNINSTALLATION ............................................................................... 31 INTRODUCTION The 802.11g Wireless LAN Card is a device that allows you connect your computer to a wireless local area network (LAN). A wireless LAN allows your system to use wireless Radio Frequency (RF) technology to transmit and receive data without having to physically attach to the network. The Wireless protocols that come with this product ensure data security and isolation from interference generated by other radio frequencies. This card also allows you to take full advantage of your computer’s mobility with access to real-time information and online services anytime and anywhere. In addition, this device eliminates the bother of pulling cable through walls and under furniture. It even allows you to place your system in locations where cabling is impossible. Modifying and augmenting networks has never been so easy. Wireless Network Options The Peer-to-Peer Network This network installation lets you se…

Text truncated - open the document above for the full version.

Mode You can select IEEE 802.11b(B-Only), 802.11b +(B-Plus) , 802.11g (G-Only)standard or B&G Mode (If you choose this option the device will automatically convert the suitable standard ). Profile Enter the profile name and click the Save button to save your configuration, To open the profiles you saved, select the profile from the pull-down menu and then click the Load button. To delete the profiles you saved, select the profile from the pull-down menu and then click the Delete button. Tx Power Level Transmit power level, includes Low Power, Medium-Low Power, Medium Power, Medium-High Power, High Power Fragment Threshold To fragment MSDU or MMPDU into small sizes of frames for increasing the reliability of frame (The maximum value of 4096 means no fragmentation is needed) transmission. The performance will be decreased as well, thus a noisy environment is recommended. RTS Threshold This value should remain at its default setting of 4096. Should you encounter inconsistent data flow, only minor modifications of this value are recommended. - 21 - Preamble Retry limits A preamble is a signal used in wireless environment to synchronize the transmitting timing including Synchronization and Start frame delimiter. (Note: If you want to change the Preamble type into Long or Short, please check the setting of AP.) You can set the number of retries if no acknowledgement appears from the receiving station. Advanced Tab The Advanced tab displays the current status of the Wireless Network Adapter. Privacy Tab Use the Privacy Tab to configure your WEP, CCX and WPA settings. WEP (Wired Equivalent Privacy), CCX （Cisco Compatible Extension）and WPA（WiFi Protected Access）encryption can be used to ensure the security of your wireless network. If you left External Configuration unchecked in the Main tab (see page 18), functions in the following figure will be enabled. - 22 - If you checked External Configuration in the Main tab (see page 18), functions in the following figure will be disabled. Privacy Mode Configure your NONE, WEP, CCX, 802.1x and WPA settings： NONE：No security defined. WEP (Wired Equivalent Privacy) is a data security mechanism based on a 40 Bit/128 Bit/256 Bit shared key algorithm. Press the Cofigure button to change WEP configuration. CCX （Cisco Compatible Extension ）. It - 23 - provides user-based, centralized authentication, as well as per-user wired equivalent privacy (WEP) session keys. Press the Configure button to change CCX configuration. The 802.1X Configuration window is used to configure WEP, CCX and WPA security with 802.1X authentication. WPA（WiFi Protected Access）encryption can be used to ensure the security of your wireless network. WEP Configuration None： - 24 - Encryption 1-4 Key size To configure your WEP settings. WEP (Wired Equivalent Privacy) encryption can be used to ensure the security of your wireless network. Select one Key and Key Size then fill in the appropriate value/phrase in Encryption field. Note: You must use the same Key and Encryption settings for the both sides of the wireless network to connect KEY1 ~ KEY 4：You can specify up to 4 different keys to decrypt wireless data. Select the Default key setting from the radio button. Encryption：This setting is the configuration key used in accessing the wireless network via WEP encryption. A key of 10 hexadecimal characters (0-9, A-F) or 5 characters (ASCII) is required if a 64-bit Key Length was selected. A key of 26 hexadecimal characters (0-9, A-F) or 13 characters (ASCII) is required if a 128-bit Key Length was selected. A key of 58 hexadecimal characters (0-9, A-F) or 29 characters (ASCII) is required if a 256-bit Key Length was selected. 40 Bit, 128 Bit or 256 Bit. 802.1x Configuration The 802.1X Configuration window is used to configure WEP, CCX and WPA security with 802.1X authentication. - 25 - Protocol This panel enables you to select an authentication protocol. Password This panel is available when EAP-TLS is not selected (either MSCHAP V2 over PEAP is selected with WEP or LEAP is selected for CCX). This panel enables you to enter a login name and password or request that the driver prompt for them when you connect to a network. Personal Certificate This panel is available when EAP-TLS protocol is selected and enables you to select a certificate for authenticating the station. User Name Type in the user name assigned to the certificate. Browse Select a certificate by clicking Browse. Server Certificate You can select to enable or disable server certificate. CCX Configuration None：You may refer to page 25(WEP Configuration). - 26 - 802.1x： EAP-TLS is a mutual authentication method, which means that both the client and the server prove their identities. LEAP EAP-TLS Network administers have been taking advantage of the simplified user and security administration that LEAP provides. Before the security authentication is started, you should enter the user name and password or the authentication process will fail. - 27 - WPA settings Preshared Key： Passphrase：Enter the key that you are sharing with the network for the WLAN connection. 802.1x：You may refer to page 25(802.1x Configuration). - 28 - Statistics Tab The Statistics Tab displays the available statistic information including Receive packets, Transmit packets, Association reject packets, Association timeout packets, Authentication reject packets, Authentication timeout packets. - 29 - About Tab Click on the About tab to view basic version information about the OS Version, Utility Version, Driver Version, Firmware Version and EEPROM Version. - 30 - UNINSTALLATION In case you need to uninstall the Utility and driver, please refer to below steps. (As you uninstall the utility, the driver will be uninstalled as well.) 1. Go to Start Æ Programs ÆWLanUtility Æ Uninstall Wireless LAN Utility. 2. Click OK to continue. 3. Select Yes, I want to restart my computer now, and then click Finish to complete the uninstalled procedure. - 31 - - 32 -

Request for modular approval – FCC ID: P270NV00 Dear Application Examiner, The SerComm Product Development The 802.11g wireless mini PCI LAN card is seeking FCC authorization as a module transmitter. The requirements of the FCC Public notice DA00-1407 are met. The following requirements are fulfilled: 1. The module transmitter must have its own shielding The radio portion of the module is contained in its own RF shielding. See the external photos. 2. The modular transmitter must have buffered modulation /data inputs The module has a memory management unit inside of the IC. It buffers the data inputs from UART and Mini PCI terminal. 3. The modular transmitter must have its own power supply regulation The IC contains an own voltage regulation. In case of change in the supply voltage VCCfor example cause by temperature changes or other effect,the internal voltage will be stabilized. 4. The modular transmitter must comply with the antenna requirement of Section 15.203 and 15.204c The transmitter shall only be used with the tested integral antenna or with an antenna that has less antenna gain. Requirement for the use of external antennas are specified in the antenna information exhibit. 5. The modular transmitter must be tested in a stand-alone configuration The EUT was tested in a stand-alone configuration. The module was fixed in test/programming board during the test. See also the test report and Test setup photos. .1.1 SerComm Corp. Embedded Server Provider 8F, No.3-1, YuanQu St., NanKang, Taipei 115, Taiwan, R.O.C. TEL: 886-2-2655-3988 FAX: 886-2-2655-3966 http://www.sercomm.com E-mail: [email protected] All trademarks are the property of their respective owners Specifications are subject to change without notice 6. The modular transmitter must be labeled with its own FCC ID number The EUT will be labeled with its own FCC ID number. If the module is installed inside of an end-product, the label will not be visible. 7. The modular transmitter must comply with any rule or operating requirement applicable to the transmitter and the manufacturer must provide adequate instruction along with the module to explain any such requirements. The EUT is compliant with all applicable FCC rules. Detail instructions are given in the Users Guide. 8. The modular transmitter must comply with any applicable RF exposure requirements. The transmitter herein was tested with the antenna that is integrated on the radio module. Compliance to RF exposure requirements for this antenna is included within this application for approval. Appropriate warning statement will be placed with each end product user information based on the results of the RF exposure data filed with this application. OEM Resellers will be advised to include a similar statement to inform the users of any requirements for RF safety. Please contact us if you have any addition questions. Best Regards, Kevin Tzeng Sercomm Corp. 8F, No. 3-1, YuanQu St., NanKang, Taipei 115, Taiwan, R.O.C Tel+886-2-2655-3988 Fax+886 -2-2655-3765

Exclusive Certification Corp. 4F-2, No. 28, Lane 78, Xing-Ai Rd. Nei-hu , Taipei City 114 Taiwan R.O.C 11478284-2F Tel: 886-2-2792-3366 Fax: 886-2-2792-1100 To whom it may concern: The enclosed documents constitute a formal submittal and application for a Grant of Equipment Authorization pursuant to Subpart C of Part 15 of FCC rules (CFR47) regarding 802.11g wireless mini PC I LAN card for the SerComm model MB801T. Data within this report demonstrates that the equipment tested complied with the FCC limits for intentional radiators. Exclusive Certificate Corp. (ECC), as duly authorized agent prepared this submittal. A copy of the letter of our appointment as agent is enclosed. If there are any questions or if further information is needed, please contact ECC for assistance. Ivy Chen TEL: +886-2-2792-3366 # 204 FAX: +886-2-2792-1100 E-mail: [email protected]

External Photos

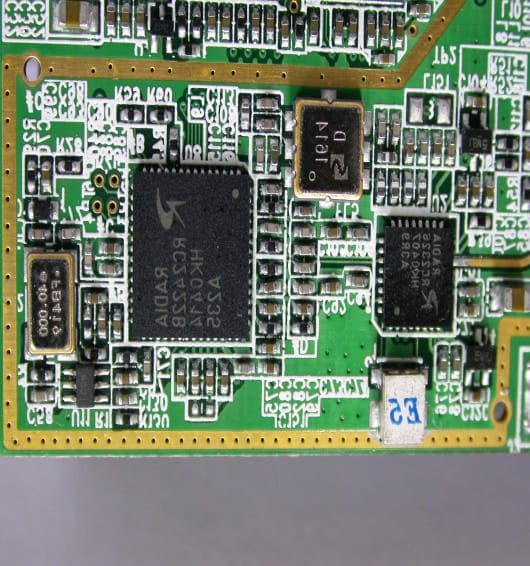

Internal Photos

Internal Photos

MB801T CIRCUIT DESCRIPTION HOST MAC BASE BAND TNETW1130 RADIO ANTENNA RF SWITCH CONTROL MAC (Media Access Control) Unit with Baseband Process Unit (U1) The TNETW1130 MAC implements the IEEE Std 802.11 MAC sublayer using both dedicated hardware and embedded firmware. The MAC hardware implements real-time functions, including access protocol management, encryption, decryption, and direct memory access (DMA) transferring of data between the baseband processor and the host. The eCPU runs firmware that manages the flow of commands and data to/from the host, performs scan-and-join operations, and maintains TX and RX queues, as well as a WEP key table stored in internal RAM. The eCPU can override many of the MAC functions that are performed automatically by hardware during normal operation. The baseband processor includes two primary interfaces: radio and MAC. The radio interface provides analog differential signals for transmitting and receiving data by means of 2.4-GHz or 5-GHz radios. The radio interface also includes programmable RX AGC, TX power control, and antenna diversity. The MAC interface ensures that decoded and descrambled RX data is transferred to the MAC for further processing. The MAC interface also allows the MAC to transfer MAC protocol data units (MPDUs) to the baseband processor for encoding and transmission. The baseband processor provides a serial interface through which the MAC accesses registers within the baseband processor core. The baseband processor also provides CCA information to the MAC. RC2422B RF Transceiver Dual-Mode 802.11b/g IQ/IF Transceiver with Dual VCO Synthesizers(U8) The RC2422 is a fully integrated IQ transceiver specifically for use in 802.11 b/g applications. The RC2422 is designed to perform the IQ conversion at 374MHz IF as well as provide an RFLO and control logic to the RFFE (Radio Frequency Front End). The RC2422 also has an internal IQ DC offset calibration function for the receive IQ interface. Combined with the Radia integrated RFFE, the RC2422 completes the Radia WLAN two-chip radio. The RC2422 incorporates all of the system blocks from the modem to the RFFE except for the IF filtering and the reference crystal. The ASIC uniquely incorporates an internal PLL reference oscillator where only a crystal is needed, and also provides a clock output for base-band/MAC ASICs. RC2422 includes two synthesizers with VCOs, IQ modulator, IQ demodulator, anti aliasing filters, IF amplifiers, receive AGC circuit, transmit power control and serial interface. RC2326 Dual-Mode 802.11b/g RFFE ISM band(U2) The RC2326 is a fully integrated Dual Mode Radio Frequency Front End (RFFE) designed specifically for use in 802.11 b/g applications. The RC2326 is designed to perform RF up and down conversions in the unlicensed ISM band. Combined with the Radia RC2422 IF/IQ Tranceiver/Synthesizer, The RC2326 completes the Radia WLAN two-chip radio. The RC2326 incorporates all of the RF blocks for both the “b/g” band except for low cost ceramic filters. The ASIC includes the LNA, PA, mixer, bias circuitry, RX gain control, transmit coupler detector, and T/R switches. High integration and internal RF matching enhances performance and greatly reduce external part count. The only external needed for operation are RF filters and external low power DC switching FETs. Power Regulator(U5,U10,U15) Mini PCI Connector

1.1. Test Result of RF Exposure Evaluation . Product: 802.11g wireless mini PCI LAN card . Test Item: RF Exposure Evaluation Data . Test site: OATSI-SD . Test Mode: Normal Operation 1.1.1. Antenna Gain The maximum Gain is 1.8 dBi. 1.1.2. EUT Operation condition Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 1.1.3. Output Power into Antenna & RF Exposure Evaluation Distance Modulation Standard: IEEE 802.11b Test Date: Sep. 10, 2004 Temperature: 25 Humidity: 61 Channel Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density (S) (mW/cm 2 ) 01 2412 15.16 0.0099 06 2437 15.17 0.0099 11 2462 15.32 0.0103 Modulation Standard: IEEE 802.11g Test Date: Sep. 10, 2004 Temperature: 25 Humidity: 61 Channel Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density (S) (mW/cm 2 ) 01 2412 13.58 0.0069 06 2437 13.36 0.0065 11 2462 13.63 0.0069 The MPE is calculated as 0.0099 mW / cm 2 < limit 1 mW / cm 2 . So, RF exposure limit warning or SAR test are not required.

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Sep. 14, 2004 1 of 64 FCC ID: P270NV00 FCC Test Report: FI04081701-A FCC TEST REPORT according to FCC Rules and Regulations Part 15 Subpart C † The test result refers exclusively to the test presented test model / sample., † Without written approval of Exclusive Certification Corp. the test report shall not be reproduced except in full. Applicant SerComm Corporation Address 8F, No. 3-1, YuanQu St., NanKang, Taipei 115, Taiwan, R.O.C. Equipment 802.11g wireless mini PCI LAN card Model No. MB801T FCC ID P270NV00 Trade Name SerComm Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Sep. 14, 2004 2 of 64 FCC ID: P270NV00 FCC Test Report: FI04081701-A Contents 1. Report of Measurements and Examinations..................................................................................4 1.1. List of Measurements and Examinations............................................................................4 1.2. Antenna Requirements......................................................................................................5 1.3. Test of Conducted Emission..............................................................................................6 1.4. Test of Radiated Emission.................................................................................................8 1.5. 6dB Bandwidth.................................................................................................................9 1.6. Maximum Peak Output Power...........................................................................................9 1.7. Band Edges Measurement..............................................................................................10 1.8. Power Spectral Density...................................................................................................10 1.9. Restricted Bands of Operation..........................................................................................11 1.10. Labeling Requirement......................................................................................................11 1.11. RF Exposure..................................................................................................................12 2. Test Configuration of Equipment under Test................................................................................14 2.1. Test Mode and Test Software...........................................................................................14 2.2. Description of Test System..............................................................................................14 2.3. Connection Diagram of Test System................................................................................14 2.4. Feature of Equipment under Test.....................................................................................15 2.5. History of this test report.................................................................................................16 2.6. General Information of Test.............................................................................................16 3. Test Result and Data.................................................................................................................17 3.1. Antenna Requirement.....................................................................................................17 3.2. Test Result of Conducted Emission..................................................................................18 3.3. RF Portion......................................................................................................................31 3.4. 6dB Bandwidth Measurement Data..................................................................................41 3.5. Peak Output Power Measurement Data...........................................................................45 3.6. Band Edges Measurement Data......................................................................................49 3.7. Power Spectral Density Measurement Data......................................................................60 4. List of Measuring Equipment Used.............................................................................................64 Appendix A. Photographs of EUT.......................................................................................A1 ~ A2 Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Sep. 14, 2004 3 of 64 FCC ID: P270NV00 FCC Test Report: FI04081701-A CERTIFICATE OF COMPLIANCE according to FCC Rules and Regulations Part 15 Subpart C Applicant SerComm Corporation Address 8F, No. 3-1, YuanQu St., NanKang, Taipei 115, Taiwan, R.O.C. Equipment 802.11g wireless mini PCI LAN card Model No. MB801T FCC ID P270NV00 I HEREBY CERTIFY THAT : The measurements shown in this test report were made in accordance with the procedures given in ANSI C63.4. The equipment was passed the test performed according to FCC Rules and Regulations Part 15 Subpart C (2002). The test was carried out on Sep. 10, 2004 at Exclusive Certification Corp. Signature Anson Chou / Manager Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Sep. 14, 2004 4 of 64 FCC ID: P270NV00 FCC Test Report: FI04081701-A 1. Report of Measurements and Examinations 1.1. List of Measurements and Examinations FCC Rule . Description of Test Result 15.203 . Antenna Requirement Pass 15.207 . Conducted Emission Pass 15.209 . Radiated Emission Pass 15.247(a)(2) . 6dB Bandwidth Pass 15.247(b) . Maximum Peak Output Power Pass 15.247(c) . 100kHz Bandwidth of Frequency Band Edges Pass 15.247(d) . Power Spectral Density Pass 1.1307 1.1310 2.1091 2.1093 . RF Exposure Compliance Pass Test by: Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Sep. 14, 2004 5 of 64 FCC ID: P270NV00 FCC Test Report: FI04081701-A 1.2. Antenna Requ…

Text truncated - open the document above for the full version.

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Sep. 14, 2004 24 of 64 FCC ID: P270NV00 FCC Test Report: FI04081701-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Sep. 14, 2004 25 of 64 FCC ID: P270NV00 FCC Test Report: FI04081701-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Sep. 14, 2004 26 of 64 FCC ID: P270NV00 FCC Test Report: FI04081701-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Sep. 14, 2004 27 of 64 FCC ID: P270NV00 FCC Test Report: FI04081701-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Sep. 14, 2004 28 of 64 FCC ID: P270NV00 FCC Test Report: FI04081701-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Sep. 14, 2004 29 of 64 FCC ID: P270NV00 FCC Test Report: FI04081701-A Test by: Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Sep. 14, 2004 30 of 64 FCC ID: P270NV00 FCC Test Report: FI04081701-A 3.2.1. Photographs of Conducted Emission Test FRONT VIEW REAR VIEW Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Sep. 14, 2004 31 of 64 FCC ID: P270NV00 FCC Test Report: FI04081701-A 3.3. RF Portion 3.3.1. Test Result of Conducted Emission Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Sep. 14, 2004 32 of 64 FCC ID: P270NV00 FCC Test Report: FI04081701-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Sep. 14, 2004 33 of 64 FCC ID: P270NV00 FCC Test Report: FI04081701-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Sep. 14, 2004 34 of 64 FCC ID: P270NV00 FCC Test Report: FI04081701-A 3.3.2. Test Result of Radiated Emission Modulation Standard: IEEE 802.11b a) Emission frequencies below 1 GHz Channel LO Test Date: Sep. 10, 2004 Temperature:25 Humidity: 61% Frequency (MHz) Ant-Pol H/V Meter Reading (dBuV) Corrected Factor (dB) Result@3m (dBuV/m) Limit@3m (dBuV/m) Margin (dB) Remark Table Deg. Ant High (m) 169.68 H 58.61 -17.55 41.06 43.5 -2.44 Q.P 210 1.0 235.64 H 56.65 -15.70 40.95 46.0 -5.05 Peak 230 1.0 701.24 H 42.08 -1.06 41.02 46.0 -4.98 Peak 260 1.0 41.64 V 50.18 -15.24 34.94 40.0 -5.06 Peak 99 1.0 128.94 V 55.78 -15.56 40.22 43.5 -3.28 Peak 168 1.5 169.68 V 58.31 -17.55 40.76 43.5 -2.74 Q.P 220 1.0 652.74 V 44.18 -2.01 42.16 46.0 -3.84 Peak 120 1.0 Notes: 1. Result = Meter Reading + Corrected Factor 2. Corrected Factor = Antenna Factor + Cable Loss – Amplifier b) Emission frequencies above 1 GHz Channel LO Frequency (MHz) Ant-Pol H/V Meter Reading (dBuV) Corrected Factor (dB) Result@3m (dBuV/m) Limit@3m (dBuV/m) Margin (dB) Remark Table Deg. Ant High (m) 2033.5 H 55.34 -1.81 53.52 74 -20.48 Peak 176 1.0 2605.5 H 49.47 0.20 49.67 74 -24.33 Peak 182 1.0 4076.2 H 50.77 5.53 56.30 74 -17.70 Peak 192 1.0 4076.2 H 40.95 5.52 46.47 54 -7.53 Ave 185 1.0 4823.2 H 48.24 7.22 55.46 74 -18.54 Peak 183 1.0 4823.2 H 37.51 7.25 44.76 54 -9.24 Ave…
