P270YC01Wireless Network Camera

Network Camera User’s Guide Table of Contents CHAPTER 1 INTRODUCTION.............................................................................................. 1 Overview ............................................................................................................................ 1 Physical Details - Network Camera ................................................................................. 4 Package Contents .............................................................................................................. 6 CHAPTER 2 BASIC SETUP ................................................................................................... 7 System Requirements........................................................................................................ 7 Installation - Network Camera......................................................................................... 8 Setup using the Windows Wizard .................................................................................... 9 CHAPTER 3 VIEWING LIVE VIDEO ................................................................................ 14 Overview .......................................................................................................................... 14 Requirements ...................................................................................................................14 Connecting to a Camera on your LAN .......................................................................... 14 Connecting to a Camera via the Internet ...................................................................... 16 Viewing Live Video ......................................................................................................... 18 Setting the Focus.............................................................................................................. 19 CHAPTER 4 ADVANCEDVIEWING SETUP ................................................................... 20 Introduction ..................................................................................................................... 20 Adjusting the Video Image ............................................................................................. 20 Controlling User Access to the Video Stream ............................................................... 24 Making Video available from the Internet .................................................................... 25 Viewing Live Video via the Internet .............................................................................. 27 Motion Detection Alerts .................................................................................................. 29 CHAPTER 5 WEB-BASED MANAGEMENT .................................................................... 30 Introduction ..................................................................................................................... 30 Connecting to Network Camera..................................................................................... 30 Welcome Screen............................................................................................................... 31 Administration Menu...................................................................................................... 32 System Screen ..................................................................................................................33 Network Screen................................................................................................................ 35 Wireless Screen (Wireless Model Only) ........................................................................ 38 DDNS Screen ................................................................................................................... 40 IP Filter Screen ................................................................................................................42 I/O Port Screen ................................................................................................................ 43 Video & Audio Screen..................................................................................................... 44 Video Access Screen ........................................................................................................ 47 User Database Screen...................................................................................................... 49 Motion Detection Screen ................................................................................................. 51 E-Mail Screen .................................................................................................................. 52 FTP Screen....................................................................................................................... 54 Instant Messaging Screen ............................................................................................... 55 Event Trigger Screen ...................................................................................................... 57 Maintenance Screen ........................................................................................................ 59 Status Screen.................................................................................................................... 61 Log Screen........................................................................................................................ 63 CHAPTER 6 WINDOWS VIEWING/RECORDING UTILITY........................................ 64 Overview .......................................................................................................................... 64 Installation ....................................................................................................................... 64 System Tray Icon.......................................................................................................…

Text truncated - open the document above for the full version.

SerComm Corporation Taipei Office: 8F, No.3-1, YuanQu St., NanKang, Taipei 115, Taiwan, R.O.C. TEL: 886-2-2655-3988 FAX: 886-2-2655-3966 Chu Nan Office: 3F, No. 81, YuYi Rd., Chu-Nan, Miao-Li 350, Taiwan, R.O.C. TEL: 886-37-585-899 FAX: 886-37-585-000 Date: 2007-08-27 Federal Communications Commission Authorization and Evaluation Division FCC ID: P270YC01 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1. Schematics 2. Operational Description 3. Block diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Yours sincerely, Ronnie Cheng Associate Manager / R&D Division SerComm Corporation TEL: 886-2-2655-3988 #2547 FAX: 886-2-2655-3975 E-Mail: [email protected]

SerComm Corporation Taipei Office: 8F, No.3-1, YuanQu St., NanKang, Taipei 115, Taiwan, R.O.C. TEL: 886-2-2655-3988 FAX: 886-2-2655-3966 Chu Nan Office: 3F, No. 81, YuYi Rd., Chu-Nan, Miao-Li 350, Taiwan, R.O.C. TEL: 886-37-585-899 FAX: 886-37-585-000 Date: 2007-08-21 Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize the Testing Division of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by CCS on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS Testing Division as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; SerComm Corporation Taipei Office: 8F, No.3-1, YuanQu St., NanKang, Taipei 115, Taiwan, R.O.C. TEL: 886-2-2655-3988 FAX: 886-2-2655-3966 Chu Nan Office: 3F, No. 81, YuYi Rd., Chu-Nan, Miao-Li 350, Taiwan, R.O.C. TEL: 886-37-585-899 FAX: 886-37-585-000 f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Yours sincerely, Ronnie Cheng Associate Manager / R&D Division SerComm Corporation TEL: 886-2-2655-3988 #2547 FAX: 886-2-2655-3975 E-Mail: [email protected]

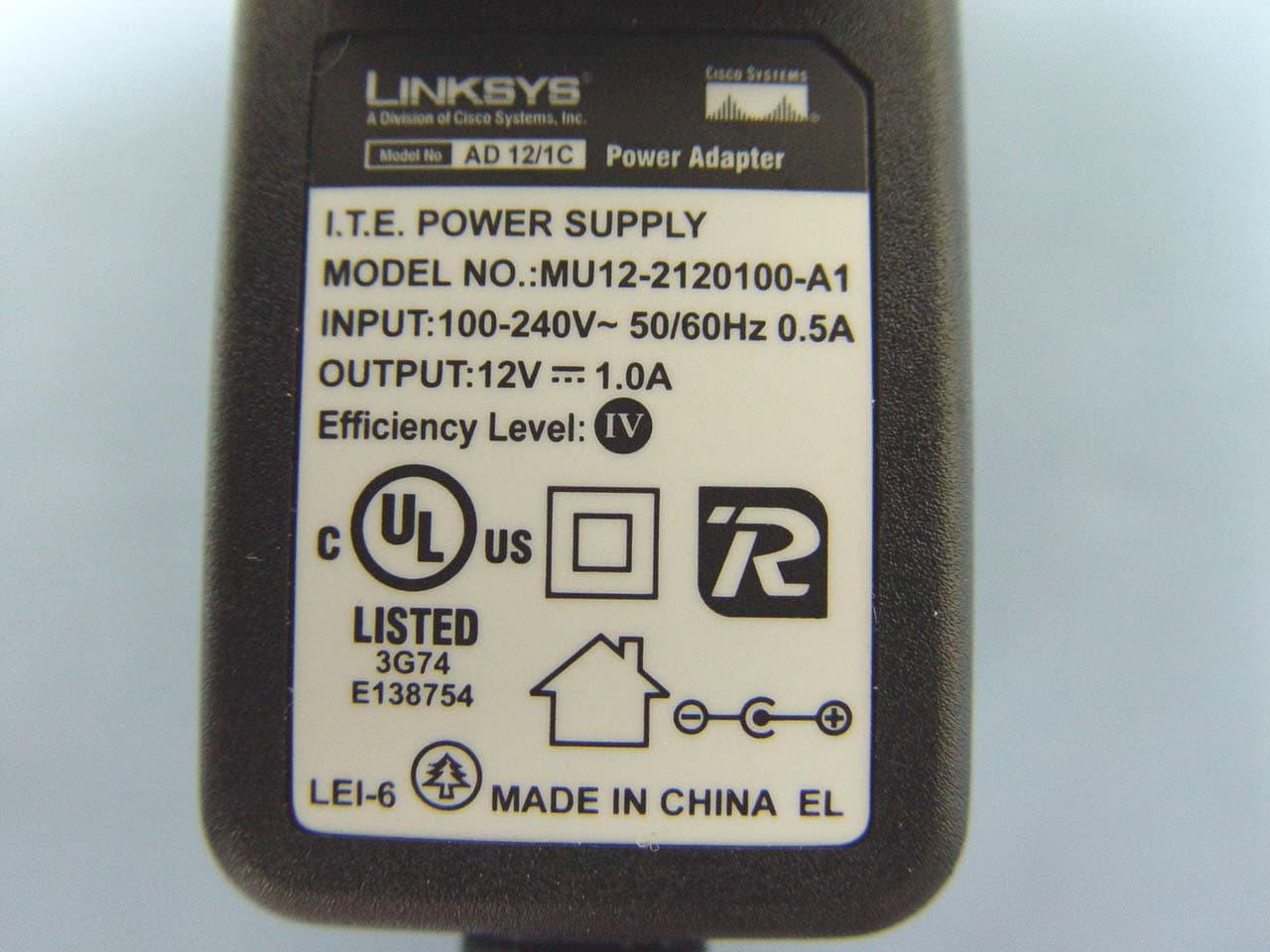

Compliance Certification Services Inc. Reference No.: 70606205 Report No.: 70606206 Date of Issue: September 27, 2007 Page 1 Total Page: 17 Rev. 00 EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Reference No.: 70606205 Report No.: 70606206 Date of Issue: September 27, 2007 Page 2 Rev.00 Compliance Certification Services Inc. Reference No.: 70606205 Report No.: 70606206 Date of Issue: September 27, 2007 Page 3 Rev.00 Compliance Certification Services Inc. Reference No.: 70606205 Report No.: 70606206 Date of Issue: September 27, 2007 Page 4 Rev.00

承辦 審 查 校 正 Notes: 1. : #50 Mylar, P , 2. 2. : + /- 0.2mm 消銀龍/PS801H V.2/中性 料 號 37.0 mm FCC ID:P270YC01

Compliance Certification Services Inc. Reference No.: 70606205 Report No.: 70606206 Date of Issue: September 27, 2007 Page 5 Rev.00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Reference No.: 70606205 Report No.: 70606206 Date of Issue: September 27, 2007 Page 6 Rev.00 Compliance Certification Services Inc. Reference No.: 70606205 Report No.: 70606206 Date of Issue: September 27, 2007 Page 7 Rev.00 Compliance Certification Services Inc. Reference No.: 70606205 Report No.: 70606206 Date of Issue: September 27, 2007 Page 8 Rev.00 Compliance Certification Services Inc. Reference No.: 70606205 Report No.: 70606206 Date of Issue: September 27, 2007 Page 9 Rev.00 Compliance Certification Services Inc. Reference No.: 70606205 Report No.: 70606206 Date of Issue: September 27, 2007 Page 10 Rev.00 Compliance Certification Services Inc. Reference No.: 70606205 Report No.: 70606206 Date of Issue: September 27, 2007 Page 11 Rev.00 Compliance Certification Services Inc. Reference No.: 70606205 Report No.: 70606206 Date of Issue: September 27, 2007 Page 12 Rev.00 Compliance Certification Services Inc. Reference No.: 70606205 Report No.: 70606206 Date of Issue: September 27, 2007 Page 13 Rev.00 Compliance Certification Services Inc. Reference No.: 70606205 Report No.: 70606206 Date of Issue: September 27, 2007 Page 14 Rev.00 Compliance Certification Services Inc. Reference No.: 70606205 Report No.: 70606206 Date of Issue: September 27, 2007 Page 15 Rev.00 Compliance Certification Services Inc. Reference No.: 70606205 Report No.: 70606206 Date of Issue: September 27, 2007 Page 16 Rev.00 Compliance Certification Services Inc. Reference No.: 70606205 Report No.: 70606206 Date of Issue: September 27, 2007 Page 17 Rev.00 Antenna

Specification 1. Electrical Properties : 1.1 Frequency Range............ 1.2 Impedance .................. 1.3 VSWR ..................... ... 1.4 Return Loss.................. 1.5 Radiation ..................... 1.6 Gain(peak)................... 2dBi 1.7 Polarization............... ...Linear Vertical 1.8 Admitted Power............ 2. Physical Properties : 2.1 Cable...........................RG-178 Coaxial Cable 2.2 Antenna Cover............ ...TPE 2.3 Antenna Base............... PC 2.4 Antenna Base............... PBT 2.5 Operating Temp. ......... ...-20к ~ +65к 2.6 Storage Temp. ............ ...-30к ~ +75к 2.7 Color ........................ .Black 2.8 Connector.................. ...SMA Plug Reverse 1W 2.4GHz ~ 2.5GHz (including PCB test) 50ȍ Nominal 1.92 Max. -10 dB Maximum RF Antenna Cable Assembly Omni-directional 1 2

Compliance Certification Services Inc. Reference No.: 70606205 Report No.: 70606206-RP1 FCC ID: P270YC01 Date of Issue: September 28, 2007 Page 55 Rev. 00 APPENDIX I RADIO FREQUENCY EXPOSURE LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUT Wireless IP Camera Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.18GHz ~ 5.32GHz / 5.50GHz ~ 5.70GHz WLAN: 5.745GHz ~ 5.825GHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power IEEE 802.11b: 20.27 dBm (146.41mW) IEEE 802.11g: 19.98 dBm (99.54mW) Antenna gain (Max) 2 dBi (Numeric gain: 1.58) Evaluation applied MPE Evaluation SAR Evaluation Remark: 1. The maximum output power is 20.27dBm (146.41mW) at 2437MHz (with 1.58 numeric antenna gain.) 2. DTS device is not subject to routine RF evaluation; MPE estimate is used to justify the compliance. 3. For mobile or fixed location transmitters, no SAR consideration applied. The maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger. TEST RESULTS No non-compliance noted. Compliance Certification Services Inc. Reference No.: 70606205 Report No.: 70606206-RP1 FCC ID: P270YC01 Date of Issue: September 28, 2007 Page 56 Rev. 00 Calculation Given d GP E ×× = 30 & 3770 2 E S= Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S ×× = Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields () () 2 2 0796.0 100/3770 1000/30 d GP d GP S × ×= × ×× = Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Maximum Permissible Exposure EUT output power = 146.41mW Numeric Antenna gain = 1.58 Substituting the MPE safe distance using d = 20 cm into Equation 1: Yields GPS××=000199.0 Where P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Æ Power density = 0.0460 mW / cm 2 (For mobile or fixed location transmitters, the maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger.)

Compliance Certification Services Inc. Reference No.: 70606205 Report No.: 70606206-RP1 FCC ID: P270YC01 Date of Issue: September 28, 2007 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 59 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Wireless Network Camera Trade Name: SerComm Model: NC822A Issued to SerComm Corporation 8F, No.3-1, YuanQu St., NanKang, Taipei 115, Taiwan, R.O.C. Issued by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. http://www.ccsemc.com.tw [email protected] Compliance Certification Services Inc. Reference No.: 70606205 Report No.: 70606206-RP1 FCC ID: P270YC01 Date of Issue: September 28, 2007 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION...................................................................................................................3 2. EUT DESCRIPTION....................................................................................................................................4 3. TEST METHODOLOGY..............................................................................................................................5 3.1 EUT CONFIGURATION........................................................................................................................5 3.2 EUT EXERCISE....................................................................................................................................5 3.3 GENERAL TEST PROCEDURES.............................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS........................................................6 3.5 DESCRIPTION OF TEST MODES...........................................................................................................7 4. INSTRUMENT CALIBRATION.....................................................................................................................8 4.1 MEASURING INSTRUMENT CALIBRATION......................................................................................8 4.2 MEASUREMENT EQUIPMENT USED.........................................................................................8 5. FACILITIES AND ACCREDITATIONS...........................................................................................................9 5.1 FACILITIES .........................................................................................................................................9 5.2 EQUIPMENT........................................................................................................................................9 5.3 TABLE OF ACCREDITATIONS AND LISTINGS.....................................................................................10 6. SETUP OF EQUIPMENT UNDER TEST.......................................................................................................11 6.1 SETUP CONFIGURATION OF EUT.......................................................................................................11 6.2 SUPPORT EQUIPMENT ...............................................................................................................11 7. FCC PART 15.247 REQUIREMENTS..........................................................................................................12 7.1 6DB BANDWIDTH.............................................................................................................................12 7.2 PEAK POWER....................................................................................................................................16 7.3 AVERAGE POWER............................................................................................................................20 7.4 BAND EDGES MEASUREMENT ................................................................................................24 7.5 PEAK POWER SPECTRAL DENSITY....................................................................................................33 7.6 SPURIOUS EMISSIONS ................................................................................................................38 7.7 POWERLINE CONDUCTED EMISSIONS...............................................................................................52 APPENDIX I RADIO FREQUENCY EXPOSURE.............................................................................................55 APPENDIX II PHOTOGRAPHS OF TEST SETUP..................................................................................57 Compliance Certification Services Inc. Reference No.: 70606205 Report No.: 70606206-RP1 FCC ID: P270YC01 Date of Issue: September 28, 2007 Page 3 Rev. 00 1. TEST RESULT CERTIFICATION Applicant: SerComm Corporation 8F, No.3-1, YuanQu St., NanKang, Taipei 115, Taiwan, R.O.C. Equipment Under Test: Wireless Network Camera Trade Name: SerComm Model: NC822A Date of Test: July 18 ~ September 12, 2007 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted Deviation from Applicable Standard The Powerline Conducted Emissions was tested at Compliance Certification Services. (Hsintien Lab.) The test equipments were listed in page 8 and the test data were recorded in page 54~55. We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2003 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247. The test …

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Reference No.: 70606205 Report No.: 70606206-RP1 FCC ID: P270YC01 Date of Issue: September 28, 2007 Page 57 Rev. 00 APPENDIX II PHOTOGRAPHS OF TEST SETUP CONDUCTED EMISSIONS SETUP PHOTOS Compliance Certification Services Inc. Reference No.: 70606205 Report No.: 70606206-RP1 FCC ID: P270YC01 Date of Issue: September 28, 2007 Page 58 Rev. 00 RADIATED EMISSIONS SETUP PHOTOS Compliance Certification Services Inc. Reference No.: 70606205 Report No.: 70606206-RP1 FCC ID: P270YC01 Date of Issue: September 28, 2007 Page 59 Rev. 00 POWERLINE CONDUCTED EMISSIONS SETUP PHOTOS
