P27AD10031-Port Wireless ADSL Router

1-Port Wireless ADSL Router Wireless Access Point ADSL Modem NAT Router 1-Port Switching Hub User's Guide i Table of Contents CHAPTER 1 INTRODUCTION ............................................................................................. 1 Wireless ADSL Router Features ...................................................................................... 2 Package Contents .............................................................................................................. 5 Physical Details .................................................................................................................. 6 CHAPTER 2 INSTALLATION ............................................................................................... 8 Requirements ..................................................................................................................... 8 Procedure ........................................................................................................................... 8 CHAPTER 3 SETUP .............................................................................................................. 10 Overview .......................................................................................................................... 10 Configuration Program .................................................................................................. 12 Setup Wizard ................................................................................................................... 13 Home Screen .................................................................................................................... 16 LAN Screen ...................................................................................................................... 19 Wireless Screen ................................................................................................................ 22 Wireless Security ............................................................................................................. 27 Trusted Wireless Stations ............................................................................................... 34 Password Screen .............................................................................................................. 36 Mode Screen ..................................................................................................................... 38 CHAPTER 4 PC CONFIGURATION .................................................................................. 39 Overview .......................................................................................................................... 39 Windows Clients .............................................................................................................. 39 Macintosh Clients ............................................................................................................ 50 Linux Clients .................................................................................................................... 50 Other Unix Systems ......................................................................................................... 50 Wireless Station Configuration ...................................................................................... 51 Wireless Configuration on Windows XP ....................................................................... 51 CHAPTER 5 OPERATION AND STATUS ......................................................................... 61 Operation - Router Mode ............................................................................................... 61 Status Screen .................................................................................................................... 61 Connection Status - PPPoE & PPPoA ........................................................................... 66 Connection Details - Dynamic IP Address .................................................................... 67 Connection Details - Fixed IP Address .......................................................................... 68 CHAPTER 6 ADVANCED FEATURES .............................................................................. 69 Overview .......................................................................................................................... 69 Internet ............................................................................................................................. 69 Access Control ................................................................................................................. 74 Dynamic DNS (Domain Name Server) .......................................................................... 76 Options ............................................................................................................................. 79 Schedule............................................................................................................................ 80 Port Trigger .................................................................................................................... . 85 Port Forward ................................................................................................................... 87 Port Range Forward ....................................................................................................... 90 QoS ................................................................................................................................... 92 CHAPTER 7 ADVANCED ADMINISTRATION ............................................................... 95 Overview .......................................................................................................................... 95 PC Database ..................................................................................................................... 96 Config File ........................…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 SerComm Corporation中磊電子股份有限公司 Taipei Office: 8F, No.3-1, YuanQu St., NanKang, Taipei 115, Taiwan, R.O.C. TEL: 886-2-2655-3988 FAX: 886-2-2655-3966 Chu Nan Office: 3F, No. 81, YuYi Rd., Chu-Nan, Miao-Li 350, Taiwan, R.O.C. TEL: 886-37-585-899 FAX: 886-37-585-000 Feb. 11, 2010 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, SerComm Corporation hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): (Product: 1-Port Wireless ADSL Router model name: AD803, AD1003, AD803B, AD1003B, WL-612, WL-354 We affirm that between SIEMIC and SerComm Corporation any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Ronnie Cheng / Associate Manager Tel: +886-2-2655-3988 Fax: + 886-2-2655-3965 Add: 8F, No.3-1, YuanQu St., NanKang, Taipei 115, Taiwan, R.O.C.

SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006 Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (current) 1.0 1.0 Nov-14-2006 SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006 SerComm Corporation中磊電子股份有限公司 Taipei Office: 8F, No.3-1, YuanQu St., NanKang, Taipei 115, Taiwan, R.O.C. TEL: 886-2-2655-3988 FAX: 886-2-2655-3966 Chu Nan Office: 3F, No. 81, YuYi Rd., Chu-Nan, Miao-Li 350, Taiwan, R.O.C. TEL: 886-37-585-899 FAX: 886-37-585-000 Jan. 11, 2010 To: Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: P27AD1003 We hereby request confidential treatment of information accompanying this application as outlined below: - Schematics - Block Diagram - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Ronnie Cheng / Associate Manager Tel: +886-2-2655-3988 Fax: + 886-2-2655-3965 Add: 8F, No.3-1, YuanQu St., NanKang, Taipei 115, Taiwan, R.O.C.

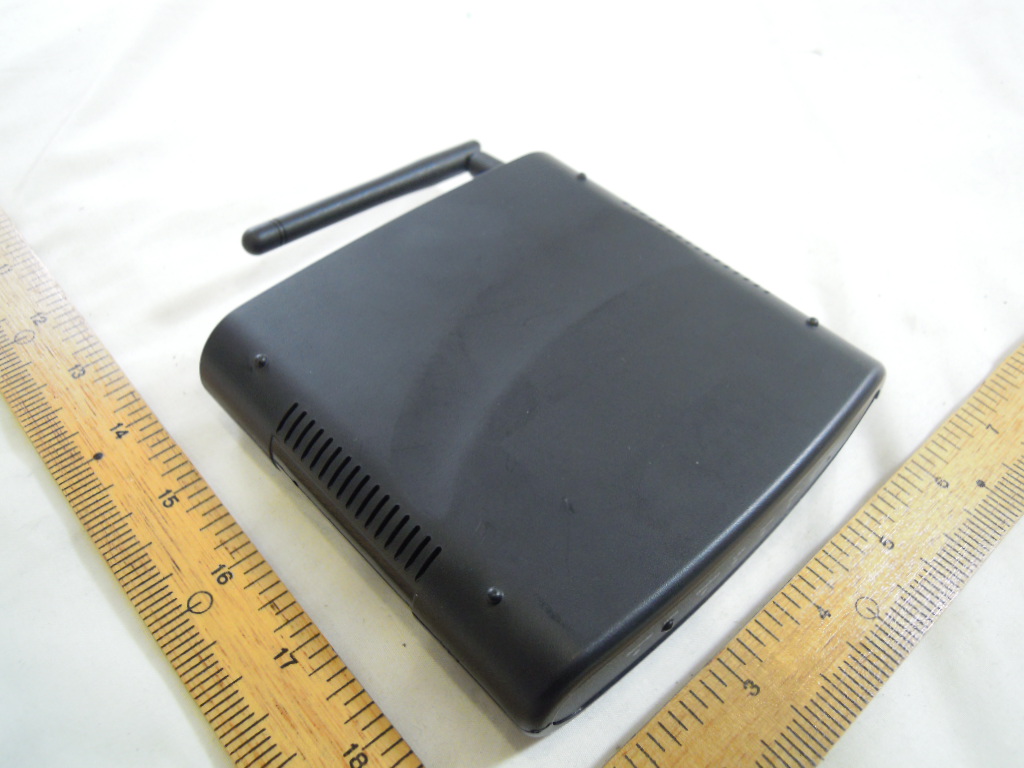

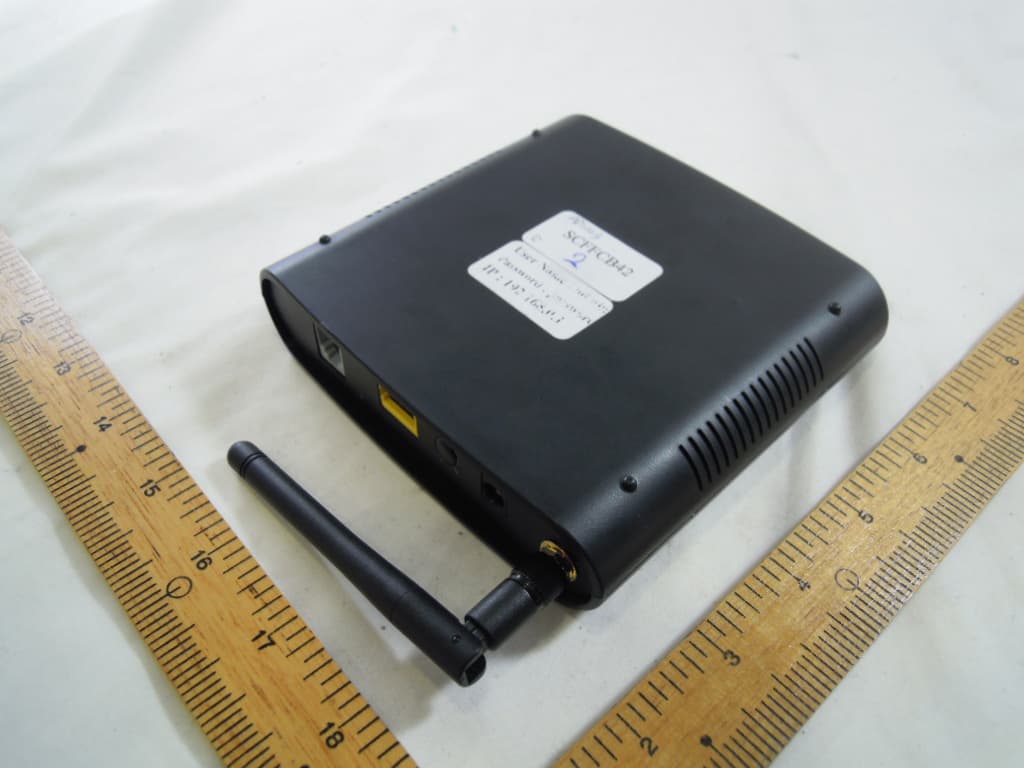

CERPASS TECHNOLOGY CORP. Report No.: TEFI1001198 Cerpass Technology Corp. Issued Date : Feb. 09, 2010 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A1 of A8 Appendix A. Photographs of EUT

CERPASS TECHNOLOGY CORP. Report No.: TEFI1001198 Cerpass Technology Corp. Issued Date : Feb. 09, 2010 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A2 of A8 CERPASS TECHNOLOGY CORP. Report No.: TEFI1001198 Cerpass Technology Corp. Issued Date : Feb. 09, 2010 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A3 of A8 CERPASS TECHNOLOGY CORP. Report No.: TEFI1001198 Cerpass Technology Corp. Issued Date : Feb. 09, 2010 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A4 of A8 CERPASS TECHNOLOGY CORP. Report No.: TEFI1001198 Cerpass Technology Corp. Issued Date : Feb. 09, 2010 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A5 of A8 CERPASS TECHNOLOGY CORP. Report No.: TEFI1001198 Cerpass Technology Corp. Issued Date : Feb. 09, 2010 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A6 of A8 CERPASS TECHNOLOGY CORP. Report No.: TEFI1001198 Cerpass Technology Corp. Issued Date : Feb. 09, 2010 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A7 of A8 CERPASS TECHNOLOGY CORP. Report No.: TEFI1001198 Cerpass Technology Corp. Issued Date : Feb. 09, 2010 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A8 of A8

1.1. Test Result of RF Exposure Evaluation . Product: 1-Port Wireless ADSL Router . Test Item: RF Exposure Evaluation Data . Test site: OATSI-SD . Test Mode: Normal Operation 1.1.1. Antenna Gain Dipole antenna, 2.0 dBi 1.1.2. EUT Operation condition Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 1.1.3. Output Power into Antenna & RF Exposure Evaluation Distance Test Date: Feb. 04, 2010 Temperature: 20°C Atmospheric pressure: 1020 hPa Humidity: 65% Modulation Standard Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density (S) (mW/cm 2 ) 802.11b (11Mbps) 01 2412 22.90 0.061 06 2437 23.05 0.064 11 2462 22.78 0.060 802.11g (54Mbps) 01 2412 21.93 0.049 06 2437 21.65 0.046 11 2462 21.82 0.048 802.11n, HT20 (65Mbps) 01 2412 21.88 0.049 06 2437 21.79 0.048 11 2462 21.88 0.049 802.11n, HT40 (130Mbps) 03 2422 19.70 0.029 06 2437 19.66 0.029 09 2452 19.42 0.028 The MPE is calculated as 0.064mW / cm 2 < limit 1 mW / cm 2 . So, RF exposure limit warning or SAR test are not required. For 2412-2462 MHz, the EUT will only be used with a separation of 20cm or greater between the antenna and nearby persons and can therefore be considered a mobile transmitter per 47CFR2.1091 (b). The RF Exposure Information page from the manual is included here for reference.

CERPASS TECHNOLOGY CORP. Report No.: TEFI1001198 Cerpass Technology Corp. Issued Date : Feb. 09, 2010 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 1 of 136 FCC TEST REPORT According to FCC Rules and Regulations Part 15 Subpart C Applicant : SerComm Corporation Address : 8F, No. 3-1, YuanQu St., NanKang, Taipei 115, Taiwan, R.O.C. Equipment : 1-Port Wireless ADSL Router Model No. : AD803, AD1003, AD803B, AD1003B, WL-612, WL-354 FCC ID : P27AD1003 Trade Name : SerComm Laboratory Accreditation ‚ The test result refers exclusively to the test presented test model / sample., ‚ Without written approval of Cerpass Technology Corp. the test report shall not be reproduced except in full. ‚ The EUT is also considered as a kind of computer peripheral, because the connection to computer is necessary for typical use. It has been verified to comply with the requirements of FCC Part 15, Subpart B, Class B (DoC). The test report has been issued separately. CERPASS TECHNOLOGY CORP. Report No.: TEFI1001198 Cerpass Technology Corp. Issued Date : Feb. 09, 2010 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 2 of 136 Contents 1. Report of Measurements and Examinations .................................................................................... 5 1.1 List of Measurements and Examinations ................................................................................... 5 2. Test Configuration of Equipment under Test ................................................................................... 6 2.1 Feature of Equipment under Test ............................................................................................... 6 2.2 Carrier Frequency of Channels .................................................................................................. 6 2.3 Test Mode and Test Software ..................................................................................................... 7 2.4 Description of Test System ......................................................................................................... 7 2.5 Connection Diagram of Test System .......................................................................................... 8 2.6 General Information of Test ........................................................................................................ 9 2.7 Measurement Uncertainty .......................................................................................................... 9 2.8 History of this test report .......................................................................................................... 10 3. Antenna Requirements ..................................................................................................................... 11 3.1 Standard Applicable ................................................................................................................. 11 3.2 Antenna Construction and Directional Gain ............................................................................. 11 4. Test of Conducted Emission ............................................................................................................ 12 4.1 Test Limit .................................................................................................................................. 12 4.2 Test Procedures ....................................................................................................................... 12 4.3 Typical Test Setup .................................................................................................................... 13 4.4 Measurement equipment ......................................................................................................... 13 4.5 Test Result and Data ................................................................................................................ 14 4.6 Test Photographs ..................................................................................................................... 26 5. Test of Radiated Emission ............................................................................................................... 27 5.1 Test Limit .................................................................................................................................. 27 5.2 Test Procedures ....................................................................................................................... 27 5.3 Typical Test Setup .................................................................................................................... 28 5.4 Measurement equipment ......................................................................................................... 28 5.5 Test Result and Data ................................................................................................................ 29 5.6 Test Photographs ................................................................................................................... 101 6. 6dB Bandwidth Measurement Data ............................................................................................... 102 6.1 Test Limit ................................................................................................................................ 102 6.2 Test Procedures ..................................................................................................................... 102 6.3 Test Setup Layout .................................................................................................................. 102 6.4 Measurement equipment ....................................................................................................... 102 6.5 Test Result and Data .............................................................................................................. 102 7. Maximum Peak Output Power ....................................................................................................... 109 7.1 T…

Text truncated - open the document above for the full version.

CERPASS TECHNOLOGY CORP. Report No.: TEFI1001198 Cerpass Technology Corp. Issued Date : Feb. 09, 2010 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 26 of 136 4.6 Test Photographs Front View Rear View CERPASS TECHNOLOGY CORP. Report No.: TEFI1001198 Cerpass Technology Corp. Issued Date : Feb. 09, 2010 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 101 of 136 5.6 Test Photographs Front View Rear View
