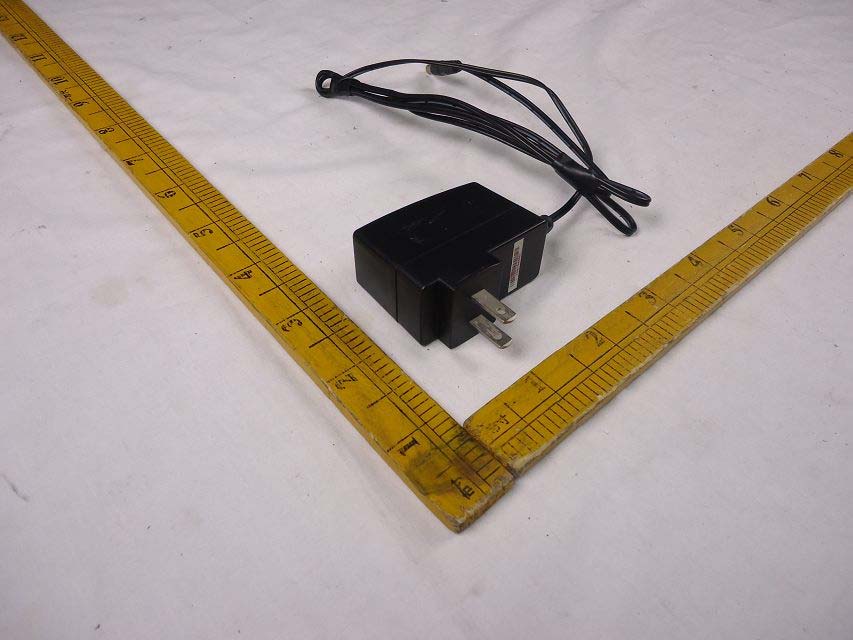

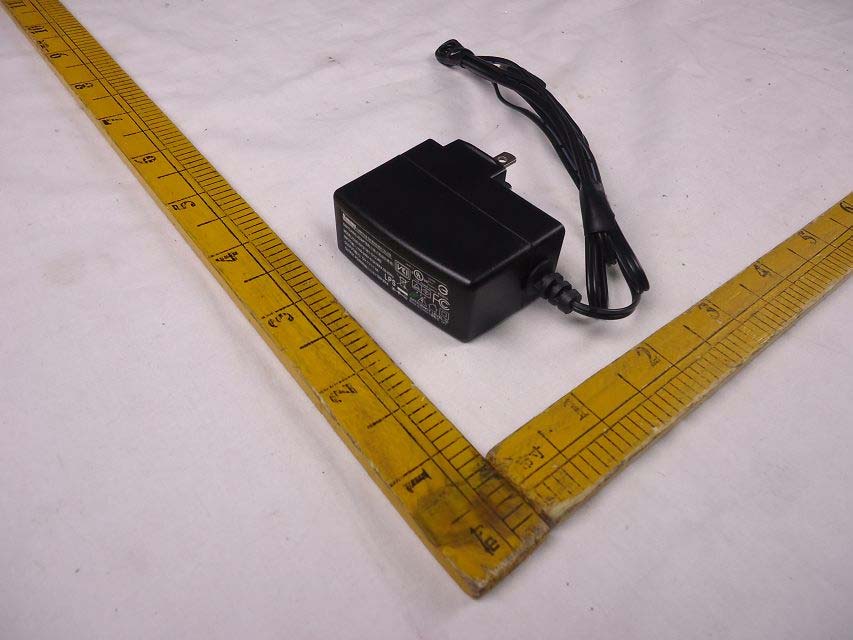

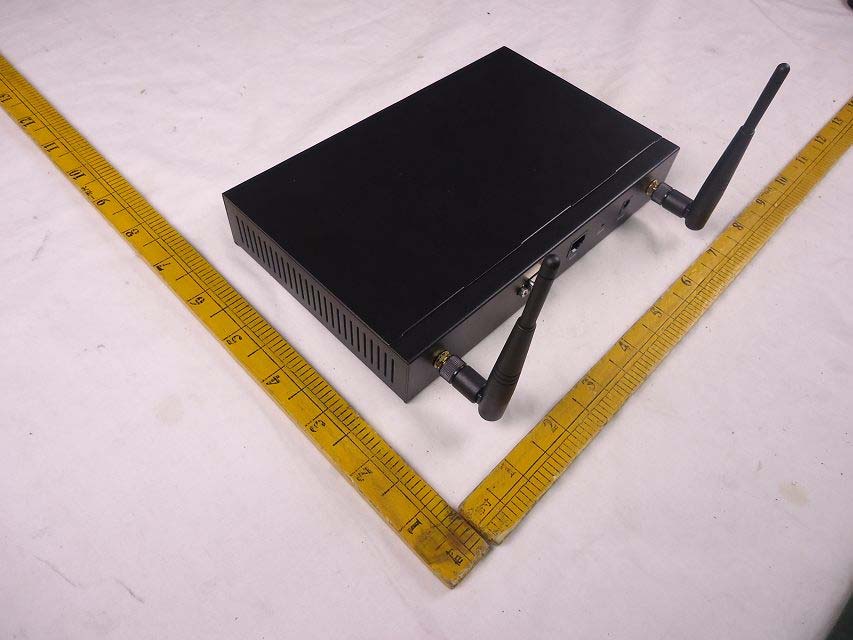

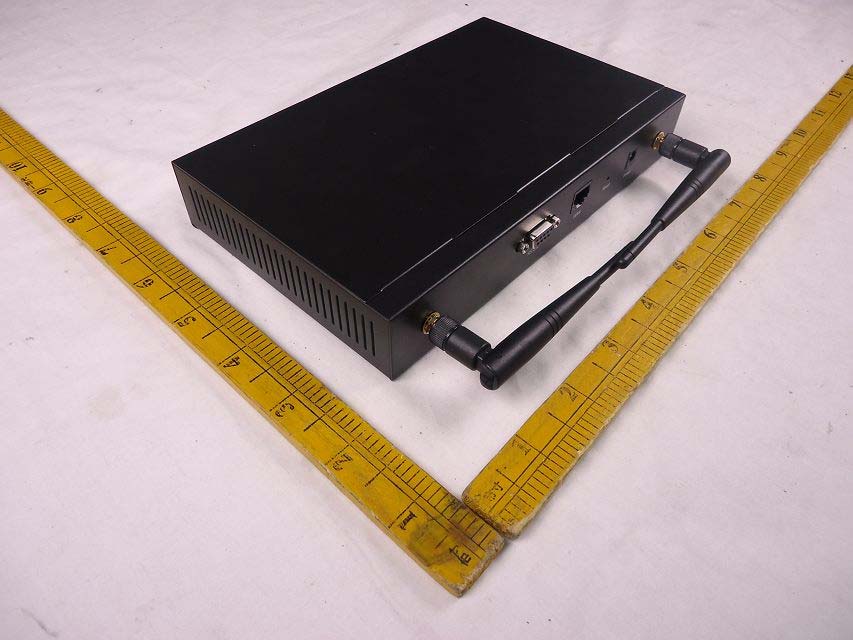

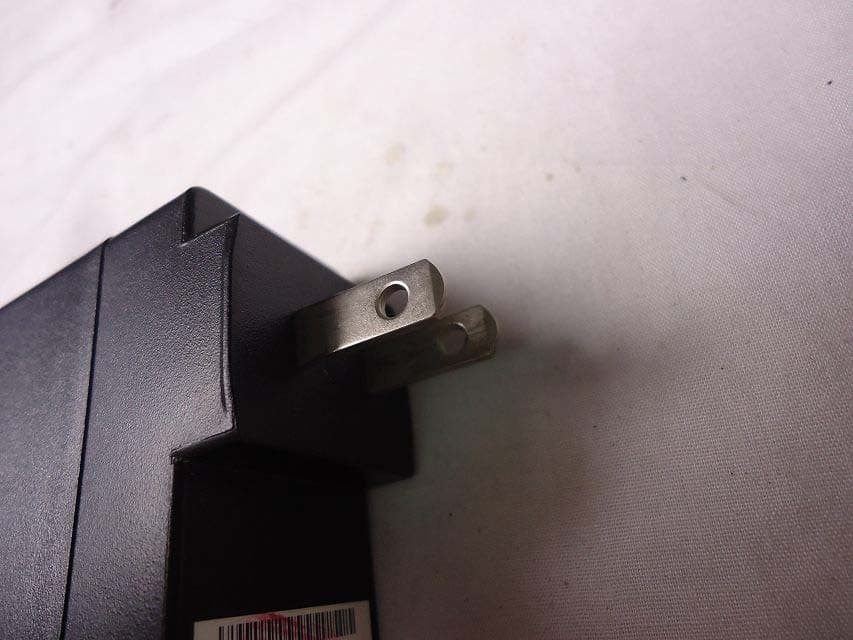

CERPASS TECHNOLOGY CORP. Report No.: SEFI1110042 Cerpass Technology Corp. Issued date : Oct 31,2011 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 1 of 5 EXTERNAL PHOTOGRAPHS OF EUT CERPASS TECHNOLOGY CORP. Report No.: SEFI1110042 Cerpass Technology Corp. Issued date : Oct 31,2011 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 2 of 5 CERPASS TECHNOLOGY CORP. Report No.: SEFI1110042 Cerpass Technology Corp. Issued date : Oct 31,2011 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 3 of 5 Adapter 1# CERPASS TECHNOLOGY CORP. Report No.: SEFI1110042 Cerpass Technology Corp. Issued date : Oct 31,2011 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 4 of 5 CERPASS TECHNOLOGY CORP. Report No.: SEFI1110042 Cerpass Technology Corp. Issued date : Oct 31,2011 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 5 of 5 Antenna

802.11N Wireless Access Point (Model name: AP105NA) FCC ID Position: FCC ID

CERPASS TECHNOLOGY CORP. Report No.: SEFI1110042 Cerpass Technology Corp. Issued date : Oct 31, 2011 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 1 of 3 INTERNAL PHOTOGRAPHS OF EUT CERPASS TECHNOLOGY CORP. Report No.: SEFI1110042 Cerpass Technology Corp. Issued date : Oct 31, 2011 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 2 of 3 CERPASS TECHNOLOGY CORP. Report No.: SEFI1110042 Cerpass Technology Corp. Issued date : Oct 31, 2011 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 3 of 3 Chain 1 Chain 0

CERPASS TECHNOLOGY CORP. Report No.: SEFI1110042 Cerpass Technology Corp. Issued date : Oct 31,2011 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 1 of 3 Radio frequency exposure LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUT 802.11N Wireless Access Point Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.725GHz ~ 5.850GHz Bluetooth: 2.402GHz ~ 2.480 GHz Device category Portable (<20cm separation) Mobile (>20cm separation) Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power 802.11b: 20.52 dBm (112.72 mW) 802.11g: 19.66 dBm (92.47 mW) 802.11n (20MHz): Chain0:16.58 dBm (45.50 mW) Chain1:16.82 dBm (48.08 mW) 802.11n (40MHz): Chain0:16.68 dBm (46.56 mW) Chain1:17.61 dBm (57.68 mW) Antenna gain (Max) Chain0:2.00 dBi (Numeric gain:1.585 ) Chain1:2.00 dBi(Numeric gain: 1.585) Evaluation applied MPE Evaluation* SAR Evaluation N/A Remark: 1. The maximum output power is 20.52 dBm (112.72 mW) at 2412 MHz (withnumeric 1.585 antenna gain.) 2. DTS device is not subject to routine RF evaluation; MPE estimate is used to justify the compliance. 3. For mobile or fixed location transmitters, no SAR consideration applied. The maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger. CERPASS TECHNOLOGY CORP. Report No.: SEFI1110042 Cerpass Technology Corp. Issued date : Oct 31,2011 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 2 of 3 TEST RESULTS No non-compliance noted. Calculation Given d GP E ×× = 30 & 3770 2 E S= Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S ×× = Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields () () 2 2 0796.0 100/3770 1000/30 d GP d GP S × ×= × ×× = Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 CERPASS TECHNOLOGY CORP. Report No.: SEFI1110042 Cerpass Technology Corp. Issued date : Oct 31,2011 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 3 of 3 Maximum Permissible Exposure Modulation Mode Frequency band (MHz) Max. Conducted output power(dBm) Antenna gain (dBi) Distance (cm) Power density (mW/cm2) Limit (mW/cm2) 802.11b 2412-2462 20.52 2.00 20 0.036 1 802.11g 2412-2462 19.66 2.00 20 0.029 1 802.11n(20MHz)(Chain0) 2412-2462 16.58 2.00 20 0.014 1 802.11n(20MHz)(Chain1) 2412-2462 16.82 2.00 20 0.015 1 802.11 n(20MHz) (Chain0+Chain1) 2412-2462 / / 20 0.029 1 802.11n(40MHz)(Chain0) 2422-2452 16.68 2.00 20 0.015 1 802.11n(40MHz)(Chain1) 2422-2452 17.61 2.00 20 0.018 1 802.11 n(40MHz) (Chain0+Chain1) 2422-2452 / / 20 0.033 1 NOTE: Total(Chain0+Chain1) , the formula of calculated the MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density

CERPASS TECHNOLOGY CORP. Report No.: SEFI1110042 Cerpass Technology Corp. Issued Date : Oct 31,2011 Tel:86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 1 of 113 FCC TEST REPORT According to FCC CFR Title 47 Part 15 Subpart C Applicant : SerComm Corporation Address : 8F, No. 3-1, YuanQu St., NanKang, Taipei 115, Taiwan Manufacturer : SerComm Corporation Address : 8F, No. 3-1, YuanQu St., NanKang, Taipei 115, Taiwan Equipment : 802.11N Wireless Access Point Model No. : AP105NA FCC ID P27AP105NA ‚ The test result refers exclusively to the test presented test model / sample. ‚ Without written approval of Cerpass Technology Corp. the test report shall not be reproduced except in full. ‚ The test report must not be used by the clients to claim product certification approval by NVLAP or any agency of the Government. CERPASS TECHNOLOGY CORP. Report No.: SEFI1110042 Cerpass Technology Corp. Issued Date : Oct 31,2011 Tel:86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 2 of 113 Table of Contents 1. Report of Measurements and Examinations ............................................................................................ 6 2. Test Configuration of Equipment under Test ........................................................................................... 7 2.1. Feature of Equipment under Test .................................................................................................... 7 2.2. Carrier Frequency of Channels ....................................................................................................... 8 2.3. Test Manner ..................................................................................................................................... 9 2.4. Description of Test System .............................................................................................................. 9 2.5. General Information of Test ........................................................................................................... 10 2.6. Measurement Uncertainty ............................................................................................................. 10 3. Test of Conducted Emission .................................................................................................................... 11 3.1. Test Limit ......................................................................................................................................... 11 3.2. Test Procedures .............................................................................................................................. 11 3.3. Typical Test Setup.......................................................................................................................... 12 3.4. Measurement Equipment .............................................................................................................. 12 3.5. Test Result and Data ..................................................................................................................... 13 4. Test of Radiated Emission ....................................................................................................................... 15 4.1. Test Limit ........................................................................................................................................ 15 4.2. Test Procedures ............................................................................................................................. 15 4.3. Typical Test Setup.......................................................................................................................... 16 4.4. Measurement Equipment .............................................................................................................. 17 4.5. Test Result and Data ..................................................................................................................... 18 5. Occupied Bandwidth ................................................................................................................................ 31 5.1. Test Limit ........................................................................................................................................ 31 5.2. Test Procedures ............................................................................................................................. 31 5.3. Test Setup Layout .......................................................................................................................... 31 5.4. Measurement Equipment .............................................................................................................. 31 5.5. Test Result and Data ..................................................................................................................... 32 6. Maximum Peak Output Power ................................................................................................................. 44 6.1. Test Limit ........................................................................................................................................ 44 6.2. Test Procedure .............................................................................................................................. 44 6.3. Test Setup Layout .......................................................................................................................... 44 6.4. Measurement Equipment .............................................................................................................. 44 6.5. Test Result and Data ..................................................................................................................... 45 7. Band Edges ............................................................................................................................................... 48 7.1. Test Limit ....................................................................................................…

Text truncated - open the document above for the full version.

CERPASS TECHNOLOGY CORP. Report No.: SEFI1110042 Cerpass Technology Corp. Issued date : Oct 31, 2011 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 1 of 3 TEST SETUP PHOTOGRAPHS OF EUT AC POWER LINE CONDUCTED EMISSION TEST CERPASS TECHNOLOGY CORP. Report No.: SEFI1110042 Cerpass Technology Corp. Issued date : Oct 31, 2011 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 2 of 3 Radiation EMISSION TEST Above 1G CERPASS TECHNOLOGY CORP. Report No.: SEFI1110042 Cerpass Technology Corp. Issued date : Oct 31, 2011 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 3 of 3 Below 1G
