P27CB801R54Mbps Wireless PCMCIA Card

Sercomm Corporation

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: Oct 15, 2004
Application Purpose: Original Equipment
Date of Application: Oct 15, 2004
Equipment Note: 54Mbps Wireless PCMCIA Card
Frequency Range: 2412.00000000 - 2462.00000000
Company: Sercomm Corporation
Country: Taiwan

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

802.11g PC Card/USB Wireless Adapter User Guide Regulatory Approvals FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communica- tions. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. (Example - use only shielded interface cables when connecting to computer or peripheral devices). Channel The Wireless Channel sets the radio frequency used for communication. Access Points use a fixed Channel. You can select the Channel used. This allows you to choose a Channel which provides the least interference and best performance. In the USA and Canada, 11 channel are available. If using multiple Access Points, it is better if adjacent Access Points use different Channels to reduce interference. In "Infrastructure" mode, Wireless Stations normally scan all Channels, looking for an Access Point. If more than one Access Point can be used, the one with the strongest signal is used. (This can only happen within an ESS.) If using "Ad-hoc" mode (no Access Point), all Wireless stations should be set to use the same Channel. However, most Wireless stations will still scan all Channels to see if there is an existing "Ad-hoc" group they can join. i Table of Contents CHAPTER 1 INTRODUCTION..............................................................................................................1 Package Contents.............................................................................................................................1 LEDs....................................................................................................................................................1 Operation............................................................................................................................................2 CHAPTER 2 INITIAL INSTALLATION...............................................................................................3 Requirements....................................................................................................................................3 Procedure...........................................................................................................................................3 CHAPTER 3 USING THE WINDOWS UTILITY.................................................................................5 Overview.............................................................................................................................................5 System Tray Icon..............................................................................................................................5 Site Survey Screen...........................................................................................................................6 Add Profile Screen...........................................................................................................................7 Profiles Screen...............................................................................................................................10 Link Status Screen........................................................................................................................11 Statistics Screen.............................................................................................................................11 Advanced Screen.............................................................................................................................12 About Screen...................................................................................................................................12 APPENDIX A SPECIFICATIONS........................................................................................................13 PC Card Adapter.............................................................................................................................13 USB Adapter....................................................................................................................................14 Wireless Interface..........................................................................................................................15 APPENDIX B ABOUT WIRELESS LANS.........................................................................................17 Modes................................................................................................................................................17 BSS/ESS...........................................................................................................................................17 Channels...........................................................................................................................................18 WEP......................................................................................................................................…

Text truncated - open the document above for the full version.

Cover Letter(s)

.1.1 SerComm Corp. Embedded Server Provider 8F, No.3-1, YuanQu St., NanKang, Taipei 115, Taiwan, R.O.C. TEL: 886-2-2655-3988 FAX: 886-2-2655-3966 http://www.sercomm.com E-mail: [email protected] All trademarks are the property of their respective owners Specifications are subject to change without notice SerComm Corp. 8F, No. 3-1, YuanQu St., NanKang, Taipei 115, Taiwan, R.O.C Federal Communications Commission Dear Sir, We, the undersigned, hereby authorize Exclusive Certification Corp. to act on our behalf in all matters relating to application for 54 Mbps Wireless PC Card (Model: CB801R, FCC ID No.: P27CB801R)” authorization, including the signing of all documents relating to these matters. Any and all carried out by Exclusive Certification Corp. on our behalf shall have the same effect as acts of our own. The applicant certifies that in the case of an individual applicant (e.g., corporation), no party to the applicant is subject to a denial of federal benefits, that includes FCC benefits, pursuant to section 5301 of the Anti-drug abuse Act of 1988.21 U.S.A. 862. For a definition of a “party” for these purposes See 47 C.F.R. 1.2002(b). Applicant: SerComm Corp. Address: 8F, No. 3-1, YuanQu St., NanKang, Taipei 115, Taiwan, R.O.C Tel: +886-2-2655-3988 Fax: +886-2-2655-3765 E-mail: [email protected] Date: July 8, 2004

Cover Letter(s)

Exclusive Certification Corp. 4F-2, No. 28, Lane 78, Xing-Ai Rd. Nei-hu, Taipei City 114 Taiwan R.O.C 11478284-2F Tel: 886-2-2792-3366 Fax: 886-2-2792-1100 To whom it may concern: The enclosed documents constitute a formal submittal and application for a Grant of Equipment Authorization pursuant to Subpart C of Part 15 of FCC rules (CFR47) regarding 54Mbps Wireless PC Card for the SerComm modal CB801R. Data within this report demonstrates that the equipment tested complied with the FCC limits for intentional radiators. Exclusive Certificate Corp. (ECC), as duly authorized agent prepared this submittal. A copy of the letter of our appointment as agent is enclosed. If there are any questions or if further information is needed, please contact ECC for assistance. Ivy Chen TEL: +886-2-2792-3366 # 204 FAX: +886-2-2792-1100 E-mail: [email protected]

Cover Letter(s)

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 September 3, 2004 RE: SerComm Corporation FCC ID: P27CB801R I have a few comments on this Application. Depending on your responses, kindly understand there may be additional comments. 1.) The Pout specifications in section 2.4 of the Test Report shows +16dBm +/-2dB. But the measured Pout shown later in the Test Report, the SAR report and on Form 731 is 133mW. This is more than 3dB greater than the quoted specification. Please resolve this discrepancy. 2.) This 133mW device uses a 0dBi antenna. Consequently I would expect to see an RF field strength at three meters of approximately +116dBuV. However the radiated restricted band edge test on page 60 of the Test Report shows a field strength reading of only about 40dBuV. This represents an attenuation of over 70dBc in radiated emissions. However, your plots only show at most 60dBc attenuation. Can you please explain this discrepancy? If I am in error kindly make me understand. 3.) FYI: In the future can you please provide larger and clearer External, Internal and Test Setup photographs? It would be very helpful if you could rotate them 90 degrees and display in “Landscape” style. William H. Graff President and Director of Engineering mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

External Photos

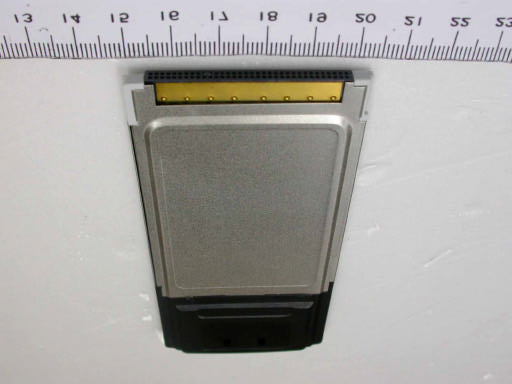

External Photo

ID Label/Location Info

FCC ID: P27CB801R 1317 ! SIZE: Location:

Internal Photos

Internal Photo

Operational Description

55 44 33 22 11 D D C C B B A A (PE1)(PE2) Block Diagram 1.0 CB801R Sercomm Corporation B 15 Thursday, May 20, 2004 TitleSize Document Number Rev Date: Sheet of CARDBUSPage 4 AD[0..31] CCLK CBE3BCBE2BCBE1BCBE0B PAR FRAMEB IRDYB TRDYB DEVSELB MRSTB INTAB REQB GNTB STOPB SERRBPERRB CLKRUNB IDSEL RADIO_PD# PA RFIC and TX/RX Page 2 TR_SWNTR_SWPA_PE_GTSSIANTSEL_PANTSEL_N RFIN PA_RFIN LNA1 MAC RT2560Page 3 AD[0..31]CCLKCBE3BPARFRAMEBIRDYBMRSTBINTABREQBSTOPBCLKRUNB TX_BB_Q+ TX_BB_Q- TX_BB_I+ TX_BB_I- RX_BB_Q+ RX_BB_I+ RX_BB_I- RX_BB_Q- AGC ANTSEL_N ANTSEL_P LNA1 TSSI RFRX_PE RFTX_PE RF_LE-G# SYNDATA SYNCLK TR_SWN TR_SW PA_PE_G RADIO_PD# 40MI CBE2BCBE1BCBE0BTRDYBDEVSELBGNTBSERRBPERRBIDSEL LD_FO IREF LNA0 Transceiver RT2525Page 1 RFRX_PERFTX_PERF_LE-G#SYNDATASYNCLKLNA140MIAGCRX_BB_I-RX_BB_I+RX_BB_Q-RX_BB_Q+TX_BB_I-TX_BB_I+TX_BB_Q-TX_BB_Q+LD_FO RFIN PA_RFIN IREFLNA0 RFTX_PE AD[0..31]CBE0B TX_BB_Q+ RFIN REQB PA_RFIN SERRB SYNCLKTSSIRF_LE-G# PERRB TR_SWNRX_BB_Q+ IRDYB AGC TX_BB_I+RFRX_PE CBE3BCLKRUNB RX_BB_I+ MRSTB LNA140MIPA_PE_G PARGNTB SYNDATATX_BB_Q- FRAMEBCCLK RX_BB_I-LD_FOTR_SW RADIO_PD# CBE2B TX_BB_I-ANTSEL_N INTABDEVSELBSTOPB ANTSEL_P TRDYB RX_BB_Q- CBE1BIDSEL IREFLNA0 LNA1 55 44 33 22 11 D D C C B B A A (PE2)(PE1) CLOSE TO THE SAW CLOSE TO THE SAW CNT-TO-PARTSCNT-TO-PARTSLow-Gain C21, C21 C342, C343 U11 (SAW F ilter) TFS374A (Telef ilter) TB0152A (TAI -SAW) 1.8pF 8.2pF 1.5pF 5.6pF L18 47nH33nH Transceiver RT2525 1.0 CB801R Sercomm Corporation Custom 25 Thursday, May 20, 2004 TitleSize Document Number Rev Date: Sheet of RX_BB_Q+TX_BB_I+ GND TX_BB_Q- RX_BB_I+TX_BB_I-RX_BB_Q-TX_BB_Q+ RX_BB_Q- TX_BB_Q- RX_BB_Q+ 40MI RFRX_PERFTX_PE CY_X1 RX_BB_I-RX_BB_I+ GND RX_BB_I- SYNDATASYNCLK AGC TX_BB_I+ RF_LE-G# IF-IN+ TXBBITXBBQ TX_BB_I- TX_BB_Q+ IFIN- IFIN+ IF-IN- IFIN- IFIN+ LD LD_FO VCC6CY_X2VCC5DO2VCTRL2VCCC RFVC3 VCCF VCTRL1 VCTRL1 VCCE DO1 TR_PE RF_PE IREF VD IREF VCC42 VCC41 RFVC4 RFVCC1 VCCA IFO+IFO- IFOUT- IFOUT+ RFRC IFRC VCCA PA_RFIN AGC RFTX_PERFRX_PE VCCA RF-OUT- LNAG1 VE RF-OUT+ RFOUT-RFOUT+ RFIN_F RFIN-RFIN+LNAG0 GNDGND GND GND GND GND GNDGND GND GND GND GND GND GND VCCA VCCA VCCB VCCB VCCA VCCB GND VCCA GND GND GND VCCA VCCA GND GND GND VCCB GND VCCB GND VCCA VCCA VCCB GND GND GND R190 27 1 2 C56 68pF 12 R28 100nH 1 2 L5 56nH 1 2 R5 127 1 2 L12 2.2nH 12 C55 33nF 12 C2551nF 12 C304 100pF 12 C20 1.8pF 1 2 L17 56nH 12 R30 100 1 2 C54 1nF 1 2 C322 100pF 12 R176 *0 ohm 1 2 L4 56nH 1 2 L32100nH 1 2 L10 4.7nH 1 2 C343 10pF 1 2 C2531pF 12 C250100pF 12 R7 127 1 2 C257 1nF 12 R1724.7K 1 2 U34BL2012-20B2450B 123 465 UB GND/DC BP BPNCGND C315 820 1 2 C84 1nF 1 2 U11 SAW_3 74 4 23 76 1 5 8 4 237 6 1 5 8 R177 *0 ohm 1 2 C60 10pF 12 C344100pF 12 C2440.1uF 12 L26100nH 1 2 R2214.7K 12 R171 4.7K/NI 1 2 R32910 12 L8 2.2nH 12 C321 1pF 1 2 R621K 12 C231nF 12 C95 47pF/NI 12 RA1 RA 47*4 0603 1357 2468 L235.6nH 12 C48 1.5pF 1 2 R132.4K 1 2 C93 180pF 1 2 L2 10-ohm 1 2 C320 10pF 12 C346 0.01uF 12 L43 0 ohm 12 L34 27 1 2 L33 100nH 1 2 R215 510/NI 1 2 C342 10pF 1 2 C26100pF 12 R27 7.5K 1 2 L36 82nH 1 2 C349 6.8pF 12 C25910pF/NI 12 C219 1.5pF 12 C7610pF 12 L1833nH 12 C94 22nF 12 L35 27 1 2 R14 1K 1 2 C451.8pF 12 R214 510/NI 1 2 L38 0 ohm 12 L44 0 ohm 12 L27 0 ohm 1 2 C245 4.7uF 0805 12 C21 1.8pF 1 2 C67 4.7uF 0805 12 C2541pF 12 C316100pF 12 C65 100pF 12 L14 0 ohm 12 L39 0 ohm 12 R160 27 1 2 L11 2.2nH 12 C89 1nF 12 U9RT2525 2 47 46 45 42 41 44 15768 1011 19 20 32 39 38 12 3 17 18 34 15 23 3526272829 37 3036 16 14 13 24 25 48 31 40 4 43 49 33 9 21 22 Core1_Vcc VCC10 IFOUT+ IFOUT- BB_Q_In+ BB_Q_In- BB_I_In+ LO1_VCLNA_Gain1RFIN-RFIN+VCC2RFOUT+RFOUT- VCC3 VCC4 VCC5 IFIN+ IFIN- TR_PERF_PE VP1 DO1 VCC6 CLK LD_fo VCC7 DO2 VP2 BB_Q_Out- BB_Q_Out+ VCC8 BB_I_Out- RX_AGC IREF DATA LE X1 X2 VCC11 BB_I_Out+ VCC9 VCC1 BB_I_In- GND LO2_VC LNA_Gain0 VCC41 VCC42 C83 1nF 1 2 C31 0.01uF 12 C258 10pF/NI 12 C42 1nF 12 TX_BB_Q+ 4TX_BB_Q- 4TX_BB_I+ 4TX_BB_I- 4RX_BB_Q+ 4RX_BB_Q- 4RX_BB_I+ 4 LNA1 3,4 RFRX_PE 4RFTX_PE 4 40MI 4 RX_BB_I- 4 SYNCLK 4 RF_LE-G# 4SYNDATA 4 AGC 4 IREF 4 LD_FO 4 PA_RFIN 3 LNA0 4 RFIN 3 55 44 33 22 11 D D C C B B A A U4:Murata: MM8430- 2600B Hirose: MS-156 S G D 180-ohm100-ohm 240-ohm150-ohm R211 UseBSS84 R210 Use74LVC1G08 Note Power Amplifier 1.0 CB801R Sercomm Corporation Custom 35 Thursday, May 20, 2004 TitleSize Document Number Rev Date: Sheet of PA_PEG PAPEI MTR_SW N MTR_SW PA_OUT VB1 VBB VB2 PA_RFO GND VCCA GND GND GND GND GND GND GND 3.3VD GND GND 3.3VD GNDGND GND GND GND GND GND 3.3VD GND GND U6AS179-92 123 456 OUT1 GND OUT2 VC2INVC1 R211 220 1 2 C331 100pF 12 C323 10pF 1 2 C340C/NI 12 C249 1.5pF/NI 12 U7 BPF-MF2450C 2.9x2.65 2 4 3 1 BI BO G G U5 AP1091 3x3 QFN16 1234 8 7 6 5 9101112 13 14 15 16 17 RF INGND1DECT_VDECT_OUT NC3 GND2 VB2 VB1 NC RFOUT3RFOUT2RFOUT1 VCC2 VCC1 NC2 NC1 GND3 C339C/NI 12 C46 1pF 12 R169 3.3K/NI 12 G V U36 SN74LVC1G04DCK SC70 2 45 31 R2224.7K 1 2 G V U37 SN74LVC1G08DCK SC-70 12 45 3 C338C/NI 12 U4 RF TEST SW_MS- 156 12 43 ING G OUT E1 ANTENNA/PRN C74 2.2nH 1 2 R219 1K 12 G V U35 SN74LVC1G08DCK SC-70 12 45 3 R210 270 1 2 SD Q4 BSS138/NI 1 23 R15 1K/NI 1 2 U8AS179-92 123 456 OUT1GNDOUT2 VC2 IN VC1 L32.2nH 1 2 C75 2.2nH 1 2 C2512.2pF 12 R216 4.7K/NI 12 R40 1K/NI 12 R220 1K 12 C327 2.7pF 12 C328 10pF 12 R212 1K 1 2 L1 10nH 0603 1 2 C80 C/NI 12 C341C/NI 12 E2 ANTENNA/PRN C248 1.8pF/NI 12 C348 10pF 1 2 R12 1K/NI 1 2 C329 10pF 12 C43 10pF 1 2 C325 100pF 12 C347 10pF 1 2 C78C/NI 12 R781K 1 2 C324 0.1uF 1 2 SD Q1 BSS84/NI 1 32 C1902.2pF 12 L41 27nH 0603 1 2 C256 100pF/NI 12 C330 10uF 0805 12 R791K 1 2 TR_SWN 4 ANTSEL_N 4 ANTSEL_P 4 TR_SW 4 PA_RFIN 2 RFIN 2 LNA1 2,4 PA_PE_G 4 TSSI 4 55 44 33 22 11 D D C C B B A A Link/TX (93C66) Near Bas eband Baseband RT2560 1.0 CB801R Sercomm Corporation Custom 45 Thursday, May 20, 2004 TitleSize Document Number Rev Date: Sheet of GNTBCBE3B 1.8VD PA_PE_GLNA0LNA1SYNDATARFRX_PETR_SWSYNCLK GND3.3VDMRSTBGNDGND GND GND GND 1.8VD 3.3VD GND 3.3VD 3.3VD CBE3B IDSEL IDSELCCLKTRDYBCBE2BCLKRUNBFRAMEBIRDYBDEVSELBSTOPB GND1.8VD AD27 AD20 AD17 AD29 AD16 AD30 AD22 AD21 AD15AD14 A…

Text truncated - open the document above for the full version.

RF Exposure Info

Report No. : ES/2004/80001 Page : 1 of 45 TEST REPORT Equipment Under Test : 54Mbps Wireless Pc Card Model No. : CB801R FCC ID : P27CB801R Applicant : SerComm Corporation Address of Applicant : 8F, No. 3-1, YunaQu St., Nankang, Taipei 115, Ta i w a n , R . O . C Date of Receipt : 2004.07.30 Date of Test(s) : 2004.08.02-2004.08.05 Date of Issue : 2004.08.06 Standards: FCC OET Bulletin 65 supplement C, ANSI/IEEE C95.1 , C95.3 In the configuration tested, the EUT complied with the standards specified above. Remarks: This report details the results of the testing carried out on one sample, the results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS Taiwan E&E Services or testing done by SGS Taiwan E&E Services in connection with distribution or use of the product described in this report must be approved by SGS Taiwan E&E Services in writing. Tested by : Dikin Yang Date : 2004.08.06 Approved by : Robert Chang Date : 2004.08.06 Report No. : ES/2004/80001 Page : 2 of 45 Contents 1. General Information 1.1 Testing Laboratory 3 1.2 Details of Applicant 3 1.3 Description of EUT(s) 3 1.4 Test Environment 4 1.5 Operation description 4 1.6 Evaluation procedures 5 1.7 The SAR Measurement System 6 1.8 System Components 7 1.9 SAR System Verification 8 1.10 Tissue Simulant Fluid for the Frequency Band 2.4 to 2.5 GHz 9 1.11 Test Standards and Limits 10 2. Instruments List 12 3. Summary of Results 13 4. Measurements 14 802.11b Configuration 1 4.1.1 Vertical position, lowest channel 14 4.1.2 Vertical position, middle channel 15 4.1.3 Vertical position, highest channel 16 Configuration 2 4.1.4 Horizontal position, lowest channel 17 4.1.5 Horizontal position, middle channel 18 4.1.6 Horizontal position, highest channel 19 802.11g Configuration 1 4.2.1 Vertical position, lowest channel 20 4.2.2 Vertical position, middle channel 21 4.2.3 Vertical position, highest channel 22 Configuration 2 4.2.4 Horizontal position, lowest channel 23 4.2.5 Horizontal position, middle channel 24 4.2.6 Horizontal position, highest channel 25 4.3 S ystem Performance Validation 26 APPENDIX 1. Photographs of Test Setup 27 2. Photographs of EUT 31 3. Probe Calibration certificate 33 4. Uncertainty Analysis 37 5. Phantom description 38 6. System Validation from Original equipment supplier 39 7. Z-axis Plot for 40 Report No. : ES/2004/80001 Page : 3 of 45 1. General Information 1.1 Testing Laboratory SGS Taiwan Ltd. 1F, No. 134, Wukung Road, Wuku industrial zone Taipei county , Taiwan , R.O.C. Telephone : +886-2-2299-3279 Fax : +886-2-2298-2698 Internet : http://www.sgs.com.tw 1.2 Details of Applicant Applicant : SerComm Corporation Address : 8F, No. 3-1, YunaQu St., Nankang, Taipei 115, Ta i w a n , R . O . C 1.3 Description of EUT(s) Equipment Type 54Mbps Wireless Pc Card Test Procedure FCC OET Bulletin 65, Supplement C TX Frequency range 2412-2462 MHz FCC ID P27CB801R Model No. CB801R Number Of Channel 11 Modulation Direct Sequence Spread Spectrum (DSSS) 802.11b 802.11g Transfer Rate 11 Mbps 6 Mbps 802.11b 802.11g Max. SAR Measured (1 g) 0.512 W/kg 0.217 W/kg Antenna Gain 0 dBi Antenna Type The antenna is designed to be permanently On PCB , No Consideration of replacement Report No. : ES/2004/80001 Page : 4 of 45 Power Supply 3.3 V for notebook Host Laptop PC(s) Tested IBM ThinkPad T30 (S/N: 99AMZM5) 1.4 Test Environment Ambient temperature : 22.0° C Tissue Simulating Liquid : 21.2° C Relative Humidity : 64 % 1.5 Operation Configuration 802.11b Mode 802.11g Mode Channel Frequency Under Test And Its Conducted Output Power (Peak) 14.96 dBm (2412MHz) 15.69 dBm (2437MHz) 16.25 dBm (2462MHz) 12.87 dBm (2412MHz) 13.84 dBm (2437MHz) 14.55 dBm (2462MHz) Antenna Configuration The antenna is designed to be permanently On PCB , No Consideration of replacement Antenna Position EUT Power Source 3.3 V for notebook The EUT is PCMCIA Card, which is installed inside a Notebook. Since the Notebook is placed on the top of the leg, when it operates, it is to be defined as a portable device. SAR measurement is mandatory. In order to measure SAR value, we used continuous transmission mode. The test set up mode was prepared by manufacturer. Value of Crest Factor = 1 was used for SAR testing according to the nature of the EUT. The test configuration tested at the low, middle and high frequency channels (2412MHz,2437MHz and 2462MHz).By using the program subordinated in the computer, and change into the written channel, and then set in highest power. Finally, we will test it by dividing into 2 ways. Report No. : ES/2004/80001 Page : 5 of 45 Conf iguration 1: Vertical of the PC at 90° and at a distance of 0.0 cm from the base of the phantom, and the antenna tip upward.(Fig.3 & Fig.4 & Fig.5) Configuration 2: Bottom of the PC is paralleled and at a distance of 0.0 cm from the base of the phantom, but 1.4 cm Spacing between EUT & Planar Phantom.(Fig.6 & Fig.7 & Fig.8) 1.6 EVALUATION PROCEDURES The evaluation was performed with the following procedure: (1). Measurement of the SAR value at a fixed location above the ear point or central position of flat phantom was used as a reference value for assessing the power drop. (2). The SAR distribution at the exposed side of head or body position was measured at a distance of each device from the inner surface of the shell. The area covered the entire dimension of the head or EUT and the horizontal grid spacing was 15 mm x 15 mm. Based on these data, the area of the maximum absorption was determined by splint interpolation. (3). Around this point, a volume of 30 mm x 30 mm x 30 mm was assessed b…

Text truncated - open the document above for the full version.

Schematics

Text truncated - open the document above for the full version.

Test Report

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Jul. 20, 2004 1 of 62 FCC ID: P27CB801R FCC Test Report: FI04070601-A FCC TEST REPORT according to FCC Rules and Regulations Part 15 Subpart C † The test result refers exclusively to the test presented test model / sample., † Without written approval of Exclusive Certification Corp. the test report shall not be reproduced except in full. Applicant SerComm Corporation Address 8F, No. 3-1, YunaQu St., Nankang, Taipei 115, Taiwan, R.O.C. Equipment 54 Mbps Wireless PC Card Model No. CB801R FCC ID P27CB801R Trade Name SerComm Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Jul. 20, 2004 2 of 62 FCC ID: P27CB801R FCC Test Report: FI04070601-A Contents 1. Report of Measurements and Examinations..................................................................................4 1.1. List of Measurements and Examinations.............................................................................4 1.2. Antenna Requirements......................................................................................................5 1.3. Test of Conducted Emission...............................................................................................6 1.4. Test of Radiated Emission.................................................................................................8 1.5. 6dB Bandwidth.................................................................................................................9 1.6. Maximum Peak Output Power............................................................................................9 1.7. Band Edge…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Nick Wu(Engineer)

[email protected]886-2-2655-3988Fax: 886-2-2655-3965

Technical Contact

AExclusive Certification CorporfationIvy Chen

[email protected]+886 2 2655 3988

4F-2, No. 28, Lane 78, Xing-Ai Road · Taipei City · Taiwan

Test Firm

Cerpass Technology CorporationAnson Chou

[email protected]886-2-27923366Fax: 886-2-27921100

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
1	15C	2.41 GHz - 2.46 GHz	42.00 mW

Confidentiality

Long Term

Grant Notes

Power Output is Conducted. SAR compliance is limited to notebook computers with side mounted PCMCIA ports and configurations similar to that tested for this filing. Compliance of this device in all final host configurations is the responsibility of the Grantee. End-users must be provided with specific information required to satisfy RF exposure compliance for all final host devices. This transmitter must not be co-located with any other transmitters or antennas. The highest reported SAR value is: Body 0.51W/kg
