P27FC235UAccess Point

UMTS Femtocell Router Quick Install Guide P/N 957YXE0001 Requirements • For Internet Access, an Internet Access account with an ISP, and a DSL connection. • Standard Network cables. • A compatible SIM card with service. • TCP/IP network protocol installed on each PC. Setup n Physical Installation • Setup for Your Broadband Modem 1. Ensure the Femtocell Router is powered OFF. Select a suitable place for the Femtocell Router. 2. Attach the supplied antennae. Page 1 3. Use a standard LAN cable to connect the PC to the LAN port on the rear of the Femtocell Router. Connect the DSL or Cable modem to the WAN port of t Femtocell Router. Use th 4. he e cable supplied with your 5. emtocell he power adapter provided. Using a e damage. • wer LED should be ON. ON.) The WAN LED should be ON if ADSL line is connected. DSL/Cable modem. If no cable was supplied, use a standard cable. Connect the supplied power adapter to the F Router. Use only t different one may cause hardwar 6. Check the LEDs The Po • The LAN LED should be ON (provided the PC is also • Page 2 • Setup for 3G/UMTS 1. Ensure the Femtocell Router is powered OFF. Select a suitable place for the Femtocell Router. 2. Attach the supplied antennae. 3. Insert the SIM card into the slot on the back of the device. 4. Use a standard LAN cable to connect the PC to the LAN port on the rear of the Femtocell Router. 5. Connect the supplied power adapter to the Femtocell Router. Use only the power adapter provided. Using a different one may cause hardware damage. 6. Check the LEDs • The Power LED should be ON. • The LAN LED should be ON (provided the PC is also ON.) • The WLAN LED should be ON. • The Femto LED should be ON. Page 3 • Setup for Broadband Modem and 3G/UMTS 1. Ensure the Femtocell Router is powered OFF. Select a suitable place for the Femtocell Router. 2. Attach the supplied antennae. 3. Insert the SIM card into the slot on the back of the device. 4. Use a standard LAN cable to connect the PC to the LAN port on the rear of the Femtocell Router. 5. Connect the DSL or Cable modem to the WAN port of the Femtocell Router. Use the cable supplied with your DSL/Cable modem. If no cable was supplied, use a standard cable. 6. Connect the supplied power adapter to the Femtocell Router. Use only the power adapter provided. Using a different one may cause hardware damage. 7. Check the LEDs • The Power LED should be ON. • The LAN LED should be ON (provided the PC is also ON.) • The WAN LED should be ON if ADSL line is connected. Page 4 • The WLAN LED should be ON. • The Femto LED should be ON. o Configuration 1. Start your PC. 2. Start your WEB browser. In the Address box, enter the following: HTTP://192.168.1.254 3. When prompted, use the following username and pass- word. • User name: admin • Password: 4. The following main screen will be displayed. Page 5 5. Configure the settings if required. Please refer to the data from your ISP, to ensure your choices are correct. Wireless Setup In order to use the Access Point in the Femtocell Router, other Wireless devices must use the same SSID and Wireless Security settings as the Femtocell Router. Page 6 The Femtocell Router's default settings are as follows. Setting Femtocell Router SSID Default value: UMTS Router This may be changed on the Wireless screen, on the Femtocell Router's main menu. Wireless Security Default value: Disabled Use the Wireless screen on the main menu to change this as required. Ensure the Femtocell Router and the other Wireless Stations are using the same settings. • Use the Wireless screen to configure the Wireless Access Point in the Femtocell Router. • Configure the Wireless stations (PCs) using your normal method for configuring the Wireless interface. LED Indication LED panel Page 7 Page 8 LED behavior LED Color Behavior Definition OFF Device power off ON Device power on Power Green Blinking Is executing Firmware upgrade OFF No Internet connectivity ON Internet is available Status Green Blinking Is connecting to Internet OFF Not connected ON Link WAN Green Blinking Data Transmission OFF Not connected ON Link LAN Green Blinking Data Transmission Red ON 3G functionality failure Femto Green ON In service OFF No USB connectivity ON There is USB connectivity USB Green Blinking Data Transmission OFF No WLAN functionality ON WLAN is available WLAN Green Blinking Data Transmission OFF No WPS working WPS Green Blinking WPS is configuring Page 9 FCC Regulations: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiated radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user‘s authority to operate the equipment. The antenna(s) used for this transmitter must not be co-located o…

Text truncated - open the document above for the full version.

SerComm Corporation中磊電子股份有限公司 Taipei Office: 8F, No.3-1, YuanQu St., NanKang, Taipei 115, Taiwan, R.O.C. TEL: 886-2-2655-3988 FAX: 886-2-2655-3966 Chu Nan Office: 3F, No. 81, YuYi Rd., Chu-Nan, Miao-Li 350, Taiwan, R.O.C. TEL: 886-37-585-899 FAX: 886-37-585-000 Date: 2011-10-04 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 SUBJECT: FCC Application for FCC ID: P27FC235U To Whom It May Concern: We, SerComm Corporation, hereby attest to the fact that we will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite filing. Your Sincerely, Ronnie Cheng Associate Manager / R&D Division SerComm Corporation TEL: 886-2-2655-3988 #2547 FAX: 886-2-2655-7379 E-Mail: [email protected]

SerComm Corporation中磊電子股份有限公司 Taipei Office: 8F, No.3-1, YuanQu St., NanKang, Taipei 115, Taiwan, R.O.C. TEL: 886-2-2655-3988 FAX: 886-2-2655-3966 Chu Nan Office: 3F, No. 81, YuYi Rd., Chu-Nan, Miao-Li 350, Taiwan, R.O.C. TEL: 886-37-585-899 FAX: 886-37-585-000 Date: 2011-10-04 Power of Attorney To whom it may concern, Please be notified that SerComm Corporation has designated Sporton International Inc. as the persons being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Sporton International Inc. on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the product of as following: FCC ID: P27FC235U If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. Your Sincerely, Ronnie Cheng Associate Manager / R&D Division SerComm Corporation TEL: 886-2-2655-3988 #2547 FAX: 886-2-2655-7379 E-Mail: [email protected]

SerComm Corporation中磊電子股份有限公司 Taipei Office: 8F, No.3-1, YuanQu St., NanKang, Taipei 115, Taiwan, R.O.C. TEL: 886-2-2655-3988 FAX: 886-2-2655-3966 Chu Nan Office: 3F, No. 81, YuYi Rd., Chu-Nan, Miao-Li 350, Taiwan, R.O.C. TEL: 886-37-585-899 FAX: 886-37-585-000 Date: 2011-10-04 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: P27FC235U Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics (file: FC235U_Schem.pdf) Block Diagram (file: FC235U _BlkDia.pdf) Parts List (file: FC235U_PartsLst.pdf) Operation Description (file: FC235U_OpDes.pdf) Tune up Procedure (file: FC235U_TunPro.pdf) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Should you have any questions or comments regarding this matter, please have my best attention. Your Sincerely, Ronnie Cheng Associate Manager / R&D Division SerComm Corporation TEL: 886-2-2655-3988 #2547 FAX: 886-2-2655-7379 E-Mail: [email protected]

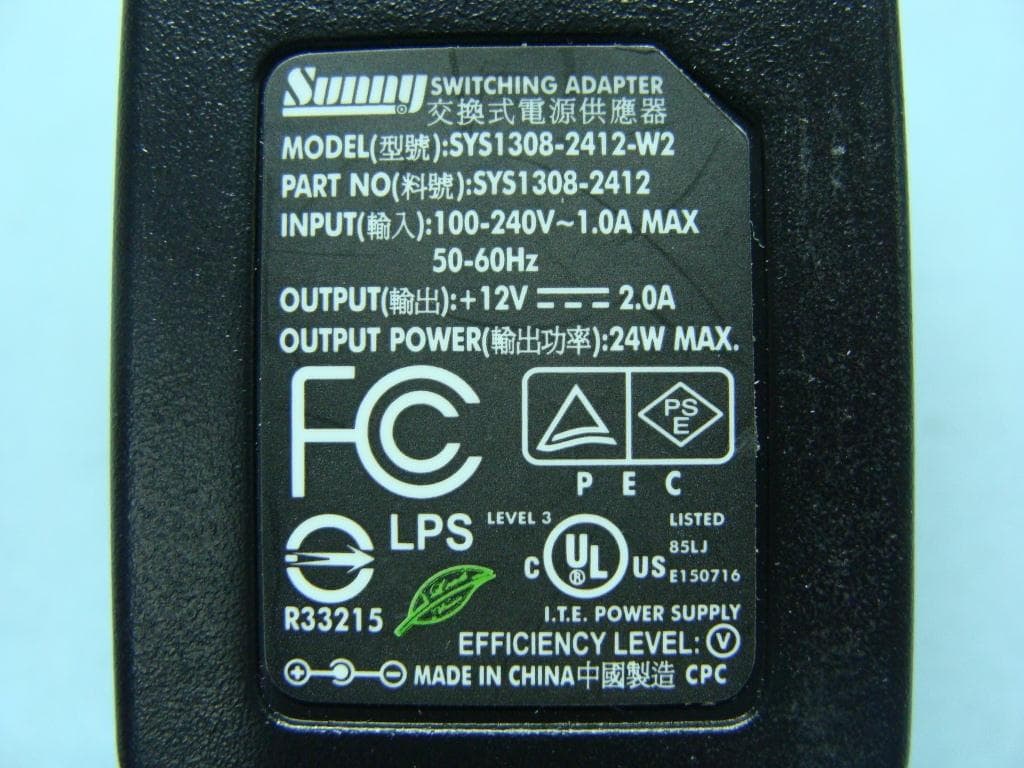

Photographs of EUT Report No.: EP191547 Brand Name: SerComm / Model Name: FC235U, NSN SPORTON INTERNATIONAL INC. Page Number : 1 of 21 TEL : 886-3-327-3456 Report Issued Date : Oct. 26, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P27FC235U 1. External Photograph of EUT Photographs of EUT Report No.: EP191547 Brand Name: SerComm / Model Name: FC235U, NSN SPORTON INTERNATIONAL INC. Page Number : 2 of 21 TEL : 886-3-327-3456 Report Issued Date : Oct. 26, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P27FC235U 720510 Photographs of EUT Report No.: EP191547 Brand Name: SerComm / Model Name: FC235U, NSN SPORTON INTERNATIONAL INC. Page Number : 3 of 21 TEL : 886-3-327-3456 Report Issued Date : Oct. 26, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P27FC235U List of Accessory: Specification of Accessory AC Adapter Brand Name Sunny Power Model Name SYS1308-2412-W2 Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP191547 Brand Name: SerComm / Model Name: FC235U, NSN SPORTON INTERNATIONAL INC. Page Number : 4 of 21 TEL : 886-3-327-3456 Report Issued Date : Oct. 26, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P27FC235U Photographs of EUT Report No.: EP191547 Brand Name: SerComm / Model Name: FC235U, NSN SPORTON INTERNATIONAL INC. Page Number : 5 of 21 TEL : 886-3-327-3456 Report Issued Date : Oct. 26, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P27FC235U 720510

Photographs of EUT Report No.: EP191547 Brand Name: SerComm / Model Name: FC235U, NSN SPORTON INTERNATIONAL INC. Page Number : 6 of 21 TEL : 886-3-327-3456 Report Issued Date : Oct. 26, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P27FC235U 3. Internal Photograph of EUT Photographs of EUT Report No.: EP191547 Brand Name: SerComm / Model Name: FC235U, NSN SPORTON INTERNATIONAL INC. Page Number : 7 of 21 TEL : 886-3-327-3456 Report Issued Date : Oct. 26, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P27FC235U Photographs of EUT Report No.: EP191547 Brand Name: SerComm / Model Name: FC235U, NSN SPORTON INTERNATIONAL INC. Page Number : 8 of 21 TEL : 886-3-327-3456 Report Issued Date : Oct. 26, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P27FC235U Photographs of EUT Report No.: EP191547 Brand Name: SerComm / Model Name: FC235U, NSN SPORTON INTERNATIONAL INC. Page Number : 9 of 21 TEL : 886-3-327-3456 Report Issued Date : Oct. 26, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P27FC235U Photographs of EUT Report No.: EP191547 Brand Name: SerComm / Model Name: FC235U, NSN SPORTON INTERNATIONAL INC. Page Number : 10 of 21 TEL : 886-3-327-3456 Report Issued Date : Oct. 26, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P27FC235U WWAN Main Antenna <TX / RX> Photographs of EUT Report No.: EP191547 Brand Name: SerComm / Model Name: FC235U, NSN SPORTON INTERNATIONAL INC. Page Number : 11 of 21 TEL : 886-3-327-3456 Report Issued Date : Oct. 26, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P27FC235U Photographs of EUT Report No.: EP191547 Brand Name: SerComm / Model Name: FC235U, NSN SPORTON INTERNATIONAL INC. Page Number : 12 of 21 TEL : 886-3-327-3456 Report Issued Date : Oct. 26, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P27FC235U WWAN Aux. Antenna <TX / RX> Photographs of EUT Report No.: EP191547 Brand Name: SerComm / Model Name: FC235U, NSN SPORTON INTERNATIONAL INC. Page Number : 13 of 21 TEL : 886-3-327-3456 Report Issued Date : Oct. 26, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P27FC235U Photographs of EUT Report No.: EP191547 Brand Name: SerComm / Model Name: FC235U, NSN SPORTON INTERNATIONAL INC. Page Number : 14 of 21 TEL : 886-3-327-3456 Report Issued Date : Oct. 26, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P27FC235U WLAN Main Antenna <TX / RX> Photographs of EUT Report No.: EP191547 Brand Name: SerComm / Model Name: FC235U, NSN SPORTON INTERNATIONAL INC. Page Number : 15 of 21 TEL : 886-3-327-3456 Report Issued Date : Oct. 26, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P27FC235U Photographs of EUT Report No.: EP191547 Brand Name: SerComm / Model Name: FC235U, NSN SPORTON INTERNATIONAL INC. Page Number : 16 of 21 TEL : 886-3-327-3456 Report Issued Date : Oct. 26, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P27FC235U WLAN Aux. Antenna <TX / RX> Photographs of EUT Report No.: EP191547 Brand Name: SerComm / Model Name: FC235U, NSN SPORTON INTERNATIONAL INC. Page Number : 17 of 21 TEL : 886-3-327-3456 Report Issued Date : Oct. 26, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P27FC235U Photographs of EUT Report No.: EP191547 Brand Name: SerComm / Model Name: FC235U, NSN SPORTON INTERNATIONAL INC. Page Number : 18 of 21 TEL : 886-3-327-3456 Report Issued Date : Oct. 26, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P27FC235U GPS Antenna <RX> Photographs of EUT Report No.: EP191547 Brand Name: SerComm / Model Name: FC235U, NSN SPORTON INTERNATIONAL INC. Page Number : 19 of 21 TEL : 886-3-327-3456 Report Issued Date : Oct. 26, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P27FC235U Photographs of EUT Report No.: EP191547 Brand Name: SerComm / Model Name: FC235U, NSN SPORTON INTERNATIONAL INC. Page Number : 20 of 21 TEL : 886-3-327-3456 Report Issued Date : Oct. 26, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P27FC235U GPS Antenna <RX> Photographs of EUT Report No.: EP191547 Brand Name: SerComm / Model Name: FC235U, NSN SPORTON INTERNATIONAL INC. Page Number : 21 of 21 TEL : 886-3-327-3456 Report Issued Date : Oct. 26, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P27FC235U 720510

Photographs of EUT Report No.: EP191547 Brand Name: SerComm / Model Name: FC235U SPORTON INTERNATIONAL INC. Page Number : 1 of 1 TEL : 886-3-327-3456 Issued Date : Nov. 01, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P27FC235U Antenna location Length Width WWAN Main Antenna <TX/RX> 7.2 cm 1.4 cm WWAN Aux. Antenna <RX> 5.8 cm 1.4 cm WLAN Main Antenna <TX / RX> 2.6 cm 1.1 cm WLAN Aux. Antenna <TX / Rx> 2.6 cm 1.1 cm GPS Antenna <RX> 1.8 cm 1.8 cm WLAN Main Antenna <TX / RX> WWAN Main Antenna <TX/RX> 5.3cm 3.9cm 15.5cm GPS Antenna <RX> 0.9cm 0.8cm 2.2cm 2.2cm 2.0cm 1.5cm 1.8cm 3.3cm WWAN Aux. Antenna <RX> WLAN Aux. Antenna <TX / Rx>

Photographs of EUT Report No.: EP191547 Brand Name: SerComm / Model Name: FC235U SPORTON INTERNATIONAL INC. Page Number : 1 of 1 TEL : 886-3-327-3456 Issued Date : Oct. 31, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P27FC235U Antenna location Length Width GPS Antenna <RX> 3.8 cm 3.5 cm GPS Antenna <RX>

SPORTON INTERNATIONAL INC. Page Number : 1 of 8 TEL : 886-3-327-3456 Report Issued Date : Nov. 01, 2011 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : P27FC235U RF Exposure Evaluation Report Report No. : FA191547A RF Exposure Evaluation Report APPLICANT : SerComm Corporation EQUIPMENT : FemtoCell Router BRAND NAME : SerComm MODEL NAME : FC235U, NSN FCC ID : P27FC235U FILING TYPE : Certification STANDARD : OET Bulletin 65 Supplement C (Edition 01-01) We, SPORTON INTERNATIONAL INC., would like to declare that the device has been evaluated in accordance with FCC OET Bulletin 65 Supplement C (Edition 01-01), and pass the limit. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Jones Tsai / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 8 TEL : 886-3-327-3456 Report Issued Date : Nov. 01, 2011 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : P27FC235U RF Exposure Evaluation Report Report No. : FA191547A Table of Contents REVISION HISTORY .......................................................................................................................................... 3 1. RF EXPOSURE INTRODUCTION ............................................................................................................... 4 2. ADMINISTRATION DATA ........................................................................................................................... 6 2.1 Testing Laboratory ............................................................................................................................. 6 2.2 Applicant ............................................................................................................................................ 6 2.3 Manufacturer ...................................................................................................................................... 6 3. GENERAL INFORMATION ......................................................................................................................... 7 3.1 Description of Device Under Test (DUT) ........................................................................................... 7 4. RF EXPOSURE EVALUATION ................................................................................................................... 8 4.1 Radio Frequency Radiation Exposure Evaluation ............................................................................. 8 SPORTON INTERNATIONAL INC. Page Number : 3 of 8 TEL : 886-3-327-3456 Report Issued Date : Nov. 01, 2011 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : P27FC235U RF Exposure Evaluation Report Report No. : FA191547A Revision History REPORT NO. VERSION DESCRIPTION ISSUED DATE FA191547A Rev. 01 Initial issue of report Oct. 26, 2011 FA191547A Rev. 02 Update report for removing HSDPA and HSUPA information. Nov. 01, 2011 SPORTON INTERNATIONAL INC. Page Number : 4 of 8 TEL : 886-3-327-3456 Report Issued Date : Nov. 01, 2011 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : P27FC235U RF Exposure Evaluation Report Report No. : FA191547A 1. RF Exposure Introduction Requirements Three different categories of transmitters are defined by the FCC in OET Bulletin 65. These categories are fixed installation, mobile and portable and are defined as follows:  Fixed installation: Fixed location means that the device, including its antenna, is physically secured at a permanent location and is not able to be easily moved to another location. Additionally, distance to humans form the antenna is maintained to at least 2 meters.  Mobile Devices: A mobile device is defined as a transmitting device designed to be used in other than fixed locations and to be generally used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitters’s radiating structures and the body of the user or nearby persons. Transmitters designed to be used by consumers or workers that can be easily re-located are considered mobile devices if they meet the 20 centimeter separation requirement. The FCC rules for evaluating mobile devices for RF compliance are found in 47 CFR 2.1091.  Portable Devices: A portable device is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the user. Portable device requirements are found in Section 2.1093 of the FCC’s Rules (47 CFR 2.1093) SPORTON INTERNATIONAL INC. Page Number : 5 of 8 TEL : 886-3-327-3456 Report Issued Date : Nov. 01, 2011 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : P27FC235U RF Exposure Evaluation Report Report No. : FA191547A The FCC also categorizes the use of the device as based upon the user’s awareness and ability to exercise control over his or her exposure. The two categories defined are Occupational/Controlled Exposure and General Population/Uncontrolled Exposure. These two categories are defined as follows:  Occupational/controlled Exposure: In general, occupational/controlled exposure limits are applicable to situation in which persons are exposed as a consequence of their employment, who have been made fully aware of the potential for exposure. Awareness of the potential for RF exposure in a workplace or similar environment can be provided through specific training as part of a RF safety program. If appropriate, warning signs and labels can also be used to establish such awareness by providing prominent information on the risk of potential exposure and instructions on methods to minimize such exposure risks.  General Population/Uncontrolled Exposure: The general population / uncontrolled exposure limits are applicable to situations in which the general public may be exposed or in which persons who are exposed as a consequence of their e…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. Page Number : 1 of 27 TEL : 886-3-327-3456 Report Issued Date : Oct. 26, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P27FC235U FCC RF Test Report Report No. : FG191547 FCC RF Test Report APPLICANT : SerComm Corporation EQUIPMENT : FemtoCell Router BRAND NAME : SerComm MODEL NAME : FC235U, NSN FCC ID : P27FC235U STANDARD : FCC 47 CFR Part 2, 27(L) CLASSIFICATION : Licensed Non-Broadcast Station Transmitter (TNB) TX FREQUENCY RANGE : 2112.4 MHz ~ 2152.6 MHz Rx FREQUENCY RANGE : 1712.4 MHz ~ 1752.6 MHz MAX. EIRP POWER : 0.02 W The product was received on Sep. 15, 2011 and completely tested on Oct. 04, 2011. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI / TIA / EIA-603-C-2004 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Jones Tsai / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 27 TEL : 886-3-327-3456 Report Issued Date : Oct. 26, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P27FC235U FCC RF Test Report Report No. : FG191547 TABLE OF CONTENTS REVISION HISTORY .......................................................................................................................................... 3 SUMMARY OF TEST RESULT ......................................................................................................................... 4 1 GENERAL DESCRIPTION .......................................................................................................................... 5 1.1 Applicant ............................................................................................................................................ 5 1.2 Manufacturer ...................................................................................................................................... 5 1.3 Feature of Equipment Under Test ..................................................................................................... 5 1.4 Emission Designator and Maximum ERP/EIRP Power ..................................................................... 5 1.5 Testing Site ........................................................................................................................................ 6 1.6 Applied Standards ............................................................................................................................. 6 1.7 Ancillary Equipment List .................................................................................................................... 6 2 TEST CONFIGURATION OF EQUIPMENT UNDER TEST ........................................................................ 7 2.1 Test Mode .......................................................................................................................................... 7 2.2 Connection Diagram of Test System ................................................................................................. 7 3 TEST RESULT ............................................................................................................................................. 8 3.1 Conducted Output Power Measurement ........................................................................................... 8 3.2 Effective Isotropic Radiated Power Measurement ............................................................................ 9 3.3 Occupied Bandwidth and Band Edge Measurement ....................................................................... 11 3.4 Band Edge Measurement ................................................................................................................ 13 3.5 Conducted Emission Measurement ................................................................................................. 15 3.6 Field Strength of Spurious Radiation Measurement ........................................................................ 19 3.7 Frequency Stability Measurement ................................................................................................... 23 4 LIST OF MEASURING EQUIPMENTS...................................................................................................... 26 5 UNCERTAINTY OF EVALUATION ........................................................................................................... 27 APPENDIX A. PHOTOGRAPHS OF EUT APPENDIX B. SETUP PHOTOGRAPHS SPORTON INTERNATIONAL INC. Page Number : 3 of 27 TEL : 886-3-327-3456 Report Issued Date : Oct. 26, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P27FC235U FCC RF Test Report Report No. : FG191547 REVISION HISTORY REPORT NO. VERSION DESCRIPTION ISSUED DATE FG191547 Rev. 01 Initial issue of report Oct. 26, 2011 SPORTON INTERNATIONAL INC. Page Number : 4 of 27 TEL : 886-3-327-3456 Report Issued Date : Oct. 26, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P27FC235U FCC RF Test Report Report No. : FG191547 SUMMARY OF TEST RESULT Report Section FCC Rule IC Rule Description Limit Result Remark 3.1 §2.1046 NA Conducted Output Power NA PASS - 3.2 §27.50(d)(2) RSS-139 (6.4) SRSP-513(5.1.2) Equivalent Isotropic Radiated Power < 1 Watts PASS - 3.3 §2.1049 §27.53(g) RSS-139 (6.5) Occupied Bandwidth NA PASS - 3.4 §2.1049 §27.53(g) RSS-139 (6.5) Band Edge Measurement < 43+10log 10 (P[Watts]) PASS - 3.4.6 §2.1049 §27.53(g) RSS-139 (6.5) Conducted Emission < 43+10log 10 (P[Watts]) PASS - 3.6 §2.1049 §27.53(g) RSS-139 (6.5) Field Strength of Spurious Radiation < 43+10log 10 (P[Watts]) PASS - 3.7 §2.1055 §27.54 RSS-139 (6.3) Frequency Stability Temperature & Voltage < 2.5 ppm PASS Under…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. Page Number : B1 of B1 TEL : 886-3-327-3456 Report Issued Date : Oct. 26, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P27FC235U FCC RF Test Report Report No. : FG191547 Appendix B. Setup Photographs <Radiated Emission> LF HF
