P27ICAMERA2Wireless Network Camera

iCamera2 User’s Guide Table of Contents CHAPTER 1 INTRODUCTION .......................................................................................... 1 Overview ....................................................................................................................... 1 Physical Details - iCamera2 .......................................................................................... 3 Package Contents .......................................................................................................... 5 CHAPTER 2 BASIC SETUP ............................................................................................... 6 System Requirements ................................................................................................... 6 Installation - iCamera2 ................................................................................................. 6 Wall Mounting .............................................................................................................. 9 CHAPTER 3 VIEWING LIVE VIDEO ............................................................................. 10 Overview ..................................................................................................................... 10 Requirements .............................................................................................................. 10 Connecting to a Camera on your LAN ....................................................................... 10 Connecting to a Camera via the Internet ................................................................... 12 Viewing Live Video ..................................................................................................... 14 CHAPTER 4 ADVANCED VIEWING SETUP................................................................. 16 Introduction ................................................................................................................ 16 Adjusting the Video Image ......................................................................................... 16 Controlling User Access to the Video Stream............................................................. 19 Making Video available from the Internet ................................................................. 20 Viewing Live Video via the Internet ........................................................................... 21 Motion Detection Alerts .............................................................................................. 22 CHAPTER 5 WEB-BASED MANAGEMENT .................................................................. 23 Introduction ................................................................................................................ 23 Connecting to iCamera2 ............................................................................................. 23 Welcome Screen .......................................................................................................... 24 Administration Menu ................................................................................................. 25 System Screen ............................................................................................................. 26 Network Screen ........................................................................................................... 28 Wireless Screen ........................................................................................................... 32 DDNS Screen............................................................................................................... 35 IP Filter ....................................................................................................................... 37 Streamings .................................................................................................................. 38 Video & Audio Screen ................................................................................................ 41 Video Access Screen .................................................................................................... 43 User Database Screen ................................................................................................. 45 Pan/Tilt Screen............................................................................................................ 46 Motion Detection Screen ............................................................................................. 48 Audio Detection Screen ............................................................................................... 49 E-Mail Screen ............................................................................................................. 50 FTP Screen .................................................................................................................. 51 HTTP Screen............................................................................................................... 52 Trigger & Recording Screen....................................................................................... 54 Maintenance Screen .................................................................................................... 57 Status Screen ............................................................................................................... 59 Log Screen................................................................................................................... 61 CHAPTER 7 TROUBLESHOOTING ............................................................................... 62 Overview ..................................................................................................................... 62 Problems ..................................................................................................................... 62 APPENDIX A SPECIFICATIONS .................................................................................…

Text truncated - open the document above for the full version.

Date：September 29, 2014 Subject:DoC declaration To Whom it may concern, We, as the grantee of this project FCC ID: P27ICAMERA2, would like to declare that the composite Portion categorized as computer peripheral has been authorized under the Declaration of Conformity procedures. Brand Name & Model Name of the specified radio equipment: Sercomm / iCamera2xxxxxxxx(The “x” in model name can be 0 to 9, A to Z, blank or “-“ , for marking purpose) FCC ID: P27ICAMERA2 Product Name: Wireless Network Camera Regards, Your Sincerely, Kevin Kuo Sr. Manager / R&D Division Sercomm Corporation TEL: 886-2-2655-3988#2631 FAX: 886-2-2655-7379 E-Mail: [email protected]

Date：September 23, 2014 BABT TCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Dear Sir or Madam, We, Sercomm Corporation hereby authorize Compliance Certification Services Inc / Miller.Lee to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. This authorization expires on 2015/3/16 Your Sincerely, Kevin Kuo Sr. Manager / R&D Division Sercomm Corporation TEL: 886-2-2655-3988#2631 FAX: 886-2-2655-7379 E-Mail: [email protected]

5604A-ICAMERA2 September 26, 2014 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Compliance Certification Services Inc. Address: No 11, Wugong 6th Rd, Wugu District, New Taipei City 24891 ,Taiwan(R.O.C) Mr. Miller.Lee Job Title: Section Manager Email: [email protected] I am therefore responsible for the contents of the application. Brand Name and Model Name of the specified radio equipment: Brand Name: Sercomm Model Name: iCamera2 IC: 5604A-ICAMERA2 Product Name: Wireless Network Camera Your Sincerely, Kevin Kuo Sr. Manager / R&D Division Sercomm Corporation TEL: 886-2-2655-3988#2631 FAX: 886-2-2655-7379 E-Mail: [email protected]

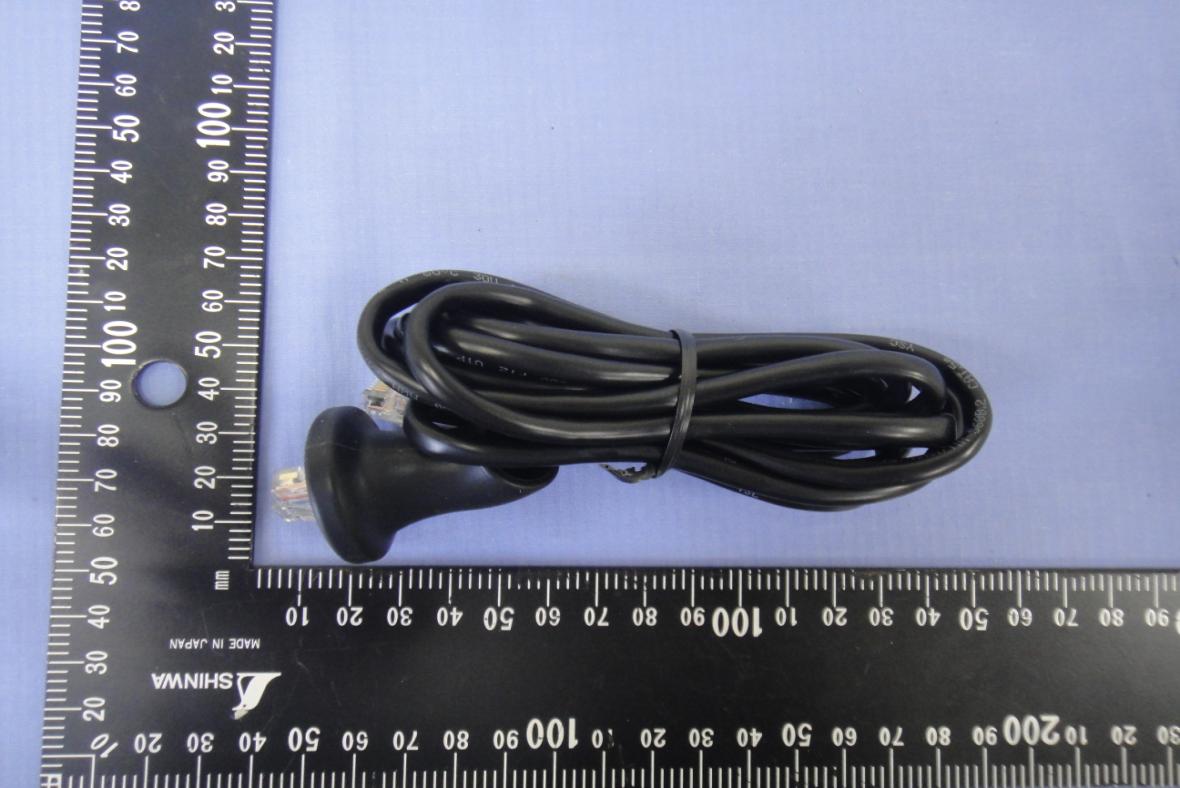

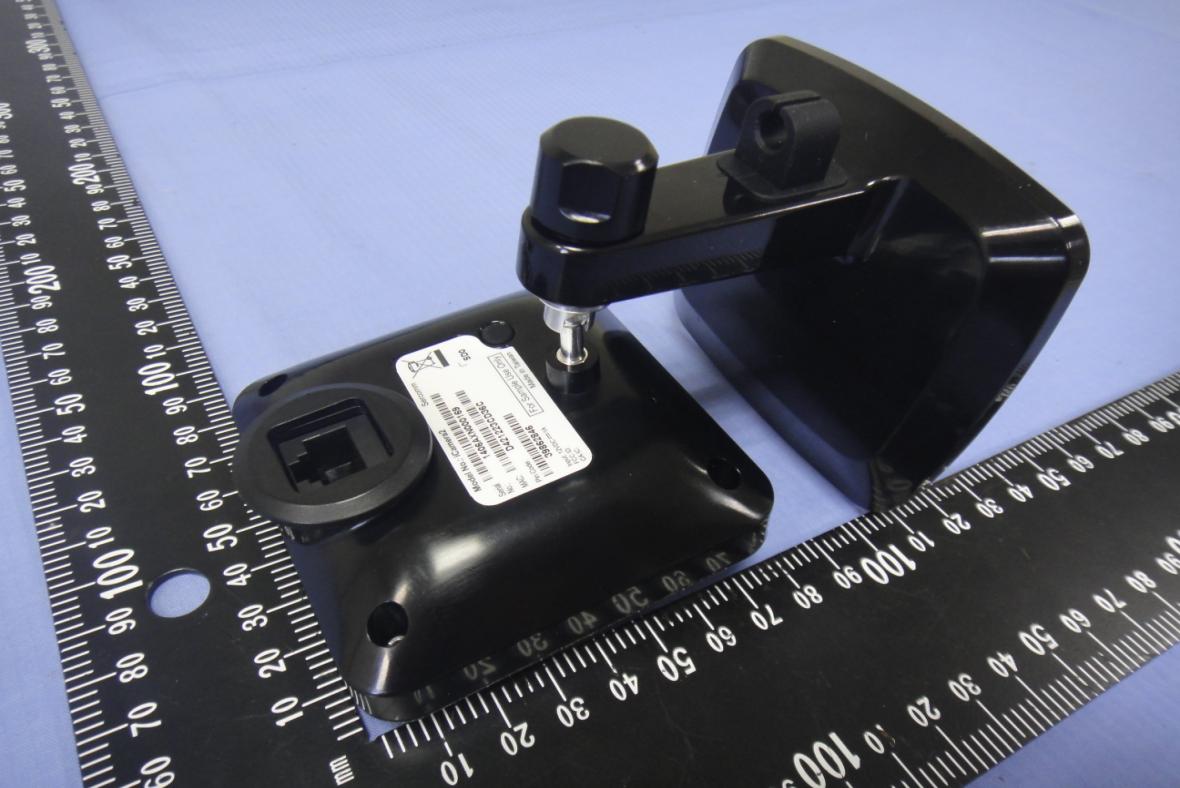

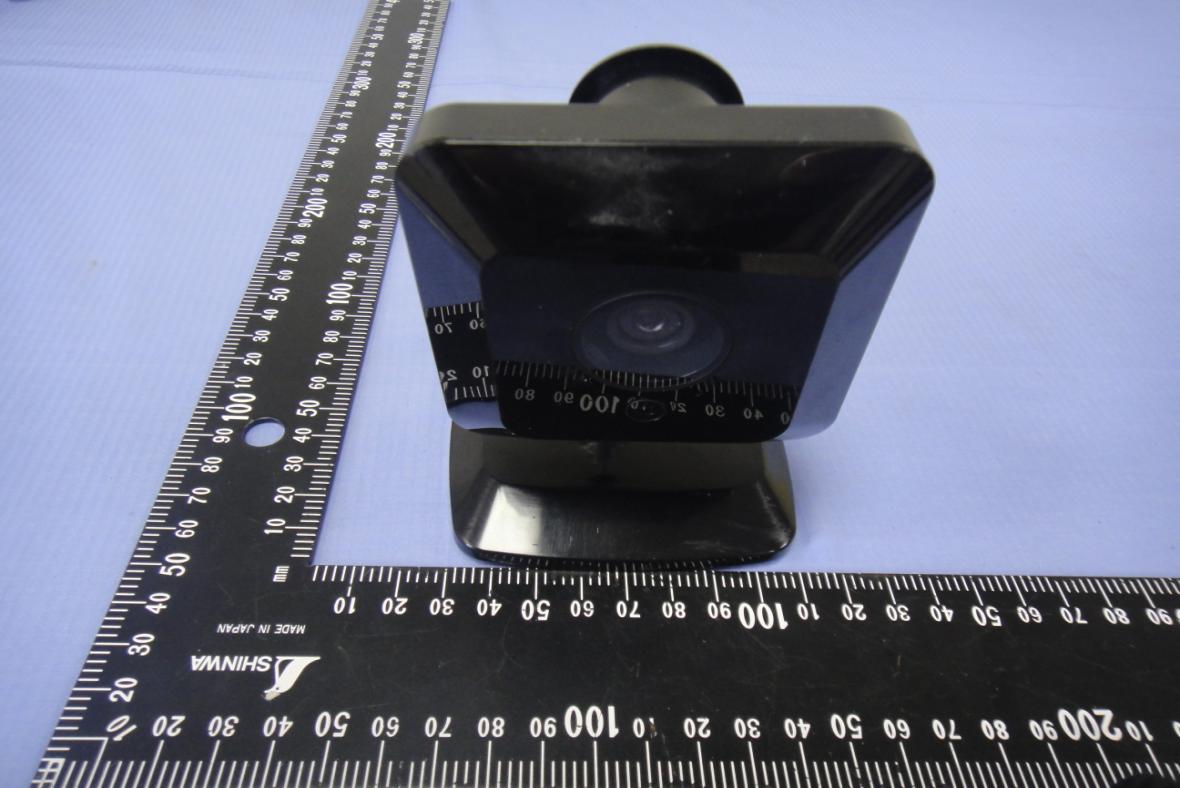

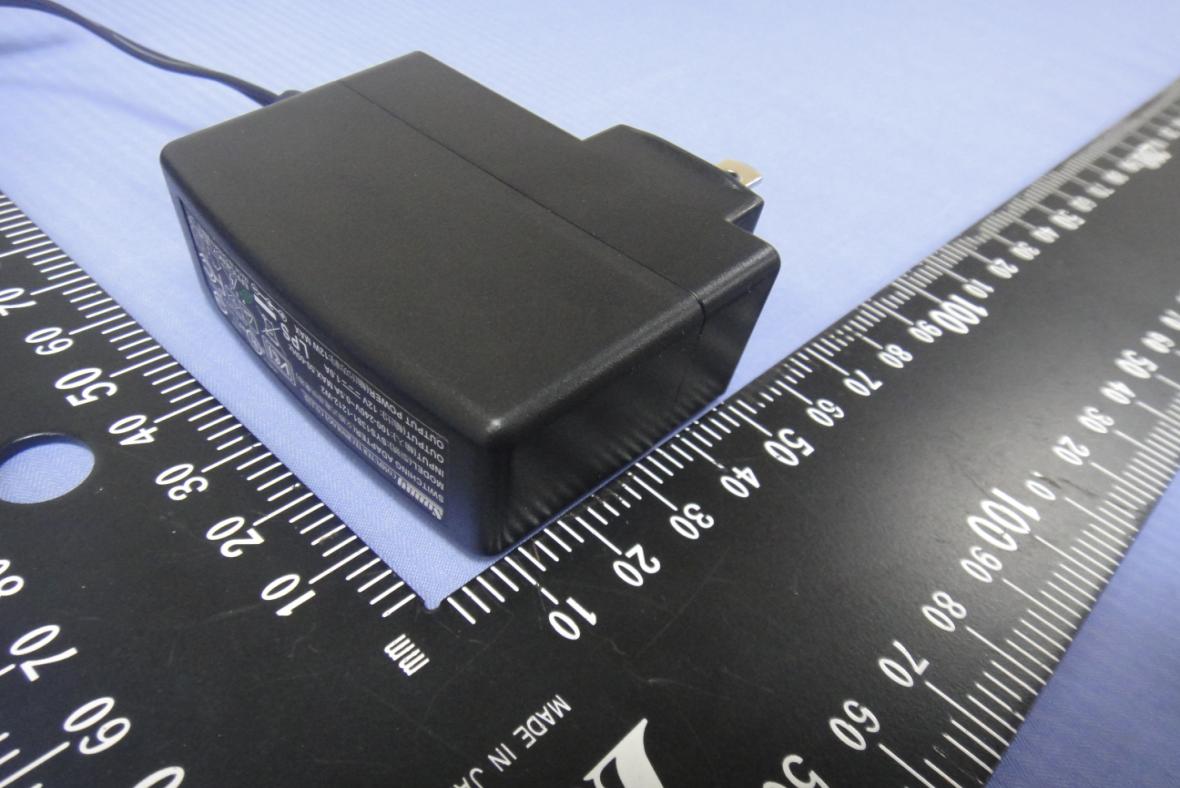

Compliance Certification Services Inc. Report No.: T140716D12 Date of Issue: September 12, 2014 A1 - 1 / 15 Rev. 00 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T140716D12 Date of Issue: September 12, 2014 A1 - 2 Rev. 00 Compliance Certification Services Inc. Report No.: T140716D12 Date of Issue: September 12, 2014 A1 - 3 Rev. 00 Compliance Certification Services Inc. Report No.: T140716D12 Date of Issue: September 12, 2014 A1 - 4 Rev. 00 Adapter For APD / WA-12M12FU Compliance Certification Services Inc. Report No.: T140716D12 Date of Issue: September 12, 2014 A1 - 5 Rev. 00 Compliance Certification Services Inc. Report No.: T140716D12 Date of Issue: September 12, 2014 A1 - 6 Rev. 00 For Sunny / SYS1381-1212-W2 Compliance Certification Services Inc. Report No.: T140716D12 Date of Issue: September 12, 2014 A1 - 7 Rev. 00

FCC ID: P27iCamera2 IC: 5604A-iCamera2 FCC ID: P27iCamera2 IC: 5604A‐ICAMERA2 FCC ID: P27iCamera2 IC: 5604A‐ICAMERA2 FCC ID: P27ICAMERA2 IC: 5604A ‐ ICAMERA2 FC C ID: P27ICAMERA2 IC: 5604A ‐ ICAMERA2 FCC ID: P27ICAMERA2 IC: 5604A‐ICAMERA2 FCC ID: P27ICAMERA2 IC: 5604A‐ICAMERA2

Compliance Certification Services Inc. Report No.: T140716D12 Date of Issue: September 12, 2014 A1 - 8 Rev. 00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T140716D12 Date of Issue: September 12, 2014 A1 - 9 Rev. 00 Compliance Certification Services Inc. Report No.: T140716D12 Date of Issue: September 12, 2014 A1 - 10 Rev. 00 Compliance Certification Services Inc. Report No.: T140716D12 Date of Issue: September 12, 2014 A1 - 11 Rev. 00 Compliance Certification Services Inc. Report No.: T140716D12 Date of Issue: September 12, 2014 A1 - 12 Rev. 00 Compliance Certification Services Inc. Report No.: T140716D12 Date of Issue: September 12, 2014 A1 - 13 Rev. 00 Compliance Certification Services Inc. Report No.: T140716D12 Date of Issue: September 12, 2014 A1 - 14 Rev. 00 Antenna Compliance Certification Services Inc. Report No.: T140716D12 Date of Issue: September 12, 2014 A1 - 15 Rev. 00

Snap-on Diagnostics Tune up procedure The output power setting of EUT is set in the factory and followed the max level in below. There is no tune up procedure except factory default setting: B Mode: 18 dBm± 1.5dB G Mode: 16 dBm± 1.5dB N20 Mode: 18 dBm± 1.5dB N40 Mode: 18 dBm± 1.5dB Kevin Kuo Sr. Manager / R&D Division Sercomm Corporation TEL: 886-2-2655-3988#2631 FAX: 886-2-2655-7379 E-Mail: [email protected]

Compliance Certification Services Inc. Report No.: T140716D12-MF1 Date of Issue: September 29, 2014 Page 1 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. APPENDIX I RADIO FREQUENCY EXPOSURE LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUT Wireless Network Camera Model iCamera2xxxxxxxx(The “x” in model name can be 0 to 9, A to Z, blank or “-“ , for marking purpose) Model Discrepancy All the specification and layout are identical except they come with different model numbers for marketing purposes. Frequency band (Operating) 802.11b/g/n HT20: 2.412GHz ~ 2.462GHz 802.11n HT40: 2.422GHz ~ 2.452GHz 802.11a: 5150 ~ 5250MHz / 5725 ~ 5850MHz 802.11 HT20: 5150 ~ 5250MHz / 5725 ~ 5850MHz 802.11 HT40: 5150 ~ 5250MHz / 5725 ~ 5850MHz 802.11AC HT80: 5170 ~ 5330 MHZ / 5490 ~ 5815 MHZ Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna Specification Antenna Gain :2.02 dBi (Numeric gain:1.59) Maximum Average output power IEEE 802.11b Mode: 18.10 dBm(64.565 mW) IEEE 802.11g Mode: 16.26 dBm(42.267 mW) IEEE 802.11n HT 20 Mode: 18.17 dBm(65.615 mW) IEEE 802.11n HT 40 Mode: 18.13 dBm(65.013 mW) Maximum Tune up Power IEEE 802.11b Mode: 19.50 dBm(89.125 mW) IEEE 802.11g Mode: 17.50 dBm(56.234 mW) IEEE 802.11n HT 20 Mode: 19.50 dBm(89.125 mW) IEEE 802.11n HT 40 Mode: 19.50 dBm(89.125 mW) Evaluation applied MPE Evaluation* SAR Evaluation N/A Compliance Certification Services Inc. Report No.: T140716D12-MF1 Date of Issue: September 29, 2014 Page 2 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 2014/09/29 Initial Issue ALL Doris Chu Compliance Certification Services Inc. Report No.: T140716D12-MF1 Date of Issue: September 29, 2014 Page 3 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TEST RESULTS No non-compliance noted. Calculation Given d GP E   30 & 377 2 E S Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 377 30 d GP S   Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields   22 0796.0 100/377 1000/30 d GP d GP S      Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Compliance Certification Services Inc. Report No.: T140716D12-MF1 Date of Issue: September 29, 2014 Page 4 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Maximum Permissible Exposure Substituting the MPE safe distance using d = 20 cm into Equation 1: GPS000199.0 Where P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 IEEE 802.11b mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 6243789.1251.59200.02821 IEEE 802.11g mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 6243756.2341.59200.01781 IEEE 802.11n HT20 mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 6244289.1251.59200.02821 IEEE 802.11n HT40 mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 1242289.1251.59200.02821

Compliance Certification Services Inc. FCC ID: P27ICAMERA2 Report No.: T140716D12-RP1 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 / 129 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Wireless Network Camera Model: iCamera2xxxxxxxx(The “x” in model name can be 0 to 9, A to Z, blank or “-“ , for marking purpose) Trade Name: Sercomm Issued to Sercomm Corporation 8F, No. 3-1, YuanQu St., NanKang, Taipei 115, Taiwan, R.O.C. Issued by Compliance Certification Services Inc. No.11, Wugong 6th Rd., Wugu Dist., New Taipei City 24891, Taiwan. (R.O.C.) http://www.ccsrf.com [email protected] Issued Date: September 11, 2014 Compliance Certification Services Inc. FCC ID: P27ICAMERA2 Report No.: T140716D12-RP1 Page 2 Rev. 00 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 September 11, 2014 Initial Issue ALL Doris Chu Compliance Certification Services Inc. FCC ID: P27ICAMERA2 Report No.: T140716D12-RP1 Page 3 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION .................................................................................................... 4 2. EUT DESCRIPTION ........................................................................................................................... 5 3. TEST METHODOLOGY .................................................................................................................... 6 3.1 EUT CONFIGURATION ........................................................................................................................ 6 3.2 EUT EXERCISE .................................................................................................................................... 6 3.3 GENERAL TEST PROCEDURES ............................................................................................................. 6 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS......................................................... 7 3.5 DESCRIPTION OF TEST MODES ........................................................................................................... 8 4. INSTRUMENT CALIBRATION ........................................................................................................ 9 4.1 MEASURING INSTRUMENT CALIBRATION ...................................................................................... 9 4.2 MEASUREMENT EQUIPMENT USED ......................................................................................... 9 4.3 MEASUREMENT UNCERTAINTY ............................................................................................. 10 5. FACILITIES AND ACCREDITATIONS ........................................................................................ 11 5.1 FACILITIES ..................................................................................................................................... 11 5.2 EQUIPMENT ...................................................................................................................................... 11 5.3 TABLE OF ACCREDITATIONS AND LISTINGS ..................................................................................... 12 6. SETUP OF EQUIPMENT UNDER TEST ....................................................................................... 13 6.1 SETUP CONFIGURATION OF EUT ....................................................................................................... 13 6.2 SUPPORT EQUIPMENT ............................................................................................................... 13 7. FCC PART 15.247 REQUIREMENTS ............................................................................................. 14 7.1 6DB BANDWIDTH ............................................................................................................................. 14 7.2 PEAK POWER .................................................................................................................................... 34 7.3 AVERAGE POWER ............................................................................................................................ 36 7.4 BAND EDGES MEASUREMENT ................................................................................................ 38 7.5 PEAK POWER SPECTRAL DENSITY .................................................................................................... 68 7.6 SPURIOUS EMISSIONS ................................................................................................................. 88 7.7 RADIATED EMISSIONS ............................................................................................................ 107 7.8 POWERLINE CONDUCTED EMISSIONS ............................................................................................. 124 APPENDIX 1 - PHOTOGRAPHS OF EUT Compliance Certification Services Inc. FCC ID: P27ICAMERA2 Report No.: T140716D12-RP1 Page 4 Rev. 00 1. TEST RESULT CERTIFICATION Applicant: Sercomm Corporation 8F, No. 3-1, YuanQu St., NanKang, Taipei 115, Taiwan, R.O.C. Equipment Under Test: Wireless Network Camera Trade Name: Sercomm Model Number: iCamera2xxxxxxxx(The “x” in model name can be 0 to 9, A to Z, blank or “-“ , for marking purpose) Date of Test: September 2 ~ 4, 2014 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2009 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, …

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. FCC ID: P27ICAMERA2 Report No.: T140716D12-RP1 Page 127 Rev. 00 Conducted Emissions Setup Photos Compliance Certification Services Inc. FCC ID: P27ICAMERA2 Report No.: T140716D12-RP1 Page 128 Rev. 00 Radiated Emissions Setup Photos Compliance Certification Services Inc. FCC ID: P27ICAMERA2 Report No.: T140716D12-RP1 Page 129 Rev. 00 Powerline Conducted Emissions Setup Photos
