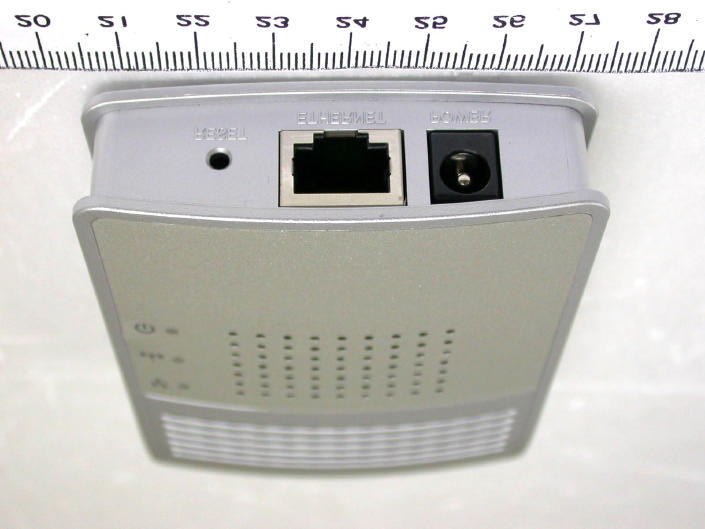

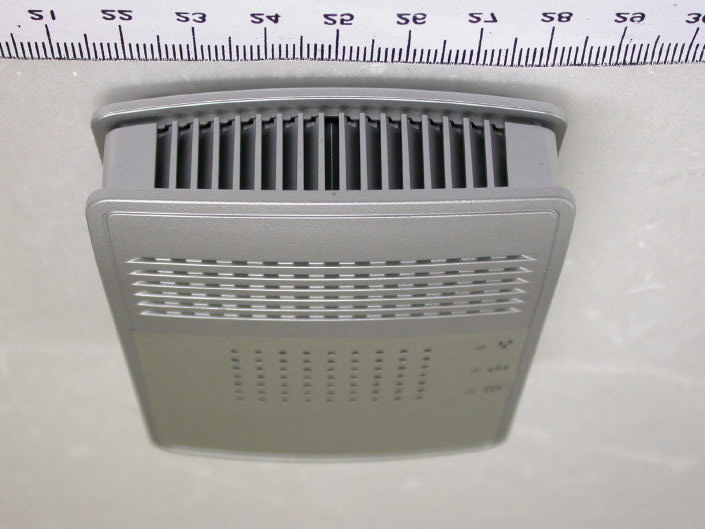

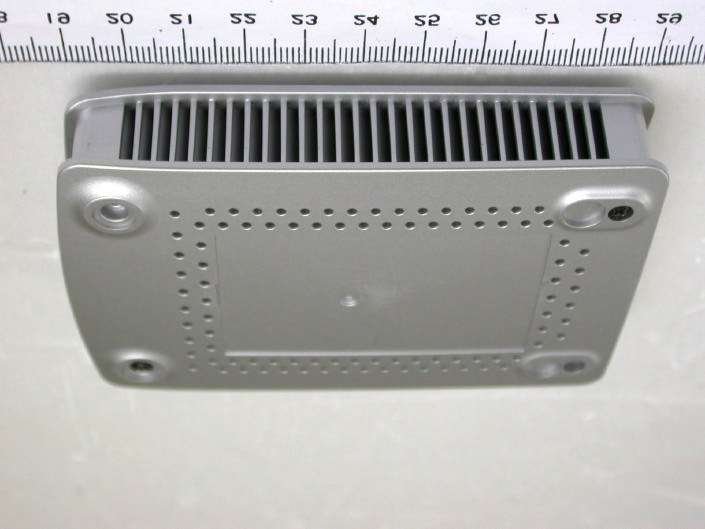

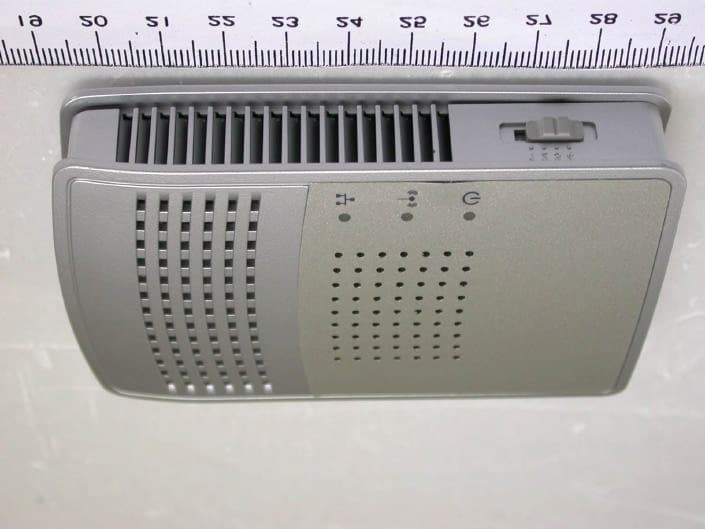

External Photos

56. 5mm 3 7 m m 9320P60001 Model N o. : S erial N o.: Input: 5VDCPolarity: 2A S erver N ame: 1.#50PO37 2. 3. 4. 5. 0.2mm SC A L E 1: 1 Ma de in Ta iwa n Tested to Comply With FCC Standards FOR HOME OR OFFICE USE FCC ID: P27IP802SMV2 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) This device must accept any interference received. including interference that may cause undesired operation. SerComm

Internal Photos

Part Number Date Subject pages3 IP802SM V2 Operation Principle 1. CPU, U6, 88W8510 have a 32-bit RISC processor integrated, operation frequency is 160MHz. It needs an external 44MHz crystal for reference frequency; this crystal is also used for RF module. This chip is responsible to control RF-Baseband Transceiver (88W8000G), Flash IC and LED. This chip also has MII interface integrated to communicate with 10/100 Ethernet Switch. 2. FLASH, U13, MX29LV800TTC-70, 8Mbits Flash, bottom sector, 70ns. It is used to store the normal and test firmware. 3. Integrated 2.4GHz ISM Band RF-Baseband Transceiver, U9, 88W8000G which is integrated all RF-Baseband receive and Transmit function. On-Chip Power Amplifier (PA) with up to +20 dBm output power at the antenna port. It is also integrated programmable frequency synthesizers with integrated VCOs, I/Q generation and CMOS up/down conversion mixers. 4. Components: Ethernet port (10/100BaseT) CONNECT THE 10/100BASET CABLING (RJ45 CONNECTOR) FOR THE EXTERNAL LAN, WAN, Reset Button Used to reboot, reset to factory default, Power Jack Connect the power adapter here. 4 stop manual switch Use to set different operation mode, client mode, AP mode, AP/NAT mode, config mode 5. Power part: there are several regulators are used on the board. U3, MVPG31 is used to transfer DC5V to DC3V3; U1, U8 AME8805 are used to transfer DC3V3 to DC2V5; U2, MVPG31 is used to transfer DC5V to DC1V62. The core of CPU is operate at 1.5V. 6. LED part: LED Color Controlled by Description Power Green FW On - power on Off - no power Ethernet Link/Act Green HW On – Ethernet is connected Off – no Ethernet connection Blinking – receiving/ transmitting data WLAN Link/ Act Green FW On - Wireless connection available; Wireless Access Point is ready for use. Off - No Wireless connection available. Blinking - Data is transmitted or received via the Wireless access point. This includes "network traffic" as well as user data. 7. Switch button, SW1, it is used to reset the 88W8510.

1.1. Test Result of RF Exposure Evaluation . Product: 3 in 1 AP . Test Item: RF Exposure Evaluation Data . Test site: OATSI-SD . Test Mode: Normal Operation 1.1.1. Antenna Gain The maximum Gain is 1.0 dBi. 1.1.2. EUT Operation condition Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 1.1.3. Output Power into Antenna & RF Exposure Evaluation Distance Modulation Standard: IEEE 802.11b Test Date: March. 10, 2005 Temperature: 25 Humidity: 65 Channel Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density (S) (mW/cm 2 ) 01 2412 15.72 0.0090 06 2437 15.85 0.0100 11 2462 16.09 0.0100 Modulation Standard: IEEE 802.11g Test Date: March. 10, 2005 Temperature: 25 Humidity: 65 Channel Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density (S) (mW/cm 2 ) 01 2412 15.47 0.0090 06 2437 15.67 0.0090 11 2462 15.86 0.0100 The MPE is calculated as 0.0100 mW / cm 2 < limit 1 mW / cm 2 . So, RF exposure limit warning or SAR test are not required.

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Mar. 11, 2005 1 of 76 FCC ID: P27IP802SMV2 FCC Test Report: FI05020503-A FCC TEST REPORT according to FCC Rules and Regulations Part 15 Subpart C Laboratory accreditation 1332 † The test result refers exclusively to the test presented test model / sample., † Without written approval of Exclusive Certification Corp. the test report shall not be reproduced except in full. † The EUT is also considered as a kind of computer peripheral, because the connection to computer is necessary for typical use. It has been verified to comply with the requirements of FCC Part 15, Subpart B, Class B (DoC). The test report has been issued separately. Applicant SerComm Corporation Address 8F, No. 3-1, YuanQu St., NanKang, Taipei 115, Taiwan, R.O.C. Equipment 3 in 1 AP Model No. IP802SM V2 FCC ID P27IP802SMV2 Trade Name Sercomm Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Mar. 11, 2005 2 of 76 FCC ID: P27IP802SMV2 FCC Test Report: FI05020503-A Contents 1. Report of Measurements and Examinations......................................................................................................................4 1.1. List of Measurements and Examinations............................................................................4 2. Test Configuration of Equipment under Test......................................................................................................................5 2.1. Test Mode and Test Software.............................................................................................5 2.2. Description of Test System................................................................................................5 2.3. Connection Diagram of Test System..................................................................................6 2.4. Feature of Equipment under Test.......................................................................................7 2.5. RF Module Specifications..................................................................................................7 2.6. History of this test report...................................................................................................7 3. General Information of Test...................................................................................................................................................8 4. Antenna Requirements..........................................................................................................................................................9 4.1. Standard Applicable..........................................................................................................9 4.2. Antenna Construction and Directional Gain........................................................................9 5. Test of Conducted Emission..............................................................................................................................................10 5.1. Test Procedures..............................................................................................................10 Typical Test Setup Layout of Conducted Emission.......................................................................11 5.2. Conducted Emission Requirement....................................................................................11 5.3. Test Result and Data.......................................................................................................12 6. Test of Radiated Emission..................................................................................................................................................38 6.1. Test Procedures..............................................................................................................38 6.2. Typical Test Setup Layout of Radiated Emission...............................................................38 6.3. Test Result of Radiated emission.....................................................................................39 6.4. 6dB Bandwidth Measurement Data..................................................................................55 6.5. Test Procedure...............................................................................................................55 6.6. Test Setup Layout...........................................................................................................55 6.7. Test Result and Data.......................................................................................................55 7. Maximum Peak Output Power...........................................................................................................................................59 7.1. Test Procedure...............................................................................................................59 7.2. Test Setup Layout...........................................................................................................59 7.3. Test Result and Data.......................................................................................................59 8. Band Edges Measurement.................................................................................................................................................63 8.1. Test Procedure...............................................................................................................63 8.2. Test Result and Data.......................................................................................................63 8.3. Restrict band emission Measurement Data.......................................................................68 9. Power Spectral Density.......................................................................................................................................................69 9.1. Test Procedure...........................................…

Text truncated - open the document above for the full version.

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Mar. 11, 2005 38 of 76 FCC ID: P27IP802SMV2 FCC Test Report: FI05020503-A 6. Test of Radiated Emission Radiated emissions from 30 MHz to 25 GHz were measured according to the methods defines in ANSI C63.4-2003. The EUT was placed, 0.8 meter above the ground plane, as shown in section 1.4.2. The interface cables and equipment positions were varied within limits of reasonable applications to determine the positions producing maximum radiated emissions 6.1. Test Procedures 1. The EUT was placed on a rotatable table top 0.8 meter above ground. 2. The EUT was set 3 meters from the interference receiving antenna which was mounted on the top of a variable height antenna tower. 3. The table was rotated 360 degrees to determine the position of the highest radiation. 4. The antenna is a broadband antenna and its height is varied between one meter and four meters above ground to find the maximum value of the field strength both horizontal polarization and vertical polarization of the antenna are set to make the measurement. 5. For each suspected emission the EUT was arranged to its worst case and then tune the antenna tower (from 1 M to 4 M) and turn table (from 0 degree to 360 degrees) to find the maximum reading. 6. Set the test-receiver system to Peak or CISPR quasi-peak Detect Function and specified bandwidth with Maximum Hold Mode. 7. If the emission level of the EUT in peak mode was 3 dB lower than the limit specified, then testing will be stopped and peak values of EUT will be reported, otherwise, the emissions which do not have 3 dB margin will be repeated one by one using the quasi-peak method and reported. 8. For testing above 1GHz, the emission level of the EUT in peak mode was 20dB lower than average limit (that means the emission level in peak mode also complies with the limit in average mode), then testing will be stopped and peak values of EUT will be reported, otherwise, the emissions will be measured in average mode again and reported. 6.2. Typical Test Setup Layout of Radiated Emission Turn Table 0.8M Equipment under Test Ground Plane Receiver * Test distance Antenna Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Mar. 11, 2005 39 of 76 FCC ID: P27IP802SMV2 FCC Test Report: FI05020503-A 6.3. Test Result of Radiated emission Test mode 1: Transmit/ Receive (DC 5V from adapter) Emission frequencies below 1 GHz Channel HI Test Date: Mar. 10, 2005 Temperature: 25 Humidity: 65% Atmospheric pressure: 1035mmHg Frequency (MHz) Ant-Pol H/V Meter Reading (dBuV) Corrected Factor (dB) Result@3m (dBuV/m) Limit@3m (dBuV/m) Margin (dB) Remark Table Deg. Ant High (m) 158.04 H 51.21 -13.31 37.90 43.5 -5.60 Peak 192 1.5 224.97 H 51.97 -11.84 40.07 46.0 -5.93 Peak 192 1.5 248.25 H 51.35 -12.03 39.32 46.0 -6.68 Peak 192 1.5 298.69 H 48.40 -11.26 37.14 46.0 -8.86 Peak 192 1.5 318.09 H 48.76 -10.40 38.36 46.0 -7.64 Peak 192 1.5 331.67 H 49.09 -10.34 38.75 46.0 -7.25 Peak 192 1.5 600.36 H 41.33 -3.73 37.60 46.0 -8.40 Peak 122 1.5 640.13 H 43.42 -1.82 41.60 46.0 -4.40 Q.P. 122 1.5 801.15 H 38.02 1.06 39.08 46.0 -6.92 Peak 122 1.5 955.38 H 37.82 3.26 41.08 46.0 -4.92 Q.P. 122 1.5 78.50 V 53.22 -17.93 35.29 40.0 -4.71 Q.P. 192 1.5 158.04 V 49.44 -13.31 36.13 43.50 -7.37 Peak 192 1.5 432.55 V 47.86 -7.35 40.51 46.0 -5.49 Peak 192 1.5 439.34 V 43.62 -7.26 36.36 46.0 -9.64 Peak 192 1.5 463.59 V 48.54 -6.66 41.88 46.0 -4.12 Peak 192 1.5 479.11 V 48.42 -6.08 42.34 46.0 -3.66 Q.P. 192 1.5 641.10 V 40.14 -1.80 38.34 46.0 -7.66 Peak 122 1.5 701.24 V 37.85 -0.57 37.28 46.0 -8.72 Peak 122 1.5 802.12 V 36.00 1.09 37.09 46.0 -8.91 Peak 122 1.5 817.64 V 35.53 1.68 37.21 46.0 -8.79 Peak 122 1.5 Notes: 1. Result = Meter Reading + Corrected Factor 2. Corrected Factor = Antenna Factor + Cable Loss – Amplifier 3. The resolution bandwidth of test receiver/spectrum analyzer is 120 kHz and video bandwidth is 300 kHz for Peak detection and Quasi-peak detection at frequency below 1GHz. 4. The resolution bandwidth of test receiver/spectrum analyzer is 1 MHz and video bandwidth is 3 MHz for Peak detection at frequency above 1GHz. 5. The resolution bandwidth of test receiver/spectrum analyzer is 1MHz and video bandwidth is 10Hz for Average detection at frequency above 1GHz. 6. The other emissions is too below to be measured. Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Mar. 11, 2005 40 of 76 FCC ID: P27IP802SMV2 FCC Test Report: FI05020503-A Modulation Standard: IEEE 802.11b (11Mbps) Emission frequencies above 1 GHz Channel LO Test Date: Mar. 10, 2005 Temperature: 25 Humidity: 65% Atmospheric pressure: 1035mmHg Frequency (MHz) Ant-Pol H/V Meter Reading (dBuV) Corrected Factor (dB) Result@3m (dBuV/m) Limit@3m (dBuV/m) Margin (dB) Remark Table Deg. Ant High (m) 1600.10 H 55.45 -2.42 53.03 74 -20.97 Peak 122 1.0 1600.10 H 51.69 -2.42 49.27 54 -4.73 Ave 122 1.0 4822.10 H 53.65 8.12 61.77 74 -12.23 Peak 262 1.0 4822.10 H 42.92 8.12 51.04 54 -2.96 Ave 262 1.0 7232.50 H 51.11 11.89 63.00 74 -11.00 Peak 261 1.1 7232.50 H 39.37 11.88 51.25 54 -2.75 Ave 261 1.1 9648.00 H --- --- --- 54 --- Ave --- --- 12060.00 H --- --- --- 54 --- Ave --- --- 1600.10 V 58.79 -2.97 55.82 74 -18.18 Peak 192 1.1 1600.10 V 46.44 -2.96 43.48 54 -10.52 Ave 192 1.1 4822.10 V 48.80 7.36 56.16 74 -17.84 Peak 220 1.0 4822.10 V 44.15 7.35 51.50 54 -2.50 Ave 220 1.0 7232.70 V 51.01 11.05 62.06 74 -11.94 Peak 219 1.0 7232.70 V 38.54 11.05 49.59 54 -4.41 Ave 219 1.0 9648.00 V --- --- --- 54 --- Ave --- --- 12060.75 V 51.98 15.93 67.91 54 -6.09 Peak 174 1.1 12060.75 V 37.38 15.93 53.31 54 -0.69 Ave 174 1.1 Notes: 1. Result = Meter Reading + Corrected Factor 2. Corrected Factor = Antenna Factor + Cable Loss – Amplifier 3. The resolution bandwidth of test receiver/spectrum analyzer is 120 kHz and video bandwidth is 300 kHz for Peak detection and Quasi-peak detection at frequency below 1GHz. 4. The resolution bandwidth of t…

Text truncated - open the document above for the full version.

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Mar. 11, 2005 24 of 76 FCC ID: P27IP802SMV2 FCC Test Report: FI05020503-A Test mode 2: Transmit/ Receive (DC 5V from pc system) Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Mar. 11, 2005 25 of 76 FCC ID: P27IP802SMV2 FCC Test Report: FI05020503-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Mar. 11, 2005 26 of 76 FCC ID: P27IP802SMV2 FCC Test Report: FI05020503-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Mar. 11, 2005 27 of 76 FCC ID: P27IP802SMV2 FCC Test Report: FI05020503-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Mar. 11, 2005 28 of 76 FCC ID: P27IP802SMV2 FCC Test Report: FI05020503-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Mar. 11, 2005 29 of 76 FCC ID: P27IP802SMV2 FCC Test Report: FI05020503-A

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Mar. 11, 2005 30 of 76 FCC ID: P27IP802SMV2 FCC Test Report: FI05020503-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Mar. 11, 2005 31 of 76 FCC ID: P27IP802SMV2 FCC Test Report: FI05020503-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Mar. 11, 2005 32 of 76 FCC ID: P27IP802SMV2 FCC Test Report: FI05020503-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Mar. 11, 2005 33 of 76 FCC ID: P27IP802SMV2 FCC Test Report: FI05020503-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Mar. 11, 2005 34 of 76 FCC ID: P27IP802SMV2 FCC Test Report: FI05020503-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Mar. 11, 2005 35 of 76 FCC ID: P27IP802SMV2 FCC Test Report: FI05020503-A Test By: Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Mar. 11, 2005 36 of 76 FCC ID: P27IP802SMV2 FCC Test Report: FI05020503-A 5.3.1. Photographs of Conducted Emission Test Test mode 1: Transmit/ Receive (DC 5V from adapter) Front View Rear View Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Mar. 11, 2005 37 of 76 FCC ID: P27IP802SMV2 FCC Test Report: FI05020503-A Test mode 2: Transmit/ Receive (DC 5V from pc system) Front View Rear View

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Mar. 11, 2005 38 of 76 FCC ID: P27IP802SMV2 FCC Test Report: FI05020503-A 6. Test of Radiated Emission Radiated emissions from 30 MHz to 25 GHz were measured according to the methods defines in ANSI C63.4-2003. The EUT was placed, 0.8 meter above the ground plane, as shown in section 1.4.2. The interface cables and equipment positions were varied within limits of reasonable applications to determine the positions producing maximum radiated emissions 6.1. Test Procedures 1. The EUT was placed on a rotatable table top 0.8 meter above ground. 2. The EUT was set 3 meters from the interference receiving antenna which was mounted on the top of a variable height antenna tower. 3. The table was rotated 360 degrees to determine the position of the highest radiation. 4. The antenna is a broadband antenna and its height is varied between one meter and four meters above ground to find the maximum value of the field strength both horizontal polarization and vertical polarization of the antenna are set to make the measurement. 5. For each suspected emission the EUT was arranged to its worst case and then tune the antenna tower (from 1 M to 4 M) and turn table (from 0 degree to 360 degrees) to find the maximum reading. 6. Set the test-receiver system to Peak or CISPR quasi-peak Detect Function and specified bandwidth with Maximum Hold Mode. 7. If the emission level of the EUT in peak mode was 3 dB lower than the limit specified, then testing will be stopped and peak values of EUT will be reported, otherwise, the emissions which do not have 3 dB margin will be repeated one by one using the quasi-peak method and reported. 8. For testing above 1GHz, the emission level of the EUT in peak mode was 20dB lower than average limit (that means the emission level in peak mode also complies with the limit in average mode), then testing will be stopped and peak values of EUT will be reported, otherwise, the emissions will be measured in average mode again and reported. 6.2. Typical Test Setup Layout of Radiated Emission Turn Table 0.8M Equipment under Test Ground Plane Receiver * Test distance Antenna Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Mar. 11, 2005 39 of 76 FCC ID: P27IP802SMV2 FCC Test Report: FI05020503-A 6.3. Test Result of Radiated emission Test mode 1: Transmit/ Receive (DC 5V from adapter) Emission frequencies below 1 GHz Channel HI Test Date: Mar. 10, 2005 Temperature: 25 Humidity: 65% Atmospheric pressure: 1035mmHg Frequency (MHz) Ant-Pol H/V Meter Reading (dBu…
