P27IP806GA-1Wireless ADSL Modem Router

Sercomm Corporation
Wireless ADSL Modem Router - FCC ID P27IP806GA-1 - Sercomm Corporation
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Aug 30, 2004
Application Purpose
Original Equipment
Date of Application
Aug 30, 2004
Equipment Note
Wireless ADSL Modem Router
Frequency Range
2412.00000000 - 2462.00000000
Company
Sercomm Corporation
Country
Taiwan

Documents & Files

Select a file to view

Users Manual

Cover Letter(s)

โ†—
โ†—
โ†—
โ†—

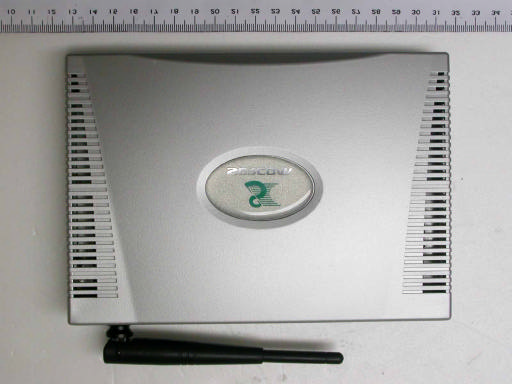

External Photos

โ†—

ID Label/Location Info

Internal Photos

โ†—

Operational Description

โ†—

RF Exposure Info

โ†—

Test Report

โ†—
โ†—

Test Setup Photos

โ†—

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Cover Letter(s)

-1

Cover Letter(s)

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 August 27, 2004 RE: SerComm Corp. FCC ID: P27IP806GA-1 After a review of the submitted information, I have a few comments on the above referenced Application. 1) Users manual states typical output power is +13 dBm, while measured power is significantly above this (20.35 dBm). Please explain and/or correct the affected exhibits. 2) The FCC ID given in the test report is not correct. 3) Please confirm that a DoC has been performed for this device using an accredited test lab and the minimum test configuration per ANSI C63.4. 4) FYI....If the device is also been approved using a DoC, then the users manual must include the following on a single page. Please be sure the manufacturer includes this information with each device shipped. COMPLIANCE INFORMATION FOR DoC AUTHORIZATIONS (47CFR 2.1077) If a product is tested and authorized under a Declaration of Conformity, a compliance information statement shall be supplied with the product at the time of marketing or importation, containing the following information on a single page : (1) Identification of the product, i.e. name and model number. (2) A statement similar to that contained in Section 15.19(a)(3) that the product complies with Part 15 of the regulations. (3) The identification, by name, address and telephone number, of the responsible party. The responsible party is defined as either the manufacturer, or if the equipment is imported, the importer. The responsible party for a Declaration of Conformity must be located within the United States. Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

Cover Letter(s)

Dear Tim: I've re-uploaded two new files to your website. Regarding to comments No.1, 3and 4, I have corrected the Output Power to 20.5 dBm in the "users maunal-new", and added some compliance informations of manufacturer with the title "DECLARATION OF CONFORMITY" on the page 2 of the user's manual. And about the comments No. 2, I've modified the wrong FCC ID to the correct one also. Please check them again and thanks for your help. Best Regards

Internal Photos

04062901-A 04062901-A 04062901-A 04062901-A 04062901-A 04062901-A 04062901-A

RF Exposure Info

1.1. Test Result of RF Exposure Evaluation . Product: Wireless ADSL Router . Test Item: RF Exposure Evaluation Data . Test site: OATSI-SD . Test Mode: Normal 1.1.1. Antenna Gain The maximum Gain is 1.8dBi. 1.1.2. EUT Operation condition Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 1.1.3. Output Power into Antenna & RF Exposure Evaluation Distance Modulation Standard: IEEE 802.11b Test Date: Jul. 09, 2004 Temperature: 24 Humidity: 58 Channel Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density (S) (mW/Cm 2 ) 01 2412 20.35 0.0326 06 2437 19.06 0.0243 11 2462 17.03 0.0156 Modulation Standard: IEEE 802.11g Test Date: Jul. 09, 2004 Temperature: 24 Humidity: 58 Channel Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density (S) (mW/Cm 2 ) 01 2412 16.51 0.0135 06 2437 16.81 0.0144 11 2462 16.88 0.0147 . The MPE is calculated as 0.033mW / cm 2 < limit 1 mW / cm 2 . So, RF exposure limi t warning or SAR test are not required.

Test Report

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Jul. 16, 2004 1 of 73 FCC ID: P27IP806GA-1 FCC Test Report: FI04062901-A FCC TEST REPORT according to FCC Rules and Regulations Part 15 Subpart C โ€  The test result refers exclusively to the test presented test model / sample., โ€  Without written approval of Exclusive Certification Corp. the test report shall not be reproduced except in full. Applicant SerComm Corporation Address 8F, No. 3-1, YuanQu St., NanKang, Taipei 115, Taiwan, R.O.C. Equipment Wireless ADSL Modem Router Model No. IP806GA / IP806GB Series No. WBR-3407B FCC ID P27IP806GA-1 Trade Name SerComm Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Jul. 16, 2004 2 of 73 FCC ID: P27IP806GA-1 FCC Test Report: FI04062901-A Contents 1. Report of Measurements and Examinations..................................................................................4 1.1. List of Measurements and Examinations.............................................................................4 1.2. Antenna Requirements......................................................................................................5 1.3. Test of Conducted Emission...............................................................................................6 1.4. Test of Radiated Emission.................................................................................................8 1.5. 6dB Bandwidth.................................................................................................................9 1.6. Maximum Peak Output Power............................................................................................9 1.7. Band Edges Measurement..............................................................................................10 1.8. Power Spectral Density................................................................................................... 10 1.9. Restricted Bands of Operation.........................................................................................11 1.10. Labeling Requirement.....................................................................................................11 1.11. RF Exposure..................................................................................................................12 2. Test Configuration of Equipment under Test................................................................................14 2.1. Test Mode and Test Software...........................................................................................14 2.2. Description of Test System..............................................................................................14 2.3. Connection Diagram of Test System.................................................................................15 2.4. Feature of Equipment under Test.....................................................................................15 2.5. History of this test report.................................................................................................. 15 3. General Information of Test........................................................................................................16 4. Test Result and Data.................................................................................................................17 4.1. Antenna Requirement.....................................................................................................17 4.2. Test Result of Conducted Emission..................................................................................18 4.3. RF Portion......................................................................................................................33 4.4. 6dB Bandwidth Measurement Data..................................................................................47 4.5. Peak Output Power Measurement Data............................................................................51 4.6. Band Edges Measurement Data......................................................................................55 4.7. Power Spectral Density Measurement Data......................................................................68 4.8. Test Result of RF Exposure Evaluation.............................................................................72 5. List of Measuring Equipment Used.............................................................................................73 Appendix A. Photographs of EUT........................................................................ .............A1 ~ A8 Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Jul. 16, 2004 3 of 73 FCC ID: P27IP806GA-1 FCC Test Report: FI04062901-A CERTIFICATE OF COMPLIANCE according to FCC Rules and Regulations Part 15 Subpart C Applicant SerComm Corporation Address 8F, No. 3-1, YuanQu St., NanKang, Taipei 115, Taiwan, R.O.C. Equipment Wireless ADSL Modem Router Model No. IP806GA / IP806GB Series No. WBR-3407B FCC ID P27IP806GA-1 I HEREBY CERTIFY THAT : The measurements shown in this test report were made in accordance with the procedures given in ANSI C63.4. The equipment was passed the test performed according to FCC Rules and Regulations Part 15 Subpart C (2002). The test was carried out on Jul. 09, 2004 at Exclusive Certification Corp. Signature Anson Chou / Manager Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Jul. 16, 2004 4 of 73 FCC ID: P27IP806GA-1 FCC Test Report: FI04062901-A 1. Report of Measurements and Examinations 1.1. List of Measurements and Examinations FCC Rule . Description of Test Result 15.203 . Antenna Requirement Pass 15.207 . Conducted Emission Pass 15.209 . Radiated Emission Pass 15.247(a)(2) . 6dB Bandwidth Pass 15.247(b) . Maximum Peak Output Power Pass 15.247(c) . 100kHz Bandwidth of Frequency Band Edges Pass 15.247(d) . Power Spectral Density Pass 1.1307 1.1310 2.1091 2.1093 โ€ฆ

Text truncated - open the document above for the full version.

Test Report

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Jul. 16, 2004 33 of 73 FCC ID: P27IP806GA-1 FCC Test Report: FI04062901-A 4.3. RF Portion 4.3.1. Test Result of Conducted Emission Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Jul. 16, 2004 34 of 73 FCC ID: P27IP806GA-1 FCC Test Report: FI04062901-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Jul. 16, 2004 35 of 73 FCC ID: P27IP806GA-1 FCC Test Report: FI04062901-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Jul. 16, 2004 40 of 73 FCC ID: P27IP806GA-1 FCC Test Report: FI04062901-A Modulation Standard: IEEE 802.11b Channel 1 a) Emission frequencies below 1 GHz Test Date: Jul, 09, 2004 Temperature: 26 Humidity: 58 Frequency (MHz) Ant-Pol H/V Meter Reading (dBuV) Corrected Factor (dB) Result@3m (dBuV/m) Limit@3m (dBuV/m) Margin (dB) Table Deg. Ant High (m) 315.18 H 53.71 -11.87 41.84 46.0 -4.16 180 1.0 439.34 H 49.55 -8.21 41.34 46.0 -4.66 180 1.5 39.70 V 49.99 -14.32 35.67 40.0 -4.33 230 1.5 189.08 V 55.78 -18.06 37.72 43.5 -5.78 180 1.5 Notes: 1. Result = Meter Reading + Corrected Factor 2. Corrected Factor = Antenna Factor + Cable Loss โ€“ Amplifier b) Emission frequencies above 1 GHz Frequency (MHz) Ant-Pol H/V Meter Reading (dBuV) Corrected Factor (dB) Result@3m (dBuV/m) Limit@3m (dBuV/m) Margin (dB) Remark Table Deg. Ant High (m) 1061.6 H 63.98 -7.07 56.91 74 -17.09 Peak 230 1.0 1061.6 H 48.79 -7.07 41.72 54 -12.28 Ave 230 1.0 1187.6 H 58.69 -6.46 52.23 74 -21.77 Peak 190 1.5 1187.6 H 43.21 -6.46 36.75 54 -17.25 Ave 200 1.5 1061.6 V 67.97 -7.65 60.32 74 -13.68 Peak 236 1.0 1061.6 V 52.88 -7.65 45.23 54 -8.77 Ave 240 1.0 1187.6 V 64.17 -7.05 57.12 74 -16.88 Peak 280 1.5 1187.6 V 48.79 -7.05 41.74 54 -12.26 Ave 270 1.5 1310.8 V 56.42 -6.36 50.06 74 -23.94 Peak 180 1.0 1310.8 V 41.47 -6.36 35.11 54 -18.89 Ave 180 1.0 1688.8 V 56.31 -4.39 51.92 74 -22.08 Peak 230 1.5 1688.8 V 41.78 -4.39 37.39 54 -16.61 Ave 230 1.5 1814.8 V 56.89 -3.64 53.25 74 -20.75 Peak 190 1.5 1814.8 V 41.92 -3.64 38.28 54 -15.72 Ave 180 1.5 4824.2 V 58.43 6.49 64.92 74 -9.08 Peak 190 1.5 4824.2 V 43.22 6.49 49.71 54 -4.29 Ave 200 1.5 Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Jul. 16, 2004 41 of 73 FCC ID: P27IP806GA-1 FCC Test Report: FI04062901-A Modulation Standard: IEEE 802.11b Channel 6 a) Emission frequencies below 1 GHz Test Date: Jul, 09, 2004 Temperature: 26 Humidity: 58 Frequency (MHz) Ant-Pol H/V Meter Reading (dBuV) Corrected Factor (dB) Result@3m (dBuV/m) Limit@3m (dBuV/m) Margin (dB) Table Deg. Ant High (m) 315.18 H 53.26 -11.87 41.39 46.0 -4.61 200 1.0 439.34 H 49.01 -8.21 40.80 46.0 -5.20 180 1.5 39.70 V 49.56 -14.32 35.24 40.0 -4.76 220 1.5 189.08 V 55.38 -18.06 37.32 43.5 -6.18 180 1.5 Notes: 1. Result = Meter Reading + Corrected Factor 2. Corrected Factor = Antenna Factor + Cable Loss โ€“ Amplifier b) Emission frequencies above 1 GHz Frequency (MHz) Ant-Pol H/V Meter Reading (dBuV) Corrected Factor (dB) Result@3m (dBuV/m) Limit@3m (dBuV/m) Margin (dB) Remark Table Deg. Ant High (m) 1061.6 H 62.67 -7.07 55.60 74 -18.40 Peak 240 1.0 1061.6 H 47.12 -7.07 40.05 54 -13.95 Ave 230 1.0 1187.6 H 57.21 -6.46 50.75 74 -23.25 Peak 190 1.5 1187.6 H 41.87 -6.46 35.41 54 -18.59 Ave 190 1.5 1061.6 V 66.84 -7.65 59.19 74 -14.81 Peak 220 1.0 1061.6 V 51.26 -7.65 43.61 54 -10.39 Ave 230 1.0 1187.6 V 62.98 -7.05 55.93 74 -18.07 Peak 270 1.5 1187.6 V 47.67 -7.05 40.62 54 -13.38 Ave 280 1.5 4874.1 V 57.12 6.66 63.78 74 -10.22 Peak 190 1.5 4874.1 V 41.53 6.66 48.19 54 -5.81 Ave 190 1.5 Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Jul. 16, 2004 42 of 73 FCC ID: P27IP806GA-1 FCC Test Report: FI04062901-A Modulation Standard: IEEE 802.11b Channel 11 a) Emission frequencies below 1 GHz Test Date: Jul, 09, 2004 Temperature: 26 Humidity: 58 Frequency (MHz) Ant-Pol H/V Meter Reading (dBuV) Corrected Factor (dB) Result@3m (dBuV/m) Limit@3m (dBuV/m) Margin (dB) Table Deg. Ant High (m) 315.18 H 52.52 -11.87 40.65 46.0 -4.16 180 1.0 439.34 H 47.63 -8.21 39.42 46.0 -4.66 180 1.5 39.70 V 50.01 -14.32 35.69 40.0 -4.33 230 1.5 189.08 V 53.24 -18.06 35.18 43.5 -8.32 180 1.5 Notes: 1. Result = Meter Reading + Corrected Factor 2. Corrected Factor = Antenna Factor + Cable Loss โ€“ Amplifier b) Emission frequencies above 1 GHz Frequency (MHz) Ant-Pol H/V Meter Reading (dBuV) Corrected Factor (dB) Result@3m (dBuV/m) Limit@3m (dBuV/m) Margin (dB) Table Deg. Ant High (m) 1061.6 H 61.23 -7.07 54.16 74 -19.84 220 1.0 1061.6 H 46.88 -7.07 39.81 54 -14.19 200 1.0 1061.6 V 65.77 -7.65 58.12 74 -15.88 243 1.0 1061.6 V 50.36 -7.65 42.71 54 -11.29 250 1.0 4924.2 V 56.43 6.82 63.25 74 -10.75 190 1.5 4924.2 V 41.53 6.82 48.35 54 -5.65 210 1.5 Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Jul. 16, 2004 43 of 73 FCC ID: P27IP806GA-1 FCC Test Report: FI04062901-A Modulation Standard: IEEE 802.11g Channel 1 a) Emission frequencies below 1 GHz Test Date: Jul, 09, 2004 Temperature: 24 Humidity: 58 Frequency (MHz) Ant-Pol H/V Meter Reading (dBuV) Corrected Factor (dB) Result@3m (dBuV/m) Limit@3m (dBuV/m) Margin (dB) Table Deg. Ant High (m) 39.70 V 48.72 -14.32 34.40 40 -5.60 200 1.5 188.52 V 55.21 -18.12 37.09 43.5 -6.41 190 1.0 316.24 H 53.25 -11.62 41.63 46.0 -4.37 270 1.5 439.34 H 49.42 -8.21 41.21 46.0 -4.79 180 1.5 Notes: 1. Result = Meter Reading + Corrected Factor 2. Corrected Factor = Antenna Factor + Cable Loss โ€“ Amplifier b) Emission frequencies above 1 GHz Frequency (MHz) Ant-Pol H/V Meter Reading (dBuV) Corrected Factor (dB) Result@3m (dBuV/m) Limit@3m (dBuV/m) Margin (dB) Remark Table Deg. Ant High (m) 1061.6 H 63.82 -7.07 56.75 74 -17.25 Peak 180 1.5 1061.6 H 49.04 -7.07 41.97 54 -12.03 Ave 180 1.5 1184.8 H 59.38 -6.46 52.92 74 -21.08 Peak 270 1.5 1184.8 H 44.62 -6.46 38.16 54 -15.84 Ave 270 1.5 1061.6 V 68.23 -7.65 60.58 74 -13.42 Peak 232 1.โ€ฆ

Text truncated - open the document above for the full version.

Contact Information

Applicant

Nick Wu(Engineer)
[email protected]886-2-2655-3988Fax: 886-2-2655-3965

Technical Contact

SerComm CorporationBernie Hsu
[email protected]+886-2-2655-3988

8F, No., 3-1, YuanQu St., NanKang ยท Taipei City ยท Taiwan

Non-Technical Contact

Exclusive Certification Corp.Claire Wu
[email protected]+886-2-2792-3366

Test Firm

Cerpass Technology CorporationAnson Chou
[email protected]886-2-27923366Fax: 886-2-27921100

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.41 GHz - 2.46 GHz108.00 mW
Confidentiality
Long Term
Grant Notes
Power Output listed is Conducted. This device is authorized for use only with the integrated mini-PCI card specified in the filing. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
