P27IP806GAV4802.11g Wireless ADSL Router

802.11g Wireless ADSL Router 802.11g/802.11b Wireless Access Point ADSL Modem NAT Router WPS 4-Port Switching Hub User's Guide i Table of Contents CHAPTER 1 INTRODUCTION ............................................................................................. 1 Wireless ADSL Router Features ...................................................................................... 1 Package Contents .............................................................................................................. 4 Physical Details .................................................................................................................. 5 CHAPTER 2 INSTALLATION............................................................................................... 7 Requirements ..................................................................................................................... 7 Procedure ........................................................................................................................... 7 CHAPTER 3 SETUP ................................................................................................................9 Overview ............................................................................................................................ 9 Configuration Program .................................................................................................. 11 Setup Wizard ...................................................................................................................12 Configuring VCs.............................................................................................................. 14 Home Screen ....................................................................................................................16 LAN Screen ......................................................................................................................17 Wireless Screen................................................................................................................19 WiFi Protect Setup .......................................................................................................... 21 Wireless Security ............................................................................................................. 22 Trusted Wireless Stations ............................................................................................... 26 Password Screen .............................................................................................................. 28 Mode Screen.....................................................................................................................29 CHAPTER 4 PC CONFIGURATION .................................................................................. 30 Overview .......................................................................................................................... 30 Windows Clients .............................................................................................................. 30 Macintosh Clients ............................................................................................................ 41 Linux Clients.................................................................................................................... 41 Other Unix Systems......................................................................................................... 41 Wireless Station Configuration ...................................................................................... 42 Wireless Configuration on Windows XP....................................................................... 42 CHAPTER 5 OPERATION AND STATUS ......................................................................... 52 Operation - Router Mode ............................................................................................... 52 Status Screen.................................................................................................................... 52 Connection Status - PPPoE & PPPoA ........................................................................... 56 Connection Details - Dynamic IP Address .................................................................... 57 Connection Details - Fixed IP Address .......................................................................... 58 CHAPTER 6 ADVANCED FEATURES .............................................................................. 59 Overview .......................................................................................................................... 59 Internet ............................................................................................................................. 59 Dynamic DNS (Domain Name Server) .......................................................................... 62 Options ............................................................................................................................. 64 Schedule............................................................................................................................ 65 Port Trigger ..................................................................................................................... 67 Port Forward ...................................................................................................................69 Port Range Forward ....................................................................................................... 71 QoS ................................................................................................................................... 72 CHAPTER 7 ADVANCED ADMINISTRATION ............................................................... 74 Overview .......................................................................................................................... 74 PC Database........................…

Text truncated - open the document above for the full version.

SerComm Corporation磊 Taipei Office: 8F, No.3-1, YuanQu St., NanKang, Taipei 115, Taiwan, R.O.C. TEL: 886-2-2655-3988 FAX: 886-2-2655-3966 Chu Nan Office: 3F, No. 81, YuYi Rd., Chu-Nan, Miao-Li 350, Taiwan, R.O.C. TEL: 886-37-585-899 FAX: 886-37-585-000 Date: 2007-10-18 Declaration of Similarity We, SerComm Corporation Hereby declare that the following equipment, *Product Description: Wireless ADSL Modem Router Model Number: IP806GAv4; WBR-3600; TEW-435BRM FCC ID: P27IP806GAV4 They are only difference between their Plastic Housing and Model Number. And the following equipment, *Product Description: Wireless ADSL Modem Router Model Number: IP806GBv4 FCC ID: P27IP806GAV4 The difference between IP806GAv4 is their Firmware and Model Number. Besides, they are all the same. Yours sincerely Ronnie Cheng Associate Manager / R&D Division SerComm Corporation E-Mail: [email protected]

SerComm Corporation磊 Taipei Office: 8F, No.3-1, YuanQu St., NanKang, Taipei 115, Taiwan, R.O.C. TEL: 886-2-2655-3988 FAX: 886-2-2655-3966 Chu Nan Office: 3F, No. 81, YuYi Rd., Chu-Nan, Miao-Li 350, Taiwan, R.O.C. TEL: 886-37-585-899 FAX: 886-37-585-000 Date: 2008-01-18 Declaration of Authorization We Name: SerComm Corporation Address: 8F, No.3-1, YuanQu St., NanKang City: Taipei City 115 Country: Taiwan, R.O.C. Declare that: Name Representative of agent: Delia Feng Agent Company Name: Exclusive Certification Corporation Address: 4F-2, No.28, Xing-Ai Rd. City: Neihu, Taipei 114 Country: Taiwan, R.O.C. is authorized to apply for Certification of the following product(s): Product description: 802.11g Wireless ADSL Router Type designation: IP806GAv4; WBR-3600; TEW-435BRM; IP806GBv4 Trademark: SerComm Ronnie Cheng Associate Manager / R&D Division SerComm Corporation 8F, No. 3-1, YuanQu St., NanKang Taipei 115, Taiwan, R.O.C. TEL: 886-2-2655-3988 #2547 FAX: 886-2-2655-3975 E-Mail: [email protected]

SerComm Corporation磊 Taipei Office: 8F, No.3-1, YuanQu St., NanKang, Taipei 115, Taiwan, R.O.C. TEL: 886-2-2655-3988 FAX: 886-2-2655-3966 Chu Nan Office: 3F, No. 81, YuYi Rd., Chu-Nan, Miao-Li 350, Taiwan, R.O.C. TEL: 886-37-585-899 FAX: 886-37-585-000 Date: 2007-10-18 To: Telefication B.V. Attn: Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for non-disclosure (FCC ID: P27IP806GAV4) Reference number: IP806GAv4; WBR-3600; TEW-435BRM; IP806GBv4 Dear FCC TCB, Persuant to 47 CFR Section 0.459(a) & (b), SerComm Corporation hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application for FCC ID: ( P27IP806GAV4) a. Schematic diagrams b. Operational description c. Block Diagram Above materials contain secrets, proprietary and technical information, which would customarily be quarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. SerComm Corporation understands that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. Yours sincerely, Ronnie Cheng/ Associate Manager / R&D Division SerComm Corporation

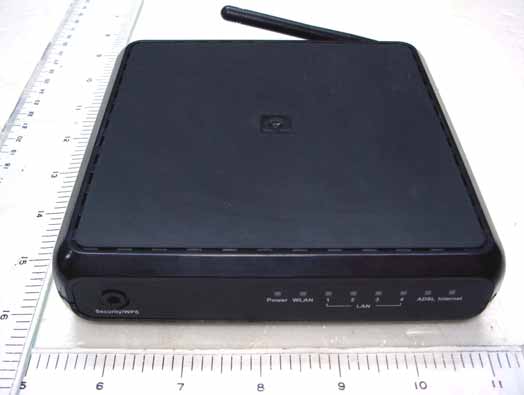

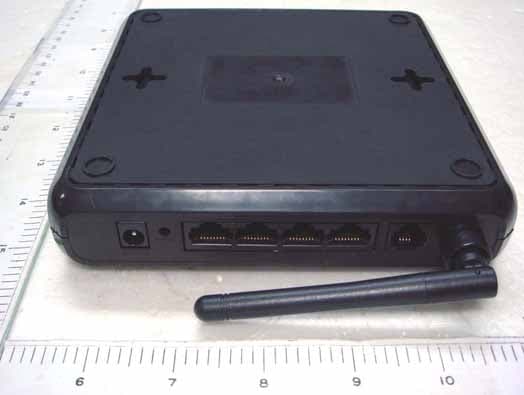

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Jan. 16, 2008 1 of 8 FCC Test Report: FI07101202-A Appendix A. Photographs of EUT 07101202-A 07101202-A

Label & Location 消銀龍/ IP1006AA /中性 932YGB0001 生產地在台灣時,請改為Made in Taiwan FCC ID: P27IP806GAV4

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Jan. 16, 2008 2 of 8 FCC Test Report: FI07101202-A 07101202-A 07101202-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Jan. 16, 2008 3 of 8 FCC Test Report: FI07101202-A IP806GAv4 07101202-A 07101202-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Jan. 16, 2008 4 of 8 FCC Test Report: FI07101202-A 07101202-A 07101202-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Jan. 16, 2008 5 of 8 FCC Test Report: FI07101202-A IP806GBv4 07101202-A 07101202-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Jan. 16, 2008 6 of 8 FCC Test Report: FI07101202-A 07101202-A 07101202-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Jan. 16, 2008 7 of 8 FCC Test Report: FI07101202-A 07101202-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Jan. 16, 2008 8 of 8 FCC Test Report: FI07101202-A 07101202-A 07101202-A

1.1. Test Result of RF Exposure Evaluation . Product: 802.11g Wireless ADSL Router . Test Item: RF Exposure Evaluation Data . Test site: OATSI-SD . Test Mode: Normal Operation 1.1.1. Antenna Gain The maximum Gain is 1.8 dBi. 1.1.2. EUT Operation condition Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 1.1.3. Output Power into Antenna & RF Exposure Evaluation Distance Test Mode1: Modulation Standard: IEEE 802.11b(11Mbps) Test Date: Nov. 12, 2007 Temperature: 25 Humidity: 62 Channel Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density (S) (mW/cm 2 ) 01 2412 18.16 0.020 06 2437 18.13 0.020 11 2462 18.09 0.019 Test Mode1: Modulation Standard: IEEE 802.11g(54Mbps) Test Date: Nov. 12, 2007 Temperature: 25 Humidity: 62 Channel Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density (S) (mW/cm 2 ) 01 2412 14.03 0.008 06 2437 14.07 0.008 11 2462 13.95 0.007 Test Mode2: Modulation Standard: IEEE 802.11b(11Mbps) Test Date: Nov. 12, 2007 Temperature: 25 Humidity: 62 Channel Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density (S) (mW/cm 2 ) 01 2412 18.14 0.020 06 2437 17.08 0.015 11 2462 16.35 0.013 Test Mode2: Modulation Standard: IEEE 802.11g(54Mbps) Test Date: Nov. 12, 2007 Temperature: 25 Humidity: 62 Channel Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density (S) (mW/cm 2 ) 01 2412 14.16 0.008 06 2437 12.88 0.006 11 2462 12.19 0.005 The MPE is calculated as 0.020 mW / cm 2 < limit 1 mW / cm 2 . So, RF exposure limit warning or SAR test are not required. For 2412-2462 MHz, the EUT will only be used with a separation of 20cm or greater between the antenna and nearby persons and can therefore be considered a mobile transmitter per 47CFR2.1091 (b). The RF Exposure Information page from the manual is included here for reference.

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Jan. 16, 2008 1 of 86 FCC Test Report: FI07101202-A FCC TEST REPORT according to FCC Rules and Regulations Part 15 Subpart C Applicant : SerComm Corporation Address : 8F, No.3-1, YuanQu St., NanKang, Taipei 115, Taiwan, R.O.C. Equipment : 802.11g Wireless ADSL Router Model No. : IP806GAv4 Series No. : IP806GBv4, WBR-3600, TEW-435BRM FCC ID : P27IP806GAV4 Trade Name : SerComm Laboratory Accreditation ‚ The test result refers exclusively to the test presented test model / sample., ‚ Without written approval of Exclusive Certification Corp. the test report shall not be reproduced except in full. ‚ The EUT is also considered as a kind of computer peripheral, because the connection to computer is necessary for typical use. It has been verified to comply with the requirements of FCC Part 15, Subpart B, Class B (DoC). The test report has been issued separately. Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Jan. 16, 2008 2 of 86 FCC Test Report: FI07101202-A Contents 1. Report of Measurements and Examinations .................................................................................... 5 1.1 List of Measurements and Examinations ................................................................................... 5 2. Test Configuration of Equipment under Test ................................................................................... 6 2.1 Feature of Equipment under Test............................................................................................... 6 2.2 RF Specifications ....................................................................................................................... 6 2.3 Test Mode & Test Software ........................................................................................................ 7 2.4 Description of Test System......................................................................................................... 7 2.5 Connection Diagram of Test System.......................................................................................... 8 2.6 General Information of Test........................................................................................................ 9 2.7 Description of Series No. ........................................................................................................... 9 2.8 Measurement Uncertainty .......................................................................................................... 9 2.9 History of this test report ..........................................................................................................10 3. Antenna Requirements..................................................................................................................... 11 3.1 Standard Applicable ................................................................................................................. 11 3.2 Antenna Construction and Directional Gain............................................................................. 11 4. Test of Conducted Emission............................................................................................................12 4.1 Test Limit .................................................................................................................................. 12 4.2 Test Procedures .......................................................................................................................12 4.3 Typical Test Setup ....................................................................................................................13 4.4 Measurement equipment ......................................................................................................... 13 4.5 Test Result and Data................................................................................................................14 4.6 Test Photographs .....................................................................................................................18 5. Test of Radiated Emission ...............................................................................................................19 5.1 Test Limit .................................................................................................................................. 19 5.2 Test Procedures .......................................................................................................................19 5.3 Typical Test Setup ....................................................................................................................20 5.4 Measurement equipment ......................................................................................................... 20 5.5 Test Result and Data................................................................................................................21 5.6 Test Photographs .....................................................................................................................53 6. 6dB Bandwidth Measurement Data .................................................................................................54 6.1 Test Limit .................................................................................................................................. 54 6.2 Test Procedures .......................................................................................................................54 6.3 Test Setup Layout ....................................................................................................................54 6.4 Measurement equipment ......................................................................................................... 54 6.5 Test Result and Data................................................................................................................54 7. Maximum Peak Output Power ...................…

Text truncated - open the document above for the full version.

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Jan. 16, 2008 18 of 86 FCC Test Report: FI07101202-A 4.6 Test Photographs Front View Rear View Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Jan. 16, 2008 53 of 86 FCC Test Report: FI07101202-A 5.6 Test Photographs Front View Rear View
