P27IP806SMWireless Broadband Router

Sercomm Corporation
Wireless Broadband Router - FCC ID P27IP806SM - Sercomm Corporation
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Jan 05, 2004
Application Purpose
Original Equipment
Date of Application
Jan 05, 2004
Equipment Note
Wireless Broadband Router
Frequency Range
2412.00000000 - 2462.00000000
Company
Sercomm Corporation
Country
Taiwan

Documents & Files

Select a file to view

Users Manual

β†—
β†—

Cover Letter(s)

β†—
β†—
β†—

External Photos

β†—

ID Label/Location Info

β†—

Internal Photos

β†—
β†—

Operational Description

β†—

Test Report

β†—

Test Setup Photos

β†—

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Multi-Function 802.11g Wireless Router 802.11g/802.11b Wireless Access Point Broadband Internet Access 4-Port Switching Hub User's Guide Table of Contents CHAPTER 1 INTRODUCTION.............................................................................................1 Wireless Router Features.................................................................................................1 Package Contents..............................................................................................................3 Physical Details.................................................................................................................. 4 CHAPTER 2 INSTALLATION...............................................................................................6 Requirements..................................................................................................................... 6 Procedure...........................................................................................................................6 CHAPTER 3 SETUP................................................................................................................8 Overview............................................................................................................................8 Configuration Program....................................................................................................9 Setup Wizard...................................................................................................................11 LAN Screen......................................................................................................................14 Wireless Screen................................................................................................................16 Password Screen..............................................................................................................20 CHAPTER 4 PC CONFIGURATION..................................................................................21 Overview.......................................................................................................................... 21 Windows Clients..............................................................................................................21 Macintosh Clients............................................................................................................33 Linux Clients.................................................................................................................... 33 Other Unix Systems.........................................................................................................33 Wireless Station Configuration......................................................................................34 CHAPTER 5 OPERATION AND STATUS.........................................................................35 Operation......................................................................................................................... 35 Status Screen.................................................................................................................... 35 Connection Status - PPPoE............................................................................................37 Connection Status - PPTP..............................................................................................39 Connection Status - L2TP...............................................................................................40 Connection Status - Telstra Big Pond............................................................................41 Connection Details - SingTel RAS.................................................................................42 Connection Details - Fixed/Dynamic IP Address.........................................................44 CHAPTER 6 ADVANCED FEATURES..............................................................................46 Overview.......................................................................................................................... 46 Access Control.................................................................................................................46 Dynamic DNS (Domain Name Server)..........................................................................53 Advanced Internet Screen..............................................................................................55 Virtual Servers.................................................................................................................59 WAN Port Configuration...............................................................................................63 CHAPTER 7 ADVANCED ADMINISTRATION...............................................................66 Overview.......................................................................................................................... 66 Config File........................................................................................................................67 Logs...................................................................................................................................68 Network Diagnostics.......................................................................................................70 Options.............................................................................................................................71 PC Database.....................................................................................................................73 Remote Admin.................................................................................................................77 Routing.............................................................................................................................78 Security...................................................................................…

Text truncated - open the document above for the full version.

Cover Letter(s)

.1.1 SerComm Corp. Embedded Server Provider 8F, No.3-1, YuanQu St., NanKang, Taipei 115, Taiwan, R.O.C. TEL: 886-2-2655-3988 FAX: 886-2-2655-3966 http://www.sercomm.com E-mail: [email protected] All trademarks are the property of their respective owners Specifications are subject to change without notice Subject: Agent Authorization To ELECTRONICS TESTING CENTER, TAIWAN: This is to advise and officially notify Authorization and Evaluation Division of Federal Communications Commission, that we, SerComm Corp., has entered into an agency relationship with ELECTRONICS TESTING CENTER, TAIWAN , located at No. 8, Lane 29, Wen-Ming Rd., Lo-Shan Tsun, Kui-Shan Hsiang, Taoyuan Hsien, Taiwan 333, R.O.C.; to act as our agent and have the authority and power to represent us in matters relating to filing the FCC ID application for the following product: FCC ID: P27IP806SM Your attention to this authorization will be appreciated.

Cover Letter(s)

.1.1 SerComm Corp.Embedded Server Provider 8F, No.3-1, YuanQu St., NanKang, Taipei 115, Taiwan, R.O.C. TEL: 886-2-2655-3988 FAX: 886-2-2655-3966 http://www.sercomm.com E-mail: [email protected] All trademarks are the property of their respective owners Specifications are subject to change without notice Nov. 21. 2003 Federal Communications Commission Authorization and Evaluation Division FCC IDP27IP806SM Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accomparrting this Application As outlined below: 1. Block Diagram, 2. Schematic Diagram, The above materials contain trade secrets and proprietary information is not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application

Cover Letter(s)

1 Chris Harvey From:[email protected] Sent:Monday, January 05, 2004 1:24 AM To:Chris Harvey Subject:Re: Additional Information needed Assessment # AN03T3478 FCC ID: P2ZIP806SM PCB.doc (408 KB)User Information.pdf (1 MB) Dear Chris, Attached please find revised user manual and internal photos, thank you for your kindly support. Best regards, Rick Hu ----- Original Message ----- From: "Chris Harvey" <[email protected]> To: <[email protected]> Cc: <[email protected]>; "Chris Harvey" <[email protected]>; "Barbara Judge" <[email protected]> Sent: Friday, January 02, 2004 11:29 PM Subject: Additional Information needed Assessment # AN03T3478 FCC ID: P2ZIP806SM > Dear Rick and Hong, > > The review of the above refeerenced application has been performed and > the following additional information/clarifications are required to > complete this Certification application: > > 1) The Users Manual is missing the required information required by > FCC 15.27 about modifications (and FCC 15.105 for the Class B DoC > about digital > device interference) and the RF Exposure information required by FCC 15.247 > about the required separation distance of 20cm or greater. Please > provide this information. > > 2) The Internal Photographs submitted are not very clear, but seem to > show the RF section of the component side of the PCB covered by an RF > shield. Please submit a clearer photograph with the RF shield removed > to show the components under the shield. > > Best regards, > > Chris Harvey > [email protected] > ----------------- > The items indicated above must be submitted before processing can > continue on the above referenced application. Failure to provide the > requested information within 30 days of the original e-mail date may > result in application dismissal and forfeiture of the filing fee. 2 > Also, please note that partial responses increase processing time and > should not be submitted. > Any questions about the content of this correspondence should be > directed to > the e-mail address listed below the name of the sender. >

External Photos

ETC Report No.: ET92S-11-084-01 Page A1 of A1 FCC ID: P27IP806SM ANNEX A: EXTERNAL CONSTRUCTION PHOTOS OF EUT 1. Outside view 1 of EUT 2. Outside view 2 of EUT

ID Label/Location Info

IP806SM SerComm Corp. IP806SM SerComm Corp. 0560 ! 0560 ! FCC ID: P27IP806SM FCC ID: P27IP806SM

Internal Photos

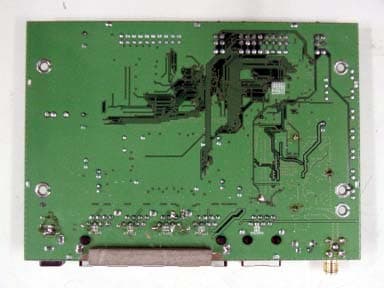

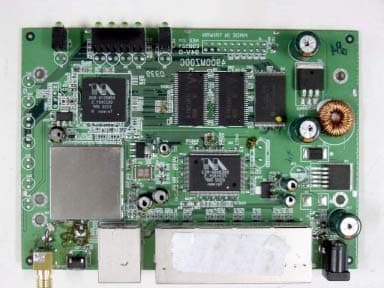

ETC Report No.: ET92S-11-084-01 Page B1 of B3 FCC ID: P27IP806SM ANNEX B: INTERNAL CONSTRUCTION PHOTOS OF EUT 1. Outside view of Adaptor 2. Inside view 1 of Adaptor ETC Report No.: ET92S-11-084-01 Page B2 of B3 FCC ID: P27IP806SM 3. Inside view 2 of Adaptor 4. Front view of PCB ETC Report No.: ET92S-11-084-01 Page B3 of B3 FCC ID: P27IP806SM 5. Rear view of PCB

Internal Photos

1. PCB-1 2. PCB-2

Operational Description

Part NumberDate Subjectpages3 IP806SM Operation Principle 1. CPU, U6, 88W8510 have a 32-bit RISC processor integrated, operation frequency is 160MHz. It needs an external 44MHz crystal for reference frequency; this crystal is also used for RF module. This chip is responsible to control RF-Baseband Transceiver (88W8000G), Flash IC and LED. This chip also has MII interface integrated to communicate with 10/100 Ethernet Switch. 2. FLASH, U13, AM29LV800BT-70EC, 8Mbits Flash, bottom sector, 70ns. It is used to store the normal and test firmware. 3. Integrated 2.4GHz ISM Band RF-Baseband Transceiver, U9, 88W8000G which is integrated all RF-Baseband receive and Transmit function. On-Chip Power Amplifier (PA) with up to +20 dBm output power at the antenna port. It is also integrated programmable frequency synthesizers with integrated VCOs, I/Q generation and CMOS up/down conversion mixers. 4. 10/100 Ethernet Switch, U10, 88E6060 support automatic MDI/MDIX crossover for 100BASE-TX and 10 BASE-T ports. Port 5 has dedicated, always on, MAC Mode (Forward) and PHY Mode (Reverse) RMII/MII/SNI interface for management and firewall applications. Each port works at 10Mbps or 100Mbp, full-duplex or half-duplex mode (forced or auto-negotiated). Flexible LED support for Link, Speed, Duplex Mode, Collision, and TX/RX Activities. 5. Power part: there are several regulators are used on the board.U18,HW2596 is used to transfer DC12V to DC5V,U17, AZ1084S-3 is used to transfer DC5V to DC3V3; U1, U8 AME8805 are used to transfer DC3V3 to DC2V5; U20, 1117-ADJ is used to transfer DC3V3 to DC1V62. The core of CPU is operate at 1.5V. 6. LED part: LEDColorControlled byDescription PowerGreenFWOn - power on Off - no power StatusRedFWOn - Error condition. Off - Normal operation Blinking - This LED blinks during start up. 100OrangeHWOn - Link at 100Mbps Off - Link at 10Mbps LAN Link/Act GreenHWBlinking - receiving/ transmitting data WANGreenHWOn - WAN connection is established Off - No WAN connection available Blinking - data is being transmitted or received via the WAN port. WLANGreenFWOn - Wireless connection available; Wireless Access Point is ready for use. Off - No Wireless connection available. Blinking - Data is transmitted or received via the Wireless access point. This includes "network traffic" as well as user data. 7. Switch button, SW1, it is used to reset the 88W8510. 8. 9. GaAs IC SPDT Switch, U7, HWS314, features low insertion loss and positive voltage operation with very low DC power consumption.

Test Report

ETC Report No. : ET92S-11-084-01 Sheet 1 of 106 Sheets FCC ID. : P27IP806SM Rev. No 1.0 FCC Part 15 EMI TEST REPORT of E.U.T. : Wireless Broadband Router MODEL : IP806SM FCC ID. : P27IP806SM for APPLICANT : Sercomm Corp. ADDRESS : 3F, No. 81, Yu-Yih Rd., Chu-Nan, Miao-Li 350, Taiwan, R.O.C. Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 8 LANE 29, WENMIMG ROAD, LOSHAN TSUN, KWEISHAN HSIANG, TAOYUAN, TAIWAN, R. O. C. Tel: (03)3280026#570~576 Fax:(03)3276188 Report Number: ET92S-11-084-01 ETC Report No. : ET92S-11-084-01 Sheet 2 of 106 Sheets FCC ID. : P27IP806SM Rev. No 1.0 TEST REPORT CERTIFICATION Applicant : Sercomm Corp. 3F, No. 81, Yu-Yih Rd., Chu-Nan, Miao-Li 350, Taiwan, R.O.C. Manufacturer : Sercomm Corp. 3F, No. 81, Yu-Yih Rd., Chu-Nan, Miao-Li 350, Taiwan, R.O.C. Description of EUT : a) Type of EUT : Wireless Broadband Router b) Trade Name : Sercomm c) Model No. : IP806SM d) Power Supply : AC Power : Input 120Vac , 50/60Hz ; Output DC 12Vdc , 800mA Regulation Applied : FCC Rules and Regulations Part 15 Subpart B & C (2003) I HEREBY CERTIFY THAT: The data shown in this report were made in accordance with the procedures given in ANSI C63.4, and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note: 1. The result of the testing report relate only to the item tested. 2. The testing report shall not be reproduced expect in full, without the written approval of ETC. Issued Date : Dec. 03, 2003 Test Engineer : Andy Kuo Approve & Authorized Signer : Signature Tsung-Ching Lin Supervisor of EMC Testing Department Electronics Testing Center, Taiwan ETC Report No. : ET92S-11-084-01 Sheet 3 of 106 Sheets FCC ID. : P27IP806SM Rev. No 1.0 Table of Contents Page 1 GENERAL INFORMATION .................................................................................................................. 5 1.1 Product Description.................................................................................................................................. 5 1.2 Characteristics of Device ......................................................................................................................... 5 1.3 Test Methodology .................................................................................................................................... 6 1.4 Test Facility.............................................................................................................................................. 6 2 PROVISIONS APPLICABLE ................................................................................................................. 7 2.1 Definition ................................................................................................................................................. 7 2.2 Requirement for Compliance ................................................................................................................... 8 2.3 Restricted Bands of Operation ............................................................................................................... 10 2.4 Labeling Requirement ............................................................................................................................ 10 2.5 User Information .................................................................................................................................... 11 3. SYSTEM TEST CONFIGURATION ...................................................................................................12 3.1 Justification ............................................................................................................................................ 12 3.2 Devices for Tested System..................................................................................................................... 12 4 RADIATED EMISSION MEASUREMENT........................................................................................ 13 4.1 Applicable Standard ............................................................................................................................... 13 4.2 Measurement Procedure......................................................................................................................... 13 4.3 Measuring Instrument ............................................................................................................................ 15 4.4 Radiated Emission Data ......................................................................................................................... 16 4.4.1 RF Portion...................................................................................................................................................... 16 4.4.2 Other Emission .............................................................................................................................................. 20 4.5 Field Strength Calculation ..................................................................................................................... 23 4.6 Photos of Radiation Measuring Setup.................................................................................................... 24 5 CONDUCTED EMISSION MEASUREMENT ................................................................................... 25 5.1 Standard Applicable ............................................................................................................................... 25 5.2 Measurement Procedure......................................................................................................................... 25 5.3 Conducted Emission Data ...................................................................................................................... 26 5.4 Result Data Calculation ...............................................................................................................…

Text truncated - open the document above for the full version.

Test Setup Photos

ETC Report No. : ET92S-11-084-01 Sheet 1 of 2 Sheets FCC ID. : P27IP806SM 4.6 Photos of Radiation Measuring Setup ETC Report No. : ET92S-11-084-01 Sheet 2 of 2 Sheets FCC ID. : P27IP806SM 5.6 Photos of Conduction Measuring Setup

Contact Information

Applicant

Nick Wu(Engineer)
[email protected]886-2-2655-3988Fax: 886-2-2655-3965

Test Firm

Electronics Testing Center, TaiwanWin-Po Tsai
[email protected]886-3-3276172Fax: 886-3-3276188

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.41 GHz - 2.46 GHz110.00 mW
Confidentiality
Long Term
Grant Notes
Power Output listed is Conducted. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
