P27IP806SMP802.11g Wireless Broadband Router

Broadband Router 802.11g/802.11b Wireless Access Point Broadband Internet Access 4-Port Switching Hub User's Guide 802.11g Wireless Regulatory Approvals FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communica- tions. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. (Example - use only shielded interface cables when connecting to computer or peripheral devices). FCC Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. Channel The Wireless Channel sets the radio frequency used for communication. Access Points use a fixed Channel. You can select the Channel used. This allows you to choose a Channel which provides the least interference and best performance. In the USA and Canada, 11 channel are available. If using multiple Access Points, it is better if adjacent Access Points use different Channels to reduce interference. In "Infrastructure" mode, Wireless Stations normally scan all Channels, looking for an Access Point. If more than one Access Point can be used, the one with the strongest signal is used. (This can only happen within an ESS.) If using "Ad-hoc" mode (no Access Point), all Wireless stations should be set to use the same Channel. However, most Wireless stations will still scan all Channels to see if there is an existing "Ad-hoc" group they can join. Table of Contents CHAPTER 1 INTRODUCTION.............................................................................................1 Wireless Router Features.................................................................................................1 Package Contents..............................................................................................................3 Physical Details.................................................................................................................. 4 CHAPTER 2 INSTALLATION...............................................................................................6 Requirements..................................................................................................................... 6 Procedure...........................................................................................................................6 CHAPTER 3 SETUP................................................................................................................8 Overview............................................................................................................................8 Configuration Program....................................................................................................9 Setup Wizard...................................................................................................................11 LAN Screen......................................................................................................................14 Wireless Screen................................................................................................................16 Password Screen..............................................................................................................20 CHAPTER 4 PC CONFIGURATION..................................................................................21 Overview.......................................................................................................................... 21 Windows Clients..............................................................................................................21 Macintosh Clients............................................................................................................33 Linux Clients.................................................................................................................... 33 Other Unix Systems.........................................................................................................33 Wireless Station Configuration......................................................................................34 CHAPTER 5 OPERATION AND STATUS..................................................…

Text truncated - open the document above for the full version.

.1.1 SerComm Corp. Embedded Server Provider 8F, No.3-1, YuanQu St., NanKang, Taipei 115, Taiwan, R.O.C. TEL: 886-2-2655-3988 FAX: 886-2-2655-3966 http://www.sercomm.com E-mail: [email protected] All trademarks are the property of their respective owners Specifications are subject to change without notice SerComm Corp. 8F, No. 3-1, YuanQu St., NanKang, Taipei 115, Taiwan, R.O.C Federal Communications Commission Dear Sir, We, the undersigned, hereby authorize Exclusive Certification Corp. to act on our behalf in all matters relating to application for 802.11g Wireless Broadband Router (Model: IP806SM, FCC ID No.: P27IP806SMP)” authorization, including the signing of all documents relating to these matters. Any and all carried out by Exclusive Certification Corp. on our behalf shall have the same effect as acts of our own. The applicant certifies that in the case of an individual applicant (e.g., corporation), no party to the applicant is subject to a denial of federal benefits, that includes FCC benefits, pursuant to section 5301 of the Anti-drug abuse Act of 1988.21 U.S.A. 862. For a definition of a “party” for these purposes See 47 C.F.R. 1.2002(b). Address: 8F, No. 3-1, YuanQu St., NanKang, Taipei 115, Taiwan, R.O.C Date: October 05, 2004

.1.1 SerComm Corp.Embedded Server Provider 8F, No.3-1, YuanQu St., NanKang, Taipei 115, Taiwan, R.O.C. TEL: 886-2-2655-3988 FAX: 886-2-2655-3966 http://www.sercomm.com E-mail: [email protected] All trademarks are the property of their respective owners Specifications are subject to change without notice Sep.. 29. 2004 Federal Communications Commission Authorization and Evaluation Division FCC IDP27IP806SMP Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accomparrting this Application As outlined below: 1. Block Diagram, 2. Schematic Diagram, The above materials contain trade secrets and proprietary information is not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application

Exclusive Certification Corp. 4F-2, No. 28, Lane 78, Xing-Ai Rd. Nei-hu, Taipei City 114 Taiwan R.O.C 11478284-2F Tel: 886-2-2792-3366 Fax: 886-2-2792-1100 To whom it may concern: The enclosed documents constitute a formal submittal and application for a Grant of Equipment Authorization pursuant to Subpart C of Part 15 of FCC rules (CFR47) regarding 802.11g Wireless Broadband Router for the SerComm model IP806SM. Data within this report demonstrates that the equipment tested complied with the FCC limits for intentional radiators. Exclusive Certificate Corp. (ECC), as duly authorized agent prepared this submittal. A copy of the letter of our appointment as agent is enclosed. If there are any questions or if further information is needed, please contact ECC for assistance. Ivy Chen TEL: +886-2-2792-3366 # 204 FAX: +886-2-2792-1100 E-mail: [email protected]

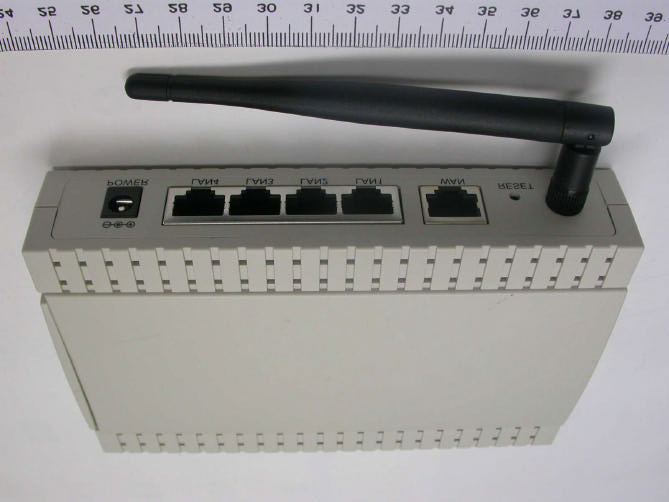

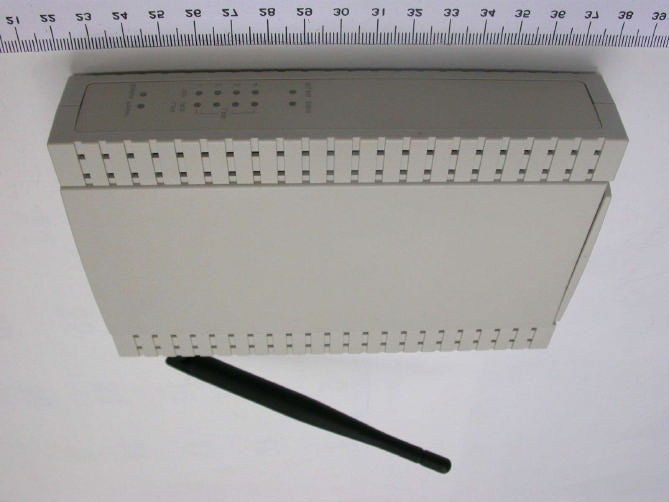

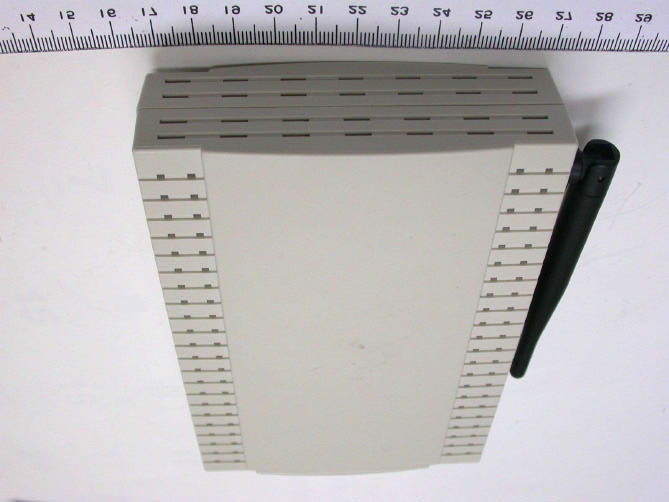

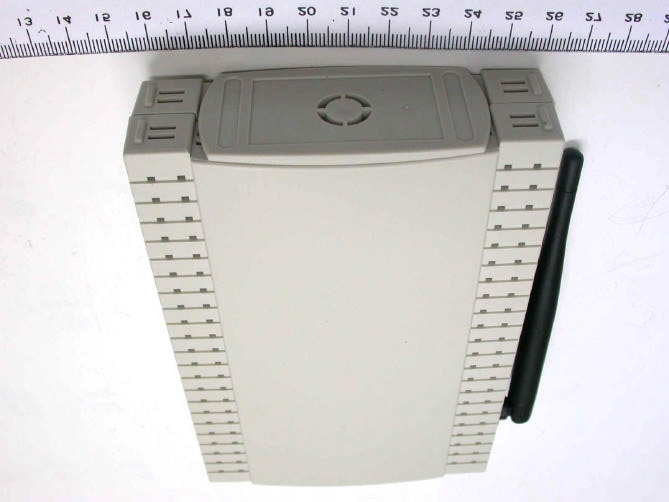

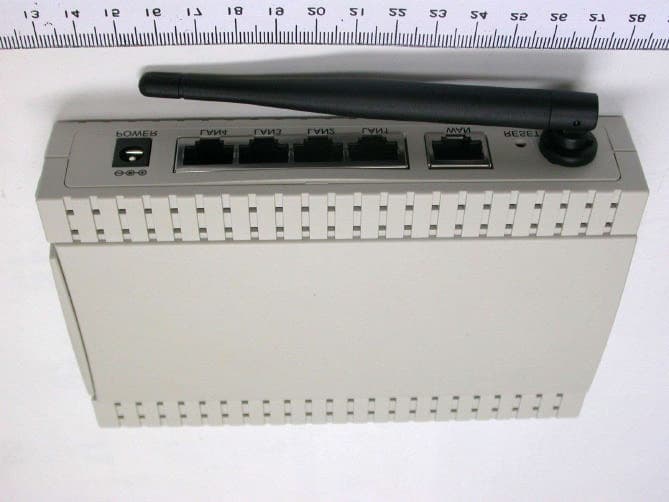

External Photos Integral dipole antenna Reverse SMA connector, dipole antenna

IP806SM SerComm Corp. 0560 ! FCC ID: P27IP806SMP Size: 44mm x 26.5mm Location:

Internal Photos Integral dipole antenna 04091803-A 04091803-A Reverse SMA connector, dipole antenna 04091803-A 04091803-A 04091803-A 04091803-A 04091803-A

Part Number Date Subject pages3 IP806SM Operation Principle 1. CPU, U6, 88W8510 have a 32-bit RISC processor integrated, operation frequency is 160MHz. It needs an external 44MHz crystal for reference frequency; this crystal is also used for RF module. This chip is responsible to control RF-Baseband Transceiver (88W8000G), Flash IC and LED. This chip also has MII interface integrated to communicate with 10/100 Ethernet Switch. 2. FLASH, U13, AM29LV800BT-70EC, 8Mbits Flash, bottom sector, 70ns. It is used to store the normal and test firmware. 3. Integrated 2.4GHz ISM Band RF-Baseband Transceiver, U9, 88W8000G which is integrated all RF-Baseband receive and Transmit function. On-Chip Power Amplifier (PA) with up to +20 dBm output power at the antenna port. It is also integrated programmable frequency synthesizers with integrated VCOs, I/Q generation and CMOS up/down conversion mixers. 4. 10/100 Ethernet Switch, U10, 88E6060 support automatic MDI/MDIX crossover for 100BASE-TX and 10 BASE-T ports. Port 5 has dedicated, always on, MAC Mode (Forward) and PHY Mode (Reverse) RMII/MII/SNI interface for management and firewall applications. Each port works at 10Mbps or 100Mbp, full-duplex or half-duplex mode (forced or auto-negotiated). Flexible LED support for Link, Speed, Duplex Mode, Collision, and TX/RX Activities. 5. Power part: there are several regulators are used on the board.U18,HW2596 is used to transfer DC12V to DC5V,U17, AZ1084S-3 is used to transfer DC5V to DC3V3; U1, U8 AME8805 are used to transfer DC3V3 to DC2V5; U20, 1117-ADJ is used to transfer DC3V3 to DC1V62. The core of CPU is operate at 1.5V. 6. LED part: 7. Switch button, SW1, it is used to reset the 88W8510. 8.

1.1. Test Result of RF Exposure Evaluation . Product: 802.11g Wireless Broad Band Router . Test Item: RF Exposure Evaluation Data . Test site: OATSI-SD . Test Mode: Normal Operation 1.1.1. Antenna Gain Antenna 1: The maximum Gain is 1.8dBi. Antenna 2: The maximum Gain is 1.8dBi. 1.1.2. EUT Operation condition Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 1.1.3. Output Power into Antenna & RF Exposure Evaluation Distance Antenna 1 Modulation Standard: IEEE 802.11b Test Date: Sep. 24, 2004 Temperature: 27 Humidity: 65 Channel Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density (S) (mW/cm 2 ) 01 2412 14.26 0.0080 06 2437 15.05 0.0096 11 2462 14.34 0.0082 Modulation Standard: IEEE 802.11g Test Date: Sep. 24, 2004 Temperature: 27 Humidity: 65 Channel Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density (S) (mW/cm 2 ) 01 2412 14.10 0.0077 06 2437 14.06 0.0077 11 2462 13.50 0.0067 Antenna 2 Modulation Standard: IEEE 802.11b Test Date: Sep. 27, 2004 Temperature: 27 Humidity: 58 Channel Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density (S) (mW/cm 2 ) 01 2412 14.30 0.0081 06 2437 14.88 0.0093 11 2462 14.69 0.0089 Modulation Standard: IEEE 802.11g Test Date: Sep. 27, 2004 Temperature: 27 Humidity: 58 Channel Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density (S) (mW/cm 2 ) 01 2412 14.02 0.0076 06 2437 14.08 0.0077 11 2462 13.65 0.0070 The MPE is calculated as 0.0093 mW / cm 2 < limit 1 mW / cm 2 . So, RF exposure limi t warning or SAR test are not required.

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Sep. 27, 2004 1 of 95 FCC ID: P27IP806SMP FCC Test Report: FI04091803-A FCC TEST REPORT according to FCC Rules and Regulations Part 15 Subpart C † The test result refers exclusively to the test presented test model / sample., † Without written approval of Exclusive Certification Corp. the test report shall not be reproduced except in full. Applicant SerComm Corporation Address 8F, No. 3-1, YuanQu St., NanKang, Taipei 115, Taiwan, R.O.C. Equipment 802.11g Wireless Broadband Router Model No. IP806SM FCC ID P27IP806SMP Trade Name SerComm Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Sep. 27, 2004 2 of 95 FCC ID: P27IP806SMP FCC Test Report: FI04091803-A Contents 1. Report of Measurements and Examinations..................................................................................4 1.1. List of Measurements and Examinations............................................................................4 1.2. Antenna Requirements......................................................................................................5 1.3. Test of Conducted Emission..............................................................................................6 1.4. Test of Radiated Emission................................................................................................. 8 1.5. 6dB Bandwidth.................................................................................................................9 1.6. Maximum Peak Output Power...........................................................................................9 1.7. Band Edges Measurement..............................................................................................10 1.8. Power Spectral Density...................................................................................................10 1.9. Restricted Bands of Operation..........................................................................................11 1.10. Labeling Requirement......................................................................................................11 1.11. RF Exposure..................................................................................................................12 2. Test Configuration of Equipment under Test................................................................................14 2.1. Test Mode and Test Software...........................................................................................14 2.2. Description of Test System..............................................................................................14 2.3. Connection Diagram of Test System................................................................................15 2.4. Feature of Equipment under Test.....................................................................................15 2.5. RF Module Specifications................................................................................................16 2.6. History of this test report................................................................................................. 16 3. General Information of Test.......................................................................................................17 4. Test Result and Data.................................................................................................................18 4.1. Antenna Requirement.....................................................................................................18 4.2. Test Result of Conducted Emission..................................................................................19 4.3. RF Portion......................................................................................................................32 4.4. 6dB Bandwidth Measurement Data..................................................................................51 4.5. Peak Output Power Measurement Data...........................................................................58 4.6. Band Edges Measurement Data......................................................................................65 4.7. Power Spectral Density Measurement Data......................................................................88 5. List of Measuring Equipment Used.............................................................................................95 Appendix A. Photographs of EUT........................................................................ ..............A1 ~ A8 Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Sep. 27, 2004 3 of 95 FCC ID: P27IP806SMP FCC Test Report: FI04091803-A CERTIFICATE OF COMPLIANCE according to FCC Rules and Regulations Part 15 Subpart C Applicant SerComm Corporation Address 8F, No. 3-1, YuanQu St., NanKang, Taipei 115, Taiwan, R.O.C. Equipment 802.11g Wireless Broadband Router Model No. IP806SM FCC ID P27IP806SM I HEREBY CERTIFY THAT : The measurements shown in this test report were made in accordance with the procedures given in ANSI C63.4. The equipment was passed the test performed according to FCC Rules and Regulations Part 15 Subpart C (2002). The test was carried out on Sep. 27, 2004 at Exclusive Certification Corp. Signature Anson Chou / Manager Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Sep. 27, 2004 4 of 95 FCC ID: P27IP806SMP FCC Test Report: FI04091803-A 1. Report of Measurements and Examinations 1.1. List of Measurements and Examinations FCC Rule . Description of Test Result 15.203 . Antenna Requirement Pass 15.207 . Conducted Emission Pass 15.209 . Radiated Emission Pass 15.247(a)(2) . 6dB Bandwidth Pass 15.247(b) . Maximum Peak Output Power Pass 15.247(c) . 100kHz Bandwidth of Frequency Band Edges Pass 15.247(d) . Power Spectral Density Pass 1.1307 1.1310 2.1091 2.1093 . RF Exposure Compliance Pass Test by: Exclusive Cert…

Text truncated - open the document above for the full version.

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Sep. 27, 2004 25 of 95 FCC ID: P27IP806SMP FCC Test Report: FI04091803-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Sep. 27, 2004 26 of 95 FCC ID: P27IP806SMP FCC Test Report: FI04091803-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Sep. 27, 2004 27 of 95 FCC ID: P27IP806SMP FCC Test Report: FI04091803-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Sep. 27, 2004 28 of 95 FCC ID: P27IP806SMP FCC Test Report: FI04091803-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Sep. 27, 2004 29 of 95 FCC ID: P27IP806SMP FCC Test Report: FI04091803-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Sep. 27, 2004 30 of 95 FCC ID: P27IP806SMP FCC Test Report: FI04091803-A Test by: Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Sep. 27, 2004 31 of 95 FCC ID: P27IP806SMP FCC Test Report: FI04091803-A 4.2.1. Photographs of Conducted Emission Test FRONT VIEW REAR VIEW Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Sep. 27, 2004 32 of 95 FCC ID: P27IP806SMP FCC Test Report: FI04091803-A 4.3. RF Portion 4.3.1. Test Result of Conducted Emission Antenna type 1: Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Sep. 27, 2004 33 of 95 FCC ID: P27IP806SMP FCC Test Report: FI04091803-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Sep. 27, 2004 34 of 95 FCC ID: P27IP806SMP FCC Test Report: FI04091803-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Sep. 27, 2004 35 of 95 FCC ID: P27IP806SMP FCC Test Report: FI04091803-A Antenna type 2: Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Sep. 27, 2004 36 of 95 FCC ID: P27IP806SMP FCC Test Report: FI04091803-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Sep. 27, 2004 37 of 95 FCC ID: P27IP806SMP FCC Test Report: FI04091803-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Sep. 27, 2004 38 of 95 FCC ID: P27IP806SMP FCC Test Report: FI04091803-A 4.3.2. Test Result of Radiated Emission Antenna type 1: Modulation Standard: IEEE 802.11b a) Emission frequencies below 1 GHz Channel LO Test Date: Sep. 27, 2004 Temperature: 27 Humidity: 58% Frequency (MHz) Ant-Pol H/V Meter Reading (dBuV) Corrected Factor (dB) Result@3m (dBuV/m) Limit@3m (dBuV/m) Margin (dB) Remark Table Deg. Ant High (m) 482.99 V 49.81 -6.52 43.29 46 -2.71 Q.P 100 1.0 640.13 V 44.51 -2.10 42.41 46 -3.59 Peak 298 1.5 800.18 V 42.75 0.73 43.48 46 -2.52 Q.P 125 1.0 Notes: 1. Result = Meter Reading + Corrected Factor 2. Corrected Factor = Antenna Factor + Cable Loss – Amplifier b) Emission frequencies above 1 GHz Channel LO Frequency (MHz) Ant-Pol H/V Meter Reading (dBuV) Corrected Factor (dB) Result@3m (dBuV/m) Limit@3m (dBuV/m) Margin (dB) Remark Table Deg. Ant High (m) 1273 V 53.06 -6.53 46.53 74 -27.47 Peak 210 1.0 2039 V 54.12 -2.50 51.62 74 -22.38 Peak 185 1.0 Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Sep. 27, 2004 39 of 95 FCC ID: P27IP806SMP FCC Test Report: FI04091803-A Modulation Standard: IEEE 802.11b a) Emission frequencies below 1 GHz Channel MID Test Date: Sep. 27, 2004 Temperature: 27 Humidity: 58% Frequency (MHz) Ant-Pol H/V Meter Reading (dBuV) Corrected Factor (dB) Result@3m (dBuV/m) Limit@3m (dBuV/m) Margin (dB) Remark Table Deg. Ant High (m) 482.99 V 49.47 -6.52 42.95 46 -3.05 Peak 110 1.0 640.13 V 44.67 -2.10 42.57 46 -3.43 Peak 292 1.5 800.18 V 43.02 0.73 43.75 46 -2.25 Q.P 130 1.0 Notes: 1. Result = Meter Reading + Corrected Factor 2. Corrected Factor = Antenna Factor + Cable Loss – Amplifier b) Emission frequencies above 1 GHz Channel MID Frequency (MHz) Ant-Pol H/V Meter Reading (dBuV) Corrected Factor (dB) Result@3m (dBuV/m) Limit@3m (dBuV/m) Margin (dB) Remark Table Deg. Ant High (m) 1273 H 51.17 -6.03 45.14 74 -28.86 Peak 195 1.0 1273 V 53.86 -6.53 47.33 74 -26.67 Peak 205 1.0 2063 V 54.16 -2.44 51.72 74 -22.28 Peak 192 1.0 Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Sep. 27, 2004 40 of 95 FCC ID: P27IP806SMP FCC Test Report: FI04091803-A Modulation Standard: IEEE 802.11b a) Emission frequencies below 1 GHz Channel HI Test Date: Sep. 27, 2004 Temperature: 27 Humidity: 58% Frequency (MHz) Ant-Pol H/V Meter Reading (dBuV) Corrected Factor (dB) Result@3m (dBuV/m) Limit@3m (dBuV/m) Margin (dB) Remark Table Deg. Ant High (m) 482.99 V 48.72 -6.52 42.20 46 -3.80 Peak 105 1.0 800.18 V 43.11 0.73 44.59 46 -2.16 Q.P 140 1.0 Notes: 1. Result = Meter Reading + Corrected Factor 2. Corrected Factor = Antenna Factor + Cable Loss – Amplifier b) Emission frequencies above 1 GHz Channel HI Frequency (MHz) Ant-Pol H/V Meter Reading (dBuV) Corrected Factor (dB) Result@3m (dBuV/m) Limit@3m (dBuV/m) Margin (dB) Remark Table Deg. Ant High (m) 1273 H 52.26 -6.03 46.23 74 -27.77 Peak 196 1.0 1273 V 52.76 -6.53 46.23 74 -27.77 Peak 190 1.0 2098 V 53.14 -2.33 50.81 74 -23.19 Peak 200 1.0

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Sep. 27, 2004 41 of 95 FCC ID: P27IP806SMP FCC Test Report: FI04091803-A Modulation Standard: IEEE 802.11g a) Emission frequencies below 1 GHz Channel LO Test Date: Sep. 27, 2004 Temperature: 27 Humidity: 58% Frequency (MHz) Ant-Pol H/V Meter Reading (dBuV) Corrected Factor (dB) Result@3m (dBuV/m) Limit@3m (dBuV/m) Margin (dB) Remark Table Deg. Ant High (m) 96.93 V 57.63 -17.89 39.74 43.5 -3.76 Peak 90 1.0 482.99 V 49.23 -6.52 42.71 46.0 -3.29 Peak 110 1.0 800.18 V 42.66 0.73 43.39 46..0 -2.61 Q.P 140 1.0 Notes: 1. Result = Meter Reading + Corrected Factor 2. Corrected Factor = Antenna Factor + Cable Loss – Amplifier b) Emission frequencies above 1 GHz Channel LO Frequency (MHz) Ant-Pol H/V Meter Reading (dBuV) Corrected Factor (dB) Result@3m (dBuV/m) Limit@3m (dBuV/m) Margin (dB) Remark Table Deg. Ant High (m) 1273 V 52.66 -6.53 46.13 74 -27.87 Peak 192 1.0 Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Sep. 27, 2004 42 of 95 FCC ID: P27IP806SMP FCC Test Report: FI04091803-A Modulation Standard: IEEE 802.11g a) Emission frequencies below 1 GHz Channel MID Test Date: Sep. 27, 2004 Temperature: 27 Humidity: 58% Frequency (MHz) Ant-Pol H/V Meter Reading (dBuV) Corrected Factor (dB) Result@3m (dBuV/m) Limit@3m (dBuV/m) Margin (dB) Remark Table Deg. Ant High (m) 96.93 V 57.96 -17.89 40.07 43.5 -3.43 Peak 100 1.0 482.99 V 48.73 -6.52 42.21 46.0 -3.79 Peak 110 1.0 803.09 V 42.96 0.97 43.93 46.0 -2.07 Q.P 148 1.0 Notes: 1. Result = Meter Reading + Corrected Factor 2. Corrected Factor = Antenna Factor + Cable Loss – Amplifier b) Emission frequencies above 1 GHz Channel MID Frequency (MHz) Ant-Pol H/V Meter Reading (dBuV) Corrected Factor (dB) Result@3m (dBuV/m) Limit@3m (dBuV/m) Margin (dB) Remark Table Deg. Ant High (m) 1273 V 52.13 -6.53 45.60 74 -28.40 Peak 192 1.0 Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Sep. 27, 2004 43 of 95 FCC ID: P27IP806SMP FCC Test Report: FI04091803-A Modulation Standard: IEEE 802.11g a) Emission frequencies below 1 GHz Channel HI Test Date: Sep. 27, 2004 Temperature: 27 Humidity: 58% Frequency (MHz) Ant-Pol H/V Meter Reading (dBuV) Corrected Factor (dB) Result@3m (dBuV/m) Limit@3m (dBuV/m) Margin (dB) Remark Table Deg. Ant High (m) 482.99 V 47.99 -6.52 41.38 46 -4.62 Peak 130 1.0 803.99 V 42.11 0.97 43.08 46 -2.92 Q.P 150 1.0 Notes: 1. Result = Meter Reading + Corrected Factor 2. Corrected Factor = Antenna Factor + Cable Loss – Amplifier b) Emission frequencies above 1 GHz Channel HI Frequency (MHz) Ant-Pol H/V Meter Reading (dBuV) Corrected Factor (dB) Result@3m (dBuV/m) Limit@3m (dBuV/m) Margin (dB) Remark Table Deg. Ant High (m) 1273 V 51.96 -6.53 45.43 74 -28.57 Peak 196 1.0 Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Sep. 27, 2004 44 of 95 FCC ID: P27IP806SMP FCC Test Report: FI04091803-A Antenna type 2: Modulation Standard: IEEE 802.11b a) Emission frequencies below 1 GHz Channel LO Test Date: Sep. 27, 2004 Temperature: 27 Humidity: 58% Frequency (MHz) Ant-Pol H/V Meter Reading (dBuV) Corrected Factor (dB) Result@3m (dBuV/m) Limit@3m (dBuV/m) Margin (dB) Remark Table Deg. Ant High (m) 482.99 V 50.02 -6.52 43.50 46 -2.50 Q.P 100 1.0 640.13 V 44.13 -2.10 42.03 46 -3.97 Peak 298 1.5 800.18 V 43.27 0.73 44.00 46 -2.00 Q.P 125 1.0 Notes: 1. Result = Meter Reading + Corrected Factor 2. Corrected Factor = Antenna Factor + Cable Loss – Amplifier b) Emission frequencies above 1 GHz Channel LO Frequency (MHz) Ant-Pol H/V Meter Reading (dBuV) Corrected Factor (dB) Result@3m (dBuV/m) Limit@3m (dBuV/m) Margin (dB) Remark Table Deg. Ant High (m) 1273 V 52.34 -6.53 45.81 74 -28.19 Peak 210 1.0 2039 V 53.42 -2.50 50.92 74 -23.08 Peak 185 1.0 Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Sep. 27, 2004 45 of 95 FCC ID: P27IP806SMP FCC Test Report: FI04091803-A Modulation Standard: IEEE 802.11b a) Emission frequencies below 1 GHz Channel MID Test Date: Sep. 27, 2004 Temperature: 27 Humidity: 58% Frequency (MHz) Ant-Pol H/V Meter Reading (dBuV) Corrected Factor (dB) Result@3m (dBuV/m) Limit@3m (dBuV/m) Margin (dB) Remark Table Deg. Ant High (m) 482.99 V 50.00 -6.52 43.48 46 -2.52 Q.P 110 1.0 640.13 V 44.22 -2.10 42.12 46 -3.88 Peak 292 1.5 800.18 V 43.22 0.73 43.95 46 -2.05 Q.P 130 1.0 Notes: 1. Result = Meter Reading + Corrected Factor 2. Corrected Factor = Antenna Factor + Cable Loss – Amplifier b) Emission frequencies above 1 GHz Channel MID Frequency (MHz) Ant-Pol H/V Meter Reading (dBuV) Corrected Factor (dB) Result@3m (dBuV/m) Limit@3m (dBuV/m) Margin (dB) Remark Table Deg. Ant High (m) 1273 H 50.55 -6.03 44.52 74 -29.48 Peak 195 1.0 1273 V 53.41 -6.53 46.88 74 -27.12 Peak 205 1.0 2063 V 53.25 -2.44 50.81 74 -23.19 Peak 192 1.0 Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Sep. 27, 2004 46 of 95 FCC ID: P27IP806SMP FCC Test Report: FI04091803-A Modulation Standard: IEEE 802.11b a) Emission frequencies below 1 GHz Channel HI Test Date: Sep. 27, 2004 Temperature: 27 Humidity: 58% Frequency (MHz) Ant-Pol H/V Meter Reading (dBuV) Corrected Factor (dB) Result@3m (dBuV/m) Limit@3m (dBuV/m) Margin (dB) Remark Table Deg. Ant High (m) 482.99 V 49.69 -6.52 43.17 46 -2.83 Q.P 105 1.0 800.18 V 43.85 0.73 44.59 46 -1.41 Q.P 140 1.0 Notes: 1. Result = Meter Reading + Corrected Factor 2. Corrected Factor = Antenna Factor + Cable Loss – Amplifier b) Emission frequencies above 1 GHz Channel HI Frequency (MHz) Ant-Pol H/V Meter Reading (dBuV) Corrected Factor (dB) Result@3m (dBuV/m) Limit@3m (dBuV/m) Margin (dB) Remark Table Deg. Ant High (m) 1273 H 51.63 -6.03 45.60 74 -28.40 Peak 196 1.0 1273 V 52.08 -6.53 45.55 74 -28.45 Peak 190 1.0 2098 V 52.64 -2.33 50.31 74 -23.69 Peak 200 1.0 Exclusive Certification Co…
