P27NA301ZWSmart home gateway with 802.11b/g/n and Z-Wave

i NA301 Compact Z-Wave Gateway User Guide ii Table of Contents CHAPTER 1 INTRODUCTION .............................................................................................. 1 Package Contents .............................................................................................................. 1 Features .............................................................................................................................. 1 LEDs ................................................................................................................................... 2 CHAPTER 2 INITIAL INSTALLATION............................................................................... 4 Requirements ..................................................................................................................... 4 Procedure ........................................................................................................................... 4 CHAPTER 3 CONFIGURATION ........................................................................................... 5 Configuration Program ..................................................................................................... 5 Home Screen ...................................................................................................................... 6 Regulatory Approvals ....................................................................................................... 7 Copyright  2014. All Rights Reserved. Document Version: 1.0 All trademarks and trade names are the properties of their respective owners. 1 Chapter 1 Introduction This Chapter provides an overview of the Compact Z-Wave Gateway's fea- tures and capabilities. Congratulations on the purchase of your new Compact Z-Wave Gateway. The Compact Z-Wave Gateway is a consumer electronic device, which is used for home monitoring and security. Package Contents The following items should be included: • The Compact Z-Wave Gateway Unit • Power Adapter If any of the above items are damaged or missing, please contact your dealer immediately. Features • MT7620A processor with128MB Flash and 128MB SDRAM • One Ethernet port with RJ45 connector • Front Panel LEDs • Z-Wave Transceiver • USB 2.0 port • WPS button • Reset button • Sync button • Power In connector • Internal antenna for WiFi and Z-Wave 1 2 LEDs Top-mounted LEDs The Compact Z-Wave Gateway has five LEDs. Service • On (Green) - Control Point has made a successful activation to the Portal Server. • Off - Cloud service is not available. • Flashing - Attempting to establish a connection to the Portal Server. Z-Wave • On (Green) - Z-Wave function enabled. • Off - Z-Wave function disabled. • Flashing - Learn/exclusion mode is on. WiFi • On - Wireless connection available • Off - No Wireless connection available. • Flashing - Data is being transmitted or received via the Wireless connection. WAN • On (Green) - Ethernet connection established. • Off - No active connection on the corresponding Ethernet port. • Flashing - Data is being transmitted or received via the Ethernet (hub) port. POWER • On (Green) - Power On • Off - Power Off • Flashing - Reboot or Firmware upgrade. 3 Rear/Side Panel Power Port Connect the supplied power adapter here. ETHERNET Port Use standard LAN cable (RJ45 connector) to connect your PC to the port. USB Port The connector is USB host with support for mass storage device. Sync Button Push this button to synchronize for portal server or Z-Wave clients. WPS Button Push the WPS button on the device and on your other wireless device to perform WPS function that easily creates an encryption-secured wireless connection automatically. Reset This button has two (2) functions: • Reboot. When pressed and released, the Compact Z-Wave Gate- way will reboot (restart). • Clear All Data. This button can also be used to clear ALL data and restore ALL settings to the factory default values. To Clear All Data and restore the factory default values: 1. Power On. 2. Keep holding the Reset Button down for 8 seconds. Release the Reset Button. The Compact Z-Wave Gateway is now using the factory default values. 4 Chapter 2 Initial Installation This Chapter covers the software installation of the Compact Z-Wave Gateway. Requirements • Use a standard 10/100BaseT network (UTP) cable with RJ45 connector. Procedure 1. Choose an Installation Site Select a suitable place to install the Compact Z-Wave Gateway. 2. Connect LAN Cable Use standard LAN cable to connect devices to the Ethernet port on the Compact Z-Wave Gateway. 4. Power Up Connect the supplied power adapter to the Compact Z-Wave Gateway. Use only the power adapter provided. Using a different one may cause hardware damage. 5. Check the LEDs • The POWER LED should be ON. • The WAN LED should be ON (provided the PC is also ON.) 2 5 Chapter 3 Configuration This Chapter provides Setup details of the Z-Wave System. Configuration Program This Web Portal can help you to set up your Z-Wave system with the compatible devices. It allows you to securely access your home remotely from the Internet or a mobile phone. If you want to be notified when the events occur at home, the system will send you email and SMS notifications. Preparation Before attempting to configure the Compact Z-Wave Gateway, please ensure that: • Your PC can establish a physical connection to the Compact Z-Wave Gateway. The PC and the Compact Z-Wave Gateway must be directly connected (using the Hub port on the Compact Z-Wave Gateway) or on the same LAN segment. • The Compact Z-Wave Gateway must be installed and powered ON. Using your Web Browser To establish a connection from your PC to the Compact Z-Wave Gateway: 1. Start your WEB browser. 2. In the Address box, enter "HTTP://" and the IP Address of the Compact Z-Wave Gateway, as in this example, which uses the Compact Z-Wave Gateway's default IP Address: HTTP://192.168.1.1 3. When prompted for the User name and Password, enter values as follows…

Text truncated - open the document above for the full version.

Date：August 25, 2014 Subject: DoC declaration To whom it may concern, We, as the grantee of this project FCC ID: P27NA301ZW, would like to declare that the composite Portion categorized as computer peripheral has been authorized under the Declaration of Conformity procedures. Brand Name & Model Name of the specified radio equipment: Sercomm; MiOS Limited / Vera Control, Ltd. / NA301-ZWxxxxxxxx ; G150xxxxxxxx ; Edgexxxxxxxx (The “x” in model name can be 0 to 9, A to Z, blank or “-“ , for marking purpose) FCC ID: P27NA301ZW Product Name: Smart Home Gateway Regards, Yours Sincerely, Kevin Kuo Sr. Manager / R&D Division Sercomm Corporation TEL: 886-2-2655-3988#2631 FAX: 886-2-2655-7379 E-Mail: [email protected]

Date：August 25, 2014 BABT TCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Confidentiality Request FCC ID: P27NA301ZW Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, Sercomm Corporation hereby requests permanent confidential treatment of information accompanying this application as outlined below: Common exhibits for which confidentiality is requested are: Schematics Block Diagrams Theory of Operation The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours Sincerely, Kevin Kuo Sr. Manager / R&D Division Sercomm Corporation TEL: 886-2-2655-3988#2631 FAX: 886-2-2655-7379 E-Mail: [email protected]

Date：August 26, 2014 BABT FCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Dear Sir or Madam, Due to the business consideration, we hereby declare that our product of Smart Home Gateway Model: 1) NA301-ZWxxxxxxxx ; G150xxxxxxxx ; Edgexxxxxxxx (The “x” in model name can be 0 to 9, A to Z, blank or “- “ , for marking purpose) have as following difference for all the specification and layout are identical except they come with different model number for marketing purposes. Any questions regarding this declaration, please don’t hesitate to contact us. Your Sincerely, Kevin Kuo Sr. Manager / R&D Division Sercomm Corporation TEL: 886-2-2655-3988#2631 FAX: 886-2-2655-7379 E-Mail: [email protected]

Date：August 25, 2014 BABT TCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Dear Sir or Madam, We, Sercomm Corporation hereby authorize Compliance Certification Services Inc / James Chan to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. This authorization expires on 2015/2/25 Yours Sincerely, Kevin Kuo Sr. Manager / R&D Division Sercomm Corporation TEL: 886-2-2655-3988#2631 FAX: 886-2-2655-7379 E-Mail: [email protected]

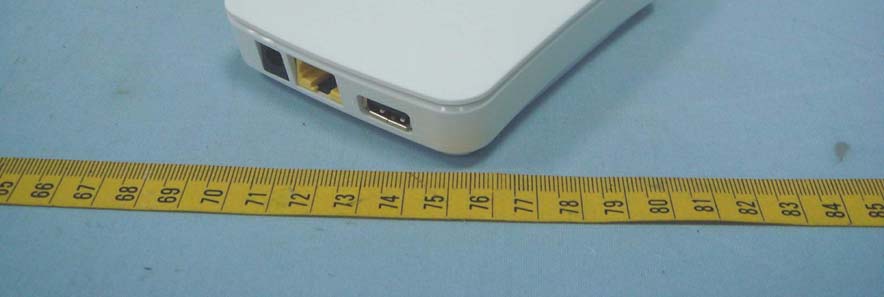

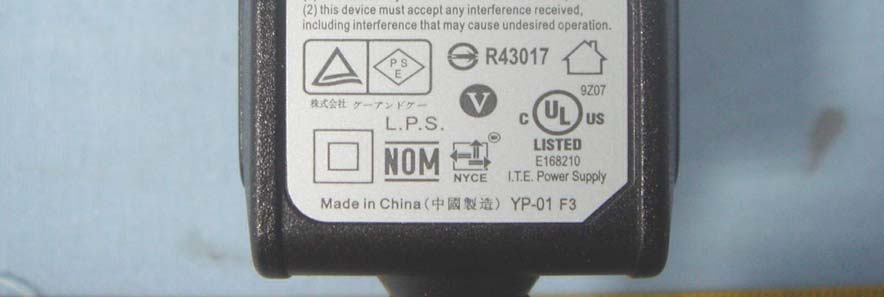

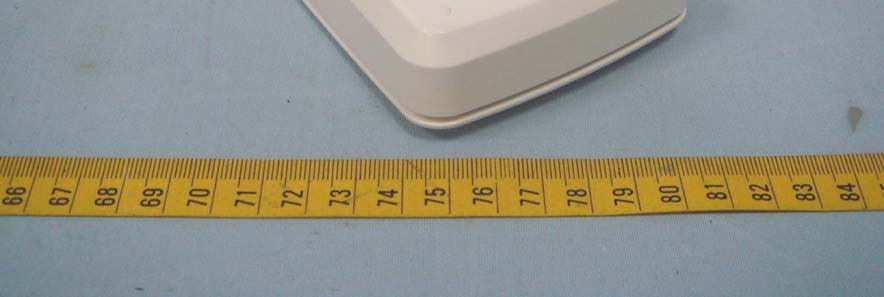

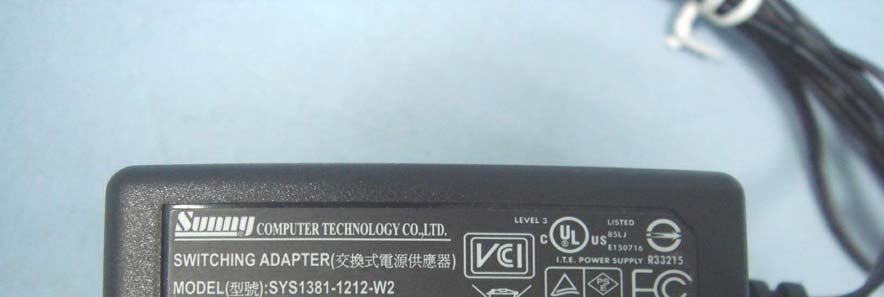

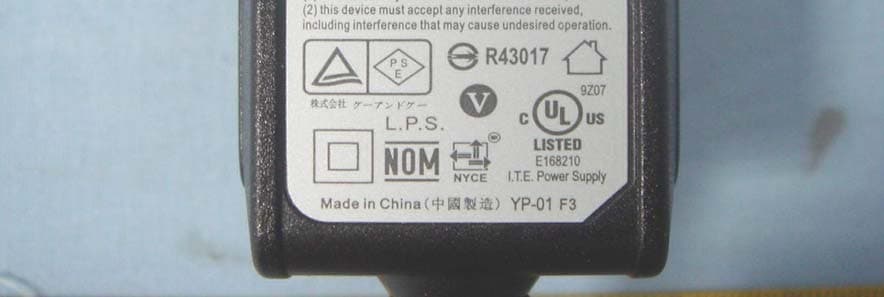

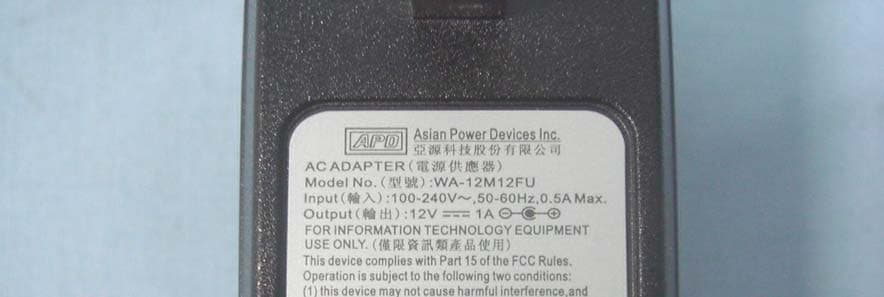

Report No: T140708D15 Page 1 / 8 Rev.00 EXTERNAL PHOTOGRAPHS OF EUT Report No: T140708D15 Page 2 Rev.00 Report No: T140708D15 Page 3 Rev.00 Asia power Device Inc. / WA-12M12FU Report No: T140708D15 Page 4 Rev.00 Sunny / SYS-1381-1212-W2

單位用量x1 44.5

Report No: T140708D15 Page 5 Rev.00 INTERNAL PHOTOGRAPHS OF EUT Report No: T140708D15 Page 6 Rev.00 Report No: T140708D15 Page 7 Rev.00 Report No: T140708D15 Page 8 Rev.00 【Antenna

Compliance Certification Services Inc. Report No.: T140708D15-MF Date of Issue: August 25, 2014 Page 1 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. APPENDIX I RADIO FREQUENCY EXPOSURE LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUT Smart Home Gateway Model NA301-ZWxxxxxxxx / G150xxxxxxxx / Edgexxxxxxxx (The “x” in model name can be 0 to 9, A to Z, blank or “-“ , for marking purpose) Frequency band (Operating) 802.11b/g/n HT20: 2.412GHz ~ 2.462GHz 802.11n HT40: 2.422GHz ~ 2.452GHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna Specification 2.4GHz: Antenna Gain :4.99 dBi (Numeric gain:3.16) Maximum Average output power IEEE 802.11b Mode: 17.99 dBm(62.951 mW) IEEE 802.11g Mode: 16.64 dBm(46.132 mW) IEEE 802.11n HT 20 Mode: 13.89 dBm(24.491 mW) IEEE 802.11n HT 40 Mode: 14.36 dBm(27.290 mW) Maximum Tune up Power IEEE 802.11b Mode: 18.00 dBm(63.096 mW) IEEE 802.11g Mode: 18.00 dBm(63.096 mW) IEEE 802.11n HT 20 Mode: 18.00 dBm(63.096 mW) IEEE 802.11n HT 40 Mode: 18.00 dBm(63.096 mW) Evaluation applied MPE Evaluation* SAR Evaluation N/A Compliance Certification Services Inc. Report No.: T140708D15-MF Date of Issue: August 25, 2014 Page 2 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 2014/08/22 Initial Issue ALL Angel Cheng Compliance Certification Services Inc. Report No.: T140708D15-MF Date of Issue: August 25, 2014 Page 3 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TEST RESULTS No non-compliance noted. Calculation Given d GP E   30 & 377 2 E S Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 377 30 d GP S   Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields   22 0796.0 100/377 1000/30 d GP d GP S      Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Compliance Certification Services Inc. Report No.: T140708D15-MF Date of Issue: August 25, 2014 Page 4 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Maximum Permissible Exposure Substituting the MPE safe distance using d = 20 cm into Equation 1: GPS000199.0 Where P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 IEEE 802.11b mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 1241263.0963.16200.03971 IEEE 802.11g mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 1241263.0963.16200.03971 IEEE 802.11n HT20 mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 1241263.0963.16200.03971 IEEE 802.11n HT40 mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 3242263.0963.16200.03971
