P27NA403Zigbee / WiFi Compact Monitoring Gateway

NA403 Home Monitoring Gateway User Guide Table of Contents CHAPTER 1 INTRODUCTION ............................................................................................. 1 Package Contents .............................................................................................................. 1 Features .............................................................................................................................. 1 LEDs ................................................................................................................................... 2 CHAPTER 2 INITIAL INSTALLATION .............................................................................. 4 Requirements ..................................................................................................................... 4 Procedure ........................................................................................................................... 4 CHAPTER 3 BOARD DESCRIPTION .................................................................................. 6 Overview ............................................................................................................................ 6 Components and connectors ............................................................................................ 6 Router/AP configuration .................................................................................................. 9 Regulatory Approvals ..................................................................................................... 10 Copyright © 2010. All Rights Reserved. Document Version: 1.0 All trademarks and trade names are the properties of their respective owners. i 1 Chapter 1 Introduction This Chapter provides an overview of the Home Monitoring Gateway's fea- tures and capabilities. Congratulations on the purchase of your new Home Monitoring Gateway. The Home Monitoring Gateway is a consumer electronic device, which is used for home monitoring and security. Package Contents The following items should be included: • The Home Monitoring Gateway Unit • Power Adapter • A Stand If any of the above items are damaged or missing, please contact your dealer immediately. Features • BCM5354 processor with16MB Flash and 32MB SDRAM • Two Ethernet ports with RJ45 connectors. • Front Panel LEDs • Zigbee Transceiver • Two USB 2.0 ports • WPS button • Reset button • Power In connector • Internal antenna for WiFi and Zigbee 1 LEDs Front-mounted LEDs The Home Monitoring Gateway has 8 LEDs. POWER • On (Green)- Power On • Off - Power Off • On (Amber) - POST (power on self test) failure or device malfunc- tion ETH (1~2) (Green) • On (Green)- LAN connection established. • Off - No active connection on the corresponding LAN port. • Flashing - Data is being transmitted or received via the corresponding LAN (hub) port. WiFi • On - Wireless connection available • Off - No Wireless connection available. • Flashing - Data is being transmitted or received via the Wireless connection. Zigbee • On - Zigbee function enabled. • Off - Zigbee function disabled. USB (1~2) • On (Green)- USB connection established. • Off - No active connection on the corresponding USB port. • Flashing - Data is being transmitted or received via the corresponding USB port. Service • On (Green)- Control Point has made a successful activation to the Portal Server. • Off - No active connection to the Portal Server. • Flashing - Attempting to establish a connection to the Portal Server. 2 Rear Panel Reset This button has two (2) functions: • Reboot. When pressed and released, the Home Monitoring Gate- way will reboot (restart). • Clear All Data. This button can also be used to clear ALL data and restore ALL settings to the factory default values. To Clear All Data and restore the factory default values: 1. Power On. 2. Keep holding the Reset Button down for 8 seconds. Release the Reset Button. The Home Monitoring Gateway is now using the factory default values. ETH (1~2) Port Use standard LAN cables (RJ45 connectors) to connect your PCs to these ports. ZIGBEE But- ton Click this button to enable the Zigbee function. USB (1~2) Port The two connectors are USB hosts with support for mass storage devices. WPS button Push the WPS button on the device and on your other wireless device to perform WPS function that easily creates an encryption-secured wire- less connection automatically. Power Port Connect the supplied power adapter here. 3 2 Chapter 2 Initial Installation This Chapter covers the software installation of the Home Monitoring Gate- way. Requirements • Network cables. Use standard 10/100BaseT network (UTP) cables with RJ45 connectors. Procedure 1. Choose an Installation Site Select a suitable place to install the Home Monitoring Gateway. 2. Connect LAN Cables Use standard LAN cables to connect devices to the Ethernet ports on the Home Monitor- ing Gateway. 4. Power Up Connect the supplied power adapter to the Home Monitoring Gateway. Use only the power adapter provided. Using a different one may cause hardware damage. 5. Check the LEDs • The POWER LED should be ON. 4 Initial Installation • The ETH LED should be ON (provided the PC is also ON.) 5 3 Chapter 3 Board Description This Chapter provides board description for the Home Monitoring Gateway. Overview NA403 is a home gateway/automation, monitoring platform based on the Broadcom chip BCM5354. Below is an image of the board showing different connection and interfaces. Components and connectors 1. Power connector - The power jack connects to DC12V 1A power source. 2. Console connector - The RS232 connector is used for debugging purpose. Note interface voltage level is CMOS (3.3V), a logic level converter such as MAX232 will be required. Baud rate: 115200 Data bits: 8 Stop bits: 1 Parity bit: none Flow control: none 3. RJ-45 (1) connector - This is the LAN port connector with DHCP server function. 4. RJ-45 (2) connector - This is the WAN port connector. 5. …

Text truncated - open the document above for the full version.

SerComm Corporation磊 Taipei Office: 8F, No.3-1, YuanQu St., NanKang, Taipei 115, Taiwan, R.O.C. TEL: 886-2-2655-3988 FAX: 886-2-2655-3966 Chu Nan Office: 3F, No. 81, YuYi Rd., Chu-Nan, Miao-Li 350, Taiwan, R.O.C. TEL: 886-37-585-899 FAX: 886-37-585-000 Date: July 8, 2010 Federal Communications Commission Authorization and Evaluation Division FCC ID : P27NA403 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1. Schematics 2. Operational Description 3. Block diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Yours sincerely, ___________________________ Ronnie Cheng Associate Manager / R&D Division SerComm Corporation TEL: 886-2-2655-3988 #2547 FAX: 886-2-2655-7379 E-Mail: [email protected]

SerComm Corporation磊 Taipei Office: 8F, No.3-1, YuanQu St., NanKang, Taipei 115, Taiwan, R.O.C. TEL: 886-2-2655-3988 FAX: 886-2-2655-3966 Chu Nan Office: 3F, No. 81, YuYi Rd., Chu-Nan, Miao-Li 350, Taiwan, R.O.C. TEL: 886-37-585-899 FAX: 886-37-585-000 Date: July 8, 2010 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Mr. James Lee / Section Manager of Compliance Certification Services Inc. and hereafter referred to as CCS, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Mr. James Lee / Section Manager of Compliance Certification Services Inc. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; SerComm Corporation磊 Taipei Office: 8F, No.3-1, YuanQu St., NanKang, Taipei 115, Taiwan, R.O.C. TEL: 886-2-2655-3988 FAX: 886-2-2655-3966 Chu Nan Office: 3F, No. 81, YuYi Rd., Chu-Nan, Miao-Li 350, Taiwan, R.O.C. TEL: 886-37-585-899 FAX: 886-37-585-000 f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Yours sincerely, ___________________________ Ronnie Cheng Associate Manager / R&D Division SerComm Corporation TEL: 886-2-2655-3988 #2547 FAX: 886-2-2655-7379 E-Mail: [email protected]

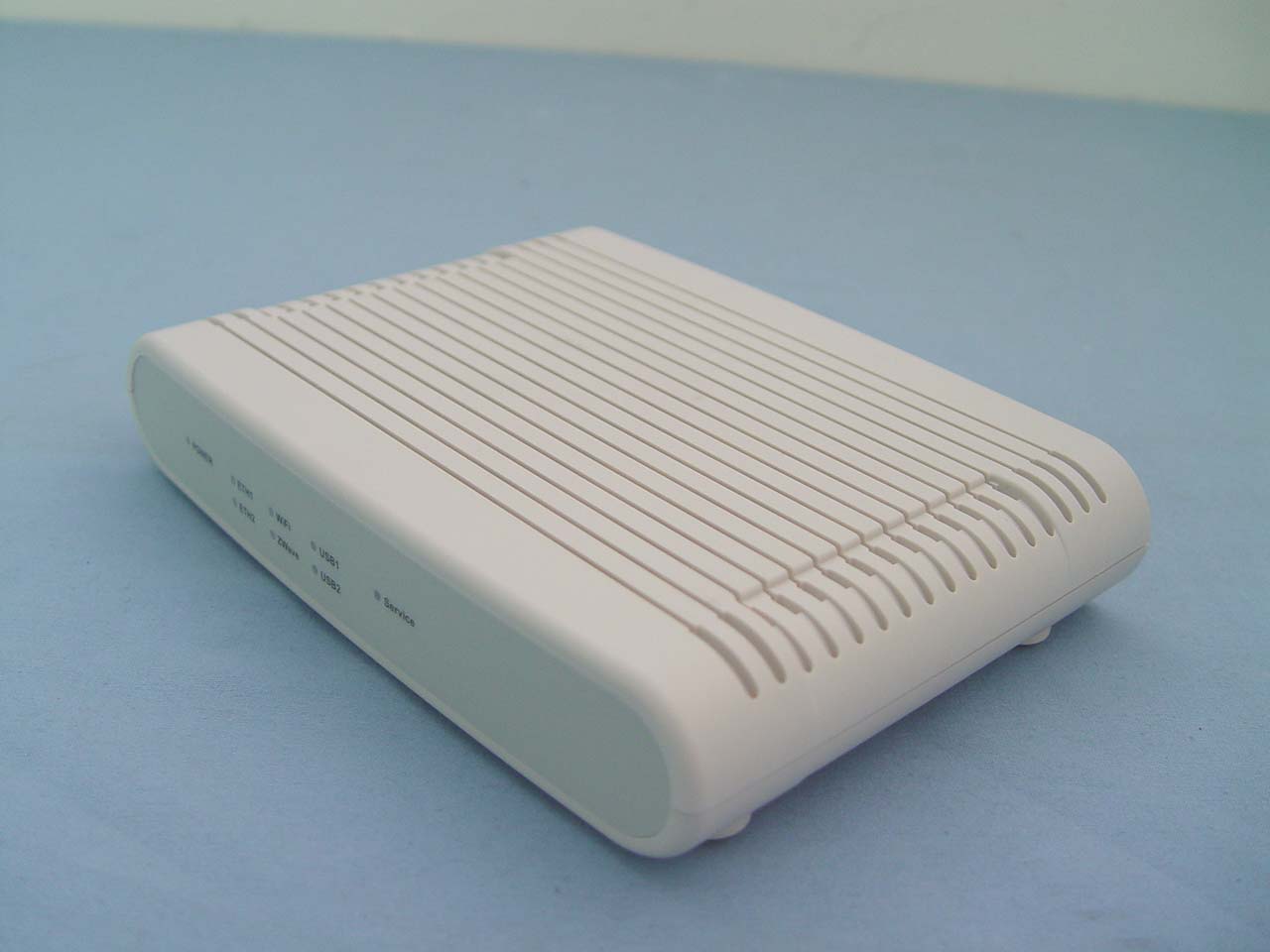

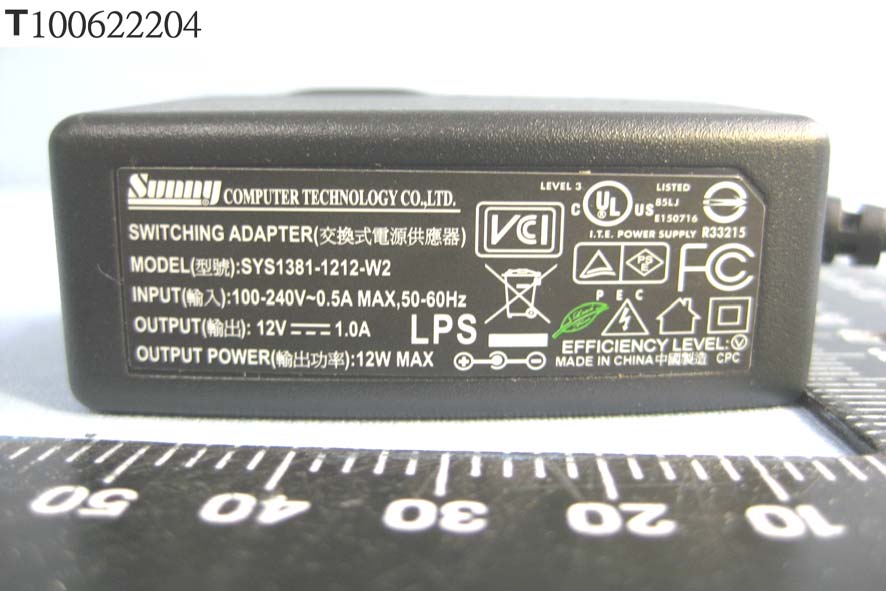

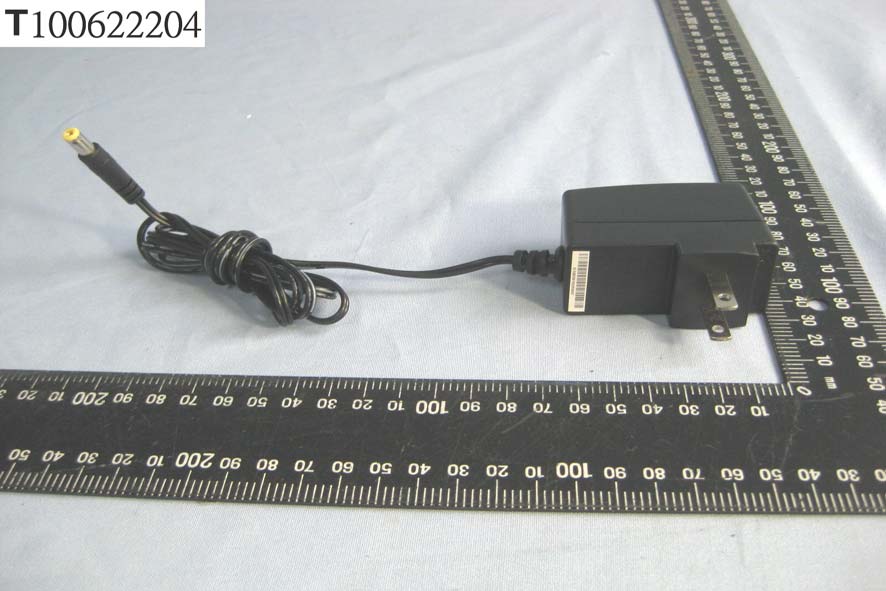

Compliance Certification Services Inc. Report No.: T100622204 Date of Issue: July 26, 2010 A1 - 1 Total Page: 10 Rev. 00 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T100622204 Date of Issue: July 26, 2010 A1 - 2 Total Page: 10 Rev. 00

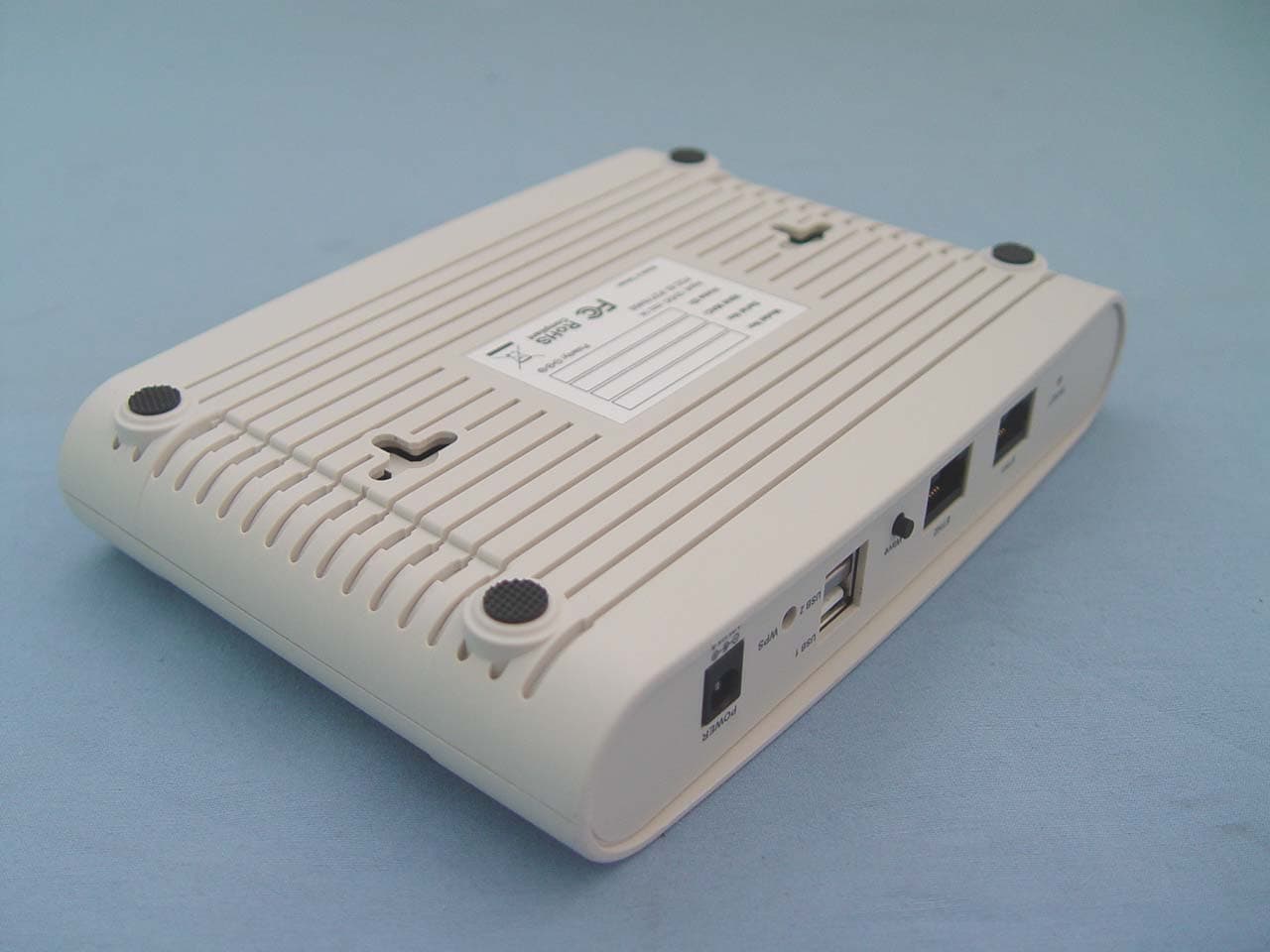

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference. (2) this device must accept any interference received, Including interference that may cause undesired operations. Label Location

Compliance Certification Services Inc. Report No.: T100622204 Date of Issue: July 26, 2010 A1 - 3 Rev. 00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T100622204 Date of Issue: July 26, 2010 A1 - 4 Rev. 00 Compliance Certification Services Inc. Report No.: T100622204 Date of Issue: July 26, 2010 A1 - 5 Rev. 00 Wifi Antenna Compliance Certification Services Inc. Report No.: T100622204 Date of Issue: July 26, 2010 A1 - 6 Rev. 00 Compliance Certification Services Inc. Report No.: T100622204 Date of Issue: July 26, 2010 A1 - 7 Rev. 00 Compliance Certification Services Inc. Report No.: T100622204 Date of Issue: July 26, 2010 A1 - 8 Rev. 00 Compliance Certification Services Inc. Report No.: T100622204 Date of Issue: July 26, 2010 A1 - 9 Rev. 00 Module Compliance Certification Services Inc. Report No.: T100622204 Date of Issue: July 26, 2010 A1 - 10 Rev. 00 Printed Antenna

Compliance Certification Services Inc. Report No.: T100622204-RP1 FCC ID: P27NA403 Date of Issue: July 26, 2010 Page 58 Rev. 00 APPENDIX I RADIO FREQUENCY EXPOSURE LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUT Compact Monitoring Gateway Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.18GHz ~ 5.32GHz / 5.50GHz ~ 5.70GHz WLAN: 5.745GHz ~ 5.825GHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power IEEE 802.11b: 15.45 dBm (35.08mW) IEEE 802.11g: 13.37 dBm (21.73mW) Antenna gain (Max) 3.29 dBi (Numeric gain: 2.13) Evaluation applied MPE Evaluation SAR Evaluation Remark: 1. The maximum output power is 15.45dBm (35.08mW) at 2412MHz (with 2.13 numeric antenna gain.) 2. DTS device is not subject to routine RF evaluation; MPE estimate is used to justify the compliance. 3. For mobile or fixed location transmitters, no SAR consideration applied. The maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger. TEST RESULTS No non-compliance noted. Compliance Certification Services Inc. Report No.: T100622204-RP1 FCC ID: P27NA403 Date of Issue: July 26, 2010 Page 59 Rev. 00 Calculation Given d GP E ×× = 30 & 3770 2 E S = Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S ×× = Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields () () 2 2 0796.0 100/3770 1000/30 d GP d GP S × ×= × ×× = Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Maximum Permissible Exposure EUT output power = 35.08mW Numeric Antenna gain = 2.13 Substituting the MPE safe distance using d = 20 cm into Equation 1: Yields GPS××=000199.0 Where P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Æ Power density = 0.0149 mW / cm 2 (For mobile or fixed location transmitters, the maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger.)

Compliance Certification Services Inc. Report No.: T100622204-RP2 FCC ID: P27NA403 Date of Issue: July 26, 2010 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 44 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Compact Monitoring Gateway Model: NA403, CP3000 Trade Name: SerComm Issued to SerComm Corporation 8F, No.3-1, YuanQu St., NanKang, Taipei 115, Taiwan, R.O.C. Issued by Compliance Certification Services Inc. No. 11, Wu-Gong 6 th Rd., Wugu Industrial Park, Taipei Hsien 248, Taiwan (R.O.C.) http://www.ccsrf.com [email protected] Compliance Certification Services Inc. Report No.: T100622204-RP2 FCC ID: P27NA403 Date of Issue: July 26, 2010 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION....................................................................................................3 2. EUT DESCRIPTION ...........................................................................................................................4 3. TEST METHODOLOGY ....................................................................................................................5 3.1 EUT CONFIGURATION........................................................................................................................5 3.2 EUT EXERCISE....................................................................................................................................5 3.3 GENERAL TEST PROCEDURES.............................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS.........................................................6 3.5 DESCRIPTION OF TEST MODES...........................................................................................................7 4 INSTRUMENT CALIBRATION........................................................................................................8 4.1 MEASURING INSTRUMENT CALIBRATION......................................................................................8 4.2 MEASUREMENT EQUIPMENT USED .........................................................................................8 4.3 MEASUREMENT UNCERTAINTY ...............................................................................................9 5 FACILITIES AND ACCREDITATIONS ........................................................................................10 5.1 FACILITIES.......................................................................................................................................10 5.2 EQUIPMENT......................................................................................................................................10 5.3 TABLE OF ACCREDITATIONS AND LISTINGS.....................................................................................11 6 SETUP OF EQUIPMENT UNDER TEST .......................................................................................12 6.1 SETUP CONFIGURATION OF EUT.......................................................................................................12 6.2 SUPPORT EQUIPMENT ...............................................................................................................12 7 FCC PART 15.247 REQUIREMENTS.............................................................................................13 7.1 6DB BANDWIDTH.............................................................................................................................13 7.2 PEAK POWER....................................................................................................................................16 7.3 AVERAGE POWER............................................................................................................................17 7.4 BAND EDGES MEASUREMENT ................................................................................................18 7.5 PEAK POWER SPECTRAL DENSITY....................................................................................................23 7.6 SPURIOUS EMISSIONS.................................................................................................................26 7.7 POWERLINE CONDUCTED EMISSIONS...............................................................................................37 APPENDIX I RADIO FREQUENCY EXPOSURE ...............................................................................40 APPENDIX II PHOTOGRAPHS OF TEST SETUP .............................................................................42 APPENDIX 1 - PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T100622204-RP2 FCC ID: P27NA403 Date of Issue: July 26, 2010 Page 3 Rev. 00 1. TEST RESULT CERTIFICATION Applicant: SerComm Corporation 8F, No.3-1, YuanQu St., NanKang, Taipei 115, Taiwan, R.O.C. Equipment Under Test: Compact Monitoring Gateway Tr a d e N a m e : SerComm Model: NA403, CP3000 Date of Test: June 24 ~ July 16, 2010 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted Deviation from Applicable Standard N/A We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2003 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Reviewed by: Rex Lai Gina Lo Section Manager Section Manager Compliance Certification Services Inc. Compli…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: T100622204-RP1 FCC ID: P27NA403 Date of Issue: July 26, 2010 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 62 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Compact Monitoring Gateway Model: NA403, CP3000 Trade Name: SerComm Issued to SerComm Corporation 8F, No.3-1, YuanQu St., NanKang, Taipei 115, Taiwan, R.O.C. Issued by Compliance Certification Services Inc. No. 11, Wu-Gong 6 th Rd., Wugu Industrial Park, Taipei Hsien 248, Taiwan (R.O.C.) http://www.ccsrf.com [email protected] Compliance Certification Services Inc. Report No.: T100622204-RP1 FCC ID: P27NA403 Date of Issue: July 26, 2010 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION....................................................................................................3 2. EUT DESCRIPTION ...........................................................................................................................4 3. TEST METHODOLOGY ....................................................................................................................5 3.1 EUT CONFIGURATION .................................................................................................................5 3.2 EUT EXERCISE...............................................................................................................................5 3.3 GENERAL TEST PROCEDURES ..................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ....................................................6 3.5 DESCRIPTION OF TEST MODES .................................................................................................7 4. INSTRUMENT CALIBRATION........................................................................................................8 4.1 MEASURING INSTRUMENT CALIBRATION ............................................................................8 4.2 MEASUREMENT EQUIPMENT USED.........................................................................................8 4.3 MEASUREMENT UNCERTAINTY...............................................................................................9 5. FACILITIES AND ACCREDITATIONS ........................................................................................10 5.1 FACILITIES ...................................................................................................................................10 5.2 EQUIPMENT .................................................................................................................................10 5.3 TABLE OF ACCREDITATIONS AND LISTINGS......................................................................11 6. SETUP OF EQUIPMENT UNDER TEST .......................................................................................12 6.1 SETUP CONFIGURATION OF EUT............................................................................................12 6.2 SUPPORT EQUIPMENT ...............................................................................................................12 7. FCC PART 15.247 REQUIREMENTS.............................................................................................13 7.1 6DB BANDWIDTH .......................................................................................................................13 7.2 PEAK POWER ...............................................................................................................................18 7.3 AVERAGE POWER ......................................................................................................................23 7.4 BAND EDGES MEASUREMENT ................................................................................................27 7.5 PEAK POWER SPECTRAL DENSITY ........................................................................................36 7.6 SPURIOUS EMISSIONS ...............................................................................................................41 7.7 POWERLINE CONDUCTED EMISSIONS..................................................................................55 APPENDIX I RADIO FREQUENCY EXPOSURE ...............................................................................58 APPENDIX II PHOTOGRAPHS OF TEST SETUP .............................................................................60 Compliance Certification Services Inc. Report No.: T100622204-RP1 FCC ID: P27NA403 Date of Issue: July 26, 2010 Page 3 Rev. 00 1. TEST RESULT CERTIFICATION Applicant: SerComm Corporation 8F, No.3-1, YuanQu St., NanKang, Taipei 115, Taiwan, R.O.C. Equipment Under Test: Compact Monitoring Gateway Tr a d e N a m e : SerComm Model: NA403, CP3000 Date of Test: June 24 ~ July 7, 2010 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted Deviation from Applicable Standard None We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2003 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Reviewed by: Rex Lai Gina Lo Section Manager Section Manager Compliance Certification Services Inc. Compliance Certification Services Inc. Compliance Certification Services Inc. Report No.: T100622204-RP1 FCC ID: P27NA403 Date of Issue: July 26, 2010 …

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: T100622204-RP1 FCC ID: P27NA403 Date of Issue: July 26, 2010 Page 60 Rev. 00 APPENDIX II PHOTOGRAPHS OF TEST SETUP Conducted Emissions Setup Photos Compliance Certification Services Inc. Report No.: T100622204-RP1 FCC ID: P27NA403 Date of Issue: July 26, 2010 Page 61 Rev. 00 Radiated Emissions Setup Photos Compliance Certification Services Inc. Report No.: T100622204-RP1 FCC ID: P27NA403 Date of Issue: July 26, 2010 Page 62 Rev. 00 Powerline Conducted Emissions Setup Photos
