P27NA910BHome Monitoring Gateway

Home Monitoring Gateway NA910 User Guide i Table of Contents CHAPTER 1 INTRODUCTION ............................................................................................. 1 Package Contents .............................................................................................................. 1 Specfication ........................................................................................................................ 1 LEDs ................................................................................................................................... 2 CHAPTER 2 INITIAL INSTALLATION .............................................................................. 5 Requirements ..................................................................................................................... 5 Procedure ........................................................................................................................... 5 CHAPTER 3 BOARD DESCRIPTION .................................................................................. 6 Components and connectors ............................................................................................ 6 Copyright © 2010. All Rights Reserved. Document Version: 1.0 All trademarks and trade names are the properties of their respective owners. 1 Chapter 1 Introduction This Chapter provides an overview of the Home Monitoring Gateway's fea- tures and capabilities. Congratulations on the purchase of your new Home Monitoring Gateway. The Home Monitor- ing Gateway is a consumer electronic device, which is used for home monitoring and security. Package Contents The following items should be included: • The Home Monitoring Gateway Unit • Power Adapter • A Stand If any of the above items are damaged or missing, please contact your dealer immediately. Specfication • DDR2 SDRAM 64MB • NAND 32MB Flash • Four Ethernet ports with RJ45 connectors. • Front Panel LEDs • Zigbee module • Two USB 2.0 ports • Sync button • WPS button • Reset button • Power In connector • Two Internal antennae • 802.11bgn Wireless Functions 1 2 LEDs Front-mounted LEDs The Home Monitoring Gateway has 8 LEDs. Reset This button has two (2) functions: • Reboot. When pressed and released, the 11N Home Monitoring Gateway will reboot (restart). • Clear All Data. This button can also be used to clear ALL data and restore ALL settings to the factory default values. To Clear All Data and restore the factory default values: 1. Power On. 2. Keep holding the Reset Button down for 8 seconds. Release the Reset Button. The 11N Home Monitoring Gateway is now using the factory default values. WPS button Push the WPS button on the device and on your other wireless device to perform WPS function that easily creates an encryption-secured wireless connection automatically. Sync Button Push this button to synchronize for portal server or Zigbee clients. POWER (Green) • On - Power On • Off - Power Off • Flashing - Reboot or Firmware upgrade. WAN (Green) • On - Connection to the Gateway attached to the WAN (Internet) port is established. • Off - No connection to the Gateway. • Flashing - Data is being transmitted or received via the connection. WiFi & WPS WiFi • On (Green) - Wireless connection available • Off (Green) - No Wireless connection available. • Flashing (Green) - Data is being transmitted or received via the Wireless connection. 3 WPS • On (Amber) - Problem occurred while trying to enable the WPS function. • On (Green) - WPS function is enabled. • Flashing - Data is being transmitted or received via the connection. Service • On (Green)- Control Point has made a successful activation to the Portal Server. • Off - No active connection to the Portal Server. • Flashing - Attempting to establish a connection to the Portal Server. LAN (Green) • On (Green)- LAN connection established. • Off - No active connection on the corresponding LAN port. • Flashing - Data is being transmitted or received via the correspond- ing LAN (hub) port. Zigbee • On - Zigbee function enabled. • Off - Zigbee function disabled. • Flashing - Data is being transmitted or received via the connection. USB (1~2) • On (Green)- USB connection established. • Off - No active connection on the corresponding USB port. • Flashing - Data is being transmitted or received via the correspond- ing USB port. 4 Rear Panel WAN port (10/100BaseT) Connect the DSL or Cable Modem here. If your modem came with a cable, use the supplied cable. Otherwise, use a standard LAN cable. LAN (1~4) Port Use standard LAN cables (RJ45 connectors) to connect your PCs to these ports. USB (1~2) Port The two connectors are USB hosts with support for mass storage devices. RS232/RS422 terminal The terminal block includes transmit (tx)/receive (rx) connections and a GND port. Power Port Connect the supplied power adapter here. 5 Chapter 2 Initial Installation This Chapter covers the software installation of the Home Monitoring Gate- way. Requirements • Network cables. Use standard 10/100BaseT network (UTP) cables with RJ45 connectors. Procedure 1. Choose an Installation Site Select a suitable place to install the Home Monitoring Gateway. 2. Connect LAN Cables Use standard LAN cables to connect devices to the Ethernet ports on the Home Monitor- ing Gateway. 4. Power Up Connect the supplied power adapter to the Home Monitoring Gateway. Use only the power adapter provided. Using a different one may cause hardware damage. 5. Check the LEDs • The POWER LED should be ON. • The LAN LED should be ON (provided the PC is also ON.) 2 6 Chapter 3 Board Description This Chapter provides board description for the Home Monitoring Gateway. Components and connectors 1234 98765 10 11 • 1. RS422/RS232 connector • 2. USB type A connector • 3. LAN port • 4. WAN port • 5. Expansion slot connectors • 6. Push buttons. • 7. Console port • 8. LEDs • 9. RT3662 processor • 10. RS422/RS232 function select jumper • 11. DC power jack 3 7 Console port connection guide F…

Text truncated - open the document above for the full version.

SerComm Corporation磊 Taipei Office: 8F, No.3-1, YuanQu St., NanKang, Taipei 115, Taiwan, R.O.C. TEL: 886-2-2655-3988 FAX: 886-2-2655-3966 Chu Nan Office: 3F, No. 81, YuYi Rd., Chu-Nan, Miao-Li 350, Taiwan, R.O.C. TEL: 886-37-585-899 FAX: 886-37-585-000 Date:December 7, 2010 Federal Communications Commission Authorization and Evaluation Division FCC ID : P27NA910B Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1. Schematics 2. Operational Description 3. Block diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application.

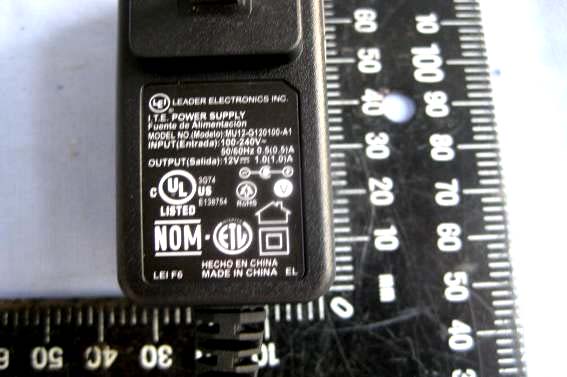

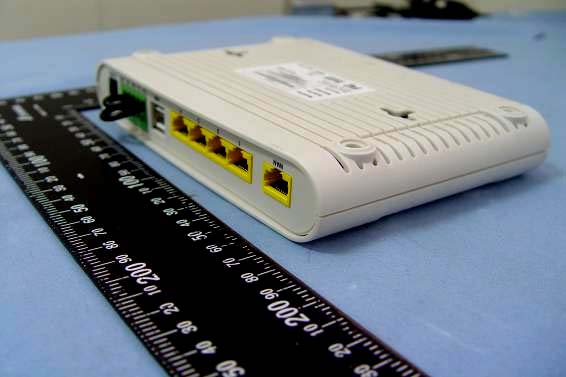

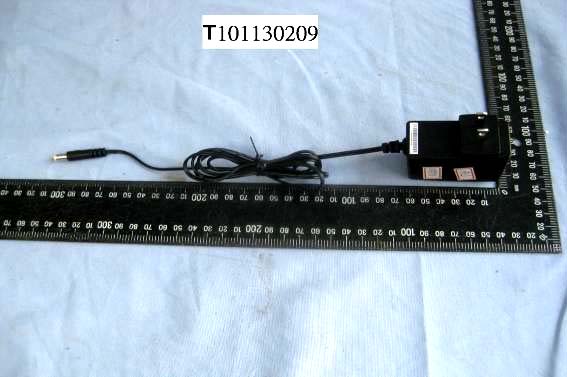

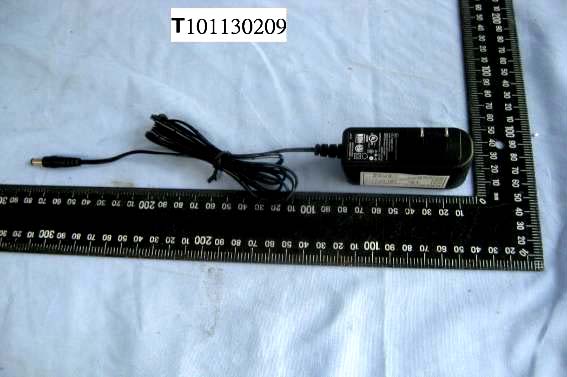

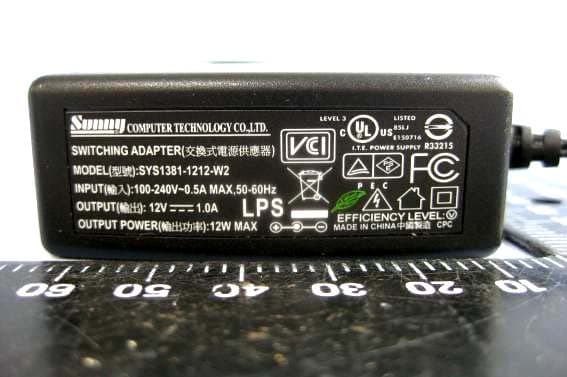

Compliance Certification Services Inc. Report No.: T101130209 Date of Issue: January 3, 2010 A1 - 1 Total Page: 17 Rev. 00 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT For 802.11 b/g/n + Zigbee module Compliance Certification Services Inc. Report No.: T101130209 Date of Issue: January 3, 2010 A1 - 2 Rev. 00 Adapter For SYS1381-1212-W2 Compliance Certification Services Inc. Report No.: T101130209 Date of Issue: January 3, 2010 A1 - 3 Rev. 00 For MU12-G120100-A1

Label Location

Compliance Certification Services Inc. Report No.: T101130209 Date of Issue: January 3, 2010 A1 - 4 Rev. 00 INTERNAL PHOTOGRAPHS OF EUT For 802.11b/g/n + Zigbee WLAN Antenna C147-510674-A (SSR-210468) WLAN Antenna C147-510649-A (SSR-210213) WLAN Antenna C147-510652-A (SSR-209470) Zigbee Module Compliance Certification Services Inc. Report No.: T101130209 Date of Issue: January 3, 2010 A1 - 5 Rev. 00 For Zigbee Module Compliance Certification Services Inc. Report No.: T101130209 Date of Issue: January 3, 2010 A1 - 6 Rev. 00 Compliance Certification Services Inc. Report No.: T101130209 Date of Issue: January 3, 2010 A1 - 7 Rev. 00 Compliance Certification Services Inc. Report No.: T101130209 Date of Issue: January 3, 2010 A1 - 8 Rev. 00 Compliance Certification Services Inc. Report No.: T101130209 Date of Issue: January 3, 2010 A1 - 9 Rev. 00 Compliance Certification Services Inc. Report No.: T101130209 Date of Issue: January 3, 2010 A1 - 10 Rev. 00 Compliance Certification Services Inc. Report No.: T101130209 Date of Issue: January 3, 2010 A1 - 11 Rev. 00 Compliance Certification Services Inc. Report No.: T101130209 Date of Issue: January 3, 2010 A1 - 12 Rev. 00 For Zigbee Antenna Compliance Certification Services Inc. Report No.: T101130209 Date of Issue: January 3, 2010 A1 - 13 Rev. 00 Compliance Certification Services Inc. Report No.: T101130209 Date of Issue: January 3, 2010 A1 - 14 Rev. 00 Compliance Certification Services Inc. Report No.: T101130209 Date of Issue: January 3, 2010 A1 - 15 Rev. 00 For WLAN Antenna (C147-510652-A (SSR-209470)) Compliance Certification Services Inc. Report No.: T101130209 Date of Issue: January 3, 2010 A1 - 16 Rev. 00 For WLAN Antenna C147-510649-A (SSR-210213) Compliance Certification Services Inc. Report No.: T101130209 Date of Issue: January 3, 2010 A1 - 17 Rev. 00 For WLAN Antenna C147-510674-A (SSR-210468)

Item Page 1.1 2.2 3.3~8 ............... ... .................. ྒྷᇢ໴ܫ ګ঴ቹ .................. .................. Contents Description .................................... ๵௑। Specification 1. Electrical Properties (With housing) 1.1 Frequency Range.................. 1.2 Impedance ........................ 1.3 VSWR ........................... ... 1.4 Return Loss........................ 1.5 Radiation ........................... 1.6 Gain(peak).........................3.3dBi (excluding cable loss )@2.4GHz ~ 2.5GHz 5.7dBi (excluding cable loss )@4.9GHz ~ 5.825GHz 1.7 Cable Loss......... ............... 0.59dB [email protected] ~ 2.5GHz 0.89dB [email protected] ~ 5.825GHz 1.8 Polarization..................... ...Linear ; Vertical 1.9 Admitted Power.................. 1.10 Cable.............................. ...1.13 Coaxial Cable ; Gray 1.11 Connector........................ ...MHF 2. Physical Properties : 2.1 Operating Temp. ............... ...-10к ~ +60к 2.2 Storage Temp. .................. ...-10к ~ +70к 1W 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.825GHz 50 Nominal 1.92:1 Max. -10 dB Max. PIFA Antenna Omni-directional 1 2 ! Qbhf!2!pg!7! 1 S-parameter test results! 1.1 S11 test results! 1.1.1!M.gear 1.1.1.1!Ant2 3 ! Qbhf!3!pg!7! 2 Gain & Patterns test results! 2.1 Measurement setting! M.gear !YZ!Z[!Y[! 1±!Sjhiu!Vq!Vq! :1±!Cbdl!Cbdl!Sjhiu! 291±!Mfgu!Epxo!Epxo! 381±!Gspou!Gspou!Mfgu! 4 ! Qbhf!4!pg!7! ! ʳӰʳӽʳ ˧̂̇˴˿ʳ˴́˺˿˸ʳ˄ˊˈ±ʳˆˉ˃±ʳ ̨̂̊ʳ̀˴́̌ʳ˴́˺˿˸ʳ̆˶˴́ʳ̂́˸ʳ̃̂˼́̇ˈ±ʳˈ±ʳ ˧̂̇˴˿ʳ̆˶˴́ʳ̃̂˼́̇ʳˆˉʳˊˆʳ ! 5 ! Qbhf!5!pg!7! 2.2 2D patterns 2.2.1 M.gear 3.2.1.3 Ant2 2.4~2.5GHz/4.9~5.825GHz X-Z Plane (E-total) 6 ! Qbhf!6!pg!7! Y-Z Plane (E-total) X-Y Plane (E-total) 4 Summary 4.1 Return Loss Ant2(dB) 2.4GHz-15.6 2.5GHz-15.9 4.9GHz-11.5 5.15GHz-13.1 5.35GHz-19.4 5.6GHz-15.3 5.75GHz-13.8 5.85GHz-18.8 7 ! Qbhf!7!pg!7! 4.3 3D total Peak Gain & Efficiency Ant2 Frequency Peak Gain (dBi) Efficiency (%) 2400MHz3.3 50% 2412MHz3.3 50% 2437MHz3.1 50% 2450MHz3.1 51% 2472MHz2.9 52% 2500MHz2.7 50% 4900MHz5.0 53% 5150MHz5.7 58% 5180MHz5.6 58% 5350MHz5.1 63% 5500MHz4.9 61% 5725MHz4.3 56% 5805MHz4.4 57% 5825MHz4.1 57% 5850MHz4.2 59% 8

Item Page 1.1 2.2 3.3~6 4.7~11 5.12~15 6.16~19 .....................  ............... Contents Description  ............... .....................  ............... .....................  ............... ..................... .....................  ....................................  ! ............... Specification 1. Electrical Properties :(፸ྒྷ) 1.1 Frequency Range.................. 1.2 Impedance ..................... ... 1.3 VSWR .............................. 1.4 Return Loss........................ 1.5 Radiation ........................... 1.6 Gain(peak)......................... 1.7 Cable Loss........................ 0.2dB Max. 1.8 Polarization..................... ...Linear ; Vertical 1.9 Admitted Power.................. 1.10 Cable.............................. ... 1.11 Connector........................... 2. Physical Properties : 2.1 Operating Temp. ............... ...-10к ~ +60к 2.2 Storage Temp. .................. ...-10к ~ +70к ˠ ̨ ̇ʳˣ˿̈˺ 1W 2.4GHz ~ 2.5GHz 50͈ Nominal 3.57:1 Max. -5 dB Max. 2.0dBi (excluding cable loss ) ӥ˄ˁ˄ˆʳ˖˴˵˿˸ PIFA Antenna Omni-directional 1 PIFAAntenna P/NO :C147-510652-ASPEC : 2.4~2.5GHzNO: 209470 2010.1. 8 3 XY YZ XZ 0̓ Right Up Up 90̓ Back Back Right 180̓ Left Down Down 270̓ Front Front Left Z X Y DUTৱྒྷढ Gain Horn Antenna 4 4 ˣ ̃ ̇˔ʳ˔́̇˸́́˴ʳ ʳ P/NO : C147-510652-ASPEC : 2.4~2.5GHzNO:209470 2010.1.8 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -20-100 dB Far-field amplitude of C147-510652-A H.nsi 2.400000 GHz2.450000 GHz2.500000 GHz 5

Item Page 1.1 2.2 3.3~7 ...................... ...................... ...................... ...................... Contents Description ............................................ Specification 1. Electrical Properties : (with housing) 1.1 Frequency Range............ 1.2 Impedance ................... 1.3 VSWR ........................ 1.4 Return Loss.................. 1.5 Peak Gain(include cable loss)............2.4dBi 1.6Cable loss.....................0.16dB 1.7Polarization.................. Linear 1.8 Admitted Power............ . 1.9 Cable...........................ψ1.13 Coaxial Cable 1.10Connector.....................MHF Connector 2. Physical Properties : 2.1Operating Temp. ............-10°C ~ +60°C 2.2Storage Temp. ...............-10°C ~ +70°C PIFA Antenna 1W 2.4GHz ~ 2.5GHz 50Ω Nominal 1.92 Max. -10 dB Max. 1 2 Page 1 of 5 1 S-parameter test results 1.1 S11 test results 1.1.1 M.gear 1.1.1.1 Ant1 3 Page 2 of 5 2 Gain & Patterns test results 2.1 Measurement setting M.gear XY YZ XZ 0° Right Up Up 90° Back Back Right 180° Left Down Down 270° Front Front Left 4 Page 3 of 5 θ φ Total angle 175° 360° How many angle scan one point5° 5° Total scan point 36 73 5 Page 4 of 5 2.2 2D patterns 2.2.1 M.gear 2.2.1.1 Ant1 2.4~2.5GHz X-Z Plane (E-total) Y-Z Plane (E-total) 6 Page 5 of 5 X-Y Plane (E-total) 4 Summary 4.1 Return Loss M.gear Ant1(dB) 2.4GHz -19.5 2.45GHz -21.7 2.5GHz -16.7 4.3 3D total Peak Gain & Efficiency Frequency M.gear Ant1 Peak Gain (dBi) Efficiency (%) 2.412GHz 2.1 55% 2.437GHz 2.2 58% 2.472GHz 2.4 63% 7

Customers:中磊電子股份有限公司 Customer Model No.: Master Wave Model No.:98P39MIPF000 Product Description: Issue Date: REV.:00 承 認 書 APPROVAL SHEET 2010/10/26 PCB Antenna 核准 Approve主管 Chief承辦 Responsible CharleneFrankHero 客戶承認用印 Customer Approved 權億承認用印 Confirmation Signature 2010.10.26 MASTER WAVE TECHNOLOGY CO., LTD. 權億科技股份有限公司 Address: No.81-8, Longshou St., Taoyuan City, Taoyuan County 330, Taiwan (R.O.C.) Tel: +886-3-3600306 Fax: +886-3-3600979 Shengyih Electronic Plastic Co. Ltd (Shou Zhou) 聲億電子塑膠有限公司 (蘇州廠 ) Address: No.95 Wusong south Rd of Luzhi Town Wu zhong Area Suzhou City, China Tel：+86-512-65046030 Fax：+86-512-65046033 Shengyih Electronic Plastic Manufactory (Dongguan) 聲億電子塑膠製品廠 (東莞廠) Address: Mu-Lun Administration Area, Changping Town,Dongguan City.Guangdong Province,China T el：+86-769-83914045 Fax：+86-769-83914046 Table of Contents Item 1. Antenna Specifications -Drawing 2. Test Report -Electrical test -Pattern test 3. Material Certifications -Connector -Cable 4. Packing -PE Bag -Carton Modification History: REV.Content 00 Date 2010/10/26 Electrical Test ANT1 Electrical Test ANT2 2400MHz ANT1 2450MHz ANT1 2500MHz ANT1 Antenna Efficienc y 3.04 2.92 3.23 Gain (dBi) 60.23 58.69 57.64 Efficiency (%) -2.20 -2.31 -2.39 Efficiency (dB) 5.25 5.24 5.62 Directivity (dBi) ANT1 TC03 Note 2500 2450 2400 Frequency 2400MHz ANT2 2450MHz ANT2 2500MHz ANT2 Antenna Efficienc y 3.40 2.89 2.33 Gain (dBi) 57.00 55.32 52.79 Efficiency (%) -2.44 -2.57 -2.77 Efficiency (dB) 5.85 5.46 5.11 Directivity (dBi) ANT2 TC03 Note 2500 2450 2400 Frequency Connector I-PEX Connector I-PEX Connector I-PEX Connector I-PEX CABLE SPECIFICATION 線材規格

Compliance Certification Services Inc. Report No.: T101130209-RP1 FCC ID: P27NA910B Date of Issue: December 30, 2010 Page 95 Rev. 00 APPENDIX I RADIO FREQUENCY EXPOSURE LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUT Home Monitoring Gateway Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.18GHz ~ 5.32GHz / 5.50GHz ~ 5.70GHz WLAN: 5.745GHz ~ 5.825GHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power IEEE 802.11b mode: 18.18 dBm (65.77 mW) IEEE 802.11g mode: 26.77 dBm (475.34 mW) IEEE 802.11n HT 20 MHz mode: 25.13 dBm (325.84 mW) IEEE 802.11n HT 40 MHz mode: 28.79 dBm (756.83 mW) Part Number Gain Numeric gain C147-510649-A(SSR-210213)3.3 dBi 2.14 C147-510652-A(SSR-209470)2.0 dBi 1.58 C147-510674-A(SSR-210468)2.4 dBi 1.74 Antenna gain (Max) Antenna Calculation for MIMO Mode 10*LOG(((10^(3.3/20)+10^(2.4/20))^2)/2)= 5.87 dBi (Numeric gain: 3.86) Evaluation applied MPE Evaluation* SAR Evaluation N/A Remark: 1. The maximum output power is 28.79dBm (756.83mW) at 2437MHz (with 3.86 numeric antenna gain.) 2. DTS device is not subject to routine RF evaluation; MPE estimate is used to justify the compliance. 3. For mobile or fixed location transmitters, no SAR consideration applied. The maximum power density is 1.0 mW/cm2 even if the calculation indicates that the power density would be larger. TEST RESULTS No non-compliance noted. MPE EVALUATION No non-compliance noted. Compliance Certification Services Inc. Report No.: T101130209-RP1 FCC ID: P27NA910B Date of Issue: December 30, 2010 Page 96 Rev. 00 Calculation Given d GP E ×× = 30 & 3770 2 E S = Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S ×× = Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields () () 2 2 0796.0 100/3770 1000/30 d GP d GP S × ×= × ×× = Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Maximum Permissible Exposure Substituting the MPE safe distance using d = 20 cm into Equation 1: Yields GPS××=000199.0 Where P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Compliance Certification Services Inc. Report No.: T101130209-RP1 FCC ID: P27NA910B Date of Issue: December 30, 2010 Page 97 Rev. 00 IEEE 802.11b mode: EUT output power = 65.77 mW Numeric Antenna gain = 2.14 Æ Power density = 0.02801 mW / cm 2 IEEE 802.11g mode: EUT output power = 475.34 mW Numeric Antenna gain = 2.14 Æ Power density = 0.20243 mW / cm 2 IEEE 802.11n HT 20 MHz mode: EUT output power = 325.5 mW Numeric Antenna gain = 3.86 Æ Power density = 0.25002 mW / cm 2 IEEE 802.11n HT 40 MHz mode: EUT output power = 756.1 mW Numeric Antenna gain = 3.86 Æ Power density = 0.58079 mW / cm 2 (For mobile or fixed location transmitters, the maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger.)

Compliance Certification Services Inc. Report No.: T101130209-RP2 FCC ID: P27NA910B Date of Issue: December 30, 2010 Page 41 Rev. 00 APPENDIX I RADIO FREQUENCY EXPOSURE LIMIT Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See §15.247(i) and §1.1307(b)(1) of this chapter. EUT Specification EUT Home Monitoring Gateway Frequency band (Operating) Zigbee: 2405~2470MHz WLAN: 5.18GHz ~ 5.32GHz / 5.50GHz ~ 5.70GHz WLAN: 5.745GHz ~ 5.825GHz Bluetooth: 2.402GHz ~ 2.480 GHz Device category Portable (<20cm separation) Mobile (>20cm separation) Exposure classification Occupational/Controlled exposure (S = 5mW/cm2) General Population/Uncontrolled exposure (S=1mW/cm2) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power 16.23 dBm (41.98mW) Antenna gain (Max) 3.40 dBi (Numeric gain: 2.19) Evaluation applied MPE Evaluation* SAR Evaluation N/A Remark: 1. The maximum output power is 16.23dBm (41.98mW) at 2405MHz (with 2.19 numeric antenna gain.) 2. DTS device is not subject to routine RF evaluation; MPE estimate is used to justify the compliance. 3. For mobile or fixed location transmitters, no SAR consideration applied. The maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger. TEST RESULTS No non-compliance noted. MPE EVALUATION Not applicable Compliance Certification Services Inc. Report No.: T101130209-RP2 FCC ID: P27NA910B Date of Issue: December 30, 2010 Page 42 Rev. 00 Calculation Given d GP E ×× = 30 & 3770 2 E S = Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S ×× = Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields () () 2 2 0796.0 100/3770 1000/30 d GP d GP S × ×= × ×× = Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Maximum Permissible Exposure EUT output power = 41.98mW Numeric Antenna gain = 2.19 Substituting the MPE safe distance using d = 20 cm into Equation 1: Yields GPS××=000199.0 Where P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Æ Power density = 0.018295 mW / cm 2 (For mobile or fixed location transmitters, the maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger.)

Compliance Certification Services Inc. Report No.: T101130209-RP1 FCC ID: P27NA910B Date of Issue: December 30, 2010 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 100 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Home Monitoring Gateway Model: NA910 Trade Name: SerComm Issued to SerComm Corporation 8F, No.3-1, YuanQu St., NanKang, Taipei 115, Taiwan, R.O.C. Issued by Compliance Certification Services Inc. No.11, Wugong 6th Rd., Wugu Dist., Xinbei City 24891, Taiwan http://www.ccsrf.com [email protected] Compliance Certification Services Inc. Report No.: T101130209-RP1 FCC ID: P27NA910B Date of Issue: December 30, 2010 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION....................................................................................................3 2. EUT DESCRIPTION ...........................................................................................................................3 3. TEST METHODOLOGY ....................................................................................................................3 3.1 EUT CONFIGURATION........................................................................................................................3 3.2 EUT EXERCISE....................................................................................................................................3 3.3 GENERAL TEST PROCEDURES.............................................................................................................3 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS.........................................................3 3.5 DESCRIPTION OF TEST MODES...........................................................................................................3 4. INSTRUMENT CALIBRATION........................................................................................................3 4.1 MEASURING INSTRUMENT CALIBRATION......................................................................................3 4.2 MEASUREMENT EQUIPMENT USED .........................................................................................3 4.3 MEASUREMENT UNCERTAINTY ...............................................................................................3 5. FACILITIES AND ACCREDITATIONS ..........................................................................................3 5.1 FACILITIES .........................................................................................................................................3 5.2 EQUIPMENT........................................................................................................................................3 5.3 TABLE OF ACCREDITATIONS AND LISTINGS.......................................................................................3 6. SETUP OF EQUIPMENT UNDER TEST .........................................................................................3 6.1 SETUP CONFIGURATION OF EUT.........................................................................................................3 6.2 SUPPORT EQUIPMENT .................................................................................................................3 7. FCC PART 15.247 REQUIREMENTS...............................................................................................3 7.1 6DB BANDWIDTH...............................................................................................................................3 7.2 PEAK POWER......................................................................................................................................3 7.3 AVERAGE POWER..............................................................................................................................3 7.4 BAND EDGES MEASUREMENT ..................................................................................................3 7.5 PEAK POWER SPECTRAL DENSITY......................................................................................................3 7.6 SPURIOUS EMISSIONS...................................................................................................................3 7.7 RADIATED EMISSIONS ................................................................................................................3 7.8 POWERLINE CONDUCTED EMISSIONS.................................................................................................3 APPENDIX I RADIO FREQUENCY EXPOSURE .................................................................................3 APPENDIX II PHOTOGRAPHS OF TEST SETUP ...............................................................................3 APPENDIX 1 - PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T101130209-RP1 FCC ID: P27NA910B Date of Issue: December 30, 2010 Page 3 Rev. 00 1. TEST RESULT CERTIFICATION Applicant: SerComm Corporation 8F, No.3-1, YuanQu St., NanKang, Taipei 115, Taiwan, R.O.C. Equipment Under Test: Home Monitoring Gateway Tr a d e N a m e : SerComm Model: NA910 Date of Test: December 2 ~ 24, 2010 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2003 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Reviewed by: Re…
