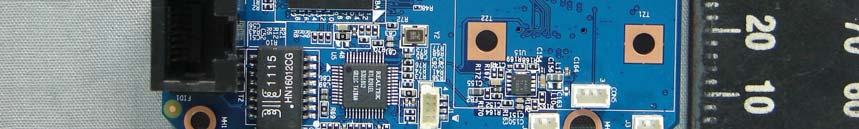

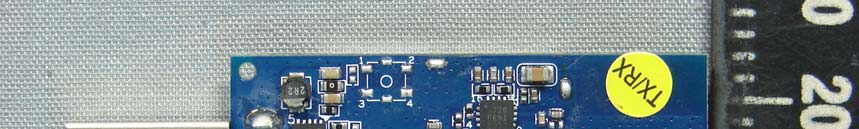

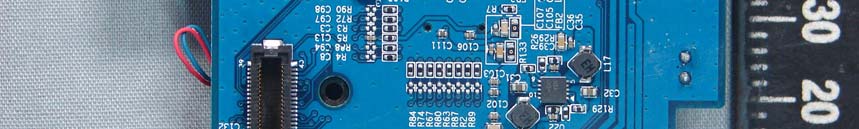

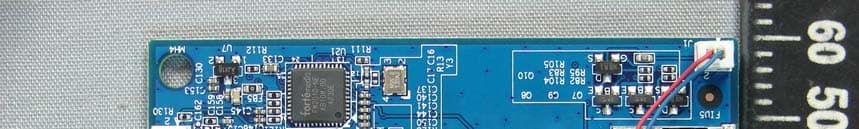

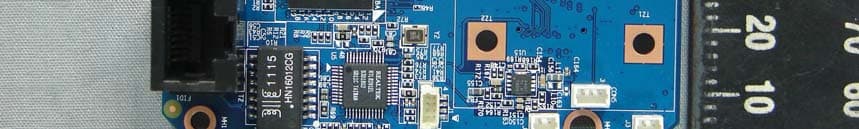

P27OC821Wireless(11n) Outdoor Camera

Network Camera User’s Guide i Table of Contents CHAPTER 1 INTRODUCTION.............................................................................................. 1 Overview ............................................................................................................................ 1 Physical Details - Network Camera ................................................................................. 4 Package Contents .............................................................................................................. 6 CHAPTER 2 BASIC SETUP ................................................................................................... 7 System Requirements........................................................................................................ 7 Installation - Network Camera......................................................................................... 7 Setup using the Windows Wizard .................................................................................... 9 CHAPTER 3 VIEWING LIVE VIDEO ................................................................................ 14 Overview .......................................................................................................................... 14 Requirements ...................................................................................................................14 Connecting to a Camera on your LAN .......................................................................... 14 Connecting to a Camera via the Internet ...................................................................... 16 Viewing Live Video ......................................................................................................... 18 CHAPTER 4 ADVANCED VIEWING SETUP ................................................................... 20 Introduction ..................................................................................................................... 20 Adjusting the Video Image ............................................................................................. 20 Viewing the live Video on your cell phone..................................................................... 23 Controlling User Access to the Video Stream ............................................................... 25 Making Video available from the Internet .................................................................... 26 Viewing Live Video via the Internet .............................................................................. 29 Motion Detection Alerts .................................................................................................. 30 CHAPTER 5 WEB-BASED MANAGEMENT .................................................................... 32 Introduction ..................................................................................................................... 32 Connecting to Network Camera..................................................................................... 32 Welcome Screen............................................................................................................... 33 Administration Menu...................................................................................................... 34 System Screen ..................................................................................................................35 Network Screen................................................................................................................ 37 Wireless Screen (Wireless Model Only) ........................................................................ 40 DDNS Screen ................................................................................................................... 42 Video Image Screen......................................................................................................... 44 Video Access Screen ........................................................................................................ 47 User Database Screen...................................................................................................... 49 Motion Detection Screen ................................................................................................. 50 E-Mail Screen ..................................................................................................................51 FTP Screen....................................................................................................................... 53 HTTP Screen ................................................................................................................... 54 Event Trigger Screen ...................................................................................................... 55 Maintenance Screen ........................................................................................................ 57 Status Screen.................................................................................................................... 59 Log Screen........................................................................................................................ 61 CHAPTER 6 WINDOWS VIEWING/RECORDING UTILITY........................................ 62 Overview .......................................................................................................................... 62 Installation ....................................................................................................................... 62 System Tray Icon............................................................................................................. 63 Main Screen .....................................................................................................................63 Camera Setup .................................................................................................................. …

Text truncated - open the document above for the full version.

SerComm Corporation中磊電子股份有限公司 Taipei Office: 8F, No.3-1, YuanQu St., NanKang, Taipei 115, Taiwan, R.O.C. TEL: 886-2-2655-3988 FAX: 886-2-2655-3966 Chu Nan Office: 3F, No. 81, YuYi Rd., Chu-Nan, Miao-Li 350, Taiwan, R.O.C. TEL: 886-37-585-899 FAX: 886-37-585-000 Date：November 17, 2011 Your Sincerely, Ronnie Cheng Associate Manager / R&D Division SerComm Corporation TEL: 886-2-2655-3988 #2547 FAX: 886-2-2655-7379 E-Mail: [email protected]

SerComm Corporation中磊電子股份有限公司 Taipei Office: 8F, No.3-1, YuanQu St., NanKang, Taipei 115, Taiwan, R.O.C. TEL: 886-2-2655-3988 FAX: 886-2-2655-3966 Chu Nan Office: 3F, No. 81, YuYi Rd., Chu-Nan, Miao-Li 350, Taiwan, R.O.C. TEL: 886-37-585-899 FAX: 886-37-585-000 Date：November 17, 2011 Your Sincerely, Ronnie Cheng Associate Manager / R&D Division SerComm Corporation TEL: 886-2-2655-3988 #2547 FAX: 886-2-2655-7379 E-Mail: [email protected]

Report Number: MLT1108P15004 Label Format: Label Position: Equipment Label 21mmX68mm Rear View This device complies with Part15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received , including Interference that may cause undesired operation. Trade Name : SerComm Model No. : OC821xxxxx FCC ID: P27OC821

Report Number: MLT1108P15004 Report Number: MLT1108P15004 Report Number: MLT1108P15004 Report Number: MLT1108P15004 Report Number: MLT1108P15004 Report Number: MLT1108P15004 7m extended power line cable

Page: 1 / 3 Report Number: MLT1108P15004 M M a a x x i i m m u u m m P P e e r r m m i i s s s s i i b b l l e e E E x x p p o o s s u u r r e e 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC), and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. Description of EUT Equipment Wireles(11n) Outdoor Camera Applicant Name SerComm Corporation Applicant Address 8F, No. 3-1, YuanQu St., NanKang, Taipei 115, Taiwan, R.O.C. Manufacturer Name SerComm Corporation Manufacturer Address 8F, No. 3-1, YuanQu St., NanKang, Taipei 115, Taiwan, R.O.C. Model No OC821xxxxx FCC ID P27OC821 3. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. Page: 2 / 3 Report Number: MLT1108P15004 4. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r^2) Where Pd = power density in mW/cm^2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm (20cm) 5. RF Exposure Limit : According to FCC 1. 1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm^2) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500 F/300 6 1500-100,000 5 6 (B)Limits For General Population / Uncontrolled Exposure 300-1500 F/1500 30 1500-100,000 1 30 6. Test Result: 802.11b Testing Result MPE Limit Frequency (MHz) Max RF Power (mW) TX Antenna Gain (dBi) (mW/cm^2) (mW/cm^2) 2412 44.361 4.1 0.0227 1 2437 49.774 4.1 0.0255 1 2462 43.053 4.1 0.0220 1 Page: 3 / 3 Report Number: MLT1108P15004 802.11g Testing Result MPE Limit Frequency (MHz) Max RF Power (mW) TX Antenna Gain (dBi) (mW/cm^2) (mW/cm^2) 2412 47.643 4.1 0.0244 1 2437 49.431 4.1 0.0253 1 2462 48.084 4.1 0.0246 1 802.11n HT20 Testing Result MPE Limit Frequency (MHz) Max RF Power (mW) TX Antenna Gain (dBi) (mW/cm^2) (mW/cm^2) 2412 89.683 4.1 0.0459 1 2437 93.805 4.1 0.0480 1 2462 87.106 4.1 0.0445 1 802.11n HT40 Testing Result MPE Limit Frequency (MHz) Max RF Power (mW) TX Antenna Gain (dBi) (mW/cm^2) (mW/cm^2) 2412 92.798 4.1 0.0475 1 2437 92.801 4.1 0.0475 1 2462 89.098 4.1 0.0456 1

Page: 1 / 77 Report Number: MLT1108P15004 (FCC : Part 15 Subpart C (15.247) / ANSI C63.4-2003) Product :Wireles(11n) Outdoor Camera Trade Name :SerComm Model No. :OC821xxxxx Applicant :SerComm Corporation Applicant Address : 8F, No. 3-1, YuanQu St., NanKang, Taipei 115, Taiwan, R.O.C. Page: 2 / 77 Report Number: MLT1108P15004 Report Number MLT1108P15004 Applicant SerComm Corporation Product Wireles(11n) Outdoor Camera Sample Received Date 2011/8/29 Report Prepared By Jesse Tien Signature Date Prepared 2011/8/29 ～ 2011/10/12 Report Authorized By Roger Chen Signature Date Authorized 2011/10/20 Test By Max Light Technology Co., Ltd. Room 5, 8F, No.125, Section 3 Roosevelt Road, Taipei, Taiwan., R.O.C. Office : Tel: 886-2-2363-2447 Fax: 886-2-2363-2597 Lab. : Tel: 886-2-2663-3486 Fax: 886-2-2663-3582 I I t t m m a a y y b b e e d d u u p p l l i i c c a a t t e e d d c c o o m m p p l l e e t t e e l l y y f f o o r r l l e e g g a a l l u u s s e e w w i i t t h h t t h h e e a a l l l l o o w w a a n n c c e e o o f f t t h h e e a a p p p p l l i i c c a a n n t t . . I I t t s s h h a a l l l l n n o o t t b b e e r r e e p p r r o o d d u u c c e e d d e e x x c c e e p p t t i i n n f f u u l l l l , , w w i i t t h h o o u u t t t t h h e e w w r r i i t t t t e e n n a a p p p p r r o o v v a a l l o o f f o o u u r r l l a a b b o o r r a a t t o o r r y y . . Page: 3 / 77 Report Number: MLT1108P15004 Table of Contents : 1. General ---------------------------------------------------------------------------------------------------------- 5 2. Conducted Emissions Requirements --------------------------------------------------------------------- 9 3. Radiated Emissions Requirement ------------------------------------------------------------------------15 4. Maximum Conducted Output Power Requirements -------------------------------------------------30 5. Minimum 6dB RF Bandwidth Requirements -----------------------------------------------------------33 6. Maximum Power Density Requirements----------------------------------------------------------------44 7. Out of Band Conducted Spurious Emissions Requirements --------------------------------------50 8. Band Edges Requirement ----------------------------------------------------------------------------------70 9. Antenna Requirements--------------------------------------------------------------------------------------75 Appendix I ( EUT Test Setup )--------------------------------------------------------------------------------76 Appendix II (Brand / Trade Name & Model No. Multiple Listee )-------------------------------------77 Page: 4 / 77 Report Number: MLT1108P15004 CERTIFICATION We here by verify that : The test data, data evaluation, test procedures and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4-2003. All test were conducted by MLT(Max Light Technology Co.,Ltd) Room 5, 8F, No.125, Section 3 Roosevelt Road, Taipei, Taiwan, R.O.C Also, we attest to the accuracy of each. We further submit that the energy emitted by the sample EUT tested as described in the report is in compliance with Class B radiated and conducted emission limit of FCC Rules Part 15 Subpart C (15.247). Applicant Name SerComm Corporation Applicant Address 8F, No. 3-1, YuanQu St., NanKang, Taipei 115, Taiwan, R.O.C. Manufacturer Name SerComm Corporation Manufacturer Address 8F, No. 3-1, YuanQu St., NanKang, Taipei 115, Taiwan, R.O.C. Equipment Wireles(11n) Outdoor Camera Model No OC821xxxxx FCC ID P27OC821 Report Prepared By Jesse Tien Signature Report Authorized By Roger Chen Signature Page: 5 / 77 Report Number: MLT1108P15004 1. General 1.1 Introduction The following measurement report is submitted on behalf of SerComm Corporation In support of a Class B Digital Device certification in accordance with Part2 Subpart J and Part 15 Subpart C of the Commission’s and Regulations. 1.2 Customer Details Applicant Name SerComm Corporation Applicant Address 8F, No. 3-1, YuanQu St., NanKang, Taipei 115, Taiwan, R.O.C. Manufacturer Name SerComm Corporation Manufacturer Address 8F, No. 3-1, YuanQu St., NanKang, Taipei 115, Taiwan, R.O.C. 1.3 Technical data of EUT Equipment Wireles(11n) Outdoor Camera Model No OC821xxxxx FCC ID P27OC821 Model : MU12-G120100-A1(LEI) Input : AC100~240V , 50/60Hz , 0.5A Output : DC12V , 1A Power Type Model : SYS1381-1212-W2 (Sunny) Input : AC100~240V , 50/60Hz , 0.5A Output : DC12V , 1A Type of Modulation CCK, DQPSK, DBPSK for DSSS 64QAM, 16QAM, QPSK, BPSK for OFDM Transfer rate 802.11b: 11/ 5.5/ 2/ 1Mbps 802.11g: 54/ 48/ 36/ 24/ 18/ 12/ 9/ 6Mbps 802.11n HT20: 130, 117, 104, 78, 52, 39, 26, 13Mbps 802.11n HT40: 270, 243, 216, 162, 108, 81, 54, 27Mbps Type of Antenna Dipole Antenna ( Reverse SMA ) Frequency of Channel See Next page During testing the EUT was operated at Tx or Rx mode for each emission measured. This was done in order to ensure that maximum emission levels were attained. Page: 6 / 77 Report Number: MLT1108P15004 802.11b & 802.11g & 802.11n HT20 Frequency of Each Channel (Working Frequency) Channel No. Frequency (MHz) 01 2412 02 2417 03 2422 04 2427 05 2432 06 2437 07 2442 08 2447 09 2452 10 2457 11 2462 802.11n HT40 Frequency of Each Channel (Working Frequency) Channel No. Frequency (MHz) 03 2422 04 2427 05 2432 06 2437 07 2442 08 2447 09 2452 1.4 Summary Of Tests 47 CFR Part 15 Subpart C Reference Test Results Note 15.207 AC Power Conducted Emission PASS 15.209 Radiated Emission PASS 15.247© Transmitter Radiated Emissions PASS 15.247(b) Max. Output Power PASS 15.247(a)(2) 6dB RF Bandwidth PASS 15.247(d) Max. Power Density PASS 15.247© Out of Band Conducted Spurious EmissionPASS 15.247© Band Edge Measurement PASS 15.203 Antenna Requirement PASS Page: 7 / 77 Report Number: MLT1108P15004 1.5 Description of Support Equipment This Wireless (11n) Outdoor Camera itself forms a system. No support equipment is required for its normal operation. 1.6 Configuration of System Unde…
