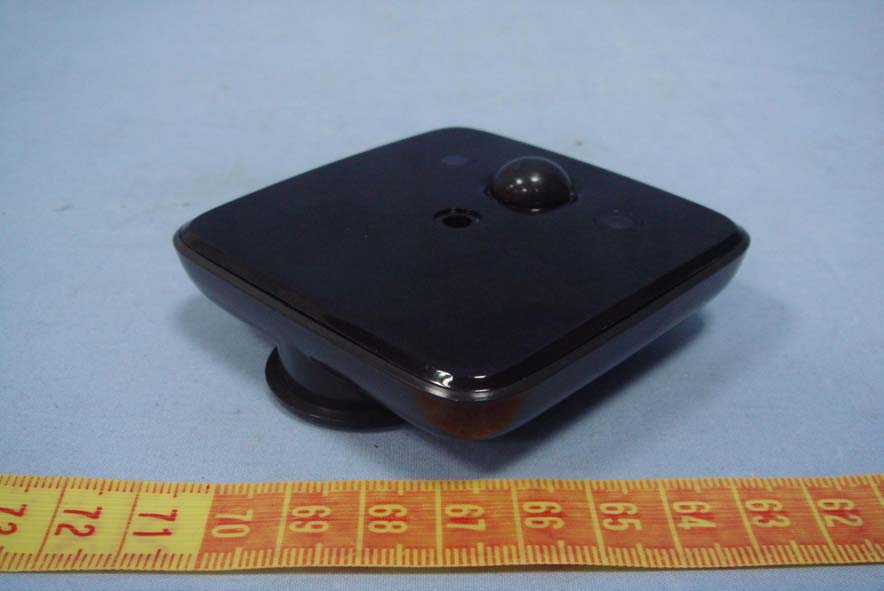

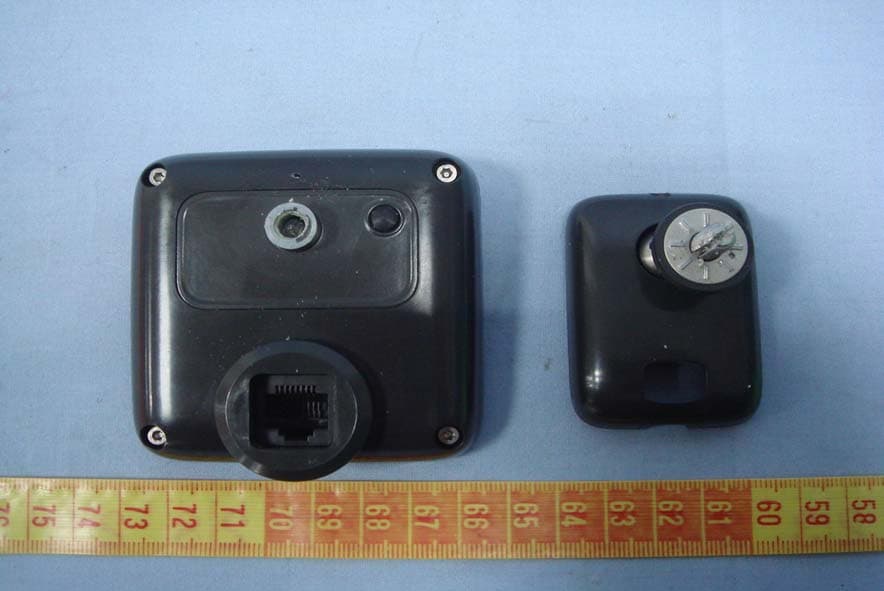

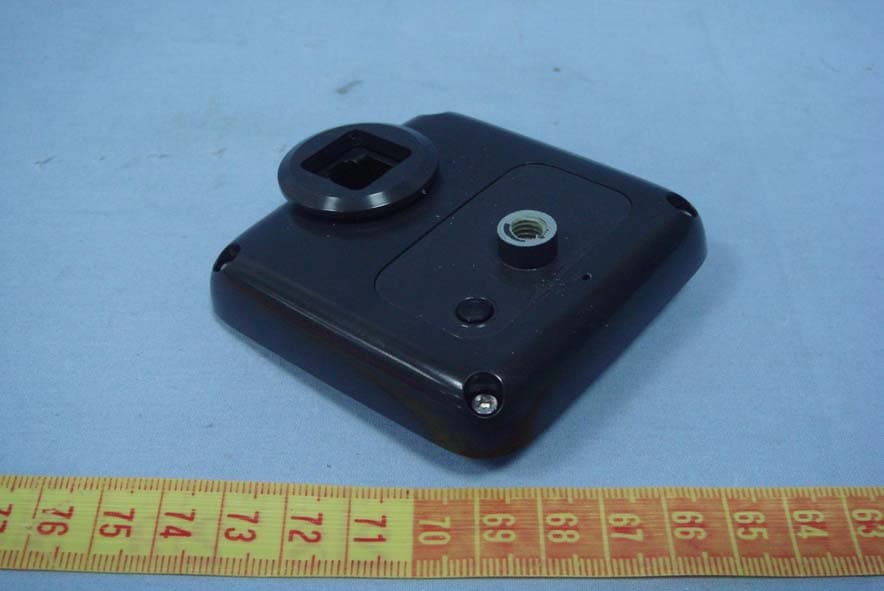

P27OC825Home Security Camera

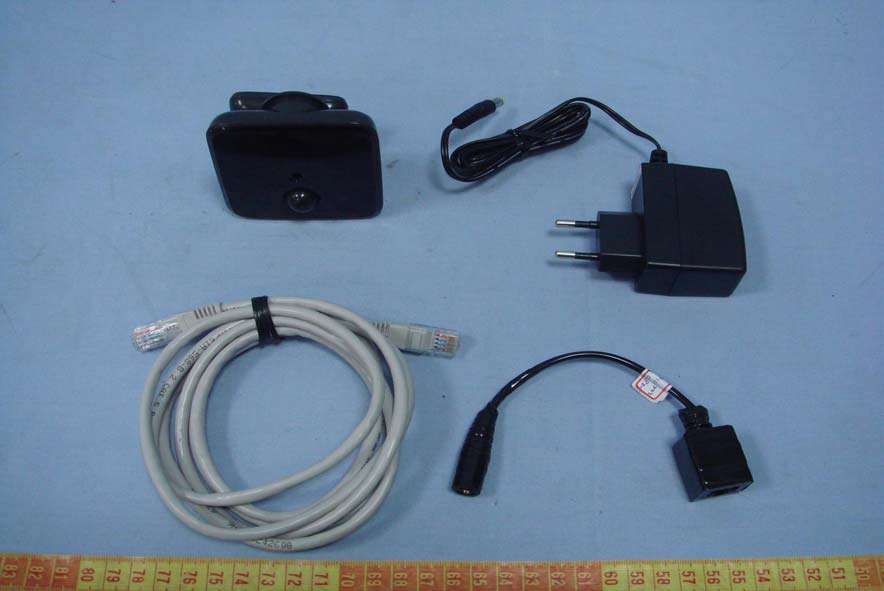

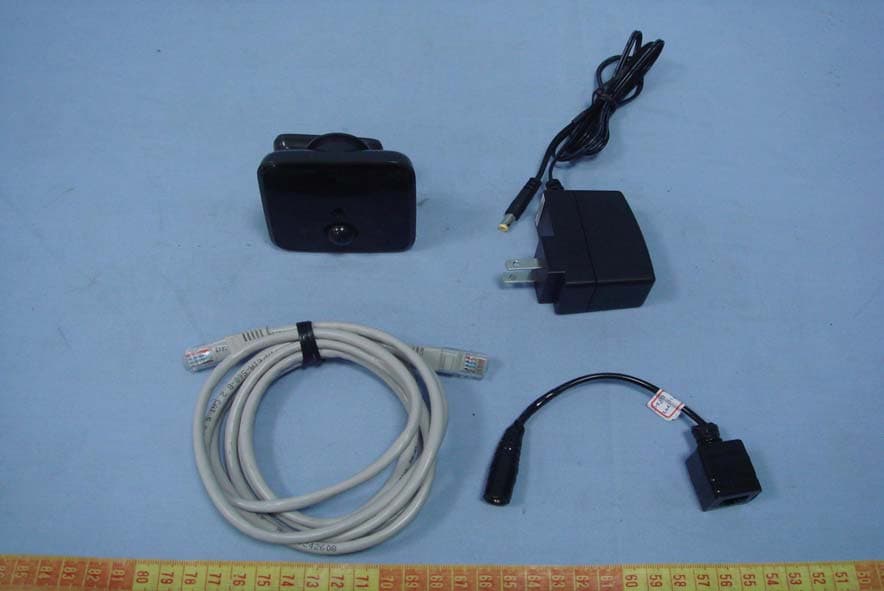

Home Security Camera User Guide OC825 Table of Contents CHAPTER 1 INTRODUCTION.............................................................................................1 Package Contents..............................................................................................................1 Features..............................................................................................................................1 LEDs...................................................................................................................................2 CHAPTER 2 INITIAL INSTALLATION..............................................................................4 Requirements..................................................................................................................... 4 Procedure...........................................................................................................................4 CHAPTER 3 SPECIFICATIONS...........................................................................................6 Specifications.....................................................................................................................6 Customized RJ45 & Power Supply..................................................................................6 Day/Night Mode.................................................................................................................7 Regulatory Approvals.......................................................................................................8 Copyright © 2011. All Rights Reserved. Document Version: 1.0 All trademarks and trade names are the properties of their respective owners. i 1 Chapter 1 Introduction This Chapter provides an overview of the iCamera's features and capabilities. Congratulations on the purchase of your new iCamera. The iCamera is a Day and Night Net- work Camera with VGA resolution and 802.11n WiFi connectivity. Package Contents The following items should be included: • The iCamera Unit • Bracket * 1 • Y-Cable * 1 with boot • Adapter * 1 If any of the above items are damaged or missing, please contact your dealer immediately. Features • DDR2 128MB with16MB Flash • One Ethernet port with RJ45 connector • Dual Omni Vision OV7740 1/5” CMOS Sensor • Front Panel LEDs • Reset/ WPS button • Built-in Microphone • Daylight Sensor • Internal antenna for WiFi 1 LEDs Front-mounted LEDs The iCamera has 3 LEDs. POWER/WiFi (Green) • On (Green)- Power On • Off - Power Off • Blinking - Data is being transmitted or received. • Blinking Low - Weak strength of WiFi signal (1/2 Hz, SNR < 15 dB) • Blinking Medium - Strength of WiFi signal is normal (1/2 Hz, SNR < 15 dB) • Blinking High - Good strength of WiFi signal (1/2 Hz, SNR < 15 dB) Network (Green) • On (Green)- LAN/Wireless connection established. • Off - No active connection on the corresponding LAN port, or not associated to Wireless AP • Flashing - Data is being transmitted or received. WPS (Green) • On - When the WPS function is failed, the WPS LED will be lit on for 5 seconds. • Off - WPS function is off. • Flashing - WPS function is being processed. If it is successful, the WPS LED will be off. 2 Rear Panel LAN Port Use standard LAN cable (RJ45 connectors) to connect your PC to the port. PoE (Power over Ethernet) function is supported. Reset This button has two (2) functions: • Reboot. When pressed and released, the iCamera will reboot (restart). • Clear All Data. This button can also be used to clear ALL data and restore ALL settings to the factory default values. To Clear All Data and restore the factory default values: 1. Power On. 2. Keep holding the Reset Button down for 8 seconds. Release the Reset Button. The iCamera is now using the factory default values. Microphone The built-in microphone is useful for bi-direction voice conversation. 3 2 Chapter 2 Initial Installation This Chapter covers the software installation of the iCamera. Requirements • Network cable. Use standard 10/100BaseT network (UTP) cable with RJ45 connector. Procedure 1. Choose an Installation Site Select a suitable place to install the iCamera. 2. Disassemble the Mount kit Disassemble the mount kit in order to connect the LAN cable. 1. Take out the wall-mount kit from package box. 2. Remove Knob. 3. Use a screwdriver to loosen the screw in order to remove the top cover. 3. Connect LAN Cable 1. Connect LAN cable through the hole. 2. Lock the front cover into wall-mount kit. 3. Put the Knob back. 4. Use LAN cable to connect the device to the Ethernet port on the iCamera. Note! For the first installation, the user needs to ask the professional’s assistance to connect the iCamera and iHub-3001B via the Y-cable (with Ethernet). After the 1 st installation is completed, the user will use the Y-cable (without Ethernet) only. 4 Initial Installation 4. Power Up Connect the supplied power adapter to the iCamera. Use only the power adapter provided. Using a different one may cause hardware damage. 5. Check the LEDs • The POWER LED should be ON. • The Network LED should be ON (provided the PC is also ON.) 5 3 Chapter 3 Specifications This Chapter provides specifications for the iCamera. Specifications Model iCamera Dimensions 72mm (W) x 72mm (H) x 20mm (D) (without bracket) Operating Temperature Outdoor: -20° C to 45° C Indoor: 0° C to 45° C Video compression H.264, MPEG4 and MJPEG Network Interface 1 Ethernet 10/100BaseT (RJ45) Storage Temperature -20° C to 60° C LEDs 3 Power Adapter 12V/1A Customized RJ45 & Power Supply RJ45 pin definition pin 1-> TXD+ pin 2-> TXD pin3-> RXD+ pin 4-> GND pin 5-> GND pin 6-> RXD pin7-> 12V pin 8-> 12V 6 Day/Night Mode Day mode SerComm P/N# 61930020LA Vendor P/N# 9347A1B Night mode SerComm P/N# 61930010LA Vendor P/N# 9347A3B, 7 Regulatory Approvals FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide …
